USER MANUAL OR090D BLACK & DECKER

Line drawing of two identical cylindrical water heaters with cooling fans and wheels (no text or symbols)

Intended use

Your BLACK+DECKER™ OR070D-B5, OR070D-B9, OR090D-B5 and OR090D-B9 oil filled radiators have been designed for heating rooms.

This product is intended for consumer use only.

Thank you for choosing BLACK+DECKER. We hope that you will enjoy using this product for many years.

For indoor household use only.

This appliance is not to be used in:

• Staff kitchen areas in shops, offices and other working environments;
• Farm Houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments or any other non-household type environments.

Safety instructions

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

• Read all of this manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury and material damage.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.
- Never pull the power supply cord to disconnect the plug from the socket.
- Keep the power supply cord away from heat, oil and sharp edges.
- Do not place the appliance on or near heat sources.
- Do not use the appliance outdoors.
- If the power supply cord is damaged during use,

disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• Never let the appliance operate unattended.
• Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.
• Fully uncoil then guide the power supply cord neatly so it cannot be caught accidentally or tripped over.
• The radiator must not be located immediately below a socket-outlet.
• To prevent overload and blown fuses, do not plug other appliance into same outlet (receptacle).
• Do not place the radiator on carpets, don't place the cable under carpets. Arrange cord away from track areas so that it will not be tripped over.
• This heater is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never locate heater where it may fall into a bathtub or other water container. Do not use this radiator in the immediate surroundings of a bath, a shower or a swimming pool.

Warning! In order to avoid overheating, do not cover the radiator. NEVER use the radiator to dry clothes or similar articles.

• Don't touch the hot surfaces.
• Do not position the appliances in close proximity to curtains or other combustible materials. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 1.0m away from the radiator.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not use this radiator with a programmer, timer, separate remote-control system or any other device that switches the radiator on automatically, since a fire risk exists if the radiator is covered or positioned incorrectly.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• Do not store away until the radiator cools down, store the radiator in cool dry location when not in use.
• Don't use extension cable.
  • Always operate on a flat horizontal surface.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
• Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
• The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.

• Always use the radiator in an upright position.
- Do not use the appliance in rooms less than 4m2 area.
- To disconnect the appliance, switch it "OFF" then remove the plug from outlet. Do not pull out the cord because this could damage it.
- The temperature of accessible surfaces may be high during use and for some time afterwards.

Warning! This radiator is not equipped with a device to control the room temperature. Do not use this radiator in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- Always leave sufficient space around the radiator for ventilation.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children or any person unfamiliar with these instructions to use the appliance.
• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
• Close supervision is necessary when the appliance is used near children.
• Children should be kept away unless continuously supervised.

Caution! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

After use

• Remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Switch off the appliance before cleaning, changing accessories or approaching parts which move in use.
• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced

by an authorised repair agent.

• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.
• This heater is filled with a precise quantity of special oil. Repairs requiring opening of oil-container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak. When scrapping the heater, follow the regulations concerning the disposal of oil.

Electrical safety

Before use, check that the mains voltage corresponds to the voltage on the rating plate.

This product must be earthed. Always check that the mains voltage corresponds to the voltage on the rating plate

• Appliance plugs must match the outlet. Never modify the plug in any way.
• Do not use any adapter plugs with earthed (Class 1) appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
• To avoid the risk of electric shock, do not immerse the cord, plug or appliance in water or other liquid.

Labels on Appliance

The following pictograms along with the date code are shown on the tool:

Warning! Hot surface.

Warning! In order to avoid overheating, do not cover the radiator.

Features

1. Fin
2. Air outlet
3. Rear castor assembly
4. Front castor assembly
5. Cord wrap
6. Power switch
7. Thermostat switch
8. Power indicator light

Assembly

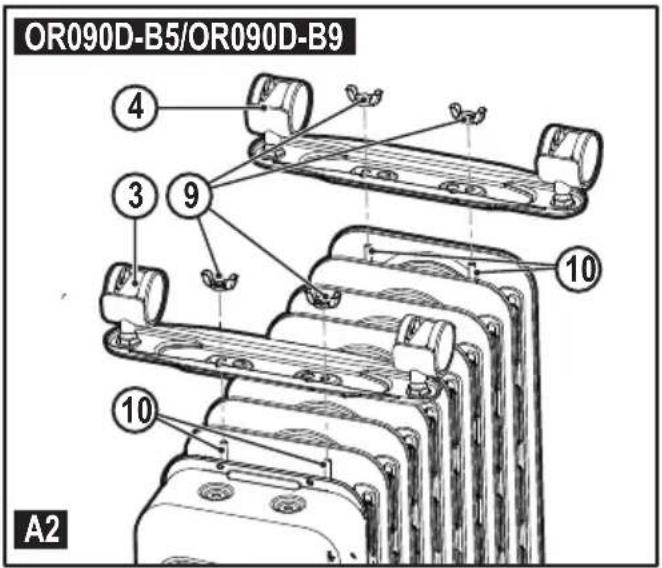

Castor assembly (fig. A1, A2)

• Place the radiator inversely with the bottom upward.
• Connect and tighten two wheel carrier plates to the screw hooks (10) with the wing nuts (9) as shown in figure A1 and A2.
• Place the radiator upward after it is installed securely with the wheels touching the ground.

Warning! Do not operate radiator without the wheels assembled.

Operate radiator in upright position only (wheels on bottom, controls on top). Any other position could create a hazardous situation. Ensure that the surface beneath the radiator is clean and free of any obstructions.

Use

Your appliance is fitted with a thermostat for your safety. Using the appliance continuously for very long periods may cause the appliance to overheat and stop working. It is therefore recommended that you disconnect the appliance from the

mains supply and allow to fully cool before continuing use.

• Use this heater on a horizontal and stable surface.
• Do not use this heater if it has been dropped;
• Do not use if there are visible signs of damage to the heater;
• Connect it to the electricity supply. Ensure that the thermostat is set to "MIN" position and the power selection switch is set to "0" position
• Rotate power switch to the "3" position then turn the thermostat to the "MAX" position, the unit will begin to work, when the temperature rises to your are satisfaction, slowly turn the thermostat switch clockwise until the room temperature keeps constant. If you want to raise or lower the room temperature, you can make another regulation: Turn the thermostat clockwise to raise the temperature and counterclockwise to lower it.
• Set the thermostat to the required setting.
• After use, turn the power switch to the "0" position first, then turn the thermostat to the "MIN" position, and pull out the power supply plug.

Warning: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Warning: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

Cleaning and maintenance & storage

Warning! Before cleaning and maintenance, switch the appliance off and remove the plug from the socket.

Warning! Do not immerse the appliance or the cord set or

the plug in water or any other liquid.

• Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.
• Clean the unit with a damp cloth. Never immerse the unit in water.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal of the new plug.
• Connect the blue lead to the neutral terminal.
• If the product is class I (earthed), connect the green / yellow lead to the earth terminal.

Warning! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs.

Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• BLACK+DECKER provides a facility for recycling BLACK+DECKER products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorized BLACK+DECKER repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Technical data

	OR070D-B5/ OR070D-B9	OR090D-B5/ OR090D-B9
Voltage (V) 220 -	240 220 - 240
Frequency (Hz) 5	0 / 60 50 / 60
Power (W) 1500	2000

Warranty

BLACK+DECKER is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or BLACK+DECKER service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual.

Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
