Product type	Microwave oven with grill
Brand	Gorenje
Model	BM235ORAW
Oven capacity	23 liters
Power consumption	220-240 V ~ 50 Hz, 1450 W
Microwave output power	900 W
Grill heater power	1200 W
Operating frequency	2450 MHz
Outside dimensions (W×H×D)	592 mm × 390 mm × 368 mm
Net weight (approx.)	14.5 kg (16.8 kg uncrated)
Noise level	< 58 dB(A)
Microwave power levels	5 levels (100%, 70%, 50%, 30%, 10%)
Grill modes	G-1 (85% power), G-2 (50% power)
Combination cooking modes	C-1 (55% micro + 45% grill), C-2 (30% micro + 60% grill)
Auto menu programs	8 (Rice, Vegetable, Noodles, Meat, Fish, Chicken, Liquid, Popcorn)
Special functions	Quick start, auto defrost (100-2000 g), delay start, child lock, eco mode
Accessories included	Glass turntable, roller ring, grill rack, built-in installation kit
Cabinet dimensions for built-in	Width 566-580 mm, height 365-380 mm, depth min. 550 mm
Cleaning instructions	Wipe interior with damp cloth; do not use abrasive cleaners; glass tray dishwasher safe
Safety features	Door safety lock system, child lock, earthed plug, microwave leakage protection
Repairability / Service	Lamp replacement by Gorenje service only; supply cord must be replaced by qualified personnel
Environmental compliance	WEEE directive 2012/19/EU; recycle at designated collection point

Frequently Asked Questions - BM235ORAW GORENJE

How to set the clock on my Gorenje BM235ORAW?

Press CLOCK/TIMER, adjust hours and minutes with +/- buttons, press CLOCK/TIMER again to confirm. The clock uses a 24-hour format.

What is the correct way to use the grill function?

Press MICRO/GRILL repeatedly to select G-1 (85% power) or G-2 (50% power). Set cooking time (max 60 min). During grilling, the oven will pause halfway and beep twice, prompting you to turn the food over. Close the door and press START to resume.

Can I use metal containers in this microwave?

No, do not use metal pans, dishes with metal handles, or metal twist ties. Use only microwave-safe cookware (glass, ceramic, plastic suitable for microwave).

How do I activate the child lock?

In standby mode, press and hold START/PAUSE for 3 seconds until a beep sounds and the lock indicator appears. To deactivate, press and hold the same button again for 3 seconds.

Why does my microwave oven not start?

Check that it is plugged in securely, the door is fully closed, and the safety interlocks are engaged. Verify that the circuit breaker is not tripped. If needed, test the outlet with another appliance.

How to clean the microwave interior?

Wipe the inside with a damp cloth after each use. For odors, combine a cup of water with lemon juice and peel, microwave for 5 minutes, then wipe dry. Do not use abrasive cleaners or allow water into vent openings.

What is the delayed start feature and how to set it?

Delayed start allows you to program the oven to start cooking at a preset time. First set the clock, then press CLOCK/TIMER to set the desired start time, select power and cooking time, then press START. The oven will begin at the set time.

Can I use the microwave when it is empty?

No, never operate the microwave empty. This can damage the magnetron. Always have food or a microwave-safe cup of water inside when cooking.

How to replace the interior light bulb?

The light bulb must only be replaced by Gorenje service or a qualified technician. Do not attempt to replace it yourself, as it involves removing covers protecting against microwave radiation.

What are the built-in cabinet requirements for this model?

Internal width: 566-580 mm, internal height: 365-380 mm, minimum depth: 550 mm. The cabinet top must be at least 15 mm thick. Use the supplied installation kit (screws and covers) to secure the oven.

USER MANUAL BM235ORAW GORENJE

Instruction manual / Microwave oven

EN 21

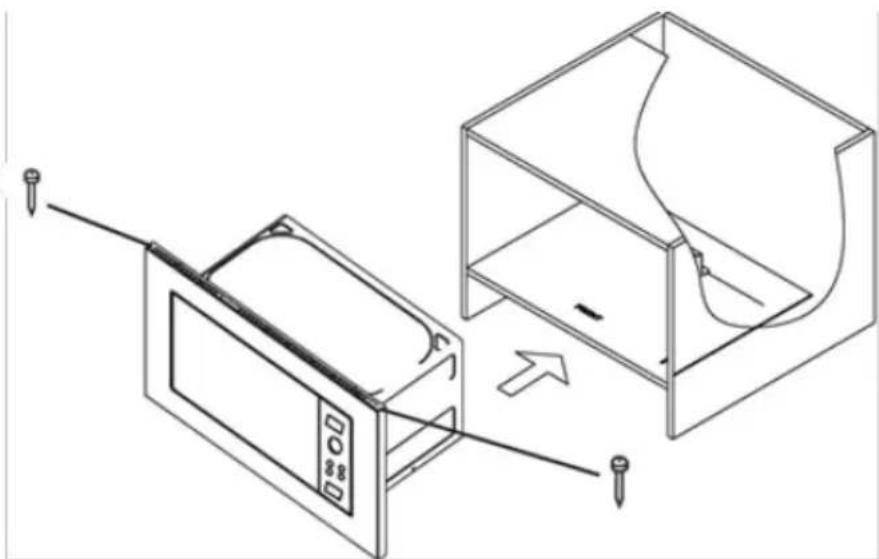

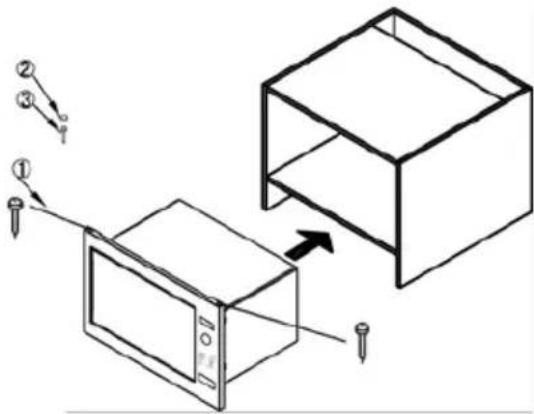

1. Postavite mikrovalovko v kuhinjski element. Namestite jo na sredino elementa. Vstavite vijake v pripravljene luknje na okvirju (komponenta 1) v okvir mikrovalovke in privijačite v element.

Line drawing of a microwave oven and its internal structure with a cable, showing components and wiring (no text or symbols)

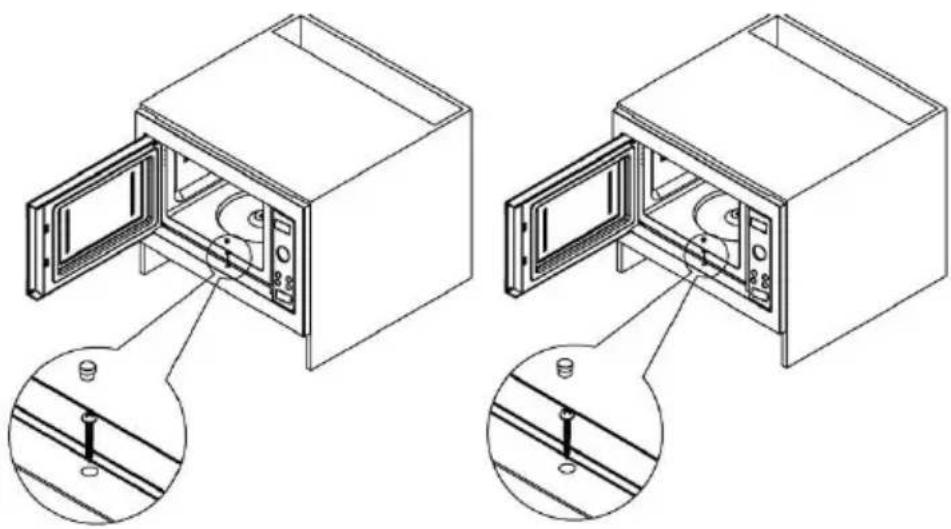

1. Odprite vrata mikrovalovke, vstavite vijak (komponenta pripravljeno luknjo in ga privijačite v element, potem vijak pokrijte s pokrovčkom za vijak (komponenta 2).

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing internal components (no text or symbols)

PREDEN POKLIČETE SERVISERJA

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

Carefully read the instructions and save them for future reference.

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.

• The oven should be cleaned regularly and any food deposits removed;

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

• To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from bags before placing bag in oven.

c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

1. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential environments;

- bed and breakfast type environments.

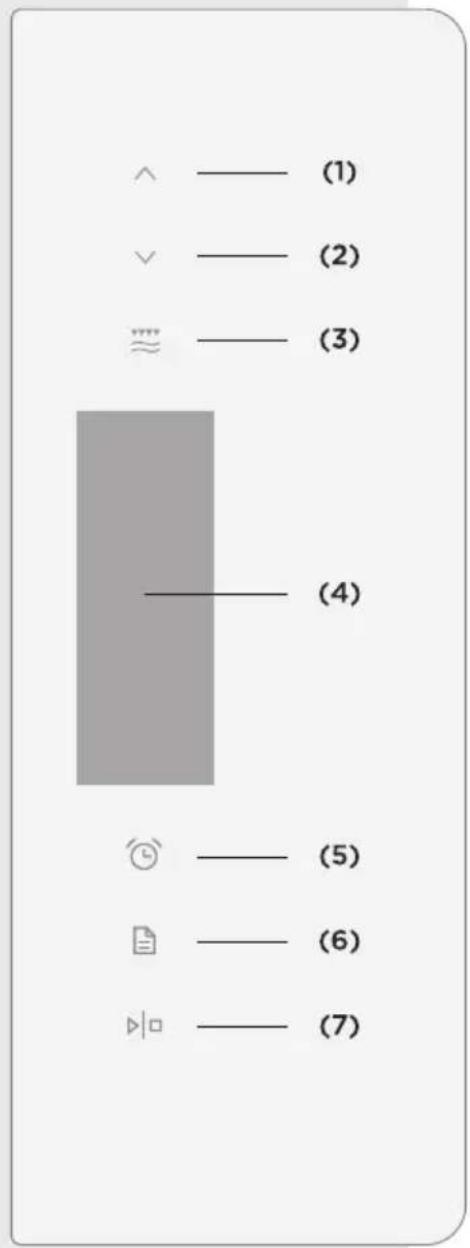

CONTROL PANEL

1. Up (+)
2. Down (-)
3. Heating function - MICRO/GRILL
4. Display Window
5. CLOCK/TIMER
6. AUTO MENU
7. START/RESET

Simple line drawing of a circular object with diagonal hatching and two protruding legs (no text or symbols)

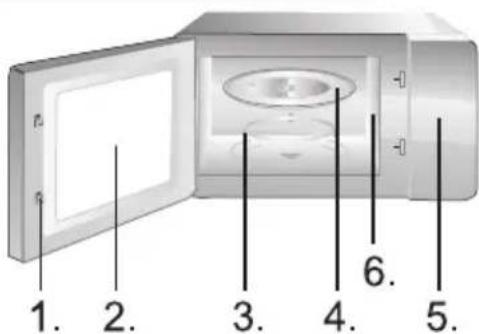

1. Door Safety Lock System
   2.Oven Window
2. Roller Ring
3. Glass Tray
4. Control Panel
5. Wave guide (please do not remove the mica plate covering the wave guide)

Grill rack (Only be used for grill or for combination function and be placed on glass tray

INSTRUCTIONS FOR USE

1. QUICK START

Use this function to rapidly heat (100% microwave power) or cook your food. In the standby mode, press the START key and the oven will operate for 60 seconds.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable and close the door.
b) Press the button START/RESET, the microwave oven will work on 100% power for 1 minutes.
c) You will hear 5 beeps when cooking is completed.

This function has two options.

a) Quick microwave heating (100% power)

Example: To heat food on 100% power for 5 minutes

1. Set time to »5:00«.
2. Press START/RESET.

b) Manual-operation microwave heating

Example: To heat food on 70% power for 10 minutes

1. Press MICRO/GRILL button, select »70%« power.
2. Set time to »10:00«.
3. Press START/RESET.

There are 5 power levels and the longest microwave cooking time is 60 minutes.

Touching times "MICRO/GRILL"	Microwave power	Display
1 100% P100
2 70% P70
3 50% P50
4 30% P30
5 10% P10

3. AUTO DEFROST

The oven allows defrosting of meat, poultry, and seafood. Defrosting time and operating power will be adjusted automatically according to the preset weight. Weight of the food to be defrosted may be between 100 g and 2000 g.

4. GRILL

Example: defrost 0.5 kg of frozen meat

a) Press MICRO/GRILL to select »DEF«.
b) Input weight by pressing UP and DOWN button.
c) Press the START key to start the program.

Grilling is especially suitable for thin slices of meat, escalopes or steaks, meat chops, skewers, sausages, or pieces of chicken. Grilling is also suitable for toasting bread or sandwiches and finishing dishes au gratin.

This function has two options. You may select between the two by pressing the MICRO/GRILL button (the longest cooking time is 60 minutes):

Option 1: 85% grill power, display G-1

Option 2: 50% grill power, display G-2

Example: Cooking food using the grill for 20 minutes

a) Press MICRO/GRILL until display shows »G-1«.
b) Set cooking time »20:00«.
c) Press START/RESET.

NOTE: When grilling, food is not heated by microwaves. Heat is radiated from the metal heater at the top of the oven. When grill is working, the cooking time is divided into 2 stages. after the 1st stage, program will automatically pause and sound 2 beeps, indicating you to open the oven and turn over the food. Close the door after turning the food. Press START/RESET button and the cooking will continue for the 2nd stage. If you do not want to turn over the food, the oven will re-start automatically after 1 min pause.

5. COMBINATION COOKING

With this appliance you can select between two options of combination cooking.

Option 1: The oven will operate with microwaves 55 percent of the time, and with grill 45 percent of the time. This operating mode is suitable for cooking fish or dishes au gratin. Display will show »C-1«.

Option 2: The oven will operate with microwaves 30 percent of the time, and with grill 60 percent of the time. This operating mode is suitable for cooking pudding, souffles, omelettes, baked potatoes, and poultry. Display will show »C-2«.

Example: Cooking food using option 2 for 15 minutes

a) Press MICRO/GRILL until display shows »C-2«.
b) Set cooking time to »15:00«.
c) Press START/RESET.

For the food in the auto menu, only the type of food and the weight/amount have to be set. The oven will aid you in the setting of power and time.

Example: Auto cooking 0.4 kg fish

a) Press AUTO MENU button until »A-5« displayed.
b) Input the weight by pressing the button UP and DOWN.
c) Press START/RESET.

Menu	Weight/amount	Microwave power
A-1Rice	100 - 500g 16	- 23min 80%
A-2Vegetable	100 - 600g 2	- 7min 30sec 100%
A-3Noodles	1 - 2	4min 30sec - 7min 40sec	100%
A-4Meat	200 - 1000g 7	- 19min 80%
A-5Fish	200 - 1000g 4	- 12min 80%
A-6Chicken	200 - 1000g	14min 30sec - 34min	55%
A-7Liquid	2 - 10dl 2 -	5min 100%
A-8Popcorn	100g 3min	30sec 100%

7. CLOCK

The oven is fitted with a digital clock. When the oven is in the standby mode, the clock can be set in the 24-hour mode by pressing the CLOCK key.

Example: To set the time to 8:30

a) Press the CLOCK/TIMER button. Display will start flashing, adjust the hour with UP and DOWN buttons.
b) Press CLOCK/TIMER again, adjust the minutes with buttons UP and DOWN.
c) Press CLOCK/TIMER again and the clock will be set.
d) If you want to change the time, repeat the procedure above.

8. DELAY START

This allows you to set the microwave oven to start and finish cooking at pre-set time.

The clock must be set before you use this feature.

Example: The current time is 16:30 and you want to start cooking at 18:15 on 70% power for 10 minutes

a) Press CLOCK/TIMER, set the time to »18:15« by pressing UP and DOWN buttons.

b) Press MICRO/GRILL to select 70% power.

c) Set cooking time to 10 minutes.

d) Press START/RESET

NOTE: If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock. At 18:15 there will be 10 beeps and the appliance will switch off.

9. CHILD LOCK

This function is used to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: In standby mode of the oven, press button START | PAUSE and hold the button for 3 seconds, a beep sounds and lock indicator lights.

To cancel the CHILD LOCK: Press and hold the button START | PAUSE for 3 seconds until lock indicator on display turns off.

10. START/RESET

a) In the course of operation, pressing START/RESET button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel any set program.

11. ECO MODE - POWER SAVING

Press the /and keys simultaneously. The display will turn off and the microwave is in Eco mode which minimizes power usage. To cancel the Eco mode and turn on the display again, press any other button or open or close the door.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 14,5 kg kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.

9. DO NOT place anything on top of the oven.

10. DO NOT remove the turn -table drive shaft.

11. As with any appliance, close supervision is necessary when used by children.

12. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered. The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

13. This oven requires 1.4 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250 V, 10 Amp Fuse.

SPECIFICATIONS

RADIO INTERFERENCE

BUILT-IN CABINET

Power consumption....220-240V\~50Hz, 1450W

Output power....900W

Grill heater....1200W

Operating Frequency....2450MHz

Outside Dimensions ...592mm(W) x 390mm(H) x 368mm(D)

Oven Capacity ....23 litres

Uncrated Weight.... Approx. 16,8 kg

Noise level Lc < 58 dB (A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.

b) Place the radio, TV, etc. as far away from your microwave oven as possible.

c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION STEPS

MICROWAVE OVEN CABINET

Cabinet Dimensions Requirements (see illustration):

1. Internal wwidth off the cabinet is 566-580 mm.
2. Internal height of the cabinet is 365-380 mm.
3. Depth of the cabinet should not be less than 550 mm.
4. The outer dimension of the cabinet should not be less than 596 mm
5. The thickness of the wooden cabinet top should not be less than 15 mm

INSTALLATION KIT

1. Bolt 3×20mm 2PCS
2. Screwcover 1PCS
3. Bolt 4×45mm 1PCS

1. Put the microwave in the cupboard. Keep the microwave oven in a horizontal position, the distance from both side walls of the cabinet should be the same. Insert the screws (component 1) into the holes on the top edge of the frame and screw them into the furniture

Line drawing of a microwave oven and its internal structure with a cable, showing components and wiring (no text or symbols)

1. Open the microwave door, insert the screw (component 3) into the opening and screw it into the cabinet, then install the screw cover

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing structural details (no text or symbols)

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the information on the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.

b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.

For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side:

http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

gorenje

We reserve the right to any changes and errors in the instructions for use.

SEHR GEEHRTER KUNDE

Simple line drawing of a three-legged electronic component with hatched top surface (no text or symbols)

Line drawing of a microwave oven and its internal structure, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing structural details (no text or symbols)

BEVOR SIE DEN KUNDENDIENST ANRUFEN

Simple line drawing of a circular object with diagonal hatching and two protruding legs (no text or symbols)

Line drawing of a microwave oven and its internal structure with a cable, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing structural details (no text or symbols)

PRZED WEZWANIEM SERWISU

GWARANCJA I SERWIS NAPRAWCZY

Simple line drawing of a speech bubble with striped pattern and two legs (no text or symbols)

Line drawing of a microwave oven and its internal structure with a cable, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, shown from top and side views (no text or symbols)

NEŽ ZAVOLÁTE OPRAVÁŘE

Line drawing of a microwave oven and its internal casing with a cable, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing internal components (no text or symbols)

Simple line drawing of a round object with three legs and a shaded top surface (no text or symbols)

Line drawing of a microwave oven and its internal casing with a cable, showing part assembly (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting fixtures, shown from top and side views (no text or symbols)

Line drawing of a microwave oven and its internal casing with a curved internal structure, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting brackets, showing internal components (no text or symbols)

PARA SE TË THIRRNI SERVISERIN

Simple line drawing of a circular component with hatched top surface and two side legs (no text or symbols)

Line drawing of a microwave oven and its internal structure, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, showing structural details (no text or symbols)

Line drawing of a microwave oven and its internal casing with a cable, showing components and wiring (no text or symbols)

Technical line drawing of two open kitchen cabinets with internal doors and mounting feet, shown from top and side views (no text or symbols)

Simple gray vertical rectangle with a horizontal line and label (4) on the right side (no text or symbols within the shape)

$$ \begin{array}{l} Ⓦ \quad - - - (5) \ \text { 一 } (6) \ \triangleright \square \quad - (7) \ \end{array} $$

Simple line drawing of a round electronic component with three legs and a shaded top surface (no text or symbols)

(592mm(W) x 390mm(H) x 368mm(D.....Outside Dimensions

litres 23 ...... Oven Capacity

Approx. 16,8 kg .... Uncrated Weight

(Lc < 58 dB (A ...... Noise level

1. NCAA Antonio Educational

.7. bedأ/إيقاف

^ — (1)

√ —— (2)

(3)

Simple gray vertical rectangle with a horizontal line and label (4) on the right side (no text or symbols within the shape)

(5)

(6)

▷|□ —— (7)

Simple line drawing of a three-legged electronic component with hatched top surface (no text or symbols)
