USER MANUAL M9 GPS 2.5K TrueCam

2.5K dashcam with GPS and magnetic design

TrueCam

CONTENTS

1. PACK CONTENTS....2
2. GETTING TO KNOW THE CAMERA / CONTROLS....3
3. ICONS AND DISPLAY 4
4. FIRST USAGE....4
5. BASIC FUNCTIONS ....4
6. PLACEMENT ON GLASS....5
7. GPS AND SPEED CAMERA DETECTION 6
8. WIFI APPLICATION....6
9. RECORDING ONTO A PC 8
10. COMPLETE SETTINGS 8
11. SPECIFICATIONS....9
12. SAFETY PRECAUTIONS AND WARNINGS .... 10

1. PACK CONTENTS

Illustration of a gray digital camera with lens and screen (no text or symbols)

A

B

©

D

E

F

©

H

TrueCam

①

J

K

Ⓐ TrueCam M9 GPS 2.5K
B Magnetic GPS module
© Magnetic holder with 3M adhesive pad
D Charger with extra USB port
⑤ 3-metre micro USB charging cable
F Micro SD/USB adapter to transfer files to PC

G Spare 3M adhesive pads to attach holder to glass (2x)

(H) 3M adhesive power cable clips (5x)

① Protective carry bag

① USB data cable for GPS module update

K Cable tool

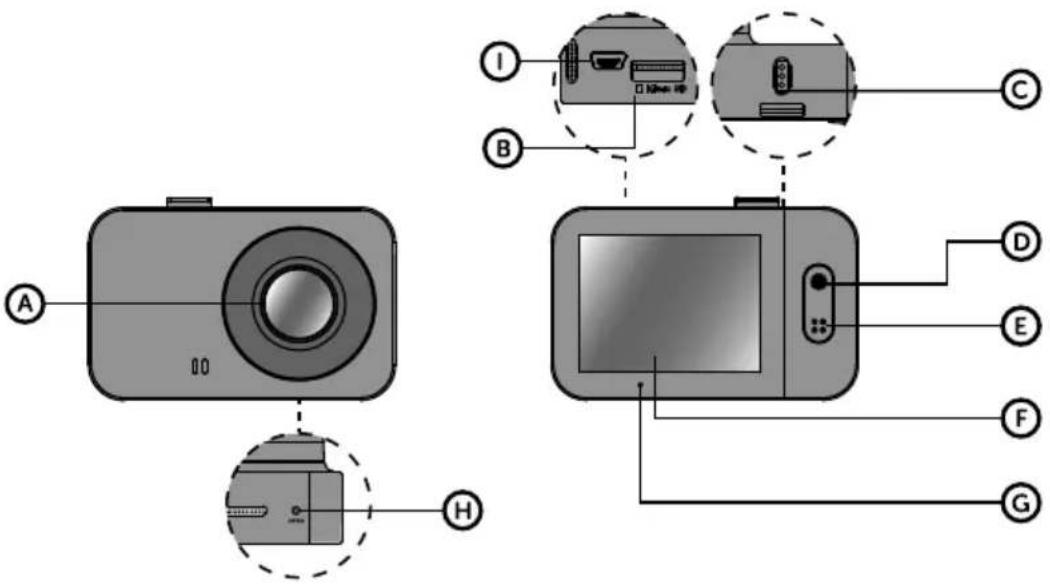

2. GETTING TO KNOW THE CAMERA / CONTROLS

Diagram of a digital camera with labeled parts including camera, display screen, and various ports (A-H)

A Wide-angle lens
B Memory card slot
© Magnetic holder input
D OK/POWER button
E MENU/MODE button

F 2.0" display
G Status LED (lit = camera on, blinking = recording)
(H) RESET button
① Rear camera cable input

CONTROLS:

VIDEO MODE	OK / POWER	Press Start/stop recording
		Hold Turn camera on/off
	MENU / MODE	Press	Open menuWhilst recording- protect recording
		Hold	Switch modeWhilst recording- mute/unmute audio recording
PHOTO MODE	OK / POWER	Press Take photo
		Hold Turn camera on/off
	MENU / MODE	Press Open menu
		Hold Switch mode
PLAYBACK MODE	OK / POWER	Press	Start/stop playbackEnd fast playback
		Hold	Turn camera on/offChange playback speed during playback
	MENU / MODE	Press Open menu
		Hold	Next fileOpen menu during playback
MENU	OK / POWER	Press	ConfirmWhen entering characters- Up
		Hold	Switch mode menu/camera menuWhen entering characters- Confirm
	MENU / MODE	Press Down
		Hold Back
ANYTIME	RESET	Press with paperclip	Restart camera

3. ICONS AND DISPLAY

CEF D ○ ○ WiFi WDR 04:40:07 1440P 30FPS B A 28/01/2021 13:11:05 M L K J

(A) Motion detection
(B) Loop recording lenght
© Mode
(D) Recording started
E WiFi
(F) WDR (wide dynamic range)
© Length of current recording
H Resolution
① Memory card inserted
J GPS module connected to camera / connected to satellites
© Time
Date
M Sound recording on/off

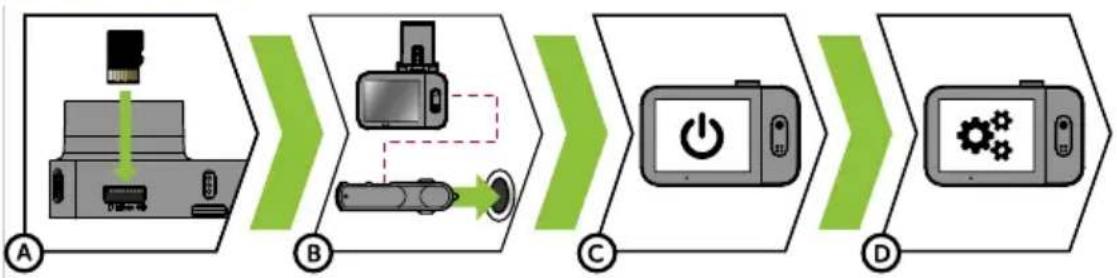

4. FIRST USAGE

Ⓐ Insert the microSD card as shown into the camera (card connectors facing the display)

Use Class 10 and higher branded cards up to 128 GB
Only remove the card, when the camera is turned off
When using the card for the first time, format it directly in the camera and repeat the formatting at least once a month to ensure proper camera operation

B Insert the adapter into the car cigarette lighter and connect it to the camera holder using the USB cable

The camera is designed to operate only when connected to a power supply
Instead of a battery, the camera contains a supercapacitor that provides power which has several times the lifespan of a conventional battery

© Camera turns on automatically and begins recording

For some vehicles, the ignition key must be turned first

(D) Perform basic camera settings before sticking the holder to the glass

For maximum convenience, we recommend using the Wi-Fi application for settings – see section 8

5. BASIC FUNCTIONS

LOOP RECORDING

Camera automatically splits the video into shorter files and overwrites the oldest unprotected files when the SD card is full
This means you don't have to worry about free space on the card

FILE PROTECTION

To protect the file from being overwritten, press MENU / MODE while recording or select Protect from the playback mode menu

G-SENSOR

If the G-Sensor detects an impact, it automatically protects the video currently being captured against being overwritten

Attention, when the settings are set to high sensitivity and you are driving over uneven surfaces this can cause files to be automatically protected and the filling up of the SD card

MOTION DETECTION

The camera automatically starts recording when it detects movement in the lens field of view and stops recording after about 10 seconds.

If you stop recording manually or turn off the camera, motion detection is disabled

The function is for monitoring a parked vehicle, do not use whilst driving

To use the motion detection function, the camera must be turned on and connected to the power supply

PARKING MODE

The camera will start recording automatically when it detects a jolt to the vehicle and if it does not happen again, after about 30 seconds it stops recording and turns off

To use the parking mode function, the camera should be turned off and connected to the power supply

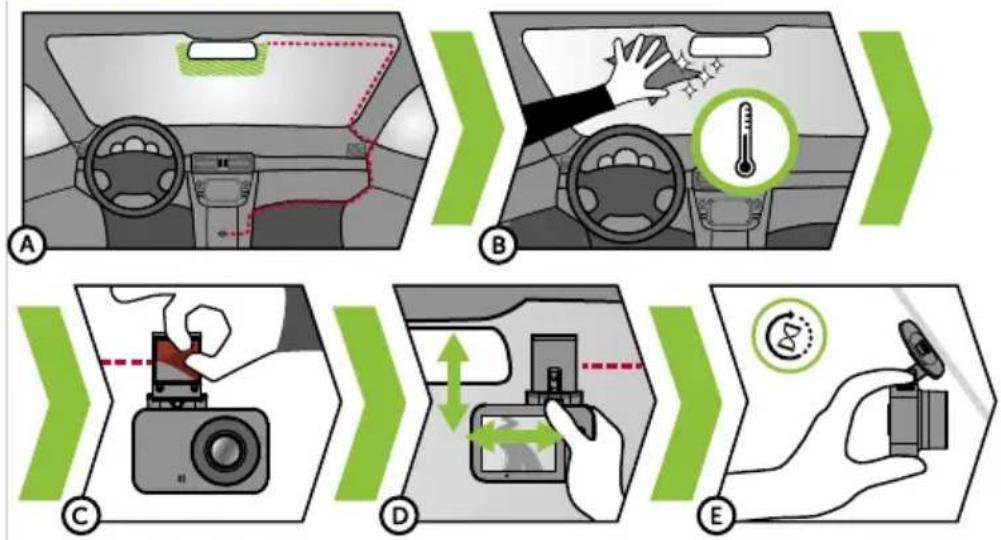

6. PLACEMENT ON GLASS

Diagram illustrating car safety and thermal management steps with labeled illustrations A through E

A The ideal place to mount your camera is the space between the windscreen and the rear-view mirror so as not to obstruct the driver's view

B Make sure that the glass is clean and dry at the attachment point The ideal bonding temperature is 20^ C – 40^ C

© Remove the film from 3M adhesive pad on the camera holder

(D) Before attaching it to the glass, point the camera to capture best view

E Press the 3M adhesive pad onto the glass and hold it for a while

7. GPS AND SPEED CAMERA DETECTION

Attaching the magnetic GPS module to camera mount

When connected to GPS satellites, the module's LED flashes blue
The GPS module records speed, GPS coordinates and warns of static speed cameras and traffic lights

Icon of a security camera inside a hexagonal frame, no text or symbols present

Icon of a security camera on a bridge, enclosed in a hexagon with a circled number B (no text or symbols)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle, enclosed in a hexagon with a circled number D (no text or numbers present)

E

(A) Speed camera

B Average speed camera

© Red light camera

(D) Combined red light and speed camera

E Road safety camera

AUDIBLE SOUNDS:

Approaching speed camera – long beep
At the speed camera point / start of average measurement – short beeps
End of average measurement – short beeps

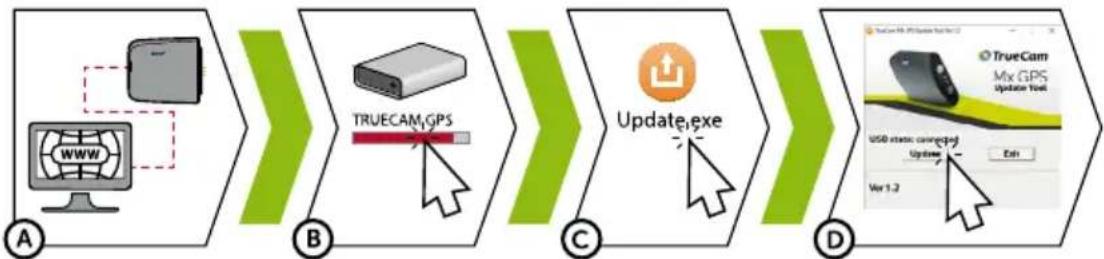

UPDATING THE SPEED CAMERA DATABASE:

Ⓐ Connect the GPS module to a PC with an Internet connection using the included USB cable
B Open the GPS module memory (similar to flash drive)
© Run Update.exe
(D) Click Update

1. WIFI APPLICATION

A Scan the QR code or enter URL https://www.truecam.com/m9/app
(B) Install the app on your smartphone or tablet

© Turn on Wi-Fi on the camera - Camera menu -> Wi-Fi -> On -> Network Name (SSID) and Password (PWD) will appear on the camera display
D On the phone/tablet, connect to the Wi-Fi network with the camera name, enter the password (factory setting- 12345678), start the App and click the "+" button to connect the camera

APP CONTROL:

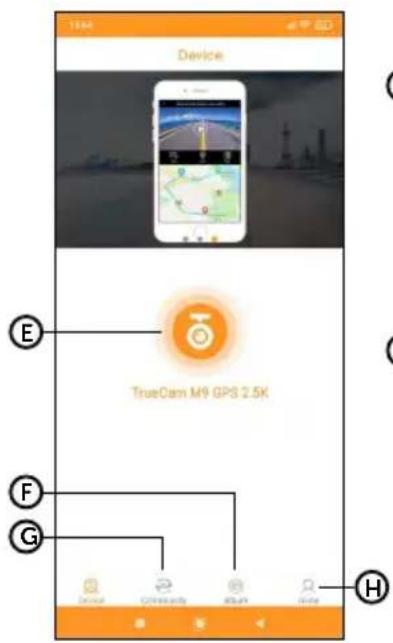

WITHOUT CONNECTION

E Connect the camera
F Files dragged to your phone
© Users videos
(H) Information

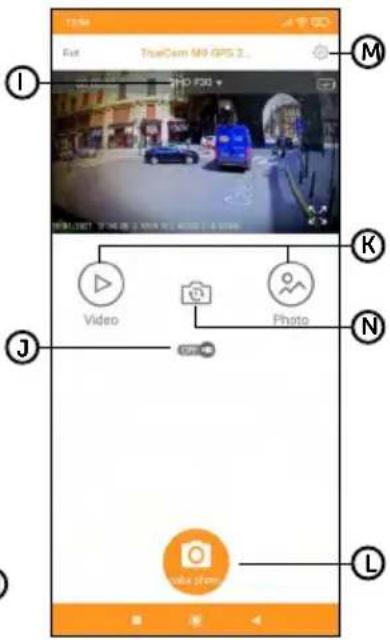

WITH CONNECTION

① Resolution settings
① Start/stop recording
© Camera files
L Take photo
M Camera settings
N Front/rear camera preview

Device TrueCam M9 GPS 2.5K E F G H

15:00 Est TrueCam M9 GPS 2... M I K J Video Photo N L

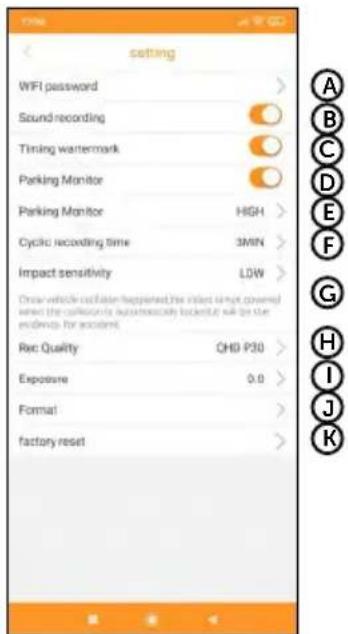

CAMERA SETTINGS:

Ⓐ WiFi password
B Record audio
© Time stamp
D Parking mode
E Parking mode sensitivity
(F) Loop recording
G sensor sensitivity
H Video resolution
① Exposure
J Format
K Default settings

WIFI password Sound recording Timing watermark Parking Monitor Parking Monitor HIGH Cyclic recording time 3MIN Impact sensitivity LOW Draw vehicle isolation happened, the instant target covered when the collision to automatically lock up will be the endpoints for accident. Rec Quality QHD P30 Exposure 0.0 Format factory reset

9. RECORDING ONTO A PC

TAPView N0025K_2010000095040_0000087cast Film (online view) Map Satellite Maps Satellite 21/01/2021 09:01:26 76 KM/H N:22.76155 E:113.82317 Project File Name File Size 75 K49 Latitude: 25°W3111 Longitude: 30°83118 Time: 1:30 AM AutoSpeed: 75 MHz AutoSpeed: 30 MHz Distance: 75 km

(A) Remove the Micro SD card when the camera is off and insert it into the computer

Depending on the computer equipment, either directly, using a Micro SD/SD adapter or a Micro SD/USB adapter (included)

(B) Open the removable disk folder and play a file

Any regular video player can be used

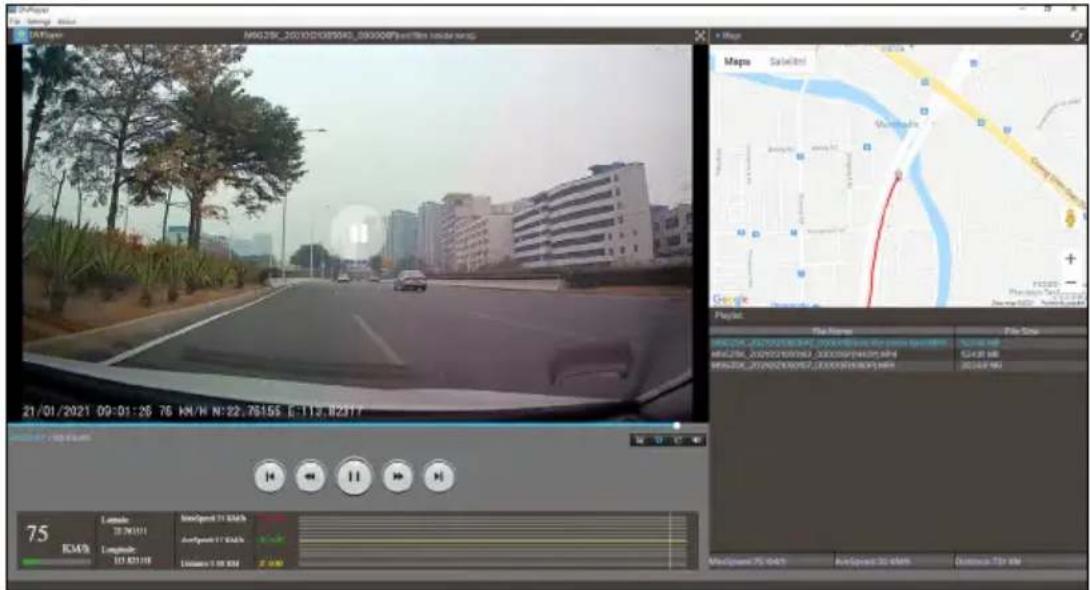

© Use a special player to play videos, including data, from the optional GPS module

At the same time as the video, you can view the speed travelled, the GPS coordinates and directions on the map

The app is available at http://truecam.com/download/M9G25K_player.zip

10. COMPLETE SETTINGS

*These functions can only be used with the optional GPS module
SETTINGS DESCRIPTION

Resolution Sets the video / photo resolutionHigher resolution = more detail and larger file
Loop recording Sets the length of each loopLonger loop = larger fileLoop recording can also be turned off and recording will end if the SD card is full
WDR When turned on, the camera compensates for luminance when there are very bright and very dark areas in the picture
Brightness Sets the overall brightness of the recordingAt the same time, the camera automatically adjusts the brightness of the recording depending on the light
Motion detection Turns motion detection on / offMore about this feature in Section 6
Parking mode Turns parking mode on / offMore about this feature in Section 6
Record audio Turns the microphone on / offAlso possible to switch by holding down the MENU / MODE button while recording
G-Sensor sensitivity Sets the sensitivity of the G-SensorMore about this feature in Section 6
Date stamp Displays time and date in video
GPS stamp* Displays the GPS coordinates in the video
Speed stamp* Displays the speed in the video
WiFi Turns WiFi on / off
Date / time Sets date and timeHold OK / POWER button = confirmHold MENU / MODE = cancelThe time and date are set automatically when pairing a camera with a smart device via WiFi
Driver name Sets the text in the videoHold OK / POWER button = confirmHold MENU / MODE = cancel
Screensaver The camera continues to record during screen saverPress any key to exit the screen saver
Speed camera detection* Visually and audibly alerts you to approaching fixed speed cameras
Speed units* Switches between kilometres / miles when using speed stamp, speedcamera detection and the screensaver
Time zone* With the GPS module connected, the time and date are adjusted automatically, just set the appropriate time zone
Summer time Adds 1 hour to the set time
Volume Adjusts the volume of all camera sounds
System sounds Turns sound on / off for buttons and on / off status
Language Sets the camera menu language
Format Formats data on memory card
Default settings	Sets camera to factory settings
Firmware version	Displays the installed FW version

1. SPECIFICATIONS

Video Resolution(front camera)	2560×1440/30fps 16:9 (without connected rear camera)1920×1080/30fps 16:9 (with connected rear camera)
Video resolution(rear camera)	1920×1080/30fps 16:9
Angle of viewfront/rear camera	150°/130°
Video format	MP4, H.264/H.265
Image resolution	8 Mpx
Photo format	JPEG
Audio	Built-in microphone that can be muted
LCD display 2" 320×240
Memory	MicroSD up to 128 GB
Features	WiFi, magnetic holder, WDR, parking mode, motion detection, G-Sensor, loop recording, file protection, auto-start, magnetic GPS module with speed camera detection (optional), magnetic CPL filter (optional)
Menu languages	English, Czech, German, Slovak, Polish, Hungarian
Power supply	Supercapacitor
Dimensions	69 × 45 × 34 mm

12. SAFETY PRECAUTIONS AND WARNINGS

PRECAUTIONS AND NOTICES

For your own safety, do not use the camera's controls while driving.
A window mount is needed when using the recorder in a car. Make sure that you place the recorder in an appropriate place, so as not to obstruct the driver's view or deployment of airbags.

Make sure that no object is blocking the camera lens and no reflective material is placed near the lens. Please keep the lens clean.
If the car windscreen is tinted or heated, it may limit the quality of the recording and, above all, the GPS signal.
For general use it is recommended to have motion detection enabled. It may lead to the memory card filling up quickly.
The camera is primarily designed to operate while being constantly connected to a power supply.

SAFETY PRECAUTIONS

Use only the charger supplied with your device. Use of another type of charger may result in malfunction and/or danger.
Do not use the charger in high moister environment. Never touch the charger when your hands or feet are wet.

Allow adequate ventilation around the charger when using it to operate the device or to charge the battery. Do not cover the charger with paper or other objects that will reduce cooling. Do not use the charger while it is inside a carrying case.
Connect the charger to a proper power source. The voltage requirements are found on the product case and/or on the packaging.
Do not use the charger if it is visibly damaged. In case of damage, do not repair the equipment yourself!
In case of device overheating, immediately disconnect the power source.
Charge the device under supervision only.
Packaging contains small pieces, that can be dangerous for children. Store the product always out of reach of children. Bags or many of the pieces containing may cause suffocation after swallowing.

SAFETY NOTICES FOR POWER SUPPLY

For charging only use chargers, that is specified for this camera.
Use standard cables for charging, otherwise it could damage the device.
Do not use any damaged adapter or charger.
Power at room temperature, never charge at a temperature below 0^ C or at a temperature higher than 40^ C.
Do not expose the charger to moisture, water, rain, snow or any kind of various liquids.
Never leave the camera unattended during power-up, short-circuiting or accidental overcharging can cause aggressive chemicals to leak, explode, or cause a fire!
In the case of excessive heating of the camera, immediately disconnect it from the power supply.
Do not place charger on or near flammable objects. Beware of curtains, carpets, tablecloths etc.

CARING FOR YOUR DEVICE

Taking good care of your device will ensure trouble-free operation and reduce the risk of damage.
Keep your device away from excessive moisture and extreme temperatures and avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.
Do not drop your device or subject it to severe shock.
Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your device. In the event of moisture condensation, allow the device to dry out completely before use.
The screen surface can easily be scratched. Avoid touching it with sharp objects.
Never clean your device when it is powered on. Use a soft, lint-free cloth to wipe the screen and the exterior of your device. Do not use paper towels to clean the screen.

Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any attempt at repair could cause damage to your device and even bodily injury or property damage and will void any warranty.
Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your device, its parts or accessories.
To discourage theft, do not leave the device and accessories in plain view in an unattended vehicle.

Overheating may damage the device.

OTHER INFORMATION

1) For households: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. In case of incorrect disposal of this kind of wastes user can be fined according to national laws. User information for disposal of electric and electronic devices in countries outside the EU: The symbol stated above (crossed recycle bin) is valid only in countries in European Union. For correct disposal of electric and electronic devices ask your city hall or distributor of these devices. Everything is expressed by the symbol of crossed recycle bin on product, cover or printed materials.

2) You can determine a warranty service at the place of purchase. In case of technical problems or queries contact your dealer who will inform you about the following procedure. Follow the rules for work with electric devices. User is not allowed to disassembly the device neither replace any of its components. To reduce the risk of electric shock, do not remove or open the cover. In case of incorrect setup and plug in of device you will expose yourself risk of electric shock.

Products are covered by a two year warranty, unless otherwise stated. The warranty period of the battery is 24 months and 6 months for its capacity.

DECLARATION OF CONFORMITY

Hereby, elem6 s.r.o., declares that all TrueCam M9 GPS 2.5K products are in compliance with the essential re-quirements and other relevant provisions of Directive 2014/53/EU and 2014/30/EU. Products are intended for sale without any restriction in Germany, Czech Republic, Slovak Republic, Poland, Hungary and other EU countries. You can download the Declaration of Conformity from the website: www.truecam.com/support/doc.

Frequency band(s) in which the radio equipment operates: 2457.6–2543.616 MHZ
Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates: 19 dBm
Frequency of the GPS module: 1575.42 Mhz

MANUFACTURER:

TrueCam® brand is a registered trademark and our products are protected by patent.

All rights reserved.

CE

RoHS

2.5K autokamera s GPS a magnetickým designem

TrueCam

OBSAH

1. OBSAH BALENÍ....2
2. SEZNÁMENÍ S KAMEROU / OVLÁDÁNÍ......3
3. IKONY NA DISPLEJI....4
4. PRVNÍ ZAPNUTÍ 4
5. ZÁKLADNÍ FUNKCE....4
6. UMÍSTĚNÍ NA SKLO ....5
7. GPS A HLÁŠENÍ RADARŮ 6
8. WIFI APLIKACE....6
9. PŘEHRÁVÁNÍ NA PC 8
10. ÚPLNÉ NASTAVENÍ 8
11. SPECIFIKACE....9
12. BEZPEČNOSTNÍ ZÁSADY A UPOZORNĚNÍ......10

1. OBSAH BALENÍ

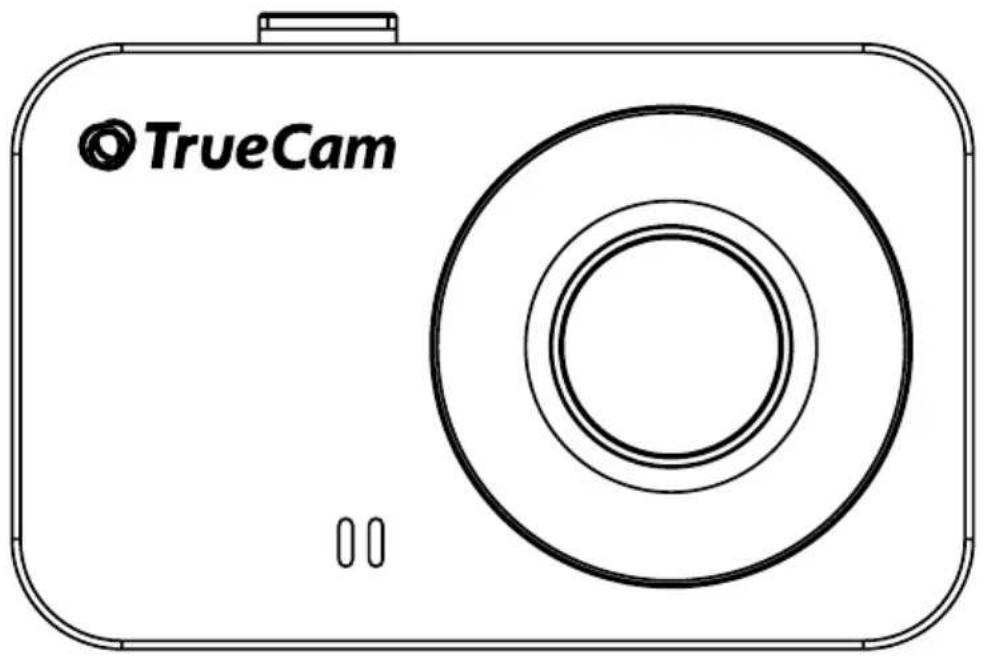

Illustration of a gray camera with a circular lens and small screen (no text or symbols)

A

B

©

D

E

F

©

H

©TrueCam

①

J

K

Diagram of a digital camera with labeled parts including camera, display screen, and various ports (A-H)

Icon of a security camera inside a hexagonal frame, no text or symbols present

Icon of a security camera on a bridge, enclosed in a hexagon with a circled number B (no text or symbols)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle, enclosed in a hexagon with a circled number D (no text or numbers present)

E

Update.exe

TrueCam MX GPS Update Tool USB static prompting Update Edit Ver 1.2

Icon showing a smartphone with a download symbol and a green arrow labeled 'B' pointing to it.

Illustration of a hand holding a smartphone with a Wi-Fi symbol icon (no text or symbols present)

Illustration of a hand holding a smartphone displaying a Wi-Fi symbol (no text or labels)

15:00 Eut TrueCam M9 GPS 2 M I K J Video Photo N L

NASTAVENÍ KAMERY:

WIFI password Sound recording Timing watermark Parking Monitor Parking Monitor HIGH > Cyclic recording time 3MIN > Impact sensitivity LOW > Draw vehicle oscillator happened, the color is not covered when the collision is temporarily locked up will be the evidence for accident Rec Quality QHD P30 > Exposure 0.0 > Format > factory reset >

9. PŘEHRÁVÁNÍ NA PC

NAGL25K_2010030095040_0000087pavellin_tendering.org Map Maps Satellite 21/01/2021 09:01:25 76 KM/H N:22.76155 E:113.82317 Project: File Name File Type 75 KM/H Latitude: 28.761511 Longitude: 20.821118 Speed: 10 km/h Speed: 75 km/h AvgSpeed: 20 km/h Distance: 75 km/h

Illustration of a gray camera with a circular lens and small screen (no text or symbols)

A

B

©

D

E

F

©

H

©TrueCam

①

J

K

I B C D E F G

Diagram illustrating car speed control steps with labeled illustrations A through E showing progressive improvement in vehicle settings and device placement.

Security camera icon inside a hexagonal frame, no text or symbols present

Symbolic icon of a security camera on a tripod, enclosed in a diamond frame with letter B (no text or symbols present)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle with red and blue dots, enclosed in a hexagon (no text or numbers)

E

Update.exe

Switch My GPS Update TrueCam Mx GPS Update True USD static corrected Update Edit View 1.2

Icon showing a green arrow pointing right next to a smartphone with a download symbol, labeled with circled number B.

Illustration of a tablet device with Wi-Fi signal icon and green arrow symbols (no text or labels)

Illustration of a hand interacting with a smartphone displaying Wi-Fi signal (no text or symbols)

1596 Exit TrueCam MP GPS 2... FND PSD I M K J Video Photo N L

setting WiFi password > Sound recording Timing wardenmark Parking Monitor Parking Monitor HIGH > Cyclic recording time 3MIN > Impact sensitivity LDW > Show vehicle collision happened, the video is not covered when the collision is successfully locked at all or the evidence for accident. Rec Quality QHD P30 > Exposure 0.0 > Format > factory reset >

http://truecam.com/download/M9G25K_player.zip

Illustration of a gray camera with a circular lens and small screen (no text or symbols)

A

B

©

D

E

F

©

H

©TrueCam

①

J

K

Diagram of a digital camera with labeled parts including camera, display screen, and various ports (A-H)

Diagram illustrating car safety instructions with labeled steps A through E showing hand gestures, temperature sensor, and device placement.

Icon of a security camera inside a hexagonal frame, no text or symbols present

Icon of a security camera on a bridge, enclosed in a hexagon with a circled number B (no text or symbols)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle, enclosed in a hexagon with a circled number D (no text or numbers present)

E

Update,exe ©

TrueCam Mix GPS Update Tool USB static prompting Update Edit Ver 1.2

(A) Pripojte GPS modul k PC s internetovým pripojením pomocou priloženého USB káblu
B Otvorte pamät GPS modulu (podobne ako u flash disku)
© Spustite program Update.exe
© Kliknite na tlačidlo Update

8. WIFI APLIKÁCIA

APP

Green arrow symbol pointing to a smartphone with a download icon, labeled with circled number B

Green arrow symbol pointing right next to a smartphone with Wi-Fi icons (no text or symbols)

Diagram showing a hand interacting with a smartphone displaying Wi-Fi signal, enclosed in a green arrow and labeled with 'D' (document icon)

15/06 Eat TrueCam M9 GPS 2... M I K J Video Photo N L

NASTAVENIE KAMERY:

WIFI password Sound recording Timing watermark Parking Monitor Parking Monitor HIGH > Cyclic recoding time 3MIN > Impact sensitivity LOW > Draw vehicle collision happened, the red is not covered used the collision automatically locked up will be the endents for accident Rec Quality CHD P30 > Exposure 0.0 > Format > factory reset >

9. PREHRÁVANIE NA PC

NAGL25K_2010030095040_0000087pavellin_tendering.org Map Maps Satellite 21/01/2021 09:01:25 76 KM/H N:22.76155 E:113.82317 Project: File Name File Type 75 KM/H Latitude: 28.761511 Longitude: 20.821118 Speed: 1.0 km/h Speed: 75 km/h AvgSpeed: 20 km/h Distance: 75 km/h

(A) Vyberte micro SD kartu z vypnutej kamery a vložte ju do počítača

Illustration of a gray camera with a circular lens and small screen (no text or symbols)

A

B

©

D

E

F

©

H

©TrueCam

①

J

K

Diagram of a digital camera with labeled parts including camera, display screen, and various ports (I–G)

CEF D ○ ○ WiFi WDR 04:40:07 1440P 30FPS B G H A I M L K J 28/01/2021 13:11:05

Diagram illustrating car safety and thermal management steps, showing vehicle interior, hand gesture, camera operation, device placement, and sensor placement.

Icon of a security camera inside a hexagonal frame, no text or symbols present

Icon of a security camera on a bridge, enclosed in a hexagon with a circled number B (no text or symbols)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle, enclosed in a hexagon with a circled number D (no text or numbers present)

E

Update,exe ©

TrueCam Mx GPS Update Tool USB static compressed Update Edit Ver 1.2

Green arrow pointing right next to a smartphone displaying a download icon with a downward arrow, labeled with circled number B.

Icon showing a hand holding a tablet with Wi-Fi signal symbol, next to a green arrow and circular symbol (no text or numbers present)

Green arrow and Wi-Fi icon with 'D' label, showing a hand interacting with a smartphone displaying Wi-Fi signal

15:00 Est TrueCam M9 GPS 2... I M K Video Photo N J L

USTAWIENIE KAMERY W APLIKACJI:

WIFI password Sound recording Timing watermark Parking Monitor Parking Monitor HIGH Cyclic recording time 3MIN Impact sensitivity LOW Draw vehicle collision happened, the side is not covered and the collision to automatically lock up will be the evidence for accident Rec Quality CHG P30 Exposure 0.0 Format factory reset

9. ODTWARZANIE NA PC

NAGL25K_2010030095040_0000087pav18/16 Map Maps Satellite 21/01/2021 09:01:25 76 KM/H N:22.76155 E:113.82317 75 KM/H Latitude: 28.761511 Longitude: 30.821118 Intercept: 1.0 KU Intercept: 2.0 KU Intercept: 3.0 KU Intercept: 4.0 KU Intercept: 5.0 KU Intercept: 6.0 KU Intercept: 7.0 KU Intercept: 8.0 KU Intercept: 9.0 KU Intercept: 10.0 KU Intercept: 11.0 KU Intercept: 12.0 KU Intercept: 13.0 KU Intercept: 14.0 KU Intercept: 15.0 KU Intercept: 16.0 KU Intercept: 17.0 KU Intercept: 18.0 KU Intercept: 19.0 KU Intercept: 20.0 KU Intercept: 21.0 KU Intercept: 22.0 KU Intercept: 23.0 KU Intercept: 24.0 KU Intercept: 25.0 KU Intercept: 26.0 KU Intercept: 27.0 KU Intercept: 28.0 KU Intercept: 29.0 KU Intercept: 30.0 KU Intercept: 31.0 KU Intercept: 32.0 KU Intercept: 33.0 KU Intercept: 34.0 KU Intercept: 35.0 KU Intercept: 36.0 KU Intercept: 37.0 KU Intercept: 38.0 KU Intercept: 39.0 KU Intercept: 40.0 KU Intercept: 41.0 KU Intercept: 42.0 KU Intercept: 43.0 KU Intercept: 44.0 KU Intercept: 45.0 KU Intercept: 46.0 KU Intercept: 47.0 KU Intercept: 48.0 KU Intercept: 49.0 KU Intercept: 50.0 KU Intercept: 51.0 KU Intercept: 52.0 KU Intercept: 53.0 KU Intercept: 54.0 KU Intercept: 55.0 KU Intercept: 56.0 KU Intercept: 57.0 KU Intercept: 58.0 KU Intercept: 59.0 KU Intercept: 60.0 KU Intercept: 61.0 KU Intercept: 62.0 KU Intercept: 63.0 KU Intercept: 64.0 KU Intercept: 65.0 KU Intercept: 66.0 KU Intercept: 67.0 KU Intercept: 68.0 KU Intercept: 69.0 KU Intercept: 70.0 KU Intercept: 71.0 KU Intercept: 72.0 KU Intercept: 73.0 KU Intercept: 74.0 KU Intercept: 75.0 KU

1. A CSOMAG TARTALMA

Illustration of a gray camera with a circular lens and small screen (no text or symbols)

A

B

©

D

E

F

©

H

©TrueCam

①

J

K

Diagram of a digital camera with labeled parts including camera, display screen, and various ports (A-H)

CEF D WiFi WDR 04:40:07 1440P 30FPS B A G H I 28/01/2021 13:11:05 M L K J

Icon of a security camera inside a hexagonal frame, no text or symbols present

Icon of a surveillance camera on a road, enclosed in a diamond shape with a circled number B (no text or symbols)

Traffic light symbol inside a black circle with blue border, no text or numbers present

Traffic light symbol inside a black circle, enclosed in a white hexagon with a circled number D (no text or numbers present)

E

Update,exe ©

TrueCam Mix GPS Update Tool USD static coming? Update Edit Ver 1-2

Diagram showing a green arrow pointing to a smartphone with a download icon, labeled with letter B

Green arrow symbol pointing right next to a white Wi-Fi icon and a tablet device with a hand interacting (no text or symbols)

Diagram showing a hand interacting with a smartphone displaying Wi-Fi signal, enclosed in a green arrow and labeled with 'D' (document ID)

setting WIFI password > Sound recording Timing watermark Parking Monitor Parking Monitor HIGH > Cyclic recording time 3MIN > Impact sensitivity LDW > Draw vehicle width increased, the width is not covered when the following automatic lock-up will be the exclamps for accident Rec Quality CHD P30 > Exposure 0.0 > Format > factory reset >
