W308STe - Projector OPTOMA - Free user manual and instructions

Product type	Video projector
Brand	Optoma
Model	W308STe
Display technology	DLP
Native resolution	WXGA (1280 x 800)
Brightness	2800 ANSI lumens
Contrast ratio	20,000:1
Lamp life	Up to 10,000 hours (Eco mode)
Throw ratio	0.52:1 (short throw)
Keystone correction	Vertical ± 40°
Built-in speaker	2 watts
Video inputs	HDMI 1.4a, VGA, Composite, S-Video
Audio input	3.5 mm mini-jack
Audio output	3.5 mm mini-jack
USB port	USB-A (1.5 A power)
Dimensions (W x D x H)	31.5 x 22.4 x 12.4 cm
Weight	2.9 kg
Power consumption	225 W (standard mode), < 0.5 W standby
Power supply	100-240 V AC, 50-60 Hz
Filter cleaning	Washable air filter, every 500 hours
Lamp replacement	Lamp model: Optoma BL-FU240A
Operating temperature	5°C to 40°C
Security	Kensington lock, password

Frequently Asked Questions - W308STe OPTOMA

How to clean the projector's air filter?

The air filter is located on the side of the projector. Carefully remove it, wash it with clean water, and let it dry completely before reinstalling. Cleaning every 500 hours is recommended.

What is the lamp life and how to replace it?

The lamp lasts up to 10,000 hours in Eco mode. To replace it, purchase an Optoma BL-FU240A lamp, turn off the projector, unplug it, open the rear compartment, replace the lamp, and reset the counter in the menu.

How to correct a keystone image?

Use the vertical keystone correction in the projector's display menu. Manual adjustment is done with the remote control's directional keys.

What connections are available?

The projector has HDMI, VGA, Composite, S-Video inputs, mini-jack audio input and output, and a USB port for power.

What screen size can I get with this projector?

Thanks to its short throw ratio of 0.52:1, you get a 100-inch (diagonal) image at about 1 meter away.

Does the projector have a built-in speaker?

Yes, it has a 2 watt speaker, enough for a small room. For better sound, use the audio output to connect external speakers.

How to solve the 'No signal' problem?

First check that the source is turned on and connected to the correct port. Select the corresponding source on the projector (HDMI, VGA...). Restart the source and projector. Make sure the cable is working.

Can I use a universal remote?

Yes, but you will need the remote codes for Optoma. Check the manual or the manufacturer's website. The projector has an IR receiver at the front.

What is the power consumption in standby?

In standby mode, consumption is less than 0.5 watt.

How to mount the projector to the ceiling?

Use a compatible ceiling mount kit. The projector has mounting points (3 screws) on the base. Ensure proper safety distance and ventilation.

USER MANUAL W308STe OPTOMA

Line drawing of a projector with visible lens and screen (no text or symbols)

OBSAH

BEZPEČNOST 4

Exterior view of a projector (no text or symbols on the device itself)

Coiled cable with two connectors, no text or symbols visible

Diagram of a Kabel VGA cable connector (no text or symbols on the diagram itself)

Simple circular object with a small protrusion, labeled 'Víčko objektivu' below (no other text or symbols)

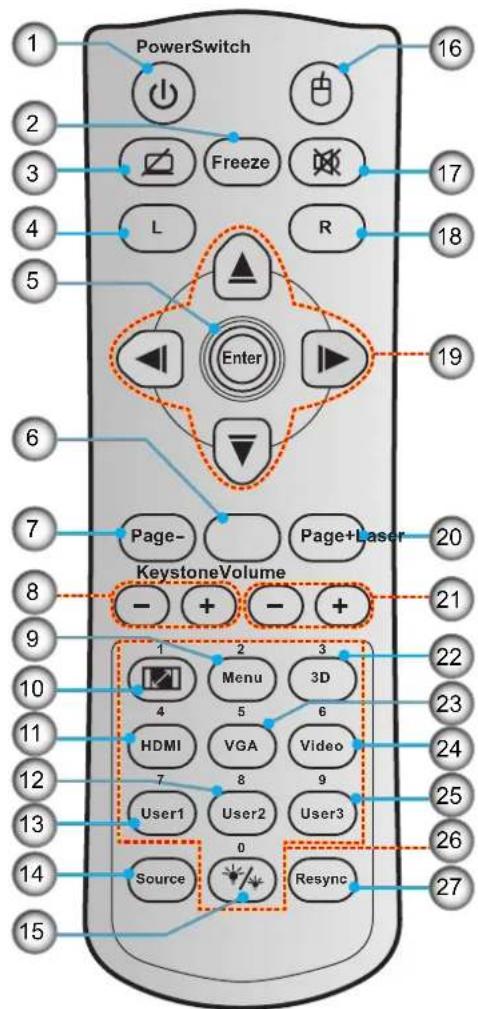

Dálkové ovládání 2

Illustration of a computer monitor with a red X symbol crossed out, no text or symbols present.

Pure electrical circuit lines without any symbols

Illustration of hands using a tool to adjust or install a component, with red arrows indicating direction (no text or symbols)

Optional Filter Installed

POUŽÍVÁNÍ PROJEKTORU

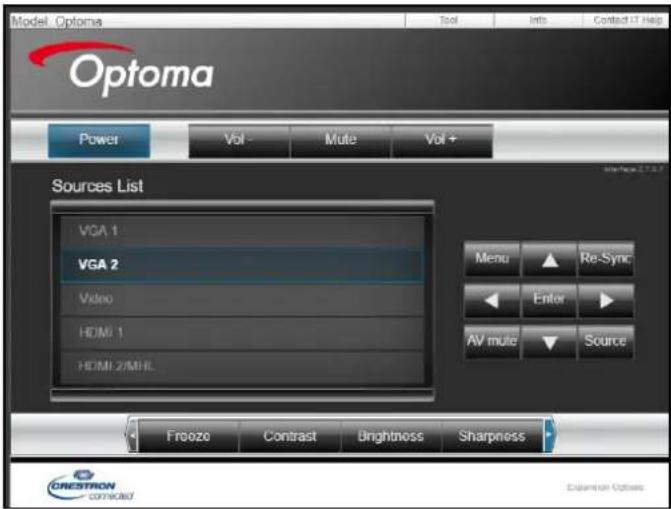

Hlavní stránka

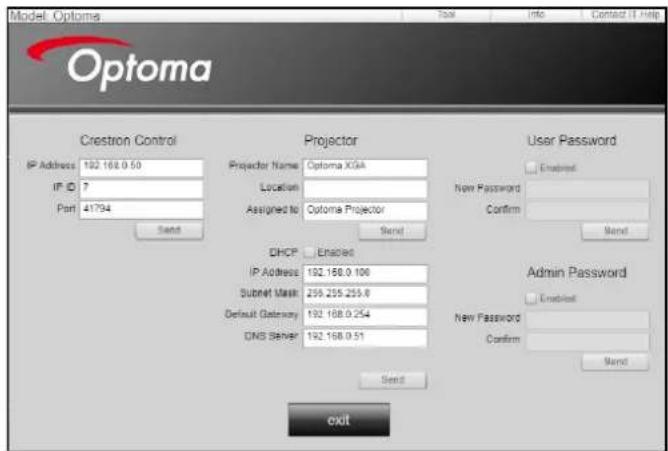

Stránka s nástroji

POUŽÍVÁNÍ PROJEKTORU

Postup:

Illustration of a projector with a blue arrow indicating the blade opening, showing internal components (no text or symbols)

DODATEČNÉ INFORMACE

DODATEČNÉ INFORMACE
