USER MANUAL M6 FiiO

All the below illustrating pictures are for reference only.

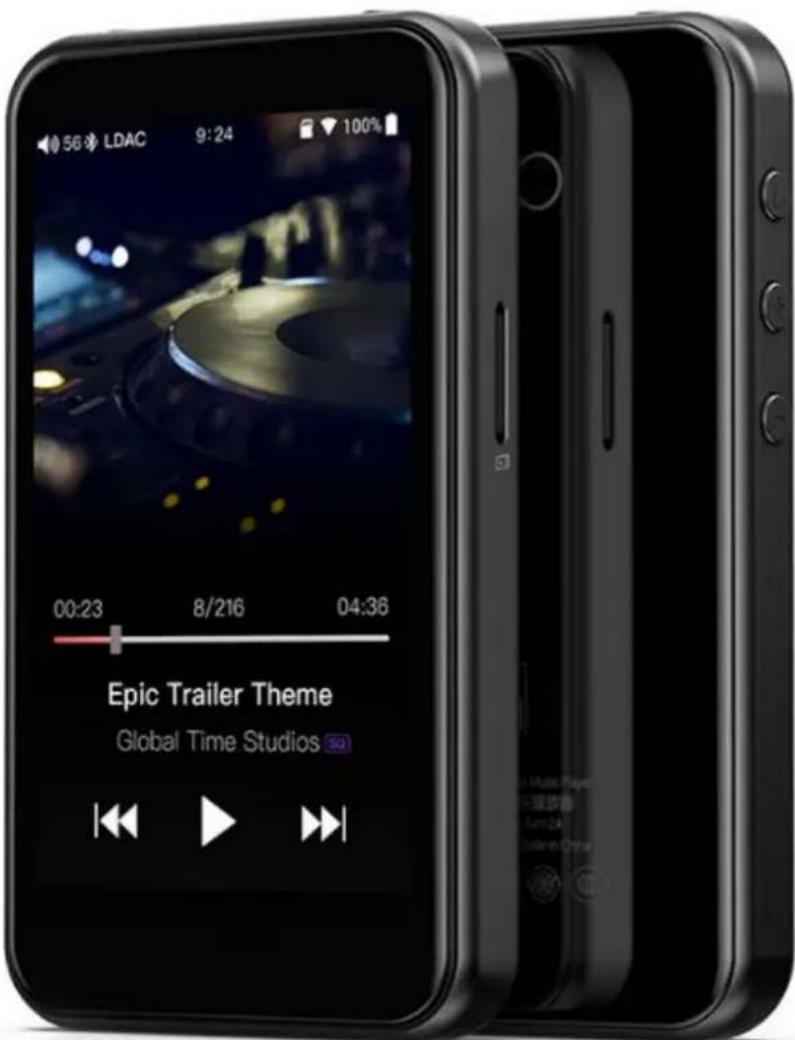

M6 Complete User Manual

56 LDAC 9:24 100% 00:23 8/216 04:36 Epic Trailer Theme Global Time Studios

Foreword:

Thank you for purchasing FiiO's high resolution lossless music player M6. To let you better utilize the M6 to enjoy high-quality music, we have prepared this complete user manual. We hope this manual will help you get to know the M6 and unleash its full potential.

Contents

●Introduction...... 3

1. Buttons and ports introduced ...... 4
2. Buttons and ports explained 4
3. Main menu and Drop-down menu interface: 5

4. Settings interface: 6

5. WiFi 6

6. Bluetooth function 7

Bluetooth transmitter 7
Bluetooth receiver 8

1. Audio 9

Select output 10
Digital filter mode 10
Wireless playback quality 11
Balance....11
In-line remote 12
USB DAC 12
AirPlay 13

1. Key-lock Settings 14
2. General 14

About device....15
Power-off Timer 15
Apps 16
Brightness level 16
Sleep 17
Language setting....17
Factory data reset....19

●Firmware Update....19
- Status bar....21
●Technical Support 21
●FiiO Music 22

1. APP homepage 22

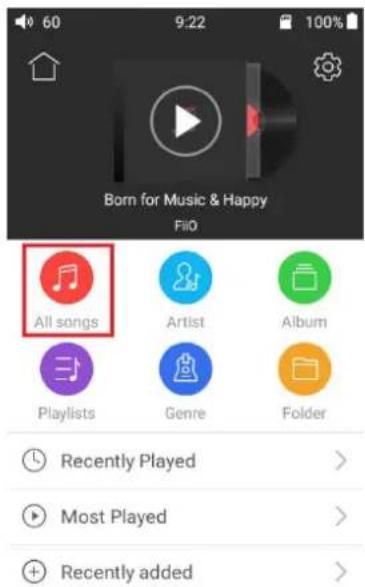

2. Quickly locate all music 24
3. Gestures 24

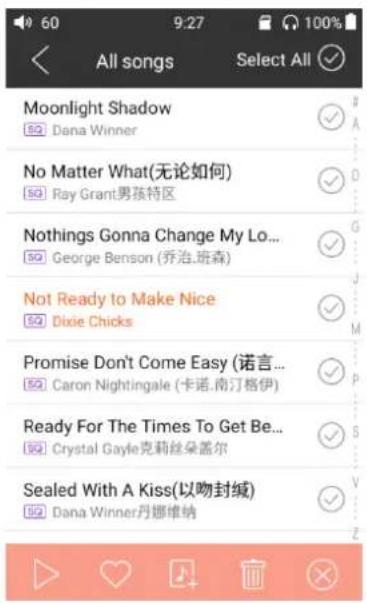

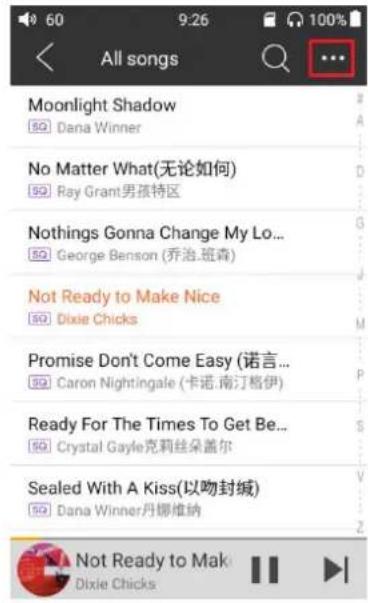

4. Function menu 25
5. Now playing 25
6. Tap buttons 26
7. Gesture operations 26
8. EQ 28

- Introduction

The M6 is a high fidelity, high resolution digital audio player, using Samsung 14nm Exynos 7270, Dual AK4490EN DACs, 2GB native memory, and support external Micro SD Card storage (512GB), 480* 800 LG IPS screen, supporting multi-touch. TheType C interface supports charging, file transfer, USB Audio output; Bluetooth 4.2 supports SBC/ aptX/ aptX-HD/ LDAC/HWA. With a deeply-customized Android, the system runs at a fast and smooth speed, with simple operation; every interface is methodical and crisp. Built-in professional custom music player "FiiO Music", and pre-install Cloud Music, MOOV, Tidal, KKBOX for more joy.

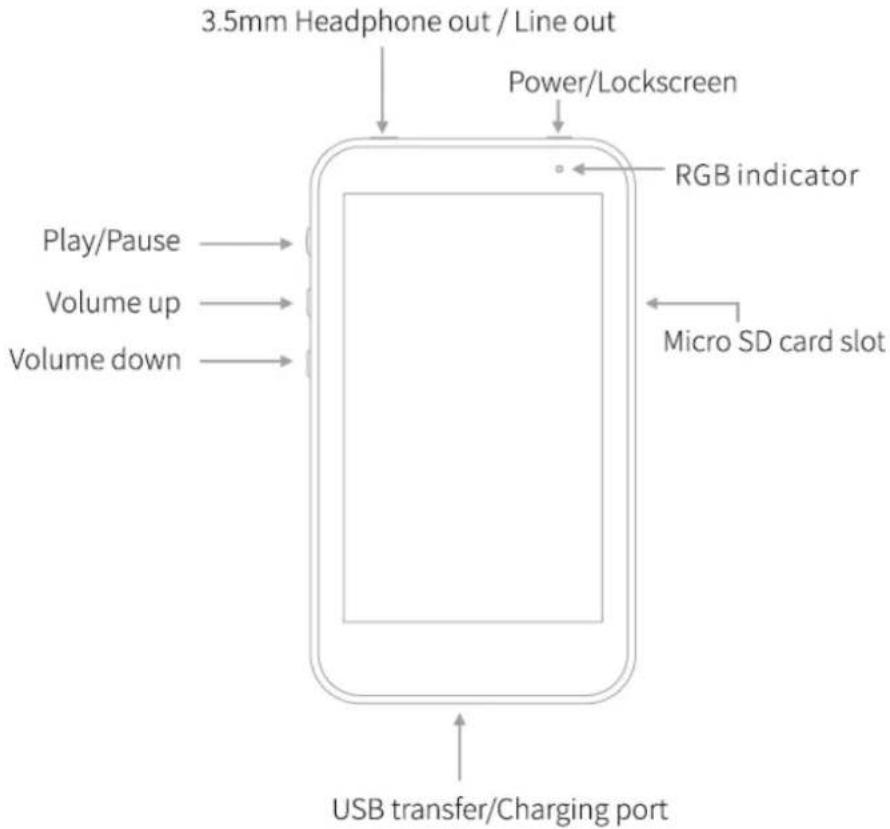

1. Buttons and ports introduced

3.5mm Headphone out / Line out Power/Lockscreen Play/Pause Volume up Volume down RGB indicator Micro SD card slot USB transfer/Charging port

2. Buttons and ports explained

1) Touchscreen (16 million colors, 480x800 pixels): Displays the user interface and other information; for operating the unit via screen touches and/or in conjunction with buttons on the unit;
2) Power / Lock: While M6 is powered off, hold for 2s to turn on; while powered on, hold to display power off / reboot menu; press briefly while powered on to turn screen on / off; Press and hold for 10 seconds to reboot.
3) Volume “+” / “-” button: When the screen is ON, press briefly to change volume by one increment, hold down to change volume continuously until the maximum volume (“+” button) is reached or the player is muted (“-” button); When the screen is OFF, press briefly to change volume by one increment, hold down to skip to Previous/Next track.
4) Play / Pause: Press while playing to pause music, press while paused to continue playback;
5) Micro SD card slot: Supporting up to 512GB capacity
6) Indicator light: Red light will be on for some seconds and then off during the boot; light is OFF in working condition, red light when charging, turn off indicator light when power off;
7) Type C USB data/ charging port: Used for charging, transmitting data, USB Audio output. The DC5V 2A adapter is recommended for charging and can be fully charged in 2 hours.
8) 3.5mm PO/LO: Shared Phone/line output port. Switch between the two outputs in M6 Settings ->Audio -> Select output.

CTIA-spec headsets with in-line remote control supported with the following remote control operation (single button remotes and main button of multi-button remotes supported):

Volume Up/Down: click to turn up/down the volume once, hold to turn up/down the volume continuously to Max volume/Mute;

Play / Pause: press main button once briefly to toggle between play and pause;

Next track: double-click main button quickly;

Previous track: triple-click main button quickly;

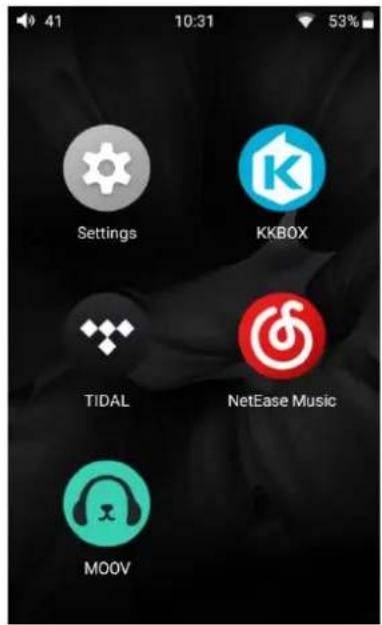

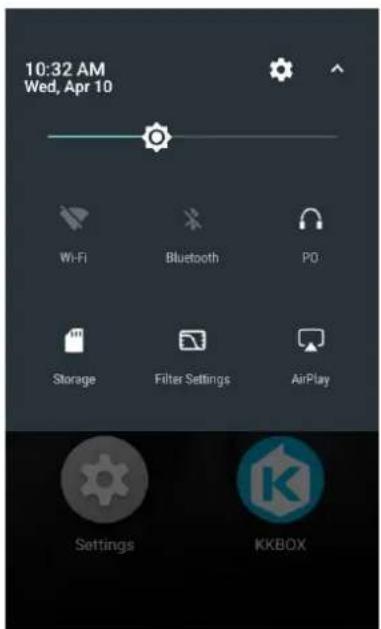

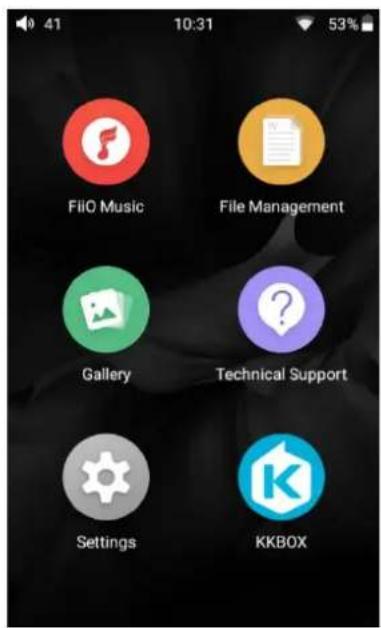

• Main menu and Drop-down menu interface:


41 10:31 53% FiiO Music File Management Gallery Technical Support Settings KKBOX

Settings KKBOX TiDAL NetEase Music MOOV

MA 18:01 No online session File Management File Music Session Session Engine Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Session Statement

10:32 AM Wed, Apr 10 Wi-Fi Bluetooth PO Storage Filter Settings AirPlay Settings KKBOX

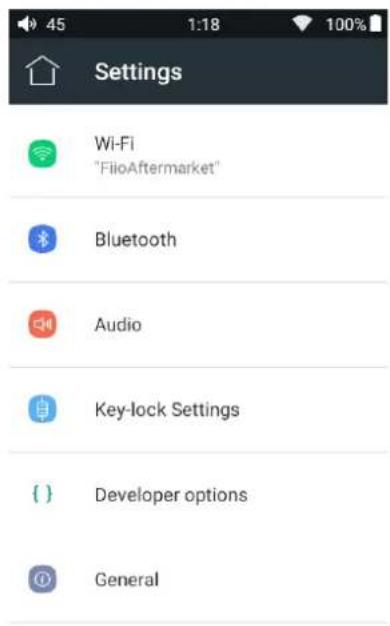

- Settings interface:

Settings Wi-Fi "FiioAftermarket" Bluetooth Audio Key-lock Settings ( ) Developer options General

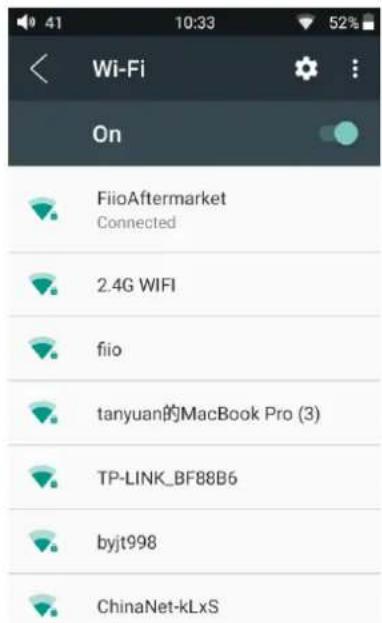

1. WiFi

The M6 may connect to the Internet or other network resources to obtain music resources or perform other Android functions;

To connect the M6 to WiFi devices / hotspots:

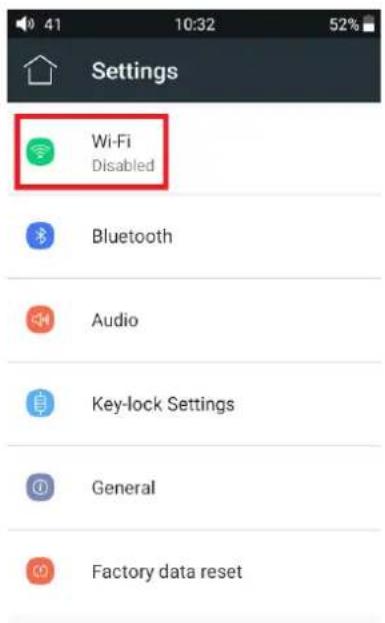

1) Tap the WLAN in setting as shown in the picture below;
2) Click the WiFi switch to the right (ON) and the M6 will automatically search for and display available WiFi connections;
3) Tap the name of the WiFi network you wish to connect to and enter the password if prompted, and the M6 will connect to the network:

Settings Wi-Fi Disabled Bluetooth Audio Key-lock Settings General Factory data reset

Wi-Fi On FiioAftermarket Connected 2.4G WIFI fiio tanyuan的MacBook Pro (3) TP-LINK_BF88B6 byjt998 ChinaNet-kLxS

2. Bluetooth function

M6 supports virtually all Bluetooth formats including the high-resolution ones for your ultimate listening pleasure, including: aptX-HD (also backwards compatible with aptX), LDAC and HWA. M6 can also be a Bluetooth transmitter or a Bluetooth receiver.

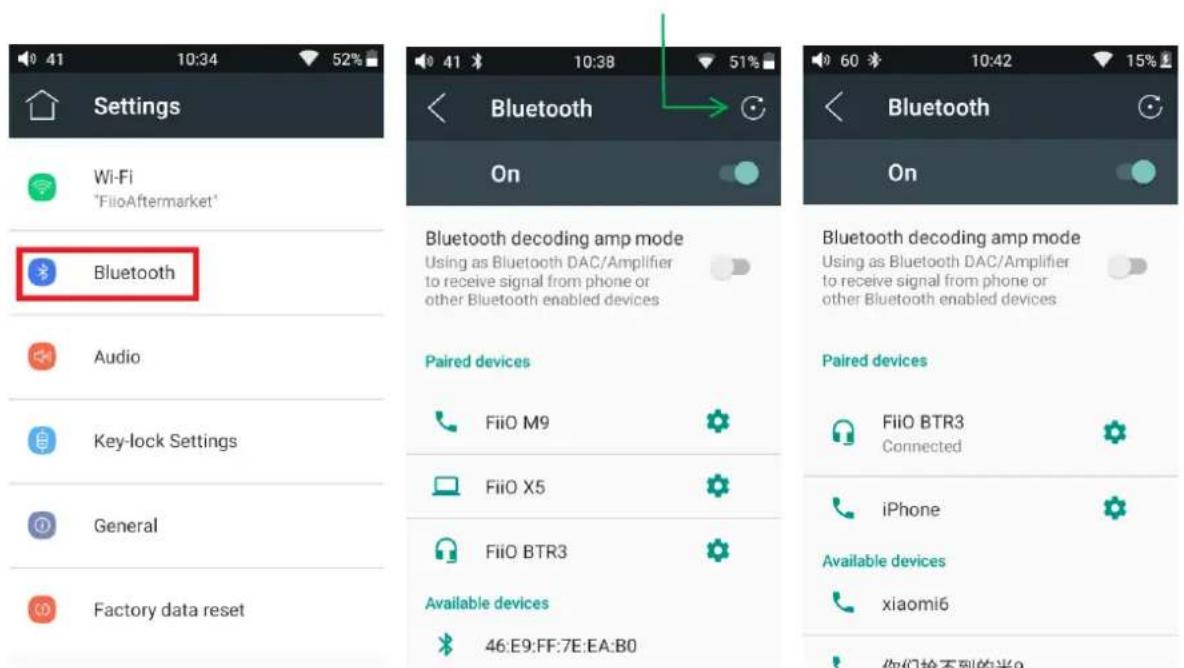

Bluetooth transmitter

To use the M6 with new Bluetooth devices (e.g. Bluetooth earphones, speakers, remote controls), the M6 must first be paired with the device as follows:

1) Tap the Bluetooth in setting as shown in the picture below;
2) If Bluetooth on the M6 is off, turn it on by clicking the switch on the upper right to the "ON" position on the right;
3) Tap "SEARCH FOR DEVICES" at the bottom of the screen to have the M6 search for and display nearby Bluetooth devices;
4) Tap the name of your Bluetooth device to pair with it. Successfully paired devices will appear under the "PAIRED DEVICES" list:

Refresh to search Blutooth

Settings Wi-Fi 'FilioAftermarket' Bluetooth Audio Key-lock Settings General Factory data reset Bluetooth On Bluetooth decoding amp mode Using as Bluetooth DAC/Amplifier to receive signal from phone or other Bluetooth enabled devices Paired devices FiiO M9 FiiO X5 FiiO BTR3 Available devices 46:E9:FF:7E:EA:B0 Bluetooth On Bluetooth decoding amp mode Using as Bluetooth DAC/Amplifier to receive signal from phone or other Bluetooth enabled devices Paired devices FiiO BTR3 Connected iPhone Available devices xiaomi6 你们找不到的半

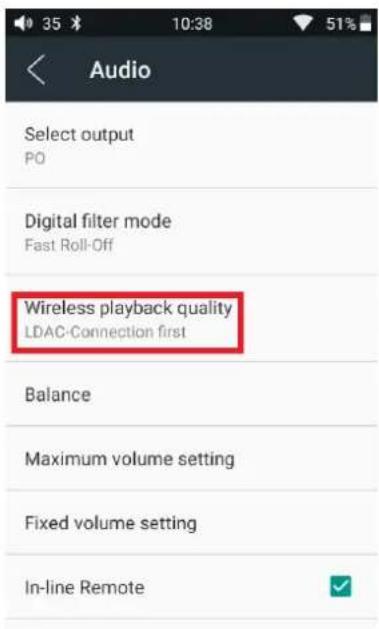

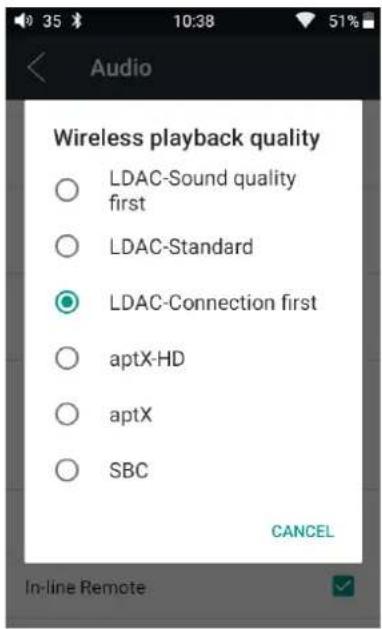

Before connecting Bluetooth device, you can select the Bluetooth audio codec which you want to use as follows:

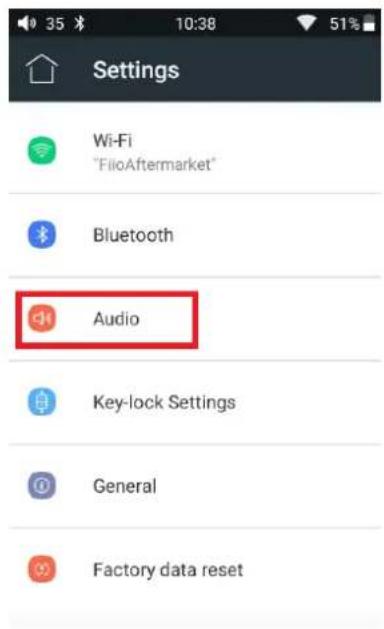

1) Enter the Settings-Audio settings interface
2) Click on the Wireless Playback quality, select the one you want to use, then disconnect the current connection and connect with your Bluetooth device again.

Settings Wi-Fi "FilioAftermarket" Bluetooth Audio Key-lock Settings General Factory data reset

Audio Select output PO Digital filter mode Fast Roll-Off Wireless playback quality LDAC-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote

Audio Wireless playback quality ○ LDAC-Sound quality first ○ LDAC-Standard ● LDAC-Connection first ○ aptX-HD ○ aptX ○ SBC CANCEL In-line Remote

Note:

1. If you already connect with one Bluetooth device, it is necessary to disconnect the Bluetooth connection in order to switch the Bluetooth audio code successfully before reconnecting with the Bluetooth device. (The switching between the three modes of LDAC can work in real time.)
2. When you turn on the Bluetooth, M6 will automatically connect to the latest available device.

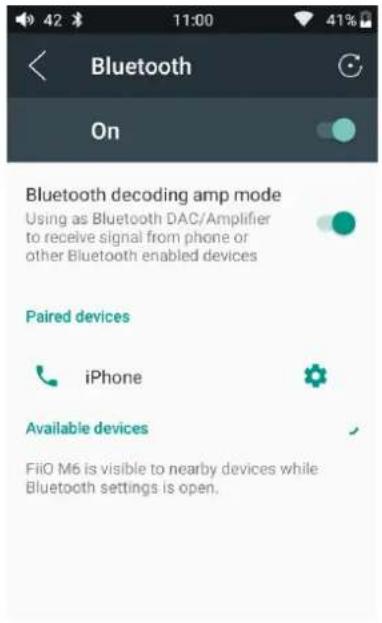

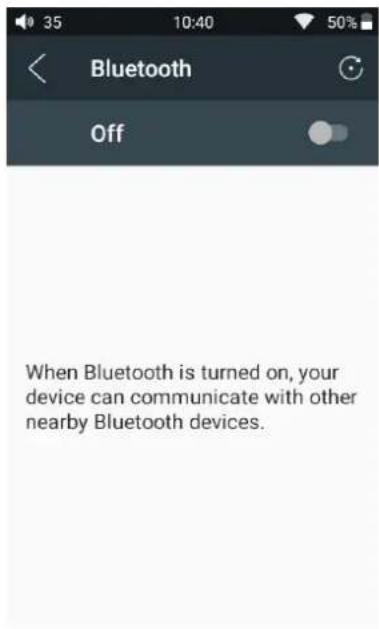

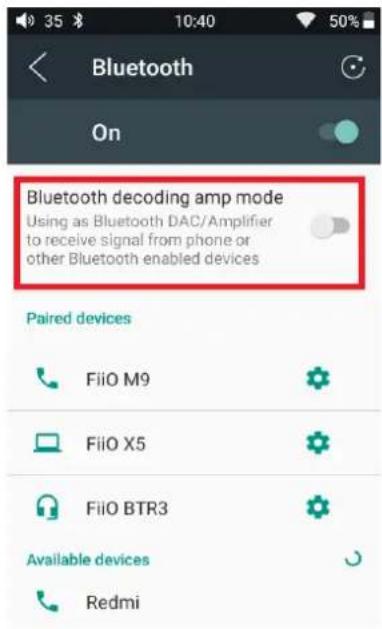

Bluetooth receiver

When M6 is connected to a new Bluetooth device (such as the mobile phone) as a Bluetooth receiver, turn on the "Bluetooth decoding amp mode" in the Bluetooth settings interface, then the Bluetooth will turned off automatically, turn on the Bluetooth again and you are in Bluetooth receive mode now! (It only supports SBC and LDAC now, and it is required to upgrade to the latest firmware.)

Bluetooth On Bluetooth decoding amp mode Using as Bluetooth DAC/Amplifier to receive signal from phone or other Bluetooth enabled devices Paired devices FiiO M9 FiiO X5 FiiO BTR3 Available devices Redmi

Bluetooth Off When Bluetooth is turned on, your device can communicate with other nearby Bluetooth devices.

Bluetooth On Bluetooth decoding amp mode Using as Bluetooth DAC/Amplifier to receive signal from phone or other Bluetooth enabled devices Paired devices iPhone Available devices FiiO M6 is visible to nearby devices while Bluetooth settings is open.

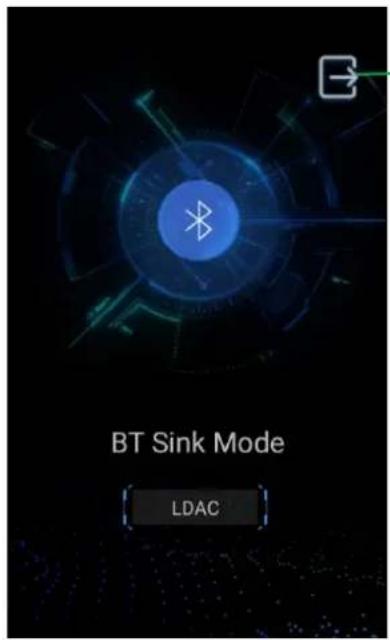

BT Sink Mode LDAC

→ Disconnect

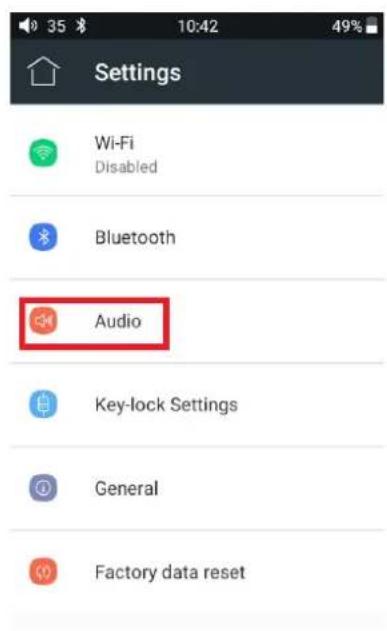

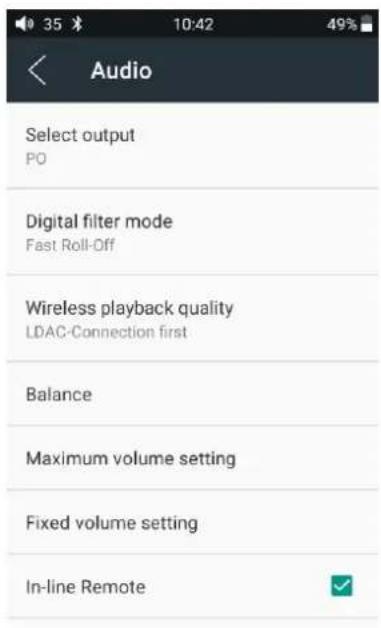

3. Audio

Settings Wi-Fi Disabled Bluetooth Audio Key-lock Settings General Factory data reset

Audio Select output PO Digital filter mode Fast Roll-Off Wireless playback quality LDAC-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote

Audio Digital filter mode Fast Roll-Off Wireless playback quality LDAC-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote USB DAC AirPlay

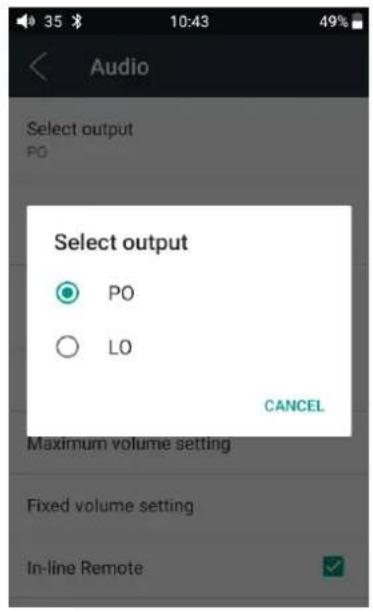

Select output

Switch the output between PO(Headphone output) / LO(Line out);

Audio Select output PO Select output PO LO CANCEL Maximum volume setting Fixed volume setting In-line Remote

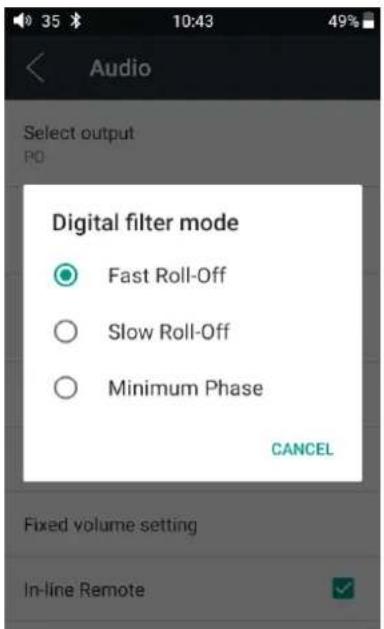

Digital filter mode

To set the filter modes: Fast Roll-Off Filter, Slow Roll-Off Filter, Minimum Phase;

Audio Select output PD Digital filter mode ● Fast Roll-Off ○ Slow Roll-Off ○ Minimum Phase CANCEL Fixed volume setting In-line Remote

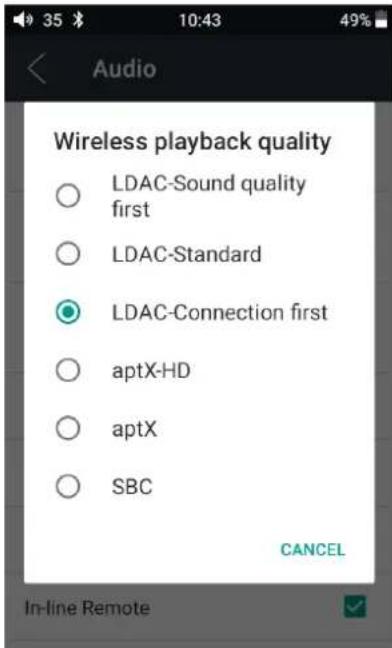

Wireless playback quality

When the Bluetooth receiver supports multiple Bluetooth audio codecs such as BTR3), you can select which you want to use.

Audio Wireless playback quality ○ LDAC-Sound quality first ○ LDAC-Standard ● LDAC-Connection first ○ aptX-HD ○ aptX ○ SBC CANCEL In-line Remote

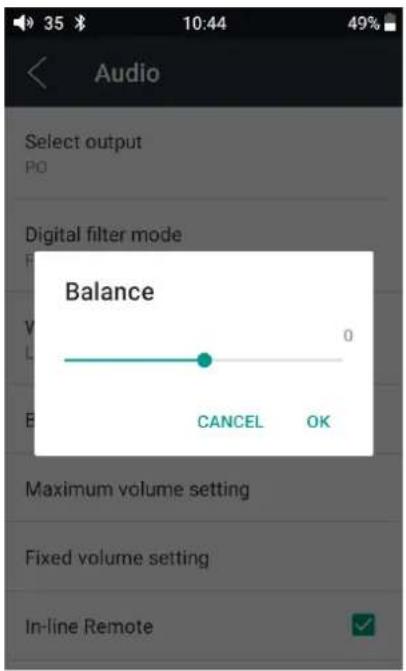

Balance

Set the Balance between the left and right channels. From being biased leftmost (L10) through centre (0) to rightmost (R10), there are 21 settings available.

Audio Select output PO Digital filter mode Balance 0 CANCEL OK Maximum volume setting Fixed volume setting In-line Remote

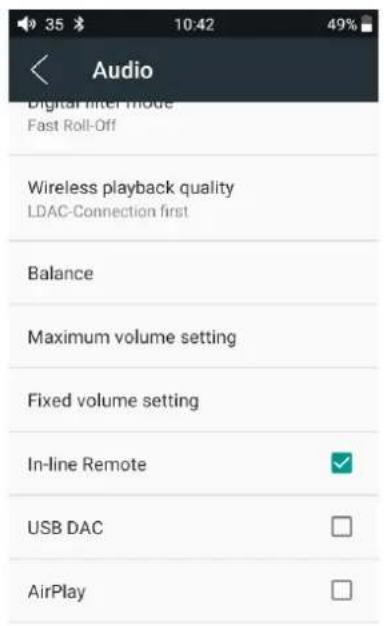

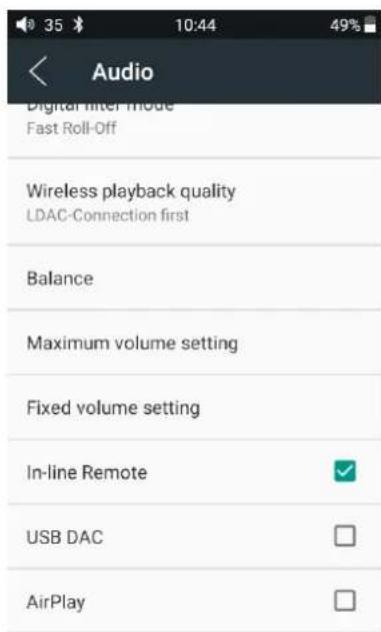

In-line remote

Response to in-line remotes on connected headsets may be enabled or disabled by your choice.

Audio Digital filter mode Fast Roll-Off Wireless playback quality LDAP-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote USB DAC AirPlay

Audio Digital filter Mode Fast Roll-Off Wireless playback quality LDAC-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote USB DAC AirPlay

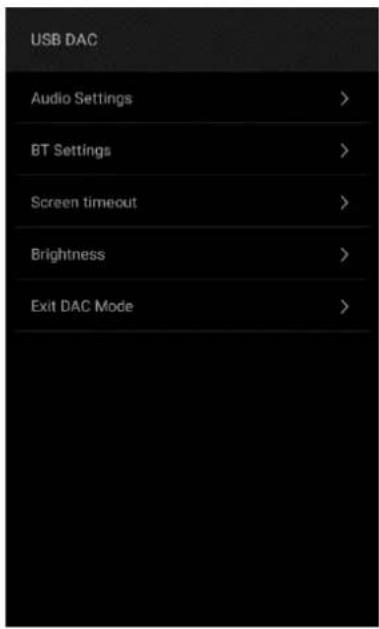

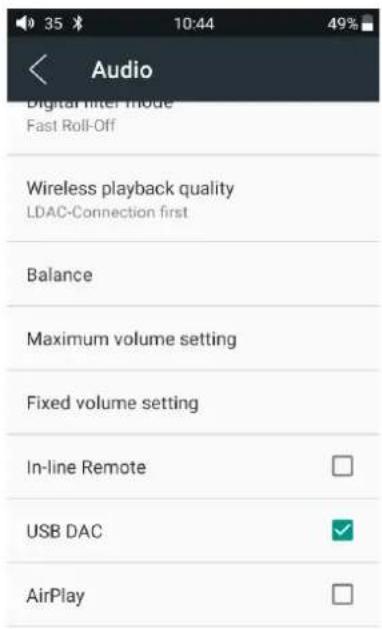

USB DAC

Check “USB DAC” and connect the M6 with computer via USB cable. (If you’re using Windows system, please install the driver at https://www.fiio.com/Driver_Download; MAC system doesn’t need to install the DAC driver.

Audio Digital filter mode Fast Roll-Off Wireless playback quality LDAC-Connection first Balance Maximum volume setting Fixed volume setting In-line Remote USB DAC AirPlay

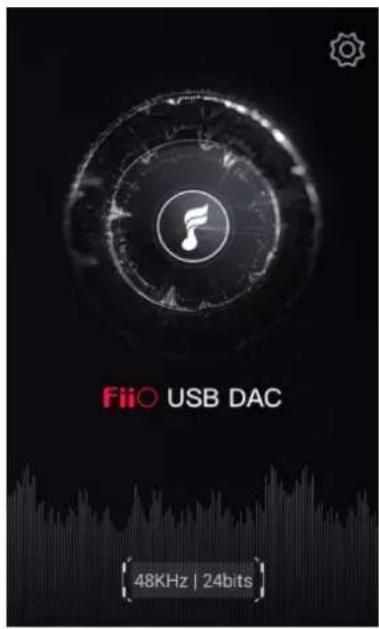

FiiO USB DAC 48KHz | 24bits

USB DAC Audio Settings > BT Settings > Screen timeout > Brightness > Exit DAC Mode >

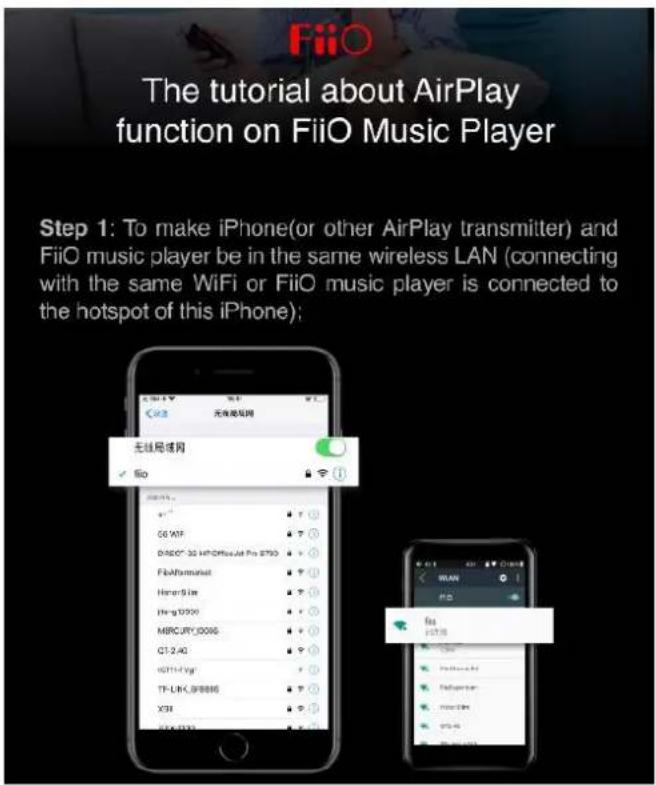

AirPlay

The toturial about AirPlay function

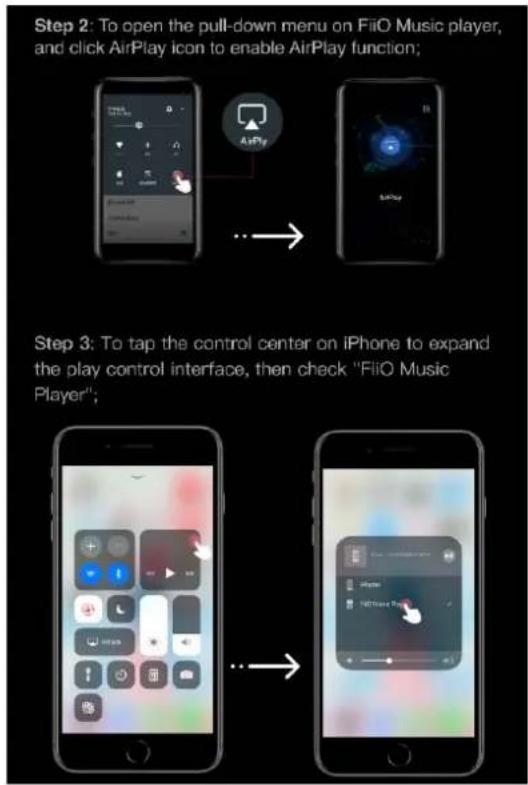

The tutorial about AirPlay function on FiiO Music Player Step 1: To make iPhone(or other AirPlay transmitter) and FiiO music player be in the same wireless LAN (connecting with the same WiFi or FiiO music player is connected to the hotspot of this iPhone);


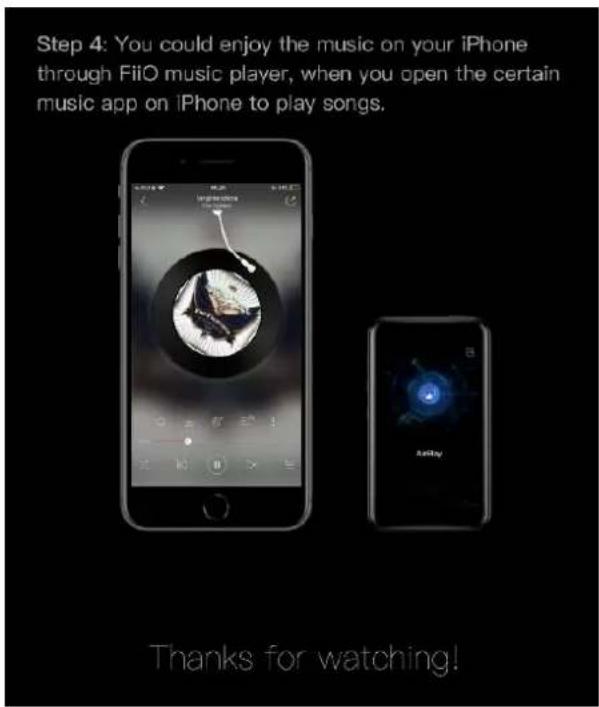

Step 4: You could enjoy the music on your iPhone through FiiO music player, when you open the certain music app on iPhone to play songs. Thanks for watching!

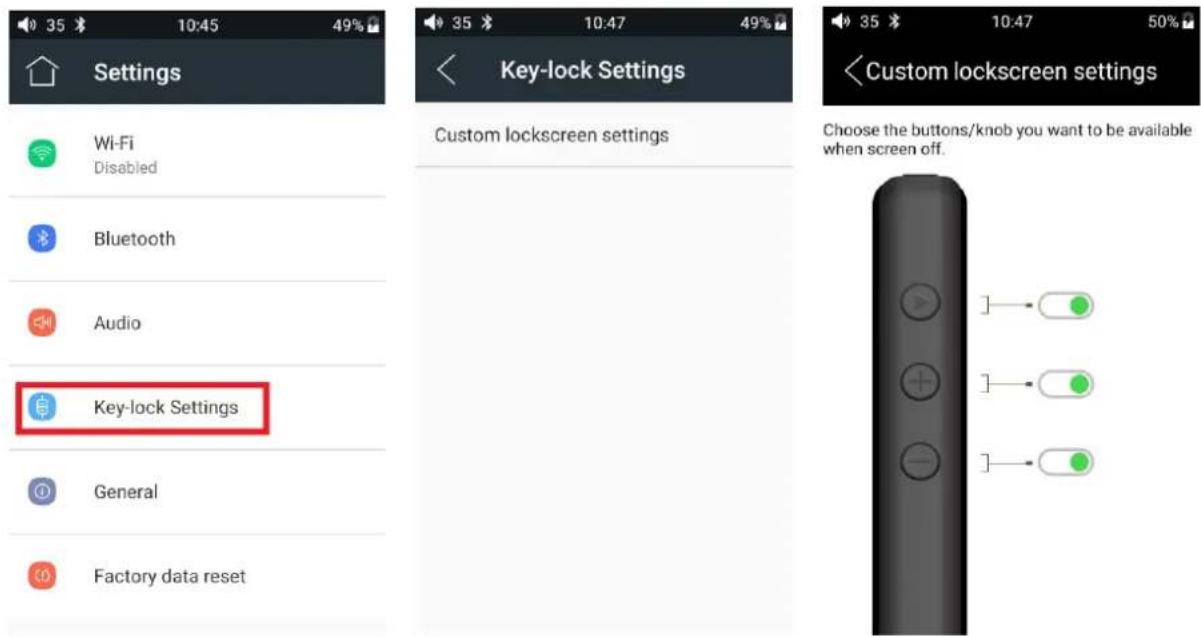

4. Key-lock Settings

You can choose the buttons/knob you want to be available when the screen is off.

Settings Wi-Fi Disabled Bluetooth Audio Key-lock Settings General Factory data reset Key-lock Settings Custom lockscreen settings Custom lockscreen settings Choose the buttons/knob you want to be available when screen off.

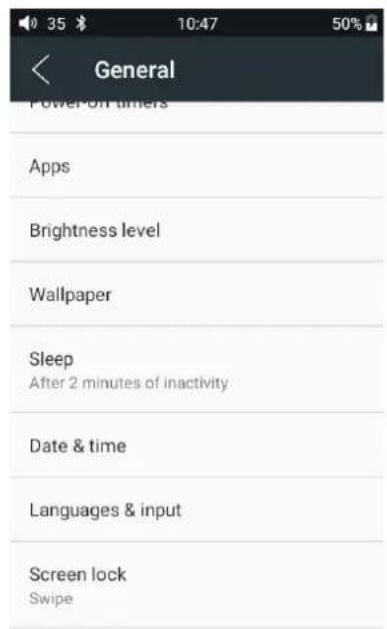

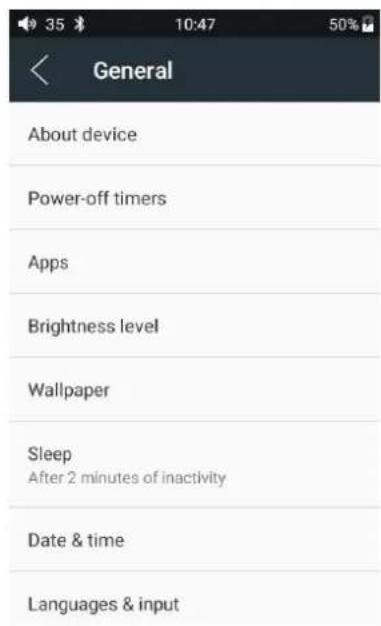

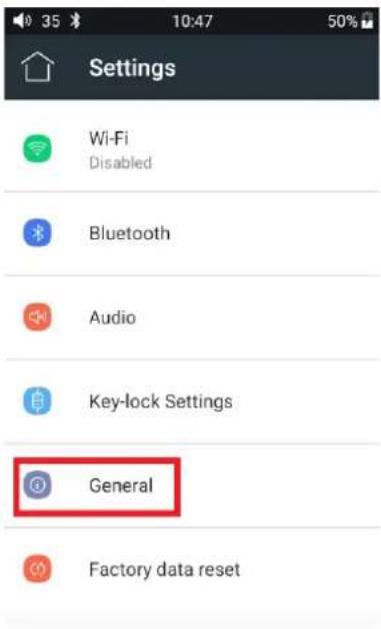

5. General

General includes About device, Power-off timers, Apps, Brightness level, Wallpaper, Sleep, Date& time, Language &Input, Screen lock. Here are a few common function's introductions.

Settings Wi-Fi Disabled Bluetooth Audio Key-lock Settings General Factory data reset

General About device Power-off timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input

General Power-on timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input Screen lock Swipe

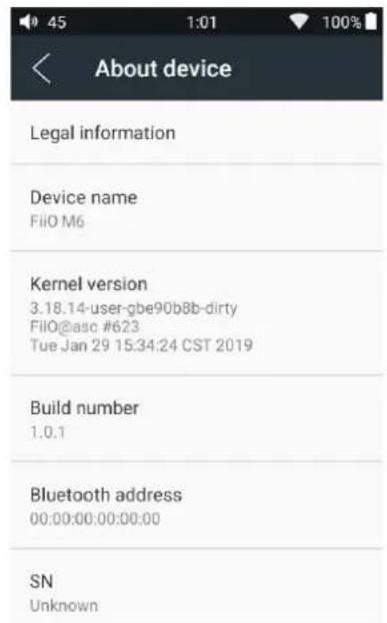

About device

You can view Device name, Build number, etc.

About device Legal information Device name Filio M6 Kernel version 3.18.14-user-gbe90b8b-dirty Filio@asc #623 Tue Jan 29 15:34:24 CST 2019 Build number 1.0.1 Bluetooth address 00:00:00:00:00:00 SN Unknown

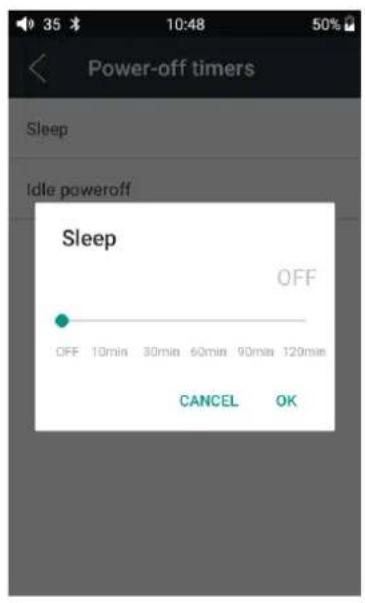

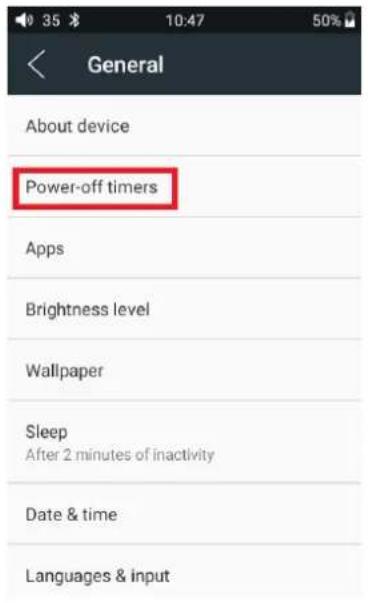

Power-off Timer

Power-off timer includes two categories, namely "Sleep" and "Idle power off":

Sleep: once the pre-set power-off time is expired, M6 will power off automatically, no matter whether it is playing or not. The power-off time can be set to any value between 0 to 120 minutes. By default the sleep power off is turned off, and it will restore to the default settings once the power-off time is expired.

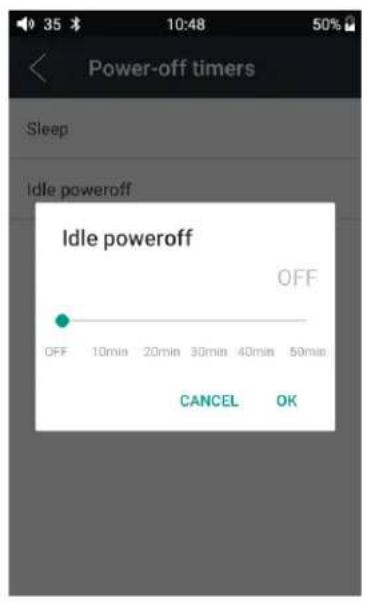

Idle power off: once the pre-set power-off time is expired and no operation is performed during the time period, M6 will power off automatically. The timer can be set to any value between 0 to 50 minutes. By default the sleep power off is turned off, and it will restore to the default settings once the power-off time is expired.

General About device Power-off timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input

Power-off timers Sleep Idle poweroff Sleep OFF OFF 10min 30min 60min 90min 120min CANCEL OK

Power-off timers Sleep Idle poweroff Idle poweroff OFF OFF 10min 20min 30min 40min 50min CANCEL OK

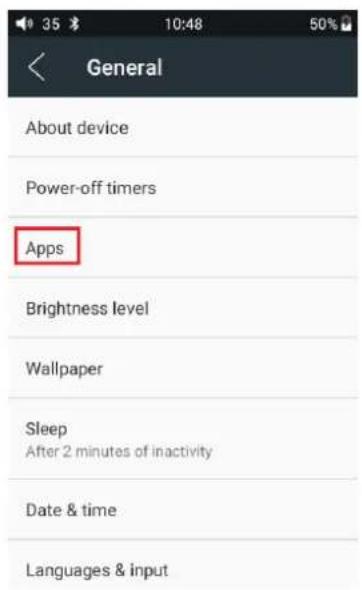

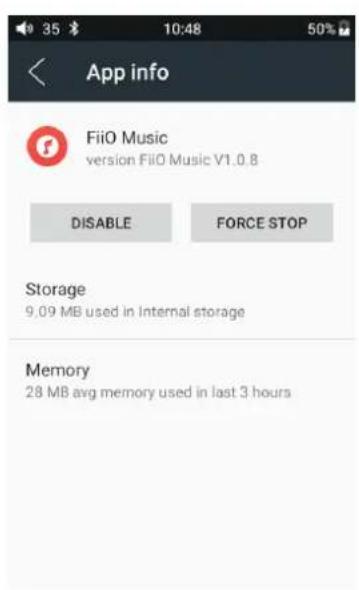

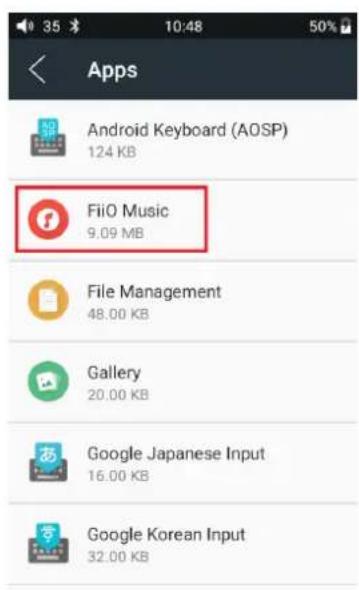

Apps

M6 app can be disabled or forced to stop. The memory and RAM can also be checked

General About device Power-off timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input

Apps Android Keyboard (AOSP) 124 KB FiiO Music 9.09 MB File Management 48.00 KB Gallery 20.00 KB Google Japanese Input 16.00 KB Google Korean Input 32.00 KB

App info FiiO Music version FiiO Music V1.0.8 DISABLE FORCE STOP Storage 9.09 MB used in Internal storage Memory 28 MB avg memory used in last 3 hours

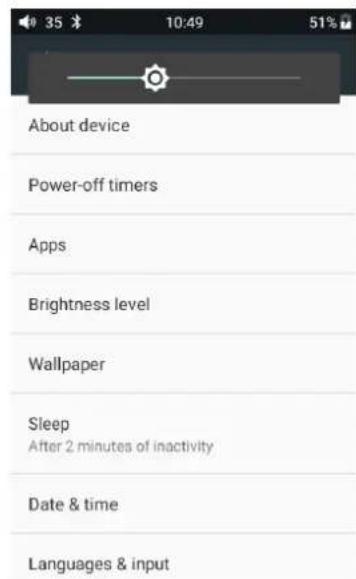

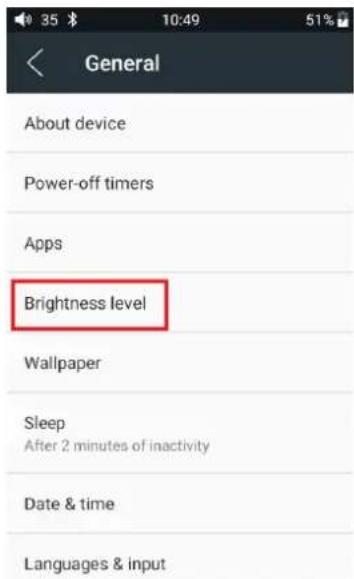

Brightness level

The brightness can be adjusted according to the environment.

General About device Power-off timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input

About device Power-off timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input

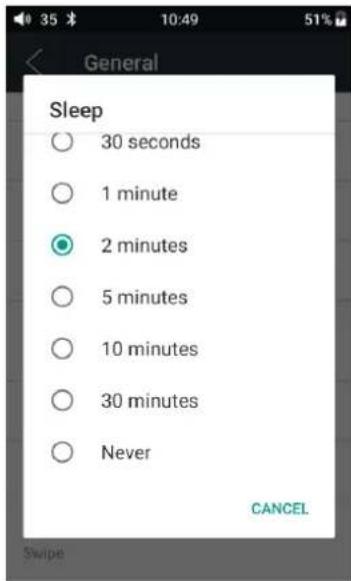

Sleep

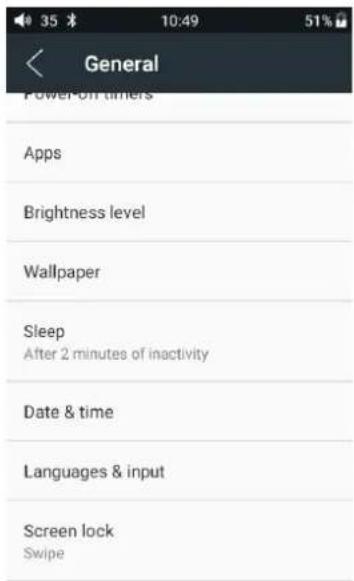

Specify after how much time of inactivity (no button presses, screen touches or playing) M6 will enter sleep mode. In Sleep mode, M6 would have low power consumption. To short press the Power button can wake up M6 from Sleep mode.

General Power-on timers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input Screen lock Swipe

General Sleep ○ 30 seconds ○ 1 minute ● 2 minutes ○ 5 minutes ○ 10 minutes ○ 30 minutes ○ Never CANCEL

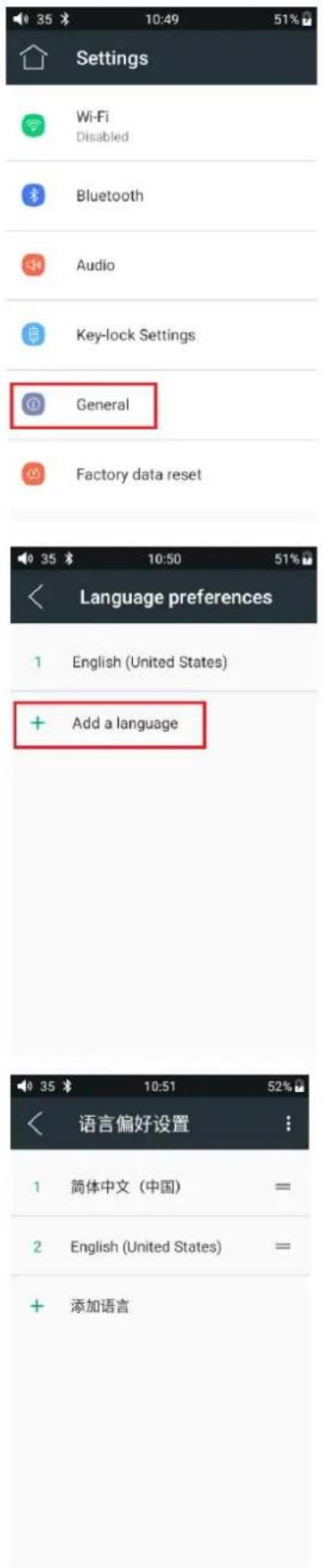

Language setting

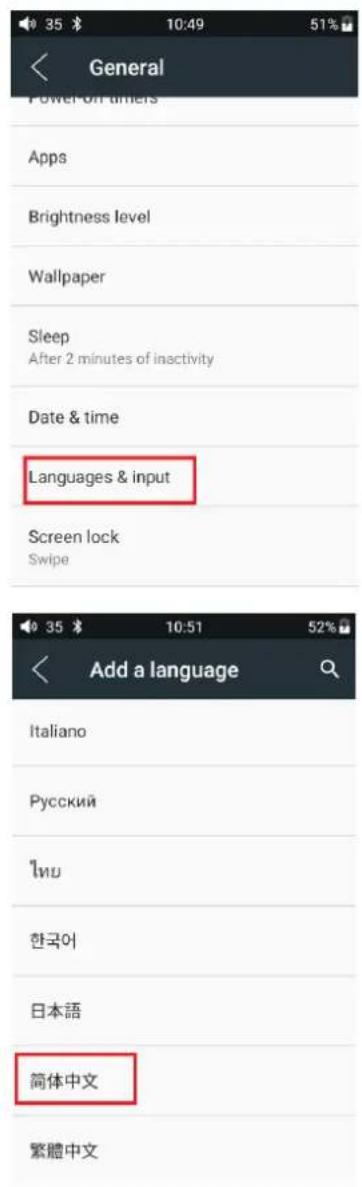

1. “Settings”-“General”-“Language & input”, and “Languages” in sequence, which will bring you to the “Language preference setting” interface.
2. Press "Add a language"
3. Select a language
4. After selecting the language, you should press the “=” icon on the right side of the target language and drag the language to the head of the list. Switching language can only be completed

after this operation.

Settings Wi-Fi Disabled Bluetooth Audio Key-lock Settings General Factory data reset Language preferences 1 English (United States) + Add a language 语言偏好设置 1 简体中文（中国） = 2 English (United States) = + 添加语言

General Power-on offers Apps Brightness level Wallpaper Sleep After 2 minutes of inactivity Date & time Languages & input Screen lock Swipe Add a language Italiano Русский Инш 한국어 日本語 简体中文 繁體中文

Languages & input Languages English (United States) and Chinese (China) Spell checker Android Spell Checker (AOSP) Personal dictionary Keyboard and input methods Virtual keyboard Physical keyboard Mouse/trackpad Pointer speed Language preferenc... 1 English (United States) = 2 筒体中文（中国） = + Add a language

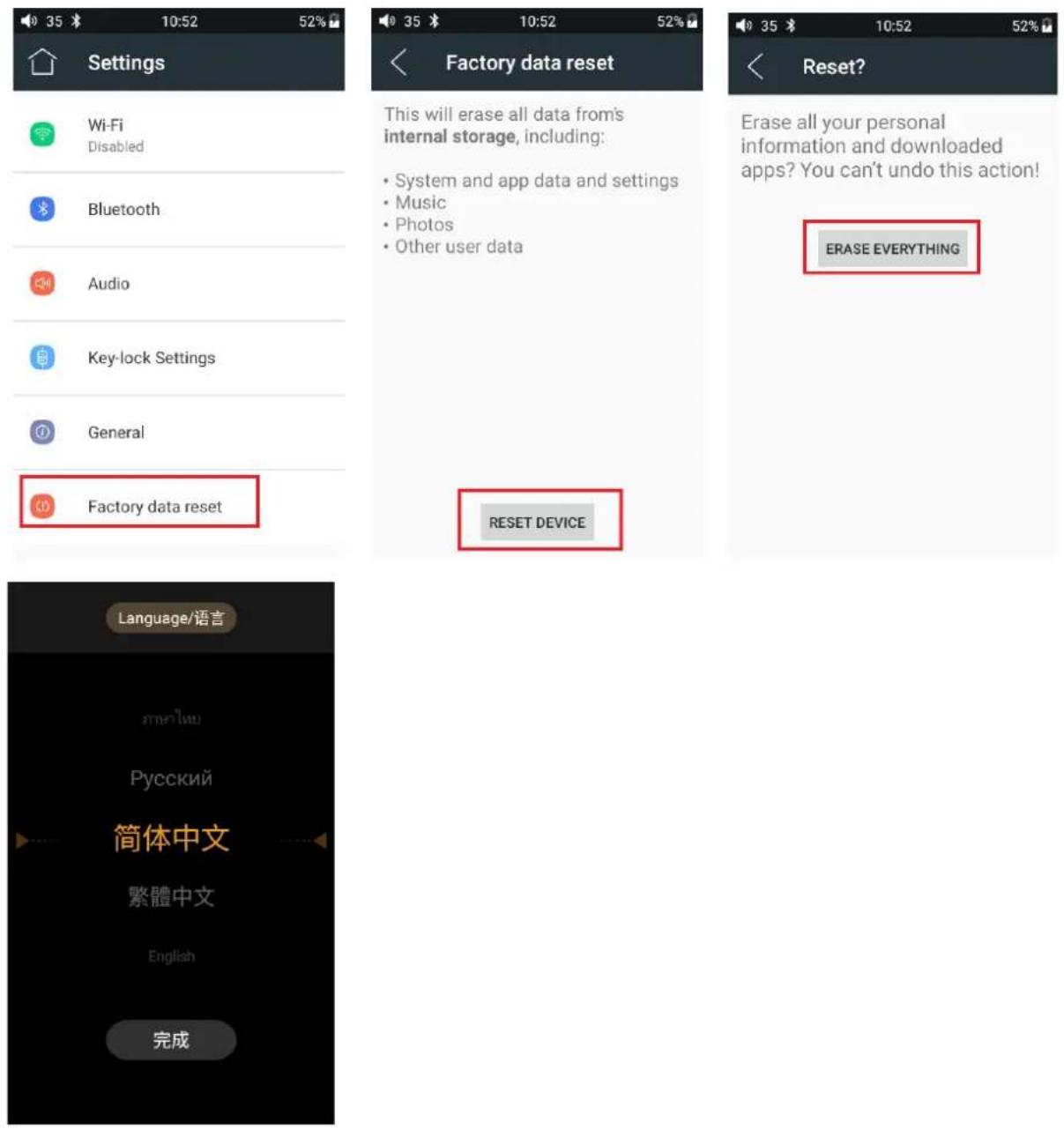

Factory data reset

“Factory data reset” will clean all the user data in memory and restore to the original default settings. Please backup important data in advance.

Wi-Fi Disabled

Bluetooth

Audio

Key-lock Settings

General

Factory data reset

This will erase all data from's internal storage, including:

• System and app data and settings
- Music
- Photos
- Other user data

Erase all your personal information and downloaded apps? You can't undo this action!

- Firmware Update

You can select OTA updates or choose Local updates.

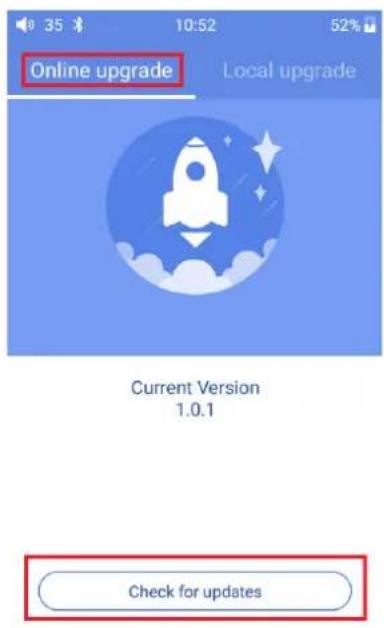

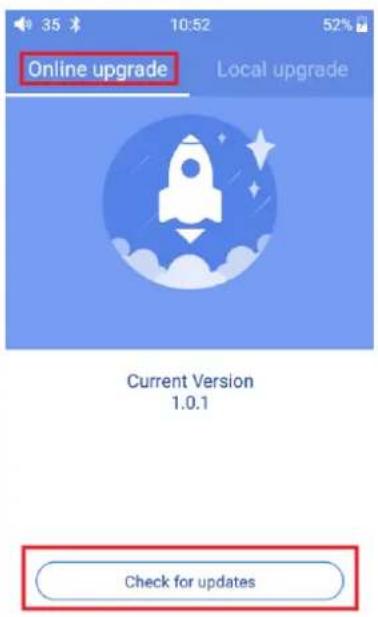

OTA updates requires a stable WiFi network, and once you press the “check for updates” button, M6 will automatically look for updates online. If a new version firmware is available, it will notify

you the new version, and then the update can be performed accordingly.

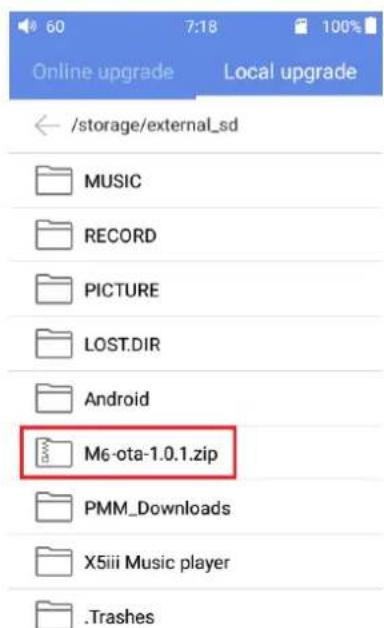

For local package update, the following steps need to be followed:

1. Download the firmware from FiiO official website, such as "M6-ota-1.0.1.zip", and copy this firmware file to the root directory of your micro SD. Note that the file should not be unzipped, and you are recommended not to modify the file name.

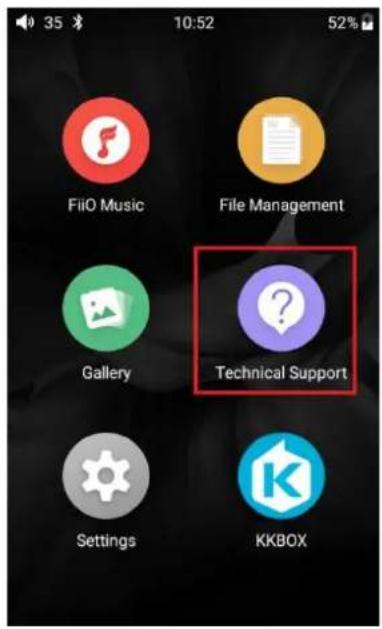

2. Press "Technical Support >Firmware Update>Local upgrade" accordingly, locate the firmware file in the "Local upgrade" interface, and then choose the firmware file.

35 10:52 52% FiiO Music File Management Gallery Technical Support Settings KKBOX

Technician Snbou DB DB Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download Microsoft Windows Server 10.0.01.2017-03-2017 - Microsoft Windows Server 10.0.01.2017-03-2017 - Microsoft Windows Server 10.0.01.2017-03-2017 - Microsoft Windows Server 10.0.01.2017-03-2017 - Microsoft Windows Server 10.0.01.2017-03-2017 - Facebook https://www.facebook.com/18045610101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101

Online upgrade Local upgrade Current Version 1.0.1 Check for updates

Online upgrade Local upgrade Current Version 1.0.1 Check for updates

/storage/external_sd MUSIC RECORD PICTURE LOST.DIR Android M6-ota-1.0.1.zip PMM_Downloads X5iii Music player .Trashes

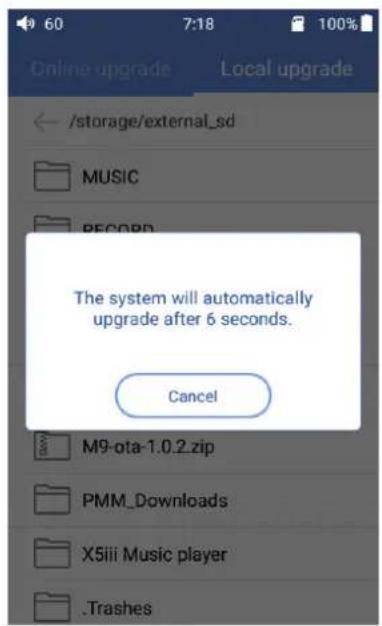

/storage/external_sd MUSIC RECORD The system will automatically upgrade after 6 seconds. Cancel M9-ota-1.0.2.zip PMM_Downloads X5iii Music player .Trashes

1. Press "confirm" button on the prompt window, and then M6 will be rebooted and the update will be completed automatically.

Attention

1. Please ensure the battery power is more than 30%, or the device is connected to a power supply.
2. Please ensure the firmware file is selected.
3. Please do not perform any operation on M6 while updating, and if the update is not successful, you can hold POWER and PLAY buttons simultaneously for about 10 seconds to reboot the device.

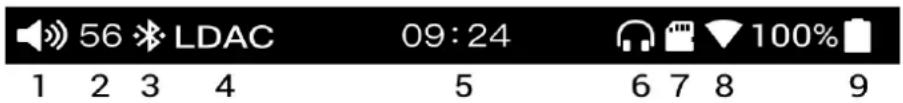

- Status bar

The status bar on top of the screen can indicate the working status.

56 LDAC 09:24 100% 1 2 3 4 5 6 7 8 9

1——volume icon
3—Bluetooth status
5——current time
7—inserted with micro SD card
9—the remaining battery in percentage

2——current volume
4—Bluetooth codec format
6—POplug(included PO,LO)
8——WiFi connected

- Technical Support

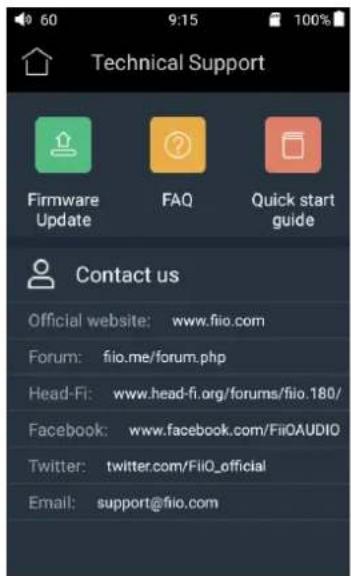

Tap the Technical support icon on the home screen to enter the technical support menu, where the following options are provided:

Firmware update: you can choose the online upgrade or select a local package to update the M6's firmware;

FAQ: List the solutions for some FAQ;

Quick start guide: tap to view the quick start guide for the M6.

Technical Support Firmware Update FAQ Quick start guide Contact us Official website: www.fiio.com Forum: fiio.me/forum.php Head-Fi: www.head-fi.org/forums/fio_180/ Facebook: www.facebook.com/FiOAUDIO Twitter: twitter.com/FiO_official Email: [e-mail]

•FiiO Music

The M6 comes with the FiiO Music app, a music playing application that has been highly customized to make full use of the audio hardware of the M6 and tailored to the usage needs of advanced music enthusiasts.

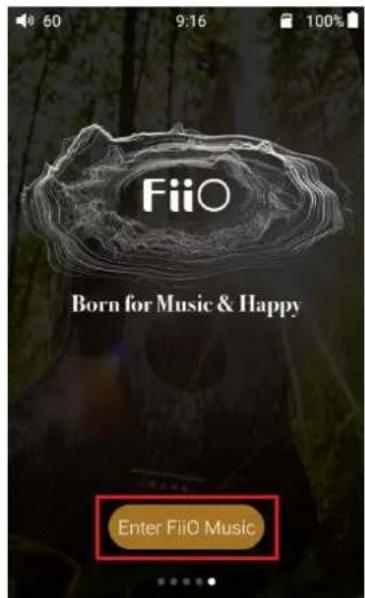

On first launch of FiiO Music, an illustration of the guide to the app will appear. Below is the introduction of FiiO Music app.

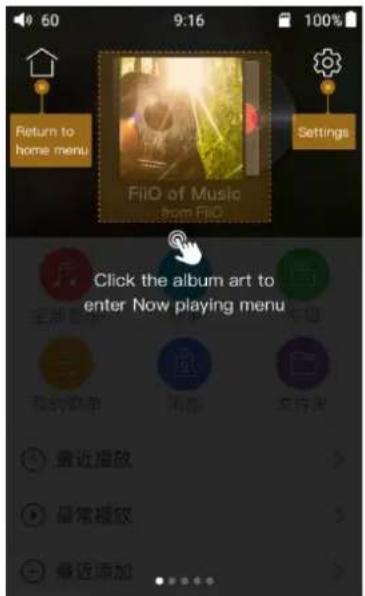

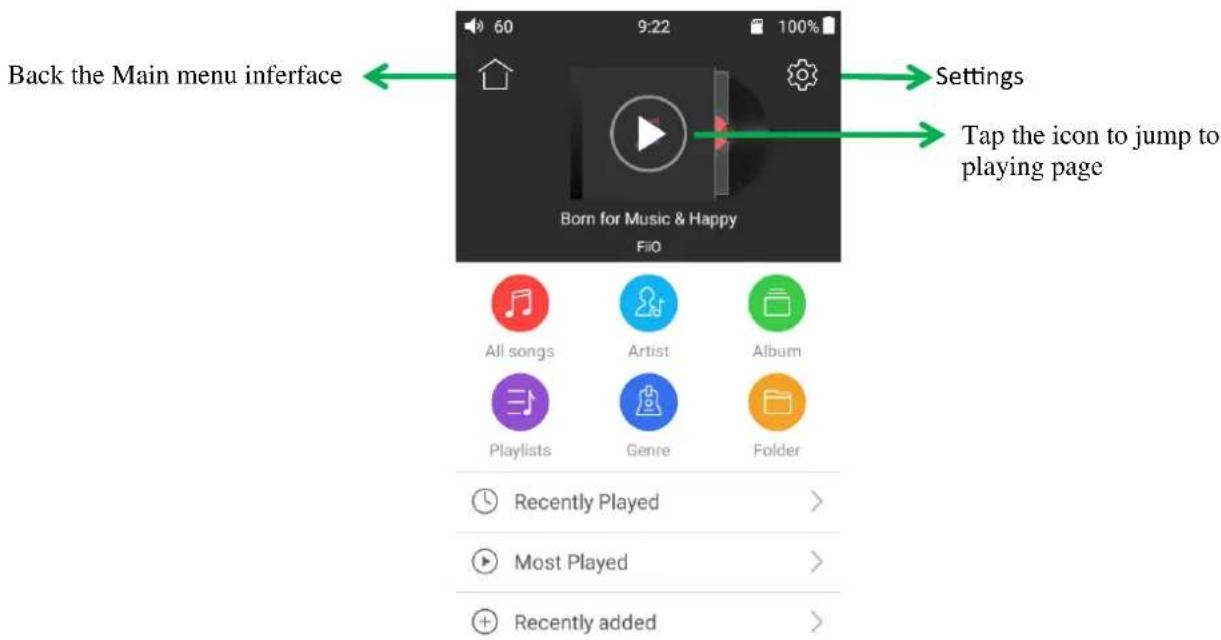

1. APP homepage

On launching the FiiO Music app, the following homepage will appear. The following functions can be performed on the homepage:

60 9:16 100% 艺术家 林俊杰 Search for tracks Bulk management and sorting 周杰伦 Click and play 张思妹 Swipe left to enable the shortcuts menu for management 周笔畅 我推娅 Click the album art to enter Now playing menu

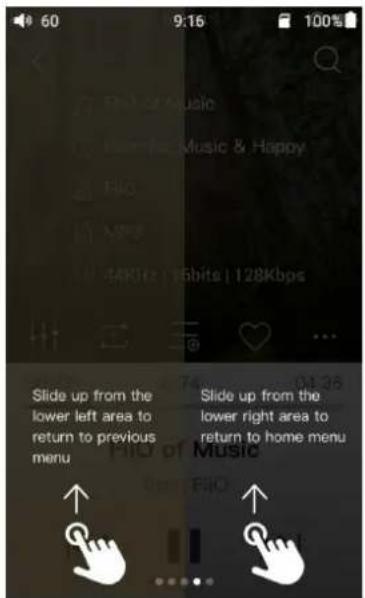

Slide up from the lower left area to return to previous menu Slide up from the lower right area to return to home menu

60 9:16 100% FiiO Born for Music & Happy Enter FiiO Music

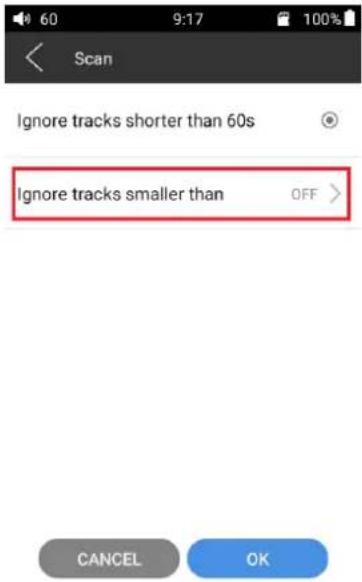

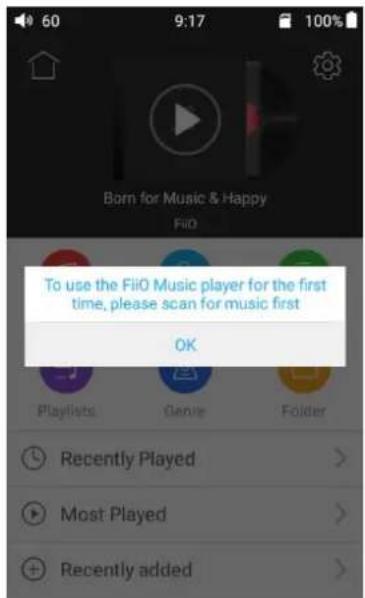

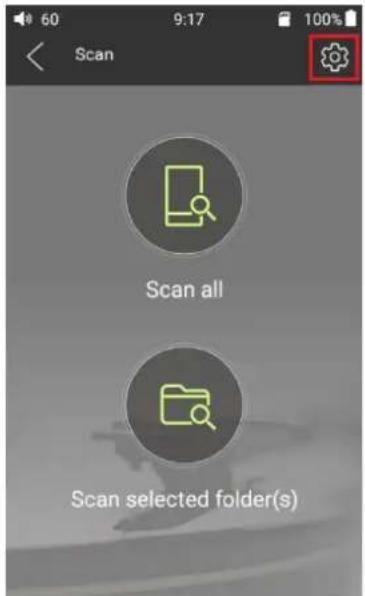

To use the FiiO Music player for the first time, please scan for music first OK Playlists Genre Folder Recently Played Most Played Recently added

Scan Scan all Scan selected folder(s)

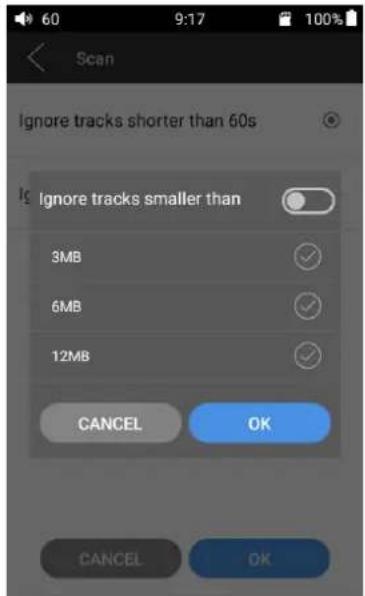

60 9:17 100% Scan Ignore tracks shorter than 60s Ignore tracks smaller than OFF > CANCEL OK

60 9:17 100% Scan Ignore tracks shorter than 60s Ignore tracks smaller than 3MB 6MB 12MB CANCEL OK CANCEL OK

Settings: tap the icon to go to app settings options;

Return to desktop: tap the icon to return to main screen;

Playing page: tap the icon to jump to playing page;

Recently played: Lists your recently played songs according to the time it is played;

Most played: Lists your most popular songs according to playback frequency;

Recently added: Lists the tracks that are recently added to the library.

Back the Main menu interface Settings Tap the icon to jump to playing page Born for Music & Happy File All songs Artist Album Playlists Genre Folder Recently Played > Most Played > Recently added >

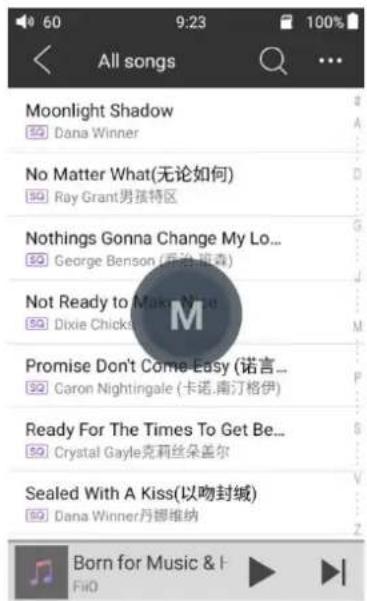

2. Quickly locate all music

When the list is ordered by alphabet (tap the blue circle to the lower right and select the “A->Z” option), you can slide your finger over the alphabet list to the right of the screen and quickly jump to the part of the list that starts with the selected letter.

60 9:22 100% Born for Music & Happy FIO All songs Artist Album Playlists Genre Folder Recently Played > Most Played > Recently added >

All songs Moonlight Shadow Dana Winner No Matter What(无论如何) Ray Grant男孩特区 Nothings Gonna Change My Lo... George Benson (那治·福森) Not Ready to Make Your Dixie Chick Promise Don't Come Easy (诺言... Caron Nightingale (卡诺·南汀格伊) Ready For The Times To Get Be... Crystal Gayle克莉丝朵盖尔 Sealed With A Kiss(以吻封缄) Dana Winner乃娜维纳 Born for Music & FiO

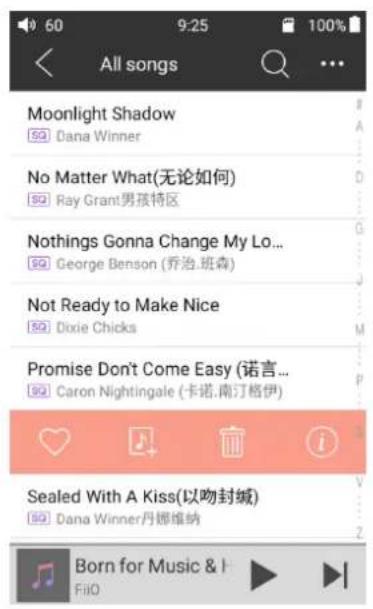

3. Gestures

Sliding your finger from right to left over a list item to enable the shortcuts menu and tap on the icons to perform the operations.

All songs Moonlight Shadow 50 Dana Winner No Matter What(无论如何) 50 Ray Grant男孩特区 Nothings Gonna Change My Lo... 50 George Benson (乔治.班森) Not Ready to Make Nice 50 Dixie Chicks Promise Don't Come Easy (诺言... 50 Caron Nightingale (卡诺.南汀格伊) Sealed With A Kiss(以吻封缄) 50 Dana Winner丹娜维纳 Born for Music & FileO

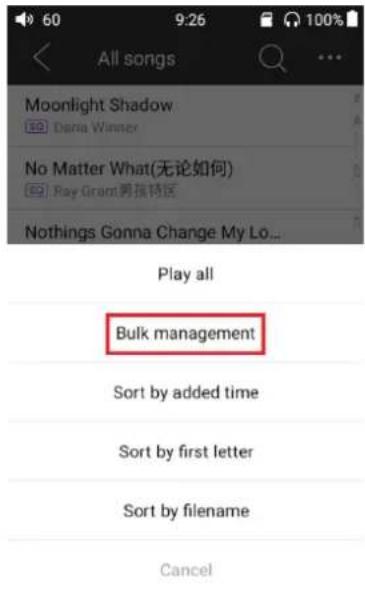

4. Function menu

Tap the shortcuts icon of function menu, the following functions can be performed. Selected sort order: sort by added time, sort by first letter, sort by filename.

Bulk management: batched playback, batched adds to my favorite, batched add to playlist, batched delete, exit batch operation

All songs Moonlight Shadow Dana Winner No Matter What(无论如何) Ray Grant男孩特区 Nothings Gonna Change My Lo... George Benson (乔治.班森) Not Ready to Make Nice Dixie Chicks Promise Don't Come Easy (诺言... Caron Nightingale (卡诺.南汀格伊) Ready For The Times To Get Be... Crystal Gayle克莉丝朵盖尔 Sealed With A Kiss(以吻封缄) Dana Winner丹娜维纳 Not Ready to Make Dixie Chicks

All songs Moonlight Shadow Dana Winner No Matter What(无论如何) Play Grant男孩特区 Nothings Gonna Change My Lo... Play all Bulk management Sort by added time Sort by first letter Sort by filename Cancel

All songs Select All Moonlight Shadow Dana Winner No Matter What(无论如何) Ray Grant.男孩特区 Nothings Gonna Change My Lo... George Benson (乔治.班森) Not Ready to Make Nice Dixie Chicks Promise Don't Come Easy (诺言... Caron Nightingale (卡诺.南汀格伊) Ready For The Times To Get Be... Crystal Gayle克莉丝朵盖尔 Sealed With A Kiss(以吻封缄) Dana Winner丹娜维纳

5. Now playing

The Now Playing screen support frequently used taps and cool gesture actions, as below:

BEST QUALITY VOICE TEST-CD 孙露试音 NO.05 Return 25 BEST QUALITY VOICE 女人花 孙露试音5DXD 孙露 FLAC 44kHz | 16bits | 880kbps Search

6. Tap buttons

The tap buttons from top to bottom on the playing screen:

1) Return: return to Original path
2) Search: Tap to show a full screen search pane for all songs on the M6. Searching for track title, album name and artist name are supported. Recent searching history is saved;
3) Equalizer: tap to the equalizer settings;
4) Play mode: Tap to choose between Play All once, Loop Single, Shuffle and Loop All;
5) Add to playlist: Tap to show playlists screen, tap to add the present song to a playlist of your choosing.
6) Add to Favorites: Tap to add the present track to the Favorites playlist;
7) More functions: Tap to view track info or delete the present track;
8) Previous track
9) Play / Pause: Tap to Play or Pause the present track
10) Next track

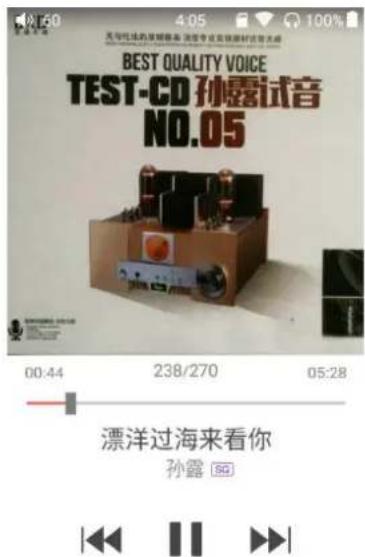

7. Gesture operations

4:50 4:05 100% 关鸣纯话的视频画面 满足专业互联网素材语音大屏 BEST QUALITY VOICE TEST-CD 孙露试音 NO.05 00:44 238/270 05:28 漂洋过海来看你 孙露 5G

Playlists Kenny G Because Of You (因为你) Kelly Clarkson (凯莉.克莱森) Blue Night(蓝色夜) Michael Learns To Rock迈克学摇滚 Burning (燃烧) Maria Arredondo (玛丽亚.亚瑞唐多) California Callin Enrique Iglesias Dance With My Father(与父亲共... Luther Vandross 路德范德鲁斯 Dream A Little Dream Of Me (梦... Sissel (茜希尔) Epic Trailer Theme 春暖花开 孙露

Switch displaying information: Click on the middle of the album cover to switch between displaying the album cover, lyrics, ID3 info.

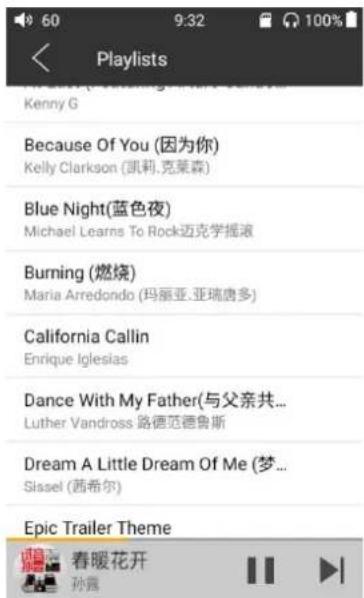

View playlist: slide in from left edge to view the current list of songs queued for play; tap any song on the list to jump to that song;

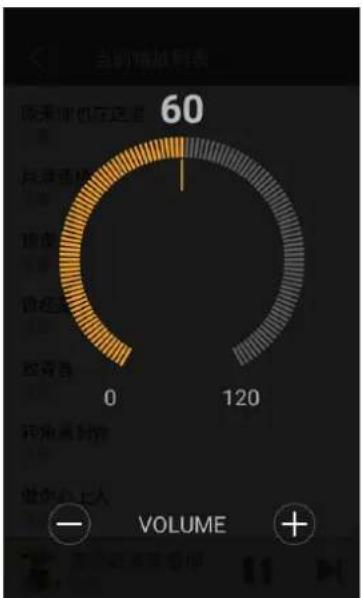

Adjust volume: Scroll the volume knob to show a full screen volume pane, no operation for 2s or click "Back" button, this pane will disappear;

Slide to fast forward/rewind: tap anywhere on the progress bar below the album cover area to fast forward or rewind playing;

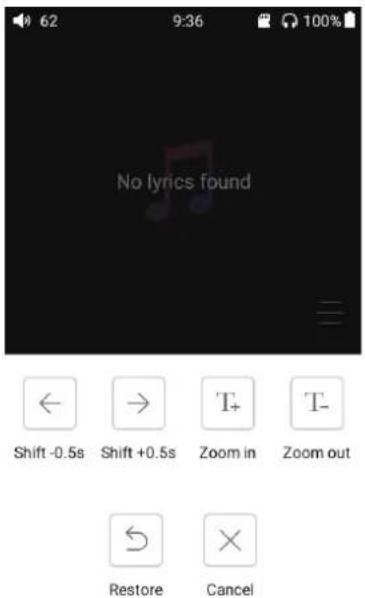

Note: While in the lyrics display page, you can adjust the playback progress by sliding over the lyrics, adjust lyrics timeline or adjust font size.

62 9:36 100% No lyrics found Shift -0.5s Shift +0.5s Zoom in Zoom out Restore Cancel

8. EQ

FiiO Music has built-in a graphic equalizer. One may choose between the given genre presets directly, or adjust the ten frequency bands from 20 to 20kHz independently from -6 to +6 dB, thus satisfying your personalized listening needs.

Equalizer +6kb 31 62 125 250 500 1K 2K 4K 8K 16K

Equalizer 31 62 125 250 500 1K 2K 4K 8K 16K

Reset EQ Equalizer +6db 0 4db

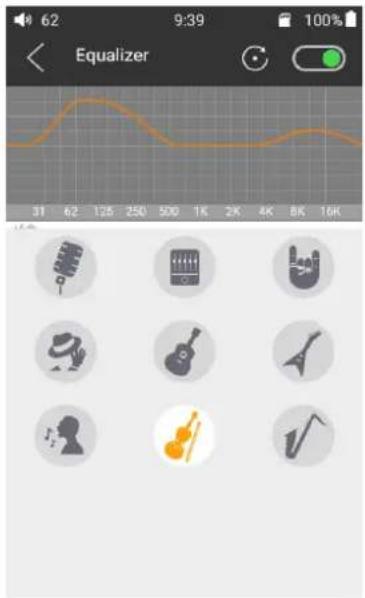

1) Choose preset EQ: Swipe up from the bottom of the screen to show the full list of EQ presets, tap icon to switch the equalizer.

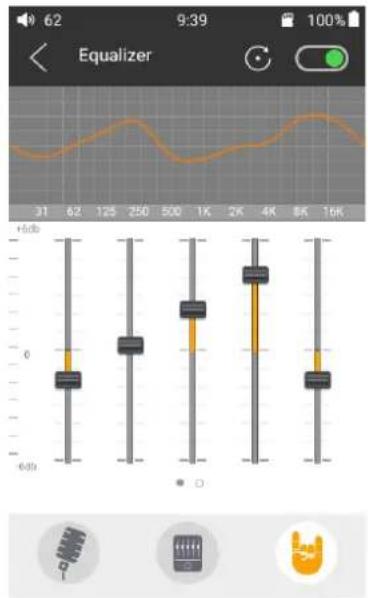

2) Customize EQ: to customize an EQ setting as below:

a. Tap the button on the upper right to the right to activate the equalizer.
b. Choose the genre preset to be adjusted (e.g. "User Defined");
c. Drag a vertical slider to adjust its corresponding frequency up and down. The EQ curve above changes to reflect your adjustments.

Swipe left or right over the sliders to move between the low and high frequency sliders;
d. Press the Back button to the lower right to exit and save changes;
3) Reset EQ: Tap the reset button at the upper right corner to reset the present EQ preset to its genre default.

Note: If a factory reset is performed on the M6, all EQ settings will be reset to defaults.
