M15 Complete User Manual

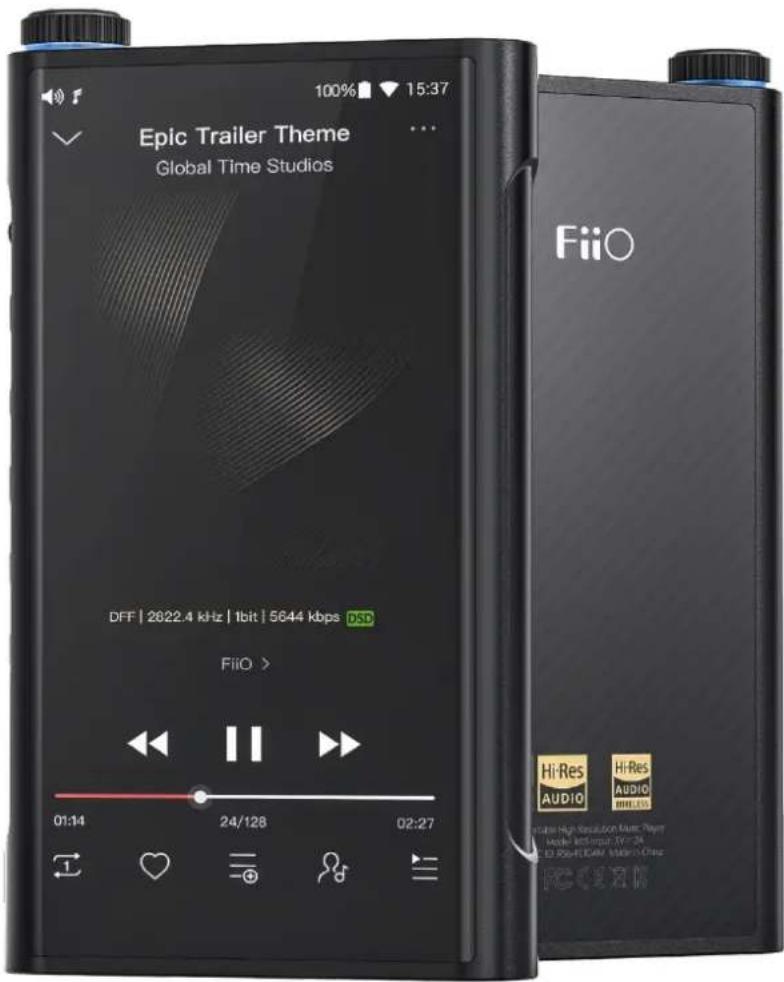

Foreword:

Thank you so much for purchasing FiiO's portable high resolution lossless music player M15. We have prepared this complete user manual for you. We hope this manual will help you get to know the M15 and unleash its full potential.

100% 15:37 Epic Trailer Theme Global Time Studios DFF | 2822.4 kHz | 1bit | 5644 kbps DSD FiiO > 01:14 24/128 02:27 Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res AUDIO Hi-Res Audio Hi-Res Audio Hi-Res Audio Hi-Res Audio Hi-Res Audio Hi-Res Audio

Contents

Chapter 1 Introductions ....1

Buttons and ports ....1

Pictorial guide to status bar 2

Chapter 2 Working Modes .... 3

Android Mode 3

Pure Music Mode 3

USB DAC Mode 3

Bluetooth Receiving Mode....4

Chapter 3 Commonly-used Functions ....4

Gesture control 4

Connect M15 to the computer 4

Firmware upgrade 5

Screenshot 6

Languages & input 6

Force to reboot 7

Factory data reset 7

Chapter 4 Wireless and Networks ....7

WLAN 7

Bluetooth transmitting 8

Chapter 5 Audio ....10

Output selection 10

SPDIF out 10

Gain 10

Over-ear headphone mode ....11

Lowpass filter mode ....11

Wireless playback quality 12

Channel balance 12

ALL To DSD 13

Adjustable volume at L0 13

AirPlay 14

Chapter 6 Display ....15

Indicator Light Control 15

Sleep 16

Display volume 17

Chapter 7 General 17

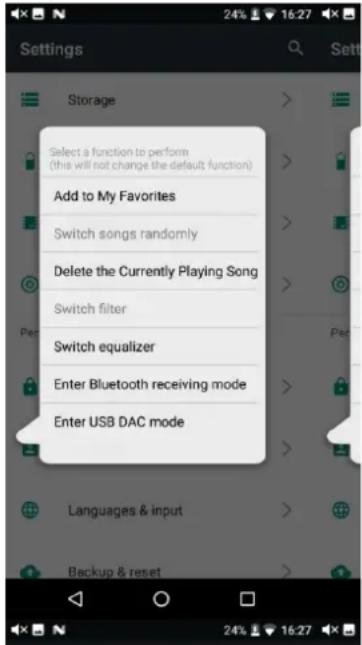

Multifunction button 17

Navigation control 19

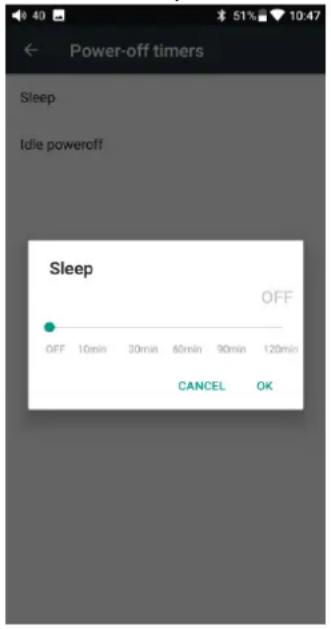

Power-off timer 19

HOLD switch setting 19

Double tap to wakeup 20

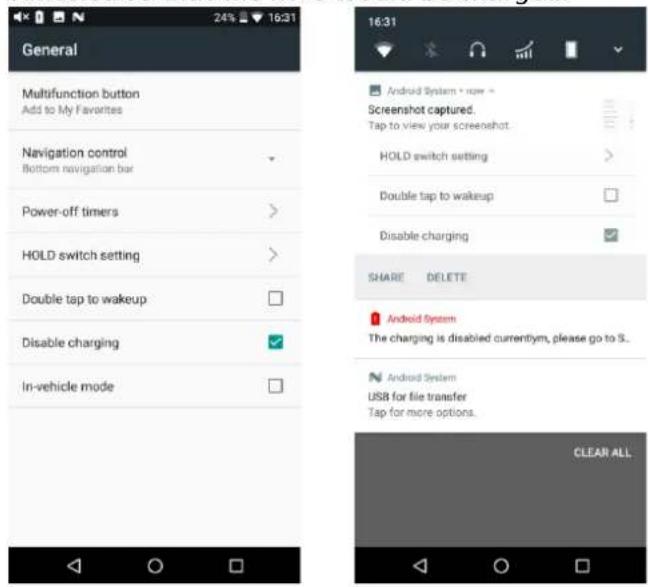

Disable charging 20

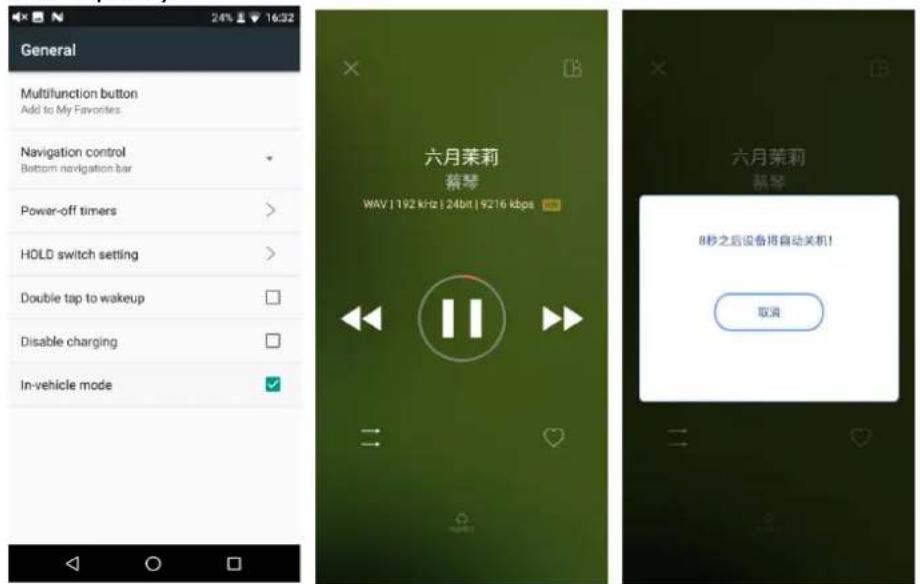

In-vehicle mode 21

Chapter 8 FiiO Music ......21

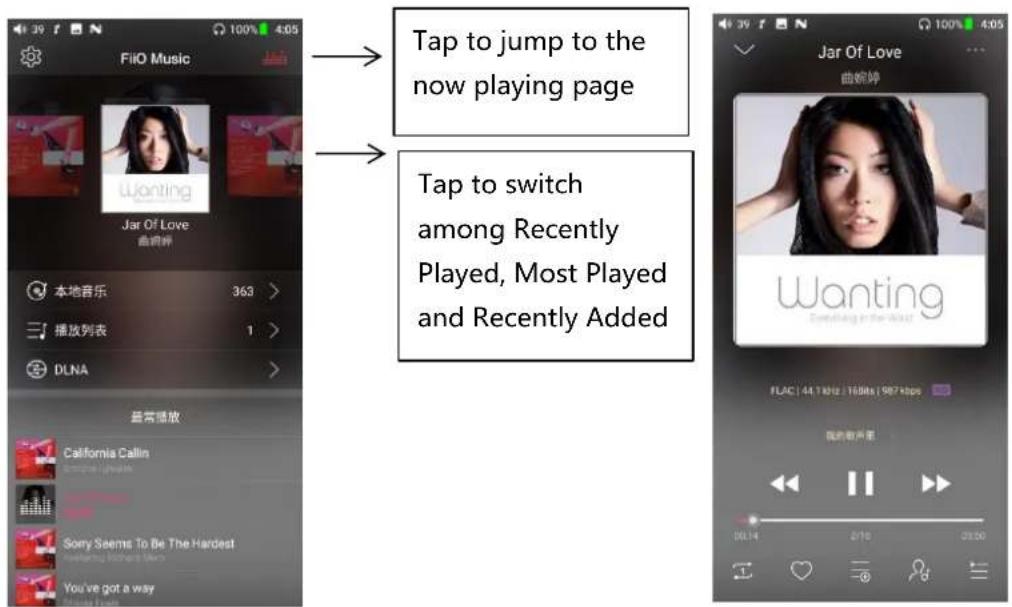

Homepage 21

Playlist interface 23

Track sorted 23

Bulk management 24

Quick search 24

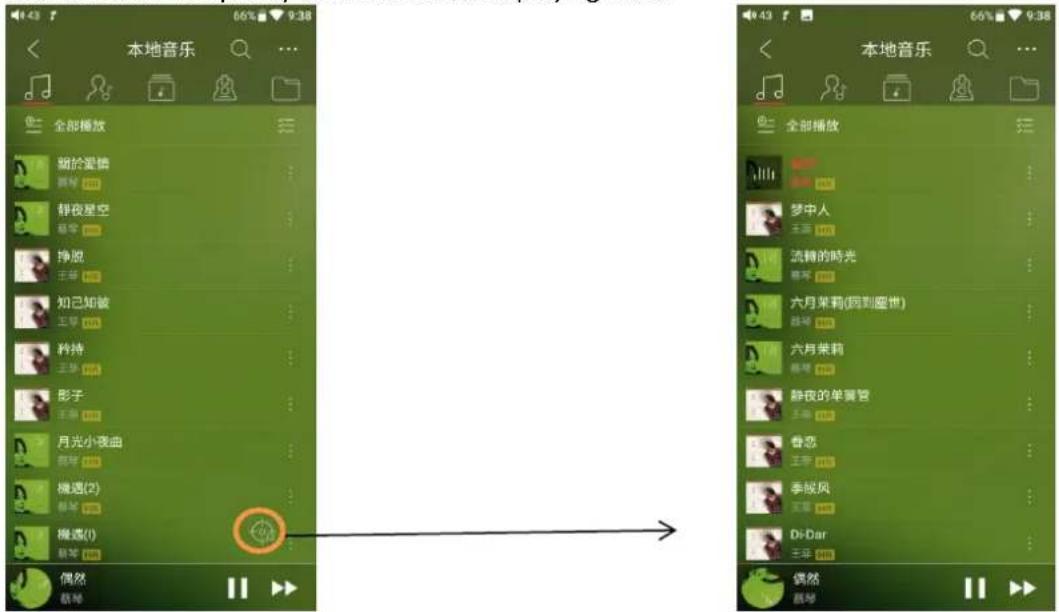

One-tap to locate the current playing 25

Search 25

Now playing interface 26

Equalizer 27

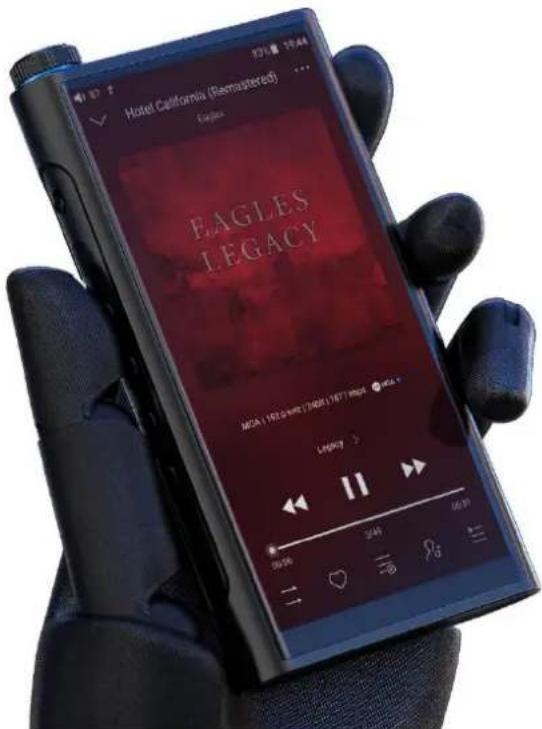

MQA 28

Chapter 1 Introductions

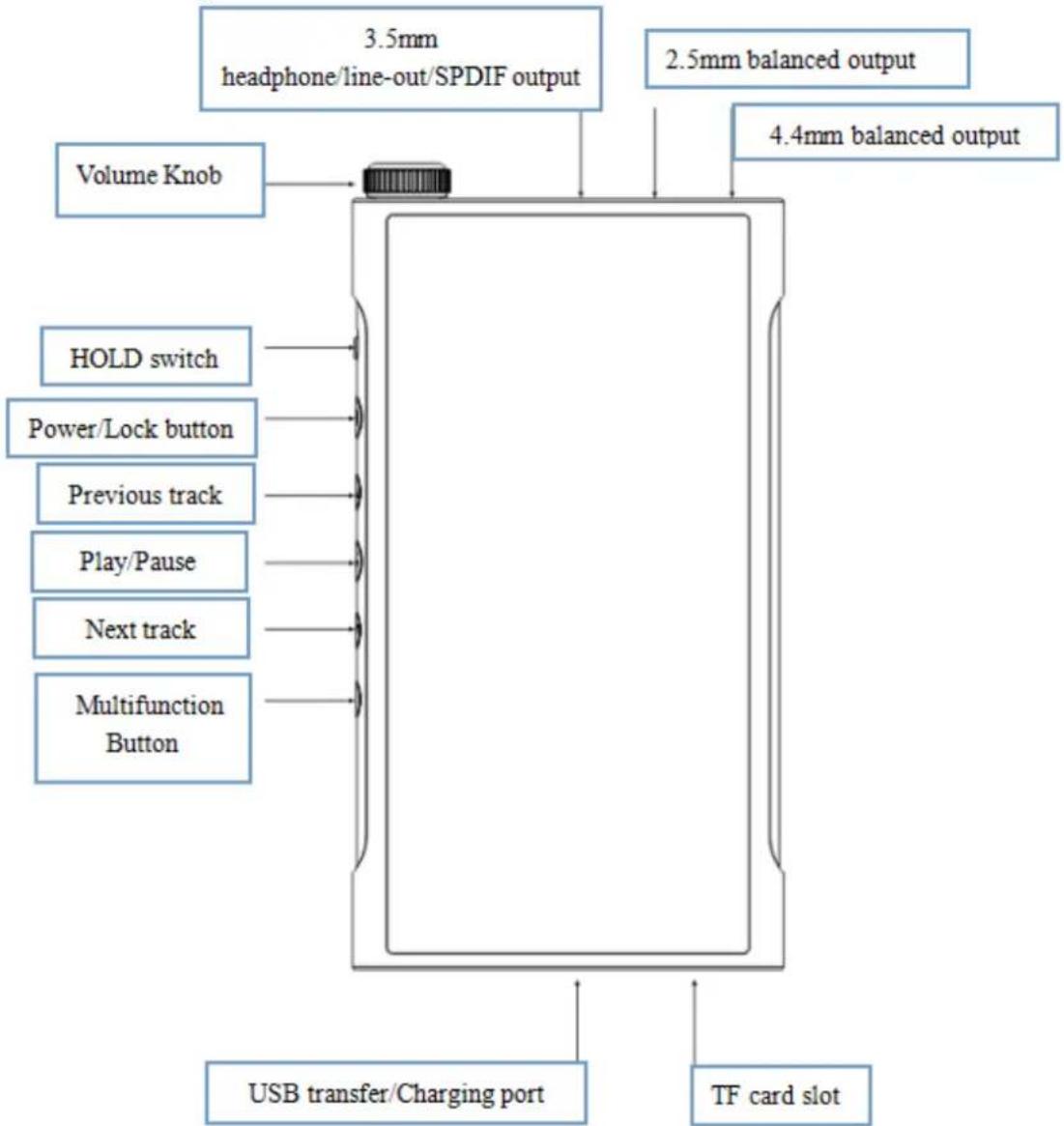

Buttons and ports

Buttons and ports	Operation Instructions
Volume knob	Adjust the volume: rotate clockwise to turn up the volume; rotate anticlockwise to turn down the volume.
Indicator light	Display->Indicator Light Control: to choose the display mode (Constantly on/Pulsing/Off) under working/charging status.
HOLD switch setting	When it is on, it can lock buttons so that the buttons do not work at this time (In General->HOLD switch setting you can choose the buttons you want to be available when the screen is off).
Power/Lock button	Boot: hold for 2s to turn it on;Shutdown/Reboot: while it is on, hold to display shutdown/reboot menu;Force to reboot: long press the power and play button together for10s.
Previous track	Short press to play the previous track; long press to fast backward.
Play/Pause button	Short press while playing to pause music; short press while paused to continue playback.
Next track	Short press to play the next track; long press to fast forward.
Multifunction button	Short press to conduct the current selected function; long press to pop up the multifunction list.
3.5mm headphone/line-out/SPDIF output	The headphone output is defaulted; click PO in the drop-down list or go to Settings->Audio->Output selection to switch to other output modes.
2.5mm balanced output	Supports 2.5mm TRRRS balanced headphones
4.4mm balanced output	Supports 4.4mm TRRS balanced headphones
USB transfer/charging port	Used for charging, transmitting data and USB Audio output. The QC2.0 adapter is recommended for charging and can be filled in about 2 hours.
TF card slot	Take out the card slot by the attached pin and put the TF card on it.

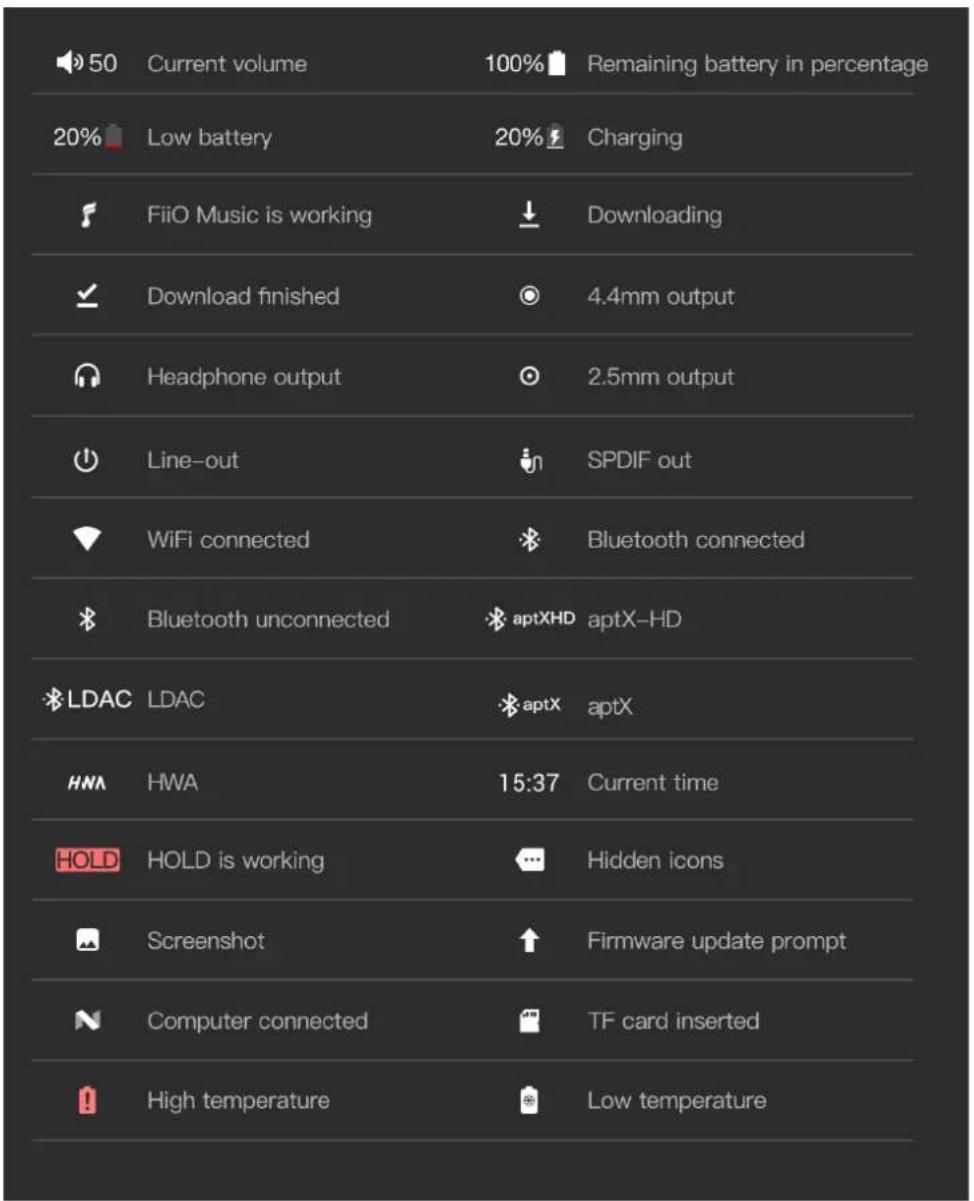

Pictorial guide to status bar

50 Current volume 100% Remaining battery in percentage 20% Low battery 20% Charging FiiO Music is working ↓ Downloading Download finished Ⓞ 4.4mm output Headphone output ⓞ 2.5mm output Line-out 📋 SPDIF out WiFi connected ✕ Bluetooth connected Bluetooth unconnected aptXHD aptX-HD LDAC LDAC aptX aptX HWA HWA 15:37 Current time HOLD HOLD is working ⚠ Hidden icons Screenshot ↑ Firmware update prompt Computer connected TF card inserted High temperature 🔒 Low temperature

Chapter 2 Working Modes

The M15 supports 4 working modes, consisting of Android Mode, Pure Music Mode, USB DAC Mode and Bluetooth Receiving Mode. The default mode is Android Mode. Click Mode Choice in the drop-down list or go to the Settings menu can switch to other modes.

Android Mode

When it is working as Android Mode, third-party apps are all available. Click Mode Choice in the drop-down list or go to the Settings menu can switch to other modes.

Pure Music Mode

When it is working as Pure Music mode, third-party apps would be automatically turned off and FiiO Music would be turned on. Click Mode Choice in the drop-down list or go to the Settings menu can switch to other modes.

USB DAC Mode

When it is working as USB DAC mode, it can be connected with a computer as a DAC/Amp. You can switch to other modes in the Settings menu.

Notice: when the USB DAC mode is switched for the first time, the exclusive FiiO USB/DAC driver needs to be installed. You can go to FiiO Driver or fio.com to download the corresponding driver, following the instruction to install it.

Bluetooth Receiving Mode

When it is working as Bluetooth Receiving Mode, it can be connected with Bluetooth transmitters like mobile phones. You can switch to other modes in the Settings menu.

Notice: the operation guide in Bluetooth Receiving Mode is as follows.

Functionality	Operation Instructions
Enter pairing mode	Long press the play button for 3s (it would be enter the pairing menu automatically when the Bluetooth Receiving Mode is first used.)
Reconnecting	Short press the Play button
Previous track	Short press the Previous track button
Play/Pause	Short press the Play/Pause button
Next track	Short press the Next track button
Clear pairing	Long press the Previous track and the Next track button together for 3s

Chapter 3 Commonly-used Functions

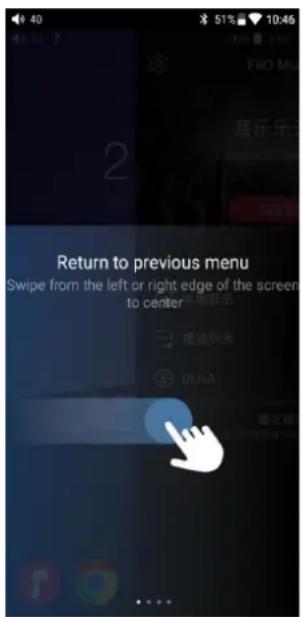

Gesture control

There are two operation modes: "Gesture operation" and "Bottom navigation bar". When the M15 is first powered on, there will be a choice for you. In the General->Navigation control menu, you can choose the operation way according to your habits.

Notice: here are the instructions for Gesture operation.

40 51% 10:46 2 Return to previous menu Swipe from the left or right edge of the screen to center 播放外票 DNA 最近锁

10:46 No notifications 2:52 Return home Swipe up from the bottom edge of the screen

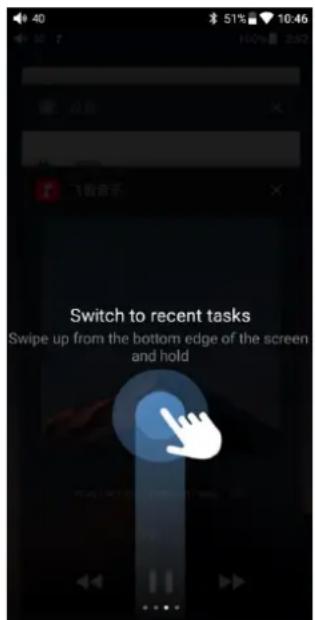

Switch to recent tasks Swipe up from the bottom edge of the screen and hold

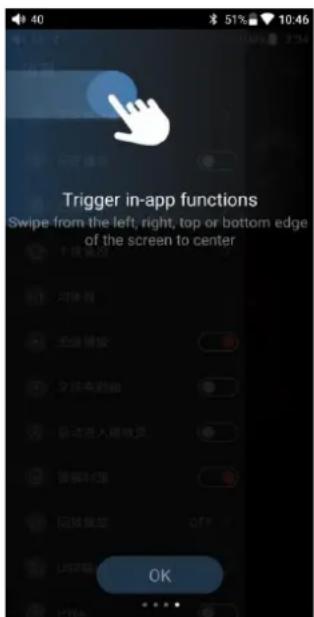

Trigger in-app functions Swipe from the left, right, top or bottom edge of the screen to center OK

Connect M15 to the computer

When the M15 is first connected to a computer working as the storage mode, a corresponding

driver is required. After connecting the M15 to the computer, you can choose the corresponding driver on FiiO Driver according to the computer system: Windows/MAC, following the instructions to install it and then the storage function can be used.

Firmware upgrade

Online upgrade

Every time the M15 is connected to WiFi, the firmware upgrade information will be detected automatically. Then a notification would show up in the status bar: New firmware detected, kindly go to Technical Support for upgrade. By clicking the notification you can enter into relating menu. Besides, you can go to Technical Support->Firmware Upgrade->Online Upgrade to see if there is a new version.

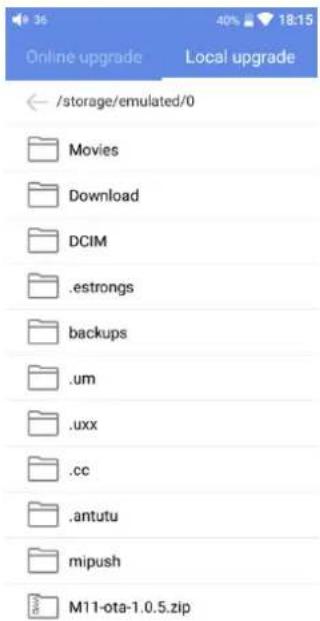

Local upgrade

For local upgrade, the following steps need to be followed.

1) Download the firmware from FiiO official website, such as “M15-ota-1.0.2.zip”, and copy this firmware file to micro SD card or Built-in storage. Note that the file should not be unzipped, and it is recommended not to modify the file name.
2) Press “Technical Support ->Firmware Update-> Local Upgrade” accordingly. Locate the firmware file in the “Local upgrade” interface, pressing it for upgrade.

Firmware Update

FAQ

Quick start guide

Contact us

Official website: www.filo.com

Forum: filo.me/forum.php

Head-Fi: www.head-fi.org/forums/fio.180/

Facebook: www.facebook.com/FIIDAUDIO

Twitter: twitter.com/FiIO_official

Email: [e-mail]

Online upgrade Local upgrade

Current Version 1.0.5

← /storage/

Built-in storage

TF Card1

Check for updates

/storage/emulated/0 Movies Download DCIM .estrongs backups .um .uxx .cc .antutu mipush M11-ota-1.0.5.zip

Online upgrade Local upgrade /storage/emulated/0 Notifications Pictures Movies Download The system will automatically upgrade after 9 seconds. Cancel .mn .uxx .cc .antutu mipush Mi1-ota-1.0.5.zip

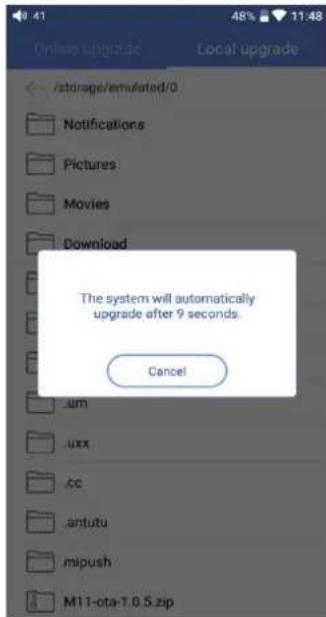

3) After pressing the firmware file, any operation is not permitted. Wait for a while and then the M15 will start the firmware upgrade automatically.
4) Upon completion of firmware upgrade, the M15 will restart itself automatically. It can be used as usual after restarting.

Notice:

1) Please ensure the battery power is sufficient before upgrading (at least up to 30%);
2) If it fails, please check if the correct upgrade firmware is used;
3) Do not manipulate the M15 during upgrade.

Screenshot

Swipe down the screen with three fingers to get a screenshot. Also, hold the Power and Previous track button together can also get a screenshot.

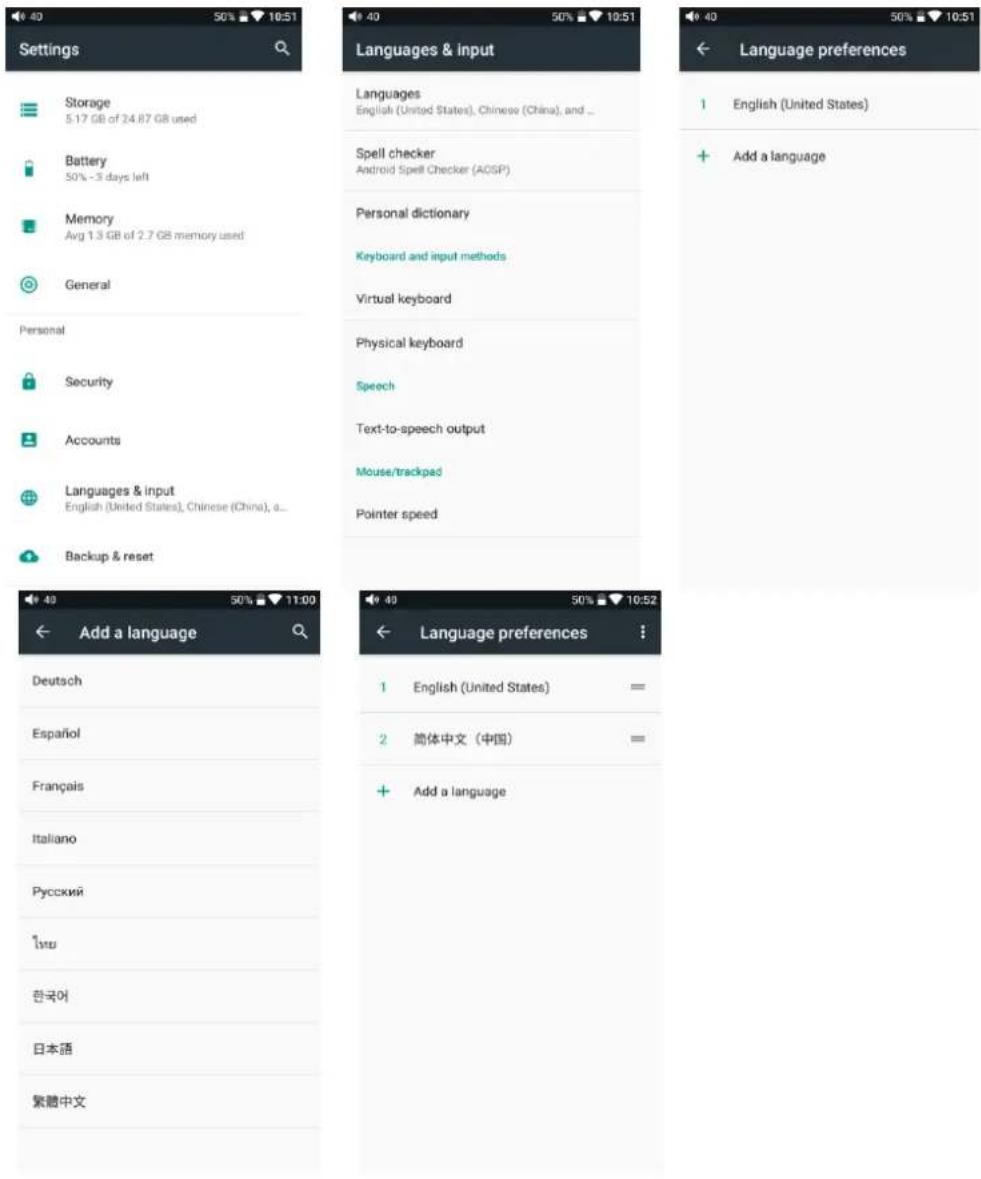

Languages & input

The first time to start up the M15, you can choose an appropriate language from the notice.
Afterwards, you can go to the Settings menu to switch to other languages. Here are the instructions.
1) Click Settings->Languages & input->Languages->Language preferences in sequence;
2) In the Language preferences interface, press Add a language;
3) Select a language;
4) After selecting the language, you should press the "=" icon on the right side of the target language and drag the language to the head of the list so that it can be selected.

Storage

5.17 GB of 24.87 GB used

Battery

50% - 3 days left

Memory

Avg 1.5 GB of 2.7 GB memory used

General

Personal

Security

Accounts

Languages & input

English (United States), Chinese (China), a...

Backup & reset

Languages

English (United States), Chinese (China), and ...

Spell checker

Android Spell Checker (ADSP)

Personal dictionary

Keyboard and input methods

Virtual keyboard

Physical keyboard

Speech

Text-to-speech output

Mouse/trackpad

Pointer speed

1 English (United States)

+ Add a language

Force to reboot

If something wrong happened to the M15 (stuck in the Welcome page, no response etc.), you can hold the Power and the Play button together for 10 seconds to force to reboot.

Factory data reset

If there are some problems happened to the M15, to restore factory defaults would help. Go to Settings->Backup & Reset->Factory data reset to execute it.

Notice: "Factory data reset" will erase all data from your internal storage and restore to the original default settings. Please backup important files in advance.

Chapter 4 Wireless and Networks

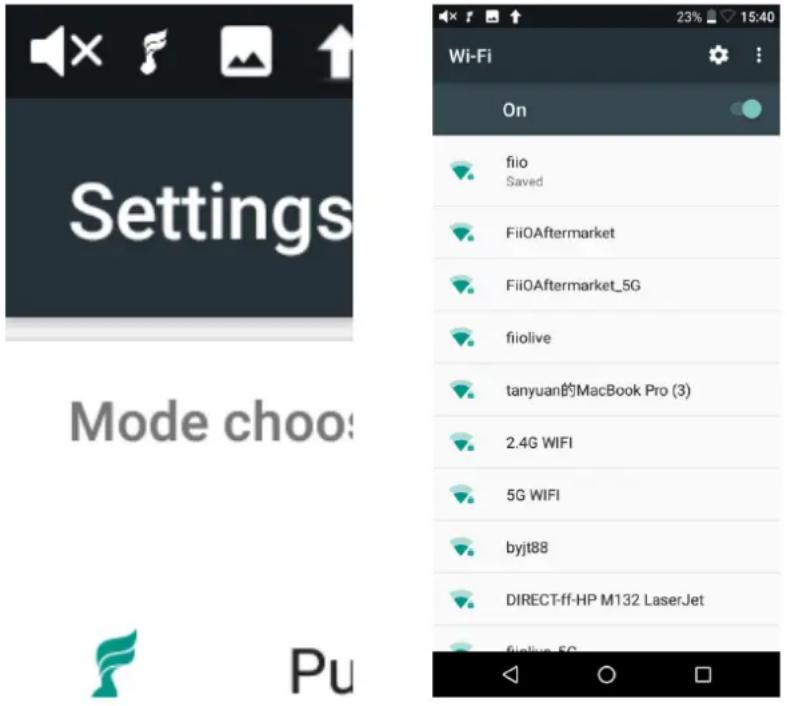

WLAN

The M15 supports WiFi (2.4/5G). The connecting steps are as follows.

1) Click "Wi-Fi" in the Settings menu as shown in the picture below;
2) Slide the WiFi switch to the right (ON) and the M15 will automatically search for and display available WiFi connections;
3) Tap the name of the WiFi network you wish to connect to and input the password if prompted, and then the M15 will connect to the network.

Settings Mode choo: Pu Wi-Fi On fio Saved FiiOAftermarket FiiOAftermarket_5G fiolive tanyuan的MacBook Pro (3) 2.4G WIFI 5G WIFI byjt88 DIRECT-ff-HP M132 LaserJet fiolive 5G

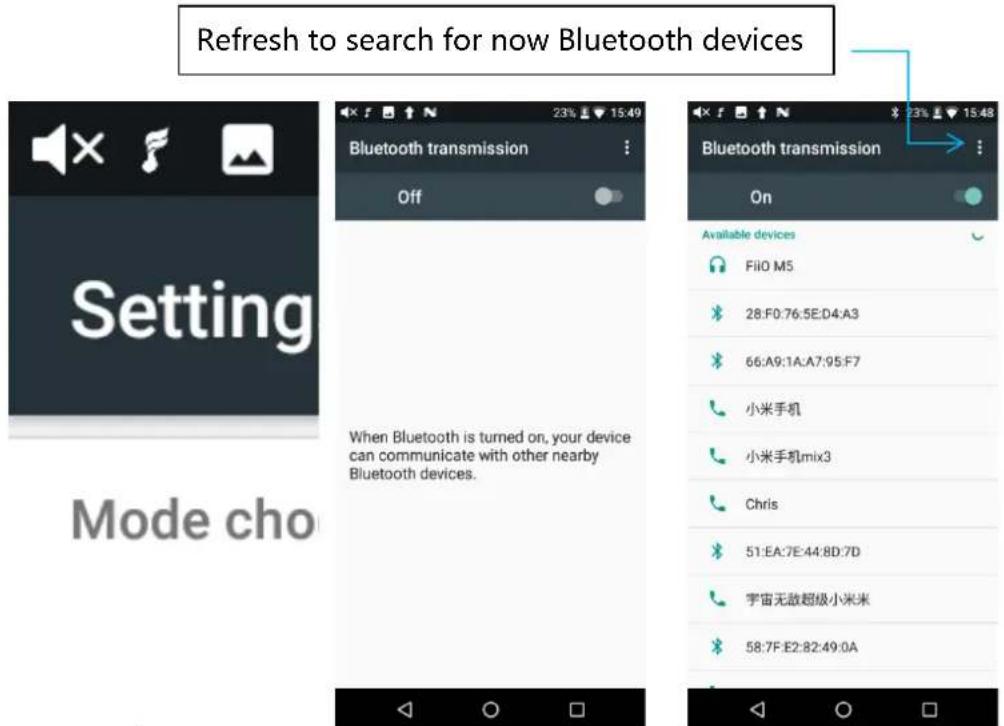

Bluetooth transmitting

When the M15 is used as a Bluetooth transmitter connecting with new Bluetooth devices such as Bluetooth earphones, Bluetooth speakers, it needs to be first paired with relating devices. The steps are as follows.

1) Tap the Bluetooth in Settings;
2) If the Bluetooth on the M15 is off, turn it on by flicking the switch on the upper right to the "On" position on the right;
3) Available devices will be automatically displayed on the list;
4) Tap the name of your Bluetooth device to pair with it. Successfully paired devices will appear under the “Paired devices” list.

Refresh to search for now Bluetooth devices Setting Mode cho Bluetooth transmission Off When Bluetooth is turned on, your device can communicate with other nearby Bluetooth devices. Bluetooth transmission On Available devices Fil0 M5 28:F0:76:5E:D4:A3 66:A9:1A:A7:95:F7 小米手机 小米手机mix3 Chris 51:EA:7E:44:8D:7D 宇宙无敌超级小米米 58:7F:E2:82:49:0A

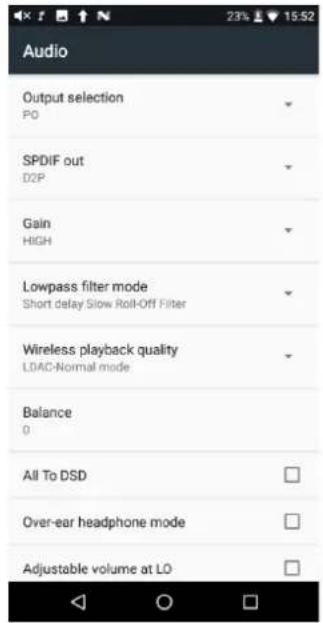

Before connecting to Bluetooth, you can select the Bluetooth audio codec which you want to use as follows.

1) Enter the Settings->Audio interface;
2) Click the Wireless playback quality, selecting the one you want to use. Then disconnect the current connection and connect with your Bluetooth device again.

Audio Output selection PO SPDIF out D2P Gain HIGH Lowpass filter mode Short delay Slow Roll-Off Filter Wireless playback quality LOAD-Normal mode Balance 0 All To DSD Over-ear headphone mode Adjustable volume at LO

Audio Output selection PD Wireless playback quality ○ LDAC-Quality priority mode ● LDAC-Normal mode ○ aptX-HD ○ aptX ○ SBC CANCEL All To CSD Over-ear headphone mode Adjustable volume at LO

Notice:

1、If you have already connected with one Bluetooth device and you want to switch to other Bluetooth codec, you have to disconnect the Bluetooth first. (Note that he switching between the three modes of LDAC can work in real time.)
2、When you turn on the Bluetooth of the M15, it will be automatically connected to the latest available device.

Chapter 5 Audio

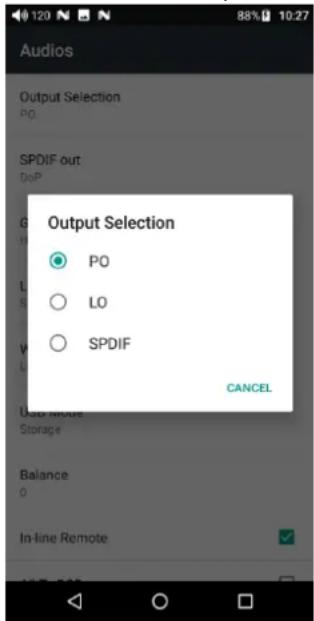

Output selection

In this menu, outputs of PO/LO/SPDIF can be switched.

Audios Output Selection PO SPDIF out DoP Output Selection PO LO SPDIF CANCEL USB Mouse Storage Balance 0 In-line Remote

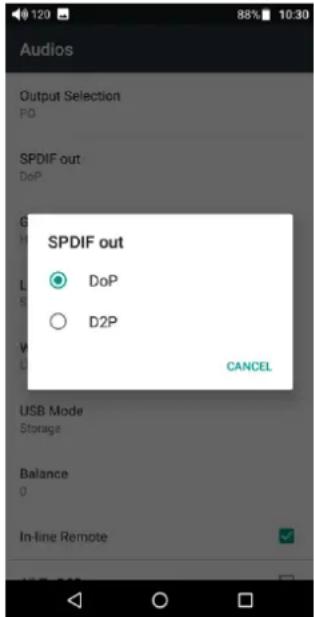

SPDIF out

You can choose between DoP and D2P modes. In D2P mode, PCM will be output originally while DSD will be converted to PCM output. In DoP mode, it will originally output what you input (The amplifier should support DSD or there will be noise when you play DSD in DOP mode)

Audios Output Selection Po SPDIF out DoP SPDIF out DoP D2P CANCEL USB Mode Storage Balance 0 In-line Remote

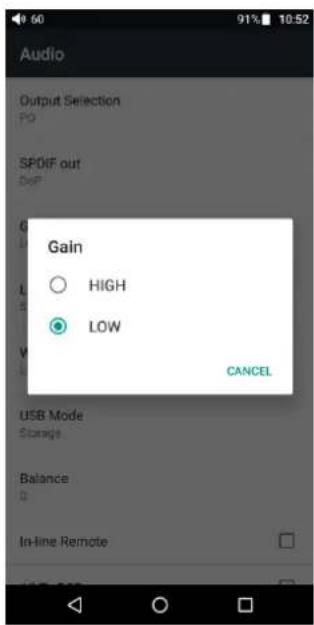

Gain

Set the Gain level of the headphone output to be either High (high volume) or Low (low volume). Matching different headphones with High or Low will bring you excellent audios.

Audio Output Selection PO SFDif out Diff Gain HIGH LOW CANCEL USB Mode Storage Balance In-line Remote

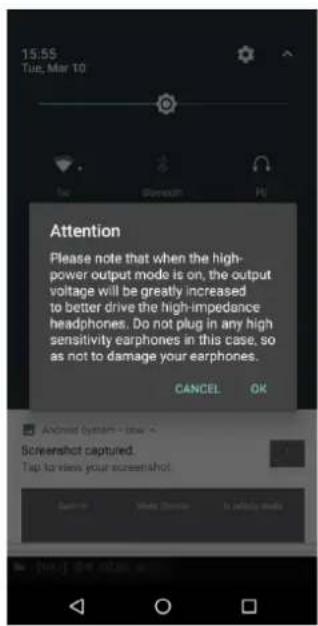

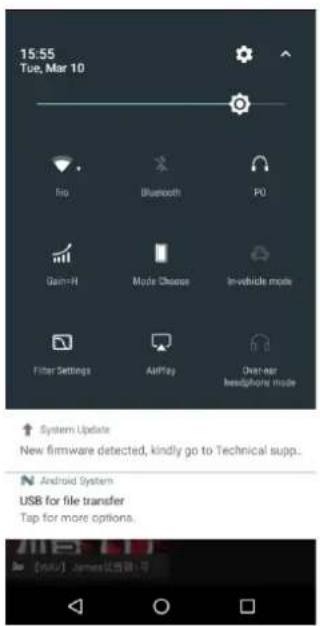

Over-ear headphone mode

If you use high-impedance earphones (over-the ear), you can choose the Over-ear headphone mode in the drop-down list to acquire ultimate experience.

15:55 Tue, Mar 10 Info Bluetooth P0 Gain-H Mode Choose In-vehicle mode Filter Settings Adoption Over-car headphone mode System Update New firmware detected, kindly go to Technical supp.. Android System USB for file transfer Tap for more options. (ReLU) James USB

15:55 Tue, Mar 10 Attention Please note that when the high- power output mode is on, the output voltage will be greatly increased to better drive the high-impedance headphones. Do not plug in any high sensitivity earphones in this case, so as not to damage your earphones. CANCEL OK Android System - how - Screenshot captured. Tap to view your screenshot

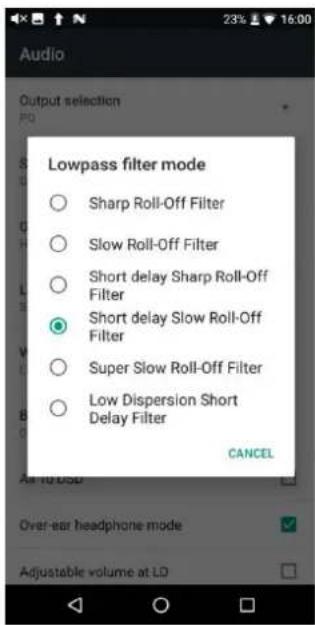

Lowpass filter mode

There are 6 kinds of lowpass filter modes in the M15 which are the internal configuration of AK4499. Any mode would be available for your preference.

Audio Output selection F0 Lowpass filter mode ○ Sharp Roll-Off Filter ○ Slow Roll-Off Filter ○ Short delay Sharp Roll-Off Filter ● Short delay Slow Roll-Off Filter ○ Super Slow Roll-Off Filter ○ Low Dispersion Short Delay Filter CANCEL Over-ear headphone mode Adjustable volume at LD

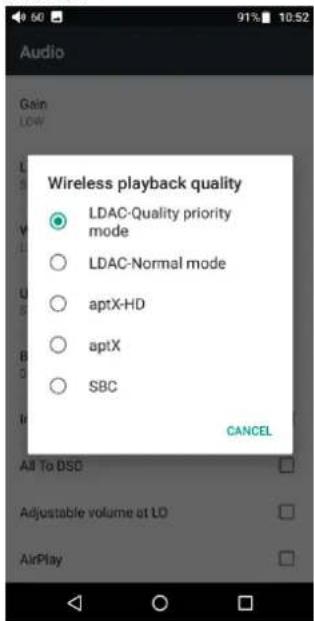

Wireless playback quality

Its defaulted connection is from the highest Bluetooth codec to the lowest in turn when the M15 is as a Bluetooth transmitter. You can choose the top supported codec from this option.

Notice: if it is stuck or in an unsteady state, try to switch to lower Bluetooth codec to make it more stable.

Audio Gain LOW Wireless playback quality LDAC-Quality priority mode LDAC-Normal mode aptX-HD aptX SBC CANCEL All To BSD Adjustable volume at LO AirPlay

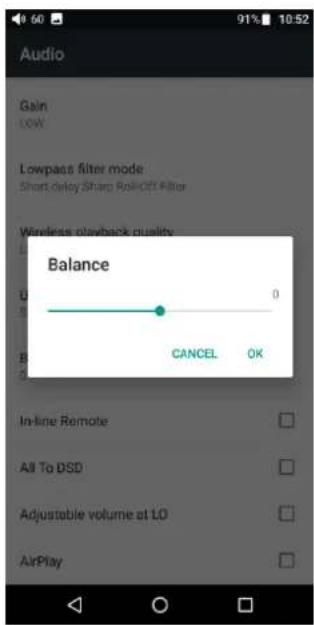

Channel balance

If it is being biased, you can adjust the channel balance between the left and right channels. There are 10 settings available.

Audio Gain LOW Lowpass filter mode Short delay Sharp Roll-Off Filter Wireless playback quality Balance 0 CANCEL OK In-line Remote All To DSD Adjustable volume at LD AirPlay

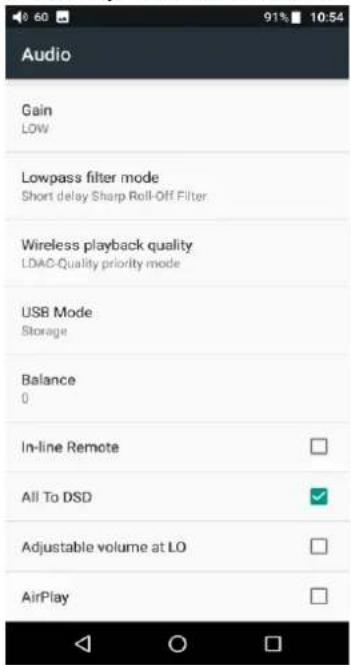

ALL To DSD

In ALL To DSD mode, PCM will be converted to DSD output with promoted sound quality. Notice: The All To DSD mode would increase more heat for the M15, and the battery life would be relatively shortened a bit.

Audio Gain LOW Lowpass filter mode Short delay Sharp Roll-Off Filter Wireless playback quality LDAC-Quality priority mode USB Mode Storage Balance 0 In-line Remote All To DSD Adjustable volume at LO AirPlay

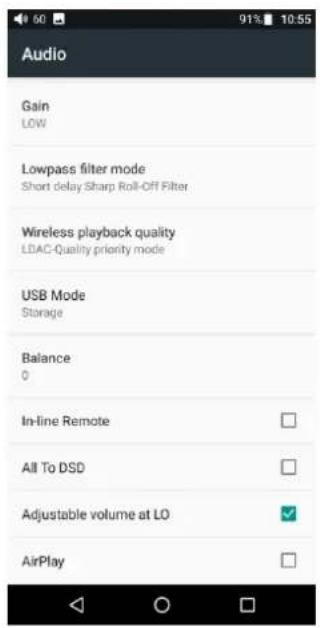

Adjustable volume at LO

This allows you to set whether the volume through Line Out can be controlled by adjusting the volume level or not. The maximum volume would be the default value without selecting the option.

Audio Gain LOW Lowpass filter mode Short delay Sharp Roll-Off Filter Wireless playback quality LDAC-Quality priority mode USB Mode Storage Balance 0 In-line Remote All To DSD Adjustable volume at LO AirPlay

AirPlay

The instructions to use AirPlay are shown as follows.

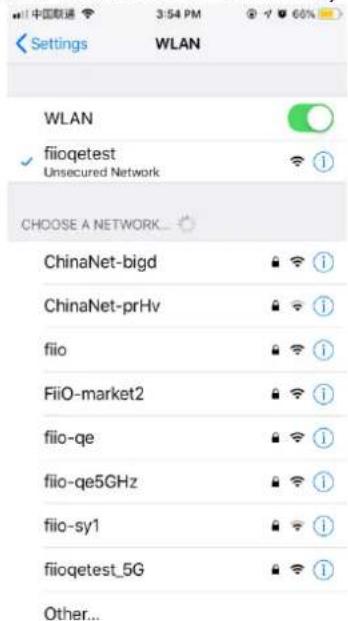

(1)To make both the M15 and your Apple device connect to the same WiFi first;

Audio Gain LOW Lowpass filter mode Short delay Sharp Roll-Off Filter Wireless playback quality LDAC-Quality priority mode USB Mode Storage Balance 0 In-line Remote All To DSD Adjustable volume at LO AirPlay

Wi-Fi On Searching for Wi-Fi networks... + Add network

WLAN fiiqetest Unsecured Network CHOOSE A NETWORK... ChinaNet-bigd ChinaNet-prHv fiio FiiO-market2 fiio-qe fiio-qe5GHz fiio-sy1 fiiqetest_5G Other...

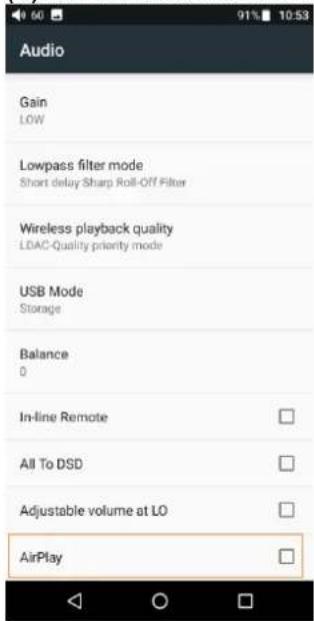

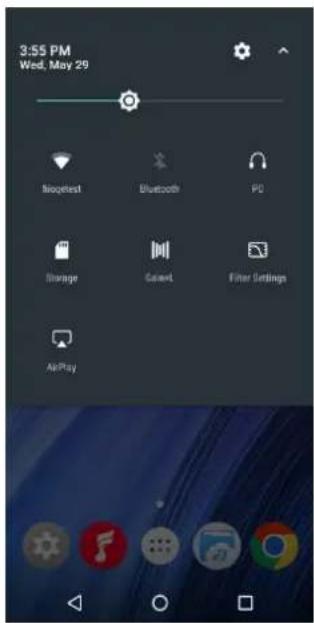

(2)Click Airplay of M15;

3:55 PM Wed, May 29 Nooletest Bluetooth PC Storage Gazavi Filter Settings AirPlay

AirPlay

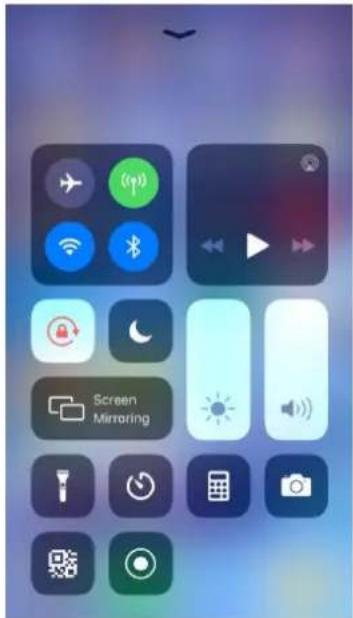

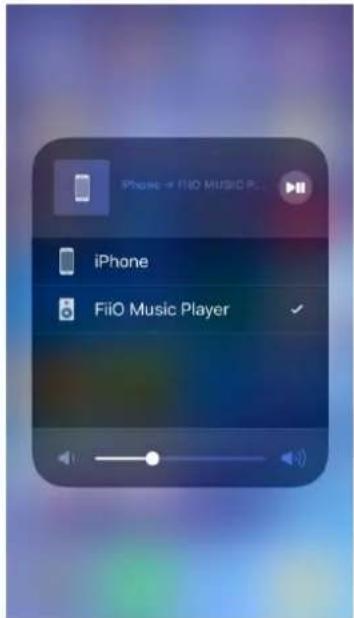

(3)Click the device AirPlay button, and then choose "FiiO Music Player" to connect;

Smartphone home screen interface with app icons and control buttons

iPhone → FiiO MUSIC Player iPhone FiiO Music Player

(4)Play music on your Apple device, and then you can listen on the M15.

Chapter 6 Display

Display settings consist of Brightness level, Wallpaper, Indicator Light Control, Sleep, Screen saver, Font size, Display size and Display volume. The following is a detailed description of several common function items.

Indicator Light Control

The brightness level and working status of the indicator light can be chosen in this menu.

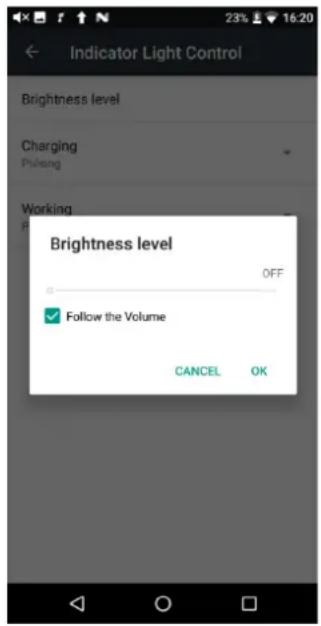

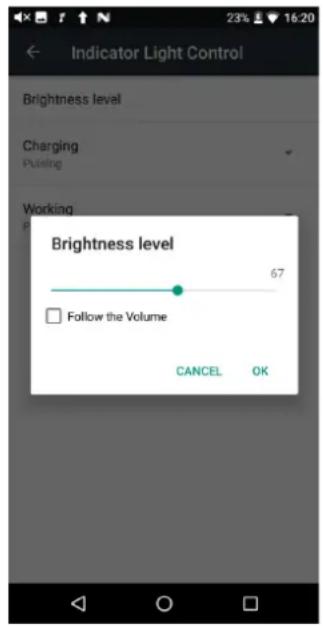

Brightness level

1) There is a brightness bar on the list which can control the brightness of the pulsar light;
2) When "Follow the volume" is chosen, the brightness of the pulsar light will be adjusted

following the volume. The volume is higher, the indicator light is brighter.

Notice: the brightness bar would not be working when "Follow the volume" is chosen.

Indicator Light Control Brightness level Charging Pulsing Working Brightness level 67 Follow the Volume CANCEL OK

Indicator Light Control Brightness level Charging Pulsing Working Brightness level OFF ✓ Follow the Volume CANCEL OK

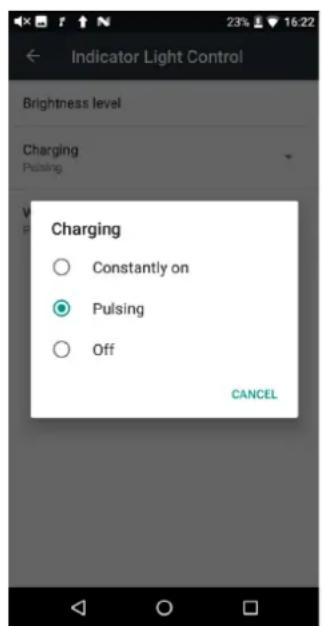

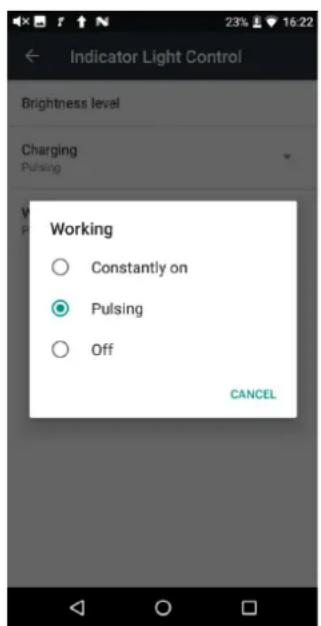

Indicator status

1) Constantly on/Pulsing/Off options are available in both working and charging modes.
2) When the M15 is in the working and charging modes simultaneously, the charging mode will be prior.

Indicator Light Control Brightness level Charging Pulsing Charging ○ Constantly on ● Pulsing ○ Off CANCEL

Indicator Light Control Brightness level Charging Pulsing Working ○ Constantly on ● Pulsing ○ Off CANCEL

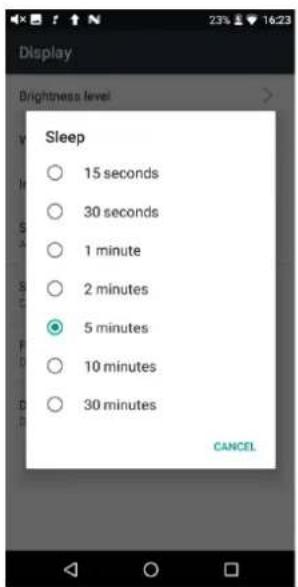

Sleep

Sleep means the screen will turn off if there is no operation. The time to enter sleep mode can be set.

Display Brightness level Sleep 15 seconds 30 seconds 1 minute 2 minutes 5 minutes 10 minutes 30 minutes CANCEL

Display volume

After selecting this option, the concrete volume value will be displayed in the status bar.

Display
Brightness level	>
Wallpaper	>
Indicator Light Control	>
SleepAfter 5 minutes of inactivity	▼
Screen saverColors	>
Font sizeDefault	>
Display sizeDefault	>
Volume display	□

Display
Brightness level	>
Wallpaper	>
Indicator Light Control	>
SleepAfter 5 minutes of inactivity
Screen saverColors	>
Font sizeDefault	>
Display sizeDefault	>
Volume display

Chapter 7 General

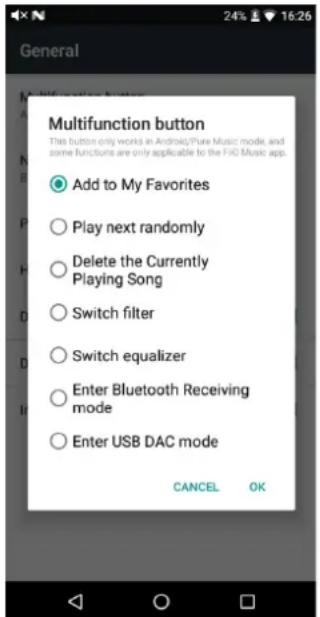

Multifunction button

There is a multifunction button on the bottom left side of the M15. It is defaulted to add the

current track on FiiO Music to my favorites. Go to Settings->General->Multifunction button to switch to other functions, such as play next randomly, delete the current playing song, switch filters, switch equalizer, enter USB DAC mode, enter Bluetooth Receiving mode. More functions will be available in the coming time.

Short press the multifunction button

Execute the chosen function

General Multifunction button This button only works in Android/Pure Music mode, and some functions are only applicable to the FiD Music app. Add to My Favorites Play next randomly Delete the Currently Playing Song Switch filter Switch equalizer Enter Bluetooth Receiving mode Enter USB DAC mode CANCEL OK

Long press the multifunction button

Long press to enable the function menu and click to execute corresponding functions. This option is only valid for one time.

Settings Select a function to perform (this will not change the default function) Add to My Favorites Switch songs randomly Delete the Currently Playing Song Switch filter Switch equalizer Enter Bluetooth receiving mode Enter USB DAC mode Languages & input Backup & reset

Notice: the multifunction button only works in Android/Pure Music Mode, and some functions are only applicable to the FiiO Music app.

Navigation control

The M15 has two ways of operation: gesture operation and virtual key operation. Go to Settings->General->Navigation control to switch.

Power-off timer

Sleep

The device will automatically shut down when the time reaches to the set value, and this time can be set to any integer value between 0 and 120 minutes. Note that when the setting is OFF, the sleep shutdown function will not be working.

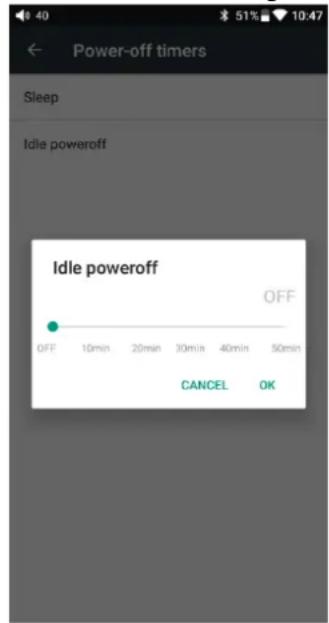

Idle power-off

When the device is not working and playing music and the timer reaches to the set value, the device will automatically turn off. Once with any operation, the timer would restart. The power-down time can be set to any integer value between 0 and 50 minutes. Note that when the setting is OFF, the Idle power-off function will not be working.

Power-off timers Sleep Idle poweroff Sleep OFF OFF 10min 30min 60min 90min 120min CANCEL OK

Power-off timers Sleep Idle poweroff Idle poweroff OFF OFF 10min 20min 30min 40min 50min CANCEL OK

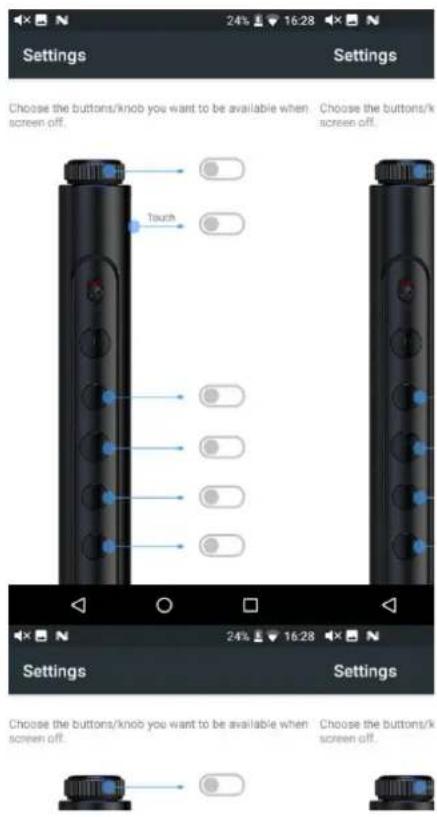

HOLD switch setting

With the HOLD key on, all buttons are locked. Go to Settings->General->HOLD switch setting to set certain buttons on/off based on your habits.

Choose the buttons/knob you want to be available when screen off. Touch Choose the buttons/k screen off. 24% 16:28 Settings Settings Choose the buttons/knob you want to be available when screen off. Choose the buttons/k screen off.

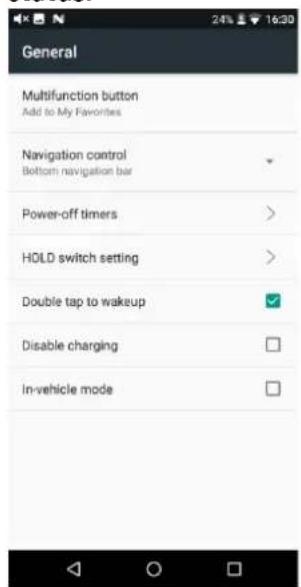

Double tap to wakeup

Click the "Double tap to wakeup" option, the screen can be wake up by double-clicking in sleep status.

General Multifunction button Add to My Favorites Navigation control Bottom navigation bar Power-off timers HOLD switch setting Double tap to wakeup Disable charging In-vehicle mode

Disable charging

There is an charging prohibited function. It means when the M15 is connected with computers or chargers, it would not be charged in order to protect the battery. It also eases the heat dissipation

caused by charging while working.

Notice: when the M15 is in low battery, the disable charging option would be automatically canceled so that the M15 would be charged.

General Multifunction button Add to My Favorites Navigation control Bottom navigation bar Power-off timers HOLD switch setting Double tap to wakeup Disable charging In-vehicle mode 16:31 Android System * now = Screenshot captured. Tap to view your screenshot. HOLD switch setting Double tap to wakeup Disable charging SHARE DELETE Android System The charging is disabled currentym, please go to S.. Android System USB for file transfer Tap for more options. CLEAR ALL

In-vehicle mode

Under this option, connect the M15 with the in-vehicle USB by an USB cable. When the vehicle is on, the M15 would automatically turn on and enter FiiO Music exclusive in-vehicle interface. When the vehicle is off, the M15 would be off.

Notice: part of the in-vehicle USB would have noise wave. This may affect the music playing. It is suggested to collocate with the LA-UA1 which could help to isolate the interference and improve music quality.

General Multifunction button Add to My Favorites Navigation control Bottom navigation bar Power-off timers HOLD switch setting Double tap to wakeup Disable charging In-vehicle mode 六月茉莉 蔡琴 WAV | 192 kHz | 24bit | 9216 kbps 六月茉莉 蔡琴 8秒之后设备将自动关机! 取消

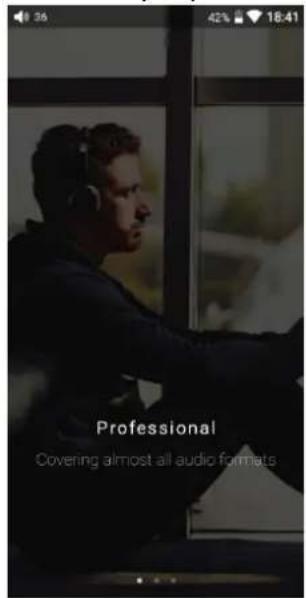

Chapter 8 FiiO Music Homepage

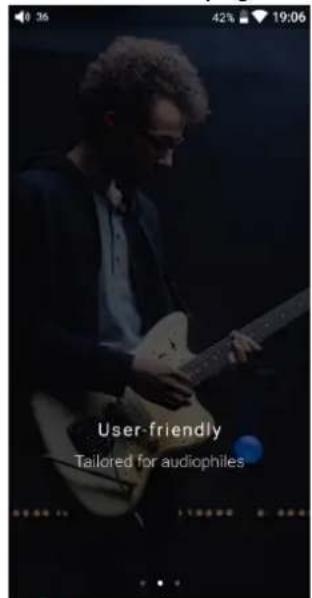

FiiO Music will enter the guide page when first started. Swipe right to the last page and click immediately experience to enter the homepage. Instructions are shown below.

36 42% 18:41 Professional Covering almost all audio formats

User-friendly Tailored for audiophiles

Quality Sound Powered by exclusive audio algorithms OK

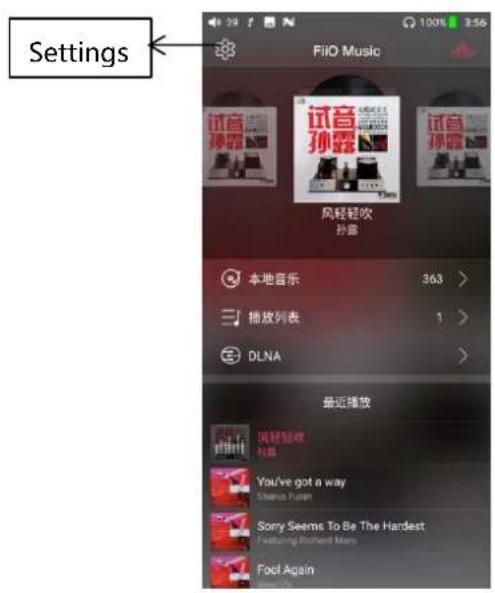

1) Setting icon: press the icon to enter the setting page (or swipe from left to right over 1/3 of the left side of the screen);
2) Playing interface: press the icon to enter the playing interface;
3) Recently played: a list of recently played songs are presented chronologically. The first track in the list is the most recently played one;
4) Frequently played: a list of songs are presented according to frequency of playing. The first track in the list is the most frequently played one;
5) Recently added: a list of recently added songs are presented chronologically. The first track in the list is the most recently added one.

FiiO Music Tap to jump to the now playing page Tap to switch among Recently Played, Most Played and Recently Added Jar Of Love 曲婉婷 Wanting Spontling in the West FLAC | 44.1 kHz | 1630s | 98740pe 我的歌曲

Settings Sleep Timer > Resume > Scan for music > Theme > Equalizer > FliO Link > Gapless Playback > Play through folders > Auto-access to > Lockscreen album art > Replay Gain OFF > USB output DoP >

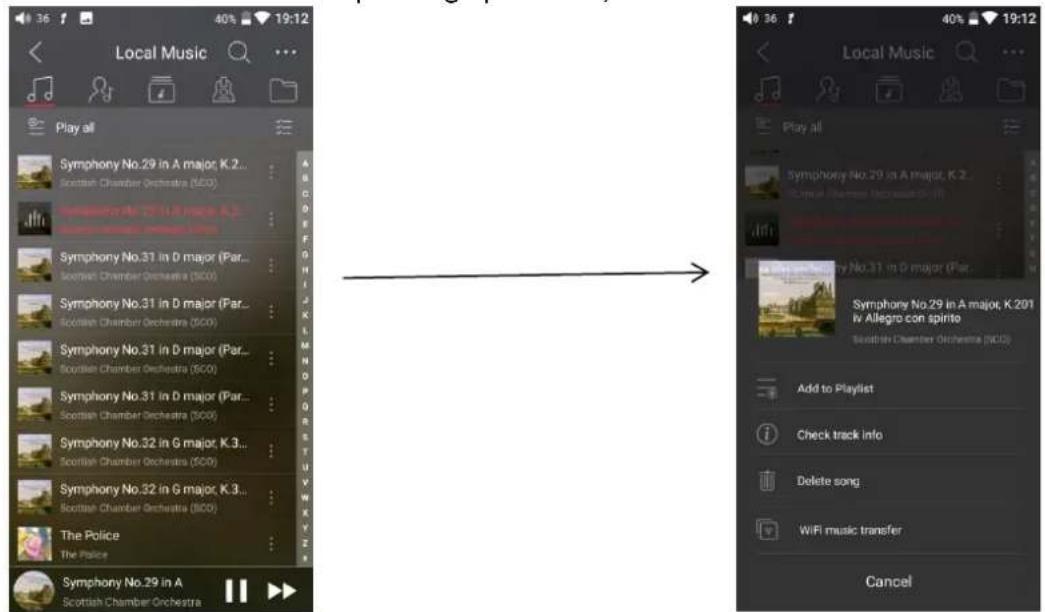

Playlist interface

Click the icon at the upper right of each track to pop up the hidden menu. Then tap the icon in that menu to execute corresponding operations;

Local Music Play all Symphony No.29 in A major K.2... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.32 in G major K.3... Scottish Chamber Orchestra (SCO) Symphony No.32 in G major K.3... Scottish Chamber Orchestra (SCO) The Police The Police Symphony No.29 in A Scottish Chamber Orchestra → Local Music Play all Symphony No.29 in A major K.2... Scottish Chamber Orchestra (SCO) Symphony No.29 in A major K 201 iv Allegro con spirito Scottish Chamber Orchestra (SCO) Add to Playlist Check track info Delete song WiFi music transfer Cancel

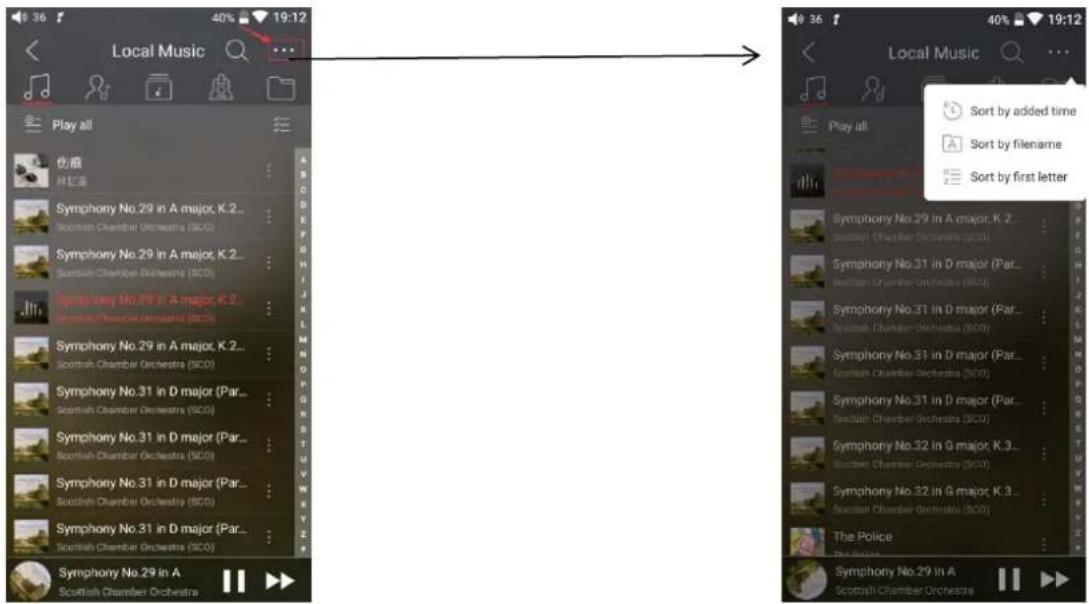

Track sorted

Click the icon at the upper right of the screen to choose the sorted priority: sorted by added time, sorted by filename, sorted by initial from A to Z;

Local Music Play all 伤痕 Scottish Chamber Orchestra (SCO) Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.29 in A Scottish Chamber Orchestra Local Music Play all Sort by added time Sort by filename Sort by first letter Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in G major, K.3... Scottish Chamber Orchestra (SCO) Symphony No.32 in G major, K.3... Scottish Chamber Orchestra (SCO) The Police Symphony No.29 in A Scottish Chamber Orchestra

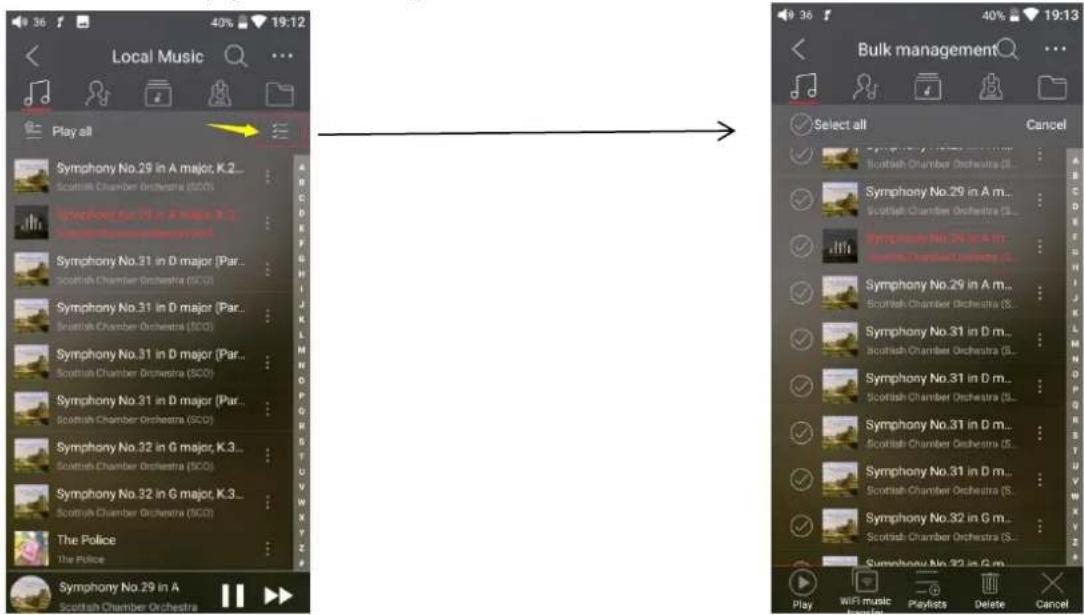

Bulk management

Click the icon at the upper right of the screen to choose batched playing, WiFi music transfer, batched add to My Favorite Playlist, batched add to My Playlist, batched deletion, quit bulk management.

Local Music Play all Symphony No.29 in A major, K.2... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.31 in D major (Par... Scottish Chamber Orchestra (SCO) Symphony No.32 in G major, K.3... Scottish Chamber Orchestra (SCO) Symphony No.32 in G major, K.3... Scottish Chamber Orchestra (SCO) The Police The Police Symphony No.29 in A Scottish Chamber Orchestra Bulk management Select all Cancel WiFi music Playlists Delete Cancel

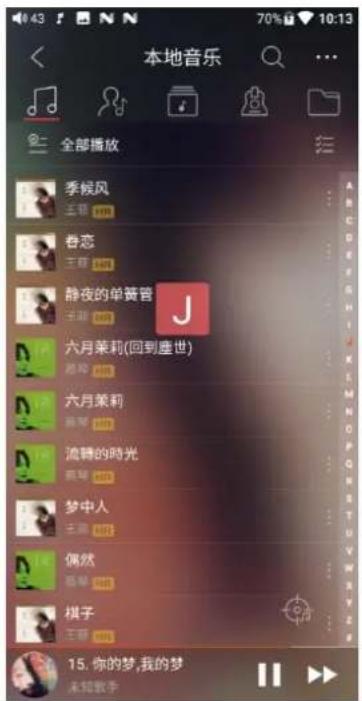

Quick search

Slide the screen with your fingers in the letter bar at the right side. A quick search icon will show up in the middle of the screen. Slide to relating initials to skip to relating tracks.

One-tap to locate the current playing

Click the icon to quickly locate the current playing track.

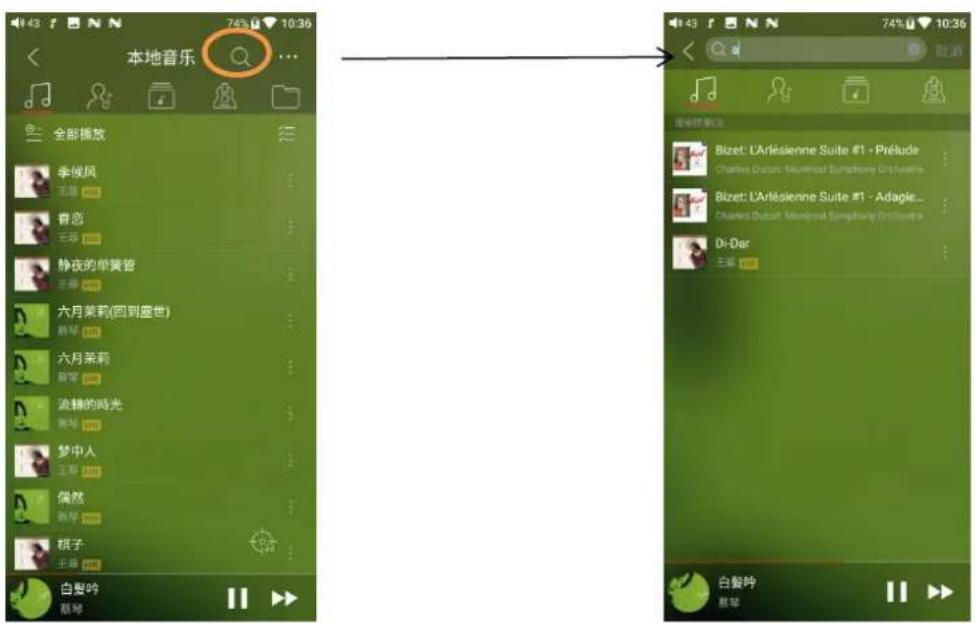

Click the icon, inputting the track you want to search for. Information about the artist, album, genre would be included. Click the track to jump to relating interface and play it.

Now playing interface Return Switching area Play mode Add to Favorites Current playlist Check current artist info Add to Playlists

Switching area

Clicking in the middle of the album cover enables you to switch between album cover and lyrics; sliding to the left or right enables you to play the next or previous track.

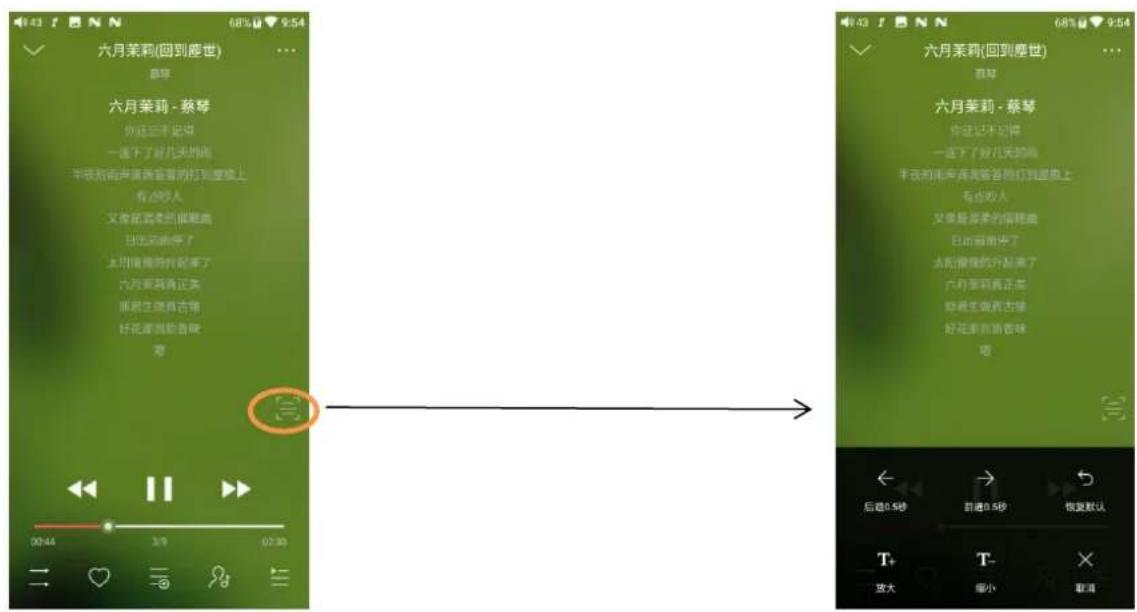

Slide to fast forward/rewind

Tap anywhere on the progress bar below the album cover area to jump to the corresponding part of the track now playing;

Notice: while in the lyrics display page, you can adjust the playback progress by sliding over the

lyrics, adjust the lyrics timeline or adjust the font size.

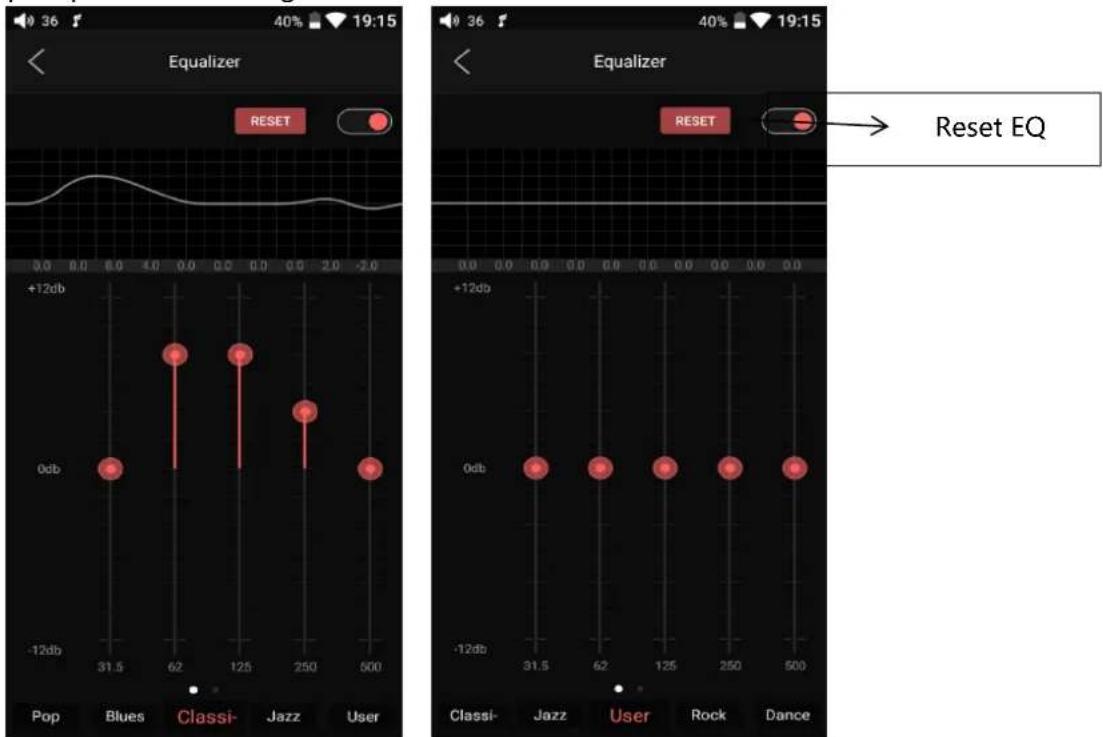

FiiO Music has built in a graphic equalizer. One may choose between the preset genre directly, or from 20Hz to 20kHz, adjusting the ten frequency bands independently from -12 to +12 dB based on your personal listening needs.

Equalizer RESET +12db 0db -12db Pop Blues Classi-Jazz User Classi-Jazz User Rock Dance Reset EQ

Choose preset EQ: swipe up from the bottom of the screen to show the full list of EQ presets. Tap certain icon to switch equalizers.

Customized EQ: steps to customize an EQ setting.

a. Tap the button on the upper right to the right to activate the equalizer.

b. Choose the genre preset to be adjusted (e.g. "User Defined");

c. Drag a vertical slider to adjust its corresponding frequency up and down. The EQ curve above changes to reflect your adjustments.

Swipe left or right over the sliders to move between the low and high frequency sliders;

d. Tap the Back button at the upper left corner to exit and save changes;

Reset EQ: Tap the Reset button at the upper right corner to reset the present EQ preset to its original genre.

Notice: if a factory data reset is performed on the M15, all EQ settings will be reset to default.

MQA

MQA (Master Quality Authenticated)

M15 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

The green or blue dot next to MQA logo indicates that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. It glows blue to indicate it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner.

Hotel California (Remastered) EAGLES LEGACY 10:30 - 19:30 10:45 - 19:45 10:50 - 19:50 10:55 - 19:55 10:60 - 19:60 10:65 - 19:65 10:70 - 19:70 10:75 - 19:75 10:80 - 19:80 10:85 - 19:85 10:90 - 19:90 10:95 - 19:95 11:00 - 20:00 11:05 - 20:05 11:10 - 20:10 11:15 - 20:15 11:20 - 20:20 11:25 - 20:25 11:30 - 20:30 11:35 - 20:35 11:40 - 20:40 11:45 - 20:45 11:50 - 20:50 11:55 - 20:55 12:00 - 21:00 12:05 - 21:05 12:10 - 21:10 12:15 - 21:15 12:20 - 21:20 12:25 - 21:25 12:30 - 21:30 12:35 - 21:35 12:40 - 21:40 12:45 - 21:45 12:50 - 21:50 12:55 - 21:55 13:00 - 22:00 13:05 - 22:05 13:10 - 22:10 13:15 - 22:15 13:20 - 22:20 13:25 - 22:25 13:30 - 22:30 13:35 - 22:35 13:40 - 22:40 13:45 - 22:45 13:50 - 22:50 13:55 - 22:55 14:00 - 23:00 14:05 - 23:05 14:10 - 23:10 14:15 - 23:15 14:20 - 23:20 14:25 - 23:25 14:30 - 23:30 14:35 - 23:35 14:40 - 23:40 14:45 - 23:45 14:50 - 23:50 14:55 - 23:55 15:00 - 24:00 15:05 - 24:05 15:10 - 24:10 15:15 - 24:15 15:20 - 24:20 15:25 - 24:25 15:30 - 24:30 15:35 - 24:35 15:40 - 24:40 15:45 - 24:45 15:50 - 24:50 15:55 - 24:55 16:00 - 26:00 16:05 - 26:05 16:10 - 26:10 16:15 - 26:15 16:20 - 26:20 16:25 - 26:25 16:30 - 26:30 16:35 - 26:35 16:40 - 26:40 16:45 - 26:45 16:50 - 26:50 16:55 - 26:55 17:00 - 27:00 17:05 - 27:05 17:10 - 27:10 17:15 - 27:15 17:20 - 27:20 17:25 - 27:25 17:30 - 27:30 17:35 - 27:35 17:40 - 27:40 17:45 - 27:45 17:50 - 27:50 17:55 - 27:55 18:00 - 28:00 18:05 - 28:05 18:10 - 28:10 18:15 - 28:15 18:20 - 28:20 18:25 - 28:25 18:30 - 28:30 18:35 - 28:35 18:40 - 28:40 18:45 - 28:45 18:50 - 28:50 18:55 - 28:55 19: - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Visit mqa.co.uk for more information.

MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016
