Product Type	Hand blender
Brand	Blaupunkt
Model	HBD501BK
Power	1000 W
Power Supply	220-240 V ~ 50/60 Hz
Maximum Continuous Working Time	3 minutes
Minimum Rest Time Between Uses	30 minutes
Speed Control	Adjustable rotational speed knob and maximum speed button
Included Accessories	Blending attachment, chopper (bowl, blades, lid), measuring cup
Blending Attachment Material	Stainless steel blades
Chopper Bowl Capacity	Approximately 500 ml (estimated)
Measuring Cup Material	Plastic
Motor Body Material	Plastic with metallic finish
Safety Features	Automatic shut-off? not specified; requires earthed socket; do not immerse motor
Cleaning Instructions	Wipe motor body with damp cloth; wash accessories in dishwashing liquid and water
Cord Length	Approximately 1.2 m (estimated)
Weight	Approximately 1.5 kg (estimated)
Dimensions (LxWxH)	Approximately 40 x 10 x 10 cm (estimated for blender stick)
Warranty	2 years (typical for Blaupunkt)
Country of Origin	China (estimated)
Certifications	CE, RoHS

Frequently Asked Questions - HBD501BK BLAUPUNKT

How do I attach the blending attachment?

Align the blending attachment with the motor body and push until it clicks into place. To remove, press both release buttons simultaneously and pull out.

Can I use the hand blender to chop ice or hard nuts?

No, the blender is not designed for chopping ice, bones, nuts, or coffee beans. Use only for soft ingredients.

How do I clean the motor body?

Unplug the device and wipe the motor body with a slightly damp cloth. Never immerse it in water or any liquid.

What is the maximum continuous operating time?

The maximum continuous working time is 3 minutes. After that, let the device rest for at least 30 minutes before using it again.

Can I use the chopper attachment for hot liquids?

No, do not use the chopper for chopping hot products, especially oil or fats. Let ingredients cool down first.

How do I adjust the speed?

Turn the rotational speed control knob on the motor body while pressing the first switch (adjustable speed). Press the second switch for maximum speed.

Is the whisk attachment included with the HBD501BK?

No, the whisk attachment is only included with models HBD401 and HBD801. The HBD501BK comes with blending attachment, chopper, and measuring cup.

What should I do if the appliance stops working?

Check if the power cord is properly connected and the outlet is working. If it still doesn't work, contact authorized service. Do not attempt to repair yourself.

Can I use extension cords?

Yes, but ensure the total power consumption of all devices plugged into the extension cord does not exceed its rating. Arrange cords to avoid tripping.

How do I dispose of the appliance?

Do not dispose in common waste. Follow local regulations for electronic waste. The crossed-out wheeled bin symbol indicates it should be recycled separately.

USER MANUAL HBD501BK BLAUPUNKT

Product photo of a kitchen appliance including a blender, mixing bowl, whisk, and kitchen utensil (no visible text or labels)

Enjoy it.

Hand blender Blender ręczny Tyčový mixér Ponorné mixéry Botmixerek Palični mešalnik

Štapni mikser Ραβδομπλέντερ Παςατορ Mixer de mână Rankinis maišytuvas Saumikser

IMPORTANT NOTES

• Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.
  • This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an earthed socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by

yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• The blades of the blending attachment, chopper and food processor are very sharp. Be extremely careful.
• Never use the blending attachment for chopping hot products, especially oil or fats.
• Do not use the blending attachment, chopper or food processor for chopping ice and other hard products like bones, nuts or coffee beans.
• Do not use the hand blender with wet hands.
  • Always disconnect the hand blender from the mains when not in use, or when you plan to change accessories.

CE

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 1000W

Power supply: 220-240V\~50/60Hz

Max continuous working time KB = 3 min

Minimal time between use = 30 min

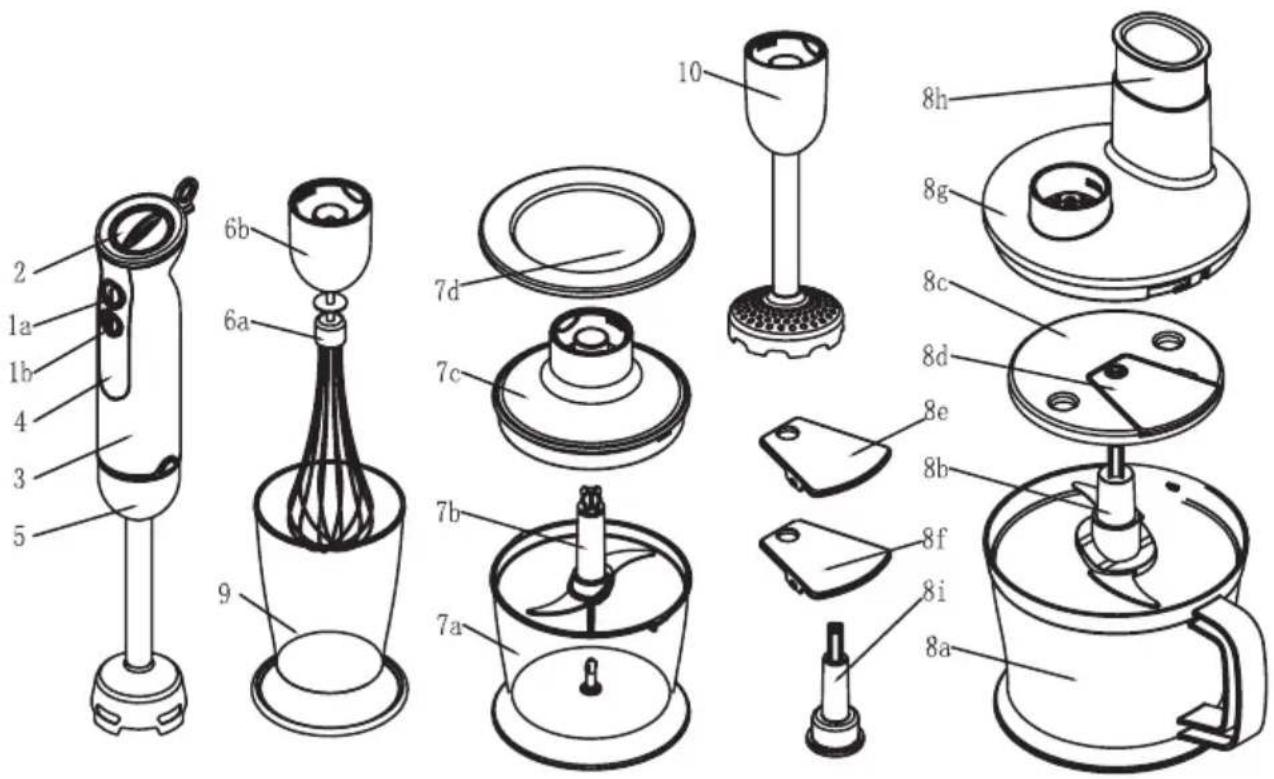

1. Switches of (1a) adjustable rotational speed, (1b) maximum rotational speed
2. Rotational speed control knob
3. Body with motor
4. Buttons releasing the accessories

5. Blending attachment

6. Whisk attachment (6a. whisk, 6b. whisk gear)

7. Chopper (7a. Bowl, 7b. blades, 7c. operation lid, 7d. bowl lid)
8. Food processor (8a. Bowl, 8b. blades, 8c. disc for grating, 8d. grater for slicing, 8e. grater for shredding, 8f. grater for grating e.g. potatoes, 8g. operation lid, 8h. pusher, 8i. cylinder)
9. Measuring cup
10. Puree attachment

BEFORE FIRST USE

1. Remove all papers, cartons, and foils protecting the appliance and its parts.
2. Clean the appliance according to the instructions in the CLEANING AND MAINTENANCE chapter.

CONNECTING ACCESSORIES

To attach an accessory, fix it onto the motor part (3) until it clicks. The accessory can only be connected in one position, pay attention to the cutouts.

To disconnect an accessory, simultaneously press the two buttons for releasing the accessory (4) and pull it out.

USING THE APPLIANCE

1. Blending attachment:
   Attach the blending attachment (4) to the body (3) and snap it. Put the blending attachment into the container with the ingredients prepared for chopping. Start the grinding by pressing the switch.
2. Whisk (for HBD401 and HBD801):
   Insert the whisk (6a) into the opening in the whisk gear (6b). Attach the whisk attachment (6) to the body (3). Prepare the ingredients for whisking in the container, place the whisk end in the container and start the blender by pressing the switch.
3. Chopper (for HBD501 and HBD801):
   Place the blade (7b) of the chopper in the bowl (7a). Put the ingredients into the bowl (7a). Cover the bowl (7a) with the bowl lid (7c) and place the body into it (3). Start the blender by pressing the switch.
4. The puree attachment (for HBD801):
   Attach the puree attachment (10) to the body (3) and snap it. Put the puree attachment into the bowl with ingredients prepared for pureeing. Start the blender by pressing the switch.
5. Food processor (for HBD801):
   The food processor can be used as a chopper or shredder. To chop the ingredients, place the blades (8b) in the bowl (8a) of the food processor, attach the lid (8g), then connect the body (3). Start the blender by pressing the switch.
   Place the gearbox cylinder (8i) into the bowl (8a) and put a disc (8c) with the selected grater (8d-f) to it. Cover the bowl (8a) with the operation lid (8g). Connect the body (3) to the lid (8g). The ingredients should be inserted through the feeder. Only push the ingredients using the pusher (8h).

ROTATIONAL SPEED CONTROL

Adjusting the motor power and rotational speed only works when the first switch is pressed. When the second switch is used, the blender runs at maximum power.

CLEANING AND MAINTENANCE

The body with the motor should be wiped with a slightly moist cloth. Do not immerse in water. Wash the accessories in water with a dishwashing liquid. Rinse thoroughly.
