HBD611 - Hand blender BLAUPUNKT - Free user manual and instructions

Type of product	Hand blender
Brand	Blaupunkt
Model	HBD611
Power consumption	600 W
Motor speed settings	2 speeds + turbo burst
Blending shaft material	Stainless steel
Weight (approx.)	1.2 kg
Dimensions (L x H)	7 x 40 cm
Power cord length	1.2 m
Included attachments	Whisk, measuring beaker (600 ml)
Mains voltage	220-240 V ~ 50/60 Hz
Main functions	Blending, mixing, pureeing, whisking
Cleaning instructions	Detachable shaft and attachments are dishwasher safe; motor unit wipe with damp cloth
Safety features	Safety lock, overheat protection
Spare parts availability	Blender shaft, whisk attachment, beaker, sealing ring
Warranty	2 years

Frequently Asked Questions - HBD611 BLAUPUNKT

How do I assemble the hand blender?

Insert the blender shaft into the motor unit until it clicks. Attach the whisk by aligning and twisting until locked. Always ensure the device is unplugged before assembly.

What is the maximum operating time?

Do not run the blender continuously for more than 1 minute at high speed. Allow it to cool for at least 2 minutes between uses to prevent overheating.

Can I blend hot liquids?

It is not recommended to blend liquids hotter than 60°C. Hot liquids can cause pressure buildup and splashing. Let soups cool slightly before blending.

How do I clean the attachments?

Detach the shaft and whisk from the motor unit. Rinse under running water or place on the top rack of the dishwasher. Do not immerse the motor unit in water; wipe with a damp cloth.

What should I do if the blender stops working?

Check if the overheat protection has tripped. Unplug and let it cool for 15 minutes. If it still doesn't work, verify the outlet and cord. For further assistance, contact Blaupunkt support.

Can I use the hand blender to crush ice?

No, this model is not designed for crushing ice. It can handle soft fruits, cooked vegetables, and liquids. Using ice may damage the blades and motor.

What is the purpose of the turbo button?

The turbo button provides a short burst of maximum power for tasks like quickly pureeing or mixing thick ingredients. Press and hold as needed.

Is the blender suitable for making baby food?

Yes, the HBD611 is ideal for baby food preparation. Blend cooked fruits, vegetables, or meats to a smooth consistency. Ensure food is cooled and cut into small pieces.

How do I replace the blender shaft?

To remove, press the release buttons on the motor unit and pull the shaft away. Insert a new shaft until it clicks. Replacement shafts are available from Blaupunkt or authorized dealers.

Can I use the whisk for heavy dough?

The whisk is designed for light mixtures like cream, egg whites, and batters. For heavy dough, use a stand mixer to avoid damaging the whisk and motor.

USER MANUAL HBD611 BLAUPUNKT

Product photo of a kitchen appliance including a blender, whisk, and beaker (no visible text or symbols)

Enjoy it.

Hand blender Stabmixer Blender ręczny Tyčový mixér Ponorné mixéry Botmixerek Palični mešalnik

Štapni mikser Ραβδομπλέντερ Παςατορ Mixer de mână Rankinis maišytuvas Saumikser Roku maisijums

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the

damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
  • The blades of the blending attachment are very sharp. Be extremely careful.
• Never use the blending attachment for chopping hot products, especially oil or fats.
• Do not use the blending attachment for chopping ice and other hard products like bones, nuts or coffee beans.
• Do not use the hand blender with wet hands.
  • Always disconnect the hand blender from the mains when not in use, or when you plan to change accessories.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 1200W

Power supply: 220-240V\~50/60Hz

Max continuous working time KB = 1 min

Minimal time between use = 3 min

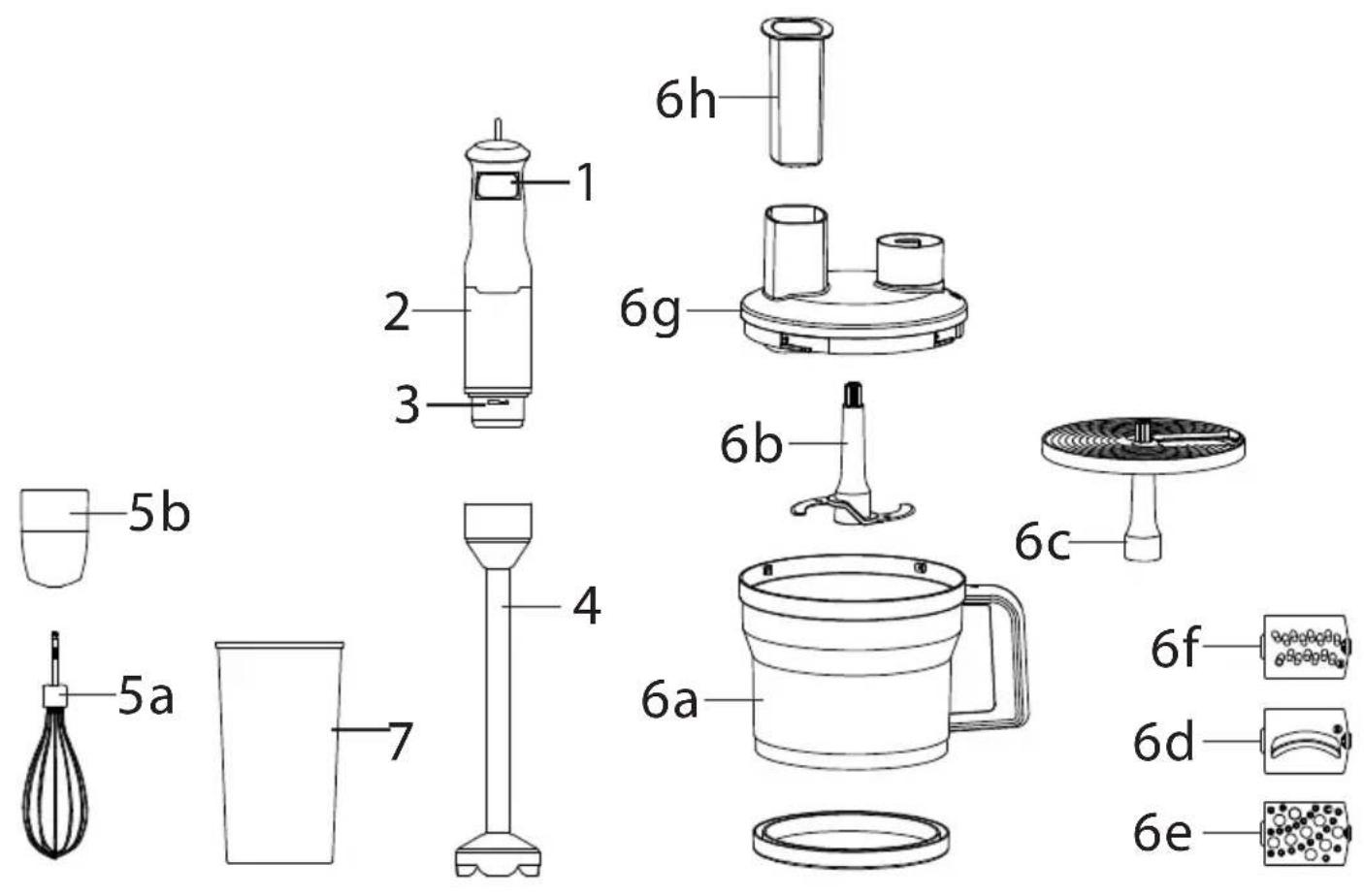

1. Switches of (1a) adjustable rotational speed, (1b) maximum rotational speed
2. Body with motor
3. Buttons releasing the accessories
4. Blending attachment
5. Whisk attachment (5a. whisk, 5b. whisk gear)
6. Food processor (6a. Bowl, 6b. blades, 6c. disc for grating, 6d. grater for slicing, 6e. grater for shredding, 6f. grater for grating e.g. potatoes, 6g. operation lid, 6h. pusher)
7. Measuring cup

BEFORE FIRST USE

1. Remove all papers, cartons, and foils protecting the appliance and its parts.
2. Clean the appliance according to the instructions in the CLEANING AND MAINTENANCE chapter.

USING THE BLENDER

Connect the blending attachment to the blender main body. Fix it by turning it left (anti-clockwise).

Put blending shaft into the jug with ingredients.

Turn blender on by pressing buttons.

The speed adjustment function is implemented in the switch button. The harder the button is pressed, the higher the speed of the blender. Reducing the pressure on the switch will result in operation at a lower speed level. Speed regulation is smooth.

1. Whisk:

Insert the whisk (5a) into the opening in the whisk gear (5b). Attach the whisk attachment (5) to the body (2). Prepare the ingredients for whisking in the container, place the whisk end in the container and start the blender by pressing the switch.

1. Food processor:

The food processor can be used as a chopper or shredder. To chop the ingredients, place the blades (6b) in the bowl (6a) of the food processor, attach the lid (6g), then connect the body (2).

Start the blender by pressing the switch.

into the bowl (6a) and put a disc (6c) with the selected grater (6d-f) to it. Cover the bowl (6a) with the operation lid (6g). Connect the body (2) to the lid (6g). The ingredients should be inserted through the feeder. Only push the ingredients using the pusher (6h).

CLEANING AND MAINTENANCE

The body with the motor should be wiped with a slightly moist cloth. Do not immerse in water. Wash the accessories in water with a dishwashing liquid. Rinse thoroughly.
