HBD812 - Hand blender BLAUPUNKT - Free user manual and instructions

Product Type	Hand Blender
Brand	Blaupunkt
Model	HBD812
Power	1700 W
Power Supply	220-240 V ~ 50/60 Hz
Max Continuous Working Time	3 minutes
Minimum Time Between Uses	30 minutes
Speed Control	Adjustable rotational speed knob + maximum speed button
Attachments Included	Blending shaft, whisk (with gear), chopper (bowl, blades, lid), food processor (bowl, blades, grating discs, slicing disc, shredding disc, lid, pusher, cylinder), puree attachment, measuring cup
Motor Body Material	Plastic and metal
Blade Material	Stainless steel
Cleaning	Motor body: wipe with damp cloth; accessories: wash with dishwashing liquid and rinse
Safety Features	Sharp blades; do not blend hot oil or hard items; keep out of reach of children; disconnect when not in use
Usage	Domestic only
CE Compliance	Yes (LVD and EMC directives)

Frequently Asked Questions - HBD812 BLAUPUNKT

How do I attach an accessory to the hand blender?

Align the cutouts on the accessory with the motor part and push until it clicks. To remove, press the two release buttons on the motor body and pull the accessory off.

What is the maximum continuous operating time?

The blender can run continuously for a maximum of 3 minutes. After that, let it rest for at least 30 minutes before using again.

Can I blend hot liquids or oil?

No, never blend hot products, especially oil or fats, as they may cause burns or damage the appliance. Let liquids cool before blending.

Can I chop ice, nuts, or coffee beans?

No, the blender is not designed for chopping ice, bones, nuts, or coffee beans. Use it only for soft foods like fruits, vegetables, and cooked ingredients.

How do I clean the hand blender?

Wipe the motor body with a slightly damp cloth. Do not immerse it in water. Wash all accessories (shaft, whisk, bowls, blades) with dishwashing liquid and rinse thoroughly. They are not dishwasher safe unless specified.

What attachments are included with the HBD812?

The package includes: blending shaft, whisk with gear, chopper (bowl, blades, lid), food processor (bowl, blades, grating discs, slicing disc, shredding disc, lid, pusher, cylinder), puree attachment, and a measuring cup.

Is the blender safe for children?

No, the appliance and its cord must be kept out of reach of children. The blender should not be used by children. Adults should supervise if used by persons with limited capabilities.

How do I use the food processor attachment?

Place the desired blade or disc in the bowl, add ingredients, cover with the lid, attach the motor body, and press the switch. For grating/slicing, insert ingredients through the feeder and use the pusher. Never push ingredients by hand.

What does the puree attachment do?

The puree attachment is used to make smooth purees from cooked vegetables, fruits, or soft ingredients. Attach it to the motor body, immerse in the food, and blend at desired speed.

What should I do if the power cord is damaged?

Do not use the appliance. Take it to a professional service center for repair or replacement of the cord to avoid electric shock hazards.

USER MANUAL HBD812 BLAUPUNKT

Product photo of a kitchen appliance set including blender, brush, whisk, and beaker (no visible text or labels)

Enjoy it.

Hand blender

Stabmixer

Blender ręczny

Tyčový mixér

Ponorné mixéry

Botmixerek

Palični mešalnik

Štapni mikser

Ραβδομπλέντερ

Пасатор

Mixer de mână

Rankinis maišytuvas

Saumikser

Rokas blenderis

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs

performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• The blades of the blending attachment, chopper and food processor are very sharp. Be extremely careful.
• Never use the blending attachment for chopping hot products, especially oil or fats.
• Do not use the blending attachment, chopper or food processor for chopping ice and other hard products like bones, nuts or coffee beans.
• Do not use the hand blender with wet hands.
  • Always disconnect the hand blender from the mains when not in use, or when you plan to change accessories.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 1700W

Power supply: 220-240V\~50/60Hz

Max continuous working time KB = 3 min

Minimal time between use = 30 min

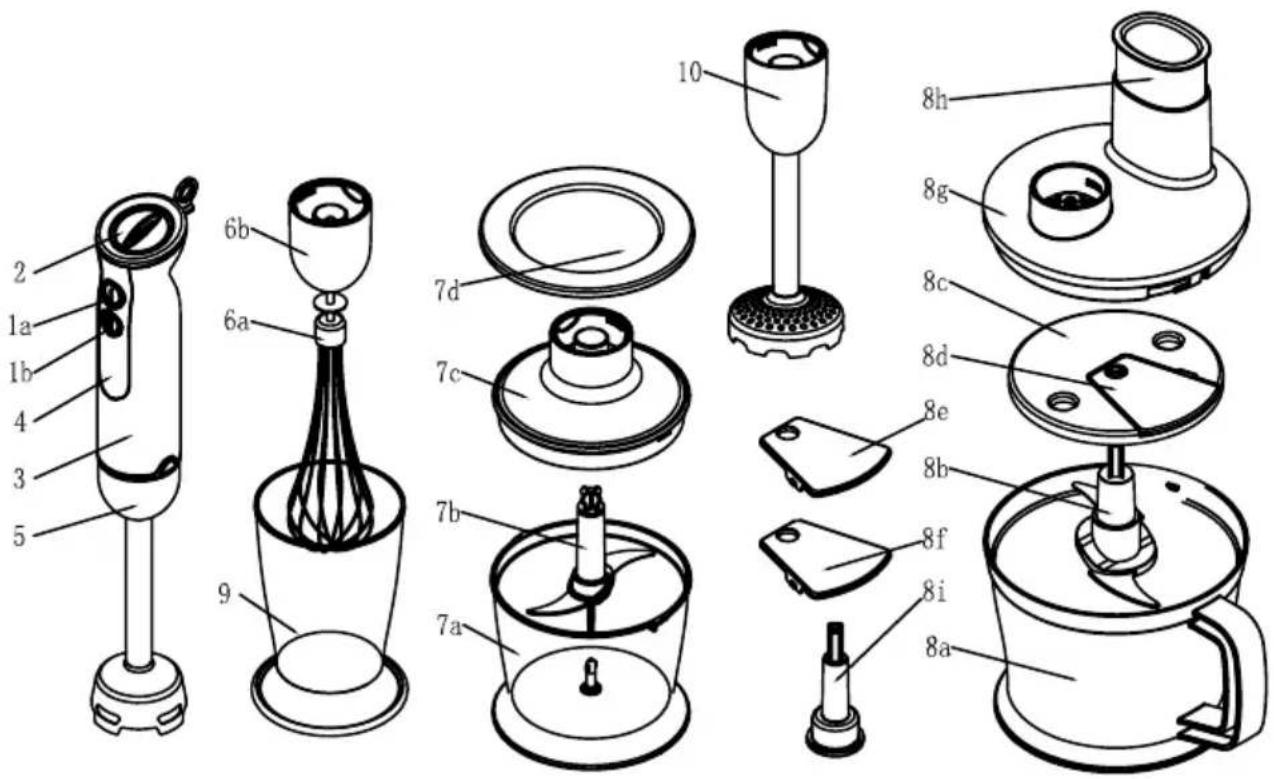

1. Switches of (1a) adjustable rotational speed, (1b) maximum rotational speed
2. Rotational speed control knob
3. Body with motor
4. Buttons releasing the accessories

5. Blending attachment

6. Whisk attachment (6a. whisk, 6b. whisk gear)

7. Chopper (7a. Bowl, 7b. blades, 7c. operation lid, 7d. bowl lid)
8. Food processor (8a. Bowl, 8b. blades, 8c. disc for grating, 8d. grater for slicing, 8e. grater for shredding, 8f. grater for grating e.g. potatoes, 8g. operation lid, 8h. pusher, 8i. cylinder)
9. Measuring cup
10. Puree attachment

BEFORE FIRST USE

1. Remove all papers, cartons, and foils protecting the appliance and its parts.
2. Clean the appliance according to the instructions in the CLEANING AND MAINTENANCE chapter.

CONNECTING ACCESSORIES

To attach an accessory, fix it onto the motor part (3) until it clicks. The accessory can only be connected in one position, pay attention to the cutouts.

To disconnect an accessory, simultaneously press the two buttons for releasing the accessory (4) and pull it out.

USING THE APPLIANCE

1. Blending attachment:

Attach the blending attachment (4) to the body (3) and snap it. Put the blending attachment into the container with the ingredients prepared for chopping. Start the grinding by pressing the switch.

1. Whisk:

Insert the whisk (6a) into the opening in the whisk gear (6b). Attach the whisk attachment (6) to the body (3). Prepare the ingredients for whisking in the container, place the whisk end in the container and start the blender by pressing the switch.

1. Chopper:

Place the blade (7b) of the chopper in the bowl (7a). Put the ingredients into the bowl (7a). Cover the bowl (7a) with the bowl lid (7c) and place the body into it (3). Start the blender by pressing the switch.

1. The puree attachment (for HBD812):

Attach the puree attachment (10) to the body (3) and snap it. Put the puree attachment into the bowl with ingredients prepared for pureeing. Start the blender by pressing the switch.

1. Food processor (for HBD812):

The food processor can be used as a chopper or shredder. To chop the ingredients, place the blades (8b) in the bowl (8a) of the food processor, attach the lid (8g), then connect the body (3). Start the blender by pressing the switch.

Place the gearbox cylinder (8i) into the bowl (8a) and put a disc (8c) with the selected grater (8d-f) to it. Cover the bowl (8a) with the operation lid (8g). Connect the body (3) to the lid (8g). The ingredients should be inserted through the feeder. Only push the ingredients using the pusher (8h).

ROTATIONAL SPEED CONTROL

Adjusting the motor power and rotational speed only works when the first switch is pressed. When the second switch is used, the blender runs at maximum power.

CLEANING AND MAINTENANCE

The body with the motor should be wiped with a slightly moist cloth. Do not immerse in water. Wash the accessories in water with a dishwashing liquid. Rinse thoroughly.
