Product Type	Robot vacuum cleaner
Brand	Blaupunkt
Model	RVC201
Power Supply Input	100-240V~50/60Hz, max 400mA
Power Supply Output	19V, 600mA
Battery Type	NiMH
Battery Capacity	850mAh
Charging Time	Approx. 4-5 hours
Cleaning Modes	Random, Spiral, Along the wall
Sensors	Surface-edge (anti-fall)
Accessories Included	Set of brushes and filters (ACC043)
Dust Container	Internal, removable
Intended Use	Domestic only, dry surfaces
Safety Features	Anti-fall sensors, low battery red LED
Maintenance	Empty dust container, clean filter, wipe body with damp cloth
Compliance	CE, EU LVD and EMC directives
Disposal	WEEE and battery directive 2006/66/EC
Power Button LED	Blue blinks while charging, solid when full, red when low battery
Brush Installation	Press L/R marked brush into corresponding slot
Manufacturer Contact	Everpol, phone: [phone], email: [e-mail]

Frequently Asked Questions - RVC201 BLAUPUNKT

How do I charge the robot vacuum for the first time?

Before first use, remove the insulation foil from the battery and install it correctly. Then plug the power supply into the vacuum and into a wall outlet. The blue LED will blink. Charge fully for 4-5 hours until the LED is solid blue.

How to start cleaning?

Press the on/off button on the top. The robot will start moving and cleaning, automatically switching between random, spiral, and along-the-wall modes. It will stop when the battery is low or if it gets stuck.

What does the red LED on the power button mean?

The red LED indicates low battery. When it lights up, the robot will soon stop. Charge the device by connecting the power supply.

Can I use this vacuum on wet carpets?

No. This vacuum is designed for dry surfaces only. Do not use on damp or wet carpets or floors to avoid damage.

How to empty and clean the dust container?

Open the top cover, pull out the container, remove the cover and internal filter. Empty the container. You can rinse it under running water (not dishwasher). Clean the filter with a soft brush.

Is it safe to use near stairs?

Yes, the vacuum is equipped with surface-edge sensors (anti-fall) to prevent it from falling down stairs. However, always supervise the first use to ensure proper detection.

What accessories are available for this model?

The set of brushes and filters is available under reference Blaupunkt ACC043. Always use original or manufacturer-recommended accessories.

How do I install the side brushes?

Each brush is marked L or R. Press the correct brush into the corresponding slot (L or R) on the bottom of the robot until it clicks.

What should I do if the robot stops moving?

Check if the battery is low (red LED). If not, inspect for obstructions around the wheels, brushes, or suction opening. Also ensure the dust container is not full and filters are clean.

How to dispose of the device and batteries?

Do not throw in household waste. Follow local regulations for WEEE (electrical and electronic equipment) and battery disposal (EU Directive 2006/66/EC). Return to dedicated collection points.

USER MANUAL RVC201 BLAUPUNKT

White robotic vacuum cleaner with blue indicator light and 'BLAUPRUNT' label, shown against white background (no text or symbols on device body)

Enjoy it.

Robot vacuum cleaner

Staubsauger-Roboter

Robot odkurzający

Robotický vysavač

Robotický vysávač

Robotporszívó

Sesalni robot

Robotski usisivač

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as

accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.
- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.
- Unplug the AC adapter from the electrical outlet when not in use.
- Do not connect or disconnect the adaptor from the power source with wet hands.

Do not vacuum without first ensuring that filters are installed correctly.

• You cannot vacuum very fine dust such as flour, cement, gypsum powder, toners, or dirt that may be hot, such as ash, cigarette butts, and matches.
• You should use the vacuum cleaner to clean dry surfaces only.
• Do not use the vacuum cleaner on damp and wet cleaned carpets and flooring.
• Do not place any objects on or add any load to the vacuum cleaner. Pay attention to children and animals when the vacuum cleaner is working (so that it is not lifted, hit, or sat on).
• Before starting the vacuum cleaner, make sure that all external doors are closed (the vacuum cleaner can only be used at home).

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

DEVICE SPECIFICATIONS

Voltage: 19V

Amperage: 600mA

Set of brushes and filters: Blaupunkt ACC043

Battery: NiMH, 850mAh

POWER-SUPPLY SPECIFICATIONS

Input voltage: 100-240V\~50/60Hz

Input amperage: max. 400mA

Output voltage: 19V

Output amperage: 600mA

1. Power button
2. Top cover
3. Internal dust container
4. Bumper

5. Front wheel

6. Drive wheels

7. Collector brushes
8. Suction opening
9. Surface-edge sensors (Anti-fall)
10. Battery compartment

BEFORE THE IRST USE

1. Remove all papers, cartons and foils protecting the vacuum and its parts.
2. Remove the insulation foil from between the battery and the contacts. Make sure the battery is inserted correctly according to its polarity.
3. Install the collector brushes. Press the brush marked with L or R into the appropriate spot marked with L or R.
4. Set the device in the middle of a larger area, and run the cleaning programme until the battery is discharged. Charge the device battery according to the instructions.

CHARGING THE DEVICE

1. Make sure that the device battery is correctly installed in the device before charging it.
2. Plug the power-supply plug into the vacuum cleaner, then plug the power supply into an electrical socket. The blue LED on the power button will blink.
3. When the battery is fully charged, the LED will be lit continuously. Charging the battery takes approximately 4-5 hours.
4. It is recommended to fully charge the battery without interruptions. This will extend the battery life.

DEVICE START-UP

Prepare the surface of the room to be cleaned. Remove sensitive objects, cables, sheets of paper. Raise backdrops, curtains, and drapes hanging to the ground. Cover delicate furniture.

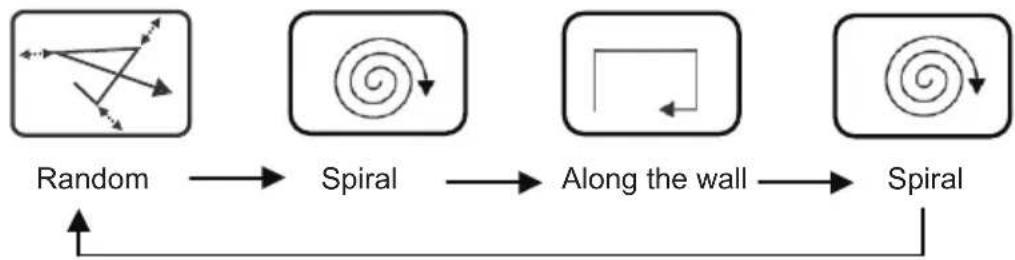

Press the on/off button to start the robot vacuum cleaner. The robot will start to move and clean, periodically changing modes.

The robot will run until the battery is discharged or until it is blocked by objects lying on the floor, doorsteps, or turned off by means of the on/off switch.

The robot will inform you that the battery is low by lighting up the red control LED on the on/off switch.

CLEANING AND MAINTENANCE

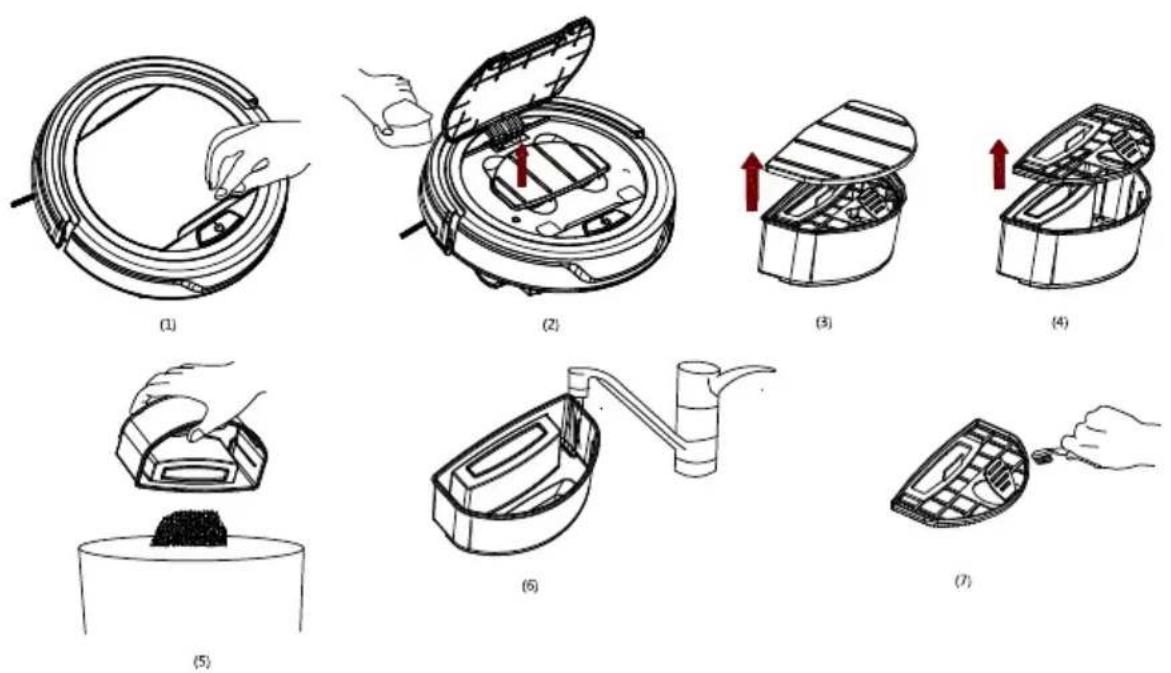

1. Emptying and cleaning the dust container.

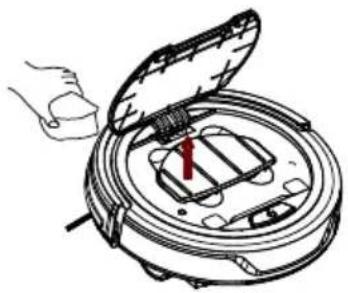

   Open the top cover by lifting it up. Pull out the container. Remove the cover and the internal filter. Empty the container.
   The container may be cleaned under running water (do not wash in a dishwasher or washing machine). Clean the filter with a soft brush.

1. Cleaning the device body.

Clean the device with a damp cloth, and then wipe it dry. Do not immerse the device in water.

Regularly remove any dirt which might block the air-intake opening and sweeping brushes.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

Akumulator: NiMH, 850mAh

DANE TECHNICZNE ZASILACZA

Hand holding a pen inside a coiled cable or wire (no text or symbols visible)

(1)

Diagram of a hand opening a device into a circular housing with a red arrow indicating the component (no text or symbols present)

(2)

(3)

(4)

Simple line drawing of a hand pressing down on a container with a dark object (no text or symbols)

(5)

Line drawing of a mechanical device with a handle and shaft (no text or symbols)

(6)

(7)

Hand holding a pen inside a coiled cable or wire (no text or symbols visible)

(1)

Diagram of a hand opening a device into a circular housing with a red arrow indicating the component (no text or symbols present)

(2)

(3)

(4)

Illustration of a hand pressing down on a container with a dark substance (no text or symbols)

(5)

Line drawing of a mechanical device with a handle and shaft (no text or symbols)

(6)

(7)

2. Čistenie korpusu zariadenia

Hand holding a pen inside a coiled cable or wire (no text or symbols visible)

(1)

Diagram of a hand opening a device into a circular housing with a red arrow indicating the handle (no text or symbols present)

(2)

(3)

(4)

Simple line drawing of a hand pressing down on a container with a dark substance (no text or symbols)

(5)

Line drawing of a mechanical device with a handle and shaft (no text or symbols)

(6)

(7)

Akumulator: NiMH, 850mAh

TEHNIČNI PODATKI ZA NAPAJALNIK

Vhodna napetost: 100-240V\~ 50/60Hz

Vhodna intenzivnost: maks. 400mA

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
