USER MANUAL BP2006 BLAUPUNKT

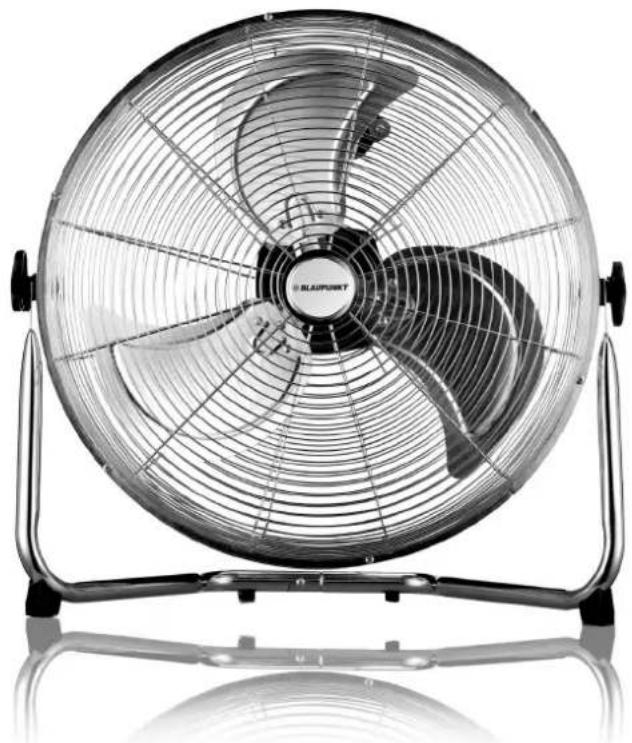

Black and white photo of a standard 4-inch flatboard fan with visible blades and mounting base (no text or symbols)

Enjoy it.

ESTE PRODUCTO ES PARA USO DOMÉSTICO

CARACTERÍSTICAS TÉCNICAS:

Technical diagram of a mechanical assembly with numbered components for identification

BREVE DESCRIPCIÓN

Black and white photo of a standard 4-inch blue air fan with visible blades and mounting base (no text or symbols)

Enjoy it.

THIS PRODUCT IS FOR HOUSEHOLD USE

TECHNICAL SPECIFICATIONS

The rated power: 220-240 \~

Frequency : 50 Hz

Power: 140W

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING.

DO NOT HANDLE THE FAN INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they were printed. We reserve the right to modifications motivated by the permanent development of the technique in our products

EN

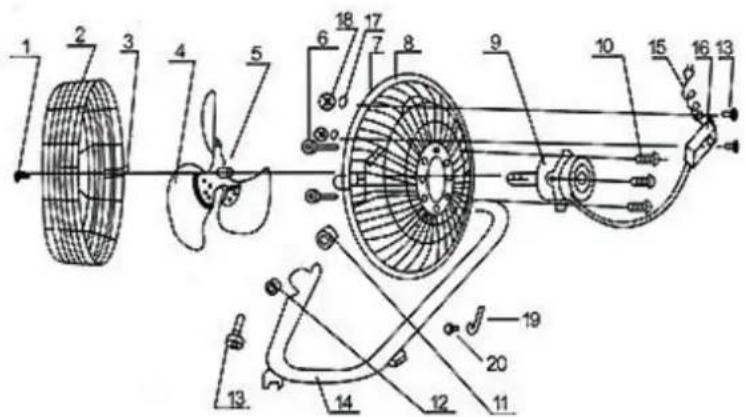

PARTS OF VELOCITY FAN

1. Screw
2. Front grille
3. Grille support
4. Blade
5. Pressure screw
6. Nut
7. Square bolt
8. Rear grill
9. Motor
10. Screw
11. Plastic separation
12. Fixing nut
13. 1Screw
14. Base screw
15. Connection wire
16. Speeds box
17. Washer
18. Nuts
19. Hanging hook
20. Screw

Technical diagram of a mechanical assembly with numbered components for identification

DESCRIPTION

This modern high speed fan provides more range air than conventional fans of plastic. Take the air from the room and circulate it keeping the place cool and airy. If you put it near a window it helps to expel the hot air and circulating between its blades the fresh.

1. Energy saving. High speed motor for the circulation of greater air flow.
2. Inclination adjustment for different uses.
3. Selection of 3 speeds.
4. Precision blades to achieve a greater range of fresh air but with little noise.
5. Solid finish manufacturing. Prevents motor overheating. It can be placed on the floor or table.

INSTRUCTIONS FOR USE

Make sure the voltage used matches the indicated voltage.

Place the appliance on a flat surface.

Set the speed selector (16) to the desired position.

Position

0 - Off Position
1- Minimum speed Position
2 - Average speed Position
3 - Maximum speed

You can tilt the fan or hang it according to the desired position.

NEVER TOUCH THE ASPAS WITH THE HANDS OR ANY OTHER OBJECT.

Do not strain the cable too much. If the cable deteriorates after prolonged use, it must be replaced by qualified technical service personnel.

To clean it, disconnect the cable from the plug. Remove the front grille and the blades very carefully.

Take care Don't hit the blades. First rub with a soft cloth soaked in light soap and then dry carefully with a dry cloth. Never use corrosive liquids that could damage the paint, the metal or the plastic

Replace the blades, the front grille and then securely screw.

CAUTION

Read these instructions carefully before operating the fan.

Do not leave plastic bags or packaging items within the reach of children.

Do not connect without ensuring that the voltage indicated on the nameplate of the appliance and that of your home match.

Verify that the plug base has an adequate ground.

Never insert your fingers or any object through the grilles.

Do not leave it within reach of children.

Do not use with any control device or programmer that can operate it automatically.

Never place the circulator in a window, because rainwater could cause a short circuit.

This device is not intended for use by persons (including children) whose physical abilities, sensory or mental are reduced or lack experience or knowledge, unless they have had supervision or instructions regarding the use of the device by a person responsible for its safety.

Children should be supervised to ensure they play with the device.

Do not cover the device.

Do not use outdoors.

Never immerse it in water.

Never use it without the front grille properly positioned.

Do not use it in places where gas appliances are running.

If the power cable is damaged, it must be replaced by a special cable or assembly to be supplied by the manufacturer its after-sales service.

MAINTENANCE AND CLEANING

Before cleaning, make sure the appliance is disconnected from the mains and the blade completely stop.

You can clean the exterior with a slightly damp cloth.

If you want to clean the interior parts, you must first remove the front grill. To do this you must remove the screw safety bottom and the hooks that hold the front and rear grille, once removed proceed to the cleaning.

Clean the inside with a slightly damp cloth, except for the motor that should always be cleaned. With a dry cloth.

Do not use chemical or abrasive products, metal scourers, etc. that may deteriorate the surfaces.

If you are not going to use the fan for a long period of time, clean it and store it in a plastic bag or in a box.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: FLOOR VELOCITY FAN

Model: BP2006

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date: 26 de December 2020

Signature:

26 de December

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certifi cate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact

on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
