| Product Type | Freestanding Microwave |
| Brand | Electrolux |
| Model | EMS20100OX |
| Capacity | 20 Liters |
| Microwave Power | 800 W |
| Power Levels | 5 |
| Color | Stainless Steel |
| Dimensions (W x D x H) | 44.0 x 34.0 x 26.0 cm |
| Weight | 10.5 kg |
| Voltage | 230 V / 50 Hz |
| Power Consumption | 1200 W |
| Control Type | Rotary Knob + Push Button |
| Display Type | LED |
| Turntable | Yes, 25 cm glass |
| Interior Light | Yes |
| Defrost Function | By weight or time |
| Clock/Timer | Yes |
| Door Type | Drop-down with handle |
| Child Lock | Yes |
| Cleaning | Wipe with damp cloth, mild detergent |
| Safety Certifications | CE, EAC |
| Repairability Index | 8.0 / 10 (estimated) |
| Spare Parts Availability | Online via Electrolux service |
| Manual Languages | EN, ES, FI, NO, SK, SV and more |
Frequently Asked Questions - EMS20100OX ELECTROLUX
User questions about EMS20100OX ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual EMS20100OX - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EMS20100OX by ELECTROLUX.
USER MANUAL EMS20100OX ELECTROLUX
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Safety information 2
Product description 5
Operation 5
Helpful hints and tips 8
Care and cleaning 9
Technical data 10
Environment concerns 10
Installation 10
European Guarantee 11

Subject to change without notice

Safety information
General safety
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
- The built-in safety interlock switches prevent the microwave oven from operating when the door is open.
- Do not tamper with them, or attempt to operate the oven with the door open as open door operation can result in exposure to microwave energy.
- Do not allow food spills or cleaner residue to accumulate on door sealing surfaces. See the Cleaning and Care section for cleaning instructions.
- It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (warped), (2) hinges and latches (broken or insecure), (3) door seals and sealing surface.

Warning! If the door, hinges/latches or door seals are damaged, the microwave must not be operated until it has been repaired by a authorized service person.

Warning! It is hazardous for anyone except factory trained service personnel to service or make adjustments to this oven. Contact your nearest authorised service agent if service should be required.
- Do not remove the outer case, door or control panel at any time. Doing so may cause exposure to extremely high voltage.
-
Install or locate this oven only in accordance with 'installation instructions' found in this manual.
-
Use the appliance for its intended use as described in this manual. Do not use corrosive chemicals in this appliance. This type of oven is specifically designed to heat, cook, or defrost food. It is not designed for industrial or laboratory use neither for commercial use as this will invalidate the guarantee.
- Do not operate the oven empty. If food or water is not present to absorb the microwave energy, the magnetron tube can be damaged.
- Do not store this appliance outdoors. Do not use this product near water.
- Do not attempt to dry clothing or newspapers in the microwave oven. These items can ignite.
- Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
- The temperature of accessible surfaces may be high when the appliance is operating.

Warning! If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Never use water.

Warning! The appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Do not force the turntable to rotate by hand. This may cause malfunctioning.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- Care should be taken not to obstruct any air vents located on the top, rear, side and bottom of the oven.

Warning! Do not use this oven for commercial purposes. This oven is made for domestic use only.
Utensil safety
Only use utensils that are suitable for use in a microwave oven.
Arcing in the oven during microwave operation usually occurs from use of metallic utensils. Continuous arcing, however, can damage the unit. Stop the programme and check the utensil.
Most glass, glass ceramic and heat-resistant glassware utensils are excellent for use in the microwave oven. Although microwave energy will not heat most glass and ceramic items, these utensils can become hot as heat transfers from the food to the container. The use of oven gloves to remove dishes is recommended.
Food safety
- Do not heat food in a can in the microwave oven. Always remove the food to a suitable container.
- Deep fat frying should not be done in the microwave oven, because the fat temperature cannot be controlled, hazardous situations can result.
- Popcorn may be prepared in the microwave oven, but only in special packages or utensils designed specifically for this purpose. This cooking operation should never be unattended.
- Pierce foods with nonporous skins or membranes to prevent steam buildup and bursting. Apples, potatoes, chicken livers, and egg yolks are examples of items that should be pierced.
- The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

Warning! Liquids or other foods must not be heated in sealed containers since they are liable to explode.

Warning! Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Warning! When heating liquids, e.g. soups, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:
- Avoid using straight-sided containers with narrow necks.
- Do not overheat.
- Stir the liquid before placing the container in the oven and again halfway through the heating time.
- After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container.

Warning! Some products such as whole eggs and sealed containers - for example, closed glass jars - may explode and should not be heated in this oven. Occasionally, poached eggs may explode during cooking. Always pierce the yolk, then cover and allow the standing time of one minute before removing cover.

It is quite normal for steam to be emitted around the door, or for misting to occur on the door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food and does not affect the safety of your oven. The door is not intended to seal the oven cavity completely.
Oven utensils and accessories guide
A variety of Utensils and Materials maybe used for cooking in your microwave oven. For your safety and to prevent damaging utensils and your oven choose appropriate utensils and materials for each cooking method.
The list below is a general guide.
• √: Utensils and accessories to use
• X : Utensils and accessories to avoid
| Material Utensils Microwave | ||
| Ceramic & Glass Corning ware | √ 1) | |
| Heat resistant glass ware | √ | |
| Glass ware with metal decoration | × | |
| Lead crystal glass | × | |
| China Without metal decoration | √ | |
| Pottery 2) | √ | |
| Plastic Microwave oven heat proof | wear | √ |
| Plastic wrap | √ | |
| Metal Baking pan | × | |
| Aluminium foil 3) | √ | |
| Paper Cups, plates, towels | √ | |
| Waxed paper | √ | |
| Wood | × | |
1) Only if there is no metal trim.
2) Only if it does not have a glaze containing metal.
3) Use aluminium foil only for shielding purposes, over use may cause arcing.

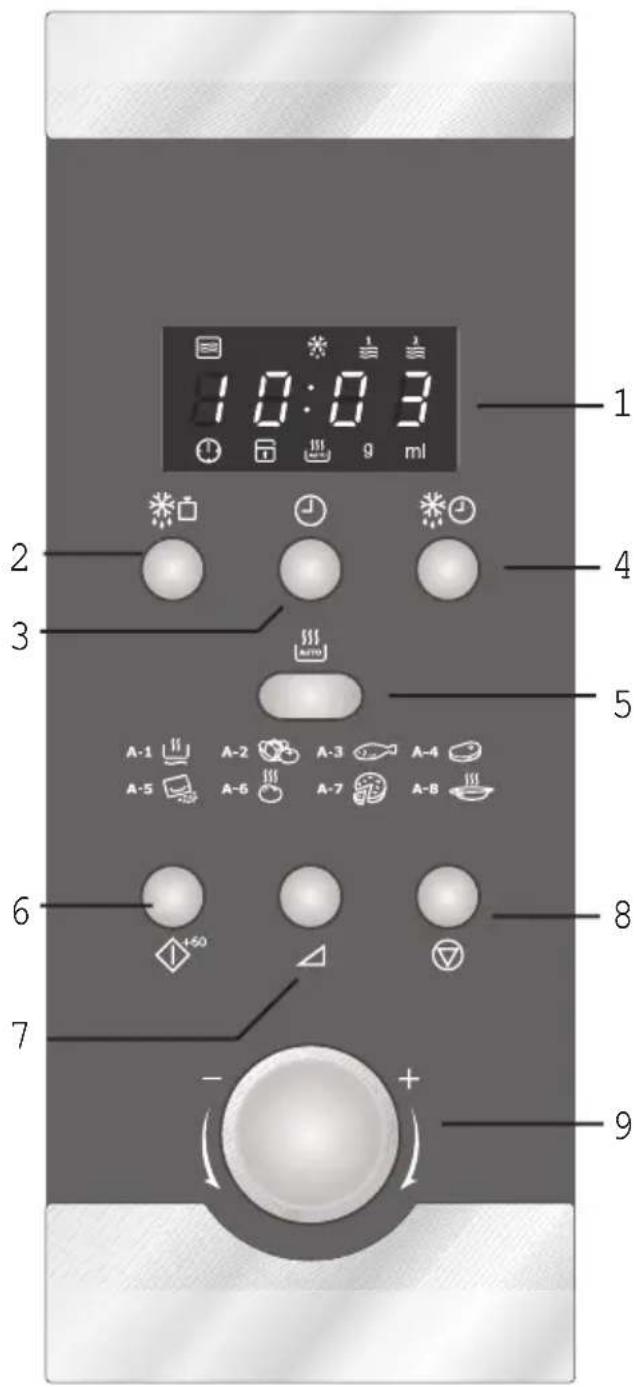

Product description

1. Display window
- ☐ - Microwave function indicator
- [sum] - Auto cook function indicator
- ⏻ - Clock indicator
- ≡ - Microwave above 50% indicator
- ≡ - Microwave below 50% indicator
- * - Defrost function indicator
- g - Weight indicator (grammes)
- ml - Quantity indicator (mililitres)
-
☐ - Lock indicator
-
Defrost by weight
- Clock
- Defrost by time
- Auto cook
- Start
- Microwave
- Stop
- Rotary encoder
Operation
To set the 'time of day' clock:
At initial switch on the oven display will show '0:00' and you will hear a 'beep'.
The clock adopts the 24 hour clock configuration
- Press ⏻ push button. The hour numbers will flash together with the ⏻ symbol.
- Rotate Ⓞ to select the hours.
- Press ⏻ push button. The minute numbers will flash:
-
Rotate ⚙ to select the minutes.
-
Press Ⓧ push button to complete ‘the time of day’ setting. The ‘:’ will flash in the display and the ⏻ symbol will disappear.
The 'time of day' must be set to allow the oven to function.
During the process of setting 'time of day', by pressing at any time, the oven will go back to the previous state.
Cooking with Microwave.
-
Press △ push button once and 'P100' will appear in the display and ≡ symbols will illuminate. 100 indicate 100% i.e. max. power setting of 800 watts.
-
Rotate ⚙ to change the microwave power in steps from 100%, to 10% in the following sequence; 'P100', 'P80', 'P50', 'P30', and 'P10'
i ≈ symbol illuminates when 50% or less power is selected
-
Press △ to confirm your power selection.
-
Rotate ⚙ to select the required cook time between 0.05 to 95.00 Note;
-
Selected time between 0.05 and 1 minute are in increments of 5 seconds
- Selected time between 1 and 5 minutes are in increments of 10 seconds
– Selected time between 5 and 10 minutes are in increments of 30 seconds - Selected time between 10 and 30 minutes are in increments of 1 minute
-
Selected time between 30 and 95 minutes are in increments of 5 minutes
-
Press ◇ ^46 to start cooking. The display will show the cooking time left and the ≡ and ≡ or ≡ symbol will flash (depending on power level selected).
Microwave Power Chart:
| Power Percentage Display & Microwave Power | |
| 100% P100 = 800W | |
| 80% P80 = 640W | |
| 50% P50 = 400W | |
| 30% P30 = 240W | |
| 10% P10 = 80W | |
The 'plus 60 seconds' function
- Pressing the ◇ when the oven is in 'stand by' mode i.e. when not is use and 'time of day' is displayed, will automatically start microwave cooking / reheating at 100% full power of 800 watts (P100) for 60 seconds. The symbol will flash in the display. Any additional operation of this push button will add '60 seconds' to the existing cook time. The maximum cook time which can be entered is 95 minutes.
Auto defrosting by weight
- Press ☑ once and 'dEF 1' will appear in the display and the ☐ symbols will illuminate.
- Rotate ⚙ to select the frozen weight in grams of the food you are defrosting. (between 100g and 2000g)
- Press ◇ to begin the automatic defrosting function. The oven will calculate the defrosting time and power level required to defrost the food perfectly. The defrosting time left will be shown in the display and the ☐ symbols will flash.
Defrosting by time.
- Press ⚙️ and ‘dEF 2’ will appear in the display and the ≡ symbols will illuminate.
- Rotate ⚙ to select the defrosting time – max 95 minutes.
- Press ◇ to begin the manual defrosting function. The defrosting time left will be shown in the display and the ≡ symbols will flash.
Multi- stage cooking
The oven can be set to defrost / cook in three stages.
If using a defrost function this should always be the first stage.
A ‘beep’ will sound after the first stage is complete and the second stage will begin automatically.
Auto menus cannot be used as either stage. For example: To defrost food manually for 5 minutes and then cook for 7 minutes at 640 watts (P80),
- Press ⚙️ and ‘dEF 2’ will appear in the display and ≡ symbols will illuminate.
- Rotate ⚙ to select the defrosting time of 5 minutes.
- Press △ push button once and 'P100' will appear in the display and the ≡ symbols will illuminate. 100 indicates 800 watt (100%) i.e. max. power setting.
- Rotate ⚙ to select 640 watts (P80).
- Press to confirm your power selection.
- Rotate ☐ to select the cook time of 7 minutes.
- Press ◇ to start the two stage programme. The □ and *symbols for stage 1 will flash and then after a ‘beep’, the □ and ‡ symbols will flash to indicate stage 2 has begun.
Delayed Start.
The oven can be set to start cooking at a predetermined time and up to three stages of cooking can be used. Do not use defrosting as either stage.
- Press △ push button once and 'P100' will appear in the display. And ≡ symbols will illuminate. 100 indicates 100% i.e. max. power setting.
- Rotate ⚙ to select the power level.
- Press to confirm your power selection.
- Rotate ⚙ to select the required cook time between 0.05 to 95.00
- Press ⏻ . The hour figures will flash and the ⏻ symbol will illuminate.
- Rotate Ⓞ to select the hour at which you want the oven to begin cooking.
- Press ⏻ . The minute figures will flash. Press . The minute figures will flash.
- Rotate 🔒 to select the minute at which you want the oven to begin cooking.
Automatic Cooking Chart
| Menu Weight / Portion |
| A-1 - Auto Reheat 200g, 400g, 600g |
| A-2 - Vegetables 200g, 300g, 400g |
| A-3 - Fish 250g, 350g, 450g |
| A-4 - Meat 250g, 350g, 450g |
| A-5 - Pasta 50g (with 450g of water), 100g (with 800g of water) |
- Press ◇ ^60 to complete the setting. The time of day will appear in the display, together with the ⏻ symbol which will flash. and remain until the start time is reached when the oven will ‘beep’ twice and the cooking process will begin automatically.
At the end of the cooking cycle the oven will ‘beep’ 5 times. Note: The ‘time of day’ must be set for this function to operate.
Child Lock.
The oven can be rendered inoperable should you wish to prevent unauthorised use i.e excluding children from using the appliance In the ‘stand by’ mode, press and hold 📋 for 3 seconds. You will hear a long ‘beep’ which denotes that the child lock has been engaged and the 📋 symbol will illuminate in the display.
To exit the ‘child lock’ mode, press and hold ☑ for 3 seconds. You will hear a long ‘beep’ which denotes that the child lock has been disengaged and the ☑ symbol switch off in the display.
Automatic cooking by food category.
- With the oven in stand-by mode press to select auto menu 'A-1'.
- Rotate ⚙ clockwise to select A-2 to 'A-8'. The 📄 will illuminate. Note: refer to table below for food categories
- Press 📋 to confirm your selection.
- Rotate Ⓞ to select the food weight in grams. The g or m will illuminate.
- Press ◇ ^+50 to begin cooking.
On completion of the cooking process a ‘beep’ will sound five times and the oven will switch off.
Menu Weight / Portion
A-6 - Potato 200g, 400g, 600g
A-7 - Pizza 200g, 400g
A-8 - Soup 200g, 400g
Retrieval of information when in use.
- Press △ during cooking and the display will show the power selected for 3 seconds.
- In ‘delayed start’ mode press Ⓞ and the cook start time will be displayed for 3 seconds, after which the time of day will be displayed once more.
- During cooking press Ⓐ to check the current ‘time of day’ which will be displayed for 3 seconds.
General information and user guidelines.
- Each time a push button is pressed a 'beep' will sound to confirm this action.
Each time a push button is pressed a 'beep' will sound to confirm this action.
- The initial rotation of the control knob will be accompanied by a 'beep'.
- After any cooking programme has been set, failure to initiate cooking by pressing ◇ ^45 within 1 minute will result in cancellation, and the ‘time of day’ will be displayed.
- At the end of every cooking cycle, the oven will ‘beep’ five times.
- Opening the door during the cooking cycle will stop the oven operation. ◇ ^40 must be pressed to resume cooking if the door has been opened during the cooking cycle.
Helpful hints and tips
Microwave hints
- Always keep the oven clean - avoid spillovers and do not forget to clean under the glass tray and the inside of the door.
- Preferably use round or oval casseroles with a lid when cooking in your microwave oven.
- Do not use metal or metal decorated casseroles. Certain plastic materials can melt and be warped by hot food.
- Cover the food when cooking. Use a glass lid, a plate or grease proof paper.
- Pastry, bread and the like can be defrosted directly in a bread basket or on a paper towel.
- If frozen food is heated in its packaging, the packaging should be opened. Packaging containing metal or metal decoration must not be used unless specifically recommended for use in the microwave. Remove metal clips and wire ties.
- Smaller pieces of aluminium foil can be used to cover parts that easily over cook such as chicken legs.
-
Food with peel or skin should be pierced with a fork - e.g. potatoes and sausages. Do not boil eggs in the microwave oven as they can explode.
-
Put large, thick pieces close to the edge of the casserole and try to cut the food in to even sized pieces. Always place the food in the centre of the oven.
- The food will be evenly cooked if you stir or turn it a few times.
- Always set a shorter cooking time than indicated in your recipe to avoid over cooking. The larger the amount of food the longer it takes.
- Use little or no water for vegetables.
- Use less salt and spices than for 'normal' cooking.
- Season afterwards.
- Allow a few minutes 'standing' time after the oven has switched off to ensure complete and even cooking results.
- Always ensure food is piping hot throughout before serving.
- Use pot holders or gloves when taking dishes and food from the oven.
Microwave tips
- Softening Honey
If you have a jar of honey which has crystallised, remove lid and place the jar in the oven, microwave on medium power for 2 minutes.
- Melting Chocolate
Break 100g of chocolate into squares, place in a bowl and heat on high power for 1-2 minutes and stir well.
- Softening or Melting Butter
Melting takes a few seconds on high power. Softening is best done more gently on low power.
- Freshen or Warm Bread
Use medium power for few seconds.
- Peeling Garlic easily
Heat 3 or 4 cloves of garlic on high power for 15 seconds. Squeeze at one end until the clove pops out.
- Fruit Juice
Citrus fruits will yield more juice if they are heated on high power for 15 seconds before squeezing.
- Cooking Porridge
Porridge is easily cooked in the serving dish with no sticky pan to wash. Follow food manufacturers' recommendations.
Care and cleaning
Cleaning is the only maintenance normally required.

Warning! Your microwave oven should be cleaned regularly, removing all food remains. If the microwave is not kept clean its surfaces may deteriorate, reducing the oven's working life and possibly resulting in a dangerous situation.

Warning! Cleaning should be done with the oven power switched off. Take the plug out of the socket or switch off the oven's power circuit.
Do not use aggressive or abrasive cleaning products, scourers that scratch surfaces or sharp objects, since stains may appear.
Do not use high pressure or stream jet cleaning appliances.
Accessories
Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine. Make sure that the turntable plate and the respective support are always clean. Do not switch on the oven unless the turntable and the respective support are in place.
Front surface
Normally you just need to clean the oven with a damp cloth. If it is very dirty, add a few drops of dish washing liquid to the cleaning water. Afterwards, wipe the oven with a dry cloth.
Use a glass cleaning product and a soft cloth that does not release any fibres or threads. Wipe from side to side without exerting any pressure on the surface.
Immediately remove lime, fat, starch or egg white stains. Corrosion can occur under these stains.
Do not let any water get inside the oven.
Oven interior
After each time the oven is used, clean the inside walls with a damp cloth since this is the easiest way to remove splashes or spots of food that may have stuck to the inside.
To remove dirt that is harder to shift, use a non-aggressive cleaning product. Do not use oven sprays or other aggressive or abrasive cleaning products.
Always keep the door and the oven front very clean to ensure that the door opens and closes properly.
Make sure water does not enter the microwave ventilation holes.
Regularly take out the turntable plate and the respective support and clean the cavity base, especially after any liquid spillage.
Do not switch on the oven without the turntable and the respective support being in place.
If the oven cavity is very dirty, put a glass of water on the turntable and switch on the microwave oven for 2 or 3 minutes at maximum power. The steam released will soften the dirt which can then be cleaned easily using a soft cloth.
Unpleasant odours (e.g. after cooking fish) can be eliminated easily. Put a few drops of lemon juice in a cup with water. Put a spoonful of coffee in the cup to avoid the water
boiling over. Heat the water for 2 to 3 minutes at maximum microwave power.
Technical data
| Technical data category Value | |
| AC Voltage | 230V~50Hz |
| Power required 1250W | |
| Microwave output power 800W | |
| Microwave frequency 2450 MHz | |
| Dimensions (WxHxD) 461 x 280 x 365 mm | |
| Oven capacity. 20ltr | |
| Weight 12.6 kg |
Environment concerns
The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
Installation
- Remove any promotion label from the door.
- The oven should be installed on a flat, level surface. The surface must be strong enough to safely bear the weight (12.6 Kg) of the oven, and the contents. To avoid the possibility of causing vibration or noise the oven must be in a stable position.
- Keep the oven away from heat and water. Exposure to heat and water can lower oven efficiency and lead to malfunctioning, so be sure to install the oven away from heat and water sources.
-
Do not block air vents on the top and the sides of the cabinet and also do not place any articles on the top of the oven. If air vents are blocked during operation, the oven may overheat, and this may lead to malfunctioning. Hot air escapes from the vents, so be sure not to obstruct it or let curtains come between the oven and the rear wall.
-
Place the oven as far away from radios and TV's as possible. This oven does conform to EEC requirements of radio interference suppression, but some interference may occur if it is placed too close to a radio or TV, so keep them as far apart as possible.
- If positioned in a corner, leave a gap of at least 15 cm from the walls and 15 cm above the microwave.
Important! The oven can be placed almost anywhere in the kitchen. Make sure the oven is placed on a flat, level surface and that vents as well as the surface underneath the oven are not blocked (for sufficient ventilation).
Connecting to the mains
The oven is delivered with the power cord and a plug for 230V\~50Hzearthed socket outlet. Earth protection minimises the risks should a short circuit occur. Check to
ensure the voltage of the oven matches the supply.

If the oven is connected to the socket via an extension cord, make sure the cord is earthed.

Warning! This appliance must not be used on a non earth protected power supply. Contact an electrician if you are uncertain regarding electrical connection of the oven or provision of earth protection of the supply.

Warning! This appliance must be earthed. If this appliance is fitted with a non re-wireable plug for which your socket is unsuitable, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following qualifications:-
- The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
- The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
- The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
- The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
- The appliance is installed in accordance with all relevant regulations in force within your new country of residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
Electrolux. Thinking of you.
Více o nás naleznete na adrese www.electrolux.com
Obsah
Electrolux. Thinking of you.
Electrolux. Thinking of you.
Sikkerhet for matvarer
- Ikke varm opp mat i kanne i mikrobølgeovnen. Ha alltid maten i en egnet beholder.
- Ikke bruk mikrobølgeovnen til frityrsteking, fordi du ikke kan kontrollere temperaturen på oljen. Dette kan føre til farlige situasjoner.
- Du kan tilberede popkorn i mikrobølgeovnen, men kun i spesialemballasje eller i beholdere som er særlig beregnet for dette. Hold alltid tilsyn med mikrobølgeovnen när du tilbereder popkorn i den.
Electrolux. Thinking of you.
Viac o nás na www.electrolux.com
Obsah
Electrolux. Thinking of you.
Electrolux. Thinking of you.
m = 311

[Non-Text]

[Non-Text]

[Non-Text]
