EMS2085X - Microwave ELECTROLUX - Free user manual and instructions
Find the device manual for free EMS2085X ELECTROLUX in PDF.
| Product Type | Built-in Microwave |
| Brand | Electrolux |
| Model | EMS2085X |
| Capacity | 20 Liters |
| Microwave Power | 800 Watts |
| Grill Power | 1000 Watts |
| Display | Digital LED |
| Control Type | Touch Control |
| Defrost Function | Auto Defrost by Weight |
| Auto Cook Programs | 8 Preset Programs |
| Timer | Yes, up to 95 minutes |
| Child Lock | Yes |
| Interior Light | Yes |
| Turntable | Glass Turntable |
| Door Release | Push-button with Handle |
| Dimensions (HxWxD) | 26.2 x 45.5 x 32.5 cm |
| Built-in Dimensions | 14.8 x 40.4 x 31.4 cm |
| Weight | 15.5 kg |
| Power Supply | 220-240 V / 50 Hz |
| Power Consumption | 1300 W (Microwave) / 1500 W (Grill) |
| Energy Class | A |
| Cleaning | Stainless Steel Exterior, Easy-clean Enamel Interior |
| Safety | Child Lock, Overheat Protection |
| Spare Parts Availability | Available via Authorized Service Centers |
Frequently Asked Questions - EMS2085X ELECTROLUX
User questions about EMS2085X ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave in PDF format for free! Find your manual EMS2085X - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EMS2085X by ELECTROLUX.
USER MANUAL EMS2085X ELECTROLUX
WE'RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information: www.electrolux.com
Register your product for better service:
Buy Accessories, Consumables and Original spare parts for your appliance:
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
- This appliance can be used by child years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
- Do not let children play with the der 3 years must not be left unsupervised in the vicinity of the appliance.
- Keep all packaging away from children.
- Keep children and pets away from it operates or when it cools down. Accessible parts are hot.
- If the appliance has a child safety mend that you activate it.
- Cleaning and user maintenance share children without supervision.
- Keep the appliance and its cordren less than 8 years.
1.2 General Safety
- This appliance is intended to be similar applications such as:
- staff kitchen areas in shops, off ing environments;
- farm houses;
- by clients in hotels, motels and ronments;
- bed and breakfast type enviro
- Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
- Do not use a steam cleaner to c
- Before maintenance cut the power supply
- If the door or door seals are damaged must not be operated until it has been repaired by a competent person.
- The appliances are not intended to be means of an external timer or separate remote-control system.
- Only a competent person can care repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
- Do not heat liquids and other fibers. They are liable to explode.
- Only use utensils that are suitable ovens.
- When heating food in plastic or an eye on the appliance due to the possibility of ignition.
- The appliance is intended for heating ages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
- If smoke is emitted, switch off or and keep the door closed in order to stifle any flames.
- Microwave heating of beverages can result in eruptive boiling. Care must be taken when handling the container.
- The contents of feeding bottles be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Eggs in their shell and whole hard-l not be heated in the appliance since they may explode, even after microwave heating has ended.
- The appliance should be cleaned reg food deposits removed.
- Failure to maintain the appliance in a could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
- The temperature of accessible surfa when the appliance is operating.
- The microwave oven shall not be unless it has been tested in a Cabinet.
- The rear surface of appliances on a wall.
- Pay attention to the minimum dim net (if applicable). Refer to the installation chapter.
- The appliance must be operated with door open (if applicable).
- Do not use harsh abrasive cleaners scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
- If the supply cord is damaged, it the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
- If the door seal are damaged, the oven must not be operated until it has been repaired by a trained person.
2. ⚠️ SAFETY INSTRUCTIONS

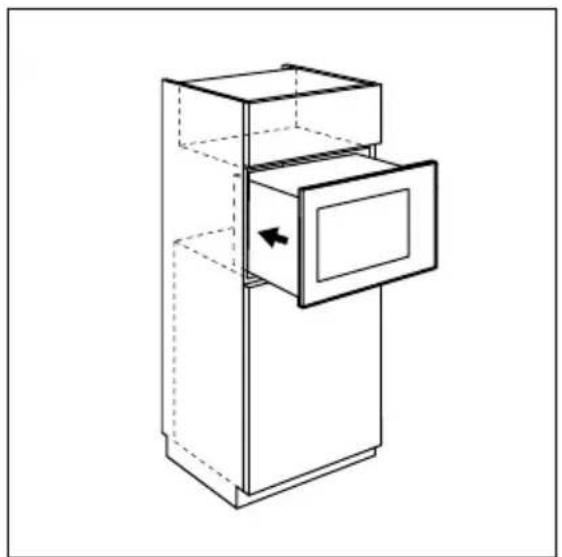

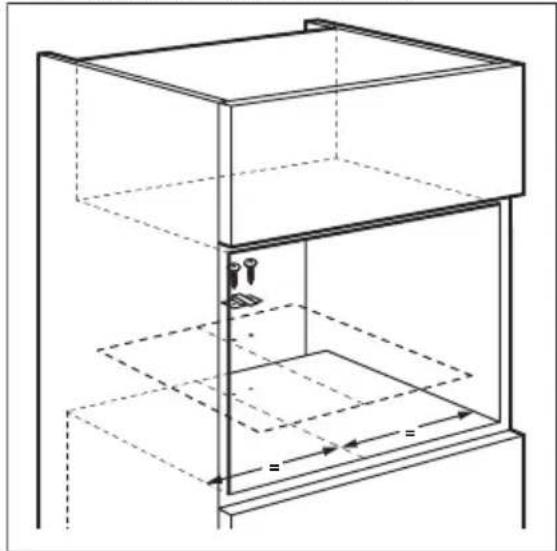

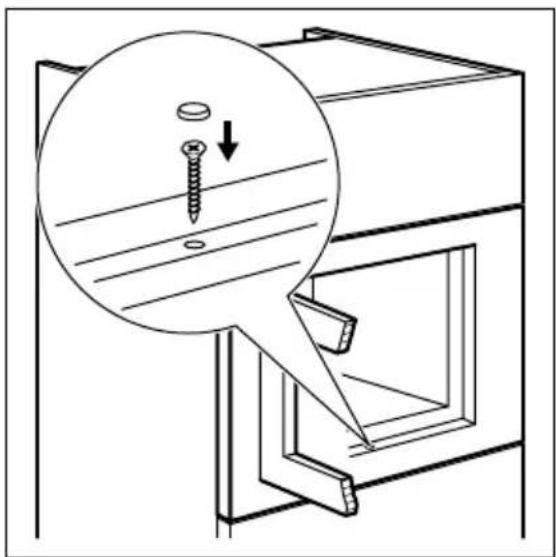

2.1 Installation
WARNING!
Only a qualified person must install this appliance.
2.2 Use
WARNING!
Risk of injury, burns or electric shock or explosion.
- Remove all the package using this appliance in
- Do not install or use a tonment-maged appli-
ance. - Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear safety gloves. - Do not let the appliance; ded during operation.
- Do not pull the application apply a rule
- Keep the minimum distance from the
other appliances and units. - Make sure that the application is not used to store or use the cavity for a better storage purpose.
• The sides of the appliance must stay
adjacent to appliances or to units with the same height.
2.3 Care and Cleaning
Electrical connection
WARNING!
Risk of fire and electrical shock.
- All electrical connect made by a qualified electrician.
• The appliance must be
- Make sure that the on the rating plate agrees with the power supply. If not, contact an electrician.
- If the appliance is socket via an extension cord, make sure the cord is earthed.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Make sure not to cau mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
- Do not pull the main nect the appliance. Always pull the mains plug.
WARNING!
Risk of injury, fire or damage to the appliance.
- Before maintenance, d pliance and disconnect the mains plug from the mains socket tions should be
- Clean regularly the ap the deterioration of the surface material.
• Do not allow food spill electrical information due to accumulate on door sealing surfaces.
- Remaining to the food can cause fire.
- Clean the appliance with cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spr set damage to the ty instructions on the packaging.
2.4 Disposal
s c a b l e t o d i s c o n - WARNING!
Risk of injury or suffocation.
- Disconnect the appliar mains supply.
- Cut off the mains cabl
3. PRODUCT DESCRIPTION
1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Door opener
6 Waveguide cover
7 Turntable shaft
3.1 Accessories
Glass cooking tray and roller guide.
Always use the turntable set to prepare food in the appliance.
4. BEFORE FIRST USE
WARNING!
Refer to the Safety chapters.
- Clean the appliance be
Refer to chapter "Care and Cleaning".
4.1 Initial Cleaning
- Remove all parts from the appliance.

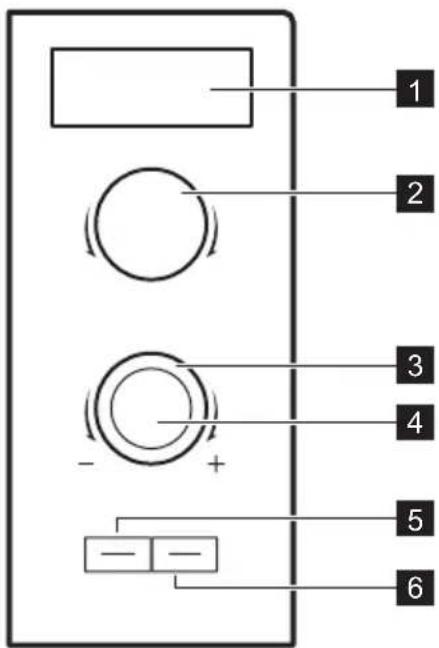

5. CONTROL PANEL
| Symbol Function Description | |||
| 1 | — Display | Shows the settings and current time. | |
| 2 | Power Setting knob | To set the power level. | |
Defrost  defrost food by weight or time. | |||
| Max | Maximum Power Setting | To set the maximum Power Setting. | |
| 3 | Setting knob To set the cooking time or weight. | ||
| 4 |  | Start / +30 sec button | To start the appliance or increase the cooking time for 30 seconds at full power.The cooking time increases by 30 seconds with each additional press of the button. |
| 5 |  | Auto cook button | To use Auto cooking. |
| 6 |  | Stop / Clear button | To deactivate the appliance or delete the cooking settings. |
6. DAILY USE
WARNING!
Refer to the Safety chapters.
6.1 Activating and deactivating the appliance
- Turn the Power Setting knob to set the desired function.
- Turn the Setting knob to set the desired time.
-
Press to confirm and activate the appliance.
-
To deactivate the appliance you can:
- wait until the appl automatically when the time comes to an end and an acoustic signal sounds.
- open the door. The automatically. Close the door and press 回^+30 to continue cooking. Use this option to inspect the food.
- press ▽
CAUTION!
Do not let the appliance operate when there is no food in it.
6.2 General information about using the appliance
General:
• After you deactivate the food stand for some minutes.
- Remove the aluminium metal containers, etc. before you prepare the food.
Cooking:
- If possible, cook fo terial suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty
- Do not overcook the the power and time too high. The food can dry out, burn or catch fire in some places.
- Do not use the apple or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
- Prick food with "ski potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.
- For chilled or frozen food, set a longer cooking time.
- Dishes which contains stirred from time to time.
- Vegetables that have a such as carrots, peas or cauliflower, must be cooked in water.
- Turn larger pieces afting time.
- If possible, cut vegeta sized pieces.
- Use flat, wide dishes.
i•aDnoc en odtte a u s tei vcaot e k s w a r e m lain, ceramic or earthenware with small holes, e. g. on handles or unglazed bottoms. Moisture going into the holes can cause the cookware to crack when it is appliance stops heated.
- The glass cooking tray for heating food or liquids. It is necessary for the operation of the microwave.
Defrosting meat, poultry, fish:
- Put the frozen, unwrap small upturned plate with a container below it so that the defrosting liquid collects in the container.
- Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.
Defrosting butter, portions of gateau, the appliance, let quark:
- Do not fully defrost th m foil packaging pliance, but let it defrost at room tem- perature. This gives a more even result. Fully remove all metal or aluminium packaging before defrosting.
Defrosting fruit, vegetables: m a -
- Do not fully defrost fr which are to be further prepared while raw, in the appliance. Let them defrost d atsrdone temperature. et t ing
- You can use a higher r to cook fruit and vegetables without defrosting them first.
ance to cook eggs Ready meals:
- You can prepare ready pliance only if their packaging is suitable "for microwave use.", such as
- You must follow the m structions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).
Suitable cookware and materials
| Cookware / Material Microwave | |
| Defrosting Heating Cooking | |
| Ovenproof glass and porcelain (with no metal components, e.g. Pyrex, heat-proof glass) | X X X |
| Non-ovenproof glass and porcelain 1) | X -- -- |
| Glass and glass ceramic made of oven-proof / frost-proof material (e.g. Arcoflam), grill shelf | X X X |
| Ceramic 2), earthenware 2) | X X X |
| Heat-resistant plastic up to 200 °C 3) | X X X |
| Cardboard, paper | X -- -- |
| Clingfilm | X -- -- |
| Roasting film with microwave safe closure 3) | X X X |
| Roasting dishes made of metal, e.g. enamel, cast iron | -- -- -- |
| Baking tins, black lacquer or silicon-coated 3) | -- -- -- |
| Baking tray -- -- -- | |
| Browning cookware, e.g. Crisp pan or Crunch plate | -- X X |
| Ready meals in packaging 3) | X X X |
1) With no silver, gold, platinum or metal plating / decorations
2) Without quartz or metal components, or glazes which contain metals
3) You must follow the manufacturer's instructions about the maximum temperatures.
X suitable -- not suitable
6.3 Power setting table
| Symbol Power setting | |
 | Defrost |
| 100 W Low Stage | |
| 300 W Medium Low | |
| 400 W Medium | |
| 600 W Medium High | |
| 800 W High | |
6.4 Defrosting
You can choose between 2 defrosting modes:
- Weight defrosting
- Time defrosting
Weight and time defrosting
- Turn the Power Setting knob counterclockwise until on the display appears
- Turn the Setting knob to input the desired weight of food or the defrosting time.
- Press to confirm and activate the appliance.
For weight defrosting the time is set automatically. Weight defrosting should not be used on food that is left out of the freezer for more than 20 min, or for frozen ready-made food.
To activate weight defrosting you must use more than 100 g of food and less than 2000 g.
To defrost less than 200 g of food place it on the edge of the turntable.
6.5 Child Safety Lock
The Child Safety Lock prevents an accidental operation of the appliance. To activate or deactivate the Child Safety Lock press and hold ▽ for 3 seconds, until an acoustic signal sounds.
When the Child Safety Lock is on, display shows [____].
7. GRILL COOKING FUNCTION
7.1 Keep turning the power setting knob to set grill cooking function. Stop turning until "G" displayed.
7.2 Turn the setting knob to set the cooking time. setting should be 0:05-95:00.
7.3 Press L^+30 to start cooking.
8. COM BINATION COOKING FUNCTION
8.1 Keep turning the power setting knob to set combination cooking function. Stop turning until "C-1" or "C-2" displayed.
8.2 Turn the setting knob to set the cooking time. The time setting should be 0:05- 95:00.
8.3 Press ^+30 to start cooking
| Function Display | Microwave Power | Grill Power | |
| Combi.1 C-1 | 55% | 45% | |
| Combi.2 C-2 | 36% | 64% | |
9.AUTOMATIC PROGRAMMES
WARNING!
Refer to the Safety chapters.
9.1 Auto Cooking
You can use Auto Cooking function to easily cook food.
- In standby mode, repeatedly press auto to set the desired Auto Cooking mode.
There is a sticker on the inner side of the door. The numbers on it refer to the type of food which they represent.
- Wait 2 seconds and turn the Setting knob to set the weight of the menu.
- To change the set menu for a different one press auto.
- Press to confirm and activate the appliance.
The display shows a set time, which depends on the food category and weight. When the auto Cooking is active the display shows a decreasing time value.
| Display Menu Weight | ||
 | Auto Reheat | 150 g250 g350 g450 g600 g |
 | Beverage 1 cup | |
 | Popcorn | 50100 |
 | Meat | 150 g300 g450 g600 g |
 | Potato | 230 g460 g690 g |
 | Vegetable | 150 g350 g500 g |
 | Fish | 150 g250 g350 g450 g650 g |
 | Pasta | 50 g (add 450 ml of water)100 g (add 800 ml of water)150 g (add 1200 ml of water) |
10. USING THE ACCESSORIES
WARNING!
Refer to the Safety chapters.
CAUTION!
Do not cook food without the turntable set. Use only the turntable set provided with the appliance.
10.1 Inserting the turntable set
Never cook food directly on the glass cooking tray.
- Place the roller guide around the turntable shaft.
- Place the glass cooking tray on the roller guide
11. HELPFUL HINTS AND TIPS
11.1 Tips for the microwave
| Problem Remedy | |
| You cannot find details for the amount of food prepared. | Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time |
| The food got too dry. Set shorter cooking time or select lower microwave power. | |
| The food is not defrosted, hot or cooked after the time came to an end. | Set longer cooking time or set higher power. Note that large dishes need longer time. |
| After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle. | Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup. |
| To get better results for rice use a flat, wide dish.11.2 DefrostingAlways defrost roast with the fat side down.Do not defrost covered meat because this may cause cooking instead of defrosting.Always defrost whole poultry breast side down.11.3 CookingAlways remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking. | Let the meat, poultry, fish and vegetables stay covered after cooking.Brush a little oil or melted butter over the fish.Add 30 - 45 ml of cold water for every 250 g of vegetables. Cut the fresh vegetables into even size pieces before cooking.Cook all vegetables with a cover on the container.11.4 ReheatingWhen you reheat packed ready meals always follow the instruction written on the packaging. |
12. CARE AND CLEANING
WARNING!
Refer to the Safety chapters.
Notes on cleaning:
- Clean the front of the soft cloth with warm water and a cleaning agent.
-
To clean metal surface cleaning agent.
-
Clean the appliance in use. Then you can remove dirt more easily and it does not burn on.
- Clean stubborn dirt wie cleanerpliance with a
- Clean all accessories them dry. Use a soft cloth with warm water and a cleaning agent.
- To soften the hard to boil a glass of water at full microwave power for 2 to 3 minutes.
- To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.
13. TROUBLESHOOTING
WARNING!
Refer to the Safety chapters.
| Problem Possible cause Remedy | ||
| The appliance does not operate. | The appliance is deactivated. | Activate the appliance. |
| The appliance does not operate. | The appliance is not plugged in. | Plug in the appliance. |
| The appliance does not operate. | The fuse in the fuse box is blown. | Check the fuse. If the fuse blows more than one time, contact a qualified electrician. |
| The appliance does not operate. | The door is not closed properly. | Make sure that nothing blocks the door. |
| The lamp does not operate. | The lamp is defective. The lamp has to be replace. | |
| The display shows [---]. | The Child Safety Lock is active. | Deactivate the Child Safety Lock. Hold ▼ for 3 seconds. |
| There is sparking in the cavity. | There are metal dishes or dishes with metal trim. | Remove the dish from the appliance. |
| There is sparking in the cavity. | There are metal skewers or aluminium foil that touches the interior walls. | Make sure that the skewers and foil does not touch the interior walls. |
| The turntable set makes scratching or grinding noise. | There is an object or dirt below the glass cooking tray. | Clean the area below the glass cooking tray. |
| The appliance stop to operate without a clear reason. | There is a malfunction. If this situation repeats call the customer service center. | |
| If you cannot find a solution to the problem yourself, contact your dealer or the customer service centre. | The necessary data for the customer service center is on the rating plate on the appliance. | |
| We recommend that you write the data here:Model (MOD.) ......Product number (PNC) ......Serial number (S.N.) ...... | ||
14. INSTALLATION
CAUTION!
Do not block the air vents. If you do that, the appliance can overheat.
CAUTION!
Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.
• The appliance is for built-in use only.
- The fitted cabinet mu wall behind the appliance.
- Put the appliance far hot air and water splashes.
- If you transport the weather, do not activate it immediately after the installation. Let is stand in the room temperature and absorb the heat.
14.1 Electrical installation
WARNING!
Only a qualified person must do the electrical installation.
The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".
This appliance is supplied with a main cable and main plug.
CAUTION!
Minimum installation height is 85 cm.
- Check if the dimensions of the furniture meet the installation distances.
a p Installation distances o l d
| Dimension mm |
| A 380 + 2 |
| B 560 + 8 |
| C 340 |
| D 18 |
- Put the template on the bottom of cabinet and mark the spots for screws. Remove the template and fix the bracket with the screws.
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human health and to recycle waste of electrical
and electronic appliances. Do not dispose appliances marked with the symbol ✗
with the household waste. Return the product to your local recycling facility or contact your municipal office.
GUARANTEE AND SERVICE
Before Calling a Service Technician, please check carefully the operating instructions, service booklet and the warranty terms and conditions.
Thailand
Call Center Tel : (+66 2) 725 9000
Electrolux Thailand Co., Ltd.
Electrolux Building
14th Floor 1910 New Petchburi Road,
Bangkapi, Huay Kwang, Bangkok 10310
Office Tel : (+66 2) 7259100
Office Fax : (+66 2) 7259299
Email: customercarethai@electrolux.com
Indonesia
Customer Care
Hotline:0804 111 9999
Jkt:(+62 21) 5227180
Menara Utara 2nd Floor,
Suite 201, Jl. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City, Vietnam
Office Tel : (+84 8) 3910 5465
Office Fax : (+84 8) 3910 5470
Email: vncare@electrolux.com
Malaysia
Domestic Toll Free : 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Unit T2-7, 7th Floor, Tower 2, Jaya33 Hyperoffice,
No. 3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor
Office Tel : (+60 3) 7843 5999
Office Fax : (+60 3) 7955 5511
Email : malaysia.customercare@electrolux.com
Philippines
Domestic Toll Free : 1-800-10-845-care 2273
Customer Care Hotline : (+63 2) 845 care 2273
Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: +63 2 737-4756
Website : www.electrolux.com.ph
Email : wecare@electrolux.com
Singapore
CUSTOMER CARE HOTLINE : (+65) 6507 8699
Electrolux S.E.A. Pte Ltd.
11 Lorong 3 Toa Payoh
Jackson Square, Block B, #01-13/14/15
Singapore 319579
Office Tel : (+65) 6507 8900
Office Fax : (+65) 6356 5489
Email: customer-care.sin@electrolux.com
Hongkong
Tel: (+852) 8203 0298
Dah Chong Hong, Ltd. - Service Centre
8/F., Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung, N.T.
Hong Kong
www.electrolux.com
The Thoughtful Design Innovator.
Do you remember the last time you opened a gift that made you say, "Oh! How did you know? That's exactly what I wanted!" That's the kind of feeling that we at Electrolux seek to evoke in everyone who chooses or uses one of our products. We devote time, knowledge, and a great deal of thought to anticipating and creating the kind of appliances that our customers really need and want.
This kind of thoughtful care means innovating with insight. Not design for design's sake, but design for the user's sake. For us, thoughtful design means making appliances easier to use and tasks more enjoyable to perform, freeing our customers to experience the ultimate 21st century luxury: ease of mind. Our aim is to make this ease of mind more available to more people in more parts of their everyday lives, all over the world.
The "Thinking of you" promise from Electrolux goes beyond meeting the needs of today's consumers. It also means we're committed to making appliances safe for the environment—now and for future generations.
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
สารบัญ
Technical line drawing of a circular component with a central hub and a base, showing internal structure without any text or symbols.natural_image
Technical line drawing of a multi-level cabinet or storage unit with internal compartments and mounting points (no text or symbols)natural_image
Line drawing of a cabinet with an open door and directional arrow indicating left motion (no text or symbols)natural_image
Technical diagram showing a screw being inserted into a machine, with an inset magnified view of the screw being inserted (no text or symbols present)Menara Utara 2nd Floor,
Suite 201, Jl. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City, Vietnam
Office Tel: (+84 8) 3910 5465
Office Fax: (+84 8) 3910 5470
Email : vncare@electrolux.com
Malaysia
Domestic Toll Free : 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Unit T2-7, 7th Floor, Tower 2, Jaya33 Hyperoffice,
No. 3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor
Office Tel : (+60 3) 7843 5999
Office Fax : (+60 3) 7955 5511
Email : malaysia.customercare@electrolux.com
Philippines
Domestic Toll Free : 1-800-10-845-care 2273
Customer Care Hotline : (+63 2) 845 care 2273
Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: +63 2 737- 4756
Website : www.electrolux.com.ph
Email : wecare@electrolux.com
Singapore
CUSTOMER CARE HOTLINE : (+65) 6507 8699
Electrolux S.E.A. Pte Ltd.
11 Lorong 3 Toa Payoh
Jackson Square, Block B, #01-13/14/15
Singapore 319579
Office Tel : (+65) 6507 8900
Office Fax : (+65) 6356 5489
Email : customer-care.sin@electrolux.com
Hongkong
Tel: (+852) 8203 0298
Dah Chong Hong, Ltd. - Service Centre
8/F., Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung, N.T.
Hong Kong
www.electrolux.com
i public health policy is a key policy for the public health policy. The public health policy is a key policy for the public health policy.
i public health insurance coverage is provided by the United States Department of Health, 200g, and other public health insurance coverage. The U.S. Department of Health has provided a full number of public health insurance coverage for each state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any other state or any others
Technical line drawing of a multi-level cabinet or storage unit with internal compartments and mounting points (no text or symbols)natural_image
Line drawing of a cabinet with an open door and directional arrow indicating rotation (no text or symbols)
Bangkapi, Huay Kwang, Bangkok 10310
Office Tel : (+66 2) 7259100
Office Fax : (+66 2) 7259299
Email : customercarethai@electrolux.com
Indonesia
Tel : (+62 21) 522 7180
Menara Utara 2nd Floor,
Suite 201, Jl. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Unit T2-7, 7th Floor, Tower 2, Jaya33 Hyperoffice,
No. 3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor
Office Tel : (+60 3) 7843 5999
Office Fax : (+60 3) 7955 5511
Email : malaysia.customercare@electrolux.com
Philippines
Domestic Toll Free : 1-800-10-845-care 2273
Customer Care Hotline : (+63 2) 845 care 2273
Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: +63 2 737-4756
Website : www.electrolux.com.ph
Email : wecare@electrolux.com
Singapore
CUSTOMER CARE HOTLINE : (+65) 6507 8699
Electrolux S.E.A. Pte Ltd.
11 Lorong 3 Toa Payoh
Jackson Square, Block B, #01-13/14/15
Singapore 319579
Office Tel : (+65) 6507 8900
Office Fax : (+65) 6356 5489
Email : customer-care.sin@electrolux.com
Hongkong
Tel: (+852) 8203 0298
Dah Chong Hong, Ltd. - Service Centre
8/F., Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung, N.T.
Hong Kong
www.electrolux.vn
Electrolux. Thinking of you.
| Dimensi mm | |
| A 380 + 2 | |
| B 560 + 8 | |
| C 340 | |
| D 18 |
Bangkapi, Huay Kwang, Bangkok 10310
Telepon Kantor: (+66 2) 7259100
Faks Kantor: (+66 2) 7259299
Email: customercarethai@electrolux.com
Indonesia
Customer Care
Hotline:0804 111 9999
Jkt:(+62 21) 5227180
Menara Utara 2nd Floor,
Suite 201, Jl. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward - District 1
Ho Chi Minh City, Vietnam
Telepon Kantor: (+84 8) 3910 5465
Faks Kantor: (+84 8) 3910 5470
Email : vncare@electrolux.com
Malaysia
Panggilan Bebas Biaya Domestik: 1300-88-11-22
Electrolux Home Appliances Sdn. Bhd.
Unit T2-7, 7th Floor, Tower 2, Jaya33 Hyperoffice,
No. 3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor
Telepon Kantor: (+60 3) 7843 5999
Faks Kantor: (+60 3) 7955 5511
Email : malaysia.customercare@electrolux.com
Philippines
Panggilan Bebas Biaya Domestik: 1-800-10-845-care 2273
Customer Care Hotline : (+63 2) 845 care 2273
Electrolux Philippines, Inc.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
Trunkline: +63 2 737- 4756
Website : www.electrolux.com.ph
Email : wecare@electrolux.com
Singapore
CUSTOMER CARE HOTLINE: (+65) 6507 8699
Electrolux S.E.A. Pte Ltd.
11 Lorong 3 Toa Payoh
Jackson Square, Block B, #01-13/14/15
Singapore 319579
Telepon Kantor: (+65) 6507 8900
Faks Kantor: (+65) 6356 5489
Email : customer-care.sin@electrolux.oom
Hongkong
Telepon: (+852) 8203 0298
Dah Chong Hong, Ltd. - Service Centre
8/F., Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung, N.T.
Hong Kong
www.electrolux.com Inovator Desain yang Penuh Perhitungan
Electrolux. Thinking of you.
玻璃烹饪盘和导辊
使用转盘装置来准备烹饪微波炉内的食物。
4. 首次使用前必读
警告
请参阅安全章节。
2.3 首次清洗
| 尺寸 | mm |
| A | 380 + 2 |
| B | 560 + 8 |
| C | 340 |
| D | 18 |
Bangkapi, Huay Kwang, Bangkok 10310
办公室电话：(+66 2) 7259100
办公室传真：(+66 2) 7259299
电子邮箱：customercarethai@electrolux.com
印度尼西亚
电话:(+62 21) 522 7180
印度尼西亚Electrolux公司
Menara Utara 2nd Floor,
Suite 201, Jl. HR Rasuna Said
kav C 11-14, Karet Setiabudi
Floor 9th, A&B Tower
76 Le Lai street - Ben Thanh Ward -
District 1
Ho Chi Minh City, Vietnam
办公室电话：(+84 8) 3910 5465
办公室传真：(+84 8) 3910 5470
电子邮箱：vncare@electrolux.com
马来西亚
7th Floor, Tower 2, Jaya 33,
No.3, Jalan Semangat, Seksyen 13,
46100 Petaling Jaya, Selangor, Malaysia.
10th Floor. W5th Avenue Building
5th Avenue Corner 32nd Street
Bonifacio Global City,
Taguig Philippines 1634
干线：+63 2 737-4756
网址：www.electrolux.com.ph
电子邮箱：wecare@electrolux.com
香港
电话：(+852) 8203 0298
大昌贸易行有限公司-服务中心
8/F., Yee Lim Godown Block C
2-28 Kwai Lok Street, Kwai Chung, N.T.
Hong Kong
www.electrolux.com
贴心设计理念的创新先锋
- Visit our website for:
- CUSTOMER CARE AND SERVICE
- SAFETY INFORMATION
- Children and vulnerable people safety
- WARNING!
- General Safety
- ⚠️ SAFETY INSTRUCTIONS
- Installation
- Use
- Care and Cleaning
- Electrical connection
- Disposal
- PRODUCT DESCRIPTION
- Accessories
- Turntable set
- BEFORE FIRST USE
- Initial Cleaning
- CONTROL PANEL
- DAILY USE
- Activating and deactivating the appliance
- CAUTION!
- General information about using the appliance
- General:
- Cooking:
- Defrosting meat, poultry, fish:
- Defrosting butter, portions of gateau, the appliance, let quark:
- Defrosting fruit, vegetables: m a -
- ance to cook eggs Ready meals:
- X suitable -- not suitable
- Defrosting
- Weight and time defrosting
- Child Safety Lock
- GRILL COOKING FUNCTION
- COM BINATION COOKING FUNCTION
- 9.AUTOMATIC PROGRAMMES
- Auto Cooking
- USING THE ACCESSORIES
- Inserting the turntable set
- HELPFUL HINTS AND TIPS
- Tips for the microwave
- CARE AND CLEANING
- Notes on cleaning:
- TROUBLESHOOTING
- INSTALLATION
- Electrical installation
- ENVIRONMENT CONCERNS
- GUARANTEE AND SERVICE
- Thailand
- Indonesia
- Malaysia
- Philippines
- Singapore
- Hongkong
- www.electrolux.com
- The Thoughtful Design Innovator.
- สารบัญ
- Bộ bàn xoay
- www.electrolux.vn
- Electrolux. Thinking of you.
- www.electrolux.com Inovator Desain yang Penuh Perhitungan
- 转盘装置
- 首次使用前必读
- 警告
- 首次清洗
- 印度尼西亚
- 马来西亚
- 香港
- 贴心设计理念的创新先锋
Brand : ELECTROLUX
Model : EMS2085X
Category : Microwave
