DR-MV100B - DVD player JVC - Free user manual and instructions

Product Type	DVD Player / Recorder
Brand	JVC
Model	DR-MV100B
Dimensions (W x H x D)	430 x 84 x 302 mm
Weight	3.5 kg
Power Supply	AC 120V, 60 Hz
Power Consumption	25 W
Playable Discs	DVD-Video, DVD-R/RW, DVD+R/RW, CD, CD-R/RW, MP3 CD, JPEG CD
Recording Media	DVD-RAM, DVD-R, DVD-RW, DVD+RW
Video Outputs	Composite, S-Video, Component, HDMI
Audio Outputs	Analog Stereo, Coaxial Digital, Optical Digital
Inputs	Composite, S-Video, RF Antenna, Audio L/R
Tuner	NTSC TV Tuner
Remote Control	Infrared, with batteries
Front Panel	Power, Disc Tray, Play, Stop, Record, Eject, Display
Disc Loading	Motorized Tray
Video DAC	10-bit / 54 MHz
Audio DAC	24-bit / 192 kHz
Progressive Scan	Yes
Parental Lock	Yes
Aspect Ratio	4:3, 16:9
Maintenance	Clean with soft dry cloth; no solvents
Safety	Class 1 Laser; do not open
Repairability	Refer to qualified service personnel only

Frequently Asked Questions - DR-MV100B JVC

How do I clean the DVD lens?

Use a commercially available DVD lens cleaning disc. Do not touch the lens directly.

Can I play region 1 discs on this DVD player?

The JVC DR-MV100B is region 1 (NTSC) by default. For multi-region playback, a region hack may be needed. Consult the manual.

Why is my burned DVD not playing?

Ensure the disc is finalized and recorded in DVD-Video format. Use high-quality media.

How do I connect the DVD player to my TV?

Use HDMI for best quality, or component/composite cables. Match the video input on TV.

My remote control stopped working. What should I do?

Replace the batteries. Ensure no obstructions. If still not working, try resetting the remote or using the front panel buttons.

Why is there no sound from my DVD player?

Check audio cables and TV input. Ensure the audio output setting matches your connection (PCM vs Bitstream).

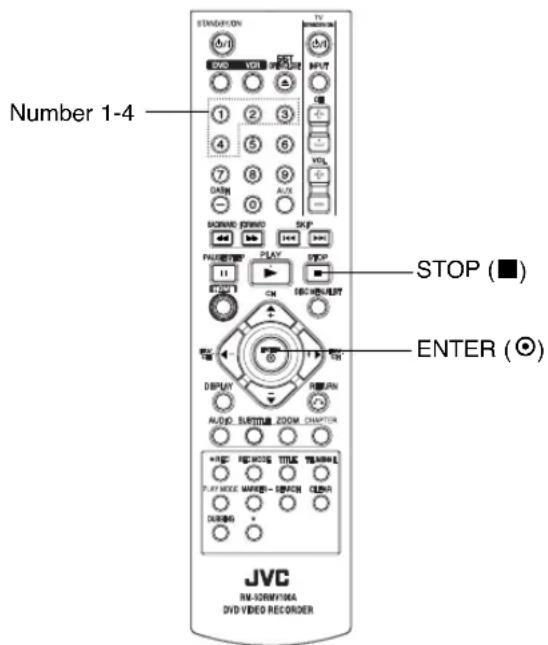

How do I reset the player to factory settings?

Press and hold the STOP button on the front panel for 5 seconds while the unit is on. Release when the display shows 'INIT'.

Can I play MP3 files on this device?

Yes, the DR-MV100B supports MP3 playback from CD-R/RW discs. Use ISO 9660 format.

How do I update the firmware?

Firmware updates are rarely released. Check JVC support website. Burn the update to a CD-R and follow on-screen instructions.

What should I do if the disc tray won't open?

Unplug the unit for 1 minute, then plug back in. If still stuck, use the emergency eject hole near the tray.

USER MANUAL DR-MV100B JVC

Abstract geometric pattern with diagonal black and white stripes (no text or symbols)

INSTRUCTIONS

For Customer Use :

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No. Serial No.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

CAUTION:

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center.

Performing controls, adjustments, or carrying out procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION: VISIBLE AND INVISIBLE CLASS 2M LASER RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
4. Follow all instructions. - All operating and use instructions should be followed.
5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.
6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

3. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

4. Only use attachments/accessories specified by the manufacturer.
5. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Symbolic icon of a person pushing a cart inside a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

INTRODUCTION

About the Symbol Display .....2

Symbol Used in this Manual .....2

Notes on Discs .....2

Moisture Condensation .....2

Recordable and Playable Discs .....3

Recommended recordable DVD discs .....3

Playable Discs 4

Regional Code 4

Restrictions on video recording .....5

What is 'CPRM'? ....5

Copyright....5

Notice for Progressive Scan Use ....5

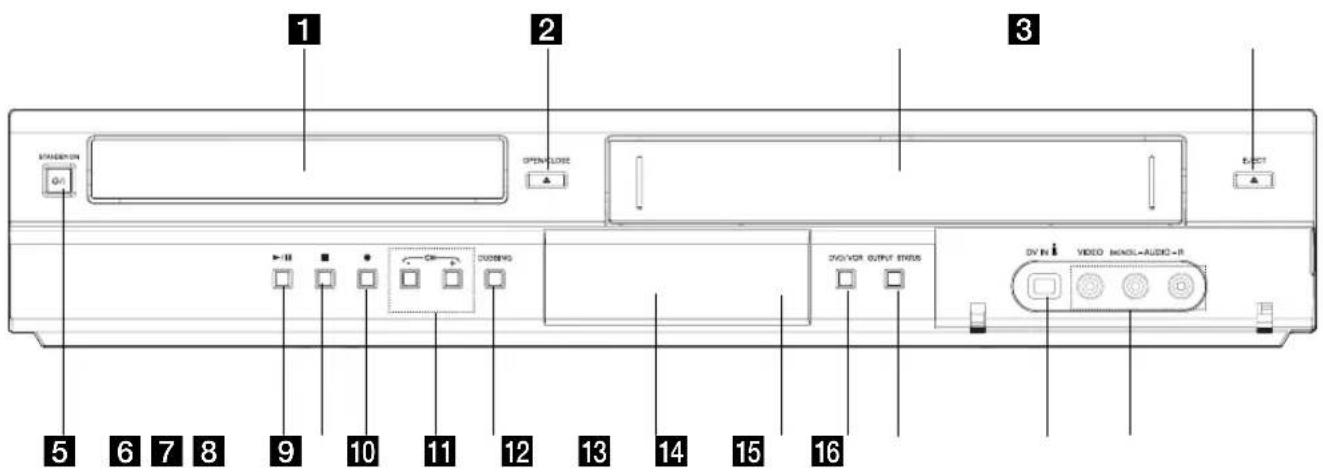

Front Panel 6

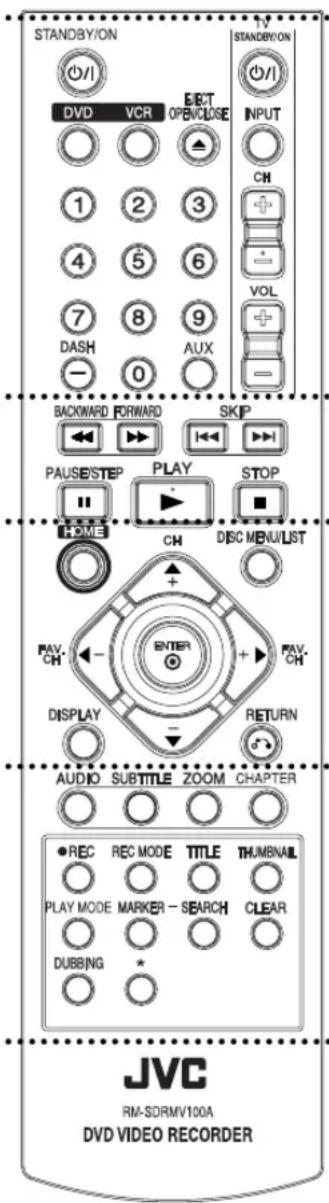

Remote Control 7

About the Remote Control .....7

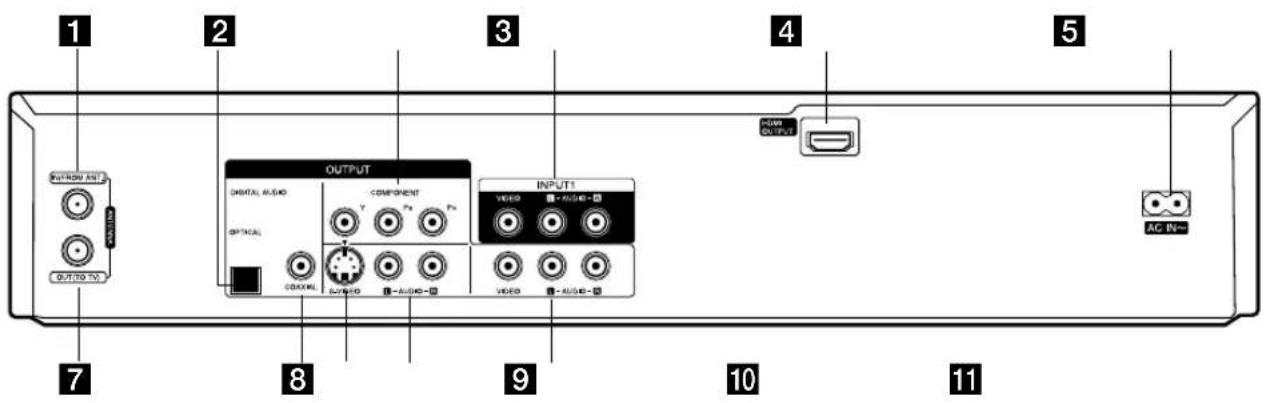

Rear Panel ....8

HOOKUP AND SETTINGS

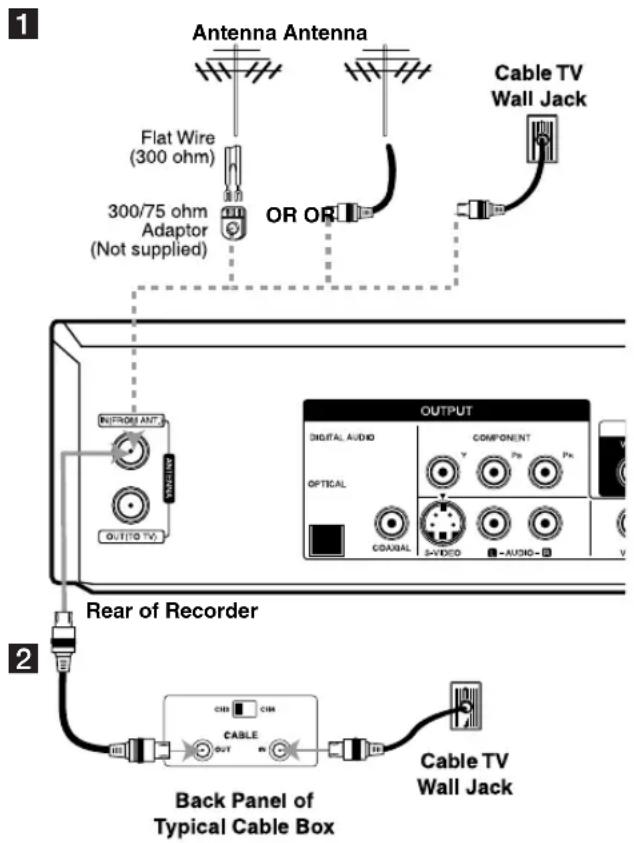

Connecting an Antenna or Cable TV .....9

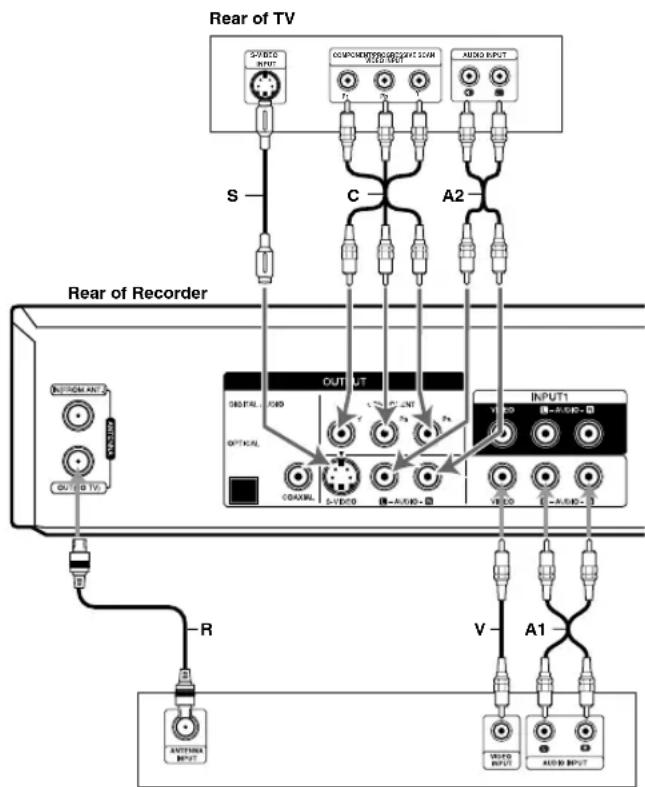

Connections to your TV .....10-11

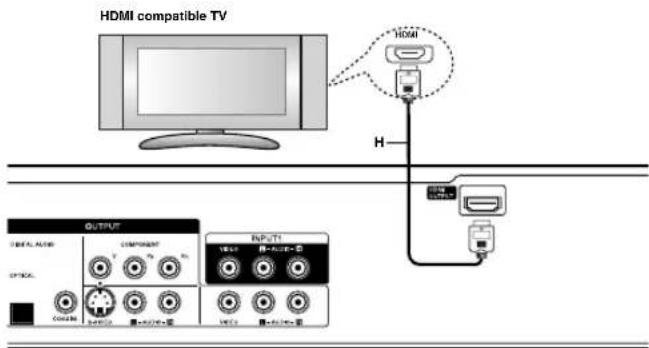

HDMI connection .....11

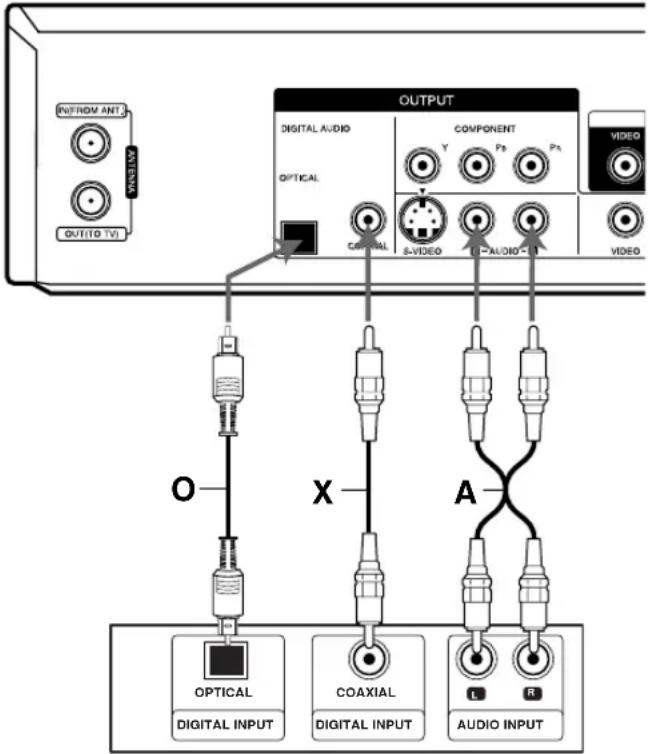

Connection to an Amplifier .....12

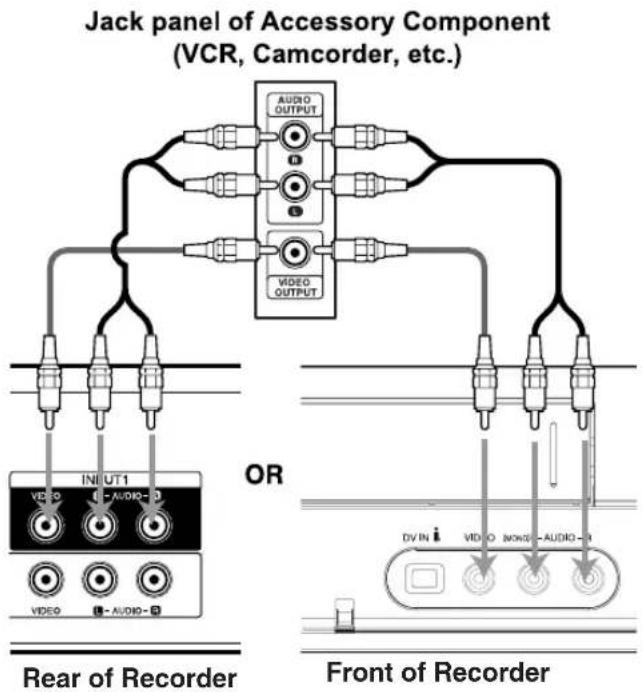

Accessory Audio/Video (A/V)

Connections to Recorder .....13

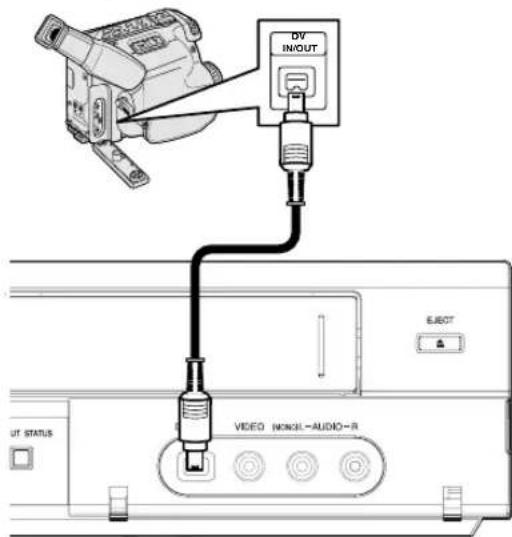

Connecting a Digital Camcorder .....13

Initial Setup Wizard .....14

Using the Home Menu ....15

Initial Settings 15

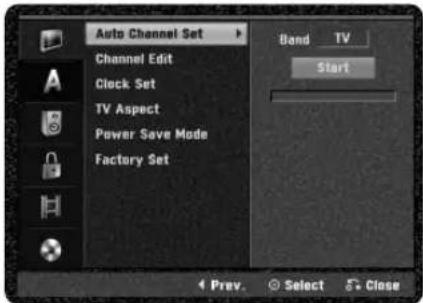

General Settings ....16

Language Settings .....17

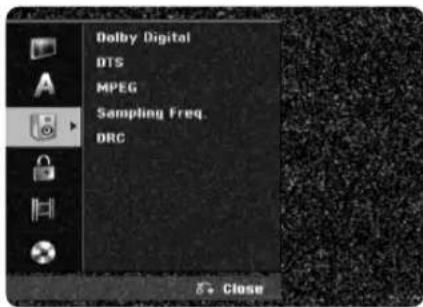

Audio Settings ....18

Lock (Parental Control) Settings .....18-20

Recording Settings .....20

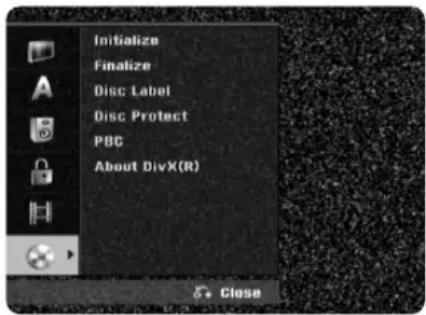

Disc Settings .....21-22

TV VIEWING

Channel Selection .....22

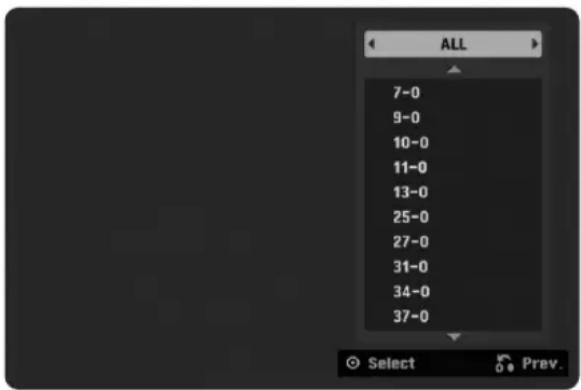

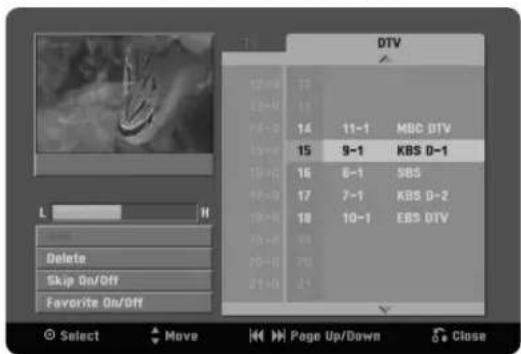

Channel Selection with Channel List menu .22

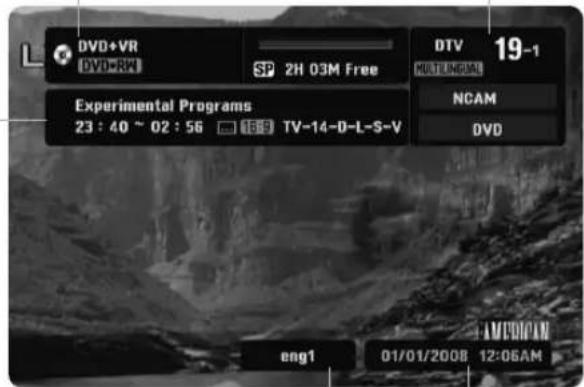

General Explanation of On-Screen Display .23

Displaying Information While Watching TV . .23

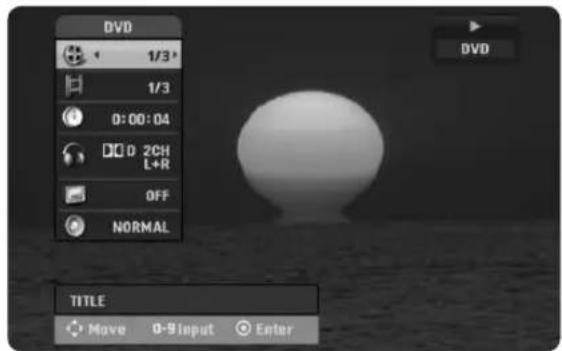

Displaying Disc Information on-screen .....23

PLAYBACK

Remote Control Function .....24

Playing a Tape 24

Playing a DVD 24

VCR Playback Options .....25

DVD or Video CD Playback Features . . . .26-27

Special Playback Options .....28

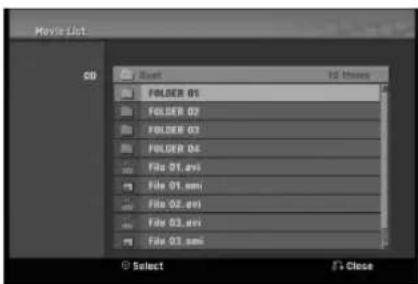

Playing a DivX Movie File .....29

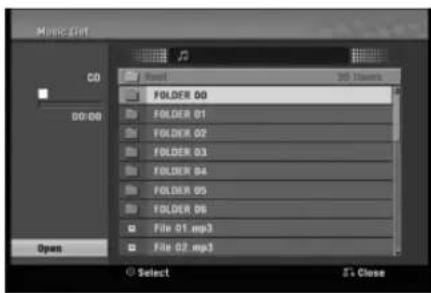

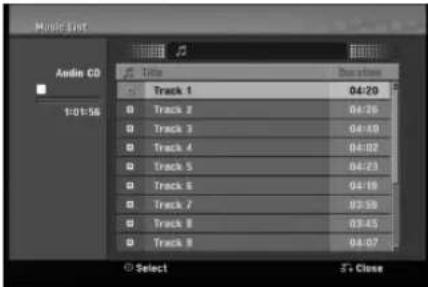

Playing an Audio CD or MP3/WMA files ....30

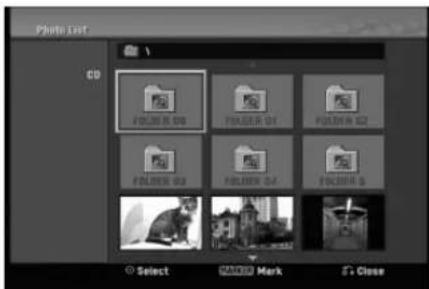

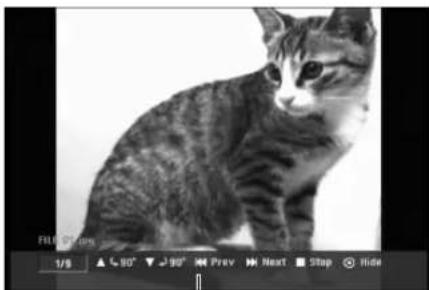

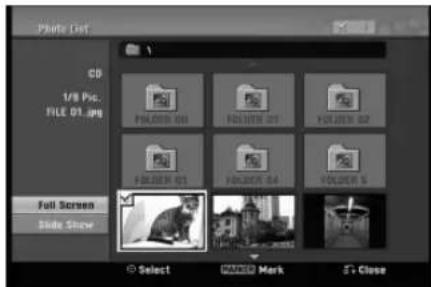

Viewing a JPEG files .....31-32

RECORDING

About DVD recording ....33

Notes for recording ....33

Recording time and picture quality .....33

Basic Recording from a TV ....34

Instant Timer Recording ....34

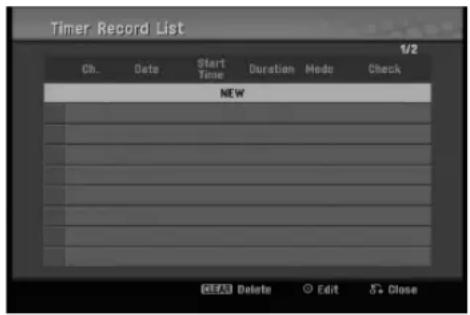

Timer Recording ....35

Timer Recording Troubleshooting .....36

Dubbing from DVD to VCR .....37

Dubbing from VCR to DVD .....37

Recording from External Components .....38

Recording from DV Input ....39

EDITING

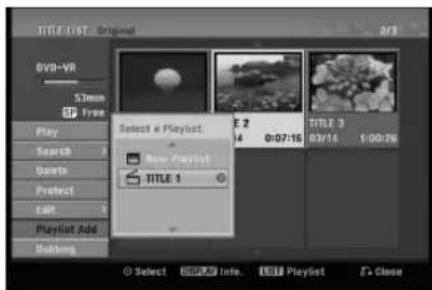

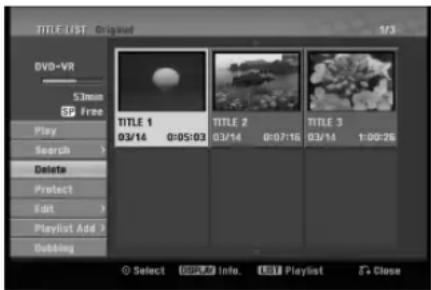

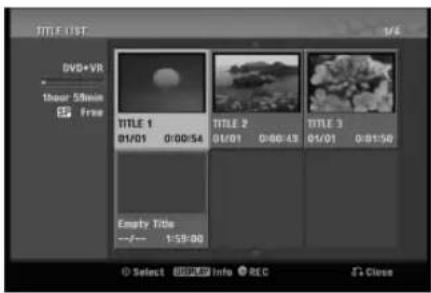

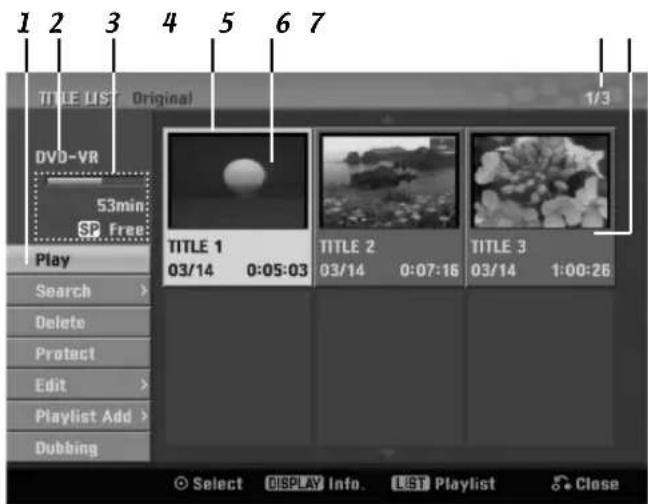

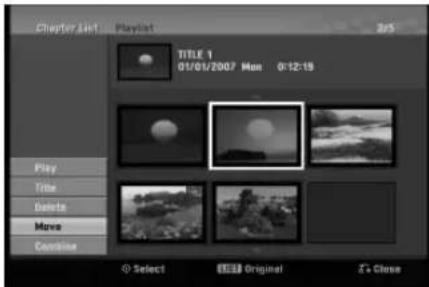

Title List and Chapter List Menu Overview .40

VR Mode: Original and Playlist Editing ....41

Adding Chapter Markers .....41

Changing the Title Thumbnails .....41

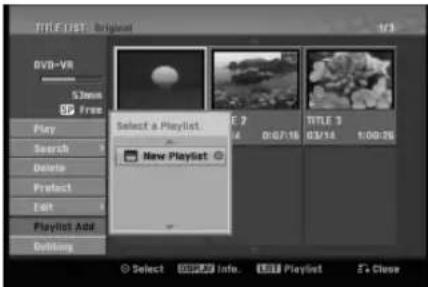

Making a New Playlist ....42

Adding Additional Title/Chapters to the

Playlist 42

Deleting an Original or Playlist Title/

Chapter 43

Deleting a Part ....43

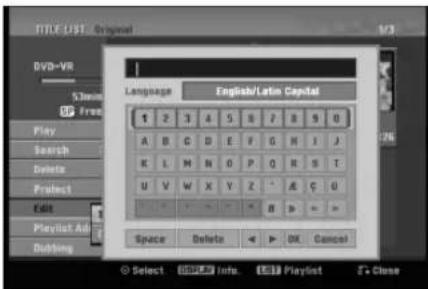

Naming a Title 44

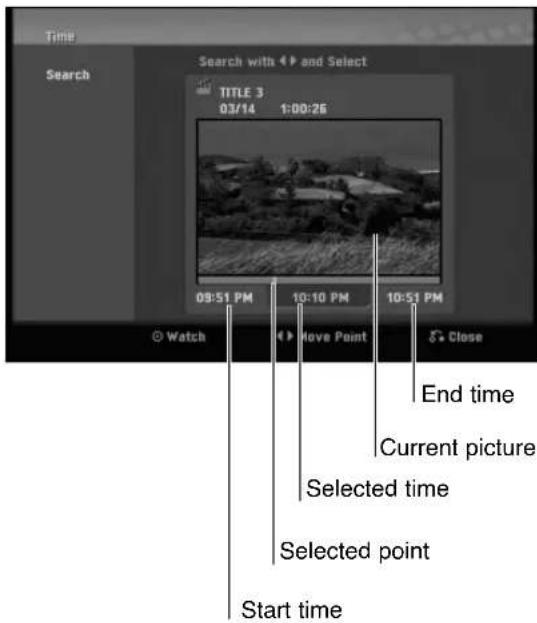

Time Search ....44

Moving a Playlist Chapter ....45

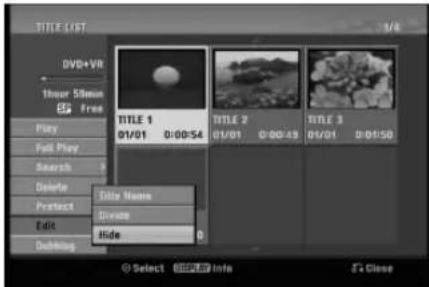

Hide a Chapter/Title .....45

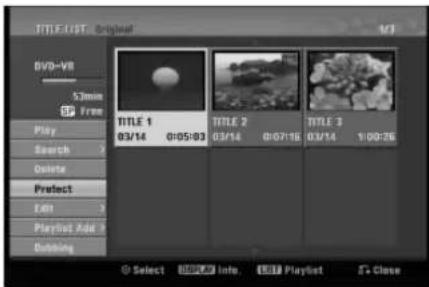

Protect a Title ....45

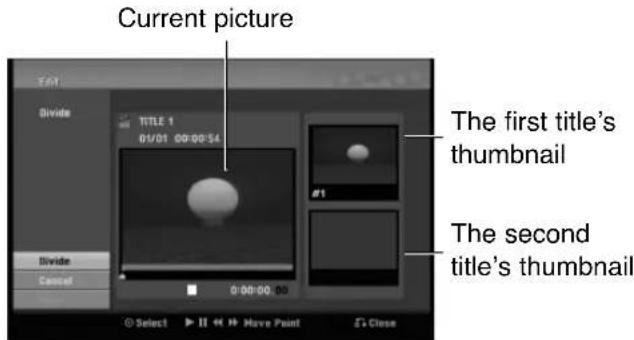

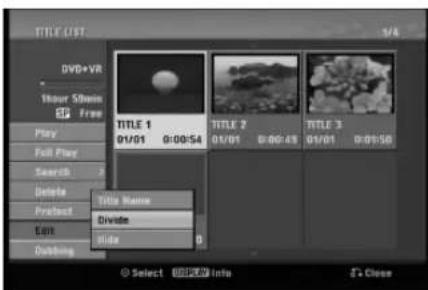

Divide One Titles Into Two .....46

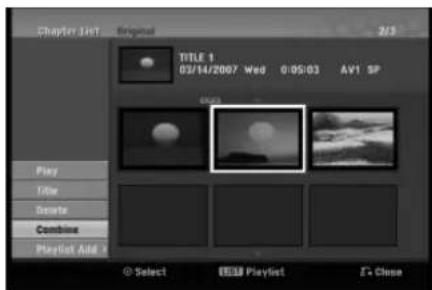

Combining Two Chapters Into One .....46

Overwriting Recording 47

Viewing Title List menu displayed on other

DVD Recorders or Players .....47

Playing Your Recordings on Other DVD

Players (Finalizing a Disc) .....47

REFERENCE

Language Code List ....48

Area Codes List....48

Troubleshooting 49-51

Resetting the Recorder .....51

Specifications .....52-53

Warranty ....54

Introduction

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

About the Symbol Display

" may appear on your TV display during operation and indicates that the function is not permitted by this unit or specific media.

Symbol Used in this Manual

Note: Indicates special notes and operating features.

Tip: Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols are applicable only to those discs represented by the symbol.

DVD ALL All DVD discs listed below.

-RWVR DVD-RW with VR recording mode

-RWVideo DVD-RW with Video recording mode

RAM DVD-RAM disc

+RW DVD+RW disc

-R DVD-R disc

+R DVD+R disc

DVD DVD-Video disc

DivX DivX files

VCD Video CDs

ACD Audio CDs

MP3 MP3 files

WMA WMA files

JPEG JPEG files

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

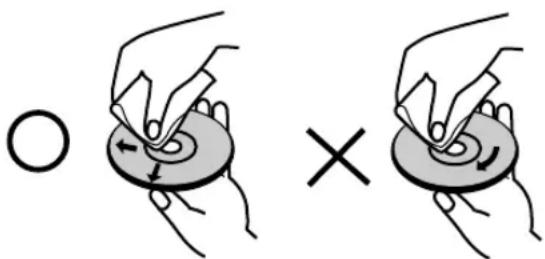

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Moisture Condensation

Never operate this product immediately after moving it from a cold location to a warm location. Leave it for two or three hours without operating it. If you use this product in such a situation, it may damage discs/tapes and internal parts.

Recordable and Playable Discs

DVD-RW (DVD - ReWritable)

• DVD-RW discs can be formatted for VR mode recording or Video mode recording.
• These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc.
  • Recordings can be extensively edited
• Playable only on VR mode compatible players (after finalization)
• Playable on regular DVD players (after finalization)
• Limited editing features

[VR mode]

[Video mode]

DVD-R (DVD - Recordable)

• These Discs can be recorded only once. After you finalize a DVD-R, you cannot record on it or edit it.
• DVD-R discs can be only formatted to Video mode.
- Playable on regular DVD players (after finalization)
- Limited editing features

DVD-RAM (DVD - Random Access Memory)

• DVD-RAM discs can be formatted for VR mode recording.
• These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc.
• Playable on DVD-RAM compatible players.
  • Recordings can be extensively edited.
• Only DVD-RAM standard Version 2.0, 2.1 and 2.2 discs can be used in this unit.
• You cannot use the cartridge-type DVD-RAM disc in this unit.

DVD+RW (DVD + ReWritable)

• These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc.
• Playable on DVD+RW compatible players (automatic finalization)
• The edited contents are playable on DVD+RW compatible players only after finalization.
  • Recordings can be edited.

DVD+R

DVD+R (DVD + Recordable)

• These Discs can be recorded only once. After you finalize a DVD+R, you cannot record on it or edit it any more.
• Playable on DVD+R compatible players (after finalization)
• Any edited contents are not compatible on DVD+R compatible players. (Hide, chapter combine, added chapter mark, etc.)
• Limited title/chapter editing features.

Recommended recordable DVD discs

DVD-R	DVD+R	DVD-RW	DVD+RW	DVD-RAM
Mitsubishi(8x,16x)	Mitsubishi(8x, 16x)	Mitsubishi(4x)	Mitsubishi(4x)	Mitsubishi(3x)
Verbatim(8x,16x)	Verbatim(8x,16x)	Verbatim(4x)	HP(4x)	Maxell(5x)
-	-	JVC(6x, 4x)	Verbatim(4x)	JVC(3x)
-	-	Maxell(4x)	Ricoh(4x)	-

playable Discs

DVD (8 cm / 12 cm disc)

Discs such as movies that can be purchased or rented

Video CD (VCD) (8 cm / 12 cm disc)

VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format

Audio CD (8 cm / 12 cm disc)

Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased

CD-R/CD-RW (8 cm / 12 cm disc)

CD-R/CD-RW discs that contain audio titles, MP3, WMA or JPEG files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). Doing so may result in malfunctions.
• Depending on the recording software & the finalization, some recorded discs (CD-R/RW or DVD±R/RW) may not be playable.
• DVD-R/RW, DVD+R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the Recorder's lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
• This recorder requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.
• Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or "ALL".

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from the unit, the message “Incorrect region code. Can’t play back” appears on the TV screen.

Restrictions on video recording

• You cannot record copy-protected video using this recorder. Copy-protected video includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will pause or stop automatically and an error message will be displayed on-screen.
• Video that is ‘copy-once only’ can only be recorded using a DVD-RW disc in VR mode or DVD-RAM disc with CPRM (see below).

What is 'CPRM'?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content Protection for Recordable Media.

This Recorder is CPRM compatible, which means that you can record copy-once broadcast programs, but you cannot then make a copy of those recordings. CPRM recordings can only be made on DVD-RW discs formatted in VR mode and CPRM recordings can only be played on players that are specifically compatible with CPRM. This unit does not support a DVD-R disc with CPRM.

Copyright

• Recording equipment should be used only for lawful copying and you are advised to check carefully what is lawful copying in the area in which you are making a copy. Copying of copyright material such as films or music is unlawful unless permitted by a legal exception or consented to by the rights owner.
• This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision corporation. Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Use

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD+VCR RECORDER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

Front Panel

1 Disc Tray (DVD deck)

Insert a disc here.

2 ▲ OPEN/CLOSE

Opens or closes the disc tray.

3 Cassette Compartment (VCR deck)

Insert a video cassette here.

4 ▲EJECT

Ejects the tape in the VCR deck.

5 STANDBY/ON (⏻/I)

Switches the Recorder ON and OFF.

6 ▶ / II (PLAY / PAUSE)

Starts playback.

Pause playback or recording temporarily, press again to exit pause mode.

7 ■ (STOP)

Stops playback

8 ● (REC)

Starts recording.

Press repeatedly to set the recording time.

9 CH (+/-)

Scans up or down through memorized channels.

10 DUBBING

Press to copy DVD to VCR (or VCR to DVD).

DVD ▶ VCR

or

Lights when recorder is dubbing.

DVD ▶ VCR

11 Display window

Shows the current status of the Recorder.

Lights when a disc is in the DVD deck.

DVD

The DVD deck is selected.

Lights when the Recorder is in playing mode or flashes when search mode.

VCR

The VCR deck is selected.

①

Indicates when the recorder is in timer recording or a timer recording is programmed.

[NO TEXT]

A VHS tape is inserted in the VCR deck.

REC

The Recorder is recording.

PM

Indicates PM time. (AM is not displayed.)

Indicates total playing time, elapsed time, remaining time or current deck status (Playback, Pause, etc).

12 Remote Sensor

Point the recorder Remote Control here.

13 DVD/VCR

Toggles control between the DVD deck and the VCR deck.

14 OUTPUT STATUS

Sets the output resolution for HDMI and COMPONENT OUTPUT jacks.

- HDMI: 1080p, 1080i, 720p, 480p, 480i

- COMPONENT: 480p, 480i

15 DV IN

Connect the DV output of a digital camcorder.

16 AVIN 2 (VIDEO /AUDIO (Left/Right))

Connect the audio/video output of an external source (Audio system, TV/ Monitor, VCR, Camcorder, etc.).

Remote Control

1
2
3
4

STANDBY/ON (⏻/I)

Turns Recorder ON and OFF.

DVD

Select the Recorder's function mode to DVD.

VCR

Select the Recorder's function mode to VCR.

EJECT, OPEN/CLOSE (▲)

- Opens and closes the disc tray. - Ejects the tape in the VCR deck.

0-9 numerical buttons

- Selects numbered options in a menu. - Inputs channel numbers.

DASH (-)

Enters a channel number for multiple channels such as 2-1, 2-2, etc.

AUX

Changes the input to use for recording (Tuner, AV1, AV2, or DV IN).

JVC TV Control Buttons

• TV STANDBY/ON: Turns the TV on or off.
• INPUT: Selects the TV's source.
• CH +/-: Selects TV's channel.
• VOL +/-: Adjusts TV's volume.

BACKWARD / FORWARD (◄◄/►►)

• DVD: Search backward or forward.
• VCR: Rewinds/Advances the tape during the STOP mode, for fast reverse/forward picture search.

SKIP (I ◀◀ / ▶▶▶ I)

Go to next chapter or track. Returns to beginning of current chapter or track or go to previous chapter or track.

PAUSE/STEP (III)

Pause playback or recording temporarily. Press repeatedly for frame-by-frame playback.

PLAY (▶)

Starts playback.

STOP (■)

Stops playback or recording.

HOME

Accesses or removes the HOME menu.

CH (+/-)

Selects a channel. Adjusts manually the tape's picture onscreen.

FAV.CH (+/-)

Tunes to your favorite channels.

DISC MENU/LIST

Accesses menu on a DVD disc, Title List or Playlist menu.

◀ ▶ ▲ ▼ (left/right/up/down)

Selects menu options.

ENTER (◎)

Confirms menu selections.

DISPLAY

Accesses On-Screen Display. Displays information of current status.

RETURN (○)

Removes the menu.

AUDIO

Selects an audio language or an audio channel.

SUBTITLE

Selects a subtitle language.

ZOOM

Enlarges DVD video image.

CHAPTER

Inserts a chapter marker when playing/ recording.

● REC

Starts recording. Press repeatedly to set the recording time.

REC MODE

Selects the recording mode:

- DVD: XP, SP, LP or EP.

- VCR: SP or SLP.

TITLE

Displays the disc's Title menu, if available.

THUMBNAIL

Selects a thumbnail picture for the current title for use in the Title List menu.

PLAY MODE

Selects play mode.

MARKER

Marks any point during playback.

SEARCH

Displays Marker Search menu.

CLEAR

Removes a mark on the Marker Search menu.

DUBBING

Press to copy DVD to VCR (or VCR to DVD).

*: Feature is not available.

About the Remote Control

Operation Range

Point the Remote Control at the Remote Sensor and press the buttons.

Distance: About 23 ft (7 m) from the front of the Remote Sensor.

Angle: About 30^ in each direction of the front of the Remote Sensor.

Battery installation (See page 24)

Detach the battery cover on the rear of the Remote Control, and insert two (R03/AAA size) batteries with and aligned correctly.

Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.

Rear Panel

1 ANTENNA IN (FROM ANT.)

Connect the antenna to this terminal.

2 OPTICAL (DIGITAL AUDIO OUTPUT)

Connect to digital (optical) audio equipment.

3 COMPONENT OUTPUT (Y PB PR)

Connect to a TV with Y PB PR inputs.

4 INPUT 1 (VIDEO/AUDIO (Left/Right))

Connect the audio/video output of an external source (Audio system, TV/Monitor, VCR, Camcorder).

5 HDMI OUTPUT

HDMI output providing a high quality interface for digital audio and video.

6 AC Power Cord

Plug into the power source.

7 ANTENNA OUT (TO TV)

Connect to a TV with ANTENNA coaxial inputs

8 COAXIAL (DIGITAL AUDIO OUTPUT)

Connect to digital (coaxial) audio equipment.

9 S-VIDEO OUTPUT

Connect to a S-Video Input on TV.

10 AUDIO OUTPUT (Left/Right)

Connect to a TV or other equipment with audio inputs.

11 VIDEO/AUDIO OUTPUT (Left/Right)

Connect to a TV with video and audio inputs.

Caution:

Do not touch the inner pins of the jacks on the rear panel.

Electrostatic discharge may cause permanent damage to the unit.

Hookup and Settings

Depending on your TV and other equipment there are various ways you can connect the recorder. Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary for additional connection information.

Notes:

• Make sure the Recorder is connected directly to the TV and tune the TV to the correct video input channel.
• Do not connect the Recorder's AUDIO OUTPUT jack to the phono in jack (record deck) of your audio system.
• Do not connect the Recorder via another VCR. The DVD image could be distorted by the copy protection system.
• The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. Position the units away from each other or turn off the unit after removing the disc.

Connecting an Antenna or Cable TV

1 Antenna:

Disconnect the antenna from the rear of the TV and identify the antenna cable. If it is a round 75 ohm coaxial cable connect it directly to the jack marked ANTENNA IN on your Recorder. If your antenna cable is flat connect it to a 300-ohm to 75-ohm antenna adaptor (not supplied) and slip the adaptor over the ANTENNA IN jack. Don't attempt to screw it into to the Recorder.

2 Cable TV:

If your cable connection has no converter or descrambler, unscrew the cable from your TV and attach it to the ANTENNA IN jack on the Recorder. If a converter is required connect a coaxial cable from the wall jack to the IN connector on the converter, and a coaxial cable from the OUT connector on the converter to the ANTENNA IN on your Recorder. This cable hookup permits both TV and Recorder operation.

To view or record a CATV channel

1. Tune the TV to the Recorder output channel (CH 3 or 4).
2. Set the Recorder channel selector to the cable output channel. (Example: CH3)
3. Select a channel using the cable converter.

Notes:

• With this connection, you cannot record one program while viewing another.
• If you are using a cable box to tune channels, it is not necessary to do Auto Channel Set.

Connections to your TV

Make one of the following connections, depending on the capabilities of your TV.

RF coaxial connection

Connect the ANTENNA OUT jack on the Recorder to the antenna in jack on the TV using the supplied 75-ohm Coaxial Cable (R).

Video connection

Connect the VIDEO OUTPUT jack on the Recorder to the video in jack on the TV using the video cable supplied (V).

Note:

If you use this connection, set the TV's source selector to VIDEO.

S-Video connection

Connect the S-VIDEO OUTPUT jack on the Recorder to the S-Video in jack on the TV using the optional S-Video cable (S).

Component Video connection

If your television is a high-definition or “digital ready” television, you may take advantage of the Recorder’s progressive scan output for the highest video resolution possible.

Connect the COMPONENT OUTPUT jacks on the Recorder to the corresponding in jacks on the TV using an optional Y PB PR cable (C).

Notes:

• Set the resolution to 480p using OUTPUT STATUS button on the front panel for progressive signal.
• Progressive Scan does not work with the RF, Video or S-Video connections.
• If your TV does not accept the Progressive Scan format, the picture will appear scrambled.
• If the resolution is set to 720p, 1080i or 1080p, the VIDEO OUTPUT, S-VIDEO OUTPUT and COMPONENT OUTPUT connections are not available.

Audio connection

Connect the Left and Right AUDIO OUTPUT jacks on the Recorder to the audio left/right in jacks on the TV using the supplied audio cables (A1 or A2).

Rear of TV

HDMI connection

If you have a HDMI TV or monitor, you can connect it to this recorder using a HDMI cable.

1. Connect the HDMI OUTPUT jack on the recorder to the HDMI INPUT jack on a HDMI compatible TV or monitor (H).
2. Set the TV's source to HDMI (refer to TV's Owner's manual).

Notes:

• If your TV is NOT capable of handling 96 kHz sampling frequency, set the [Sampling Freq.] option to [48 kHz] on the setup menu (See page 18). When this choice is made, this unit will automatically convert any 96 kHz signals to 48 kHz so your system can decode them.
• If your TV is not equipped with Dolby Digital and MPEG decoder, set the [Dolby Digital] and [MPEG] options to [PCM] on the setup menu (See page 18).
• If your TV is not equipped with DTS decoder, set the [DTS] options to [OFF] on the setup menu (See page 18). To enjoy DTS multi channel surround, you must connect this recorder to a DTS compatible receiver via one of this recorder's digital audio outputs.
• The arrow on the cable connector body should face up for correct alignment with the connector on the recorder.

(Type A)

Line drawing of an Ethernet cable connector (no text or symbols)

• If there is noise or lines on the screen, please check the HDMI cable.
• Not all HDCP-compatible DVI devices will work with this recorder.

Tip:

When you use HDMI connection, you can change the resolution (480i, 480p, 720p, 1080i or 1080p) for the HDMI output using OUTPUT STATUS button on the front panel.

Caution:

• Changing the resolution when the recorder is connected with HDMI connector may result in malfunctions. To solve the problem, turn off the recorder and then turn it on again.
• If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read TV's owner's manual then set the resolution that your TV can accept.

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes, and other AV devices.

HDMI was developed to provide the technologies of HDCP (High Definition Contents Protection). HDCP is used to protect digital content transmitted and received.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio, HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Additional Information for HDMI

- When you connect a HDMI or DVI compatible device make sure of the followings:

• Try switching off the HDMI/DVI device and this recorder. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this recorder.
• The connected device's video input is set correctly for this unit.
• The connected device is compatible with 720(1440)x480i, 720x480p, 1280x720p, 1920x1080i or 1920x1080p video input.

- Not all HDCP-compatible DVI devices will work with this recorder.

- It's impossible copy protected-DVD title's play-back in non-HDCP devices.

- For best performance, directly connect the HDMI output to an HDMI input on your TV. If connecting to some device other than a TV or monitor, such as a home theater receiver with an HDMI input, check the following to make sure the HDMI signal will be received correctly:

• Check the operating instructions of the connected device to make sure that the HDMI input of the device complies with HDMI-HDCP specifications.
• Check that the HDMI setup menu of any non-display device is set to "pass-through" so that HDMI signals received are not changed in any way (such as changing the video or audio format).

Connection to an Amplifier

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/Pro Logic

Connect the Left and Right AUDIO OUTPUT jacks on the Recorder to the audio left and right in jacks on your amplifier, receiver, or stereo system using the audio cables (A) supplied.

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)

1. Connect one of the Recorder's DIGITAL AUDIO OUTPUT jacks (OPTICAL O, COAXIAL X) to the corresponding in jack on your amplifier. Use an optional digital (optical O, coaxial X) audio cable.

2. You will need to activate the Recorder's digital output. (See [Audio Settings] on page 18).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel Audio/Video receiver that supports one or more of the audio formats supported by your Recorder (MPEG 2, Dolby Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Caution:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Notes:

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.
• T o see the audio format of the current DVD in the on-screen display, press AUDIO.
• This Recorder does not perform internal (2 channel) decoding of a DTS sound track. To enjoy DTS multi channel surround, you must connect this Recorder to a DTS compatible receiver via one of this Recorder's digital audio outputs.
• While viewing a digital channel, the 2 channel stereo audio is only output through the audio output jacks.

Rear of Recorder

Amplifier (Receiver)

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc.

© 1996-2007 DTS, Inc. All Rights Reserved.

Accessory Audio/Video (A/V) Connections to Recorder

Connect the INPUT 1 or AV IN 2 jacks on the Recorder to the audio/video out jacks on your accessory component, using the optional audio/video cables. (Refer to page 38 for [Recording from External Components].)

Connecting a Digital Camcorder

Use a DV cable (not supplied) to connect the DV in/out jack of your DV Digital Camcorder to the front panel DV IN jack of this Recorder.

Notes:

• This jack is for connection to DV equipment only. It is not compatible with digital satellite tuners or D-VHS video decks.
• Disconnecting the DV cable while recording a contents of the connected digital camcorder may result in malfunction.

DV Digital Camcorder

Front of Recorder

Initial Setup Wizard

After the STANDBY/ON is pressed for the first time to turn on the unit or after factory setting (See page 16), the Initial Setup Wizard function sets the Language, Channels and Clock step-by-step until the setup is complete.

1. Use ▲ / ▼ to select a language for the Setup menu and information display then press ENTER.

1. Check your antenna connections. Press ▶ to move next step.

1. Select the [Tuning Band] option then press ▶. TV is for over-the-air antenna reception. CATV is for cable subscribers.

1. Press ENTER to begin the channel search.

You can skip the analog channel scanning by pressing ▶.

1. Enter the necessary information for year, date and time.

◀ / ▶ (left/right): Moves the cursor to the previous or next column.
▲ / ▼ (up/down): Changes the setting at the current cursor position.

Press ENTER to confirm your setting.

1. Press ENTER to exit the menu.

Note:

You can reset the Initial Setup Wizard from the [Factory Set] in the setup menu. (see page 16).

Using the Home Menu

From the Home Menu screen you can access all the Media for playback and recording of the recorder.

1. Press HOME and the Home menu appears.
2. Use ◀ / ▶ to select the desired main option.
3. Use ▲ / ▼ to select the desired Sub option then press ENTER to confirm your selection.

1. To exit the HOME menu, press HOME.

Setup

- Start: Displays Setup menu.

TV

• Auto Ch. Scan: Displays [Auto Channel Set] menu. (See page 16)
• Channel Edit: Displays Channel Edit setup menu. (See page 16)
• Channel List: Displays the Channel List menu. (See page 22)
• Timer Record: Displays [Timer Record] menu. (See page 35)

Movie

• VCR: Plays back VHS cassette.
• DISC:

• Displays TITLE LIST menu for recordable disc (page 40)
• Plays back DVD-Video disc (page 26-27).

Photo (See page 31-32)

• DISC: Displays [Photo List] menu for disc.
Music (See page 30)
- DISC: Displays [Music List] menu for disc.

Easy Menu

• Dubbing: Displays [Dubbing] menu. (See page 37)
• Disc Manager: Displays Disc setup menu. (See page 21)
• Rec. Mode: Displays Record Mode setup menu. (See page 20)
• DV Input: Displays DV Input mode. (See page 39)

Initial Settings

In this menu system, there are several ways to customize the settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings.

1. Press HOME and the Home menu appears.
2. Select [Setup] > [Start] and press ENTER.

1. Use ▲ / ▼ to select the desired option.
2. While the desired item is selected, press ▶ to move to the second level.
3. Use ▲ / ▼ to select the second desired option.
4. Press ▶ to move to the third level.
5. Use ▲ / ▼ to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
6. Press RETURN (♂) or HOME to exit the Setup menu.

Note:

Press ◀ to go back to the previous level.

General Settings

Auto Channel Set

This recorder is equipped with a frequency synthesized tuner capable of receiving the analog and digital channels.

1. Select the [Auto Channel Set] option then press ▶.

2. Use ▲ / ▼ to select the tuning band (TV or CATV) option.

TV is for over-the-air antenna reception. CATV is for cable subscribers.

1. Press ▶ to highlight [Start] icon.

2. Press ENTER to begin the channel search. You can skip the analog channel scanning by pressing ▶ while scanning analog channel. The tuner will automatically cycle through all available channels in the area and place them in the tuner's memory.

Notes:

• If you want to change the [Band] option, you must execute the auto channel search after changing the [Band] option.
• This Recorder supports only unencrypted channels for cable subscribers.

Channel Edit

You can edit a channel manually (add, delete, etc.).

1. Select the [Channel Edit] option then press ▶.

2. Press ENTER while the [Edit] icon is highlighted. The Channel List menu appears.

1. Use ◀ / ▶ / ▲ / ▼ to select a channel number then press ENTER.

2. Use ▲ / ▼ to select an option then press ENTER.

• [Add] Adds a unmemorized channel manually.
- [Delete] Deletes a memorized channel from channel list. A digital channel has multiple channels, so if you delete the digital channel, all multiple channels will be deleted.
- [Skip On/Off] (for memorized digital channel only) Set the channel to the skipped channel. The skipped channel number will dim. The channel cannot be selected using the CH (+/-) button during normal TV viewing.
- [Favorite On/Off] Set the memorized channel to favorite channel. (favorite channel shows FAV icon.)
- [MFT Adjust] (for memorized analog channel only) To obtain a clearer picture, tune the MFT option.

1. Press RETURN (♂) repeatedly to exit Channel List menu.

Clock Set

You can set the clock.

1. Select the [Clock Set] option then ▶.
2. Enter the necessary information for year, date and time.

◀ / ▶ (left/right): Moves the cursor to the previous or next column.
▲ / ▼ (up/down): Changes the setting at the current cursor position.

1. Press ENTER to confirm your setting.

TV Aspect

[4:3 Letter Box]: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
[4:3 Pan Scan]: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off.
[16:9 Wide]: Select when a 16:9 wide TV is connected.

Power Save Mode

Set Power Save Mode to [ON] to place your Recorder into an economic power save mode. Nothing is displayed in the display window when the unit is turned off.

Factory Set

You can reset the Recorder to its original factory settings.

1. Select the [Factory Set] option.
2. Press ▶ to select [SET] then press ENTER.
3. Select [OK] and press ENTER.
4. Follow the Initial Setup Wizard on page 14.

Language Settings

Note:

You can set [DTV Caption], [DTV Caption Style], [DTV Caption Option] and [DTV Audio] options only while viewing digital TV.

Display Menu

Select a language for the Setup menu and information display.

Disc Menu / Audio / Subtitle

[Original]: Refers to the original language in which the disc was recorded.

[Others]: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter (see page 48). If you enter the wrong language code, press CLEAR.

[OFF] (for Disc Subtitle): Turn off Subtitle.

Note:

• The appearance of Audio and Subtitle not only depended on the setting of Home Menu when play a DVD disc; it depends on what languages of audio and subtitle were pre-recorded in the disc also.
• For some of DVD movies, the audio cannot be changed by set the Home Menu, but you have to access the DVD disc menu with 'Disc menu/list' button (on remote control) to change the language of audio.

DTV Caption

Digital channels sometimes provide caption, often in a different language. You can set a default caption language with this setting. If you select [Off], DTV Caption is not displayed. This unit cannot record the DTV caption in DVD mode.

Note:

DTV caption will appear only if provided by the broadcaster.

Tips:

• If available, you can also select a caption language while viewing digital TV viewing, press SUBTITLE repeatedly.
• If captions are available, the DTV caption icon 📄 appears on the channel information display to indicate that you can select one of those captions with the SUBTITLE button.

- Analog Caption is not displayed on this Recorder. If your TV has the Analog Caption function, you can switch the Analog Caption using the TV. If analog and digital caption is overlapped on the TV screen, switch off one of two captions.

DTV Caption Style

Selects the style for caption.

[Set by program] Default caption type provided by a broadcaster is shown when captions appear.

[Custom] Customized text is shown when captions appear. Use [DTV Caption Option] to customize the caption type.

DTV Caption Option

You can set [DTV Caption Option] only when [DTV Caption Style] is selected in [Custom].

Font: Selects the font type for captions.

Size: Selects the font size for captions.

Color: Selects the font color for captions.

Opacity: Selects the font opacity for captions.

• Solid: The text is solid (without any transparency).
• Flash: The text blinks once a second.
• Transparent: The text is transparent (In this case, whatever the color is, the color does not affect the captions display).
• Translucent: The text is translucent.

BG (Background) Color: Selects the background color for captions.

BG (Background) Opacity: Selects the background opacity for captions.

• Solid: The text background color is solid (without any transparency).
• Flash: The text background color blinks once a second.
• Transparent: The text background color is transparent (In this case, whatever the background color is, the color does not affect the captions.).
• Translucent: The text background color is translucent.

Edge Type: Selects the edge type for captions.

• None: The text has no edge.
• Raised: The text is raised.
• Depressed: The text is depressed.
• Uniform: The text has a uniform edge.
• Left Shadow: The text has a left-shadow edge.
• Right Shadow: The text has a right-shadow edge.

Edge Color: Selects the edge color for captions.

DTV Audio

Digital channels sometimes provide multiple audio tracks, often in a different language. You can set a default audio language with this setting.

Tip:

If provided by the broadcaster, the (DTM GUAL Multiple Audio Icon) appears on the channel information display to indicate that you can select one of those audio languages with the AUDIO button. (See page 23)

Audio Settings

Each DVD disc has a variety of audio output options. Set the Recorder's Audio Output according to the type of audio system you use.

Dolby Digital / DTS / MPEG

[Bitstream]: Select [Bitstream] if you connect the DVD+VCR's DIGITAL AUDIO OUTPUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder.

[PCM] (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

[OFF] (for DTS): If you select [OFF], the DTS signal is not output through the DIGITAL AUDIO OUTPUT

Sampling Freq. (Frequency)

If your receiver or amplifier is NOT capable of handling 96 kHz signals, select 48 kHz. When this choice is made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

DRC (Dynamic Range Control)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to [ON] for this effect.

Lock (Parental Control) Settings

[US Rating]
OR

[Canadian Rating]

Notes:

• Lock System and TV Rating options are effective for digital TV program only.
• When you set the TV Rating, a program with a TV Rating beyond your rating setting cannot be recorded correctly. (Normal recording, Timer recording, etc.)
• The default TV Rating setting is to allow all programs to be viewed.

Lock System

You can lock certain unsuitable channels to prevent children from accessing them, or set a TV Rating, so that any digital TV program classified above that rating by the broadcaster will be restricted. If the [Lock System] is set to [OFF], TV Rating options are not effective.

The Lock System option is effective for TV Rating and Downloadable Rating options.

1. Select [Lock System] option then press ▶.
2. To access the Lock Menu options, you must input the 4-digit password you created.

If you have not yet entered a password you are prompted to do so. Input a 4-digit password. Enter it again to verify. If you make a mistake, press CLEAR.

1. Select [ON] or [OFF] using the ▲ / ▼ buttons.
2. Press ENTER to confirm your setting.

Set Password

You can enter or change password.

1. Select [Set Password] option then press ▶.
2. Follow step 2 as shown in [Lock System] above.

To change the password, press ENTER when the [Change] option is highlighted, then input old password. Input new password. Enter it again to verify. To delete the password, select [Delete] option then press ENTER, then input old password. The password is deleted.

1. Press HOME to exit the menu.

If you forget your password

If you forget your password you can reset it using the following steps:

1. Press HOME and the Home menu appears.
2. Select [Setup] > [Start] and press ENTER.
3. Input the 6-digit number [210499]. When the message appears, select [OK] then press ENTER. The password will be reset.
4. Enter a new password as described above.

Note:

If you delete your password, all ratings will be reset to the default setting. The default setting is to allow all programs to be viewed in full.

Set TV Rating

Select [US Rating] or [Canadian Rating] to set the TV rating options according to your local broadcast system.

TV Rating-Children (US Rating)

Prevents children from watching certain children's TV programs according to the rating setting. This rating applies only to TV programs for children. Unless you block TV programs intended for mature audiences in the TV Rating – General menu, your children could view those programs.

1. Select the [TV Rating-Children] option then press ▶.
2. Input a password as shown in [Lock System] on page 18.
3. Select the [Age] or [Fantasy Violence] option then press ▶.

[Age]: Selection applies regardless of content category of rating.

[Fantasy Violence]: Selection applies if TV programs include rating for Fantasy Violence.

1. Select a rating then press ENTER.

[TV-Y]: All Children.

[TV-Y7]: Directed toward children age 7 and older.

[Blocking Off]: Permits all programs.

TV Rating-General (US Rating)

Blocks TV programs that you or your family may not wish to watch, based on the rating scheme set.

1. Select the [TV Rating-General] option then press ▶.
2. Follow step 2 as shown in [Lock System] above.
3. Select the [Age], [Dialogue], [Language], [Sex], or [Violence] option then press ▶.

[Age]: Selection applies regardless of content category of rating.

[Dialogue]: Selection applies if TV programs have rating for dialogue.

[Language]: Selection applies if TV programs have rating for language.

[Sex]: Selection applies if TV programs have rating for sex.

[Violence]: Selection applies if TV programs have rating for violence.

1. Select a rating then press ENTER.

[TV-G]: General audience.

[TV-PG]: Parental guidance suggested.

[TV-14]: Parents strongly cautioned.

[TV-MA]: Mature audience only.

[Blocking Off]: Permits all programs.

TV Movie Rating (US Rating)

Blocks movies according to the movie ratings restrictions so children cannot view certain movies. You can set the ratings to block out all the movies with ratings above a specified level. Keep in mind that the movie ratings apply only to movies shown on TV, not TV programs such as soap operas.

1. Select the [TV Movie Rating] option then press ▶.
2. Input a password as shown in [Lock System] on page 18.
3. Select a rating then press ENTER.

[G]: General audiences

All ages admitted.

[PG]: Parental guidance suggested.

Some material may not be suitable for children.

[PG-13]: Parents strongly cautioned

Some material may not be appropriate for children under 13.

[R]: Restricted under 17 requires accompanying parent or adult guardian.

[NC-17]: No one 17 and under admitted.

[X]: No one 17 and under admitted (Adult only).

[Blocking Off]: Permits all programs.

Downloadable Rating (US Rating)

The rating information can be updated if a TV station sends the downloadable rating information.

Note:

Downloadable Rating is a technology that allows digital TV stations to create and deliver new rating systems in the future if they choose.

1. Select the [Downloadable Rating] option then press ▶.
2. Follow step 2 as shown in [Lock System] above.
3. Select a rating title or TV rating then press ▶.
4. Select a rating then press ENTER.

Notes:

• If rating information is not downloaded from a TV station, the Downloadable Rating option will not be available.
• Rating information is automatically downloaded while watching DTV channels. It may take several seconds.
• The Downloadable Rating option is available for use after rating information is downloaded from a TV station. However, depending on the information from a TV station, it may not be available for use.
• Rating levels may differ depending on the broadcasting station.
• The default option name and Downloadable Rating changes depending on the downloaded information.
• The on-screen display for Downloadable Rating options will appear with a language that TV station sends.
• The rating titles (For example: Humor, etc) and TV ratings (For example: MH, H, VH, etc) may differ depending on the TV station.

TV Rating-CELR (US Rating)

(CELR: Canadian English Language Rating system)

1. Select the [TV Rating-CELR] option then press ▶.
2. Follow step 2 as shown in [Lock System] above.
3. Select a rating then press ENTER.

[E]: Exempt TV program includes: news, sports, documentaries and other information program, talk shows, music videos, and variety program.
[C]: Program intended for children under age 8.
[C8+]: Program generally considered acceptable for children 8 years and over to watch on their own.
[G]: General audience.
[PG]: Parental guidance.
[14+]: Program contains themes or content which may not be suitable for viewers under the age of 14.
[18+]: Adult program.
[Blocking Off]: Permits all programs.

TV Rating-CFLR (US Rating)

(CFLR: Canadian French Language Rating system)

1. Select the [TV Rating-CFLR] option then press ▶.
2. Follow step 2 as shown in [Lock System] above.
3. Select a rating then press ENTER.

[E]: Exempt TV program
[G]: General - Program intended for audience of all ages.
[8 ans+]: Not recommended for young children.
[13 ans+]: Program may not be suitable for children under the age of 13.
[16 ans+]: Program is not suitable for children under the age of 16.
[18 ans+]: Program restricted to adults.
[Blocking Off]: Permits all programs.

Recording Settings

Disc Record Mode

You can set the picture quality for recording; XP (High Quality), SP (Standard Quality), LP (Low Quality), EP (Extend Quality).

1. Select the [Disc Record Mode] option then press ▶.
2. Use ▲ / ▼ to select a desired Disc Record Mode (XP, SP, LP or EP).
3. Press ENTER to confirm your selection, then press HOME to exit the menu.

VCR Record Mode

You can set the picture quality for VCR recording; SP (Standard Play), SLP (Super Long Play).

DV Record Audio

You need to set this if you have a camcorder using 32kHz/12-bit sound connected to the front panel DV IN jack. Some digital camcorders have two stereo tracks for audio. One is recorded at the time of shooting; the other is for overdubbing after shooting.

On the Audio 1 setting, the sound that was recorded while shooting is used. On the Audio 2 setting, the overdubbed sound is used.

Auto Chapter

During recording, chapter markers are added automatically at fixed intervals. You can set this interval to 5 minutes or 10 minutes. To turn off automatic chapter marking, select [None].

Disc Settings

Initialize

If you load a completely blank disc, the recorder will initialize the disc.

• DVD-R: The recorder initialize the disc to Video mode. The recording mode will always be Video mode.
• DVD-RW/ DVD+RW/DVD+R/DVD-RAM: The Initialize menu will appears. Select [OK] then press ENTER. DVD-RW disc is initialized to Video mode.

Also, you can reformat the DVD-RW/DVD+RW from the Setup menu as below.

1. Select the [Initialize] option then press ▶. [Start] icon is highlighted.

2. Press ENTER.

3. In case of DVD-RW, use ◀ / ▶ to select a desired Disc Initialize Mode (VR Mode or Video Mode) then press ENTER.

4. In case of DVD+RW/DVD-RAM, use ◀ / ▶ to select [OK], and press ENTER. It takes a few moments to format the disc.

Caution:

If you want to change the disc format, everything recorded on the disc will be erased.

Finalize

Finalizing 'fixes' the recordings in place so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.

Finalizing a Video mode disc creates a menu screen for navigating the disc. This is accessed by pressing DISC MENU/LIST or TITLE.

Caution:

Once you have finalized a DVD-R and DVD+R disc, you cannot edit or record anything else on that disc except DVD+RW. However, you can record and edit a DVD-RW disc by choosing [Unfinalize] option.

1. Select the [Finalize] option then press ▶.
2. Press ENTER while [Finalize] is selected. Finalize menu appears.
3. Select [OK] then press ENTER. The Recorder starts finalizing the disc.

Notes:

- Finalization can take up to 3-4 minutes or more depending on the type of disc, how much is recorded on the disc, and the number of titles on the disc.

Tips:

• If you load a DVD-RW that has already been finalized, you can 'Unfinalize' it by choosing [Unfinalize] from the Finalize menu. After doing this, you can edit and re-record onto the disc.
  • Y ou cannot unfinalize a DVD-R and DVD+R disc.
• If [Disc Protect] option is set to [ON], the finalize is not available. To finalize, set [Disc Protect] option to [OFF].

Disc Label

Use the Disc Label feature to enter a name for the disc. This name appears when you load the disc and when you display disc information on-screen.

• The Disc label can be up to 32 characters long.

• For discs formatted on a different Recorder, you will see only a limited character set.

• Select the [Disc Label] option then press ▶. [Edit] icon is highlighted.

• Press ENTER. Keyboard menu appears. To enter characters, see page 44.

Disc Protect

Depending on the type of disc you are using, Disc Protect allows you to preserve your recordings in a variety of ways:

• DVD+RW: Prevents editing, erasing, or overwriting of existing recordings. Allows regular recording.
• DVD+R: Prevents editing or erasing of existing recordings. Allows regular recording.
• DVD-RW (VR mode)/DVD-RAM: Prevents editing, erasing, and regular recording.

Notes:

• Disc Protect is not compatible with DVD-RW discs in Video mode or DVD-R discs.
• If you need to unlock a disc to make edits, select [OFF].

PBC

PBC stands for Playback Control and refers to special menus and navigation features that are available on some Video CDs.

[ON]: Video CDs are played according to the PBC, if available.

[OFF]: Video CDs are played the same way as Audio CDs.

DivX Registration Code DivX

We provide you the DivX ^® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX ^® VOD service. For more information, visit www.divx.com/vod.

1. Select [About DivX(R)] option then press ▶.
2. Press ENTER while [Enter] is selected and the registration code will appear.
3. Use the registration code to purchase or rent the videos from Divx® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

Note:

All the downloaded videos from DivX® VOD can only be played back on this unit.

TV Viewing

Channel Selection

You can select a channel as shown below.

Number and – (dash) buttons

Use Number (0-9) and - (dash) buttons to select a channel directly.

FAV. CH +/- button

Press FAV +/- to scroll through your favorite channels.

Note:

To set a favorite channel, use [Channel Edit] option in the Setup menu. (See page 16.)

CH +/- buttons

Use CH +/- on the Remote Control or CH ▲/▼ on the front panel to cycle the recorder through the channels in memory.

Channel Selection with Channel List menu

Displaying Channel List and Changing Channel

1. Press HOME and the Home menu appears.
2. Select [TV] > [Channel List] and press ENTER. The channel list menu will appear.
3. Select your desired channel using the ▲ / ▼ and press ENTER to change the channel.

Switching Channel List

Four types of channel lists are provided for easy and quick channel searching. You can switch the channel lists to TV (CATV), DTV (CADTV), Favorite or ALL.

1. Press ▲ to move the highlight position to top of the channel list.
2. Press ◀ / ▶ to select a [TV (CATV)], [DTV (CADTV)], [Favorite] or [ALL]. Selected channel list appears.

TV (CATV): Shows all analog TV channels.

DTV (CADTV): Shows all digital TV channels.

Favorite: Shows favorite channels. (favorite channel shows FAV.)

ALL: Shows all analog and digital channels.

General Explanation of On-Screen Display

Some DVDs require specific operation or allow only limited operation during playback. When this occurs,

∅ is displayed, action prohibited or not available.

Displaying Information While Watching TV

During viewing the TV, press DISPLAY to display/remove the information displayed on-screen.

The information will not be displayed during VCR recording.

Indicates channel number, station name, and audio signal by the tuner.

Indicates program title, start time, end time, TV Rating, etc. Details are below. (Digital channel only)

Indicates the disc format, free space, and elapsed time progress bar.

Indicates audio language for digital channel or output audio signal for analog channel (Stereo, Mono, SAP, etc.).

Indicates current date and time.

Note:

You must set the clock on the setup menu to display the correct start time and end time of the program while viewing digital channel.

Channel Information Icon

(DTV caption icon)

Indicates that the current channel contains the DTV caption. Press SUBTITLE to select a DTV caption language.

16:9 4:3 TV Aspect

Indicates that the current channel is wide or 4:3 picture format.

MULTILINGUAL (DTV Multiple Audio Icon)

Indicates that the current channel contains the DTV multiple audio languages. Press AUDIO to select an audio language.

Tips:

If provided by the broadcaster, the MUTILINGUAL (DTV Multiple Audio Icon) appears on the channel information display to indicate that you can select one of those audio languages with the AUDIO button. There may be cases that you may not hear audio after changing channels if the broadcaster has opted to broadcast a MUTILINGUAL signal in your selected DTV Audio language and not included the audio in the broadcast. By pressing the AUDIO button on the remote you should be able to change the audio selection and receive an audio signal.

Displaying Disc Information on-screen

You can display various information about the disc or tape loaded on-screen. Some items can be changed using the menu.

1. Press DISPLAY once to show current status.

Example: DVD-RW in VR mode

1. Press DISPLAY once again to show various playback information.

The items displayed differ depending on the disc type or playing status.

1. You can select an item by pressing ▲ / ▼ and change or select the setting by pressing ◀ / ▶. For details about each item, see the pages in parenthesis.

• [Title]: Current title (or track) number/total number of titles (or tracks) (page 26, 27)
• [Chapter]: Current chapter number/total number of chapters (page 26)
• [Time]: Elapsed playing time (page 28)
• [Audio]: Selected audio language (DVD VIDEO only) or audio channel (page 27)
• [Subtitle]: Selected subtitle (page 26)
• [Angle]: Selected angle/total number of angles (page 28)
• [Sound]: Selected sound mode (page 28)

Note:

If no button is pressed for 10 seconds, the on-screen display disappears.

Playback

Remote Control Function (Refer to page 7)

Remote Control A/B/C/D Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of four codes (A, B, C or D). The remote control is preset to send C code signals because your unit is initially set to respond to C code signals. You can easily modify your unit to respond to A, B or D code signals.

1. Press STANDBY/ON (☐/I) on the unit to turn off the unit with no video tape inserted.
2. Press the number key "1" for A, "2" for B, "3" for C or "4" for D while pressing ENTER ( ) down on the remote control.
3. Press ▶/□ on the unit for over 5 seconds while the unit is turned off. The current code appears on the display window.
4. Press STOP (■) on the remote control, the current code on the display window changes to new code and blinks for approximately 10 seconds.
5. The new code setup on unit and remote is done.

Note:

If you change the batteries of the Remote Control with A, B or D code, the remote control code is set to C automatically. In this case, you should reset the remote control code described above.

Playing a Tape

1. Press VCR to control the VCR deck.
2. Insert a pre-recorded video cassette.

- If the unit is powered off, it will power on automatically when the tape is loaded.

- If the Timer indicator lights on the front panel display window, press STANDBY/ON once.

1. Press PLAY (▶) to start playback.

- If a tape without a safety tab is inserted the unit starts playback automatically.

1. Press STOP (■) to stop playback.

- If the tape reaches the end before you press STOP (■) the Recorder automatically stops, rewinds and ejects the tape.

Note:

S-VHS Quasi Playback (SQPB)

• T his Recorder can play back S-VHS recorded tapes, however, it cannot make recordings using S-VHS format tapes.
• SQPB is an abbreviation for S-VHS Quasi Playback.

Playing a DVD

1. Press DVD to control the DVD deck.
2. Press EJECT, OPEN/CLOSE (▲) to open the disc tray. Load your chosen disc in the tray, with the playback side down.
3. Press EJECT, OPEN/CLOSE (▲) to close the tray. Playback starts automatically. If playback does not start, press PLAY (▶) or Starts play-back using HOME menu.
4. To stop the playback, press STOP (■). The unit records the stopped point, depending on the disc. "■" appears on the screen briefly. Press PLAY (▶) to resume playback (from the scene point). If you press STOP (■) again or unload the disc ("■" appears on the screen.), the unit will clear the stopped point.
5. Press EJECT, OPEN/CLOSE (▲) to remove the disc.

Press EJECT, OPEN/CLOSE (▲) to close disc tray or press STANDBY/ON (○/I), the disc tray closes automatically and unit turns off.

VCR Playback Options

Buttons Operations
EJECT (▲)	Ejects the tape in the VCR deck.
PAUSE (II)	Pause playback.Press repeatedly to step forward one frame at a time.After 5 minutes in STILL mode the Recorder stops to protect the tape and video heads.
FORWARD (▶▶)	Scan forward. In Stop mode, fast forwards the tape.In Pause mode, starts slow motion playback.After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and video headsAfter 3 minutes in SLOW MOTION mode the Recorder goes back to PLAY mode to protect the tape and video heads.
BACKWARD (◀◀)	Scan backward. In Stop mode, rewinds the tape.After 3 minutes in SEARCH mode the Recorder returns to PLAY mode to protect the tape and video heads.
CLEAR Resets the current tape counter position to 0:00:00. To automatically goto tape counter position 0:00:00, press RETURN while the tape is in Stop mode or in Play mode.
CH (+/-) Manually reduces noise on the screen during tape playback. Tracking is set automatically when a tape is inserted.
AUDIO Sets tape audio to HIFI, LEFT, RIGHT or NORMAL.Use ◀/▶ buttons to select tape audio you want.

DVD or Video CD Playback Features

Buttons Operations		Discs
OPEN / CLOSE (▲)	Opens or closes the disc tray.	All Discs
PAUSE (■)	Pause playback.	All Discs
	Press repeatedly to play Frame-by-Frame.You can also use ◀/▶ to step backward and forward while in Pause mode.	DVD ALL VCD
BACKWARD (◀◀) / FORWARD (▶▶)		DVD ALL VCD DivXACD
SKIP (I◀◀ / ▶▶▶)	Press SKIP (▶▶▶ or I◀◀) briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.Press SKIP (I◀◀) twice in quick successions to step back to the previous chapter/track.·To go directly to any chapter/track during playback, press DISPLAY twice and use ▲/▼ to select the chapter or track (for Video CD) icon. Input the chapter/track number or use ◀/▶.·On a Video CD with PBC, you must set PBC to [OFF] in the Setup menu to use this function (See page 21).·On an Audio CD, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.	DVD DivXVACD MP3 WMA
ZOOM Enlarge the video image.(x1 size → x2 size → x4 size → x1 size (normal size))You can move through the zoomed picture using ◀▶▲▼ buttons.		DVD ALL
TITLE If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears.		+RWI VBR
DISC MENU/LIST The disc menu appears on the screen.		DivXI
SUBTITLE	During playback, press SUBTITLE then press ◀/▶ repeatedly to select a desired subtitle language.	DivXI
PLAY MODE Select a desired play mode while playback.
	[A-]: Repeats a sequence between A (Start point) and B (End point) during playback. Press ENTER at your chosen end point then the repeat sequence begins.	ACDVKaraoke DVD
	[CHAPTER]: Repeats the current chapter.	DVD ALL
	[TITLE]: Repeats the current title.	Karaoke DVDD
	[ALL]: Repeats the all titles/tracks.	ACDV CD VR RAM-F
	[Track]: Repeats the current track.	WMAI
	[RANDOM]: Random playback	Karaoke DVDV
	[Folder]: Repeats all the tracks on a folder of a disc.	WMAI
	[OFF]: Does not play repeatedly.	DVD ALL
	· If you press SKIP (▶▶I) once during Repeat Chapter (Track) playback, the repeat playback cancels.· By pressing SKIP (▶▶I) during Random playback, the Recorder selects another title (track) and resumes Random playback.
AUDIO	Press AUDIO then press ◀ / ▶ repeatedly to hear a different audio language, audio track or encoding method.	DivXI
	Note:Some discs feature both Dolby Digital and DTS soundtracks. There is no analog audio output when DTS is selected. To listen to the DTS soundtrack, connect this recorder to a DTS decoder via one of the digital outputs. See page 12 for connection details.
	Press AUDIO then press ◀ / ▶ repeatedly during playback to hear a different audio channel.With DVD-RW discs recorded in VR mode that have both a main and a Bilingual audio channel, you can switch between Main (L+L), Bilingual (R+R), or a mix of both (L+R).	VCDI

Special Playback Options

If a menu screen is displayed

VCD

In some cases, the disc menu might appear instead.

DVD

Use the ◀▶ ▲ ▼ buttons to select the title/chapter you want to view, then press ENTER to start. Press TITLE or DISC MENU/LIST to return to the menu screen.

VCD

Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on each menu screen. You may also set PBC to [OFF] (See page 21).

Time Search

DivXD

To start playing at any chosen time on the disc:

1. Press DISPLAY twice during playback. The time search box shows the elapsed playing time.
2. Press ▲ / ▼ to select the time clock icon and [-:-:-] appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press ◀ / ▶ to move the under bar (_) to the wrong number. Then enter the correct numbers.
4. Press ENTER to confirm. Playback starts from the selected time.

Marker Search

VCDD

To enter a Marker

You can start playback from up to six memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to six markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.
2. Use ◀/▶/▲/▼ to select a marker scene that you want to recall or clear.
3. Press ENTER and playback starts from the marked scene. Or, Press CLEAR and use ◀ / ▶ to select [OK] then press ENTER to delete marked scene from the list.
4. To remove the Marker Search menu, press RETURN (○).

Camera Angle

DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback. Press DISPLAY then select the Angle icon during playback. Use ◀ / ▶ to select a desired angle. Note that the number of the current angle appears on the display.

Tip:

The Camera Angle icon is displayed on the TV screen when alternate angles are available.

3D Surround

DivXV

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1. Press DISPLAY twice then use ▲ / ▼ to select the sound icon. Then, use ◀ / ▶ to select [3D SUR.].
2. To turn off the 3D Surround effect, select [NORMAL].

Last Scene Memory

DVD

This Recorder memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the Recorder or switch off the Recorder. If you load a disc that has the scene memorized, the scene is automatically recalled.

Notes:

• Settings are stored in memory for use any time.
• This Recorder does not memorize settings of a disc if you switch off the Recorder before commencing to play it.
• Last Scene Memory function for a previous DVD title is erased once a different DVD title is played.

Finding Locations on a Disc

VCD

You can directly access any point on a video CD using this function within 95% of progress bar while playing. This function will not work if any bookmarks have been set.

1. Press SEARCH during playback. The progress bar appears on the TV screen.

2. Use ◀ / ▶ to find the desired starting position for playback.

3. Press ENTER to confirm the selected position. Playback starts from the selected position.

Note:

This function works only when no marker is memorized.

Playing a DivX Movie File

The recorder can play DivX files. Before playing DivX files, read "DivX file requirement" on right.

1. Press HOME.
2. Select [Movie] option.
3. Select a media that contains DivX file(s) then press ENTER. The [Movie List] menu appears on the TV screen.

1. Press ▲ / ▼ to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the ▲ / ▼ buttons on the remote to highlight 📄 and press ENTER.
2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press PLAY (▶). You can use variable playback functions. Refer to pages 26-27.
3. Press STOP to stop the playback. The [Movie List] menu appears.

Notice for displaying the DivX subtitle

If the subtitle does not display properly, please follow the steps below.

1. Press PAUSE/STEP when the subtitle appears.
2. Press and hold SUBTITLE about 3 seconds. The language code will appear.
3. Press ◀ / ▶ to select another language code until the subtitle is displayed properly.
4. Press PLAY (▶) to continue playback.

Notes:

• The DivX subtitle file name has to be identified with the DivX file name to display by this unit.
• TXT subtitle file can be displayed on the manu list, but it is not playable.

Movie List menu options

1. Press ▲ / ▼ to select a folder/file on the [Movie List] menu then press ENTER. [Movie List] menu options appear.
2. Press ▲ / ▼ / ◀ / ▶ to select an option, and press ENTER.

• [Play] Start playback the selected title.

- [Open] Opens the folder and a list of files in the folder appears

DivX file requirement

Available resolution size: 720x576 (W x H) pixel

DivX file extensions: “.avi”, “.divx”

playable DivX subtitle: ".smi", ".srt",

".sub (Micro DVD format only) ",

".txt (Micro DVD format only)"

Playable Codec format: "DIV3", "MP43", "DIVX", "DX50"

playable Audio format: "AC3", "PCM", "MP2", "MP3", "WMA"

- Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

- Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA)

CD-R Format: ISO 9660 and JOLIET.

DVD±R/RW Format: ISO 9660 (UDF Bridge format)

Maximum Files/Disc: Less than 1999 (total number of files and folders)

Notes on DivX format

- If the number of the screen frame is over 29.97 frames per second, this unit may not operate normally.

- If the video and audio structure of recorded file is not interleaved, returns to the menu screen.

- If there is impossible code to express in the DivX file name, it may be displayed as “_” mark.

- If the file is recorded with GMC, the unit supports only 1-point of the record level.

* GMC?

GMC is the acronym for Global Motion

Compensation. It is an encoding tool specified in MPEG4 standard. Some MPEG4 encoders, like DivX, have this option.

There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playing an Audio CD or MP3/WMA files

The Recorder can play Audio CDs and MP3/WMA files. Before playing MP3/WMA files, read [MP3/WMA audio file requirement] on right.

1. Press HOME and the Home menu appears.
2. Select [Music] > [DISC] and press ENTER.

The [Music List] menu appears on the TV screen.

Example) Audio CD

1. Use ▲/▼ to select a track or file then press PLAY (▶). Playback starts.

You can use variable playback functions. Refer to pages 26-27.

1. To stop playback at any time, press STOP (■).

Tips:

• Y ou can view TV channel or video input source by pressing RETURN (♂). If you want to return to the [Music List] menu, press DISC MENU/LIST.
• Press DISPLAY to view ID3-Tag information for the MP3 file. If ID3-Tag information is not present, [ID3-Tag: None] will appear. If you select a folder, the number of subfolders and number of MP3/WMA files in the folder are displayed. Press DISPLAY again to remove the information screen.
• On CDs, DVDs with mixed content (Audio tracks, MP3/WMA files or JPEG files), you can select between the [Music List] menu and [Photo List] menu by pressing TITLE repeatedly.
• If you are in a file list and want to return to the Folder list, use the ▲/▼ to highlight 📄 and press ENTER to return to the previous menu screen.

Music List menu options

1. Press ▲ / ▼ to select a track/file or folder on the [Music List] menu then press ENTER.

1. Use ▲ / ▼ to select an option, then press ENTER.

• [Play] Start playback the selected track or file.
- [Open] Opens the folder and a list of files in the folder appears.
• [Random] Start or stop random playback.

Random

1. Press ▲ / ▼ to select a file then press ENTER. The menu options appear.
2. Press ▲ / ▼ to select [Random] option then press ENTER. The unit automatically begins random playback and "RANDOM" appears on the menu screen.
3. To return to normal playback, select [Random] option again then press ENTER.

Tip:

By pressing SKIP ◀◀◀/▶▶ during Random playback, the unit selects another track and resumes Random playback.

MP3/WMA audio file requirement

File extensions

".mp3", ".wma".

Sampling frequency:

within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

Bit rate: within:

8 - 320kbps (MP3), 32 - 192kbps (WMA)

CD-R Format:

ISO 9660 and JOLIET.

DVD±R/RW Format:

ISO 9660 (UDF Bridge format)

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Viewing a JPEG files

This unit can play JPEG files. Before playing JPEG recordings, read "Photo file requirement" on page 32.

1. Press HOME and the Home menu appears.
2. Select [Photo] > [DISC] and press ENTER.
3. Use ▲▼◀▶ to select a file or folder and press ENTER.

1. Use ▲ / ▼ to select option and press ENTER.

Example: When you select a file.

1. Use ▲ / ▼ to select [Full Screen] then press ENTER. The selected image is displayed in full screen.

Black-and-white photo of a tabby kitten sitting on a bench, no visible text or symbols

Press ENTER to make this menu appear or disappear.

1. To stop viewing at any time, press STOP (■).

Notes:

• If the icon displays in the [Photo List] menu, it means you cannot see those JPEG files.
• Y ou can view TV channel or video input source by pressing RETURN (💡). If you want to return to the [Photo List] menu, press DISC MENU/LIST.
• If you are in a file list and want to return to the Folder list, use the ▲/▼ to highlight 🔒 and press ENTER to return to the previous menu screen.

- On CDs, DVDs with mixed content (Audio tracks, MP3/WMA files or JPEG files), you can select between the [Music List] menu and [Photo List] menu by pressing TITLE repeatedly.

Photo List menu options

1. Use ▲▼◀▶ to select a file then press ENTER. The menu options appear.

1. Use ▲ / ▼ to select an option then press ENTER to confirm your selection.

2. [Open] Opens the folder and a list of files in the folder appears.

3. [Full Screen] Shows the selected file as full screen.
   • [Slide Show] Displays Slide Show menu.

Still picture

Use PAUSE/STEP (III) while viewing slide show to pause mode.

Skip Images

While viewing a picture, press SKIP (▶▶▶ or ◀◀◀) once to advance to the next file or return to the previous file.

Rotate Images

Use ▲ / ▼ while viewing a picture to flip the picture clockwise or counterclockwise.

View Slide Shows

1. Select [Slide Show] option on the [Photo List] menu.
2. Press ENTER.

1. Use ◀ / ▶ / ▲ / ▼ to set the options.

[Object] option:

• [Selected] Views slide show only selected files.
  • [All] Views slide show all files.

[Speed] option:

Sets the Slide Show speed to [Normal], [Slow], or [Fast].

1. Select the [Start] option then press ENTER to start the Slide Show.
2. Press STOP (■) to stop the Slide Show and returns to the [Photo List] menu.

Tips:

- Selecting multiple files

1. Press MARKER.

A check mark appears on the file. Press MARKER again to cancel the marked file.

1. Repeat step 1 to mark additional file.

- Use the CLEAR button to select all files, or cancel all marked files.

Photo file requirement

File extensions

".jpg"

Photo size:

Less than 4MB recommended

CD-R Format:

ISO 9660 and JOLIET.

DVD±R/RW Format:

ISO 9660 (UDF Bridge format)

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Notes on JPEG file

• Progressive and lossless compression JPEG image files are not supported.
• Depending on the size and number of the JPEG files, it may take several minutes to read the contents of the media.

Recording

About DVD recording

Notes:

• This Recorder cannot record CD-R or CD-RW discs.
- Fingerprints and small scratches on a disc can affect playback and/or recording performance. Please take proper care of your discs.
- The company does not hold any responsibility to compensate the contents which should have been recorded, and any losses or damages (e.g. losses of business profit, or business intermission) that may arise from malfunction of this recorder (not recording/editing as intended).

Disc types and recording formats, modes, and settings

This recorder can play many different kinds of DVD discs: pre-recorded DVD-Video discs, DVD-RW, DVD-R, DVD+RW, DVD+R and DVD-RAM discs. The disc format for DVD-R, DVD+R, DVD+RW discs is always "Video format"—the same as pre-recorded DVD-Video discs. This means that once finalized, you can play a DVD-R, DVD+R, or DVD+RW (Video mode) in a regular DVD player. The DVD-RAM disc format is Video Recording (VR) format.

The DVD-RW disc format is Video Recording (VR) format or Video format. You can change Recording format, if required. (Reinitializing the disc will erase the contents of the disc.)

The recording mode is closely related to the disc format. If the disc format is Video Recording format, then the recording mode is VR mode; if the disc format is Video format, then the recording mode is Video mode (except for DVD-Video, which is not recordable, and so does not have a recording mode). These can be changed as required for each recording and determine the picture quality and how much space the recording will take up on the disc.

Notes for recording

• The recording times shown are not exact because the recorder uses variable bit-rate video compression. This means that the exact recording time will depend on the material being recorded.
• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording times may be shorter.
• I f you record still pictures or audio only, the recording time may be longer.
• The displayed times for recording and time remaining may not always add up to exactly the length of the disc.

• The recording time available may decrease if you heavily edit a disc.

• If using a DVD-RW disc, make sure you change the recording format (Video mode or VR mode) before you record anything on the disc. See page 21 (Initialize) for how to do this.

• When using a DVD-R or DVD+R disc, you can keep recording until the disc is full, or until you finalize the disc. Before you start a recording session, check the amount of recording time left on the disc.
• When using a DVD-RW disc in Video mode or DVD+RW disc, recording time available will only increase if you erase the last title recorded on the disc.
• When using a DVD-RW disc in VR mode, recording time available will increase if you erase any title recorded on the disc.
• The Delete Title option in the Title List (Original) menu only hides the title, it does not actually erase the title from the disc and increase the recording time available (except for the last recorded title on a DVD-RW disc in Video mode).
  • Overwrite recording is available using DVD+RW discs.
• When using a DVD+R/RW, the recorder will execute the Menu-making operation to update the new title and editing when removing the disc from the recorder.
• In DVD mode, you cannot record the rated digital program, no signal, audio only, scrambled program, etc. If the unit detects an unrecordable signal as described above during recording, the recording will be paused. The recording will be continued when recordable signal is detected in pause mode. If the paused recording is continued for an hour, the recording will be stopped automatically with the message.
• If you set a DTV rating for the unit and higher rated digital programs are received, the program cannot be recorded. Change the DTV rating level in order to record it.
• Recording programs that are blocked through Parental Lock or TV Ratings will present the following message: "Cannot Record-No Input Signal". Please disable/ adjust the TV Rating (See page 19) or the Parental Lock (See page 18) before recording the program when you want to record.

Recording time and picture quality

There are four preset recording quality modes:

• XP – Highest quality setting, gives about 1 hour of recording time on a DVD (4.7GB).
• SP – Default quality, sufficient for most applications, gives about 2 hours of recording time on a DVD (4.7GB).
• LP – Slightly lower video quality, gives about 4 hour of recording time on a DVD disc (4.7GB).
• EP – Low video quality, gives about 6 hour of recording time on a DVD (4.7GB).

Basic Recording from a TV

Follow the instructions below to record a TV program. Recording starts immediately and continues until the disc or tape is full or you stop the recording.

1. Switch on the Recorder, select the device (VCR or DVD) for recording and load a recordable disc or tape. Also make sure that the TV input is set to this recorder.

2. Set a recording mode as necessary by pressing REC MODE repeatedly.

DVD: XP, SP, LP, EP

VCR: SP, SLP

1. Select the TV channel to record.

2. Use AUDIO to select the audio channel for analog channel or audio language for digital channel to record.

The table below shows what will be recorded on the different settings for different types of analog broadcast. The last column (Monitor Audio) shows what you'll hear as it is recording.

TV Broadcast	Selected Broadcast Audio	Cast Audio Monitor		Ch Audio
		L C h	R
MONO	MONO	MONO	MONO	MONO
STEREO	STEREO	L R	STEREO
	Left	L L	Left
	Right	R	R	Right
	MONO	MONO	MONO	MONO
MONO+SAP M	MONO	MONO	MONO	MONO
	SAP	SAP	SAP	SAP
STEREO +SAP	STEREO	L R	STEREO
	SAP	SAP	SAP	SAP
	MONO	MONO	MONO	MONO

If you set the audio channel to SAP, but there is no SAP channel being broadcast, the main audio (mono or stereo) will be recorded.

1. Press ● REC once to start recording.

The REC indicator lights in the display window.

1. Press STOP (■) to stop recording.

Notes:

- The maximum numbers of DVD titles are as show below;

- DVD-R/RW/DVD-RAM: 99

- DVD+R/RW: 49

- If the Recorder is powered off during DVD recording, the recording will not be saved.

Instant Timer Recording

Instant Timer Recording allows you to make a recording easily of a preset length without using the program timer.

1. Follow steps 1-4 as shown left (Basic Recording from a TV).
2. Press ● REC repeatedly to select the recording time length. Recording starts after the first press.
   DVD: Each subsequent press increases the recording time by 10 minutes.

VCR: Each subsequent press increases the recording time by 30 minutes (maximum 540 minutes). Please confirm the VHS tape has enough remaining time to be recorded before recording.

Checking the Recording Time

Press ● REC or DISPLAY once to check the recording time. The recalled setting will automatically return to the TV screen for a moment.

Also, remaining time of recording is shown in the display window.

To Extend the Recording Time

The recording time can be extended anytime by pressing ● REC.

Each subsequent press increases the recording time by 10 minutes (DVD) or 30 minutes (VCR).

To Pause the Recording

1. Press PAUSE/STEP (Ⅲ) to pause the recording.
2. When you want to continue recording, press PAUSE/STEP (III) or ● REC.

Notes:

• If you press PAUSE/STEP (III) during the Instant Timer Recording, it will be canceled.
• The Recorder will automatically power off when the Instant Timer Recording ends.
• If the unit is DVD mode when the VCR Instant timer recording ends, the unit will not automatically power off.

Timer Recording

The Timer Recording function allows you to record up to 16 programs within a period of one month.

1. Press HOME and the Home menu appears.
2. Select [TV] > [Timer Record] and press ENTER.

1. Select [NEW] and press ENTER.

The Timer Record menu will appear.

• [Media] – Choose a media (DVD or VCR).
- [Ch.] – Choose a channel that memorized in this Recorder, or one of the external inputs from which to record (AV1 or AV2).
- [Date] – Choose a date up to 1 month in advance, or select a daily or weekly program.
- [Start Time] – Set the recording start time.
- [End Time] – Set the recording end time.
- [Mode] – Choose a record mode. DVD: XP, SP, LP, EP or AT (Auto) VCR: SP, SLP or AT (Auto)

AT(Auto) mode determines how much time is available on the disc or tape and switches record mode, if necessary, to complete recording the program.

- [Set-Top Channel] – Choose a channel or [OFF] for AV1 input timer recording.

1. Enter the necessary information for your timer recording(s).

2. ◀ / ▶ (left/right) – Move the cursor left/right

3. ▲ / ▼ (up/down) – Change the setting at the current cursor position.

4. Press RETURN (♂) to return to the [Timer Record List] menu.

5. Press ENTER to save the program.

6. Press RETURN (♂) to exit the [Timer Record List] menu.

Notes:

• Y ou must insert a recordable disc or tape.
- The Timer indicator lights on the front panel display.
- The Recorder will record the audio according to the current TV tuner setting. Use AUDIO to select the audio channel for analog channel to record before switching the Recorder to Standby mode.
- For digital TV recording with multiple audio languages, set audio language from the [DTV Audio] in sub-menu of the Setup menu (see page 17).
- The Recorder will automatically power off when the Timer Recording ends.
- If the unit is DVD mode when the VCR timer recording ends, the unit will not automatically power off.
- There is a short delay when a timer recording finishes to confirm the recorded program. If two timer recordings are set to record sequentially (one right after the other), the very beginning of the later program may not be recorded.
- Y ou must press STOP (■) to stop the Timer Recording.

Checking Timer Recording Details

Programming can be checked whenever the Recorder is turned on.

1. Press HOME and the Home menu appears.
2. Select [TV] > [Timer Record] and press ENTER.
3. Use ▲ / ▼ to select a program.
4. Press ENTER to edit the selected program. Timer Record menu appears.

Canceling a Timer Recording

You can clear a timer setting anytime before the recording actually starts.

- Use ▲ / ▼ to select a program you want to erase on the [Timer Recorder List] menu, then press CLEAR and select [OK] then press ENTER.

Timer Recording Troubleshooting

Even though the timer is set, the recorder will not record when:

• There is no disc (or tape) loaded.
• A non-recordable disc (or tape) is loaded.
- Disc Protect is set to [ON] in the Disc menu (see page 21).
- There are already 99 titles (DVD-RW, DVD-R, DVD-RAM), 49 titles (DVD+RW, DVD+R) recorded on the disc.

You cannot enter a timer program when:

• A recording is already underway.
- The time you're trying to set has already passed.
- There are already 16 timer programs set.

If two or more timer programs overlap:

• The earlier program takes priority.
- When the earlier program finishes, the later program starts.
- If two programs are set to start at exactly the same time, the program entered first takes priority.

If the disc is damaged, the recording may not complete successfully. In this case even though the Check field shows [Rec. OK], it may not be.

Note:

Recording programs that are blocked through Parental Lock or TV Ratings will present the following message: "Cannot Record-No Input Signal". Please disable/ adjust the TV Rating (See page 19) or the Parental Lock (See page 18) before recording the program when you want to record.

Dubbing from DVD to VCR

You can copy the contents of a DVD to a VHS tape using the DUBBING button.

1. Insert a blank VHS videotape into the VCR deck.
2. Insert the disc you wish to copy in the DVD deck and close the disc tray.
3. Select DVD mode by pressing DVD on the remote control or pressing DVD/VCR on the front panel.

4. Find the place on the DVD (or Disc) from which you want to start dubbing using the PLAY, FF, REW and PAUSE functions. For best results, pause playback at the point from which you want to record.

5. Press the DUBBING button. The Dubbing menu appears.

1. Use ▲ / ▼ / ◀ / ▶ to select the desired Record Rec. Mode: SP or SLP (3 times SP).
2. Select [Dubbing] then press ENTER or DUBBING to start copying.
3. To stop dubbing at any other time, press STOP (■). You must stop the dubbing process manually when the DVD movie ends, or the unit may replay and record over and over again.

Note:

If the DVD (or Discs) you are attempting to copy is copy protected, you will not be able to copy the disc. It is not permitted to copy Macrovision encoded DVDs (or Discs). [Copy-protected. Cannot record.] is displayed on the TV screen.

Tip:

If you press PAUSE during Dubbing mode, both the DVD and VCR decks go into Pause mode and the DUBBING button blinks on the front panel. While in Pause mode, you can adjust the DVD playback position using PLAY, REW, FF, PAUSE/STEP, etc. The VCR deck will remain in Pause mode. To resume Dubbing, press the DUBBING button twice.

Dubbing from VCR to DVD

You can copy the contents of a VHS tape to a DVD using the DUBBING button. This allows you to archive your old VHS tapes to DVD.

1. Insert a blank DVD disc in the DVD deck and close the disc tray.
2. Insert the VHS video tape you wish to copy into the VCR deck.
3. Select VCR mode by pressing VCR on the remote control or pressing DVD/VCR on the front panel.

4. Find the place on the VHS tape from which you want to start dubbing using the PLAY, FF, REW and PAUSE functions. For best results, pause playback at the point from which you want to record.

5. Press the DUBBING button. The Dubbing menu appears.

1. Use ▲ / ▼ / ◀ / ▶ to select the desired Record Rec. Mode: XP, SP, LP or EP.
2. Select [Dubbing] then press ENTER or DUBBING to start copying.
3. To stop dubbing at any other time, press STOP (■). Dubbing will stop automatically when the VHS tape ends.

Note:

If the VHS video tape you are attempting to copy is copy protected, you will not be able to copy the tape. It is not permitted to copy Macrovision encoded tapes.

Tip:

If you press PAUSE during Dubbing mode, both the DVD and VCR decks go into Pause mode and the DUBBING button blinks on the front panel. While in Pause mode, you can adjust the VCR playback position using PLAY, REW, FF, PAUSE/STEP, etc. The DVD deck will remain in Pause mode. To resume Dubbing, press the DUBBING button twice.

Recording from External Components

You can record from an external component, such as a camcorder or VCR, connected to any of the Recorder's external inputs.

1. Make sure that the component you want to record from is connected properly to the Recorder. See page 13.
2. Press AUX repeatedly to select the external input to record from.

• A V1: Audio/Video Input mounted on back panel.
• A V2: Audio/Video Input mounted on front panel.
• D V: DV Input mounted on front panel.

1. Load a recordable disc or tape.
2. Set a recording mode as necessary by pressing REC MODE repeatedly.

DVD: XP, SP, LP or EP.

VCR: SP or SLP

1. Press ● REC once to start recording.

The REC indicator lights in the display window.

1. Press STOP (■) to stop recording.

Notes:

• Check that the Audio In settings DV Record Audio are as you want them. See page 20.
• If your source is copy-protected using CopyGuard, you will not be able to record it using this recorder. See Copyright on page 5 for more details.
• Recording continues until you press STOP (■) or the disc is full.
• To record for a fixed length of time, see [Instant Timer Recording] on page 34.
• When unit is on any external inputs mode (AV1, AV2 and DV) the CH +/- buttons don't work, press AUX (on remote) repeatedly to select the TV mode, and then select the TV channels.

Recording from DV Input

Before DV dubbing

You can connect a DV-equipped camcorder to this recorder using a single DV cable for input and output of audio, video, data and control signals.

• This recorder is only compatible with DV-format (DVC-SD, DV25) camcorders. Digital satellite tuners and Digital VHS video recorders are not compatible.
• You cannot connect more than one DV camcorder at a time to this recorder.
• You cannot control this recorder from external equipment connected via the DV IN jack (including two recorders).
• It may not always be possible to control the connected camcorder via the DV IN jack.
• Digital camcorders can usually record audio as stereo 16-bit/48kHz, or twin stereo tracks of 12-bit/32kHz. This recorder can only record one stereo audio track. Set [DV Record Audio] option to Audio 1 or Audio 2 as required (see page 20).
• Audio input to the DV IN jack should be 32 or 48kHz (not 44.1kHz).
• Picture disturbance on the recording may occur if the source component pauses playback or plays an unrecorded section of tape, or if the power fails in the source component, or the DV cable becomes disconnected.

Note:

• Connect the DV cable after turning the camcorder off.
• The unit may not acknowledge the camcorder depending on the kinds. In this case, you may have it acknowledged by switching the unit off, and then on.

Recording from a Digital Camcorder

You can record from a digital camcorder connected to the DV IN jack on the front panel of this recorder. Using the recorder's remote, you can control both the camcorder and this recorder.

Before recording, make sure that the audio input for the DV IN jack is set up (see page 20).

Tips:

• The source signal must be DVC-SD format.
• Some camcorders cannot be controlled using this recorder's remote.
• If you connect a second recorder using a DV cable, you cannot control the second DVD from this one.

• You cannot control this unit remotely from a component connected to the DV IN jack.

• You cannot record date and time information from a DV cassette.

• Disconnecting the DV cable while recording a contents of the connected digital camcorder may result in malfunction.

• Make sure your digital camcorder is connected to the front panel DV IN jack. See page 13.

• Press AUX repeatedly to select the DV input.

• Find the place on the camcorder tape that you want to the recording to start from. For best results, pause playback at the point from which you want to record.

- Depending on your camcorder, you can use this recorder's remote to control the camcorder using the STOP, PLAY, BACKWARD, FORWARD and PAUSE functions.

1. Press ● REC once to start recording.

2. Recording is automatically stopped if the recorder detects no signal.

3. You can pause or stop the recording by pressing PAUSE/STEP (■) or STOP (■).
   You cannot control the camcorder from this Remote Control during recording.
4. In Video mode, the final frame of the recording may remain displayed on screen for a while after recording stops.

Note:

When ‘Not connected to camcorder’ shows on the TV screen, the PLAY & RECORD functions won’t work. To resume these functions, press AUX to get out of DV input mode.

Troubleshooting

If you cannot get a picture and/or audio through the DV IN jack, check the bullet points:

• Make sure the DV cable is properly connected.
• Try switching off the connected equipment then switch back on.
• Try switching the audio input.

Note:

Depending on the connected camcorder, you may not be able to control it using the Remote Control supplied with this recorder.

Editing

Title List and Chapter List Menu Overview

Using the Title List menu you can edit video content. The editing features available in the Title List menu depend on whether you are editing video on DVD, and whether you're editing Original content, or a Playlist.

There are two ways to edit VR mode DVD-RW discs. You can directly edit the Original content of the disc, or you can create and edit a Playlist. The Playlist doesn't actually change any of the content on the disc, but just controls how the content is played back.

1. Press DISC MENU/LIST to display the TITLE LIST menu.

Playback should be stopped when you do this.

• When selecting titles, use the ▲ / ▼ buttons to display the previous/next page if there are more than six titles.
• If you are editing a VR mode disc, press DISC MENU/LIST to switch between Original and Playlist menu.
• On the left side of the screen are the menu options. The main part of the screen shows thumbnails of the titles (or chapter) on the DVD. You can change these thumbnails using the THUMBNAIL button. (see [Changing the Title Thumbnails] on page 41.)
• Press DISPLAY to display the information of selected title on the Title List menu.

• After selecting a title or chapter on the Title List or Chapter List menu, then press ENTER. The menu options on the left side of the menu. Use ▲ / ▼ to select a option then press ENTER to confirm your selection.

• To exit the TITLE LIST menu, press RETURN (○) repeatedly.

1. Menu options: To display menu option, select a title or chapter then press ENTER. The options displayed differ depending on the disc type.

• [Play] Start playback of the selected title or chapter. The hidden titles and chapters on the DVD+R/RW cannot be play back.
• [Search]

- [Chapter] ; Displays Chapter List of the Title.

- [Time] ; Search time for you want start point of the title .

• [Delete] Deletes the title or chapter. (page 43)

• [Move] Moves chapter position on [Chapter List - Playlist] menu (page 45).
  • [Protect] Protects accidental recording, editing or deleting of the title.(page 45)
  • [Edit] Edits or Deletes a part of the title.

• [Title Name] Edits the title name. (page 44).

• [Delete Part] Deletes a part of the Title (page 43).
• [Divide] Divides a title into two (page 46).
• [Hide (Show)] Hides (or Shows) the selected title or chapter. (page 45)

• [Playlist Add] Adds the title or chapter to the Playlist. (page 42)

• [Dubbing] Dubs the title to VCR (page 37).
• [ T itle] Displays Title List of the chapter.
• [Combine] Combines two titles or chapters into one (page 46).
• [Full Play] Starts playback of the selected title including the hidden chapters.

1. Current media.
2. Indicates the record mode, free space, and elapsed time progress bar.
3. Currently selected title.
4. Thumbnail.
5. Shows the selected title number and total number of titles.
6. Shows the title name, recorded date, and recording length.

VR Mode: Original and Playlist Editing

Titles, Chapters and Parts

Titles in the disc's original content contain one or more chapters. When you insert a disc's title into the Playlist, all the chapters within that title also appear. In other words, chapters in the Playlist behave exactly as chapters on a DVD-Video disc do. Parts are sections of Original or Playlist titles. From the Original and Playlist menu you can add or delete parts. Adding a chapter or title to the Playlist creates a new title made up of a section (ie., chapter) of an Original title. Deleting a part removes part of a title from the Original or Playlist menu.

Caution:

• When editing using the Delete, Add and Move functions, the start and end frames may not be exactly as set in the start and end point display.
• During Playlist playback, you may notice a momentary pause between edits. This is not a malfunction.

Is editing a DVD like editing a video tape?

No. When you edit a video tape you need one video deck to play the original tape and another to record the edits. With DVD, you edit by making a 'Playlist' of what to play and when to play it. On playback, the Recorder plays the disc according to the Playlist.

About word 'Original' and 'Playlist'

VR RAM-

Throughout this manual, you will often see the words Original and Playlist to refer to the actual content and the edited version.

• Original: content refers to what's actually recorded on the disc.
• Playlist: content refers to the edited version of the disc — how the Original content is to be played.

Adding Chapter Markers

You can create chapters within a title by inserting chapter marks at the desired points.

Note:

Chapter markers are inserted at regular intervals automatically. You can change this interval from the Initial Setup menu (see [Auto Chapter] on page 20).

During recording or playing back, at the point you want to start a new chapter, press CHAPTER. A chapter marker icon appears on the TV screen.

Changing the Title Thumbnails

Each title displayed in the Title List menu is represented by a thumbnail picture taken from the start of that title or chapter.

If you prefer, select a different still picture from within a title.

Press THUMBNAIL to make the currently displayed picture the one that appears in the Title List menu. The still picture that you choose appears in both the Original or Playlist menu.

Tip VR RAM-

You can also change the thumbnail picture of the title on the Chapter List menu. Select a chapter on the Chapter List menu then press THUMBNAIL. The thumbnail picture of the title that includes the chapter is changed.

Making a New Playlist

VR RAM-

Use this function to add an Original title or chapter to the Playlist. When you do this, the whole title or chapter are put into the Playlist (you can delete bits you don't need later - see [Deleting an Original or Playlist title/chapter] on page 43).

The title appears in the Playlist complete with the chapter markers that appear in the Original. However, if you add more chapter markers to the Original later, these are not automatically copied over into the Playlist title.

You can add up to 999 chapters to one disc.

1. Choose a title or chapter on the [TITLE LIST-Original] menu or [Chapter List-Original] menu to put into the Playlist, then press ENTER. The menu options appears on the left side of the menu.

2. Use ▲ / ▼ to select [Playlist Add] option then press ▶.

1. Select [New Playlist] then press ENTER. The new title appears in the updated Playlist. All chapters of the title are added to the Playlist.

Adding Additional Title / Chapters to the Playlist

VR RAM-

You can add an Original title or chapter to add to a Playlist title even if it is already registered.

1. Choose a title or chapter on the [TITLE LIST-Original] menu or [Chapter List-Original] menu to put into the Playlist, then press ENTER. The menu options appears on the left side of the screen.

2. Use ▲ / ▼ to select [Playlist Add] from menu options then press ▶.

1. Choose a Title List-Playlist that is already registered to insert a title or chapter, then press ENTER.

2. Repeat steps 1-3 to add additional title or chapter on the Playlist. You can view the added chapters on the [Chapter List-Playlist] menu.

1. Press RETURN (♂) to exit, or DISC MENU/LIST to go back to the [Title List-Original] menu.

Deleting an Original or Playlist Title/Chapter

When you erase a title or chapter from the Playlist menu, you only remove it from the Playlist; the title/chapter remains in the Original menu.

If you choose to delete a title or chapter from the Original (title/chapter) menu, the title or chapter is actually deleted from the disc and the remaining time available for recording increases. Titles/chapters deleted from the Original are also removed from the Playlist.

Note:

It may not be possible to delete chapters that are less than 3 seconds long.

1. Use ◀ / ▶ / ▲ / ▼ to choose a chapter or title you want to delete on the [TITLE LIST] or [Chapter List] menu then press ENTER. The menu options appears on the left side of the screen.

2. Select [Delete] option from the options on the menu.

Example: Title List (DVD-VR)

1. Press ENTER to confirm.

The confirm message for deleting will appear.

1. Use ◀ / ▶ to select [OK] then press ENTER.

The selected chapter or title is deleted.

After pressing ENTER, the new, updated menu is displayed.

1. Repeat steps 1 - 4 to continue to delete from the menu.

2. Press RETURN (💡) repeatedly to exit the menu.

Notes:

- When DVD+RW recording, the deleted title's name is changed to [Deleted Title].

- If more than two titles are repeatedly deleted, the titles are combined into one.

- When you are deleting a title or chapter, only the last one on DVD+R/RW increases remaining recording time.

Deleting a Part VR RAM-

You can delete a part which you do not want in the title.

1. Use ◀/▶/▲/▼ to choose a title you want to delete on the Title List menu then press ENTER. The options appears on the left side of the menu.

2. Select [Edit] > [Delete Part] option then press ENTER.

[Edit] menu appears on the TV screen.

Example: Edit (Delete Part) (DVD-VR)

1. Use play, pause step, search and slow-motion to find the starting point.

2. Press ENTER at the starting point of the section you want to delete.

[End Point] icon is highlighted.

The part is indicated on the Progress Bar.

1. Use play, pause step, search and slow-motion to find the ending point.

2. Press ENTER at the ending point of the section you want to delete.

You can cancel the selected point, use ▲ / ▼ to select [Cancel] icon then press ENTER.

1. If you finish to edit, select [Done] icon then press ENTER.

The confirm message for deleting will appear.

Use ◀ / ▶ to select [OK] then press ENTER.

The selected part is deleted from the title and Title List menu appears.

Notes:

- It may not be possible to delete parts that are less than 3 seconds long.

- If you select [Cancel] then press ENTER, the Recorder will go to previous option and into Pause mode.

Naming a Title

You can name the titles.

1. Choose the title you want to name on the Title List menu, then press ENTER. The menu options appears on the left side of the menu.

2. Use ▲/▼ to select [Edit] > [Title Name] option then press ENTER. Keyboard menu appears.

1. Enter a name for the title. Use ◀ / ▶ / ▲ / ▼ to select a character then press ENTER to confirm your selection.

• Language: Selects a keyboard type.
- Space: Inserts a space at the cursor position.
- Delete: Deletes the character to the left of the cursor position.
- ◀ / ▶: Moves the cursor left or right.
- OK: Confirms the name you have entered.
- Cancel: Deletes all characters and exits the Keyboard menu.

Remote Control buttons for entering a name

• PLAY ( ▶): Inserts a space at the cursor position.
• PAUSE/STEP (II): Deletes the character to the right of the cursor position.
• SKIP (I◄◄ / ►►I): Moves the cursor left or right.
• STOP (■), CLEAR: Deletes the character to the left of the cursor position.

• 0-9: Enters the character corresponding to the selected column.
  • DISC MENU/LIST, DISPLAY: Switches the keyboard type.

• Choose [OK] then press ENTER to fix the name and return to the previous menu screen.

• Press RETURN (○) repeatedly to exit the menu.

Notes:

• Names can be up to 32 characters long.
• For discs formatted on a different recorder, you will see only a limited character set.
• When recording on DVD-R, DVD-RW or DVD+R discs, the entered name is displayed on the DVD player only after finalization.

Time Search

You can select start point of the title.

1. Use ◀ / ▶ / ▲ / ▼ to choose a title on the TITLE LIST menu then press ENTER. The options appear on the left side of the menu.
2. Select [Search] > [Time] option then press ENTER. [Time] menu appears on the TV screen.

1. Use ◀ / ▶ to find the point you want to start. The point increase 1 minute step. If you press and hold ◀ / ▶ then the point increase 5 minute step.
2. Press ENTER to start selected point.

Moving a Playlist Chapter

VR RAM-

Use this function to re-arrange the playing order of Playlist chapters on the Chapter List-Playlist menu.

Note:

This function is not available if there is only one chapter.

1. Select a chapter on the Chapter List-Playlist menu.
2. Press ENTER.
   The menu options appears on the left side of the menu.
3. Use ▲ / ▼ to select [Move] option from Playlist options then press ENTER.

1. Use ◀ / ▶ / ▲ / ▼ to choose the place you want to move the chapter then press ENTER. After pressing ENTER, the updated menu is displayed.

Hide a Chapter/Title

+R+

You can skip playing chapters or titles without deleting from the disc.

1. Use ▲▼◀▶ to choose a chapter or title you want to hide on the [TITLE LIST] or [Chapter List] menu, then press ENTER.
   Options appear on the left side of the screen.

2. Select [Edit] > [Hide] option.

Example: Title List (DVD+RW)

1. Press ENTER to confirm.

The chapter's or title's thumbnail will dim.

Tip:

If you select a hidden chapter or title on the TITLE LIST or Chapter List menu, you can 'show' it by choosing [Show] option on the menu. After doing that, you are able to see the chapter or title.

Protect a Title

+R+F W VR RAM-

Use this function to protect against accidental recording, editing or deleting of the title.

1. Press DISC MENU/LIST to display the [TITLE LIST] menu.

2. Use ▲▼◀▶ to choose a title you want to protect then press ENTER.
   Options appear on the left side of the screen.

3. Select [Protect] from the options.

Example: Title List (DVD-VR)

1. Press ENTER to confirm.

The lock mark will appears on the title's thumbnail.

Tip:

If you select a title that has already been protected on the Title List menu, you can ‘unprotect’ it by choosing [Unprotect] option from the Title List menu options. After doing that, you can edit and delete the title.

Divide One Title Into Two

+RW

Use this command to split a title up into two new titles.

1. On the Title List menu, select a title you want to divide then press ENTER. The menu options appears on the left side of the screen.

2. Select [Edit] > [Divide] option. Example: Title List (DVD+RW)

1. Press ENTER. [Edit (Divide)] menu appears.

1. Use play, pause step, search and slow-motion to find the point you want to divide the title.

2. Select [Divide] option then press ENTER at the point. To reset the point, select [Cancel] option then press ENTER. Repeat from step 4.

3. Choose [Done] option then press ENTER to fix the dividing point. The title is divided into two new titles. It take up to 4 minutes to divide.

Note:

The diving point may not be selected if the point is less than 3 seconds long.

Combining Two Chapters Into One VR RAM+

Use this function to combine two adjacent chapters into one.

1. On the Chapter List menu, select the second chapter of the two chapters you want to combine then press ENTER. The menu options appears on the left side of the screen.

2. Use ▲ / ▼ to select [Combine] option. The combine indicator appears between the two chapters you want to combine.

Example: Title List (DVD-VR)

1. Press ENTER to combine the chapters.
2. Repeat steps 1 - 3 to continue to combine from the menu.
3. Press RETURN (○) repeatedly to exit the menu.

Notes:

This function cannot operate listed as below;

• If there is only one chapter within the title.
• If you select first chapter.
- If two chapters created by erasing a part from an original title.
- If two chapters created from different titles.
- If two chapters created by moving an order from an original title.

Overwriting Recording +RW

To overwrite a new video recording on a previously recorded title, follow these steps. This feature is not available for DVD+Rs, that always record at the end of the Disc.

1. Select input source you want to record (TV channel, AV1-2).

2. Press DISC MENU/LIST to display the TITLE LIST menu.

1. Use ▲▼◀▶ to choose a title you want to overwrite.

2. Press ● REC to start overwrite recording. Overwrite recording starts from the start point of the title.

3. Press STOP (■) to stop the overwrite recording. The new title is created and updated menu is displayed.

Notes:

• This function is not available for a protected title.

- If the overwrite is longer than the recording length of the current title, the next title is overwritten. But if next title is protected, the over-writing stops at the starting point of the title.

- If the selected title's recording length is less than 10 seconds, the next title is overwritten. But if the next title is protected, overwriting stops.

Viewing Title List menu displayed on other DVD Recorders or Players

+R+

You can view the Title List menu displayed on the other DVD player that is capable of playing DVD+RW or DVD+R discs.

1. Insert DVD+R or DVD+RW disc recorded already.

2. On DVD mode, press TITLE in Play mode or Stop mode.

Title List menu will appear as shown below.

1. To play back a title, select the title you want then press ENTER or PLAY (▶).

Tip:

You can remove the Title List menu by pressing STOP (■).

Playing Your Recordings on Other DVD Players (Finalizing a Disc)

Most regular DVD players can play finalized discs recorded in Video mode, finalized DVD+R or DVD+RWs. A small number of players can also play DVD-RW discs recorded in VR mode, finalized or not. Check the manual that came with the other player to check what formats of discs it will play.

Finalizing 'fixes' the recordings and editings in place so that the disc can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.

Finalizing a Video mode disc creates a menu screen for navigating the disc. The menu can be accessed by pressing DISC MENU/LIST or TITLE.

To finalize a disc, refer to [Finalize] on page 21.

Notes:

- Unfinalized DVD+RW is playable on regular DVD players.

- The edited contents of a DVD+RW disc is compatible on regular DVD players only after finalization.

- Any edited contents of the DVD+R disc are not compatible on regular DVD players. (Hide, chapter combine, added chapter mark, etc.)

- How long finalization takes depends on the type of disc, how much is recorded on the disc, and the number of titles on the disc.

Reference

Language Code List

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Language	Code	Language	Code	Language	Code	Language	Code
Abkhazian	6566	Fiji	7074	Lingala	7678	Singhalese	8373
Afar 6565		Finnish	7073	Lithuanian	7684	Slovak 8375
Afrikaans	6570	French	7082	Macedonian	7775	Slovenian	8376
Albanian	8381	Frisian 7089		Malagasy	7771	Somali	8379
Ameharic	6577	Galician	7176	Malay	7783	Spanish	6983
Arabic	6582	Georgian	7565	Malayalam	7776	Sudanese	8385
Armenian	7289	German	6869	Maltese	7784	Swahili	8387
Assamese	6583	Greek	6976	Maori	7773	Swedish	8386
Aymara	6588	Greenlandic	7576	Marathi	7782	Tagalog	8476
Azerbaijani	6590	Guarani	7178	Moldavian	7779	Tajik 8471
Bashkir	6665	Gujarati	7185	Mongolian	7778	Tamil 8465
Basque	6985	Hausa	7265	Nauru	7865	Tatar 8484
Bengali; Bangla	6678	Hebrew	7387	Nepali	7869	Telugu	8469
Bhutani	6890	Hindi	7273	Norwegian	7879	Thai	8472
Bihari	6672	Hungarian	7285	Oriya	7982	Tibetan 6679
Breton	6682	Icelandic 7383		Panjabi	8065	Tigrinya	8473
Bulgarian	6671	Indonesian	7378	Pashto, Pushto	8083	Tonga	8479
Burmese	7789	Interlingua	7365	Persian	7065	Turkish	8482
Byelorussian	6669	Irish	7165	Polish	8076	Turkmen	8475
Cambodian	7577	Italian	7384	Portuguese	8084	Twi	8487
Catalan	6765	Japanese	7465	Quechua	8185	Ukrainian	8575
Chinese 9072		Javanese	7487	Rhaeto-Romance	8277	Urdu	8582
Corsican 6779		Kannada	7578	Rumanian	8279	Uzbek	8590
Croatian	7282	Kashmiri	7583	Russian	8285	Vietnamese	8673
Czech	6783	Kazakh	7575	Samoan	8377	Volapük	8679
Danish	6865	Kirghiz	7589	Sanskrit	8365	Welsh	6789
Dutch 7876		Korean	7579	Scots Gaelic	7168	Wolof	8779
English 6978		Kurdish	7585	Serbian	8382	Xhosa	8872
Esperanto	6979	Laothian	7679	Serbo-Croatian	8372	Yiddish	7473
Estonian	6984	Latin	7665	Shona	8378	Yoruba	8979
Faroese 7079		Latvian, Lettish	7686	Sindhi	8368	Zulu	9085

Area Code List

Choose a area code from this list.

Area Code		Area Code		Area Code		Area Code
Afghanistan AF		Ethiopia ET		Malaysia	MY	Saudi Arabia	SA
Argentina AR		Fiji	FJ	Maldives	MV	Senegal	SN
Australia AU		Finland FI		Mexico MX		Singapore SG
Austria AT		France FR		Monaco	MC	Slovak Republic	SK
Belgium BE		Germany	DE	Mongolia	MN	Slovenia	SI
Bhutan BT		Great Britain	GB	Morocco MA		South Africa	ZA
Bolivia BO		Greece	GR	Nepal NP		South Korea	KR
Brazil BR		Greenland	GL	Netherlands	NL	Spain ES
Cambodia KH		Heard and McDonald Islands	HM	Netherlands Antilles	AN	Sri Lanka	LK
Canada CA		Hong Kong	HK	New Zealand	NZ	Sweden SE
Chile CL		Hungary	HU	Nigeria NG		Switzerland CH
China CN		India	IN	Norway	NO	Taiwan	TW
Colombia CO		Indonesia	ID	Oman	OM	Thailand	TH
Congo CG		Israel	IL	Pakistan	PK	Turkey TR
Costa Rica CR		Italy	IT	Panama	PA	Uganda UG
Croatia HR		Jamaica	JM	Paraguay PY		Ukraine	UA
Czech Republic	CZ	Japan JP		Philippines	PH	United States	US
Denmark	DK	Kenya KE		Poland PL		Uruguay	UY
Ecuador	EC	Kuwait KW		Portugal	PT	Uzbekistan UZ
Egypt	EG	Libya	LY	Romania	RO	Vietnam	VN
El Salvador	SV	Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
Abnormal or no picture.	The TV is not set to receive Recorder signal output.	Select the appropriate video input mode on the TV so the picture from the Recorder appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	Unit output setting and TV resolution capabilities mismatch.	Check TV capability.Check mode of connections (eg. S-Video, Components etc.).Check unit Resolution setting according to TV capability and mode of connection.
	Wrong connection.	Check the connection.
No sound.	The equipment connected with the audio cable is not set to receive Recorder signal output.	Select the correct input mode of the audio receiver so you can listen to the sound from the Recorder.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The AUDIO options are set to the wrong position.	Set the AUDIO options to the correct position.
	In HDMI mode, audio selection is not set to PCM.	Change AUDIO setup to PCM mode.
The playback picture is poor.	The disc is dirty.	Clean the disc.
	The TV channels are not tuned in properly.	Check tuning, carry out tuning again.
	Tape heads are dirty.	Clean video heads.
	Tape is a rental or was recorded on another VCR.	Use CH (▲▼) for manual tracking adjustment while tape is playing.
Picture from external input is distorted.	The video signal from the external component is copy-protected.	You cannot connect via the Recorder. Connect the component directly to your TV.
Some channels are skipped over when using CH (+/-).	The skipped channels were deleted with the Channel Edit option.	Use the [Channel Edit] option to restore channels. See page 16.
The Recorder does not start playback.	No disc is inserted.No tape is inserted.	Insert a disc or tape. (Check that the disc or tape indicator in the display window is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	The Rating level is set.	Cancel the Rating function or change the rating level.
Video tape cannot be inserted.	A cassette tape was inside already.	Eject the tape first and then insert the tape you want to use.
The Remote Control does not work properly.	There is an obstacle in the path of the Remote Control and this unit.	Remove the obstacle.
	The batteries in the Remote Control are exhausted.	Replace the batteries with new ones.
	The Remote Control is not pointed at the remote sensor of the Recorder.	Point the Remote Control at the remote sensor of the Recorder.
	The Remote Control is too far from the Recorder.	Operate the Remote Control within 23ft (7m).
	This Remote Control use the same buttons for VCR and DVD functions (ex.PLAY).	When using a VCR, first press the VCR button. When using a DVD, first press the DVD button.
	The current remote control code dose not match the unit.	Identify the remote control code with the code of unit (See page 24).
Camcorder image is not shown.	Camcorder is off.	Turn camcorder on and operate properly.
Camcorder image via A/V input or DV IN to Recorder is not shown on TV screen.	The recorder's source is incorrect.	Use AUX to select input channel (AV1, AV2 or DV IN).
Timer recording is not possible.	Clock in record is not set to correct time.	Set clock to correct time.
	Timer has been programmed incorrectly.	Reprogram Timer.
	TIMER Record) indicator light does not appear after programming timer.	Reprogram Timer and turn the Recorder off to enable timer.
Picture or sound of broadcasting channel is weak or missing.	Antenna or cables are loose.	Tighten connections or replace cable.
	Wrong Tuning Band is selected in the Recorder Setup menu.	Try [Auto Channel Set] options; see page 16 for details.
Can't play disc recorded on this Recorder on another DVD player.	The disc was recorded in Video mode.	Finalize the disc; see page 21.
	Some players will not play even a finalized disc recorded in Video mode.	No solution.
	The disc was recorded in VR mode.	The other player must be RW compatible in order to play it.
	Discs recorded with copy-once material cannot be played on other players.	No solution.
Cannot record or did not record successfully.	The remaining blank space on the disc is insufficient.	Use another disc.
	The source you are trying to record is copy-protected.	You cannot record the source.
	When setting the recording channel, the channel is tuned on the TV's own tuner.	Select the channel on the Recorder's built-in TV tuner.
	When recording to a Video mode disc, programs that are copy-once protected cannot be recorded.	Use a VR mode formatted disc for copy-once material.
Stereo Audio Record and/or Playback not present.	TV is not Stereo-compatible.	No solution.
	Broadcast program is not in stereo format.	No solution.
	Recorder A/V Out jacks are not connected to TV A/V In jacks.	Make A/V connections. Stereo is available only via A/V output from Recorder.
	Recorder Audio/Video Out is not selected for viewing at the TV.	Select AUX or A/V source as TV input.
	Recorder's TV audio channel is set to SAP or MONO.	Set TV audio channel mode to Stereo using AUDIO button.

Resetting the Recorder

If you observe any of the following symptoms...

• When the Recorder is plugged in, but the power will not turn on or off.
• When the display window is not working.
• When the Recorder does not operate normally.

You can reset the Recorder as follows:

• Press and hold the STANDBY/ON button for more than five seconds. This will force the Recorder to power off. Press the STANDBY/ON button again to turn the Recorder back on.
• Unplug the power cord and then plug the power cord again after more than five seconds.

Specifications

General

Power requirements AC 120V, 60 Hz

Power consumption 23W

Dimensions (approx.) 430 X 80 X 260 mm (16.9 x 3.1 x 10.2 inches) (w x h x d)

Net Weight (approx.) 4.25 kg (9.3 lbs)

Operating temperature 5^ C to 35^ C ( 41^ F to 95^ F)

Operating humidity 5 % to 90 %

Signal system NTSC, DTV standard ATSC or Clear QAM over cable

Recording

Recording format DVD VideoRecording, DVD-VIDEO

Recordable discs DVD+/-Recordable; DVD+/-Rewritable, DVD-Random Access Memory

Recordable time DVD; Approx. 1 hour (XP mode), 2 hours (SP mode),

4 hours (LP mode), 6 hours (EP mode)

VCR; SP: 2 hours (T-120), SLP: 6 hours (T-120)/8 hours (T-160)

Video recording format

Sampling frequency 27MHz

Compression format MPEG 2 (VBR support)

Audio recording format

Sampling frequency 48kHz

Compression format Dolby Digital

VCR Specifications

Head system Four head helical scan azimuth system

Timer 12-hour display type with AM, PM

Tape speed SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec

Tape width 12.7 mm

Rewind time About 180 seconds (T-120)

Antenna 75 ohms (VHF/UHF)

VHF output signal Channel 3 or 4 (Switchable)

Channel coverage Analog (VHF: 2-13, UHF: 14-69, CATV: 1-135)

Digital (Terrestrial: 2-69, Cable: 1-135)

Frequency range 20Hz to 20kHz

Signal-to-noise ratio 43dB

Dynamic range 88 dB

Channel separation 60 dB

DVD Specifications

Laser system Semiconductor laser, wavelength 650 nm

Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz

Signal-to-noise ratio More than 95dB

Harmonic distortion Less than 0.008%

Dynamic range More than 90 dB

Inputs

ANTENNA IN Antenna or CATV input, 75 ohms

VIDEO IN (AV1,2) 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2

AUDIO IN (AV1,2) - 6.0 dBm more than 47 kohms, RCA jack (L, R) x 2

DV IN 4 pin (IEEE 1394 standard)

Outputs

VIDEO OUTPUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1

S-VIDEO OUTPUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

(C) 0.286 V (p-p) 75 Ω

COMPONENT OUTPUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1

(PB)/(PR) 0.7 V (p-p), 75 Ω, RCA jack x 2

HDMI video/audio output 19 pin (HDMI standard, Type A)

Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (optical audio) Optical connector x 1

Audio output (analog audio) 1 kHz, -6 dBm, 600 Ω, RCA jack (L, R) x 2

ANTENNA OUT Channel 3 or 4 (Switchable)

Accessory:

Video cable ....1 Audio cable (L, R) ....1

RF 75-ohm Coaxial Cable ....1 Remote Control ....1

Batteries 2

Design and specifications are subject to change without notice.

WARRANTY (Only in U.S.A.)

JVC®

LIMITED WARRANTY

ONLY FOR PRODUCT PURCHASED IN U.S.A.

USA ONLY

CONSUMER VIDEO 1-90

JVC COMPANY OF AMERICA (JVC) warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL RETAIL PURCHASER to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original purchase for the period shown below. ("The Warranty Period")

PARTS1 YR

LABOR90 DAYS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN THE COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective within the warranty period, JVC will repair or replace defective parts with new or rebuilt equivalents at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products may be brought to a JVC authorized service center on a carry-in basis. Color televisions with a screen size of 27" or greater qualify for in-home service. In such cases, a technician will come to your home and either repair the TV there or remove and return it if it cannot be repaired in your home.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Please do not return your product to the retailer

Instead, return your product to the JVC authorized service center nearest you. If shipping the product to the service center, please be sure to package it carefully, preferably in the original packaging, and include a brief description of the problem(s). Please call 1-800-252-5722 to locate the nearest JVC authorized service center. Service locations can also be obtained from our website http://www.jvc.com. If your product qualifies for in-home service, the service representative will require clear access to the product.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department at 800-252-5722

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation, installation and removal from cabinets or mounting systems.

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. User Removal Memory Devices/Video Pick-up Tubes/CCD Image Sensors are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
9. Products used for commercial purposes, including, but not limited to rental.
10. Loss of data resultant from malfunction of hard drive or other data storage device.

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR ANY LOSS OF USE OF THE PRODUCT, INCONVIENCE, OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

http://www.jvc.com

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAIL OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.:

Purchase date :

Serial No.:

Name of dealer :

TO OUR VALUED CUSTOMER

THANK YOU FOR PURCHASING THIS JVC PRODUCT.

WE WANT TO HELP YOU ACHIEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO HOOK UP? NEED ASSISTANCE ON HOW TO OPERATE? NEED TO LOCATE A JVC SERVICE CENTER? LIKE TO PURCHASE ACCESSORIES?

JVC® IS HERE TO HELP!

TOLL FREE: 1(800)252-5722 http://www.jvc.com

Remember to retain your Bill of Sale for Warranty Service.

Do not attempt to service the product yourself

Caution

To prevent electrical shock, do not open the cabinet.

There are no user serviceable parts inside.

Please refer to qualified service personnel for repairs.

BT-51005-9 (0904)

JVC
