Product Type	DVD Player
Brand	JVC
Model	SR-DVM600
Disc Compatibility	DVD, DVD-R/RW, CD, CD-R/RW, VCD, SVCD
Video Output	Composite, S-Video, Component (YUV)
Audio Output	Stereo Audio Out, Digital Audio Out (Optical)
Analog Audio Output	2-channel (L/R)
Digital Audio Output	Optical (TOSLINK)
Video Resolution	Up to 576p (PAL) / 480p (NTSC)
Dimensions (W x H x D)	435 mm x 58 mm x 275 mm
Weight	Approx. 3.0 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	15 W (operating), 0.5 W (standby)
Remote Control	Included (IR)
Disc Loading	Tray
Playback Features	Play, Pause, Stop, Forward/Reverse, Slow Motion, Zoom
Audio Decoding	Dolby Digital, DTS (pass-through)
Parental Control	Yes, via setup menu
Cleaning Instructions	Wipe exterior with soft dry cloth; clean disc with lens cleaner
Safety Features	Auto power off after idle, overheating protection
Reparability	Spare parts available; repair by qualified technician

Frequently Asked Questions - SR-DVM600 JVC

How do I connect the JVC SR-DVM600 to my TV?

Use the composite video (yellow), S-Video, or component video (red/green/blue) outputs. Connect the corresponding audio outputs (white and red) to your TV or receiver.

What disc formats does the SR-DVM600 support?

It plays DVD, DVD-R/RW, CD, CD-R/RW, VCD, and SVCD.

How do I clean the lens of my DVD player?

Use a CD lens cleaner disc. Do not use any liquid or spray directly on the lens.

Why is my player not reading a disc?

Check if the disc is scratched or dirty. Try cleaning the disc with a soft cloth. Also ensure the disc type is supported and inserted correctly (label side up).

How do I set the parental control?

Go to the setup menu via the remote. Select 'Parental Control' and enter a 4-digit password. Then set the desired rating level.

Can I play DVDs from a different region?

The SR-DVM600 is likely region-locked to the region it was sold in. Region codes cannot be changed via user settings; it requires a hardware modification.

What should I do if the remote control stops working?

Replace the batteries (usually AAA). Ensure no obstacles between remote and player. Try resetting the device by unplugging it for 30 seconds.

How do I enable digital audio output?

Connect an optical cable to the digital audio output. In the setup menu, set 'Digital Audio Output' to Bitstream or PCM depending on your sound system.

Is it safe to leave the player plugged in all the time?

The player has a standby mode with low power consumption. However, for safety and to avoid power surges, unplug it when not in use for extended periods.

Where can I find a replacement remote or spare parts?

Contact JVC support or authorized service centers. Generic universal remotes may also work. Search online for model-specific parts.

USER MANUAL SR-DVM600 JVC

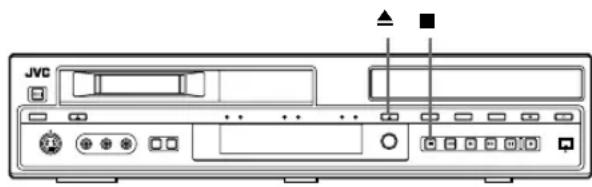

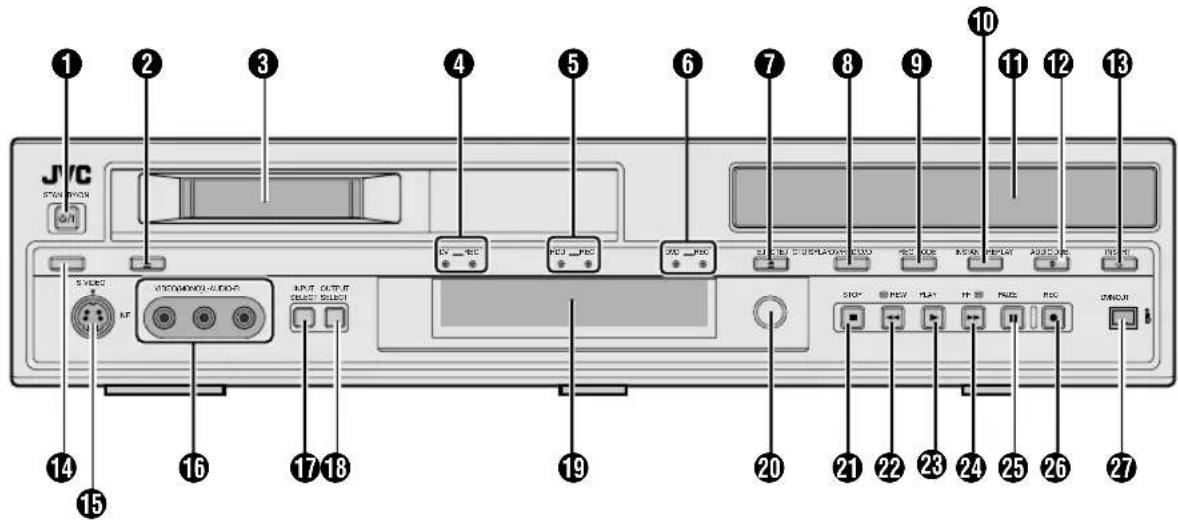

Front view of a JVC audio workstation (no visible text or labels beyond branding)

VIDEO RAM/RW

DIGITAL OUT

SUPER VIDEO

Mini

NTSC

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No.

Serial No.

Dear Customer,

Thank you for purchasing the JVC Mini DV & HDD & DVD video recorder. Before use, please read the safety information and precautions to ensure safe use of your new unit.

Cautions

CAUTION

RISKOFELECTRICSHOCK DONOTOPEN

AVIS

RISQUEDECHOCELECTRIQUE -NEPASOUVRIR.

This Class B digital apparatus complies with

Canadian ICES-003.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

A UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT

REPRODUCTION OF LABELS

WARNING LABEL INSIDE OF THE UNIT

CAUTIONVEELE AND/ORINVEELE CLASSIM LASERRADATION WHENOPEN, DO NOTSTARE INTO BEAMOR VIEW DIRECTLYWITH OPTICALINSTRUMENTS.

ATTENTIONPAYONNEMENT LASERVEELE ET/OUINVEELE DE CLASIME UNE FOB OUVERT,NE PAS FINGER LESFASCEAU IN REGARDORDIRECTEMENT AVEC DESINSTRUMENTS OPTIQUES.

ADVARSELSYNULG O/G/ELLERSYNDUL KLASLIM-LASERSTRAELINGVED ABNING, SEKKE IND I1STRAELLE GELLERSKKE MED OPTISKINESTRUMENTER.

ADVARSELSYNULG O/G/ELLERSYNDULKLASLISERSTRAELINGKLASSE 1 M NARDEKSEL APNES,KIKE STRIP INNS1STRAELLE ELLERSSE DIREKTE MEDOPTISKINESTRUMENTER.

VARO!AKTIASSA OLETALTINA NAYVAALLEJATNAKNATTOMALLELUOKAN IX.LUSERATEXILALA FATSO SUDRAANTASFEREEEN TARRAKESTELE SITAOPTEN EN LAITEEN LAPL.

VARNINGSYNULG O/C/ELLERSYNDULKASLERSTRAELINGKLASSE 1M, NAR DENNADEL AR OPPOAD,STRAFA EU IN ISTRALENEX BETRAFA EUSTRALEN MED OPTIKAINSTRUMENT.LP1205-400A

OR

CAUTIONCLASS 1M LASERRADIATION WHENOPEN, DO NOT VIEWDIRECTLY WITHOPTICAL INSTRUMENTS.	ATTENTIONEMET UNRAYONNEMENTLASER DE CLASSE1M LORQUE OUVERT,NÉ PAS REGARDORDIRECTENTEN A TRAVERS DESINSTRUMENTS D' OPTIQUES.	ADVARSELKLASSE1M-LASERSTRALINGNAR APMET, KRIS SE DIRECTE N° 1 OPTIKENISTRUMENTER.	ADVARSELKLASSE 1MLASERSTRALING N°AR APPARATET APINES,NÍK KRIS DIRECTE PASTRALEN MED OPTIKENISTRUMENTER.	VARO!LUOKAN 1MLASERSATELYLANTIEN SBALLÁALA, KATSCATESSEENSUCHMAN OPTILLANUTILLA.	VARNINGKLASSTIALLASERSTRALINGMETHNICHEVER,NTITAVELTRIPPO PARAPARETH OPTINAINSTRUMENT.
CAUTIONLASER RADIATIONWHEN OPEN, DO NOTSTARE INTO BEAM IEN.	(FR)	(N)	(D)	(F)	(N)UNIVERSIDAD

This unit apply to the standard "IEC60825-1:2001" for laser products.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This unit should be used with AC 120V\~, 60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

Changes or modifications not approved by JVC could void user's authority to operate the equipment.

Declaration of Conformity

Model Number: SR-DVM600U

Trade Name: JVC

Responsible Party: JVC Americas Corp.

Address: 1700 Valley Road Wayne, N.J. 07470

Telephone Number: 973-317-5000

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT PRODUCT SAFETY INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions. For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A)Your product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B)Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

- Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

- Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

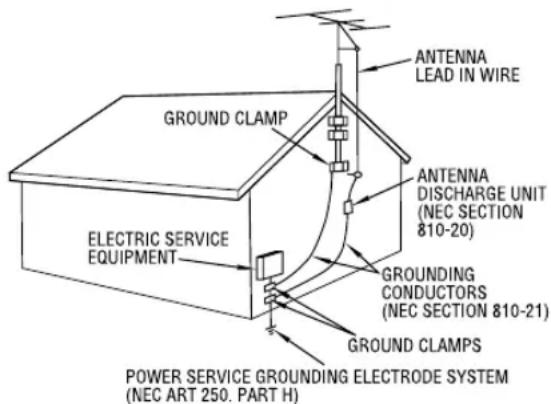

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

NEC - NATIONAL ELECTRICAL CODE

USE

1. Accessories

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.
• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
• Use a mounting accessory recommended by the manufacturer and follow the manufacturer's instructions for any mounting of the product.
• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

PORTABLE CART WARNING (Symbol provided by RETAC)

3. Water and Moisture

Do not use this product near water—for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool an

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance—this indicates a need for service.

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

4. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating condition.

HOW TO USE THIS INSTRUCTION MANUAL

• All major sections and subsections are listed in the Table Of Contents on page 6. Use this when searching for information on a specific procedure or feature.
• The Index on pages 12 – 15 illustrates the controls and connections on the front and rear panel, the front display panel and the remote control.
• The list of terms on page 71 lists frequently-used terms, and the number of the page on which they are used or explained in the manual.
• The mark signals a reference to another page for instructions or related information.
• Operation buttons necessary for the various procedures are clearly indicated through the use of illustrations at the beginning of each major section.

BEFORE YOU INSTALL YOUR NEW UNIT ...

... please read the sections/literature listed below.

• "Cautions" on page 2
• "IMPORTANT PRODUCT SAFETY INSTRUCTIONS" on pages 3 – 4

MiniDV NTSC

• Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
• "DTS" and "DTS DIGITAL OUT" are trademarks of Digital Theater Systems, Inc.
• This unit can play back and record only NTSC signals. PAL signals can also be played back on the DVD deck.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

When the equipment is installed in a cabinet or a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

Failure to heed the following precautions may result in damage to the unit, remote control or disc/cassette.

1. DO NOT place the unit —

—in an environment prone to extreme temperatures or humidity.
—in direct sunlight.
—in a dusty environment.
—in an environment where strong magnetic fields are generated.
—on a surface that is unstable or subject to vibration.

1. DO NOT block the unit's ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

1. DO NOT place heavy objects on the unit or remote control.

2. DO NOT place anything which might spill on top of the unit or remote control.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

1. DO NOT expose the apparatus to dripping or splashing.
2. DO NOT use this equipment in a bathroom or places with water. Also DO NOT place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this unit.
3. DO NOT place any naked flame sources, such as lighted candles, on the apparatus.
4. AVOID violent shocks to the unit during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the unit when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form on the surface of a glass filled with cold liquid. In conditions where condensation may occur, disconnect the unit's power plug from the wall and keep it disconnected for a few hours to let the moisture dry, then turn on the unit.

DISCLAIMER OF LIABILITY

JVC shall not be liable for any loss relating to the unit's failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.

ATTENTION:

■ Using a mobile phone in the vicinity of the unit may cause picture vibration on the TV screen or change the screen to a black back display.
■Some TVs or other appliances generate strong magnetic fields. Do not place such appliances on top of the unit as it may cause picture disturbance.
When moving the product, press ⏻/I to turn off the power, and wait at least 30 seconds before unplugging the power cord. Then, wait at least 2 minutes before moving the product.
■If there is a power outage when using the unit, the recorded data may be erased.
It is recommended to back up discs which contain important recordings periodically (every few years). As digital signals do not deteriorate, failure to play back or record might arise due to the effects of the disc aging through the years depending on the storage environment.
■Recorded programs and data cannot be restored once the disc or tape is damaged.

SAFETY FIRST 2

DISC INFORMATION 7

About Discs....7

Life Span Of Parts....11

INDEX 12

INSTALLING YOUR NEW UNIT 18

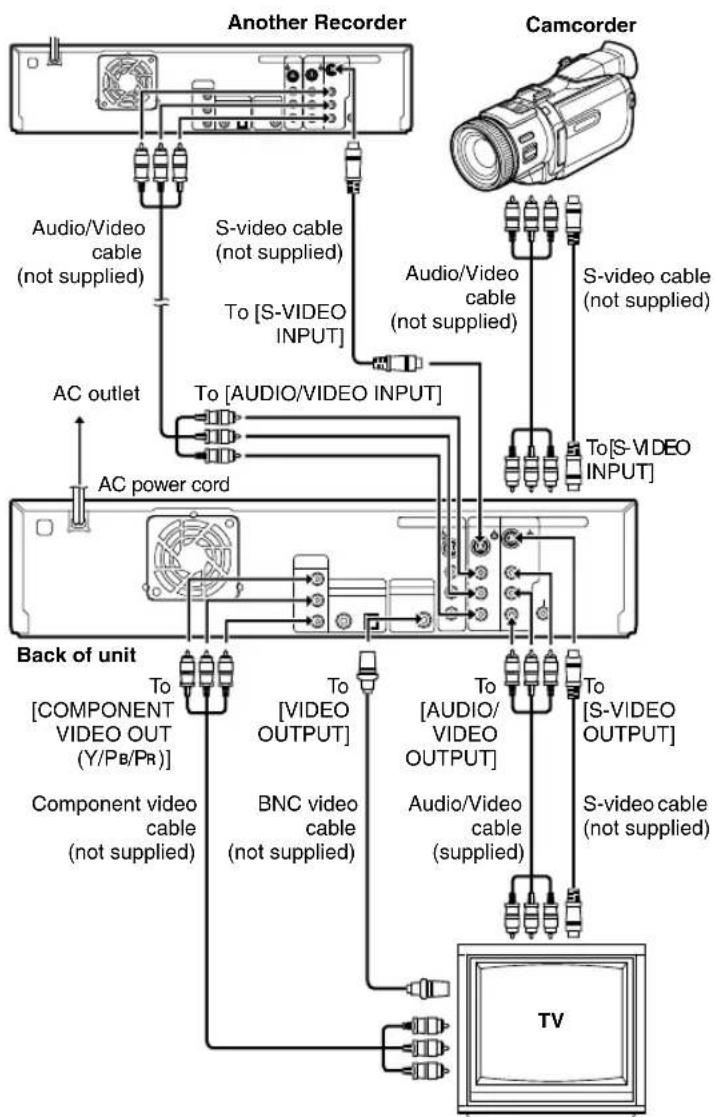

Basic Connections ....18

INITIAL SETTINGS 19

Clock Set....19

Language 20

Monitor Set....21

BASIC OPERATIONS ON DVD DECK 22

Basic Playback....22

Playback Features ....23

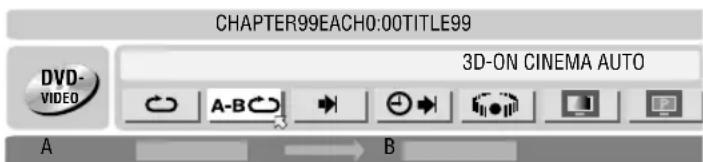

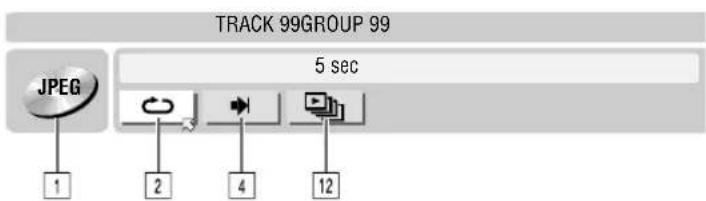

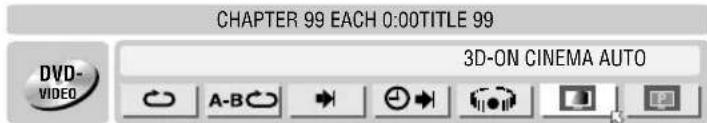

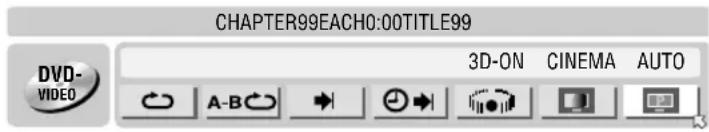

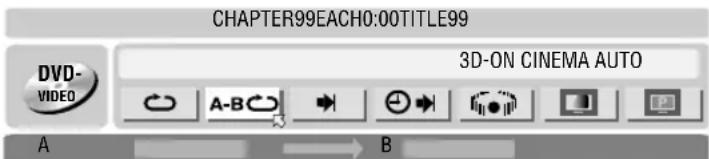

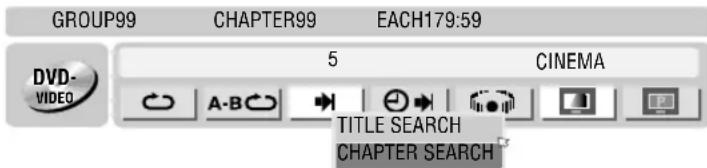

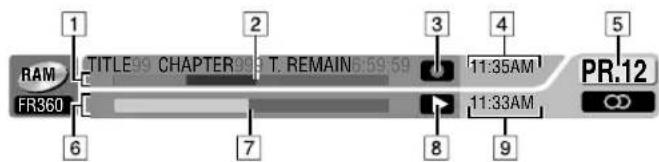

Using The On-screen Bar 27

BASIC OPERATIONS ON HDD DECK 31

Basic Playback....31

Playback Features ....31

BASIC OPERATIONS ON DV DECK 33

Basic Playback....33

Playback Features ....34

Edit Original Information....39

Edit Play List Information ....41

Navigate Library Information....43

Playback With MP3/WMA/JPEG Navigation....44

EDITING 45

Dubbing 45

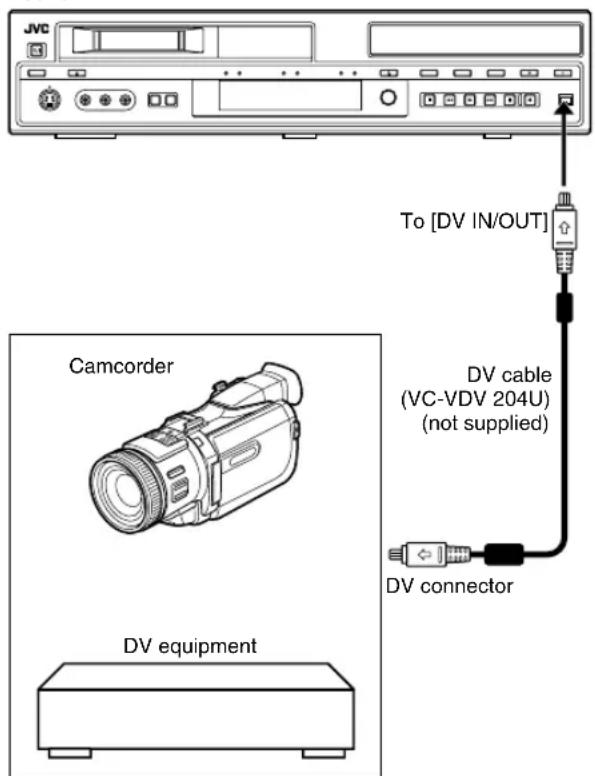

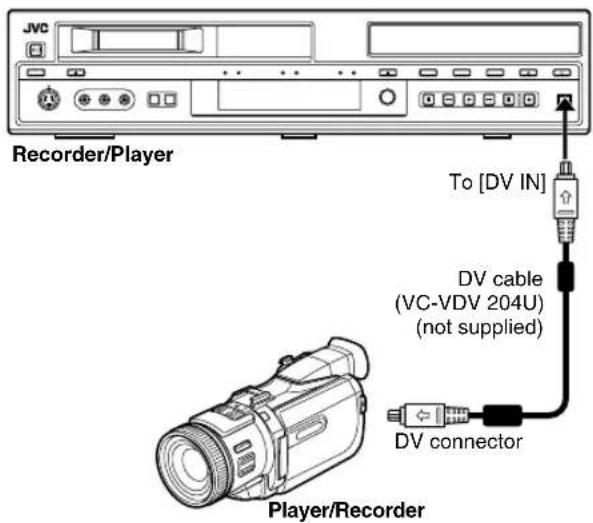

DV Dubbing (HDD & DVD Deck Only) 49

Edit From A Camcorder.... 51

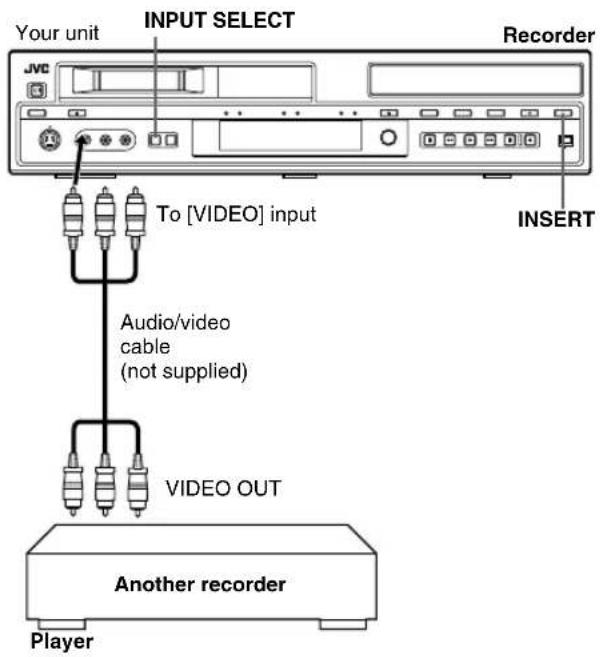

Edit To Or From Another Recorder 52

Digital Audio Dubbing 53

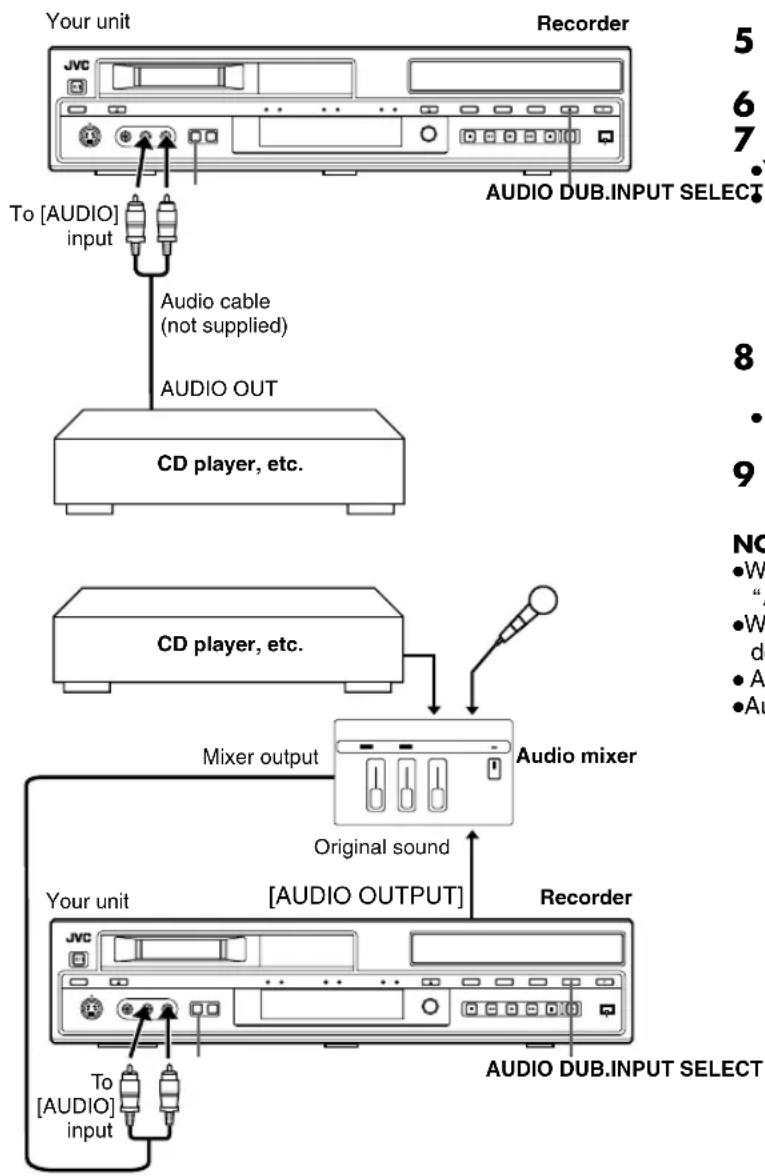

Audio Dubbing (DV Deck Only) 54

Insert Editing (DV Deck Only).... 55

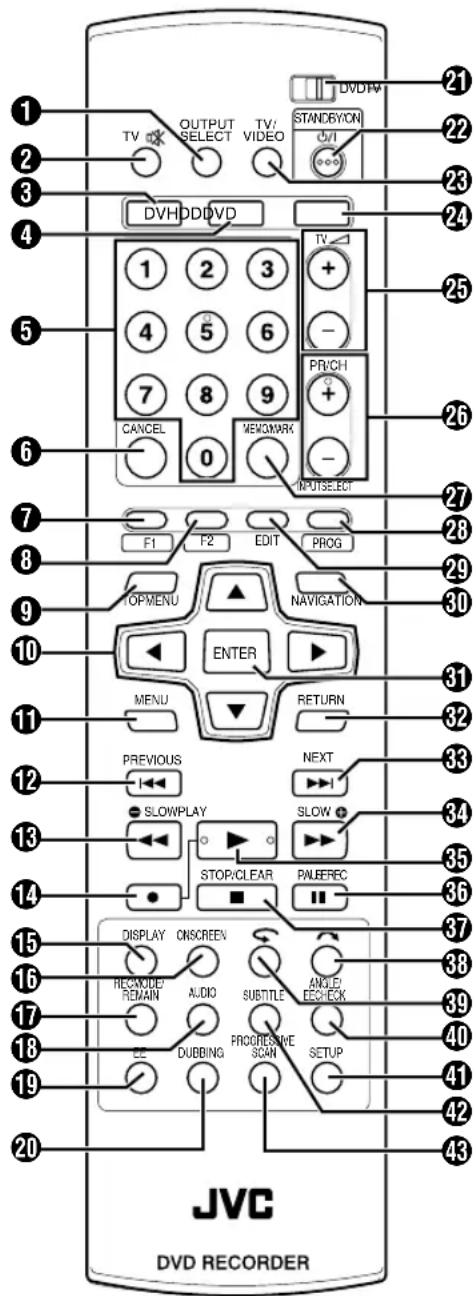

REMOTE CONTROL 56

Remote Control Functions.... 56

SYSTEM CONNECTIONS 57

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS 57

SUBSIDIARY SETTINGS 58

Mode Set 58

Format A Disc (DVD Deck Only) 61

Finalize A Disc (DVD Deck Only) 62

Setting The Background 64

Scan Mode Set (HDD & DVD Deck Only) 65

Tray Lock (DVD Deck Only) 65

Mode Lock 65

Last Function Memory 65

TROUBLESHOOTING 66

APPENDIX 69

SPECIFICATIONS 70

LIST OF TERMS 71

About Discs

Recordable/Playable Discs

You can use discs with the following logos for recording and playback.

DVD-RAM

12 cm: 4.7 GB/9.4 GB

8 cm: 1.4 GB/2.8 GB

Ver. 2.0/2x speed

Ver. 2.1/1x - 3x speed

DVD-RW

12 cm: 4.7 GB/9.4 GB

Ver. 1.1/1x - 2x speed

(Video mode/VR mode)

Ver. 1.2/4x speed

(Video mode/VR mode)

DVD-R

12 cm: 4.7 GB

8 cm: 1.4 GB

Ver. 2.0/1x - 4x/8x speed

(Video mode/VR mode)

Ver. 2.1/16x speed

(Video mode/VR mode)

●The above table is based on the information as of August 2006.
- Recording and playback may not be performed depending on the characteristics and condition of the disc used, leading to unsatisfactory results. Using discs manufactured by JVC is recommended since they have been tested to be compatible with this unit.

DVD-RAM Discs

It is only possible to use discs which conform with DVD-RAM standard Version 2.0 or 2.1.

• It is impossible to record on DVD-RAM discs which do not conform to this standard. If you use a disc formatted under a different standard version, format it on this unit before use.
• It may not be possible to record, play back, edit or dub a DVD-RAM disc even if it conforms to the standard if it was recorded or edited on the devices from other manufacturers or on a PC, or if it has far too many titles, or if there is very little available capacity remaining on the disc.
• DVD-RAM discs recorded on this unit cannot be played back on an incompatible DVD player.
• It is possible to record copy-once programs of digital broadcasts only onto 4.7/9.4 GB DVD-RAM discs (2.8 GB DVD-RAM discs are not compatible).

DVD-R/RW Discs

It is only possible to use DVD-R discs which conform with DVD-R standard Version 2.0.

When a DVD-R/RW disc (Video mode) is finalized (pg. 62), it can be played back on a standard DVD player as a DVD VIDEO disc.

When a DVD-R/RW disc (VR mode) is finalized (pp. 62), it can be played back on a standard DVD player compatible with the VR mode of DVD-R/RW discs.

Before finalizing —

— it is possible to record on unrecorded areas of the disc, edit the disc title and program titles, and delete programs.

• It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalized.
• It is impossible to overwrite recorded areas of DVD-R discs.
  ●Available recording capacity does not increase even if a recorded program is deleted from a DVD-R disc.

After finalizing

After a DVD-R/RW disc (Video mode) has been finalized, it is possible to play back the recorded programs (video and/or audio) on a standard DVD video player as a DVD VIDEO disc.

• Edited titles are displayed as the "DVD menu" in video mode.
• It is impossible to record, edit or delete the data either in video mode or in VR mode.
• Either in video mode or in VR mode, although the disc can be played back on DVD players from other manufacturers, sometimes it may not be possible to play back of recording conditions.
• It is impossible to record on CD-R/RW or DVD-R discs used for authoring.
• It is impossible to record onto DVD-R/RW (Video mode) discs broadcasts that allow you to copy once. The copy once programs can only be recorded onto DVD-R/RW discs formatted in VR mode.

NOTES:

• The following may result if you play back a DVD-R disc recorded on another unit.
  ●The disc does not play.
  ●A mosaic pattern (block noise) appears on the screen.
  ●Video or audio may be dropped out.
  ●The unit stops during playback.
• 6x speed DVD-RW disc cannot be used on this unit.

Discs For Playback Only

You can use discs with the following logos for playback only.

DVD VIDEO Video CD/Super Video CD
(example of region code indications)
Audio CDCD-DA files

• Playback may not be performed depending on the characteristics and condition of the disc used.
• DTS Audio CDs can also be played back (An optional DTS decoder is required).
• MP3 and JPEG discs can be played back on this unit only when they have been recorded in the ISO9660 or Joliet format and finalized.
• JPEG files that can be played back on this unit must conform to JFIF/Baseline process, and the maximum resolution of a JPEG file is 2,812 pixels in width and 2,112 pixels in height.
• CD-R/RW discs recorded in music CD format need to be finalized to play back on this unit.
• Operation and audio quality of this unit are not guaranteed for discs that do not conform to the Compact Disc specification (CD-DA).

Before you play back a CD, check for the CD logo and read the notes on the package to confirm that it conforms to the Compact Disc specification.

• Depending on the intentions of the author of the software, recording conditions of DVD discs and Video CD/SVCD discs may be restricted. Since this unit plays back discs according to the intentions of the author of the software as indicated on the disc, some functions may not operate as commanded.
• When switching from the first layer to the second layer of double-layered DVD VIDEO discs, the image and sound may be momentarily distorted. This is not a malfunction.
• DVD-AUDIO discs compatible with DVD video players can be played.
• Super Audio CDs (SACD) compatible with conventional CD players can be played.
• +R/+RW discs recorded and finalized in Video mode can be played. "DVD" will light on the front display panel.

Unplayable Discs

The following types of discs cannot be played using this unit. Do not attempt to play back any kind of disc that is damaged (cracked, warped, or repaired with adhesive tape) or discs in unusual shapes (heart-shaped, octagonal, or other forms). If such discs are accidentally played back, it may cause noise that can lead to speaker damage.

• CD-ROM discs (including PHOTO-CD and CD-G)
  ●Discs recorded in Packet Write (UDF) format
  ●1.3-GB double density CDs (DDCD)
  ●High density CDs (HDCD)

The following discs also cannot be played back.

• Discs of a region number other than "1"
  •DVD-RAM (2.6 GB/5.2 GB)
  •DVD-RAM (TYPE1)

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Region Number

The world is divided into 6 regions for DVD VIDEO discs.

DVD VIDEO discs are assigned a region number to indicate which region they may be played back in. A disc cannot be played back on this unit unless the region number of the disc matches that of the unit. The region number for this unit is "1". Only discs whose region number includes "1" or "ALL" can be played back such as shown below.

Examples of DVD VIDEO labels which can be played back using this unit.

Marks of discs in this instruction manual

Allows operation with a DVD-RAM disc.

Allows operation with a Video CD/Super Video CD (SVCD) disc.

Allows operation with a DVD-R disc.

Allows operation with an Audio CD disc.

Allows operation with a DVD-RW disc.

Allows operation with a disc including MP3 files.

Allows operation with a DVD VIDEO disc.

Allows operation with a disc including JPEG files.

Recording Medium And Format

DVD-RAM

- Recording and erasing can be performed as many times as possible on a disc.

- Editing can be performed after recording, such as deleting unwanted parts.

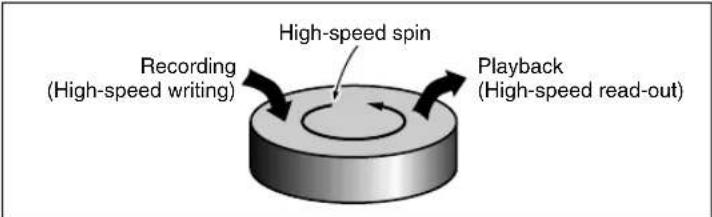

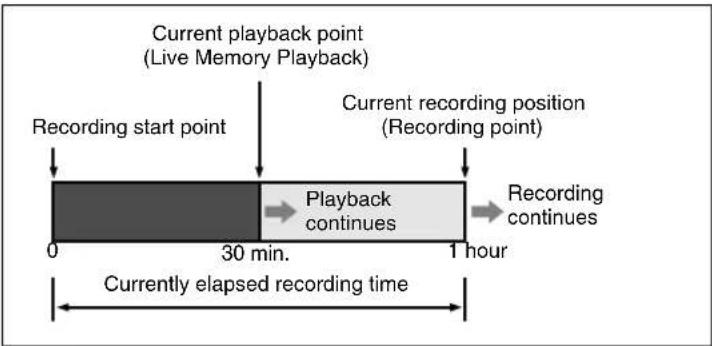

- While recording, it is possible not only to start playback of a program currently being recorded, but also to watch another program previously recorded.

DVD-RW (VR mode)

- Recording and erasing can be performed as many times as possible on a disc.

- Editing can be performed after recording, such as deleting unwanted parts.

- Recording of copy once programs are possible using a CPRM compatible disc.

DVD-RW (Video mode)

- Can be played back on other DVD players.

- New recording can be performed by erasing all the data on a disc once played back.

DVD-R (VR mode)

- Editing can be performed after recording, such as deleting unwanted parts.

- Recording of copy once programs are possible using a CPRM compatible disc.

DVD-R (Video mode)

- Can be played back on other DVD players.

- Suitable when keeping a recorded disc for a long time.

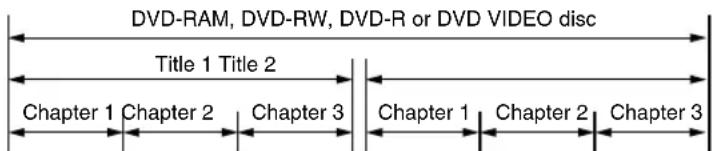

File Structure Of Discs

DVD VIDEO

Typically, DVD VIDEO discs are made up of larger units called "titles". Each title has a number (title number) that can be used to select desired titles. Titles are further divided into units called "chapters". Each chapter has a number (chapter number) that can also be used to select desired chapters. Note that some discs are not divided into titles and chapters.

When you record a program on a DVD-RAM/R/RW (VR mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes from monaural to stereo due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during playback. (pp. 25)

When you record a program on a DVD-R/RW (Video mode) disc

A single recording session results in a single title (a single chapter). However, chapter marks are automatically inserted when recording is paused, or audio changes due to commercial breaks, etc. It is also possible to insert chapter marks at desired locations during either recording or playback. Once the disc has been finalized, these chapter marks are deleted and new chapter marks are assigned automatically approximately every 5 minutes.

- In Video mode, even before finalizing, it is impossible to perform editing operations other than changing the disc name and/or title names and deleting programs and/or titles.

- After finalizing, it is impossible to perform editing operations.

Audio CD/Video CD/SVCD

Typically, Audio CD discs are divided into separate tracks each containing one song. Each track is assigned a number. For example, the third track is Track 3. The same is true for Video CD/SVCD discs.

However, some discs are not divided into tracks.

JPEG/MP3 Disc (CD-R/RW/ROM)

MP3/JPEG files put in directories nested in several levels on a disc will be organized as if they were put in single level directories (groups) by the MP3/JPEG Navigation of this unit. (e- pg. 44)

File structure of a disc before starting the MP3/JPEG Navigation

File structure of the disc after starting the MP3/JPEG Navigation

Files are automatically grouped as follows and displayed on the MP3/JPEG Navigation screen. Data is displayed in the alphabetical order of file name. Files are grouped based on roots.

- This unit can recognize up to 9 hierarchies including directories and files.

Also, it can recognize up to 250 files in each group, and up to 99 groups on a disc.

NOTES:

- Video CD/SVCD discs that support Playback Control (PBC)

The contents of a disc are recorded into several hierarchies, and played back according to the instructions on the screen while navigating through the hierarchies. It is also possible to playback recorded tracks consecutively without activating the PBC function even when playing a PBC-compatible disc. (vss pg. 26)

- Regarding the contents recorded on discs

Some files may not be played back depending on the file types and other factors.

DVD VIDEO Marks

Sometimes marks are printed on a DVD disc and/or on its packaging to indicate information regarding the contents and functions of the disc. Check the marks indicating the contents and functions of the disc. Note, however, that in some cases a disc may not include a mark even for a function it supports.

Marks related to video

	Number of subtitles Num			ngles
	Recorded under the standard 4:3 aspect ratio			Screen includes black bands at the top and the bottom of image which has a standard 4:3 aspect ratio (letter box)
		Video playback is in Wide video mode (16:9) on wide televisions, but in letter box on televisions with standard 4:3 aspect ratio.
		Video playback is in Wide video mode (16:9) on wide televisions, but pan and scan is used on televisions with standard 4:3 aspect ratio (either the left or right side of the image is cut-out).

Marks related to audio

	Number of audio tracks
	Dolby Digital Stereo Creator markDeveloped by Dolby Laboratories. It enables audio recording in high-quality stereo Dolby Digital.
	DTS (Digital Theater Systems)You can enjoy DTS audio if you connect an amplifier with a built-in DTS decoder to the DIGITAL OUT connector of the unit.

Placing A Disc

Opening the disc tray

Press ▲ to open the disc tray.

Front view of a computer control panel with buttons and an upward arrow indicator (no readable text or symbols)

• Pressing the button again closes the disc tray.
• Use the button to open and close the disc tray.
• Do not block the disc tray with your hand while it is opening or closing as this may result in hardware failure.
• Do not place unplayable discs or any object other than a disc on the disc tray.
• Do not press down strongly on the disc tray or place any heavy objects on it.

Discs without cartridges

Illustration of hands using a circular tool on a workbench (no text or symbols)

Disc tray

Place the disc on the disc tray with the label side facing up. Since disc size changes depending on the disc to be played back, be sure to correctly align the disc with the grooves for its size. If the disc is not in its groove, it may be scratched or otherwise damaged. To insert an 8 cm disc, place it according to the inner groove.

DVD-RAM discs contained in cartridges

Double-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the side you wish to play back or record facing down. If you insert the disc with "Side A" facing down, programs are recorded on the side A.

Single-sided discs:

Remove the disc from the cartridge. Align the disc with the grooves on the disc tray as shown in the illustration and insert with the label side facing up.

Care And Handling Of Discs

How to handle discs

When handling a disc, do not touch the surface of the disc. Since discs are made of plastic, they are easily damaged. If a disc gets dirty, dusty, scratched or warped, the images and sound will not be picked up correctly, and such a disc may cause the unit to malt

Two hand-drawn diagrams showing a mechanical device with a knob and base, no text or symbols present.

Label side

Do not damage the label side, stick paper to or use any adhesives on its surface.

Recording side

Make sure that discs are not scratched or dirty on the recording side before use. Scratches and dirt on the recording side of a disc may hinder proper playback and recording. Also be careful that a DVD-RAM disc may get scratched or dirty when removed from cartridge then put back in after use.

Storage

Make sure that discs are kept in their cases. If discs are piled on top of one another without their protective cases, they can be damaged. Do not put discs in a location where they may be exposed to direct sunlight, or in a place where the humidity or temperature is high. Avoid leaving discs in your car!

Maintenance of discs

If there are fingerprints or other dirt adhering to a disc, wipe with a soft dry cloth, moving from the centre outwards. If a disc is difficult to clean, wipe with a cloth moistened with water. Never use record cleaners, petrol, alcohol or any anti-static agents.

CAUTION:

Sometimes during playback, noise may appear or images may be garbled. This is sometimes due to the disc. (It may not be up to industry standards.)

These symptoms are caused by the discs, not by the malfunction of the unit.

Life Span Of Parts

Cooling fan

Periodical inspection and maintenance are requisite to maintain the initial performance and reliability of the product. We recommend the exchange of the fan motor every three years.

HDD

The HDD is a consumable part. Please arrange for maintenance after an estimated usage of 10,000 hours (this estimation is based on usage under the environment of 25°C, it may differ depending on the usage environment). Please consult your authorized dealer or nearest JVC service center on the maintenance and cost.

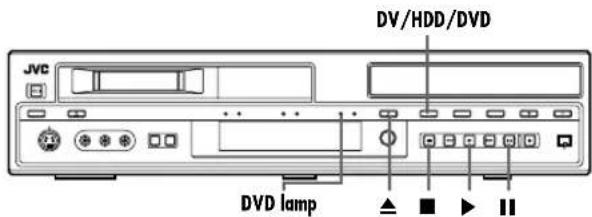

Front View

① STANDBY/ON Button (⏻/l)
② Eject Button (▲) (DV) 📋 pg. 33
③ Mini DV Cassette Loading Slot
④ DV Lamp (DV) pg. 33
DV Recording Lamp (REC)
⑤ HDD Lamp (HDD) 📋 pg. 20 HDD Recording Lamp (REC)
⑥ DVD Lamp (DVD) 📋 pg. 20, 22 DVD Recording Lamp (REC)
⑦ Eject Button (▲) (DVD) pg. 10
⑧ DV/HDD/DVD Select Button (DV/HDD/DVD) pg. 22, 31, 33
- This button will not function during navigation mode or set up mode.
⑨ Recording Mode Button (REC MODE) 📋 pg. 49
⑩ Instant Replay Button (INSTANT REPLAY) 📄 pg. 24, 32, 34
⑪ Disc Tray
⑫ Audio Dubbing Button (AUDIO DUB.) pg. 54
⑬ Insert Button (INSERT) pg. 55
⑭ Display Button (DISPLAY) pg. 25
⑮ S-video Input Connector [S-VIDEO] pg. 51
16 Video/Audio Input Connectors [VIDEO/AUDIO ((MONO) L/R)] 13 pg. 51
⑰ Input Select Button (INPUT SELECT) ▶ pg. 49, 51

18 Output Select Button (OUTPUT SELECT)

- Switches between "ALL" (DV/HDD/DVD output) and "DV" (DV output) when pressed. When "ALL" is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When "DV" is selected, DV signals are output regardless of the deck selected.

ATTENTION:

If "DV" is selected, "DV" and "OUTPUT DV" blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.

19 Front Display Panel pg. 14
⑳ Infrared Beam Receiving Window
②1 Stop Button (■) pg. 22, 31
② Reverse Search Button (◀◀) (HDD & DVD deck) ✉ pg. 23, 36 Rewind Button (◀◀) (DV deck) ✉ pg. 33, 34
②3 Play Button (▶) pg. 22, 31
24 Forward Search Button (▶▶) (HDD & DVD deck) ☑ pg. 23, 36 Fast Forward Button (▶▶) (DV deck) ☑ pg. 33, 34
25 Pause Button (II) pg. 22, 31
26 Record Button (●)
27 DV Input/Output Connector [DV IN/OUT( i_b^* )] pg. 49
- This connector can also be used as a direct connection to NLE (Non-Linear Editing) systems or to a PC for downloading, editing and archiving.
•[DV OUT] is available for DV deck only.
* (i.Link) refers to the IEEE1394-1995 industry specification and extensions thereof. The logo is used for products compliant with the i.Link standard.

Rear View

① AC Power Cord 📋 pg. 18

② Cooling Fan

- This prevents the temperature from rising inside the unit. Do not remove it.

•Install the unit so as not to block the area around the fan.

- The unit may become hot when it is turned off, as the cooling fan on the rear of the unit is not activated. However, the cooling fan may be activated in the standby mode when "QUICK STARTUP" is set to "ON".

③ Component Video Output Connectors [COMPONENT VIDEO OUT (Y/P_B/P_R)] (HDD & DVD deck only) 18 pg. 18

4 S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD deck only)

- These connectors only output DVD/HDD signals and can be used to connect to a second monitor.

⑤ S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) pg. 52

⑥ S-VIDEO/VIDEO/AUDIO OUTPUT Connectors 📋 pg. 18

⑦ Digital Audio Output Connectors [DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD & DVD deck only) ☑ pg. 53, 57

⑧ BNC Video Output Connector [VIDEO OUTPUT] pg. 18

⑨ Remote Input Connector* [REMOTE IN]

* There is currently no compatible remote control unit available.

Front Display Panel

① Disc Type Indicator

When a disc is loaded, the type of the disc is indicated.

Disc Status Indicator

When a disc is running, the disc marks rotate.

VR Mode Indicator (VR) 📄pg. 61

Lights when a DVD-R/RW disc is formatted in VR mode.

② Linear PCM Indicator (LPCM)

Lights when "XP MODE REC AUDIO" is set to "LINEAR PCM" (pc. 59) for recording with HDD, DVD-RAM, DVD-R and DVD-RW discs, and when Linear PCM audio is played.

③ Cassette Loaded Mark (☐☐)

Indicates the present of a cassette in the DV deck. Lights when a cassette is loaded into the DV deck. It will remain lit as long as the cassette is loaded, even if the HDD or DVD deck is being selected.

4 Recording Mode Indicator (XP/SP/LP/EP/FR) pg. 50

Blinks when recording mode is being set. While “FR” is blinking, the left 3 digits of the Multi Display (12)

14) indicate setting values ranging from "60" to "480". After the value has been set, only "FR" lights.

⑤ Group/Title Indicator (GRP/TITLE)

“GRP” or “TITLE” lights depending on a disc loaded while the left 2 digits of the Multi Display (12) indicate the numbers explained below.

"GRP": Total number of groups or group number being played back are displayed on the Multi Display.

"TITLE": Total number of titles or title number being played back are displayed on the Multi Display.

6 External Input Indicator

Indicates the external input selected.

⑦ Track/Chapter Indicator (TRK/CHAP)

“TRK” or “CHAP” lights depending on a disc loaded while the 3rd and 4th digits from the left of the Multi Display (14) indicate the numbers explained below.

"TRK": Total number of tracks or track number being played back are displayed on the Multi Display.

"CHAP": Chapter number being played back are displayed on the Multi Display.

⑧ Simulated Surround Effect Indicator (3D) pg. 29

Lights when a simulated surround effect is set to "3D-ON" on the on-screen bar.

9 Random/Program Playback Mode Indicator (RND/PRGM) pg. 30

"RND": Lights when Random Playback mode is set.

"PRGM": Lights when Program Playback mode is set.

⑩ Repeat Mode Indicator (☐/1/A-B) pg. 27

Select Repeat Playback mode on the on-screen bar.

“→”: Whole disc is played back repeatedly.

“1”: A single title/chapter/track is played back repeatedly.

"A-B": The selected part (A-B) is played back repeatedly.

No display: Repeat Playback mode is off.

⑪ Video Output Indicator (P) pg. 65

No display: Indicates that interlace mode is engaged.

P: Indicates that progressive mode is engaged.

(Example) P lights when video output mode is in progressive mode.

⑫ Group/Title Number Display

13 Audio Dubbing/Insert Editing Indicator

“ADUB” or “INS” lights up during Audio Dubbing or Insert Editing respectively.

Track/Chapter Number Display

⑮ Remaining Time/Elapsed Time Indicator ☐ pg. 25

Lights when remaining time of HDD, DVD-RAM, DVD-R and DVD-RW discs is displayed, and lights out when elapsed time is displayed.

The right 6 digits of the Multi Display (16) indicate elapsed or remaining time of each track.

No display: Indicates elapsed time of the disc.

Displayed: Indicates remaining time of the disc.

16 Remaining Time/Elapsed Time Display pg. 25 Time Code Display pg. 34

⑰ Multi Display

Displays clock, received channel, elapsed time, and remaining time.

Also displays status of the unit (NO DISC/OPEN/CLOSE/READING).

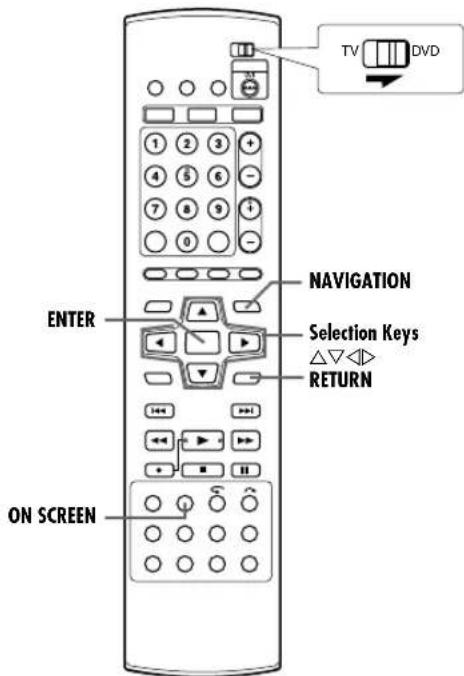

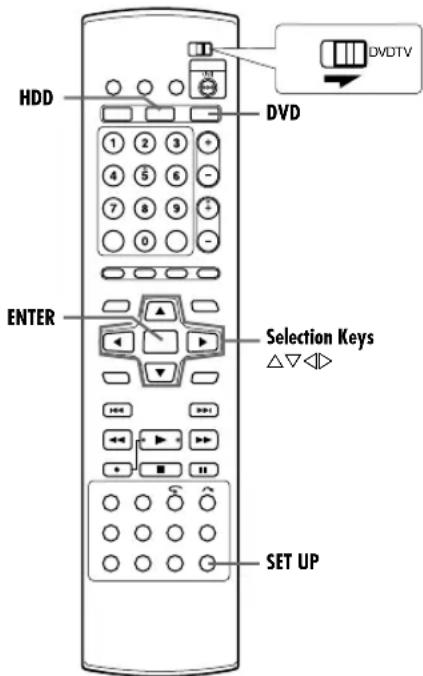

Remote Control

① Output Select Button (OUTPUT SELECT)

- Switches between “ALL” (DV/HDD/DVD output) and “DV” (DV output) when pressed. When “ALL” is selected, DV, HDD or DVD signals are output from the [DV/HDD/DVD OUTPUT] connectors on the rear panel depending on the deck selected. When “DV” is selected, DV signals are output regardless of the deck selected.

ATTENTION:

If "DV" is selected, "DV" and "OUTPUT DV" blink on the front display panel and TV screen respectively when EDIT or NAVIGATION is pressed while in the HDD/DVD deck mode. Press OUTPUT SELECT to stop the blinking and return to the previous display.

② TV Muting Button (TV ☑) pg. 56

③ DV Button\* 📋 pg. 33

* This button will not function during navigation mode or set up mode.

④ HDD Button\* 📋 pg. 31

* This button will not function during navigation mode or set up mode.

⑤ Number Keys 📋 pg. 56

⑥ Cancel Button (CANCEL) 📄 pg. 30

⑦ F1 Button 📋 pg. 65

⑧ F2 Button 📋 pg. 62, 63

⑨ Top Menu Button (TOP MENU) 📋 pg. 23

⑩ Selection Keys (△▽◀▶) ▶ pg. 19

⑪ Menu Button (MENU) 📋 pg. 23

⑫ Reverse Skip Button (◀◀) pg. 23, 32, 36 Previous Button (PREVIOUS) ▶ pg. 26

13 Reverse Search Button (◀◀) (HDD & DVD deck) ✉ pg. 23, 36 Rewind Button (◀◀) (DV deck) ✉ pg. 33 Reverse Slow Button (SLOW -) ✉ pg. 23

14 Record Button (●)

⑮ Display Button (DISPLAY) pg. 25, 34

⑯ On-Screen Button (ON SCREEN) 📋 pg. 16, 27

⑰ Recording Mode Button (REC MODE) 📄 pg. 49 Remain Button (REMAIN) 📄 pg. 25

18 Audio Button (AUDIO) pp. 26

⑲ EE Button ☑ pg. 36

20 Dubbing Button (DUBBING) pg. 45

② TV/DVD switch pg. 20, 56

22 STANDBY/ON Button (○/l)

②3 TV/VIDEO Button ☐ pg. 56

24 DVD Button* pg. 22

* This button will not function during navigation mode or set up mode.

25 TV Volume Buttons (TV △ +/-) pg. 56

TV Program Buttons (PR/CH +/-) pg. 56 Input Select Button (INPUT SELECT +/-) pg. 49, 51

⑳ Memo Button (MEMO) 📋 pg. 39, 42 Mark Button (MARK) 📋 pg. 25

28 Programming Button (PROG): Not use on this unit.

⑲ Edit Button (EDIT) 📄 pg. 39

30 Navigation Button (NAVIGATION) pg. 38, 44

③1 Enter Button (ENTER) pg. 20

32 Return Button (RETURN) pg. 26, 28

3 Forward Skip Button (▶▶) pg. 23, 36 Next Button (NEXT) pg. 26

4 Forward Search Button (▶▶) (HDD & DVD deck) ▶ pg. 23, 36 Fast Forward Button (▶▶) (DV deck) ▶ pg. 33 Forward Slow Button (SLOW +) ▶ pg. 23

③5 Play Button (▶) pg. 22, 31

36 Pause Button (II) pg. 22, 31

37 Stop Button (■) pg. 22, 31 Clear Button (CLEAR) pg. 30

38 Skip Search Button ( ) pg. 24, 31, 34, 36

39 Instant Replay Button ( ) pg. 24, 32, 34, 36, 37

40 Angle Button (ANGLE) (DVD deck only) pg. 25 EE Check Button (EE CHECK) pg. 36

④1 Set Up Button (SET UP) 📋 pg. 20, 58

42 Subtitle Button (SUBTITLE) pg. 26

43 Progressive Scan Button (PROGRESSIVE SCAN) pg. 65

How To Use

Before use, insert two AA size batteries into the remote control with the polarity ( and ) matched correctly as indicated on the battery compartment or on the lid.

The remote control can operate most of your unit's functions, as well as basic functions of TV sets of JVC and other brands. (ppg. 56)

- Point the remote control toward the receiving window.

- The maximum operating distance of the remote control is about 8 m.

NOTE:

If the remote control doesn't work properly, remove its batteries, wait a short time, replace the batteries and then try again.

On-Screen Display (HDD & DVD deck)

When "SUPERIMPOSE" is set to "ON" or "AUTO" and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN twice.

When playing back a recorded title

HDD

1 Title start
2Current playback point
3 Title end
4 Elapsed playing time
5Play mode
6 Name of title currently being played back
7 Time scale (This title is an hour and a half long.)
8Audio mode

DVD

1Playback title number
2Playback chapter number
3Disc remaining time
4 Current status ( playback)
5 Audio mode
6 Bar meter
7 Name of title (or play list) currently being played back
8 Current playback point
9 Recorded mode*

* Depending on the recording condition, the recorded mode may not always be displayed.

When recording

HDD

DVD

1 Recording point
2Current status (recording)
3 Current time
4 Recording channel number

When pressing REC MODE

(Appears for eight seconds.)

1 Remaining disc time for each recording speed
2 Recording speed

When using Live Memory playback

HDD

DVD

1 Time scale for recording (HDD deck) Bar meter for recording (DVD deck)

2 Current recording point

3 Recording mode

4 Current time

5 Current playback channel position number

6 Time scale for Live Memory Playback (HDD deck) Bar meter for Live Memory Playback (DVD deck)

7Current playback point

8Live Memory playback mode

9Current playback time

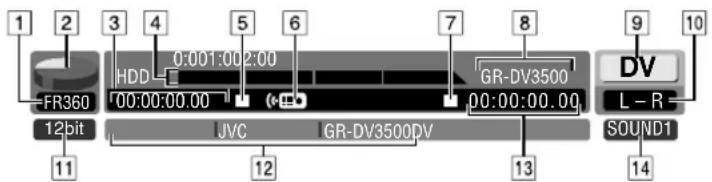

On-Screen Display (DV Dubbing)

When capturing images from the external DV equipment

1 Recording speed
2HDD capacity graph
3 HDD time counter
4 Recording time scale
5 HDD mode
6 Remote control mode
7 Connected DV equipment mode
8 Connected DV equipment model information
9 Input channel
10Sound mode
11Sound input bit-rate*
* Indicates the sound bit-rate of the connected DV equipment
12 Connected DV equipment information*
* Maker name and model name, etc. may not appear depending on the connected equipment.
13 Time counter for the connected DV equipment
14Sound monitor mode

15 Remote control switch
16 Auto capture button
17Sound monitor switch

18 Elapsed recording time

On-Screen Display (DV deck)

When "SUPERIMPOSE" is set to "ON" or "AUTO" and ON SCREEN on the remote control is pressed, various operational indicators appear on the TV screen. To clear the operational indicators, press ON SCREEN again.

① Operation Mode Indicators
② Tape Speed (SP/LP)
③ Sound Mode Display 📋 pg. 60
4 Current Month/Day/Year/Clock Display/Time Code Display pg. 34
⑤ Audio Mode Display 📋 pg. 34
6 Warning Message
⑦ Auxiliary Input Indicator (L-1, F-1 or DV)
⑧ "Cassette Loaded" Mark

Basic Connections

It's essential that your unit be properly connected.

ATTENTION:

Connect the AC plug only after all connections to the TV has been completed.

- Make sure the package contains all of the accessories listed in "SPECIFICATIONS" (pg. 86).

- Place the unit on a stable, horizontal surface.

THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

Connecting to a TV Monitor

Connect the unit to a TV depending on the TV and cables you use.

■AV Connection

To connect to a TV with AV connector —

1Connect the [AUDIO/VIDEO OUTPUT] connectors on the rear panel of the unit and the TV's audio/video input connectors with the supplied Audio/Video cable.

To connect to a TV with BNC connector —

1 Connect an optional audio cable between the [AUDIO OUTPUT] connectors on the rear panel of the unit and the TV's audio input connectors.

②Connect an optional BNC video cable between the unit's BNC [VIDEO OUTPUT] connector and the TV's BNC VIDEO input connector.

■S-Video Connection

To connect to TV's S-VIDEO input and AUDIO input connectors —

1 Connect the unit's [S-VIDEO OUTPUT] connector to the TV's S-VIDEO input connector.

2 Connect the unit's [AUDIO OUTPUT] connectors to the TV's AUDIO input connectors.

- If your TV is not stereo-capable, use the unit's [AUDIO OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

■Component Video Connection

To connect to TV's component video input connectors —

1 Connect the unit's [COMPONENT VIDEO OUT (Y/P B/PR)] connectors to the TV's component video input connectors.

2Connect the unit's [AUDIO OUTPUT] connectors to the TV's AUDIO input connectors.

- You can obtain high-quality component video pictures.

- The [COMPONENT VIDEO OUT (Y/P B/PR)] connectors do not output DV signals.

- If your TV is not stereo-capable, use the unit's [AUDIO OUTPUT] connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction.

- By using the component video connection, you can view the images in the progressive mode. For switching to the progressive mode, refer to "Scan Mode Set (HDD & DVD Deck Only)" (pg. 65).

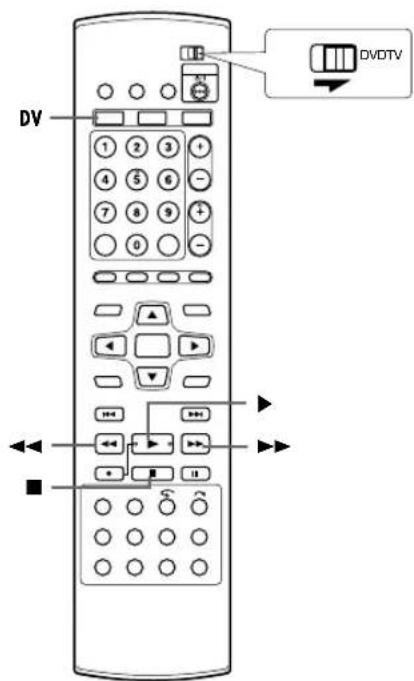

Connecting to a DV Device

1 Connect the unit's [S-VIDEO INPUT] or [VIDEO INPUT] connector on the front panel to the camcorder's s-video or video output connector.

2 Connect the unit's [AUDIO INPUT] connectors on the front panel to the camcorder's audio output connectors.

Connecting to Another Recorder

1 Connect the unit's [S-VIDEO INPUT] or [VIDEO INPUT] connector to another recorder's s-video or video output connector.

2 Connect the unit's [AUDIO INPUT] connectors to another recorder's audio output connectors.

Plug the end of the AC power cord into an AC outlet.

- "PLEASE" and "WAIT" blink alternately on the front display panel when the AC plug of the AC power cord is connected into an AC outlet. After a short while, "32**" blinks on the front display panel and starts to count down. It takes approximately 50 seconds for the unit to be turned on. This is not a malfunction.

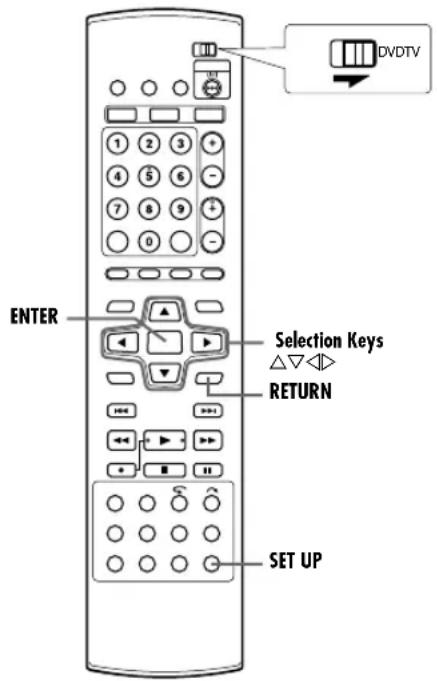

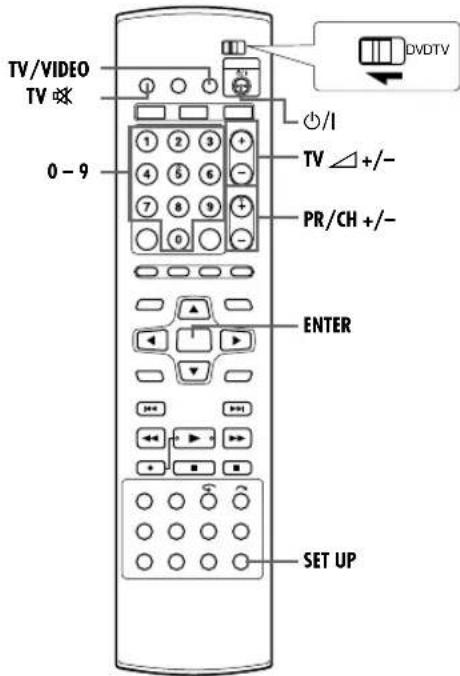

Clock Set

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

1 Press SET UP to access the Main Menu screen.
2 Press selection keys to select "INITIAL SET UP", then press ▽.
3 Press selection keys to select "CLOCK SET", then press ∇.

4 Press selection keys to select "TIME", then press ENTER. Press selection keys to set the time, then press ENTER.

- Repeat the same procedure to set the date and year.

- When you set the time, press and hold to change the time by 30-minute intervals.

- When you set the date, press and hold to change the date by 15-day intervals.

5 Press selection keys to select "D.S.T.", then press ENTER. Press selection keys to select the desired setting, then press ENTER.

ON:

Adjustment will be made by the built-in clock itself. OFF:

Select when Daylight Saving Time does not apply to you.

6 Press SET UP to start the clock operation.

Daylight Saving Time

This function enables automatic adjustment of the unit's clock at the start and end of Daylight Saving Time.

●With D.S.T. activated, —

—on the second Sunday of March at 2:00 AM, the clock is adjusted to 3:00 AM.

—on the first Sunday of November at 2:00 AM, the clock is adjusted to 1:00 AM.

NOTE:

For the year 2006, the Daylight Saving time will end on the last Sunday of October at 2:00 AM.

Language

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

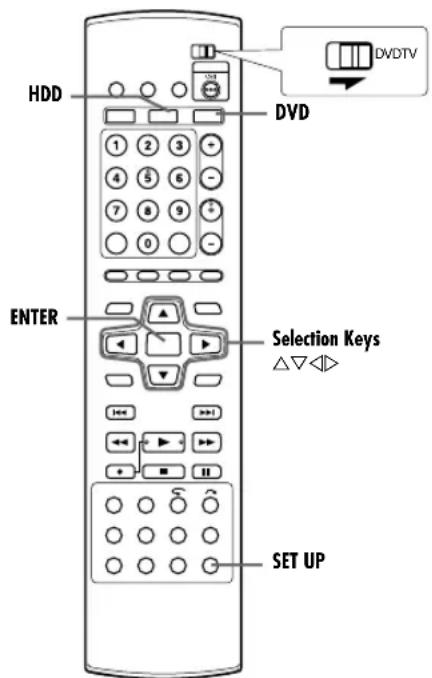

On-screen Language Set

This unit offers you the choice to view on-screen messages in 3 different languages.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.
3 Press selection keys to select "FUNCTION SET UP", then press ∇.
4 Press selection keys to select "DISPLAY SET", then press ▽.
5 Press selection keys to select "ON SCREEN LANGUAGE", then press ENTER.
6 Press selection keys to select your desired language, then press ENTER.
7 Press SET UP to complete the setting.

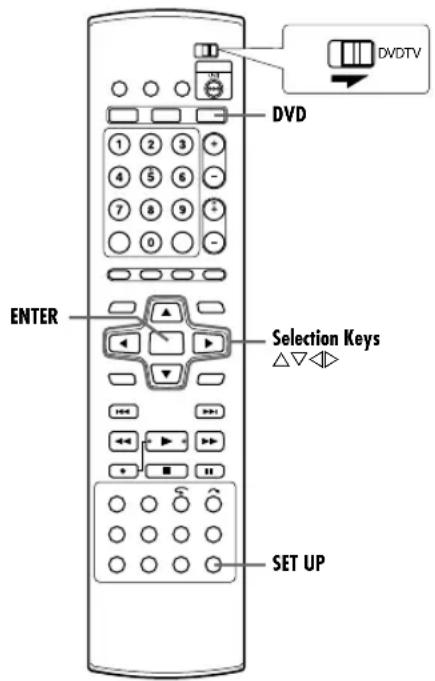

Menu/Audio/Subtitle Language Set (DVD deck only)

Some DVD discs contain the DVD menu display, audio and subtitles in multiple languages. With these discs, you can set the default language as you like.

- The procedure shows how to set “MENU LANGUAGE” as an example.

1 Press DVD so that the DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.
3 Press selection keys to select "DVD VIDEO SET UP", then press ∇.
4 Press selection keys to select "LANGUAGE SET", then press ▽.
5 Press selection keys to select "MENU LANGUAGE", then press ENTER.
6 Press selection keys to select your desired language, then press ENTER.
- See "Language Code List" (pg. 69).

7 Press SET UP to complete the setting.

NOTE:

When the selected language is not available on the disc, the disc's default menu language is played back.

Monitor Set

You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs.

- Turn on the unit.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

1 Press DVD so that the DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.

- You cannot set the monitor type during recording or playback.

3 Press selection keys to select "FUNCTION SET UP", then press ∇.
4 Press selection keys to select "VIDEO IN/OUT", then press ▽.
5 Press selection keys to select "MONITOR TYPE", then press ENTER.
6 Press selection keys to select the desired option, then press ENTER.
7 Press SET UP to complete the setting.

* The boldface settings below indicate the settings at your purchase.

■ MONITOR TYPE - 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX

4:3LB (Letter Box conversion):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

4:3PS (Pan&Scan):

Select this when the aspect ratio of your TV is 4:3 (conventional TV). While viewing a wide screen picture, the black bars do not appear; however, the left and right edges of the pictures will not be shown on the screen.

16:9 AUTO (Wide television conversion):

Select this when the aspect ratio of your TV is 16:9 (wide TV).

16:9FIX (Wide television conversion):

Select this when the aspect ratio of your TV is fixed to 16:9 (wide TV). The unit automatically adjusts the screen width of the output signal correctly when playing back a picture whose aspect ratio is 4:3.

Pan&Scan/Letter Box

In general, DVD VIDEO disc are produced for a wide-screen TV with 16:9 aspect ratio.

Material with this ratio will not fit to a TV with 4:3 aspect ratio. There are two styles to display the image, "Pan&Scan" (PS) and "Letter Box" (LB).

Pan&Scan

The right and left side of the image are cut off. The image fills the screen.

- The picture will be shown in the "4:3LB" mode depending on the disc even if the "4:3PS" mode is selected.

Letter Box

Black bands appear at the top and bottom of the image. The image itself appears in 16:9 aspect ratio.

Basic Playback

- Turn on the unit.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

ATTENTION:

• It takes approximately 30 seconds to read a disc depending on the type and condition of the disc since this unit is multi-disc compatible (DVD-RAM, DVD-RW, DVD-R). It may even take several minutes when a disc is dirty, scratched or warped.
• It may take a few seconds to start playback. This is not a malfunction.
• Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.

To play back an MP3/JPEG disc, see "Playback With MP3/WMA/JPEG Navigation" (v=pg. 44).

1 Load a disc.

• For details, refer to "Placing A Disc" (pg. 10).
• Pressing ▶ also closes the disc tray.
• Playback begins automatically if an auto-playback DVD disc is loaded.

2 Press DV/HDD/DVD on the unit repeatedly or DVD on the remote control so that the DVD lamp lights up on the unit.

3 Press ▶ to start playback.

• If you load a DVD disc whose region code does not match the unit, "REGION CODE ERROR" appears on the TV screen. For details, refer to "Region Number" (pg. 8).
• With Video CD/SVCD discs with PBC control or some DVD discs, the menu display may appear on the TV screen after starting playback. In this case, select an item which you want to play back from the menu. Otherwise, the playback cannot go forward. Refer to "Playback Control (PBC) Function" (pg. 26) or "Locating A Desired Scene Using The DVD Menu" (pg. 23).
• The Library Database Navigation also enables you to search and select the desired titles. (C: pg. 39)

4 Press II to pause playback.

- To resume normal playback, press ▶.

5 Press ■ to stop playback.

• When a recordable disc is played, playback stops and AV input (from external AV source) resumes on the TV screen.
• When a playback-only disc is played, playback stops and the TV screen becomes all black when you press ■. Pressing ■ again resumes the AV input (from external AV source).
• If is pressed during playback, playback stops, then the disc tray opens.

NOTES:

• When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press ENTER. (Egg pg. 39)
• It is not possible to playback the DVD disc recorded in 96 kHz on DVD during recording or Live Memory Playback on HDD.
• It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.

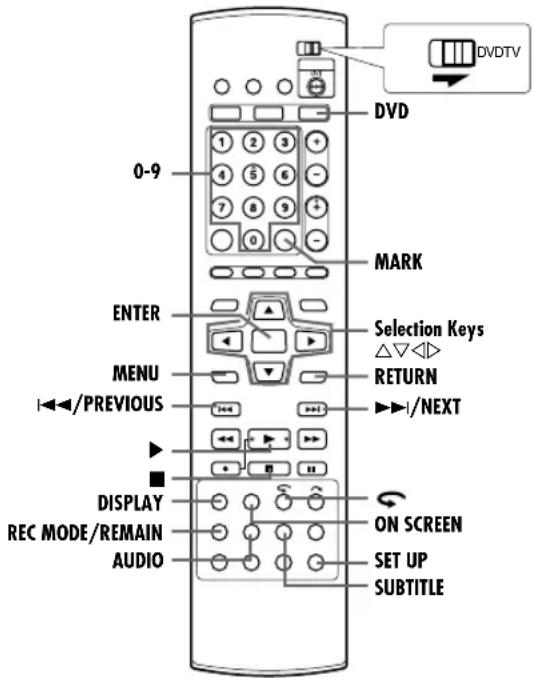

Playback Features

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press DVD so that the DVD lamp lights up on the unit.

Locating A Desired Scene Using The DVD Menu

DVD VIDEO discs may have top menu and disc menu.

Top menu

DVD discs generally have their own menus which show the disc contents. These menus contain various items such as titles of a movie, names of songs, or artist information. You can locate a desired scene by using the top menu displayed on the TV screen. Press TOP MENU to access the top menu.

Disc menu

Disc menus include playback data (angle menu, subtitle menu, etc.) specific to each title.

Press MENU to access the disc menu.

1 Press TOP MENU or MENU to access the DVD menu.

2 Press selection keys to select a desired title, then press ENTER. Playback starts.

- It may be possible to select the desired item using the number keys depending on the menu display.

Example:

NOTE:

When “☒” appears on the TV screen in step 1, the disc does not have a top menu or disc menu.

Locating The Start Point Of The Item Or Skip The Item

Press |◀◀ or ▶▶▶ during playback.

• Pressing ▶▶1 locates the start point or marked points of the item or skips the item in the forward direction, then resumes playback.
• Pressing ◀◀ locates the start point or marked points of the item or skips the item in the reverse direction, then resumes playback.

- : marked points if any (pg. 25) or beginning of recording

Variable Speed Search

During playback, press ▶▶ for forward variable speed search, or

◀◀ for reverse variable speed search.
- Each press of the button increases the search speed for each direction.
- To resume normal playback, press ▶.

For Audio CD

You can perform 4 levels of speed search with ▶ and ◀. (Audio is active also during variable speed search.) You cannot perform slow motion for each direction.

NOTE:

Reverse play (-1x) is not possible with Video CD/SVCD discs.

Still Picture/Frame-By-Frame Playback

1 Press Ⅱ to pause during playback.
2 Press SLOW - (◀◀) or SLOW + (▶▶) to activate frame-by-frame playback.

• Each press of SLOW - (◀◀) or SLOW + (▶▶) advances/reverses the still picture frame by frame.
• Frame-by-frame playback for reverse direction cannot be performed with Video CD/SVCD discs.
  • To resume normal playback, press ▶.

Slow Motion

1 Press Ⅱ to pause during playback.
2 Press SLOW - (◀◀) or SLOW + (▶▶) for 2 or more seconds.

• Each press of SLOW - (◀◀) or SLOW + (▶▶) increases the slow motion speed for each direction.
• Slow motion for reverse direction cannot be performed with Video CD/SVCD discs.

Skip Search

During playback, press ↗.

• Each press initiates an approximately 30-second period of fast-motion playback. Normal playback resumes automatically.
• Skip search cannot be performed when a VCD/SVCD disc is being played back with the PBC function.

Instant Replay

You can move back the playback position slightly.

Press ↻ on the remote control or INSTANT REPLAY on the unit.

• Each press skips back for approximately 7 seconds and resumes playback.
• Pressing while paused skips back for approximately 7 seconds and resumes pause.
• Instant replay cannot be performed when a VCD/SVCD disc is being played back with the PBC function.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals ( ps pg. 59) during playback (or Live Memory Playback).

Press ◀◀◀ or ▶▶▶.

• To advance forward or back, press ◀◀◀ or ▶▶▶ repeatedly within 5 seconds of each press to continue jump.
• Depending on the time from where you want to start jump search, the first press of ◀◀◀ or ▶▶▶ will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.
• When you cannot advance any further (beginning or end of program reached), the message “UNABLE TO GO BACK ANY MORE” or “UNABLE TO GO FORWARD ANY MORE” appears on the screen. In such a case, press ◀◀◀, ◀◀◀, ▶▶, ▶▶◀ or ■.

Example:

Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the program. Pressing ◀◀◀ or ▶▶◀ will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is “15 MIN”.

NOTES:

• Jump search cannot be performed with finalized DVD-R/DVD-RW (video mode) discs.
• Jump search functions only when chapters (marks) are not set.

Resume Function

It is possible to memorize the position where you stop playback and resume playback from that position.

• Be sure to set "RESUME" to "ON" or "DISC RESUME". (pg. 59)
  -Resume function always works for DVD-R/DVD-RW discs that have not been finalized and DVD-RAM regardless of the setting of "RESUME".

1 Press ■ during playback to memorize a resume point.

• The unit enters Resume Stop mode and memorizes the position where you have stopped playback as a resume point. (The inside of the disc status indicator on the front display panel blinks while memorizing.)
• The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected if "RESUME" is set to "DISC RESUME". (vpg. 59)
• Performing the following steps would erase the resume points: (The inside of the disc status indicator stops blinking and lights.)

When "RESUME" is set to "ON":

• Press ⏻/I to turn off the unit.
• Press ▲ to take out the disc.
• Press ■ in stop mode.
• Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting an item, etc.

When "RESUME" is set to "DISC RESUME":

• Set "RESUME" to "OFF". (pg. 59)
• Press ■ in stop mode.
• Press TOP MENU to display the top menu, then start playback by selecting an item, etc.
• Press MENU to display the disc menu, then start playback by selecting an item, etc.

2 Press ▶ in stop mode to resume playback. The unit starts playback from the resume point.

NOTES:

• “DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and already finalized DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under “ON” setting will be applied even if “RESUME” is set to “DISC RESUME”. (vpg. 59)
• If you stop the playback of a disc for which a resume point has already been memorized, the memory will be updated with the new resume point.
  ●After the unit has memorized the resume points for 30 discs, remembering a new resume point will cause the unit to delete the oldest memorized point. Stopping playback of a disc for which a resume point is already stored may change the order in which the points are stored. This may potentially change the order in which points are deleted.
• When the unit memorizes a resume point for a disc, it also remembers audio language, subtitle and angle settings.
  ●This function may not work for some Video CD/SVCDs
• When “RESUME” is changed to “ON” or “OFF” (135 pg. 59), resume points of the discs memorized with “RESUME” set to “DISC RESUME” will be cleared.
  -Resume points are memorized for each side of a double-sided disc.
• When you switch to HDD while playing back JPEG/MP3 files, playback stops. The Resume Function doesn't work when you switch to DVD thereafter to playback the disc.

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto DVD-RAM/R/RW (VR mode only) discs when recording is helpful to locate a start point when you play back the discs later.

To mark positions:

During playback, press MARK at positions you want to mark.

- “MARK” appears on the TV screen. You can easily locate the marked positions using ◀◀◀ or ▶▶◀ when you play back the disc.

To delete the marked positions:

While paused, press ◀◀◀ or ▶▶◀ to locate a marked position you want to delete, then press MARK.

- Crossed "MARK" appears on the TV screen, and the marked position is deleted.

NOTES:

- For DVD-R/RW (Video mode) discs, marks are assigned automatically every 5 minutes.

- If MARK is pressed when playing back a disc that does not allow marks to be inserted, “ ” appears on the TV screen.

MARK

MARK

Checking The Time Information

You can check time information of a disc on the front display panel and the TV screen.

■DVD-RAM/DVD-R/DVD-RW

Each press of DISPLAY on the remote control or the unit changes the display as follows:

During recording

Clock time (front display panel only) → Current title elapsed time → Disc remaining time → (back to the beginning)

During playback

Each title elapsed time → Total remaining time → Remaining time* → (back to the beginning)

* only discs before finalizing

During recording/playback or in stop mode

Press REC MODE.

• The disc remaining time according to recording modes appears on the TV screen.
• It is possible to check disc remaining time according to recording modes also by pressing REMAIN.
• In FR mode, it is possible to set recording time in detail. While the recording mode and the disc remaining time are displayed by pressing REMAIN, press selection keys to select "FR", then press ◀▶ to select the desired recording time. (▶ pg. 50)
• It is not possible to switch the recording mode during playback or while recording.

■Video CD/SVCD/Audio CD

During playback or in stop mode

Current track elapsed time → Current track remaining time → Total elapsed time → Total remaining time → (back to the beginning)

NOTES:

• When a PBC-compatible Video CD/SVCD disc is loaded, deactivate the PBC function. (pp. 26)
• For pre-recorded DVD VIDEO, only the title, chapter and elapsed time are displayed when ON SCREEN is pressed.

Angle Selection

You can enjoy a variety of scene angles if a DVD VIDEO disc contains “multi-angle” parts, where the same scene was shot from different angles.

If the disc contains "multi-angle" parts, "∞" appears on the TV screen at the beginning of the "multi-angle" part.

1 Press ANGLE during playback. The angle selection display appears on the TV screen.

When 3 scene angles are contained.

2 Press ANGLE or selection keys to select your desired angle.

• Each time you press ANGLE or the selection keys, the angle changes.
• When “ ” appears on the TV screen, the current scene is not recorded from multiple angles. In addition, some discs prohibit angle selection.
• To clear the angle selection display, press ENTER. In addition, the angle selection display disappears automatically if no operation is done for 10 seconds.

Subtitle Selection

Some DVD VIDEO discs contain more than one subtitle language, from among which you can choose the desired subtitle language. “...” appears on the TV screen at the beginning of the part where more than one subtitle language are recorded.

1 Press SUBTITLE during playback. The subtitle selection display appears on the TV screen.

When 3 subtitle languages are contained.

•Each time you press SUBTITLE, the subtitle display is switched on and off.

2 Press selection keys to select your desired language. • To clear the subtitle selection display, press ENTER.

NOTES:

- When “☒” appears on the TV screen, no subtitle language is recorded.

- When the subtitle language won't be changed with the procedure above, change the subtitle on a disc menu displayed by pressing MENU.

Audio Channel Selection

When watching bilingual programs or playing discs on which you recorded bilingual or stereo programs, you can choose the desired audio channel.

- When “SUPERIMPOSE” is set to “ON” or “AUTO”, you can confirm on the TV screen the audio channel you have chosen. (ppg. 59)

- Each time you press AUDIO, the audio channel changes.

TRACK	USE
On-Screen Display
	For stereo discs
	For audio of left channel
	For audio of right channel

NOTE:

It is not possible for DVD-R/DVD-RW (Video mode) disc playback to switch the audio channel.

When you can't switch the audio channel of a bilingual program

When the unit is connected with a digital audio device using an optional optical cable and "DIGITAL AUDIO OUT" is set to "DOLBY DIGITAL/PCM", it is not possible to switch the audio channel of a bilingual program recorded on a DVD-RAM or DVD-R/RW (VR mode) disc. (pp. 57) In this case, perform the following steps using the remote control to switch "DIGITAL AUDIO OUT" from "DOLBY DIGITAL/PCM" to "PCM ONLY".

1 Press SET UP to access the Main Menu screen.
2 Press selection keys to select "DVD VIDEO SET UP", then press ▽.
3 Press selection keys to select "AUDIO OUTPUT", then press ▽.
4 Press selection keys to select "DIGITAL AUDIO OUT", then press ENTER.
5 Press selection keys to select "PCM ONLY", then press ENTER. (pg. 58)
6 Press SET UP to complete the setting.
7 Press AUDIO to select the desired audio channel.

Audio Language/Sound Selection

Some DVD VIDEO discs contain the multiple audio language or sound. You can select the desired audio language or sound. For some Video CD/SVCD discs, you can switch the audio channel to choose Karaoke either with or without the vocal.

1 Press AUDIO during playback. The Audio Language/Sound selection display appears.

For example: DVD VIDEO

2 Press AUDIO or selection keys to select your desired audio language/sound.

When 3 audio languages are contained.

• Each time you press AUDIO or the selection keys, the audio language/sound changes.
• To clear the Audio Language/Sound selection display, press ENTER.

NOTES:

• When “ ” appears on the TV screen, no other audio language is recorded.
• When the audio language won't be changed with the procedure above, change the audio on a disc menu displayed by pressing MENU.
• Pressing AUDIO to select the audio language/sound is only possible during playback. It is not possible to select by pressing AUDIO in stop mode. However, you can select the desired audio language/sound from the setup menu while in stop mode.

Playback Control (PBC) Function

Some Video CD/SVCD discs support the PBC function. PBC is an abbreviation of "Play Back Control". A Video CD/SVCD disc recorded with PBC has its own menus, such as a list of the songs on the disc. You can locate a specific scene by using the menu.

1 Press ▶ in stop mode. The PBC menu appears.
2 Press the number keys to enter the number of the desired scene, then press ENTER. The unit starts playback of the selected item.
- "PBC" appears on the front display panel.
- When “NEXT” or “PREVIOUS” appears on the TV screen: Pressing NEXT (▶▶) advances to the next page. Pressing PREVIOUS (◀◀) returns to the previous page.
- You can return to the menu by pressing RETURN.
- The method of the operation is different depending on the disc.

NOTE:

If you want to playback a PBC-compatible Video CD/SVCD disc without activating the PBC function, start playback with the PBC function, then press ■ to stop playback. The TV screen becomes all black. Then start playback in stop mode by using the number keys to choose the track, then press ENTER.

Using The On-screen Bar

The on-screen bar allows you to control various playback functions. Some of the functions operated on Navigation Menu can be controlled on the On-screen bar.

ATTENTION:

The on-screen bar can also be used for the HDD deck.

Be sure to clear Library Database Navigation screen by pressing NAVIGATION.

How To Access The On-screen Bar

1 Press ON SCREEN twice whenever a disc is loaded.

Contents of the on-screen bar during playback DVD VIDEO

Video CD/SVCD

JPEG disc

1Disc type.
2 Select this for Repeat Playback. (See below)
3 Select this for A-B Repeat Playback. (pg. 28)
4 Select this for search function. (pg. 28)
5 Select this for time search function. (pg. 29)
6 Select this to switch Simulated Surround Effect function. (r=pg. 29)
7 Select this for Picture Control function. (pg. 29)
8 Select this to switch picture source type. (pg. 30)
9 Current status area for the selected item.
10 Select this for Program Playback. (pg. 30)
11 Select this for Random Playback. (pg. 30)
12 Select this to control the switching interval of the slide show. (pg. 30)

NOTE:

Although examples of the on-screen bar are provided here only for 3 types of discs, the on-screen bar will be displayed for whichever disc indicated in the left column.

Basic Operation On The On-screen Bar

Example: When selecting Picture Control function of DVD

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar. The item currently selected is highlighted and pointed by ☑.

2 Press selection keys to select "☐", then press ENTER. The pop-up window appears under the selected item.

3 Press selection keys to select the desired option, then press ENTER.

To clear the on-screen bar

Press ON SCREEN.

NOTE:

See the corresponding pages for details on each menu item.

Repeat Playback

You can repeat playback as you like according to the type of disc.

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "☐", then press ENTER. The pop-up window appears under the selected item.

3 Press selection keys repeatedly to select the desired Repeat mode, then press ENTER.

DVD-RAM/RW/R

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TITLE REPEAT:

The current title is played back repeatedly.

DVD VIDEO

OFF:

Repeat playback is not performed.

TITLE REPEAT:

The current title is played back repeatedly.

CHAPTER REPEAT:

The current chapter is played back repeatedly.

Audio CD/Video CD/SVCD

OFF:

Repeat playback is not performed.

ALL REPEAT:

The whole disc is played back repeatedly.

TRACK REPEAT:

The current track is played back repeatedly.

JPEG/MP3

OFF:

Repeat playback is not performed.

FOLDER REPEAT:

The whole folder is played back repeatedly.

TRACK REPEAT*:

The current track is played back repeatedly.

* "TRACK REPEAT" cannot be selected for JPEG discs.

To clear the on-screen bar

Press ON SCREEN.

To cancel Repeat Playback

Repeat the above procedure from step 1, select "OFF" in step 3, then press ENTER.

NOTES:

• Repeat Playback is not possible for a Video CD/SVCD with PBC function.
• Repeat Playback may not work properly depending on the type of the disc being used.
• It is possible to use the Mode Lock function. (pg. 65)

A-B Repeat Playback

You can repeat the desired part.

During playback

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "A-B".
3 Press ENTER at the beginning of the desired part you want to repeat (point A). The elapsed playing time of the point A appears.

4 Press ENTER at the end of the desired part you want to repeat (point B). The elapsed playing time of the point B appears.

- The selected part of the disc (between point A and B) is played repeatedly.

To clear the on-screen bar

Press ON SCREEN.

To cancel A-B Repeat Playback

Press selection keys to select "A-B", then press ENTER.

NOTES:

●A-B Repeat Playback may not work properly depending on the type of disc being used.
●The subtitles recorded around the A-B point may not appear.
- When the end of the item is reached before the end point is set, the pop-up window disappears from the TV screen. In such a case, repeat the procedure from step 2.
●The point B must be set at least 3 seconds after the point A.
- When playing back a DVD, A-B Repeat Playback is possible only within the same title.
- "A-B 🔔" cannot be selected during Program and Random Playback.
- “A-B ➕” cannot be selected while stopped.

Locating The Beginning Of A Desired Selection

You can locate the beginning of a title, chapter, group or track.

During playback or while stopped

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select “→|”, then press ENTER.
3 Press selection keys to select the desired item, then press ENTER.

- Skip this step for Video CD/SVCD and Audio CD.

For DVD-RAM/RW/R, DVD VIDEO

"TITLE SEARCH" or "CHAPTER SEARCH" is selectable.

(However, "CHAPTER SEARCH" is not selectable while stopped.)

For Video CD/SVCD, Audio CD, JPEG, MP3

"TRACK" is selectable.

NOTE:

Settings that are selectable during playback and stop mode differ depending on the type of disc and search used.

4 Press the number keys to enter the desired item number, then press ENTER.

-Playback starts from the selected section.

Examples:

1 To select track 5, press the number key "5".
2 To select track 15, press the number key "1" and "5".
3 To select track 25, press the number key "2" and "5".

If you have specified a wrong selection

Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar

Press ON SCREEN.

NOTES:

- When “ ” is displayed on the TV screen in step 4, the chapter you have selected is not contained in the disc, or chapter search does not work on the disc.

- Before you press ENTER, playback may start automatically when you enter the section's number depending on the disc.

- This function is not possible for a Video CD/SVCD with PBC function.

Time Search

You can play back a disc from the desired point by specifying the elapsed playing time from the beginning of a program (DVD-RAM, DVD-R, DVD-RW, DVD VIDEO and HDD) or a disc (Video CD/SVCD and Audio CD).

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select “💡→|”, then press ENTER. The pop-up window appears under the selected item.

3 Press the number keys to enter the time, then press ENTER. Playback starts from the specified time.

Example: To play back from a point 12 (minutes): 50 (seconds) elapsed.

If you have specified a wrong selection, Press RETURN on the remote control and repeat the above procedures from step 2.

To clear the on-screen bar Press ON SCREEN.

NOTES:

• When “ ” is displayed on the TV screen in step 3, you have selected a point that exceeds the recording time of the disc. However, for HDD; DVD-R/RW (Video mode) discs that have not been finalized; and DVD-R/RW (VR mode) discs, “ ” will not be displayed and the last image (still) of the program appears on the TV screen.
• Some DVD VIDEO discs do not contain time information, and it is not possible to use the Time Search function. In such cases, “ ” is displayed on the TV screen as well.
• This function is not possible for a Video CD/SVCD with PBC function.

Simulated Surround Effect

It is possible to get a simulated surround effect from your stereo system. You can enjoy the virtual surround sound with your 2-channel stereo system.

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "", then press ENTER.
3 Press selection keys to select "ON", then press ENTER.
- "3D-ON" appears above the selected item and Simulated Surround Effect is activated.

To clear the on-screen bar Press ON SCREEN.

To cancel the simulated surround effect

Press selection keys to select "OFF", then press ENTER to clear "3D-ON" from the screen.

NOTES:

• Simulated Surround Effect works correctly only when playing back a title recorded in multichannels.
• Simulated Surround Effect does not affect the DVD VIDEO bitstream signal from the [DIGITAL AUDIO OUTPUT] connectors.
• When Simulated Surround Effect is activated, the settings of "ANALOG AUDIO OUT" and "D. RANGE CONTROL" are disabled. (135 pg. 58)
  ●Simulated Surround Effect cannot be activated under the following conditions:
• When the HDD deck is in the recording mode.
• When a disc containing both the Dolby Digital 5.1CH and 2CH sound formats is playing back a scene that is not in the 5.1CH sound format.

Adjusting The Picture Quality

You can obtain optimal picture quality by selecting an appropriate picture mode.

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "☐", then press ENTER. The pop-up window appears under the selected item.

3 Press selection keys to select the desired option, then press ENTER.

NORMAL: Normally select this option.

CINEMA: Suitable for a movie disc, etc.

SHARP: Clearer, sharper-edged picture when viewing images with lots of flat, same-colored surfaces such as cartoons.

SOFT: Select this option when too much noise appears.

To clear the on-screen bar Press ON SCREEN.

Setting The Progressive Mode

You can obtain optimal picture quality by selecting whether the content on the disc is processed by field (video source) or by frame (film source).

1 Set the unit to the progressive scan mode. (pg. 65)
2 Press ON SCREEN twice to access the on-screen bar.
3 Press selection keys to select "☐", then press ENTER. The pop-up window appears under the selected item.

4 Press selection keys to select the desired option, then press ENTER.

AUTO:

This mode automatically detects film and video content for progressive playback. When film content is found, flag detection is used to invoke playback of film data in full screen. When video content is found, pictures from multiple fields are used to detect sections with movement, and then this movement undergoes advanced image processing for output of sharp, detailed progressive images without any reduction in image quality where movement occurs. Normally, operation in this mode is recommended.

FILM:

Suitable for playing back a progressive scanned film source disc.

VIDEO:

Suitable for playing back a video source disc. The outlines on the played back pictures will be soft.

To clear the on-screen bar

Press ON SCREEN.

NOTE:

Progressive scan is output only from [COMPONENT VIDEO OUT] connectors.

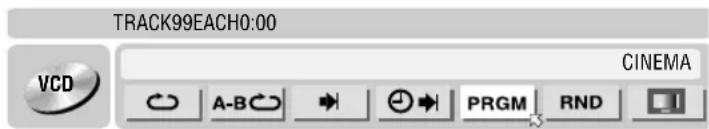

Program Playback

You can program up to 30 tracks (Video CD/SVCD or Audio CD) to play back in the desired order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "PRGM", then press ENTER. The program table appears under on-screen bar.

3 Press the number keys to enter the track numbers in the desired order.

Examples:

1 To select track 5, press the number key "5" and ENTER.
2To select track 15, press the number key "1" and "5".
3 To select track 25, press the number key "2" and "5".

If you have specified a wrong selection

Press CANCEL. The last selection is erased.

Or press CLEAR (■). The whole selection is erased.

4 Press ▶. Playback starts in the programmed order.

• When all of the programmed tracks have been played back, Program Playback stops, but the programmed information remains.
• To add tracks to the end of the program, perform step 3.
• During Program Playback, pressing ▶▶1 skips to the next selection of the program. Pressing ◀◀◀ returns to the beginning of the current selection.

To clear the on-screen bar and the contents of the program Press ON SCREEN.

To cancel Program Playback

Press selection keys to select "PRGM", then press ENTER.

NOTE:

Program Playback is not possible depending on the type of disc.

Random Playback

You can play back all the tracks on the disc in random order.

While stopped

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select "RND", then press ENTER.
3 Press selection keys to select "ON", then press ENTER. Playback starts in random order.

To clear the on-screen bar Press ON SCREEN.

To cancel Random Playback

Press selection keys to select "OFF", then press ENTER.

NOTE:

The same track will not be played back more than once during Random Playback.

Select The Switching Interval Of The Slide Show

You can control the switching interval of the slide show.

1 Press ON SCREEN twice to access the on-screen bar.
2 Press selection keys to select “☐”, then press ENTER. The pop-up window appears under the selected item.

3 Press selection keys to select the desired option, then press ENTER.

- Each time you press the selection keys, the interval changes as follows: 5 sec ↔ 10 sec ↔ 15 sec ↔ 20 sec ↔ 25 sec ↔ 30 sec ↔ (Back to the beginning)

To clear the on-screen bar Press ON SCREEN.

NOTE:

JPEG files are played back as a slide show. It may take more time to display an image with larger file size.

Basic Playback

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

ATTENTION:

• It may take a few seconds to start playback. This is not a malfunction.
• Forward/reverse high-speed search and other operations cannot be performed while playback is stopped.

1 Press DV/HDD/DVD on the unit repeatedly or HDD on the remote so that the HDD lamp lights up on the unit.

2 Press ▶ to start playback.

• The Library Database Navigation also enables you to search and select the desired programs. (pg. 39)
  3 Press II to pause playback.
• To resume normal playback, press ▶.
  4 Press ■ to stop playback.

NOTES:

• When the Library Database Navigation screen appears, choose a thumbnail image of the desired title on the TV screen, then press ENTER. (Egg pg. 39)
• During HDD playback, the current title elapsed time is displayed on the TV screen when ON SCREEN is pressed. However, each press of DISPLAY changes the time display on the front display panel as follows:

Current title elapsed time → Disc remaining time → Current title remaining time → (back to the beginning)

- It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.

Playback Features

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press HDD so that the HDD lamp lights up on the unit.

Variable Speed Search

During playback, press ▶▶ for forward variable speed search, or ◀◀ for reverse variable speed search.

●Each press of the button increases the search speed for each direction.
- To resume normal playback, press ▶.

Reverse

Forward

Reverse Search5 steps					ReversePlay	ReverseSlow Motion3 steps			Slow Motion3 steps			NormalPlay	Forward Search6 steps
-360	-60	-15	-5	-3	-1		-1/2	-1/4	-1/16	1/16	1/4	1/2	1	1.5	3	5	15	60	360

Still Picture/Frame-By-Frame Playback

1 Press Ⅱ to pause during playback.
2 Press SLOW - (◀◀) or SLOW + (▶▶) to activate frame-by-frame playback.

• Each press of SLOW - (◀◀) or SLOW + (▶▶) advances/reverses the still picture frame by frame.
• To resume normal playback, press ▶.

Slow Motion

1 Press Ⅱ to pause during playback.
2 Press SLOW - (◀◀) or SLOW + (▶▶) for 2 or more seconds.

- Each press of SLOW - (◀◀) or SLOW + (▶▶) increases the slow motion speed for each direction.

Skip Search

During playback, press ↗.

- Each press initiates an approximately 30-second period of fast-motion playback. Normal playback resumes automatically.

Instant Replay

You can move back the playback position slightly.

Press ↻ on the remote control or INSTANT REPLAY on the unit.

• Each press skips back for approximately 7 seconds and resumes playback.
• Pressing while paused skips back for approximately 7 seconds and resumes pause.

1.5x Speed Playback

You can play back a title quickly. The sound will also be played back faster than normal speed during 1.5x speed playback.

1.5x speed playback cannot be performed during recording on HDD or DVD.

1 Press ◀◀ to locate the point to start 1.5x speed playback from.
2 Press ▶ to resume playback.
3 Press ▶▶ once.

- Pressing ON SCREEN displays "X1.5" on the top right corner of the screen.

NOTES:

• When the unit is connected with a digital audio device using an optional optical cable, set "DIGITAL AUDIO OUT" to "PCM ONLY". (1) pg. 26)
• For programs recorded in DV mode, 1.5x speed playback with sound is not possible.

Jump Search

You can locate a scene ahead or behind the current one by jumping scenes according to selected time intervals ( ps pg. 59) during playback (or Live Memory Playback).

Press ◀◀◀ or ▶▶◀.

• To advance forward or back, press ◀◀◀ or ▶▶▶ repeatedly within 5 seconds of each press to continue jump.
• Depending on the time from where you want to start jump search, the first press of ◀◀◀ or ▶▶▶ will not necessarily lead to a jump of the selected time interval. The first press will lead to a jump to the nearest quarter points of an hour (15 min/ 30 min/ 45 min/ 00 min). The subsequent jumps will then be in accordance to the selected time interval.
• When you cannot advance any further (beginning or end of program reached), the message “UNABLE TO GO BACK ANY MORE” or “UNABLE TO GO FORWARD ANY MORE” appears on the screen. In such a case, press ◀◀◀, ◀◀◀, ▶▶, ▶▶◀ or ■.

Example:

Playback search when jump interval is set to 15 MIN jumps. Taking for instance, you want to start jump search 40 minutes after the beginning of the program. Pressing ◀◀◀ or ▶▶◀ will result in a jump to the scene at the 30 minutes point or 45 minutes point respectively as illustrated below. At the subsequent press, the scene will jump to the 15 minutes point or 1 hour point respectively, according to the selected time interval, which in this case is “15 MIN”.

Time counter

NOTE:

Jump search functions only when chapters (marks) are not set.

Marking Positions To Play Back Again Later

It is possible to mark positions (up to 999 points) where you want to play back once again later, and start playback from a marked position. Marking onto the disc when recording is helpful to locate a start point when you play back the disc later.

To mark positions:

During playback, press MARK at positions you want to mark.

- “MARK” appears on the TV screen. You can easily locate the marked positions using ◀◀◀ or ▶▶◀ when you play back the disc.

To delete the marked positions:

While paused, press ◀◀◀ or ▶▶◀ to locate a marked position you want to delete, then press MARK.

- Crossed "MARK" appears on the TV screen, and the marked position is deleted.

MARK

MARK

Basic Playback

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

1 Load a cassette. Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the unit.

• Do not apply too much pressure when inserting.
• If the erase protection switch is set to "SAVE", playback begins automatically. It takes about 15 seconds until the playback picture appears.
• The unit's power comes on automatically.

2 Press DV/HDD/DVD on the unit repeatedly or DV on the remote control so that the DV lamp lights up on the unit.
3 Find the program start point. If the tape is advanced past the start point, press ◀◀. To go forward, press ▶▶.
4 Press ▶ to start playback.
5 Press ■ to stop playback.

- To eject the cassette, press ▲ (DV). You can also eject the cassette when the unit is turned off.

Clean the video heads using a dry cleaning cassette - M-DV12CL - when:

• No picture during playback.
• Block noise appears during playback.
• "USE CLEANING CASSETTE" appears on the screen.
• "U01" lights on the front display panel.

NOTES:

●The heads get dirty in the following cases:

• in an environment prone to extreme temperature or humidity
  ●in a dusty environment
  ●flaw, dirt or mould on video tapes
  ●continuous usage for a long time
• "U01" will also light on the front display panel when you attempt to play back a tape recorded with PAL signals. This unit cannot play back tapes recorded with PAL signals.

Usable cassettes

• Cassettes marked Mini DV can be used with the DV deck.
• Tapes recorded in the DVCAM format can be played.

NOTES:

• When you record a tape on the DV deck with the recording speed set to "LP", it is recommended to play back that tape back on this DV deck. Digital video recorder from other manufacturers may not be able to play back the tape properly.
• It is possible to play back on the DV deck and the HDD/DVD deck simultaneously. However, either DVD or HDD can be played at the same time.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, set its erase protection switch to "SAVE". To record on it later, set the switch to "REC".

Playback Features

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press DV/HDD/DVD on the unit repeatedly or DV on the remote so that the DV lamp lights up on the unit.

ATTENTION:

In the search, still, slow-motion or frame-by-frame playback mode, a slight mosaic effect appears on screen.

Variable Speed Search

During playback, press ▶▶ for forward variable speed search, or ◀◀ for reverse variable speed search.
- Each press of the button increases the search speed for each direction.
- To resume normal playback, press ▶.

Reverse ←→Forward
Reverse Search3 steps			ReverseSlow Motion1 step	Slow Motion1 step	NormalPlay	Forward Search3 steps
-12	-4	-2 -1/5 1/5	2 4 12

Still Picture/Frame-By-Frame Playback

1 Press Ⅱ to pause during playback.
2 Press II to activate frame-by-frame playback.
- To resume normal playback, press ▶.

Slow Motion

1 Press Ⅱ to pause during playback.
2 Press and hold || for 2 seconds, then release. Press || and release again to return to still picture.
- Press ▶▶ for forward slow motion or ◀◀ for reverse slow motion.
- To resume normal playback, press ▶.

Skip Search

During playback, press ↗.

- Each press initiates an approximately 30-second period of fast-motion playback. Normal playback resumes automatically.

Instant Replay

During playback, press 📋 on the remote control or INSTANT REPLAY on the unit. The unit rewinds the picture a little (about 7 seconds) and resumes playback.

Next Function Memory

The Next Function Memory “tells” the unit what to do after rewinding. Before continuing, make sure the unit is in the Stop mode.

For Automatic Start Of Playback

Press ◀◀, then press ▶ within 2 seconds.

For Automatic Cassette Ejection After Tape Rewind

Press ◀◀, then press ▲ (DV) within 2 seconds.

Soundtrack Selection

Your unit is capable of recording two soundtracks (L and R) and will play back the one you select.

During Playback

Pressing AUDIO changes the soundtrack as follows:

TRACK	USE
On-Screen Display
L ▶ ▶ R	Both sounds on the left channel and the right channel are mixed and played back
L ▶	Sound on the left channel is played back
△R	Sound on the right channel is played back

To select the audio mode (SOUND1/SOUND2/MIX), refer to "AUDIO MODE" under "DV SET UP" (pg. 60).

Time Code

During recording, a time code is recorded on the tape. This time code is used to confirm the position on the tape when playing back or editing a tape.

1 Press DISPLAY on the remote control or the unit until the time code on the tape appears on the front display panel and the TV screen.
- Each time you press DISPLAY, the indication changes as follows:
Time code → Tape remaining time → Clock time → (Back to the beginning)

Live Memory Playback

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press DV/HDD/DVD on the unit repeatedly to select the HDD or DVD deck.

This unit records pictures onto the hard disk and DVD-RAM disc, instead of video tapes, then plays back the pictures recorded on the disc. This makes it possible to achieve high-speed writing and read-out that has not been possible with conventional VCRs, enabling recording and playback simultaneously.

It is called "Live Memory Playback" to start playback of the program being recorded, with a time-lag between a recording point and a playback point, as shown in the figure below.

Not only can this unit play back a program previously recorded while recording another program, but the unit also allows you to play back from the beginning of a program while continuing to record the same program.

Recording/playback Status Display

NOTES:

●Live Memory Playback could be performed approximately 30 seconds after recording has started on the DVD-RAM disc. However, for HDD, Live Memory Playback is possible right after recording has started.
- Although high-speed search up to approximately 30 seconds before the current recording point is possible during Live Memory Playback, once the current recording point is reached, the unit resumes normal playback and maintains a delay of approximately 30 seconds so that recording and playback can continue.
- Playback may be paused for a moment during Live Memory Playback, which does not interfere with recording.
- Live Memory Playback cannot be performed while recording the source from DV input. (vpg. 49, "DV Dubbing (HDD & DVD Deck Only)")
- When EE CHECK is pressed to display the picture currently being recorded, the picture size may not be correct.
- Press ■ or EE to stop Live Memory Playback.
●Live Memory Playback cannot be performed while the DVD deck is recording as temporary recording on HDD stops during recording on DVD.

Buttons To Be Used During Live Memory Playback

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD
• Press HDD or DVD to select the desired deck for Live Memory Playback.

① NAVIGATION

Displays Library Database Navigation menu. You can choose a title to play back.

②

• Pressing once skips back to the beginning of the chapter being played back.
• Pressing down for 2 or more seconds during playback reverses playback at 5 times the normal speed while pressed. Releasing the button resumes normal playback.

Available only when paused

- Pressing down for 2 or more seconds reverses playback at 1/16 times the normal speed. Releasing the button resumes normal playback.

Backward Jump

- Each press of the button during Live Memory Playback jumps back for the selected time interval and resumes playback. (pp. 32, "Jump Search")

3

• Pressing once skips forward to the beginning of the next chapter being played back.
• Pressing down for 2 or more seconds during playback advances playback at 5 times the normal speed while pressed. Releasing the button resumes normal playback.

Available only when paused

- Pressing down for 2 or more seconds advances playback at 1/16 times the normal speed. Releasing the button resumes normal playback.

Forward Jump

- Each press of the button during Live Memory Playback jumps forward for the selected time interval and resumes playback. (pp. 32, "Jump Search")

4

●Each press of the button during playback advances the playback speed in 6 steps in the reverse direction.

Available only when paused

• Each press of the button reverses the still picture frame by frame.
• Pressing down for 2 or more seconds reverses playback at 1/16 times the normal speed. Then, each press of the button reverses slow-motion at 1/16 times, 1/4 times and 1/2 times the normal playback.

5

• Each press of the button during playback advances the playback speed in 5 steps in the forward direction. Available only when paused
• Each press of the button advances the still picture frame by frame.
• Pressing down for 2 or more seconds advances playback at 1/16 times the normal speed. Then, each press of the button advances slow-motion at 1/16 times, 1/4 times and 1/2 times the normal playback.

6

• Pressing once during Live Memory Playback or RetroActive Recording returns to the external input screen.
• Pressing twice during recording stops recording and returns to the external input screen.

⑦ II

• Pressing once pauses playback (still picture playback).
• Pressing repeatedly advances the still picture frame by frame.

8

It is useful when watching sports programs, etc.

• Each press skips back for approximately 7 seconds and resumes playback.
• Pressing repeatedly skips back for approximately 7 seconds continuously as many times as pressed.

⑨

It is useful when skipping over unwanted sections.

• Pressing once skips forward for approximately 30 seconds and resumes playback.
• Pressing repeatedly skips forward continuously as many times as pressed.

10 EE

Returns to on external input screen. When a confirmation message appears by pressing this button during title editing, etc., follow the instruction to return to the previous screen.

⑪ EE CHECK

You can check, for example, if the program you are recording has already finished.

• Pressing once displays the picture currently being recorded and the one being played back simultaneously.
• Pressing successively clears the Live Check window and displays only the picture currently being played back.

Temporary recording for Live Memory (HDD deck only)

This unit automatically records the AV input being received, within the specified range of time, to the reserved space on the hard disk. The time range can be set for 30 minutes, 1 hour, and 3 hours. (vpg. 59)

NOTE:

Previous temporary recordings will be overwritten since the unit is always recording the AV input being received. Thus, it is not possible to play back programs recorded beyond the specified range of time since they are already overwritten. To avoid this in order to save titles, perform normal recording or RetroActive Recording (See below).

About limitation on temporary recording

The temporary recording for Live Memory is canceled in the following cases, and will start all over again when it is to resume.

- When the power is turned off

- When the system is powered again after a power failure was occurred

- When normal recording or RetroActive Recording is performed

- When the "LIVE MEMORY" setting is changed (pg. 59)

- When dubbing is performed by pressing DUBBING (pg. 45)

- When "DV" is selected by pressing INPUT SELECT +/- (pg. 49)

RetroActive Recording (HDD deck only)

You can start recording from the previous part of the AV input you are currently watching (temporarily recorded on the background). (See “Temporary recording for Live Memory (HDD deck only)” above.)

1 Press ◀◀◀ or ◀◀◀ to locate the point to start recording from.
- Each press of increases the reverse search speed.

2 Press ● on the unit to start RetroActive Recording. Or while holding ●, press ▶ on the remote control.

3 Press ■ twice to stop RetroActive Recording.

●The external input screen resumes.

NOTES:

• You cannot use RetroActive Recording for inputs other than the one you are currently watching.
• Recording speed is automatically set to FR65 mode when RetroActive Recording is started.
• Temporarily recorded data prior to the beginning of RetroActive Recording is erased when RetroActive Recording started.

Simultaneous Recording and Playback

You can play back the previous part of the AV input you are recording or other programs available in the Library Database.

1 Press NAVIGATION. The Library Database Navigation screen appears.
2 Press selection keys to select "ORIGINAL", then press ENTER.
3 Press selection keys to select the desired title, then press ENTER.

- For DVD-RAM, playback starts from the beginning of the title if "CONTINUOUS PLAY" in "DVD SET UP" is set to "ON" (spg. 59).

4 Press selection keys to select the desired playback method ("BEGINNING", "RESUME" or "REPEAT"), then press ENTER.

-Playback of the selected title begins automatically.

5 Press ■ to stop playback.
●The external input screen resumes.

NOTES:

• You can use various playback features during Live Memory Playback.
• To stop simultaneous playback, press ■. The external input screen resumes. To stop actual recording, press ■ twice again.

Instant Replay

You can move back the playback position slightly during recording or Live Memory Playback.

Press ↻ on the remote control or INSTANT REPLAY on the unit.

DVD-RAM

• Pressing once during recording skips back for approximately 30 seconds and starts Live Memory Playback. While pressing once during Live Memory Playback skips back for approximately 7 seconds and resumes playback.
• Each subsequent press skips back for approximately 7 seconds and resumes playback.
• Pressing while paused skips back for approximately 7 seconds and resumes pause.

■HDD

• Pressing during recording skips back for approximately 7 seconds and starts Live Memory Playback. While pressing during Live Memory Playback skips back for approximately 7 seconds and resumes playback.
• Each press skips back for approximately 7 seconds and resumes playback.
• Pressing while paused skips back for approximately 7 seconds and resumes pause.

Resuming Playback (HDD deck only)

You can resume playback of an AV input you were recording or watching from the point you have paused.

1 Press Ⅱ to pause an AV input.
- Recording continues when recording.

2 Press ▶ to start Live Memory Playback.

●Playback resumes from the paused position.

3 Press ■ to resume the external input screen.

Library Database Navigation

The Library Database Navigation enables you to search and select the desired titles recorded on the HDD deck and the DVD deck very easily.

You can record up to 99 titles on a disc.

Each time a title is recorded, the information of the title is

registered for the Library Database Navigation automatically.

So, you can confirm the information of the titles recorded with the Library Database Navigation screen. And, you can also select one of the titles recorded using the Library Database Navigation.

The following screen appears as the Library Database Navigation screen when you press NAVIGATION. You can move the arrow to select the desired position on the screen by pressing selection keys on the remote control.

1Playback screen
(Indicates currently received AV input.)
2 Guidance for operations
3 Scroll bar

(Appears when there are over nine registered titles (or play lists). The scroll bar only indicates that there are more titles (or play lists) hidden off the current screen display. To show hidden titles (or play lists), press selection keys repeatedly.)

4 Recording information for the title indicated by the arrow
5Index list

(Thumbnail still of each title)

Thumbnail still is not to be played back.

6Index

: Indicates no index is registered.
: Indicates no title is registered.

7 Icons

(Indicate the record condition of each title.)

The Icons and their meanings

	This title is write-protected.
NEW	This title has not been played back.
	This title is copy-protected.
	This title can only be recorded once (copy-once title).

Using Library Database Navigation system, you can easily modify registered information, edit the title or play list, as well as search for the beginning of each title.

About registration of information

The following information is automatically registered for each title when ordinary recording is performed, then stored in an area specified on the unit.

• index* (reduced pictures to show program titles)
• program title*
  •category*
• date and time
• channel
• recording mode
  ●length of recording time
  The items marked with an asterisk (*) can be easily modified and registered again after recording by using Library Database Navigation system.

The limitations of registration

You can register information up to 99 titles for the DVD deck and 500 titles for the HDD deck.

When the amount of information is at the limits of registration, you cannot record new titles any more. In this case, you need to delete old titles to register new ones. (pg. 40)

NOTES:

• Once a DVD-R/RW (Video mode) disc has been finalized, the display for original does not appear. Only display for library appears.
• When a copy-once title recorded on the HDD is dubbed to a DVD disc (DVD-RAM/R/RW (VR mode)), the original data will be moved from the HDD to the DVD disc. In additional, the title that was moved to the DVD disc will become a copy-protected title, and the icon changes from ☐.

- Sound of received channel may be interrupted while the Library Database Navigation screen is displayed.

- The order of index which are displayed by pressing DUBBING differs from the images displayed by pressing NAVIGATION or EDIT.

Scan For Beginning Of Title

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press HDD or DVD to choose the corresponding deck.
• Load a DVD disc to scan.

You can scan the beginning of the title easily with the Library Database Navigation.

1 Press NAVIGATION. The Library Database Navigation screen appears.

2 Press selection keys to select "ORIGINAL", then press ENTER.

3 Press selection keys to select the index (small pictures) of the desired title, then press ENTER.

- When you want the plural titles to be played back continuously, press MEMO after selecting the desired title. The numbers of the playback order appear on the index. You

- When you want to correct the order, move the arrow to the desired index and press MEMO. The number disappears and the unit re-numbers the other programs automatically. - When you want to cancel the order, press CANCEL.

4 Press selection keys to select "BEGINNING", then press ENTER.

- To resume playback from the point where playback was previously stopped, press selection keys to select "RESUME", then press ENTER.

- To repeat playback of a selected title, press selection keys to select "REPEAT", then press ENTER.

5 Press II to pause playback. • To resume normal playback, press ▶.

6 Press ■ to stop playback.

Edit Original Information

- Turn on the TV and select the AV mode.

• Slide the TV/DVD switch to DVD.
• Press HDD or DVD to choose the corresponding deck.
• Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

Modify Index

1 Press EDIT. The Editing screen appears.
2 (DVD deck only) Press selection keys to select "MODIFY" under "ORIGINAL/PLAY LIST", then press ENTER.
3 Press selection keys to select "MODIFY" under "ORIGINAL", then press ENTER.
4 Press selection keys to select a title you want to modify, then press ENTER.
5 Press selection keys to select "INDEX", then press ENTER.
6 Press ▶ to start playback. Press ◀◀ or ▶▶ to search for the picture from the title, then press Ⅱ.

- The pictures of the title appear on the left window.

7 Confirm the arrow is on "REPLACE", then press ENTER to register new index. New index appears on the right window.

- When you press ENTER with the arrow on "RETURN" you can return to the previous screen.

8 Press EDIT to return to the normal screen.

Modify Title Name

1 Perform steps 1 - 4 of "Modify Index" above before continuing.

2 Press selection keys to select "NAME", then press ENTER.

3 Press selection keys to select the desired letter or symbol, then press ENTER. Repeat this process to complete the name.

- To correct a letter, press selection keys to select "DELETE", then press ENTER.

- You can enter the letters up to 64.

4 Press selection keys to select "SAVE", then press ENTER.

5 Press EDIT to return to the normal screen.

Modify Category

1 Perform steps 1 - 4 of "Modify Index" (pg. 39) before continuing.
2 Press selection keys to select "CATEGORY", then press ENTER.
3 Press selection keys to select the desired category, then press ENTER.
4 Press EDIT to return to the normal screen.

Protect Title

(DVD-RAM & DVD-R/RW (VR mode) only)

You can protect titles to prevent accidental erasure of the important titles.

1 Perform steps 1 - 2 of "Modify Index" (pg. 39) before continuing.
2 Press selection keys to select "PROTECT", then press ENTER.
3 Press selection keys to select a title you want to protect, then press ENTER.
4 Press selection keys to select "PROTECT", then press ENTER. " [icon] " appears.
- To cancel the protection, repeat 3 – 4 again. In step 4, select "CANCEL PROTECT", then press ENTER.
5 Press EDIT to return to the normal screen.

NOTE:

All the titles on a disc will be deleted once the disc is formatted even if they are protected titles.

Delete Title

You cannot record any more with Library Database Navigation once the registered titles on the disc reach 99 titles for the DVD deck and 500 titles for the HDD deck. Deleting unnecessary titles after dubbing or other operations can increase remaining time and available recording capacity. (For DVD-R discs, although it is possible to delete recorded titles, available recording capacity does not increase.) The deleted title is never resumed. Play lists and title information in the unit's library are also deleted.

1 Press EDIT. The Editing screen appears.
2 (DVD deck only) Press selection keys to select "MODIFY" under "ORIGINAL/PLAY LIST", then press ENTER.
3 Press selection keys to select "DELETE" under "ORIGINAL", then press ENTER.
4 Press selection keys to select a title you want to delete, then press ENTER.
5 Press selection keys to select "DELETE", then press ENTER.
- When you cancel the deletion, select "CANCEL", then press ENTER.
6 Press EDIT to return to the normal screen.

Delete Unwanted Part Of The Title

(HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can delete unwanted part of the title.

1 Perform steps 1 - 2 of "Modify Index" (pg. 39) before continuing.
2 Press selection keys to select "DEL SCEN", then press ENTER.
3 Press selection keys to select a title whose unwanted part you want to delete, then press ENTER.
4 Press ▶ to start playback. Press ◀◀ or ▶▶ to find the point where you want the deletion to begin, then press Ⅱ.
5 Confirm the arrow is on "IN", then press ENTER.
6 Press ▶ to start playback. Press ◀◀ or ▶▶ to find the point where you want the deletion to end, then press ||.
7 Press selection keys to select "OUT", then press ENTER.
- Select "PREVIEW", then press ENTER to preview the edited title.
8 Press selection keys to select "OK", then press ENTER.
- If you do not want to delete the scene, press RETURN.

To modify the points

1 Press RETURN.

2 Repeat steps 4 - 8 as necessary.

9 Press selection keys to select "DELETE", then press ENTER. The selected scene is deleted.

- To cancel the deletion, press selection keys to select "CANCEL", then press ENTER.

10 Press EDIT to return to the normal screen.

NOTES:

• There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.
  ●Available recording capacity may not match the deleted part after deletion.
• For DVD-R discs, although it is possible to delete unwanted part of a title, available recording capacity does not increase.

Divide Title (HDD deck only)

You can divide titles that are recorded continuously.

1 Press EDIT. The Editing screen appears.
2 Press selection keys to select "DIVIDE", then press ENTER.

3 Press selection keys to select a title to divide, then press ENTER.

4 Press ▶ to start playback. Press ◀◀ or ▶▶ to locate a point to divide, then press Ⅱ.

5 Confirm the arrow is on "DIVIDE", then press ENTER.

- The first picture (start) of the newly created title appears in the bottom right window.

- Select "PREVIEW", then press ENTER. The first several seconds of the newly created title is played back, then the playback pauses at the dividing point.

- To undo the division, press selection keys to select “RETRY”, then press ENTER. Repeat the above procedure to locate another point to divide.

6 Press selection keys to select "OK", then press ENTER.

7 Press selection keys to select "DIVIDE", then press ENTER.

- Select "CANCEL", then press ENTER to return to the previous screen.

8 Press EDIT to return to the normal screen.

NOTES:

- There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

- It is not possible to divide titles that are used in the play list.

Modify Chapter

(HDD, DVD-RAM & DVD-R/RW (VR mode) only)

You can create and delete chapter marks in titles.

1 Perform steps 1 - 4 of "Modify Index" (pg. 39) before continuing.
2 Press selection keys to select "CHAPTER", then press ENTER.
3 Press ▶ to start playback. Press ◀◀ or ▶▶, then press ■ at the positions you want to mark.
4 Press selection keys to select "MARK", then press ENTER.

- To undo the marking, press selection keys to select "RETRY", then press ENTER.

- Repeat the above steps 3 and 4 to locate another point to mark.

5 Press ◀◀ or ▶▶ to select one chapter you want to delete, press selection keys to select "ERASE", then press ENTER.

- To undo the deletion, press selection keys to select "RETRY", then press ENTER.

6 Press EDIT to return to the normal screen.

NOTE:

There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.

Edit Play List Information

- Turn on the TV and select the AV mode.

• Slide the TV/DVD switch to DVD.
• Press HDD or DVD to choose the corresponding deck.
• Load a DVD disc to modify.

ATTENTION:

It is not possible to modify discs recorded on DVD units from other manufacturers.

Play List

It is a collection of the scenes. A play list can be freely edited and played back without ever changing any original recording data. Using the random access of a disc (which allows video data to be instantly read no matter where it is on the disc), a play list includes information such as the timer counter for the playback start point and end point, indexes for checking the contents of recorded data, category information, and more. Playback according to a play list you have created allows you to enjoy various combinations of video images from a single title.

Create Play List

1 Press EDIT. The Editing screen appears.
2 (DVD deck only) Press selection keys to select "MODIFY" under "ORIGINAL/PLAY LIST", then press ENTER.
3 Press selection keys to select "CREATE", then press ENTER.
4 Press selection keys to select a title that includes scenes to be included in a play list, then press ENTER.
5 Press ▶ to start playback. Press ◀◀ or ▶▶ to find the point where you want the created play list to begin, then press Ⅱ.

6 Confirm the arrow is on "IN/OUT", then press ENTER.

• The edit-in time is displayed on the screen.
• To undo, press selection keys to select "RETRY", then press ENTER.

7 Press ▶ to start playback. Press ◀◀ or ▶▶ to find the

8 Confirm the arrow is on "IN/OUT", then press ENTER.

●The edit-out time is displayed on the screen.
- The edit-out point must come after the edit-in point.
- Select "PREVIEW", then press ENTER to preview the play list.

9 Press selection keys to select "OK", then press ENTER.

10 Press selection keys to select "EXIT", then press ENTER.

11 Press EDIT to return to the normal screen.

NOTES:

• There may be a discrepancy of several seconds between the scene you intend to edit, and the scene which is actually edited.
• The title, index and category of the play list can be modified in the same way as "ORIGINAL". ( page 39)
• You can modify the play list that has just been created here by adding, moving, or deleting unwanted parts to create a digest edition, etc.

Edit Scenes

1 Press EDIT. The Editing screen appears.
2 (DVD deck only) Press selection keys to select "MODIFY" under "ORIGINAL/PLAY LIST", then press ENTER.
3 Press selection keys to select "MODIFY" under "PLAY LIST", then press ENTER.
4 Press selection keys to select a play list to modify, then press ENTER.
5 Press selection keys to select "SCENE", then press ENTER.
6 Press selection keys to select "MODIFY", then press ENTER.
7 Press selection keys to select the start or end point of a scene to modify, then press ENTER.
8 Perform steps 5 - 11 of "Create Play List" above.

Add scenes

1 Perform steps 1 - 5 of "Edit Scenes" on the left column before continuing.
2 Press selection keys to select "SEL. TITLE", then press ENTER.
3 Perform steps 4 - 11 of "Create Play List" on the left column.

Move Scenes

1 Perform steps 1 - 5 of "Edit Scenes" on the left column before continuing.
2 Press selection keys to select "MOVE", then press ENTER.
3 Press selection keys to select a scene to move, then press ENTER.
4 Press selection keys to select another scene to which the scene is to be moved, then press ENTER.
- To cancel the move, press selection keys to select "RETRY", then press ENTER.
5 Perform steps 9 - 11 of "Create Play List" on the left column.

Delete Scenes

1 Perform steps 1 – 5 of “Edit Scenes” on the left column before continuing.
2 Press selection keys to select "DELETE", then press ENTER.
3 Press selection keys to select a scene to delete, then press ENTER.
4 Perform steps 9 - 11 of "Create Play List" on the left column.

Play Back Play List

1 Press NAVIGATION. The Library Database Navigation screen appears.
2 Press selection keys to select "PLAY LIST", then press ENTER.
3 Press selection keys to select the index (small pictures) of the desired play list, then press ENTER.
- When you want the plural play lists to be played back continuously, press MEMO after selecting the desired play lists. The numbers of the playback order appear on the index. You can select up to 8 play lists.
- When you want to correct the order, move the arrow to the desired index and press MEMO. The number disappears and the unit re-numbers the other play lists automatically.
- When you want to cancel the order, press CANCEL.
4 Press selection keys to select "BEGINNING", then press ENTER. The playback starts.
- Upon completing play list playback, the normal screen will resume.
- The normal screen will also resume when ■ is pressed to stop play list playback.

Delete Play List

1 Press EDIT. The Editing screen appears.
2 (DVD deck only) Press selection keys to select "MODIFY" under "ORIGINAL/PLAY LIST", then press ENTER.
3 Press selection keys to select "DELETE" under "PLAY LIST", then press ENTER.
4 Press selection keys to select one play list you want to delete, then press ENTER.
5 Press selection keys to select "DELETE", then press ENTER.
- When you cancel the deletion, select "CANCEL", then press ENTER.
6 Press EDIT to return to the normal screen.

NOTE:

Even if a play list is deleted, the titles recorded and the library information are not affected at all.

Modify Index

1 Perform steps 1 – 4 of “Edit Scenes” (pg. 42) before continuing.
2 Perform steps 5 - 8 of "Modify Index" (pg. 39).

Modify Play List Name

1 Perform steps 1 – 4 of “Edit Scenes” (pg. 42) before continuing.
2 Perform steps 2 - 5 of "Modify Title Name" (pg. 39).

Modify Category

1 Perform steps 1 – 4 of “Edit Scenes” (pg. 42) before continuing.
2 Perform steps 2 - 4 of "Modify Category" (pg. 40).

Navigate Library Information

Title information can be registered in the unit's memory for up to 600 DVD discs, 2,000 titles. It is helpful when finding a desired title (or play list) by sorting according to the sort options registered during (or after) recording.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press HDD or DVD to choose the corresponding deck.

Scan For Title From Library

1 Press NAVIGATION. The Library Database Navigation screen appears.
2 Press selection keys to select the appropriate sort button to sort the information, then press ENTER.

"DATE":

Sort by date

"DISC No.":

Sort by disc number

"CATEGORY":

Sort by category

"NAME":

Sort by name

- "DATE" and "DISC No." are available for the DVD deck only.

3 Press selection keys to select the desired title, then press ENTER.

• For HDD deck, playback begins automatically after the selected title is located.
• For DVD deck, the title information will be displayed after the selected title is located. However, playback will not begin automatically.

NOTE:

If a disc registered in the library is recorded or modified on DVD units from other manufacturers, it may become impossible to operate properly.

Register Disc

When a disc that is not registered in the library is loaded, a message appears confirming if the disc should be registered. If registering, perform the following procedure.

1 Press selection keys to select "REGISTER", then press ENTER to confirm the registration.

2 Press NAVIGATION to return to the normal screen.

NOTES:

• It is not possible to register discs formatted on devices other than JVC's DVD recorders.
• It is not possible to register discs recorded on devices other than JVC's DVD recorders.
• It is not possible to register discs when "SAVE AS LIBRARY" is set to "OFF". (图片 59)

Playback With MP3/WMA/JPEG Navigation

This unit can play back discs that MP3/WMA sound files and JPEG image files taken with digital still cameras or other devices are recorded.

The MP3/WMA/JPEG Navigation enables you to search and select the desired files recorded on CD-R/RW or CD-ROM discs very easily.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Press DVD to select the DVD deck.

① Selected file number/total number of files in the group that contains the selected file
2 Name of the selected file
3 Selected file

NOTES:

• If there are more than 100 files, the rest of the files are not displayed. In this case, press ON SCREEN to display them on the TV screen.
• The on-screen bar will display "MP3/WMA" regardless of whether MP3 or WMA files are played.
• If both MP3/WMA files and JPEG files are recorded on the same disc, you can select to play back either of the file types using the "MP3&WMA/JPEG" setting. (v ^2 pg. 59)

Locating The Desired Folders And Tracks

1 Load a disc.
2 Press NAVIGATION.
3 Press selection keys to select "ORIGINAL", then press ENTER.
4 Press selection keys to select the desired folder, then press ENTER.

●A list of files in the selected folder appears.

5 Press selection keys to select the desired item, then press ENTER. The unit starts playback from the selected item.
- The unit stops when all items in the selected folder are played back.

NOTES:

• If you press ▶ instead of ENTER in step 4, the unit starts playback from the first file of the folder.
• JPEG files are played back as a slide show at the set intervals. (ppg. 30)
• If a file name includes any 2-byte character, the unit may not show the file name correctly.
• The order of the folders and items shown in steps 4 and 5 may differ from the order shown on your PC.

Dubbing

- Turn on the unit.

●Turn on the TV and select the AV mode.
- Slide the TV/DVD switch to DVD.

Auto Finalizing

When dubbing from a Mini DV or HDD to a DVD-R/RW (Video mode) disc, you can select whether to finalize the disc automatically after dubbing has been completed. It is also possible to set the operation method of a DVD-R/RW (Video mode) disc when finalizing the disc. Each time the finalized disc is played back, it will be played back in accordance to the setting you have selected during finalization. For details, refer to "DISC TYPE" (Epg. 62).

NOTE:

You can select and set the background to be used when Auto Finalizing a DVD-R/RW (Video mode) disc. For details, refer to "Setting The Background" ( pg. 64).

NOTES:

• It is not possible to dub copy-protected contents. An error message will appear on the TV screen.
• The order of the index which is displayed by pressing DUBBING differs from the images displayed by pressing NAVIGATION or EDIT.

High Speed Dubbing (From HDD To DVD)

It is possible to dub the original recordings and/or play lists on the HDD deck to DVD discs. The dubbing is performed in high speed, keeping the original transfer rate.

NOTES:

• After accessing the Dubbing Menu screen, it is not possible to take out a disc.
• It is not possible to dub copy-once titles in Video mode.
• When dubbing a copy-once title, the data will be moved from HDD to DVD upon completing dubbing.
• When you cancel dubbing a copy-once title during dubbing, the original recording on the HDD deck remains and the title copied to a DVD disc is deleted.
• It is not possible to dub play lists which contain copy-once titles.
• It is not possible to dub the following programs to DVD-R/RW disc (Video mode):
  ●which contains more than one audio language.
  ●which is on the play list.
  ●which is edited (also RetroActive Recording).
  ●which is recorded in LP mode or FR155-FR240 mode.

- Recording may not be performed in the highest speed depending on the characteristics of the disc used.

1 Load a recordable disc.
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "HDD→DVD", then press ENTER.
4 Press selection keys to select "HIGH SPEED", then press ENTER.
5 Press selection keys to select indexes (small pictures) of desired original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.
- You can select up to 8 original recordings and/or play lists.
- The recordable time of the disc is displayed on the bar meter. For details, refer to “About Disc Remaining Display” (pg. 48).
6 Press selection keys to select "EXECUTE" or "AUTO FINALIZE", then press ENTER to start dubbing.

NOTES:

• Play lists are dubbed as programs.
• In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list.
  ●During dubbing, it is not possible to play back on HDD or DVD.
• It is not possible to discontinue dubbing once it has been started.

Just Dubbing (From HDD To DVD)

By using Just Dubbing function, when dubbing all selected original recordings and/or play lists, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the selected recordings and/or play lists to be dubbed and the available disc space.

1 Load a recordable disc.
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "HDD→DVD", then press ENTER.
4 Press selection keys to select "JUST", then press ENTER.
5 Perform steps 5 – 6 of “High Speed Dubbing (From HDD To DVD)”.

NOTES:

• Play lists are dubbed as programs.
• In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.
• The recordable time of the disc is displayed on the bar meter. For details, refer to “About Disc Remaining Display” (pg. 48).
  ●During dubbing, it is not possible to play back on HDD or DVD.
• It is not possible to discontinue dubbing once it has been started.

Manual Dubbing (From HDD To DVD)

It is possible to perform dubbing in the desired transfer rate.

1 Load a recordable disc.
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "HDD→DVD", then press ENTER.
4 Press selection keys to select "MANUAL", then press ENTER.
5 Perform step 5 of "High Speed Dubbing (From HDD To DVD)". The Manual Dubbing screen appears.
6 Press selection keys to select "REC MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
- For details on the recording mode, see "Recording Mode" (pg. 50)

7 Press ▽ to select "CONFIRM", then press ENTER.

8 Press selection keys to select "EXECUTE" or "AUTO FINALIZE", then press ENTER to start dubbing.

NOTES:

• In Video mode, if the selected play list includes the scenes recorded in the different transfer rate, the dubbing is performed in the highest transfer rate of the scenes in the selected play list. However, the lower transfer rate cannot be dubbed in the higher transfer rate.
• The recordable time of the disc is displayed on the bar meter. For details, refer to "About Disc Remaining Display" (pp. 48).
• During dubbing, it is not possible to play back on HDD or DVD.
• It is not possible to discontinue dubbing once it has been started.

Dubbing From HDD To DV

It is possible to perform dubbing from the HDD deck to the DV deck.

1 Load a Mini DV cassette with the erase protection switch set to "REC".
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "HDD→DV", then press ENTER.
4 Press selection keys to select indexes (small pictures) of desired original recordings and/or play lists, then press MARK. After selecting all indexes you want to dub, press ENTER.

- You can select up to 8 original recordings and/or play lists.

5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.
8 Press ▶ to locate the point from where you want to start dubbing, press ■ or || then press ● and || simultaneously so that the DV deck enters the record pause mode.

●The dubbing screen will appear.

9 Press selection keys to select "EXECUTE", then press ENTER for confirmation.
- To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.
10 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.

Original Dubbing (From DVD To HDD)

It is possible to dub the original recordings on DVD discs to the HDD deck.

1 Load a disc you want to dub.
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "DVD→HDD", then press ENTER.
4 Press selection keys to select indexes (small pictures) of desired original recordings, then press MARK. After selecting all indexes you want to dub, press ENTER.

- You can select up to 8 original recordings.

5 Press selection keys to select "EXECUTE", then press ENTER to start dubbing.

NOTES:

• It is not possible to dub play lists on DVD discs.
• It is not possible to dub pre-recorded DVD VIDEO discs.
• It is not possible to dub Video CDs/SVCDs or Audio CDs.
• It is not possible to dub from +R/+RW discs.
• It is not possible to discontinue dubbing once it has been started.

Dubbing From DVD To DV

It is possible to perform dubbing from the DVD deck to the DV deck.

1 Load the disc you want to dub onto the DVD deck, and a Mini DV cassette with the erase protection switch set to "REC" to the DV deck.
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "DVD→DV", then press ENTER.
4 Press selection keys to select indexes (small pictures) of desired original recordings, then press MARK. After selecting all indexes you want to dub, press ENTER.

- You can select up to 8 original recordings.

5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER. The confirmation screen appears.
6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.

- Sound mode selection is not available when dubbing a DVD-R/RW (Video mode) disc.

7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.
8 Press ▶ to locate the point from where you want to start dubbing, press ■ or || then press ● and || simultaneously so that the DV deck enters the record pause mode.

●The dubbing screen will appear.

9 Press selection keys to select "EXECUTE", then press ENTER to confirm.
- To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.
10 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.

NOTES:

• It is not possible to dub play lists on DVD discs.
• It is not possible to dub Video CDs/SVCDs or Audio CDs.
• It is not possible to dub from +R/+RW discs.
• When dubbing is in progress, only is functional.

Dubbing From DV To HDD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programs of a cassette from the DV deck to the HDD deck using the "ENTIRE" dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase protection switch is set to "SAVE".
- Set "DV AUDIO REC" to the appropriate mode. (pg. 60)
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "DV→HDD", then press ENTER.
4 Select "ENTIRE", then press ENTER.
5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.
8 Press selection keys to select "EXECUTE", then press ENTER for confirmation.

- Once dubbing starts, it will continue dubbing until the end of the tape is reached.

- To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.

- If the tape is not rewind, the unit will start dubbing after automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.
●The tape will automatically be rewound.

NOTES:

- When there are blanks on the tape of more than 2 seconds, the HDD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, “DUBBING COMPLETED” appears on the TV screen when the tape end is reached and the tape rewinds automatically.

• Dubbing copyright guarded tape is not possible.
• When dubbing is in progress, ■, ON SCREEN and AUDIO buttons are functional.

Dubbing From DV To HDD

(Dubbing A Part of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the HDD deck using "MANUAL" dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase protection switch is set to "SAVE".
- Set "DV AUDIO REC" to the appropriate mode. (pg. 60)
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "DV→HDD", then press ENTER.
4 Select "MANUAL", then press ENTER.
5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.
8 Press selection keys to select "EXECUTE", then press ENTER for confirmation.

• If the DV deck is in the stop mode, the unit will start dubbing from the current tape position.
• If the DV deck is in the pause mode, the unit will start dubbing from the point where the tape was paused after automatically rewinding the tape for 2 seconds.
• To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.

9 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.
●The tape will automatically be rewound.

NOTES:

• When there are blanks on the tape of more than 2 seconds, the HDD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, “DUBBING COMPLETED” appears on the TV screen when the tape end is reached and the tape rewinds automatically.
• Dubbing copyright guarded tape is not possible.
• When dubbing is in progress, ■, ON SCREEN and AUDIO buttons are functional.

Dubbing From DV To DVD (Dubbing An Entire Cassette)

It is possible to perform automatic dubbing of all the recorded programs of a cassette from the DV deck to the DVD deck using the "ENTIRE" dubbing. You cannot select the images to be dubbed; all recorded images on the DV cassette will be dubbed.

1 Load the Mini DV cassette you want to dub. Make sure its erase protection switch is set to "SAVE".
- Set "DV AUDIO REC" to the appropriate mode. (pg. 60)
2 Press DUBBING to access the Dubbing Menu screen.
3 Press selection keys to select "DV→DVD", then press ENTER.
4 Select "ENTIRE", then press ENTER.
5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.
7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.
8 Press selection keys to select "EXECUTE" or "AUTO FINALIZE", then press ENTER for confirmation.

- Once dubbing starts, it will continue dubbing until the end of the tape is reached.

• To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.
• If the tape is not rewind, the unit will start dubbing after automatically rewinding the tape to the beginning.

9 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.

●The tape will automatically be rewound.

NOTES:

●The program information at the DV deck will not be dubbed.
- When there are blanks on the tape of more than 2 seconds, the DVD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, “DUBBING COMPLETED” appears on the TV screen when the tape end is reached and the tape rewinds automatically.
- Dubbing copyright guarded tape is not possible.
- When dubbing is in progress, ■ and ON SCREEN buttons are functional.

Dubbing From DV To DVD (Dubbing A Part Of A Cassette)

It is possible to select the images on the DV cassette to be dubbed from the DV deck to the DVD deck using "MANUAL" dubbing.

1 Load the Mini DV cassette you want to dub. Make sure its erase protection switch is set to "SAVE".

- Set "DV AUDIO REC" to the appropriate mode. (pg. 60)

2 Press DUBBING to access the Dubbing Menu screen.

3 Press selection keys to select "DV→DVD", then press ENTER.

4 Select "MANUAL", then press ENTER.

5 Press selection keys to select "SELECT RECORDING MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.

6 Press selection keys to select "SELECT SOUND MODE", then press ENTER. Press selection keys to select the desired option, then press ENTER.

7 Press ▽ to select "CONFIRM", then press ENTER. The confirmation screen appears.

8 Press selection keys to select "EXECUTE" or "AUTO FINALIZE", then press ENTER for confirmation.

- If the DV deck is in the stop mode, the unit will start dubbing from the current tape position.

- If the DV deck is in the pause mode, the unit will start dubbing from the point where the tape was paused after automatically rewinding the tape for 2 seconds.

- To cancel the dubbing, press ■ then selection keys to select "CANCEL" and press ENTER to confirm.

9 Upon completing dubbing, the tape stops and "DUBBING COMPLETED" appears on the TV screen. Press ENTER to end.

●The tape will automatically be rewound.

NOTES:

●The program information at the DV deck will not be dubbed.

- When there are blanks on the tape of more than 2 seconds, the DVD deck will enter into pause mode while playback on DV deck continues. This also applies to portions of the DV tape that are damaged or unreadable. The last image is displayed on the TV screen. Dubbing will resume once recorded portion is detected. If the blank portion continues until the end of the tape, “DUBBING COMPLETED” appears on the TV screen when the tape end is reached and the tape rewinds automatically.

- Dubbing copyright guarded tape is not possible.

- When dubbing is in progress, ■ and ON SCREEN buttons are functional.

About Disc Remaining Display

When dubbing from HDD to DVD, the unit displays the time information for dubbing by bar meter. By comparing the disc remaining time and the necessary time for dubbing of the selected items, it is possible to check if the dubbing can be performed completely or not.

When performing the High Speed Dubbing

Dark green: Length of already recorded item
Light green: Length of selected item
Yellow: Length of the item now being selected by arrow
Red: Excess over the capacity

When performing the Just Dubbing

- The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.

- The total time of a loaded disc is displayed on the right of the bar meter.

When performing the Manual Dubbing

- The unit displays the status on the assumption that the selected items are dubbed in the lowest transfer rate.

- The available highest transfer rate is displayed on the right of the bar meter.

DV Dubbing (HDD & DVD Deck Only)

You can dub programs from a camcorder or DV equipment connected to the unit with a DV cable. The unit's remote control allows you the limited control of the connected camcorder or DV equipment functions during dubbing.

NOTE:

When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable (VC-VDV 204U).

Your unit

The following on-screen display for DV dubbing appears when ON SCREEN is pressed while the channel has been set to "DV".

1 Remote control switch

To switch between the devices operable by the remote control unit. The unit is operable when the remote icon ( ) displayed faces to the left, while the DV device is operable when the remote icon is facing to the right.

2 Auto capture button

Select to start or pause the dubbing. If ENTER is pressed when the DV device is in the pause condition, preroll editing* where it is possible to dub with a start time that is highly accurate will be activated. When the DV device cannot be operated from the unit (such as in camera mode), proceed with normal recording.

- Do not start dubbing at the portion with no time code ("---:---:-): * Preroll editing refers to the playback after the DV tape is slightly rewind. (For DV devices that do not support the -1x speed, the rewinding time may be longer.)

3 Sound monitor switch

For selecting the desired sound format for dubbing.

1 Connect a camcorder or DV equipment to the [DV IN/OUT] connector on the unit's front panel.
2 Press DV/HDD/DVD on the unit repeatedly; or press HDD or DVD on the remote control to select the recording deck.

- When dubbing to a DVD disc, load a recordable disc on this unit.

3 Press INPUT SELECT +/- on the remote control or INPUT SELECT on the unit to set the channel to "DV".

4 Press ON SCREEN.

●The on-screen display for DV dubbing appears.

5 Press selection keys to select 📄 → DV/， then press ENTER to display the remote icon (facing to the right) for the DV equipment.
6 Press REC MODE repeatedly to set the recording mode. For DV deck, press REC MODE on the remote control to set the recording mode.

- Each time you press REC MODE, the recording mode changes as follows:

XP → SP → LP → EP → FR (60-360*, 420, 480) → (Back to the beginning)

* The value is selectable from 1 to 6 hours in 5 minutes interval by pressing ◀▶ repeatedly after selecting "FR60–FR360". To change the value in 30 minutes interval, press and hold ◀▶.
- For details on the recording mode, see "Recording Mode" (138 pg. 50).

7 Locate the point from where you want to start dubbing, then stop or pause playback by pressing the following buttons on the remote control: ▶, ▶▶, ◀◀, ■, Ⅱ.

• To play back in slow speed (1/10 of the normal speed), press II to pause playback, then press ◀◀ or ▶▶.
• To play back frame-by-frame, press || to pause playback, then press || repeatedly. Each press of || advances a frame.
• To change the playback direction, press ◀◀ or ▶▶.

8 Press selection keys to select 0/25^* , then press ENTER repeatedly until the desired sound track appears on the TV screen.

SOUND1:

Select this to record the original stereo sound played back on the connected DV equipment.

SOUND2:

Select this to record the dubbed stereo sound played back on the connected DV equipment.

MIX:

Select this to record the sound of both "SOUND1" and "SOUND2".

- Note that this selection is not available when the source program is recorded in 16BIT (48 kHz) mode.

9 Press selection keys to select ▼, then press ENTER. The dubbing starts.

• Playback on the external DV equipment and recording on the unit should start simultaneously.
• To pause dubbing, press selection keys to select then press ENTER. Both the unit and the external DV equipment pause dubbing. Pressing II on the unit also works the same way.

10 Press selection keys to select ☑, then press ENTER. Then press ■. The DV equipment stops.

11 Press selection keys to select 📄 TV/， then press ENTER.
12 Press ■ twice on the remote control to stop dubbing. - Both the unit and the external DV equipment stop dubbing.

NOTES:

• To create chapters (marks) automatically, set "DV AUTO CHAPTERING" to "ON". (155 pg. 59)
• Dubbing copyright guarded programs is not possible.
• Original DV information such as the recording date and time are not recorded.
• The superimposed indication during the operation or dubbing is not recorded.

- If the dubbing is paused while the channel is set to "DV", you cannot switch channels.

When you dub from DV equipment other than a camcorder

1 Perform steps 1 - 4.

2 Locate the point from where you want to start dubbing, then stop on the DV equipment.

- If you pause the DV equipment in this step, a few second's still picture will be recorded at the beginning of the recorded program.

3 Set the input mode to "DV INPUT" on the DV equipment.

- If you select an input mode other than "DV INPUT", unwanted pictures may be recorded at the beginning of the recorded program.

4 Perform steps 9 - 12.

To skip unwanted part of the source picture

Press ENTER to stop both equipment, then press selection keys to select .

Locate the point where you want to restart dubbing by pressing ▶, ▶▶, or ◀◀, then press ■.

Press selection keys to select ☑, then press ENTER to restart dubbing.

Recording Mode

MPEG2 format is used as recording format. As a guide for picture quality, the "bps" unit is used to represent how much data can be recorded per second. The larger this value is, the better the picture quality becomes but more capacity is required for the recording. Select XP or SP for programs where quick movement occurs, such as sports programs, and LP or EP for talk shows, etc. with relatively less movement.

The recording modes for a 4.7 GB disc are set as follows:

Recording mode Recording amount (approx.)			Maximum recording time (approx.)
XP 10 Mbps		1 hour
SP 5 Mbps 2 hours
LP		2.5 Mbps	4 hours
EP		1.6 Mbps	6 hours
FR	60-360	The amount varies depending on the selected time.	1 – 6 hours
	420		7 hours
	480		8 hours

- For details on FR mode, refer to "Free Rate Function" on the right column.

The recording modes for the HDD are set as follows:

Recording mode	Maximum recording time (approx.)
XP	8 hours
SP	16 hours
LP	33 hours
EP	49 hours
FR480	71 hours

- For details on FR mode, refer to "Free Rate Function".

NOTE:

The maximum recording time stated in the above table are the approximate time under unused condition.

Free Rate Function

To record the entire program, the unit automatically sets the appropriate recording mode depending on the combination of the total time of the program to be recorded and either the remaining disc space or the specified recording time (from 60 minutes to 480 minutes).

■To record the entire program within the actual remaining disc space (DVD deck only)

Select "FR (JUST)" in a recording mode selection procedure.

- Note that this function is available only when dubbing from HDD to DVD (pg. 45).

■To record the entire program by specifying the desired recording time

Select "FR60-FR360", "FR420" or "FR480" in a recording mode selection procedure.

■To record a 25-min. long program five times on the same DVD disc for example

Be sure to set the recording mode to "FR125" to fit the total recording time to the whole disc space.

When the same program is recorded in SP mode instead of in "FR125", the 5th program cannot be recorded.

NOTES:

• The maximum recording time of FR (JUST) mode is the same as the recording time of FR480 mode. When dubbing a long program in FR (JUST) mode on a disc whose remaining time is short, it is recommended to check the disc remaining time in FR480 mode to see if the remaining time is enough for the program.
• In order to ensure that the recording fits on the disc, this feature may leave a slight non-recorded section at the end of the disc.
• There may be some noise and sound disturbance at the point on the disc where the unit switches the mode.

Edit From A Camcorder

You can use a camcorder as the source player and your unit as the recording deck. If your camcorder has a DV IN/OUT connector, you can use the camcorder as the recording deck and your unit (DV deck only) as the source player.

1 If the camcorder has no S-VIDEO output connector:

2 If the camcorder has an S-VIDEO output connector:

3 If the camcorder has a DV IN/OUT connector:

- Slide the TV/DVD switch to DVD.

1 Make connections.

If the camcorder has no S-VIDEO output connector: —connect the camcorder's AUDIO/VIDEO OUTPUT connectors to the unit's [VIDEO/AUDIO ((MONO) L/R)] input connectors on the front panel.

- When using a monaural camcorder, connect its AUDIO OUT connector to the [AUDIO-L] input connector on your unit.

2 If the camcorder has an S-VIDEO output connector: —connect the camcorder's AUDIO OUT and S-VIDEO OUT connectors to the unit's [AUDIO] and [S-VIDEO] input connectors on the front panel.

3 If the camcorder has a DV IN/OUT connector: —connect the camcorder's DV IN/OUT connector to the unit's [DV IN/OUT] connector.

- When using your unit as the source player, refer to the camcorder's instruction manual for the recording procedure.

2 Press DV/HDD/DVD on the unit repeatedly to select the recording deck.

3 Press INPUT SELECT +/- on the remote control or INPUT SELECT on the unit to select "F-1" or "DV".

- Set "FRONT AUX F-1" to "VIDEO" for the [VIDEO] input connector, or "S-VIDEO" for the [S-VIDEO] input connector, depending on the connector being used. (Lpg. 60)

4 Press REC MODE repeatedly to set the recording mode. For DV deck, press REC MODE on the remote control to set the recording mode.

5 Start playback on the camcorder slightly before the actual point from where you wish to start dubbing.

6 Press ● on the unit to start recording. Or while holding ●, press ▶ on the remote control. The dubbing starts.

7 Press ■ on the unit, then stop playback on the camcorder.

NOTES:

●All necessary cables can be obtained from your dealer.

- Refer to the camcorder's instruction manual for operating procedure.

●The quality of dubbed picture becomes poorer than that of the original.

- When you are editing through the [DV IN/OUT] connector, the unit will stop if the player begins playing a blank portion of tape or the signal is interrupted.

- When connecting the unit to a device equipped with a DV input connector, be sure to use the optional DV cable (VC-VDV 204U).

- To edit through the [DV IN/OUT] connector using the HDD or DVD deck, refer to "DV Dubbing (HDD & DVD Deck Only)" (vpg. 49).

- When using your unit as the recording deck, chapters (marks) can be automatically created. Set "DV AUTO CHAPTERING" to "ON". (158 pg. 59)

Edit To Or From Another Recorder

You can use your unit as the source player or as the recording deck.

NOTES:

• When using another recorder as the recording deck, refer to its instruction manual.
• It is not possible to dub copy-protected contents. An error message will appear on the TV screen.

1 When using your unit as the source player

② When using your unit as the recording deck

- Slide the TV/DVD switch to DVD.

1 Make connections.

①When using your unit as the source player: —connect its [S-VIDEO/VIDEO/AUDIO OUTPUT] connectors to the input connectors on another recorder.
2 When using your unit as the recording deck: —connect its [S-VIDEO/VIDEO/AUDIO INPUT] connectors on the front or rear panel to the output connectors on another recorder.

- When connecting to another recorder with S-video connector, set "REAR AUX L-1" or "FRONT AUX F-1" to "S-VIDEO".

2 Press INPUT SELECT +/- on the remote control or INPUT SELECT on the unit to select the external input.
- Select "F-1" when the source player is connected to the unit's [VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the front panel, and select "L-1" when it is connected to the unit's [VIDEO/AUDIO] or [S-VIDEO/AUDIO] input connectors on the rear panel.
3 Press REC MODE repeatedly to set the recording mode.
4 Engage the Play mode on the source player.
5 Engage the Record mode on the recording deck.
6 Stop recording on the recording deck, then stop playback on the source player.

NOTES:

●All necessary cables can be obtained from your dealer.
- When you use this unit as the source player for editing, be sure to set "SUPERIMPOSE" to "OFF" before starting. (pp. 59)

Digital Audio Dubbing

You can dub selected audio from a DVD or Audio CD disc to a digital audio device.

However, it is not possible to dub copy-protected discs.

- Turn on the TV and select the AV mode.

- Slide the TV/DVD switch to DVD.

Example: Dubbing to an MD

Note for connection:
Remove the protection cap from the optical cable.

1 Connect the unit and a digital audio device using either an optional optical cable or an optional coaxial cable.
2 Place a disc on the unit and load an MD on the connected digital audio device.
3 Select the audio to be dubbed.
4 Start playback slightly before the actual point from where you wish to start dubbing.
5 Press Ⅱ to pause playback.
6 Select the input mode on the connected digital audio device.
7 Press ▶ to start playback on the unit.
8 Start recording on the digital audio device.
9 Stop recording on the digital audio device. Then press ■ to stop playback on the unit.

NOTE:

There may be a discrepancy of several seconds between where you intend editing to start, and where it actually starts.

Audio Dubbing (DV Deck Only)

This function allows you to record new audio, without erasing the original audio, on a DV tape that was recorded with "DV AUDIO REC" set to "12BIT" (pg. 60).

ATTENTION:

You cannot perform Audio Dubbing on a tape that was recorded with "DV AUDIO REC" set to "16BIT" (epg. 60), on a tape that was recorded at the "LP" speed, or on a blank tape.

- Slide the TV/DVD switch to DVD.

1 Connect an audio device to the unit's [AUDIO] input connectors on the front panel.

- When using a monaural audio device, connect its AUDIO OUT connector to the [AUDIO-L] input connector on your unit.

2 Load a Mini DV cassette with the erase protection switch set to "REC".

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/- on the remote control or INPUT SELECT on the unit to select "F-1".

5 Start playback slightly before the actual point from where you wish to start dubbing.

6 Press II to pause playback.

7 Press AUDIO DUB. to engage the audio dubbing mode.

- Your unit enters the Audio Dubbing Pause mode.

ECT To perform Audio Dubbing with audio mixing, press AUDIO to select "L [ ] R" at this point. When using the DV deck as the recording deck, also make sure that "AUDIO MODE" is set to "SOUND1" (Epg. 60).

* Audio Dubbing with audio mixing is not possible if you are using a monaural audio component, or if you don't have an audio mixer.

8 Engage the audio device's playback, then press ▶ to start the tape in the unit. Audio dubbing starts at this point.

- To stop dubbing temporarily, press III. Press ▶ to resume dubbing.

9 Press ■ on the unit, then stop playback on the audio device to end the audio dubbing.

NOTES:

• When monitoring the audio dubbed sound on the DV deck, set "AUDIO MODE" to "SOUND2" (pg. 60).
• When playing back an audio dubbed Mini DV tape on the DV deck, set "AUDIO MODE" to "SOUND2" (I ^® pg. 60).
• Audio dubbing is not possible using the [DV IN/OUT] connector.
  ●Audio dubbing is not possible on a blank portion of the tape.

Insert Editing (DV Deck Only)

Insert Editing replaces the pictures with new ones, while the audio soundtrack remains unchanged. For Insert Editing, use your unit as the recording deck.

ATTENTION:

Insert Editing is not possible with a Mini DV cassette recorded in LP mode.

1 If the player has no S-VIDEO output connector:

2 If the player has an S-VIDEO output connector:

- Slide the TV/DVD switch to DVD.

1 Make connections.

If the player has no S-VIDEO output connector: —connect the player's VIDEO OUT connector to your unit's [VIDEO] input connector on the front panel.

2 If the player has an S-VIDEO output connector: —connect the player's S-VIDEO OUT connector to your unit's [S-VIDEO] input connector on the front panel.

2 Load a Mini DV cassette with the erase protection switch set to "REC".

3 Press DV/HDD/DVD on the unit repeatedly or DV on the remote so that the DV lamp lights up on the unit.

4 Press INPUT SELECT +/- on the remote control or INPUT SELECT on the unit to select "F-1".

5 Press ◀◀, ▶▶ and □ to determine the edit-in point (the beginning of the segment to be replaced).

- Be sure to engage the Still mode at the edit-in point.

6 Press INSERT to engage the insert editing mode.

-Your unit enters the Insert Pause mode.

- The TV screen changes from the still picture to the input source you are going to record.

7 Load the source cassette and play back the segment that is to be inserted. When you reach the start of the section of the source tape that you wish to insert, press ▶ to start the tape in your unit. Insert editing begins at this point.

8 Press ■ to stop recording on the DV deck to end insert editing.

NOTES:

- All necessary cables can be obtained from your dealer.

- Insert Editing cannot be performed on a Mini DV cassette that has had its erase protection switch set to "SAVE".

- When Insert Editing is performed on a tape that has been recorded on another video recorder, the inserted portion may appear distorted.

- A small portion of the recording which precedes an insert edit may become erased.

- Insert Editing is not possible using the [DV IN/OUT] connector.

- Insert Editing is not possible on a blank portion of the tape.

Remote Control Functions

Remote Control 1/2/3/4 Code Switching

The remote control is capable of controlling four JVC video units independently. Each of the units can respond to one of the four codes (1, 2, 3 or 4). The remote control is preset to send code 3 signals because your unit is initially set to respond to code 3 signals. You can easily modify your unit to respond to code 1, 2 or 4 signals.

- Slide the TV/DVD switch to DVD.

- Keep pressing SET UP down during step 1.

1 Press the number key "1" for 1, "2" for 2, "3" for 3 or "4" for 4 to change the remote control code, then press ENTER.
2 Press ⏻/I on the unit to turn off the unit.
3 Press ▶ on the unit for over 5 seconds while the unit is turned off. The current code appears on the front display panel.
4 Press ■ on the remote control to change the unit's code. The new code blinks on the front display panel for approximately 5 seconds, and is applied to the unit.

TV Multi-Brand Remote Control

Your remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer's TVs can also be controlled.

●Turn off the TV using its remote control.
- Slide the TV/DVD switch to TV.

IMPORTANT:

Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.

- Keep pressing SET UP down during step 1.

1 Enter your TV's brand code using the number keys, then press ENTER.
2 Press ⏻/I on the unit's remote control to turn on the TV and try operations (step 3).

- Once you have set the remote control to operate the TV, you do not have to repeat this step until you replace your remote control's batteries.

- Some brands of TVs have more than one code. If the TV does not function with one code, try entering another.

3 Press the corresponding buttons to operate the TV: ⏻/I, TV/VIDEO, PR/CH +/-, TV∠+/-, TV ✗, number keys.
- For some brands of TVs, you must press ENTER after having pressed the number keys.

BRAND NAME CODE
JVC	01, 23, 24, 25
FERGUSON	27
FINLUX	30
FUNAI	32
LG/GOLDSTAR	18
GRUNDIG	19
HITACHI	10
ITT	28
MITSUBISHI	03
MIVAR	29
NEC	20
NOKIA	31
PANASONIC	04, 11
PHILIPS	02
RCA	05
SAMSUNG	12, 33, 34, 35
SANYO	13, 16
SHARP	06
SONY	07
THOMSON	26
TOSHIBA	08, 14

Connecting To A Dolby Digital Decoder Or An Amplifier With Built-in DTS

These instructions enable you to connect your unit to a Dolby Digital Decoder or an amplifier with built-in DTS.

Note for connection:
Remove the protection cap from the optical cable.

1 Connect the unit and a Dolby Digital Decoder or an amplifier with built-in DTS using either an optional optical cable or an optional coaxial cable.

NOTES:

• For Dolby Digital sound, set "DIGITAL AUDIO OUT" to "DOLBY DIGITAL/PCM". ( page 58)
• For DTS sound, set "DIGITAL AUDIO OUT" to "STREAM/PCM". (138 pg. 58)

CAUTIONS:

• This unit has a dynamic range of more than 110 dB with regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.
• Some speakers and televisions are specially shielded to prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the playback picture.

When you can't switch the audio channel of a bilingual program

When the unit is connected with a digital audio device using an optional optical cable and "DIGITAL AUDIO OUT" is set to "DOLBY DIGITAL/PCM", it is not possible to switch the audio channel of a bilingual program recorded on a DVD-RAM or DVD-R/RW (VR mode) disc. In this case, perform the following steps using the remote control to switch "DIGITAL AUDIO OUT" from "DOLBY DIGITAL/PCM" to "PCM ONLY".

1 Press SET UP to access the Main Menu screen.
2 Press selection keys to select "DVD VIDEO SET UP", then press ▽.
3 Press selection keys to select "AUDIO OUTPUT", then press ▽.
4 Press selection keys to select "DIGITAL AUDIO OUT", then press ENTER.
5 Press selection keys to select "PCM ONLY", then press ENTER. (Epg. 58)
6 Press SET UP to complete the setting.
7 Press AUDIO to select the desired audio channel.

Mode Set

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

Various modes of this unit are categorized into menus nested in 2 levels shown in the following table. To change the settings of these modes, find the desired mode in the menu (for details on each menu, see pages 58 through 60), then follow the procedure below.

DVD VIDEO SET UP	LANGUAGE SET (pg. 20)AUDIO OUTPUT (See right column)DISC PLAY SET UP (pg. 59)
HDD/DVD SET UP	HDD SET UP (pg. 59)DVD SET UP (pg. 59, 62)DISC SET UP (pg. 61, 62)COMMON SET UP (pg. 59)
FUNCTION SET UP	REC/PLAY SET UP (pg. 59)DISPLAY SET (pg. 59)VIDEO IN/OUT (pg. 21)
INITIAL SET UP	MENU BACKGROUND (pg. 64)CLOCK SET (pg. 19)
DV SET UP	(pg. 60)

• The procedure below shows how to set the desired option of the "JUMP TIME" mode as an example.
  1 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
  2 Press SET UP to access the Main Menu screen.
  3 Press selection keys to select "FUNCTION SET UP", then press ∇.
  4 Press selection keys to select "REC/PLAY SET UP", then press ∇.
  5 Press selection keys to select "JUMP TIME", then press ENTER.
  6 Press selection keys to select the desired option, then press ENTER.
  7 Press SET UP to complete the setting.

* The boldface settings below indicate the settings at your purchase.

AUDIO OUTPUT

■ DIGITAL AUDIO OUT — DOLBY DIGITAL/PCM / STREAM/PCM / PCM ONLY

Set to the appropriate mode according to the type of the device connected to [DIGITAL AUDIO OUTPUT] connector.

DOLBY DIGITAL/PCM:

Select this when you connect the digital input connector of a Dolby Digital Decoder or an amplifier with a built-in Dolby Digital Decoder.

STREAM/PCM:

Select this when you connect the digital input connector of an amplifier with a built-in DTS, Dolby Digital, or MPEG multichannel decoder.

PCM ONLY:

Select this when you connect the linear PCM digital input of other audio equipment (amplifier, MD or DAT deck, etc.).

NOTES:

●This setting also functions when HDD is active.
- If you watch or play back a title which contains multiple audio languages, select "PCM ONLY" in advance and choose main or sub audio with AUDIO.

Select the appropriate setting to accommodate the unit to the connected A/V equipment. This function takes effect when a DVD VIDEO disc is played back.

STEREO:

Select this when listening to conventional two-channel stereo audio with the unit's [AUDIO OUTPUT] connectors connected to a stereo amplifier/receiver or TV set, or in case you want to record the audio from a DVD VIDEO disc to a Mini Disc, etc.

DOLBY SURROUND:

Select this when listening to multichannel surround audio with the unit's [AUDIO OUTPUT] connectors connected to an amplifier/receiver with a built-in surround decoder or a surround decoder.

■ D. RANGE CONTROL — NORMAL / WIDE RANGE / TV MODE The dynamic range (the difference between the loudest sound and the quietest one) can be compressed during playback of a program encoded in Dolby Digital format.

This function takes effect when a DVD VIDEO disc recorded in Dolby Digital format is played back at low or middle volume.

NORMAL:

Normally select this setting to activate this function.

WIDE RANGE:

Select this to deactivate this function when you enjoy wide dynamic range program.

TV MODE:

Select this when you hear the sound through the TV's speaker(s).

NOTES:

• This function has no effect on programs other than those recorded in Dolby Digital format.
• This function does not work when Simulated Surround Effect is activated. (pp. 29)
• The effect of “NORMAL” and “WIDE RANGE” may not be different depending on discs.

You can lower the output level of analog audio to accommodate the unit to the connected A/V equipment.

STANDARD

Normally select this setting.

LOW:

The output level of analog audio is lowered.

DISC PLAY SET UP

■ RESUME — OFF / ON / DISC RESUME

When this function is set to "ON" or "DISC RESUME", you can use the resume function. (pg. 24)

OFF:

You cannot use the resume function.

ON:

You can start playback from the resume point of the placed disc.

DISC RESUME:

The unit retains a memory of the resume points of the last 30 discs played back, even though they have been ejected.

NOTE:

“DISC RESUME” setting works on DVD VIDEO, VCD, SVCD and already finalized DVD-R/DVD-RW (video mode) discs. For other types of discs, the function under “ON” setting will be applied even if “RESUME” is set to “DISC RESUME”.

HDD SET UP

When this function is set to "30 MIN", "1 HR" or "3 HR", you can apply the selected time length to "Temporary recording for Live Memory (HDD deck only)" (vss pg. 37).

DVD SET UP

When this function is set to "ON", the recording information is automatically stored in the library. For details, refer to "Navigate Library Information" (pg. 43).

When this function is set to "ON", multiple titles on a disc are played back continuously one after another.

This is the setting for the aspect ratio used when you dub titles to DVD discs in video mode. If the titles you want to dub are recorded in both 16:9 and 4:3, you must select one aspect ratio.

PRIORITIZE 4:3:

If you select "PRIORITIZE 4:3", even a title recorded in 16:9 is dubbed in 4:3.

PRIORITIZE 16:9:

If you select "PRIORITIZE 16:9", even a title recorded in 4:3 is dubbed in 16:9.

■ MP3&WMA / JPEG — MP3&WMA / JPEG

You can select files to play back, when both MP3&WMA files and JPEG files are recorded on a disc.

MP3&WMA:

Select this to play back MP3/WMA files.

JPEG:

Select this to play back JPEG files.

COMMON SET UP

■ DV AUTO CHAPTERING — OFF / ON

When this function is set to "ON", you can create chapters (marks) when dubbing from the DV deck or via the DV input terminal connecting the external DV camcorder.

OFF:

Do not create chapters (marks).

ON:

Create chapters (marks).

NOTE:

Marks cannot be created for direct recording to the DVD in Video mode. Record to the HDD, then dub to the DVD.

When this function is set to "ON", you can set the picture on the top left corner of the Library Database Navigation screen or the Editing screen to that of the selected title.

REC/PLAY SET UP

■ XP MODE REC AUDIO — DOLBY DIGITAL / LINEAR PCM

You can select the audio format when you record a title in XP mode. When this function is set to "LINEAR PCM", you can obtain a high-quality audio sound.

DOLBY DIGITAL:

To record in Dolby Digital format.

LINEAR PCM:

To record in Linear PCM format.

You can locate a scene ahead of or behind the currently viewed one by jumping a selected time interval during playback (or Live Memory Playback). For details, refer to “Jump Search” (pg. 24, 32).

DISPLAY SET

■ SUPERIMPOSE — OFF / ON / AUTO

When this function is set to "AUTO", various operational indicators appear on the TV screen. Messages appear in the selected language. (Epg. 20)

OFF:

To turn off superimposed indications.

ON:

To turn on superimposed indications.

AUTO:

To superimpose operational indications for approximately five seconds just after the corresponding operation.

NOTES:

• When you use this unit as the source player for editing, be sure to set "SUPERIMPOSE" to "OFF" before starting. (pg. 52)
• When you select “AUTO”, during playback, the operation mode indicators may be disturbed depending on the type of disc being used.

■ DIMMER (DURING POWER ON) — BRIGHT / DIMMED

You can change the brightness of the front display panel.

BRIGHT:

Normally select this.

DIMMED:

To dim the front display panel.

■ DIMMER (DURING POWER OFF) — OFF / ON

You can select to light up or turn off the light of the front display panel when the unit is off.

OFF:

To turn off the light of the front display panel when the unit is off.

ON:

To light up the front display panel when the unit is off.

When this function is set to "ON", operations such as playback can be performed more quickly upon turning on the unit than when set to "OFF". However, the power consumption during standby increases.

OFF:

To disable the quick startup function.

ON:

Operations can be performed quickly after turning on the unit.

■ON SCREEN LANGUAGE

This unit offers you the choice to view on-screen messages in 3 different languages.

For details, refer to "On-screen Language Set" (pg. 20).

VIDEO IN/OUT

■ MONITOR TYPE — 4:3LB / 4:3PS / 16:9AUTO / 16:9FIX You can select the monitor type depending on the TV used when you play back DVD VIDEO discs recorded for wide-screen TVs. For details, refer to “Monitor Set” (v ^2 pg. 21).

■ FRONT AUX F-1 — VIDEO / S-VIDEO Select the appropriate mode depending on the connector (F-1) being used on the front panel.

VIDEO:

To use the [VIDEO] input connector on the front panel.

S-VIDEO:

To use the [S-VIDEO] input connector on the front panel.

■ REAR AUX L-1 — VIDEO / S-VIDEO Select the appropriate mode depending on the connector (L-1) being used on the rear panel.

VIDEO:

To use the [VIDEO INPUT] connector on the rear panel.

S-VIDEO:

To use the [S-VIDEO INPUT] connector on the rear panel.

NOTE: To display the "DV SET UP" menu, press SET UP while in the DV deck mode.

DV SET UP

■ DV AUDIO REC —12BIT / 16BIT This is the setting for sound mode before recording on a Mini DV tape.

12BIT:

Enables Audio Dubbing later.

16BIT:

Audio Dubbing is not possible but the recorded sound quality is higher than "12BIT".

You can select the desired sound mode when playing back an audio dubbed Mini DV tape.

SOUND1:

Original recorded sound.

SOUND2:

Audio dubbed sound.

MIX:

Original recorded sound and audio-dubbed sound.

NOTES:

• When “AUDIO MODE” is set to “MIX”, both the main and sub audio will be audible for bilingual tapes.
• To select only the main audio or only the sub audio of bilingual tapes, set "AUDIO MODE" to "SOUND1".

Format A Disc (DVD Deck Only)

Some DVD-RAM/RW discs are unformatted.

Format the disc when you use an unformatted disc or you want to delete all recordings and data on the disc.

To use a DVD-R disc in VR mode, format the new disc in VR mode. (It will be in Video mode when not formatted.)

ATTENTION:

• When a disc is formatted, all recordings and data are erased. It is impossible to restore them.
• Never turn off the unit or disconnect the AC power cord while "NOW FORMATTING..." is displayed on the TV screen.
  ●DVD-R discs can only be formatted once.

- Turn on the unit.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Load a DVD-RAM/R/RW disc to format.

Format A DVD-RAM Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.
3 Press selection keys to select "HDD/DVD SET UP", then press ∇.
4 Press selection keys to select "DISC SET UP", then press ∇.
5 Press selection keys to select "FORMAT", then press ENTER. Press selection keys to select "EXECUTE", then press ENTER.
6 Press selection keys to select "EXECUTE", then press ENTER.

Format A DVD-RW Disc

1 Perform steps 1 - 4 of "Format A DVD-RAM Disc" as above before continuing.
2 Press selection keys to select "FORMAT", then press ENTER. Press selection keys to choose "VR MODE" or "VIDEO MODE", then press ENTER.

"VR MODE":

To be chosen when you want to record, erase, or edit data on the disc repeatedly.

"VIDEO MODE":

To be chosen when you want to erase all the data on the disc once played back to record new data, or play back the disc on other DVD players.

3 Press selection keys to select "EXECUTE", then press ENTER.

NOTES:

• It is impossible to format Version 1.0 DVD-RW discs in Video mode.
• All the titles on a disc will be deleted once the disc is formatted even if they are protected titles. ( page 40)

Format A DVD-R Disc

1 Perform steps 1 – 4 of "Format A DVD-RAM Disc" as above before continuing.
2 Press selection keys to select "FORMAT", then press ENTER. Press selection keys to select "EXECUTE", then press ENTER.

Finalize A Disc (DVD Deck Only)

Finalizing DVD-R/RW discs recorded on this unit makes it possible for the discs to be played back on other DVD players. DVD-RW discs are finalized in the mode that the discs were formatted, enabling playback on compatible DVD players. Title names input in the Library Database Navigation are registered as title names in the DVD menu. (pg. 39)

• Turn on the unit.
• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.
• Load a DVD-R/RW disc to finalize.

Before finalizing

• It is possible to record on a blank space.
• It is possible to enter title names. (pg. 39)
• It is possible to delete titles. (pg. 40)
• It is impossible to overwrite recorded areas of DVD-R discs.
• Available recording capacity does not increase even if a recorded title is deleted from a DVD-R disc.
• It is impossible to record or edit DVD-R/RW discs recorded on other devices even if they have not been finalized.

After finalizing (For DVD-R/RW (Video mode) discs)

• Video and audio that have been recorded by then are recorded in conformity to the DVD Video standard, enabling you to play back the discs as DVD VIDEO discs.
• Although DVD-R/RW discs finalized on this unit become playable on DVD players compatible with DVD-R/RW discs, some discs still may not play, for which JVC cannot take responsibility.
• Marked points marked before finalizing will be deleted, and titles will be divided automatically into “chapters” approximately every 5 minutes. (ppg. 25)
• Depending on the DVD players and DVD-R/RW discs used, and on the conditions of recording, it may not be possible to play back the discs. In this case, play back the discs on this unit.
  ●Additional recordings become impossible.

Finalize A DVD-R/RW Disc

1 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2 Press SET UP to access the Main Menu screen.

- Alternatively, you can press F2 to access the “DISC SET UP” screen directly. For details, refer to “Direct Access To “DISC SET UP” Screen” (pg. 63).

3 Press selection keys to select "HDD/DVD SET UP", then press ∇.
- If you want to change the "DISC TYPE" setting, proceed to step 4. Otherwise, proceed to step 7 for disc finalization.
4 Press selection keys to select "DVD SET UP", then press ▽.
5 Press selection keys to select "DISC TYPE", then press ENTER.
6 Press selection keys to select the desired option, then press ENTER.
7 Press selection keys to select "DISC SET UP", then press ▽.
8 Press selection keys to select "FINALIZE", then press ENTER.

- For DVD-R/RW (Video mode) discs, the background selection screen will appear. To finalize using the current background (with a check mark “√” superimposed on

it), press ENTER. To choose a new background, press selection keys to select the desired background from a selection of 18 backgrounds, then press ENTER.

After selecting a background, you can preview the final result before finalizing the disc. Refer to “Previewing the background effect” (pg. 64).

9 Press selection keys to select "OK", then press ENTER.
10 Upon completing finalization, "COMPLETED" appears on the TV screen. Press ENTER to end.
11 Press SET UP to return to the normal screen.

• Once a DVD-R/RW (Video mode) disc has been finalized, the displays for original and play list do not appear. Only display for library appears.
• Once a DVD-RW (VR mode) disc has been finalized, it can be played on DVD players compatible with VR mode.
• Once a DVD-R (VR mode) disc has been finalized, it can be played on DVD players compatible with DVD-R (VR mode).

* The boldface settings below indicate the settings at your purchase.

■ DISC TYPE — MANUAL START / MENU STOP / AUTO REPEAT

You can set the operation method of a DVD-R/RW (Video mode) disc when finalizing the disc on this unit.

MANUAL START:

When the DVD disc is loaded, the disc will stop after it has been read. To play back the disc, press ▶.

MENU STOP:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. Playback will stop when the disc menu is displayed.

AUTO REPEAT:

When the DVD disc is loaded, the disc will be played back automatically after it has been read. The disc will be played repeatedly.

Cancel The Finalization Of A DVD-RW Disc

1 Load a DVD-RW disc to cancel the disc finalization, and perform steps 1 - 2 of "Finalize A DVD-R/RW Disc" (pg. 62) before continuing.
2 Press selection keys to select "HDD/DVD SET UP", then press .
3 Press selection keys to select "DISC SET UP", then press ∇.
4 Press selection keys to select "CANC. FINALIZ.", then press ENTER.
5 Press selection keys to select "OK", then press ENTER.
6 Upon completing cancellation of finalization, "CANCELLATION COMPLETED" appears on the TV screen. Press ENTER to e
7 Press SET UP to return to the normal screen.

- When the disc finalization is canceled, the mode in which the disc was formatted is restored, making the disc recordable. (vpg. 9, 61)

NOTE:

It is not possible to cancel the finalization of a DVD-R disc.

Direct Access To "DISC SET UP" Screen

When you wish to finalize or cancel the finalization of a disc, besides accessing the “DISC SET UP” screen through the SET UP button, you can also use the F2 button on the remote control. This F2 button enables you to access the “DISC SET UP” screen directly after loading the disc.

To finalize a disc

1 Load the disc.
2 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
3 Press F2 to access the "DISC SET UP" screen.

- The screen in step 8 of "Finalize A DVD-R/RW Disc" (pp. 62) appears.

4 Perform steps 8 – 11 of “Finalize A DVD-R/RW Disc” (pg. 62) to finalize the disc.

To cancel finalization

1 Perform steps 1 - 3 of "To finalize a disc" above.
- The screen in step 4 of "Cancel The Finalization Of A DVD-RW Disc" on the left column appears.
2 Perform steps 4 – 7 of “Cancel The Finalization Of A DVD-RW Disc” on the left column to cancel finalization of the disc.

NOTES:

• The direct access (F2) function works only when in the HDD or DVD deck mode, on the condition that the Main Menu, Editing, Library Database Navigation or Dubbing screen is not displayed.
• The direct access (F2) function will not work in the following cases, and an operation prohibition mark “☒” appears on the TV screen.

●During DVD recording or playback.
- Disc is not loaded.
●A playback-only disc is loaded.
- Disc reading in progress.
- Disc information acquisition failure when DVD-RAM is loaded.

- When this unit is in the DV deck mode or when dubbing is in progress, the direct access (F2) function will also not work. However, “☐” will not be displayed.

Setting The Background

You can select a desired background from the 18 backgrounds available on this unit, and set it as the default background to be used during finalization (tpg. 45, 62).

- Turn on the unit.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

Registering Default Background

1 Press SET UP to access the Main Menu screen.
2 Press selection keys to select "INITIAL SET UP", then press ▽.
3 Press selection keys to select "MENU BACKGROUND", then press ∇.
4 Press ENTER.
- The background selection screen appears. The current background selected is indicated by a check mark “√” superimposed on it.
- To return to the previous screen, press RETURN.
5 Press selection keys to select the desired background, then press ENTER.
- The “√” mark is superimposed on the newly selected background.
- A preview screen of the selected background will be displayed for approximately 2 seconds.
- The selected background will be used as the default background for finalization.
6 Press SET UP to return to the normal screen.

Previewing the background effect

This unit allows you to preview the effect of the background you have selected before proceeding with finalization. This preview function is only possible when finalizing a DVD-R/RW (Video mode) disc.

After selecting a background in step 8 of "Finalize A DVD-R/RW Disc" (E ^® pg. 62):

1 Press selection keys to select "PREVIEW", then press ENTER.
- A preview screen of the final result of your selected background will appear.
- To exit the preview screen, press ENTER.
- To preview again, press selection keys to select "RECONFIRM", then press ENTER.
2 Press selection keys to select "OK", then press ENTER to continue with finalization.
3 Proceed to perform steps 9 – 11 of “Finalize A DVD-R/RW Disc” (€ pg. 62) to complete finalization.

Scan Mode Set (HDD & DVD Deck Only)

If you connect the unit and TV with Component Video Connection ( pp. 18 ), you can select the scan mode from two modes: Interlaced scan mode which is used in the conventional TV system, and Progressive scan mode which enables reproduction of higher-quality images.

Interlaced scan

In the conventional video system, a picture is shown on the display monitor in two halves. The Interlaced scan system places lines of the second half of the picture in-between lines of the first half of the picture.

■Progressive scan

Progressive scan displays all the horizontal lines of a picture at one time, as a single frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.

ATTENTION:

Your TV needs to be compatible with NTSC Progressive.

- Turn on the unit.

• Turn on the TV and select the AV mode.
• Slide the TV/DVD switch to DVD.

1 Press HDD or DVD so that the HDD or DVD lamp lights up on the unit.
2 Press PROGRESSIVE SCAN for 3 or more seconds.

- Video output indicator (P) lights on the front display panel if Progressive scan mode has been established. (pp. 14)

- Each press of PROGRESSIVE SCAN for 3 or more seconds switches the scan mode.

NOTES:

• Interlaced scan mode is the setting at your purchase.
• Interlaced scan mode might be suitable depending on video material.
• Scan mode cannot be set while menu screen is displayed.
• When the Progressive scan mode is engaged, no video signal is output from [S-VIDEO OUTPUT] connector and [VIDEO/AUDIO OUTPUT] connectors.

Tray Lock (DVD Deck Only)

You can lock the disc tray to prohibit the unwanted disc ejection by children.

- Turn off the unit.

To lock tray

While the unit is turned off, press and hold ■, then press ▲ on the unit. "LOCK" appears on the front display panel and the disc tray is locked.

To unlock tray

While the unit is turned off, press and hold ■, then press ▲ on the unit. "UNLOCK" appears on the front display panel.

Mode Lock

During playback or recording, press and hold F1 for more than 5 seconds. "LOCK" appears on the front display panel.

• No buttons will function and playback and recording will not be interrupted.
• When the unit is in the stop mode, all buttons will not function except ● and ▶.

To cancel Mode Lock, press and hold F1 again for more than 5 seconds.

NOTE:

It is also possible to use Mode Lock during Repeat Playback (pg. 27).

Last Function Memory

When the power plug is disconnected from unit or when power failure occurs, your settings for the following functions are kept in the memory. These settings will resume when the unit is turned on again.

• Input selection (channel or auxiliary input; L-1, F-1 or DV)
• Recorder selection (The last selected deck is memorized.)
• Recording mode (pg. 49)
• Mode settings (pg. 58 - 60)

Before requesting service for a problem, use this chart and see if you can solve the trouble yourself. Small problems are often easily solved, and this can save you the trouble of sending your unit off for repair.

Initializing (DVD Deck Only)

Malfunction occurs on the unit.

→ Press ⏻/l to turn off the unit, press and hold ⏻/l, then press ■ for two seconds or more.

General

No power is supplied to the unit.

●The AC power plug is disconnected from the AC outlet.
→Connect the AC power plug to the AC outlet securely. ( page 18)

The remote control does not work properly.

→Remove the batteries, wait for 5 minutes or more, then load the batteries again.
- The setting of the remote control code is inappropriate.
→Set the same remote control code (1, 2, 3, or 4) on both the unit and the remote control. (pg. 56)
●The batteries are discharged.
→Replace the dead batteries with new ones. The remote control code will revert back to its default setting "3". If you had change the remote control code prior to replacing the batteries, you need to set the code again. (Epg. 56)

Dubbing from the external equipment is not possible.

• The source (another video recorder, camcorder) has not been properly connected.
  →Confirm that the source is properly connected.
• All necessary power switches have not been turned on.
  →Confirm that all units' power switches are turned on.
• The setting of the input channel position is inappropriate.
  → Select the input channel position ("F-1" or "L-1") that corresponds to the input terminal connected to the external equipment. (spg. 52)

The on-screen display superimposed on the program played back/received on this unit is recorded when you dub the program to an external recording equipment.

→ Set "SUPERIMPOSE" to "OFF". (pg. 59)

The unit does not operate.

• There are cases when the operation is prohibited on the disc.
  ● Lightning or static electricity may cause malfunction of the unit.
  → Press ⏻/I to turn the power off, then press the button again to turn the power on.

The remote control of a JVC TV will not operate the unit.

●The setting of the remote control code is inappropriate.
→To operate the unit using a JVC TV remote control, set the remote control code of the unit to "1" (Default: "3"). (Egg pg. 56)

Playback (DVD Deck)

The DVD deck cannot be operated.

●The DVD deck is not selected.
→ Press DV/HDD/DVD on the unit repeatedly or DVD on the remote control so that the DVD lamp lights up on the unit.

Images do not appear on the TV screen.

• The TV receiver's channel selector is not set to the AV mode.
  →Set the TV to its AV mode.

• When interlace scanned program is played back, progressive scan mode is selected.
  → Press and hold PROGRESSIVE SCAN until P disappears from the front display panel. (pg. 65)

Playback does not start or stop immediately after playback is started by pressing ▶. On the front display panel, "NO DISC" appears.

●The disc is loaded upside down.
→Place the disc on the disc tray with the playback surface facing down. (Epg. 10)
●A disc not being compatible with the unit is loaded.
→ Load a playable disc on the unit. (pg. 7)
●A dirty disc is loaded.
→ Clean the disc. (pg. 11)
- Defective disc is loaded.
→Replace the warped or scratched disc with a normal one.

Images are blurred or distorted when you start High-Speed Search.

→Images are blurred or distorted at the point where the playback speed changes and this is not a malfunction of the unit.

Playback does not start.

→Playback does not start for approximately 30 seconds after recording is stopped and this is not a malfunction of the unit.

Playback (HDD Deck)

The HDD deck cannot be operated.

●The HDD deck is not selected.
→ Press DV/HDD/DVD on the unit repeatedly or HDD on the remote so that the HDD lamp lights up on the unit.

Playback (DV Deck)

The DV deck cannot be operated.

●The DV deck is not selected.
→ Press DV/HDD/DVD on the unit repeatedly or DV on the remote control so that the DV lamp lights up on the unit.

The tape will not rewind or fast-forward.

●The tape is already fully rewound or fast-forwarded.
→Check the cassette.

The playback picture does not appear while the tape is running.

●The TV is not set to the AV mode.
→Set the TV to the AV mode.

Noise appears during visual search.

- This is normal.

The playback picture is blurred or interrupted while TV broadcasts are clear or "USE CLEANING CASSETTE" message appears on the screen.

●The video heads may be dirty.
→ Use a dry cleaning cassette M-DV12CL, or consult your JVC dealer.

Recording (DVD Deck)

Recording cannot be made.

• No disc or a disc not being compatible with the unit is loaded.
  → Load a recordable disc on the unit. (pg. 7)
  ●The disc loaded is not formatted.
  → Format the disc. (pg. 61)

●A finalized DVD-R disc is loaded.
→Recording cannot be made on finalized discs. Load a recordable disc on the unit.
- The disc is full or does not have enough space for the title to be recorded.
→ Clear unnecessary titles on the disc or load a blank disc. (135pg. 40)
- The DVD-RAM disc loaded has had its protect tab slid to the protect position.
→ Release the protect tab. (pg. 10)

Recording (HDD Deck)

Camcorder recording is not possible.

●The camcorder has not been properly connected.
→Confirm that the camcorder is properly connected.
●The input mode is not correct.
→ Set the input mode to "F-1". (pg. 51)

Recording (DV Deck)

During recording, the tape does not run. The DV recording lamp lights up on the unit.

●The unit is in the Record Pause mode.
→Press ▶ to resume recording.

Recording cannot be done.

• There is no cassette loaded, or the cassette loaded has had its erase protection switch set to "SAVE".
  →Insert a Mini DV cassette, or set the erase protection switch set to "REC".

Camcorder recording is not possible.

●The camcorder has not been properly connected.
→Confirm that the camcorder is properly connected.
●The input mode is not correct.
→ Set the input mode to "F-1" or "DV".

The tape is automatically rewound, then the unit is shut off.

●The end of the tape was reached during recording.
→The program may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire program.

Audio dubbing is not possible.

• "DV AUDIO REC" had been set to "16BIT" at the original recording.
  → Set "DV AUDIO REC" to "12BIT" at the original recording.
  ●The tape speed had been set to LP at the original recording.
  →Set the tape speed to SP at the original recording.

Monitoring the audio dubbed sound is not possible during audio dubbing.

→ This is normal. Monitor the sound using the connected devices.

Other Problems

The image of the program appears distorted on the TV screen.

For basic connection

→ Press PROGRESSIVE SCAN for 3 or more seconds so that the Video output indicator (P) lights off on the front display panel.

For component video connection

→ Press PROGRESSIVE SCAN for 3 or more seconds so that the Video output indicator (P) lights up on the front display panel.

Whistling or howling is heard from the TV during camcorder recording.

• The camcorder's microphone is too close to the TV.
  →Position the camcorder so its microphone is away from the TV.
• The TV's volume is too high.
  →Turn the TV's volume down.

The AV input cannot be changed.

• Recording or RetroActive Recording* is in progress.
  → Press || to pause recording, change the AV input, then press ▶ to resume recording.
  * HDD deck only.

Malfunction occurs and the unit cannot be power off.

→Reset the unit by disconnecting the AC power plug from the AC outlet and connect again.

Buttons and controls do not function at all.

• Mode Lock is activated.
  → Press and hold F1 for more than 5 seconds to cancel Mode Lock. Or disconnect the power cord and connect again.

On-screen Message (HDD & DVD Deck Only)

DISC NOT REGISTERED IN THE LIBRARY REGISTER DISC?

- A disc that is not registered in the library has been inserted. Register the disc as necessary. (158 pg. 43)

TITLE MEMORY IS FULL, UNABLE TO RECORD DELETE UNWANTED TITLE

●Recording and/or editing cannot be performed.
●The number of titles exceeds 99.
●The number of play lists exceeds 99.

DISC NOT LOADED

- Operation has been attempted when a disc is not loaded, or loaded upside down. (15 pg. 10)

- When a playback-only disc or a finalized disc is loaded, ● has been pressed. (Epg. 7)

REGION CODE ERROR CHECK DISC

- A disc loaded cannot be played back on this unit since the region number of the disc does not match that of the unit. (pg. 8)

UNREADABLE DISC CHECK THE DISC

- When an incompatible disc is loaded, has been pressed. (13pg. 8)

COULD NOT FORMAT THE DISC CHECK THE DISC

- Formatting is not complete since the disc may be dirty or damaged. Take out the disc, clean it and retry. (E ^5 pg. 11, 61)

CAN NOT FINALIZE THIS DISC

- Finalizing is not complete since the disc may be dirty or damaged. Take out the disc, clean it and retry. (Epg. 11, 62)

CAN NOT CANCEL FINALIZATION OF THIS DISC

- Canceling disc finalization is not complete since the disc may be dirty or damaged. Take out the disc, clean it and retry. (pg. 11, 63)

PRESS [■] AGAIN TO STOP RECORDING

- During Live Memory playback, ■ has been pressed. (pg. 36).

COPY PROHIBITED CAN NOT RECORD

- An attempt has been made to record copy-protected contents. - An attempt has been made to record copy-once contents on a disc that is not CPRM compatible.

THE i.LINK DEVICE THAT YOU HAVE CONNECTED IS NOT RECOGNIZED MAKE SURE THAT THE DEVICE IS CONNECTED PROPERLY AND POWERED ON

• An attempt has been made to start DV dubbing when a digital video camera is not properly connected to the unit.
• Check the connection. (pg. 49)

Language Code List

AA Afar IN	Indonesian RU Russian
AB Abkhazian IS Icelandic RW Kinyarwanda
AF Afrikaans IW Hebrew		SA Sanskrit
AM	Ameharic	JI	Yiddish	SD	Sindhi
AR	Arabic	JW	Javanese	SG	Sangho
AS Assamese KA Georgian		SH	Serbo-Croatian
AY Aymara	KK Kazakh		SI Singhalese
AZ Azerbaijani	KL Greenlandic		SK Slovak
BA Bashkir	KM	Cambodian	SL Slovenian
BE Byelorussian	KN Kannada		SM Samoan
BG	Bulgarian	KO Korean (KOR)	SN Shona
BH Bihari	KS Kashmiri		SO Somali
BI Bislama	KU Kurdish		SQ Albanian
BN Bengali, Bangla	KY Kirghiz		SR Serbian
BO	Tibetan	LA Latin	SS Siswati
BR Breton	LN Lingala		ST Sesotho
CA Catalan	LO Laothian		SU Sundanese
CO	Corsican	LT	Lithuanian	SW	Swahili
CS Czech	LV	Latvian, Lettish	TA Tamil
CY Welsh	MG	Malagasy	TE Telugu
DZ	Bhutani	MI	Maori	TG	Tajik
EL Greek	MK	Macedonian	TH Thai
EO	Esperanto	ML	Malayalam	TI	Tigrinya
ET Estonian	MN	Mongolian TK Turkmen
EU	Basque	MO	Moldavian	TL	Tagalog
FA Persian	MR	Marathi	TN Setswana
FJ	Fiji	MS	Malay (MAY)	TO	Tonga
FO	Faroese	MT	Maltese	TR	Turkish
FY Frisian	MY	Burmese	TS Tsonga
GA	Irish	NA	Nauru	TT	Tatar
GD	Scots Gaelic	NE	Nepali	TW	Twi
GL Galician	OC	Occitan	UK Ukrainian
GN	Guarani	OM	(Afan) Oromo	UR	Urdu
GU	Gujarati	OR	Oriya	UZ	Uzbek
HA Hausa	PA Panjabi		VI Vietnamese
HI Hindi	PL Polish		VO Volapuk
HR	Croatian	PS	Pashto, Pushto	WO	Wolof
HU	Hungarian	PT Portuguese	XH Xhosa
HY	Armenian	QU	Quechua	YO	Yoruba
IA Interlingua RM	Rhaeto-Romance		ZH Chinese
IE Interlingue RN	Kirundi		ZU Zulu
IK Inupiak	RO	Rumanian

GENERAL

Power requirement

AC 120 V\~, 60 Hz

Power consumption

Power on: 45 W

Power off: 2.5 W

Laser specification

For CD

Wavelength: 770 to 810 nm

Output: 0.4 mW

For DVD

Wavelength: 653 to 663 nm

Output: 1.0 mW

Temperature

Operating: 5°C to 35°C (41°F to 95°F)

Storage: -20^ to 60^ (-4^ to 140^)

Operating position

Horizontal only

Dimensions (WxHxD)

435 mm x 96 mm x 372 mm (17-1/10" x 3-4/5" x 14-3/5")

Weight

5.8 kg (12.9 lbs)

Input/Output

Video input: 0.5 - 2.0 Vp-p, 75 Ω (pin jack)

Video output: 1 Vp-p, 75 Ω (BNC)

Audio input:

-8 dB, 50 kΩ (pin jack)

Corresponding to mono (left)

Audio output: -8 dB, 1 kΩ (pin jack)

S-video input:

Y: 0.8 - 1.2 Vp-p, 75 Ω

C: 0.2 - 0.4 Vp-p, 75 Ω

S-video output:

Y: 1.0 Vp-p, 75 Ω

C: 0.3 Vp-p, 75 Ω

DV: 4-pin for DV IN/OUT

Remote Input: ∅3.5 mm Jack

Component video output:

Y: 1.0 Vp-p, 75 Ω

C_B/C_R, P_B/P_R : 0.7 Vp-p, 75 Ω

Corresponding to copy protection

Digital audio output:

Optical, Coaxial

Corresponding to Dolby Digital and DTS Digital Surround

Bit stream

Selectable in digital audio output setting menu

VIDEO/AUDIO (DVD Deck)

Recording time

Maximum 8 hours (with 4.7 GB disc)

(XP): Approx. 1 hour

(SP): Approx. 2 hours

(LP): Approx. 4 hours

(EP): Approx. 6 hours

(FR): Approx. 1 hour - 8 hours

Audio recording system

Dolby Digital (2 ch)

Linear PCM (XP mode only)

Video recording compression system

MPEG2 (CBR/VBR)

VIDEO/AUDIO (HDD Deck)

Video recording compression system

MPEG2 (VBR)

Audio recording system

Dolby Digital (2 ch)

Linear PCM (XP mode only)

Recording time

Maximum 71 hours (with 40 GB HDD)

(XP): Approx. 8 hours

(SP): Approx. 16 hours

(LP): Approx. 33 hours

(EP): Approx. 49 hours

(FR): Approx. 71 hours

VIDEO/AUDIO (DV Deck)

Signal system

NTSC color signal and EIA monochrome signal, 525 lines/60 fields

Recording system

Digital Component Recording

Format

DV format (SD mode)

Cassette

Mini DV Cassette

Maximum recording time

(SP): 80 min. with M-DV80ME cassette

(LP): 120 min. with M-DV80ME cassette

Audio recording system

PCM 48 kHz, 16 bit (2 ch)/

32 kHz, 12 bit (4 ch)

Specifications shown are for SP mode unless otherwise specified.

ACCESSORIES

Provided accessories

Audio/Video cable,

Infrared remote control unit,

"AA" battery x 2

E.& O.E. Design and specifications subject to change without notice.

ATTENTION:

This unit contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the unit off and unplug the AC power cord. Then plug it in again and turn the unit on. Take out the disc. After checking the disc, operate the unit as usual.

A

A-B Repeat Playback 28
Accidental erasure prevention 33
Adjusting The Picture Quality 29
Angle Selection 25
Audio Channel Selection 26
Audio Language/Sound Selection 26
Auto Full Repeat Playback 62

B

Basic Playback 22, 31, 33

D

Disc menu 23
Disc Resume 59
Discs For Playback Only 8
DVCAM 33
DVD menu 23

F

File Structure Of Discs 9 Free Rate Function 50

|

Instant Replay 24, 32, 34, 37 Interlaced scan 65

J

Jump Search 24,32

L

Language Code List .... 69 Last Function Memory .... 65 Letter Box .... 21 Live Memory Playback .... 35

M

Marking Positions To Play Back Again Later .....25, 32 Menu/Audio/Subtitle Language Set .....20 Mode Lock .....65

N

Next Function Memory 34

0

On-screen Bar 27
On-screen Language Set 20

P

Pan&Scan 21
Play List Editing 41
Playback Control (PBC) 26
Program Playback 30
Progressive scan 65

R

Random Playback 30
Recordable/Playable Discs 7
Recording Medium And Format 9
Recording Mode 50
Region Number 8
Register Disc 43
Repeat Playback 27
Resume Function 24
Resuming Playback 37
RetroActive Recording 37

s

Select The Switching Interval Of The Slide Show ...... 30
Setting The Progressive Mode 30
Simulated Surround Effect 29
Simultaneous Recording and Playback 37
Skip Search 24,31,34
Slow Motion 23, 31, 34
Soundtrack Selection 34
Still Picture/Frame-By-Frame Playback 23, 31, 34
Subtitle Selection 26

T

Temporary Recording 37
Time Code 34
Time Search 29
Top menu 23
Tray Lock 65

U

Unplayable Discs 8
Usable cassettes 33

V

Variable Speed Search 23, 31, 34

JVC
