PG-BPM430 - Lawn mower Powertec - Free user manual and instructions

Product type	Cordless lawn mower
Brand	Powertec
Model	PG-BPM430
Cutting width	430 mm
Cutting height	6 levels, 25-75 mm
Grass catcher volume	50 L
Weight (without battery)	16.2 kg
Power source	40 V (2 x 20 V) - lithium-ion battery series 20V IXES
Battery life	Varies according to battery capacity (not included)
Recommended mowing area	600-700 m²
Main functions	Collection, mulching, central height adjustment, foldable handle
Operating modes	Auto (adaptive mode), Eco (energy saving)
Safety	Safety handle, automatic stop in 7 s, battery lock
Fill level indicator	Yes, on the grass catcher
Handle adjustment	3 positions (height), 2 positions (upper tilt)
Blade	Part No. 7911200647, rotary cutting
Sound level (LpA)	78.5 dB
Sound power level (LwA)	90 dB
Vibration (handle)	< 2.5 m/s²
Maintenance and cleaning	Clean after each use, avoid high-pressure cleaner, blade to be sharpened by a professional
Spare parts and repairability	Blade, blade screw, batteries, chargers available (part numbers provided)
General information	Manufactured by Scheppach GmbH, CE compliant, EU declaration included

Frequently Asked Questions - PG-BPM430 Powertec

What battery should be used with the Powertec PG-BPM430 lawn mower?

The mower requires two batteries from the 20V IXES series (e.g., SBP2.0 or SBP4.0). Only use batteries and chargers from this series.

How to adjust the cutting height?

Stop the motor, then push the adjustment lever (6) outward and move it to one of the 6 positions (25 to 75 mm). Release to engage.

Can the mower be used without the grass catcher?

Yes, by installing the included mulching plug. This allows chopping the grass and leaving it on the ground as natural fertilizer.

How to start the mower?

Insert the batteries, hold down the On/Off switch (10) and pull the safety handle (1) toward the handlebar. Release the handle to stop.

What to do if the mower does not start?

Check the battery charge. Make sure the battery is properly engaged (click). If the problem persists, contact customer service.

How to clean the mower after use?

Remove the battery. Use a brush or cloth. Clean the underside with a spatula. Avoid high-pressure cleaners. Do not immerse in water.

When should the blade be replaced?

Replace the blade if it is damaged, deformed, or very worn. Use an original blade (part no. 7911200647). Tighten the screw to 45 Nm.

How to store the mower to save space?

Fold down the upper handle by loosening the quick-release levers (2c). Remove the grass catcher. Store in a dry, frost-free place.

What are the important safety precautions?

Wear closed-toe shoes and trousers. Do not mow in rain. Keep children at a distance. Always remove the battery before maintenance.

Where to find spare parts?

Parts (blade, battery, charger) are available from your dealer or via customer service. Provide the model PG-BPM430 and the part number.

USER MANUAL PG-BPM430 Powertec

EN IEC 62841-4-3:2021/A11:2021;

EN IEC 55014-1:2021; EN IEC 55014-2:2021

Division Manager Product Center

Andreas Pecher

Head of Project Management

Table of contents

1 Introduction 24
2 Product description (Fig. 1-16) 24
3 Scope of delivery (Fig. 2) 24
4 Proper use. 24
5 Safety instructions 25
6 Technical data 28
7 Unpacking 29
8Assembly. 29
9 Pre-commissioning. 30
10 Operation 30
11 Cleaning and maintenance 32
12 Storage and transport 33
13 Repair and ordering spare parts 34
14 Disposal and recycling 34
15 Troubleshooting 35
16 EU Declaration of Conformity 35

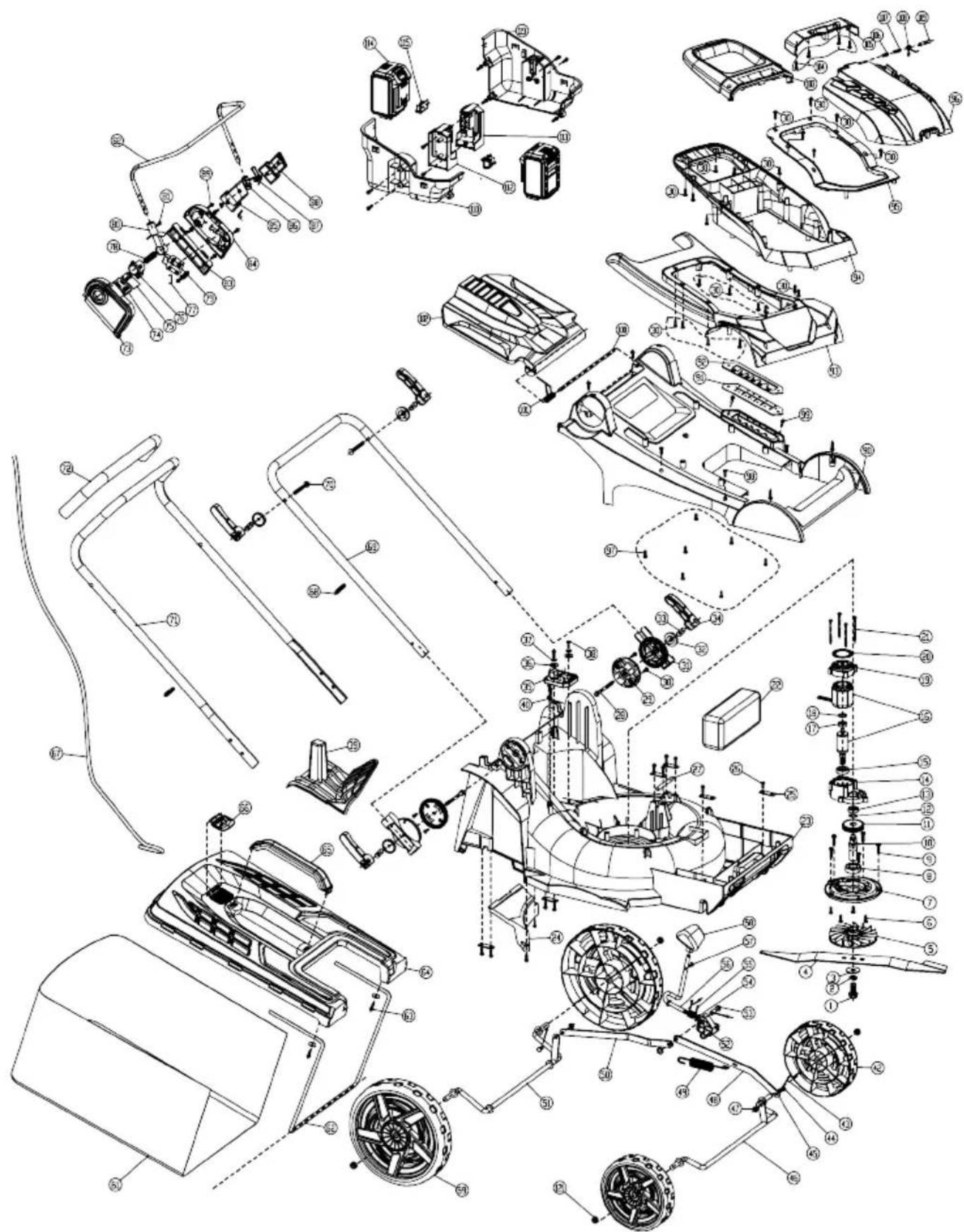

17 Exploded view 67

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and ob-serve the operating manual and safety instructions!	STOP	Attention! The blade is still moving!
	Attention! Failure to observe the safety signs and warning information af-fixed to the product and failure to ob-serve the safety and operating manu-al can result in serious injury or even death.	ON	Switch off or start the product
	Wear hearing protection. Blade length.	Max. cutting width.
	Do not mow uphill or downhill.		Only carry out maintenance, modifica-tion, adjustment and cleaning work when the motor is switched off and the battery is removed.
	Do not expose the product to rain. The product may only be stationed, stored and operated in dry ambient conditions.	Lwn 96dB	Guaranteed sound power level of the product.
	Do not drive over cables lying on the ground!	Lithium	Lithium-ion battery
	Danger due to parts flying off while the engine is running. Keep your dis-tance from other people and children.	CE	The product complies with the appli-cable European directives.
	Before operating the lawnmower, re-move any small parts lying around that could be thrown about.	A	The product complies with the appli-cable Serbian directives.
	Keep hands and feet away from the rotating parts of the tool.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburgerstraße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  Non-compliance with the operating manual
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

2 Product description (Fig. 1-16)

1. Safety bar
2. Upper push bar
   2a. Flat head screw
   2b. Washer
   2c. Quick clamp lever
   2d Cylinder nut
3. Level indicator
4. Lower push bar
   4a. Washer
   4b. Quick clamp lever
   4c. Cylinder nut
5. Grass collection basket
   5a. Carrying handle
   5b. Rubber lip
   5c. Frame
6. Lever for cutting height adjustment
7. Cover

8. Discharge flap

9. Cable clip
   9a. Cable

10. On/off switch
    10a. Auto/Eco switch
11. Mulching insert
12. Blade screw
    12a.Blade
13. Battery*
    13a. Release button
    13b. Battery mount

3 Scope of delivery (Fig. 2)

Item Quantity Designation

2a. 2 x M6x55 mm flat head screw
2b. 2 x Washer
2c. 2 x Quick clamp lever
2d 2x Cylinder nut M6
4. 1 x Lower push bar
4a. 2 x Washer
4b. 2 x Quick clamp lever
4c. 2 x Cylinder nut M6
5. 1 x Grass collection basket
5a. 1 x Carrying handle
9. 2x Cable clip
11. 1 x Mulching insert

1 x Battery-powered lawnmower

1 x Operating manual

^* = may not be included in the scope of delivery!

4 Proper use

The product is only intended for mowing lawns and grass in domestic situations.

This battery-powered lawnmower is suitable for a lawn area of approx. 600 - 700m^2

The actual lawn area is influenced by factors such as the battery charge, battery size (Ah), grass moisture, cutting height, moss growth or grass density.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

General power tool safety warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not operate the product in rain or wet conditions. This may increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

5.1 Safety instructions for lawnmowers

a) Do not use the lawnmower in bad weather, especially not during thunderstorms. This reduces the risk of being struck by lightning.
b) Also check the working area for wild animals. Wild animals could be injured by the running lawnmower.
c) Thoroughly check the working area and remove all stones, sticks, wires, bones and other objects. Parts that are ejected can cause injuries.
d) Always check that the mowing blades and mowing unit are not worn or damaged before using the lawnmower. Worn or damaged parts increase the risk of injury.

e) Check the grass catcher regularly for wear and tear. A worn or damaged grass catcher increases the risk of injuries.
f) Leave guards in their place. Guards must be operational and properly fastened. A guard that is loose, damaged, or not functioning correctly can result in injuries.
g) Keep all cooling air openings free of deposits.
Blocked air inlets and deposits can result in overheating or a risk of fire.
h) Always wear non-slip safety shoes when operating the lawnmower. Never work barefoot or in open sandals. This prevents the risk of foot injuries if contact is made with the rotating mowing blade.
i) Always wear long trousers when operating the lawnmower. Bare skin increases the likelihood of injuries by ejected parts.
j) Do not operate the lawnmower in wet grass. Walk; never run. This prevents the risk of slipping and falling down, which could result in injuries.
k) Do not operate the lawnmower on excessively steep slopes. This prevents the risk of losing control, slipping and falling down, which could result in injuries.
1) When working on slopes, make sure you have secure footing, always work across the slope, never upwards or downwards, and be extremely careful when changing the working direction. This prevents the risk of losing control, slipping and falling down, which could result in injuries.
m) Take particular care when mowing backwards or pulling the lawnmower towards you. Always pay attention to the environment. This reduces the risk of tripping while working.
n) Do not touch blades or other dangerous parts while they are still moving. This prevents the risk of injury from moving parts.
o) Make sure all switches are off and the battery is removed before removing jammed material or cleaning the lawnmower. Unexpected operation of the lawnmower can result in serious injuries.
p) If a foreign object is hit, switch off the product immediately and remove the battery. Inspect the product for damage and perform the required repairs before starting again and working with the product. If the product begins to experience exceptionally strong vibrations, switch it off immediately and check it.

Additional safety instructions

• Never allow children or other persons who are unfamiliar with the usage instructions to use the lawnmower. Contact your local governmental agency for information regarding minimum age requirements for operating the lawnmower.

• Never mow while people, especially children or animals are nearby. Always keep in mind that the operator is responsible for accidents involving other persons and/or their property.

• Only mow when visibility is good. It is necessary to keep third parties away.

• If you hand the product over to another person, please hand over this operating manual as well.

ATTENTION

Danger of flying stones!

Never drive over gravel with the motor running.

• Prior to use, always perform a visual inspection to check whether the blade and fastening bolts are worn out or damaged. To prevent an imbalance, worn out or damaged blades and bolts may only be replaced in sets.
• Be careful when adjusting the product and avoid trapping fingers between the moving blade and rigid parts of the device.
• Be particularly careful when mowing on yielding ground, nearby rubbish tips, ditches and dykes.
• Avoid mowing in places where the wheels have trouble gripping or mowing is unsafe in any other way.
• Operating the product at excessive speed can increase the risk of accidents.
• Watch out for traffic near a road.
• Never lift or carry a lawnmower while the engine is running.
• Stop the blade when the lawnmower has to be tilted, when transporting over areas other than grass and when moving the lawnmower to and from the area to be mowed.
• Start the engine with care, in accordance with the manufacturers instructions. Ensure that your feet are far enough away from the blade.
• Do not tip the lawnmower when you start the engine unless the lawnmower must be raised off of the ground a little in order to start it. In this case, only tilt as far as absolutely required and only lift the side away from the operator.
• Never put hands and feet on or under rotating parts. Always keep clear of the ejection opening.
• Use only blades and accessories recommended by the manufacturer. Use of other insert tools and accessories may result in injury to the user.
  Always keep the product in good operating condition.
• It is necessary to take enough breaks to reduce noise and vibration exposure.

• Please note that improper maintenance, the use of non-compliant spare parts, or the removal or modification of safety devices can result in extended chain braking time, a higher degree of kick-back, damage to the product and serious injury to the person working with it.

• Please note that the product's safety systems or equipment must not be tampered with or deactivated. Never remove any safety-related parts.

CAUTION

The lawnmower must not be used without either the full grass catcher or the self-closing separating guard for the ejection opening in place.

• Never use the lawnmower if the blade or safety grilles are damaged, or without the attached guards, e.g. deflectors and/or grass catching devices.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Damage to hearing if the stipulated hearing protection is not worn.
• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Use the product in the way that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

ATTENTION

The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.

WARNING

Follow the safety and charging instructions and correct usage given in the instruction manual of your 20V IXES Series battery and charger. A detailed description of the charging process and further information are provided in this separate manual.

6 Technical data

Rated voltage 40 V (2 x 20 V)
Cutting width 430 mm
Cut height 6-level adjustment
Height adjustment of guide bar 3-level
Height adjustment 25 - 75 mm
Collection bag volume 50 L
Weight (without battery) 16.2 kg
Blade information:
Manufacturer:	Royal Garden
Blade code:	RG8A109

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

The noise and vibration values have been determined through a standardised measurement process.

Noise data

Sound pressure LpA	78.5 dB
Sound power LwA	90 dB
Measurement uncertainty K	2.08 dB

Vibration parameters (hand/arm vibration)

Vibration ah	< 2.5 m/s2
Measurement uncertainty K	1.5 m/s2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
  Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

8 Assembly

CAUTION

Danger of injury!

Do not insert the battery until the battery-powered tool is ready for use.

CAUTION

Danger of injury due to rotating blade. Only work on the product when the blade is switched off and stationary!

ATTENTION

Always make sure the product is fully assembled before commissioning!

ATTENTION

Ensure that the cable is not squeezed during assembly.

8.1 Installing the lower push bar (4) (Fig. 1, 3, 4)

Note:

Make sure that the teeth mesh.

1. Attach the lower push bar (4) to the pre-fitted screws.
2. Screw down the lower push bar (4) with one washer (4a) and one quick clamp lever (4b) on each side. Ensure that the cable (9a), which will later be attached with a cable clip (9), is not in the way.
3. Lock the two quick clamp levers (4b) by pressing them in the direction of the lower push bar (4). They must rest against the lower push bar (4) in such a way that they can be tensioned with moderate force.

Otherwise, the quick clamp levers (4b) must be tightened by turning them clockwise or loosened by turning them anti-clockwise.

8.1.1 Adjusting the position of the lower push bar (4) (Fig. 5)

Notes:

Three positions are possible.

Make sure that the teeth mesh.

1. Loosen the two clamping levers (4b).
2. Loosen the two clamping levers (4b) by turning them anti-clockwise.
3. Move the lower push bar (4) to the desired position (use the markings as a guide).
4. Close the lower push bar (4) again (see 8.1).

8.2 Installation of the upper push bar (2) (Fig. 6, 7)

1. Screw the upper push bar (2) to the lower push bars (4) with one flat head screw (2a), a washer (2b), a cylindrical nut (2d) and a quick clamp lever (2c) on each side. Two positions are possible.
2. Lock the two quick clamp levers (2c) by pushing them in the direction of the upper push bar (2). They must rest against the upper push bar (2) in such a way that they can be tensioned with moderate force. Otherwise, the quick clamp levers (2c) must be tightened by turning them clockwise or loosened by turning them anti-clockwise.

8.3 Fitting the cable clips (9) (Fig. 1, 8)

1. Clip the two cable clips (9) into the upper push bar (2) and lower push bar (4) and secure the cable (9a).

8.4 Mount the grass collection basket (5) (Fig. 9)

1. Push the rubber lips (5b) over the frame (5c) at the corresponding points.

8.5 Fitting the carry handle (5a) to the grass collection basket (5) (Fig. 9)

1. Attach the carrying handle (5a) of the grass collection bag (5) to the holder provided on the top of the grass collection bag (5).

9 Pre-commissioning

ATTENTION

Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods and limit the duration of work to the bare minimum.

For your personal protection and the protection of nearby persons, wear suitable hearing protection.

9.1 Setting the cutting height (Fig. 10)

ATTENTION

The cutting height may only be adjusted when the engine is shut off.

• In dense, tall grass, set the highest cutting level and mow more slowly. A high cutting height should be selected for the first cut of the season. Adjust the cutting height so that the product is not overloaded.
• Set the cutting height depending on the actual length of the lawn.
• Carry out several passes so that a maximum of 4 cm of lawn is removed at a time.

6 different cutting heights can be set:

Ornamental lawn Utility lawn
1 = 25 mm 4	= 55 mm
2 = 35 mm 5	= 65 mm
3 = 45 mm 6	= 75 mm

The cutting height is adjusted via the cutting height adjustment lever (6).

1. Pull the cutting height adjustment lever (6) outwards.
2. Move the cutting height adjustment lever (6) to the desired position.
3. Release the cutting height adjustment lever (6) again. The lever locks into the desired position.

9.2 Inserting/removing the battery (13) in the battery mount (13b) (Fig. 11)

Inserting the battery

1. Open the cover (7).
2. Slide the batteries (13) into the battery mounts (13b). The batteries (13) click into place audibly.
3. Close the cover (7).

Removing the battery

1. Open the cover (7).
2. Press the unlock button (13a) for the batteries (13) and remove them from the battery mounts (13b).
3. Close the cover (7).

9.3 Preparing the area to be mowed

1. Before mowing, carefully examine the area.
2. Remove stones, sticks, bones, wires, toys and other objects that may be ejected by the product.
3. Ensure that no other people are present on the surface to be mowed.

10 Operation

The battery-powered lawnmower has a cutting tool that rotates parallel to the cutting tool. It is equipped with a powerful and quiet-running electric motor, a robust housing, a safety bar, a double-sided lawn edge intake and a grass collection basket. The product's height can also be adjusted to 6 positions and has smooth-running wheels. Please refer to the following descriptions for the function of the controls.

WARNING

Danger of injury!

Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.

ATTENTION

Make sure that the ambient temperature does not exceed 50^ and does not fall below -20^ during work.

ATTENTION

The product is part of the 20V IXES series and may only be operated with batteries of this series. Batteries may only be charged with battery chargers of this series. Observe the manufacturer's instructions.

10.1 Mowing with the grass collection basket

ATTENTION

Do not operate the product without the grass collection basket fully attached or without a mulching insert.

ATTENTION

Only remove or attach the grass collection basket when the engine is switched off and the blade is stationary.

10.1.1 Inserting the grass collection basket (5) (Fig. 9, 12)

1. Lift the discharge flap (8).
2. Lift the grass collection basket (5) by the carrying handle (5a).
3. Hang the grass collection basket (5) in the grass collection basket suspension provided at the rear of the product.
4. Put down the discharge flap (8), it holds the grass collection basket (5) in position.

10.1.2 Level indicator (3) on the grass collection basket (5) (Fig. 1)

The air flow generated by the blade lifts the level indicator. When the grass collection basket is full, the air flow stops. If the air flow is too low, the level indicator closes. This is a note to empty the grass collection basket.

The unrestricted function of the level indicator is only assured with optimum air flow. External influences such as wet, dense or high grass, low cutting levels, dirt or similar can affect the air flow and the function of the level indicator.

• Flap open: Grass collection basket is being filled
  Flap closed: Grass collection basket is full

10.1.3 Emptying the grass collection basket (5) (Fig. 9, 12, 13)

WARNING

Before removing the grass collection basket, switch off the engine and wait for the blade to stop.

ATTENTION

Danger of injury!

Remove the grass collection basket only when the engine is switched off and the blade is stationary.

The grass collection basket must be emptied as soon as grass cuttings are left lying behind on the ground during mowing.

1. To remove the grass collection basket (5), lift the discharge flap (8).
2. Take out the grass collection basket (5) by the carrying handle (5a). In accordance with the safety regulations, the discharge flap (8) closes when the grass collection basket (5) is unhooked and closes the ejection opening.

If grass cuttings remain in the opening, it is advisable to pull the lawnmower back about 1m to make it easier to start the motor.

ATTENTION

Do not remove cuttings in the mower housing and on the working tool by hand or with your feet, but with suitable aids, e.g. brush or hand brush.

To ensure good collection, the grass collection basket (5) must be cleaned after use.

10.2 Mowing with the mulching insert

When mulching, the cuttings are shredded in the closed lawn mower housing and distributed over the lawn through the mulch insert. This eliminates the need for grass collection and disposal. The fine green waste falls back into the grass root as a natural fertiliser, adds moisture to the lawn and supplies it with important nutrients.

ATTENTION

Mulching is only possible on relatively short lawns.

10.2.1 Inserting the mulching insert (11) (Fig. 12, 13, 14)

1. Lift the discharge flap (8).

2. Remove the grass collection basket (5) (if used) by the carrying handle (5a).

3. Lift the discharge flap (8) and insert the mulching insert (11).

4. Adjust the cut height (see. 9.1).

Note:

Cut the grass back by 2cm if the grass is 4-6 cm high.

10.2.2 Difference between lawn mowing and lawn mulching (Fig. 12, 14)

When using the mulching insert (11), the grass clippings are not collected in a grass collection basket, but shredded and distributed over the lawn. The nutrients contained in the grass clippings are thus broken down by soil organisms forming a nutrient cycle. Mulched lawns therefore need to be fertilised much less frequently.

As a general rule, the lawn must be mowed relatively often so that only small amounts of mulch remain on the lawn. It is therefore best to mulch the lawn at least once a week and set the mower so that only approx. 40% of the total height of the lawn is mulched. If the mulch remains visible on the lawn (e.g. during the first cut of the year or during heavy growth), the grass collection basket (5) should be used.

10.3 Blade-stop device (Fig. 1, 16)

Before each use, you must check the blade stop device. Start the motor as described in 10.4.

1. Release the safety bar (1). The engine switches off and the blade (12a) is braked.
2. The blade (12a) must stop within 7 seconds.

10.4 Switching the product on/off (Fig. 15)

Note:

The charge status of the battery is indicated by the corresponding LED light lighting up.

Low Low battery charge status

High High battery charge status

Switching on

1. Hold the on/off button (10) depressed and pull the safety bar (1) rearwards.

Switching off

1. Release the safety bar (1).
2. Remove the battery.

CAUTION

After switching off, the product will run on. Wait until the product has come to a complete stop.

10.5 Auto/Eco mode (Fig. 15)

The product automatically starts up in the last mode used.

1. You can switch between Auto/Eco mode by pressing the Auto/Eco switch (10a).

Auto mode:

The product adjusts the motor speed to suit the load.

Eco mode:

The product runs at the lowest speed for maximum runtime.

10.6 After mowing

• Check all screws and nuts before the next use. Tighten up loose screws.
• Empty the grass collection basket before the next use.
• Please also observe the chapter "Storage".

11 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the battery.
• Allow the product to cool.

CAUTION

Wear protective gloves when handling the blades!

11.1 Cleaning

• Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the product directly after every use.

• Ventilation openings must always be free.

• Cleaning with a garden hose is only recommended at low pressure. A high-pressure cleaner is not suitable for cleaning the product.

• Unhook the grass collection basket and brush it out with a hand brush. You can also roughly clean the housing of the lawnmower with the sweeper.

• Clean the underside of the lawnmower with a spatula and hand brush. The spatula helps to remove coarse and larger plant debris from the area of the blade (12a). Cleaning the underbody is easier and more thorough immediately after use. Then dirt and plant residues are still fresh and can be loosened more easily.

• Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interi- or
• Check that the grass ejection is clear of grass residues and remove these if necessary.

11.2 Maintenance

WARNING

Danger of injury!

Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.

11.2.1 Changing the blade (12a) (Fig. 16)

WARNING

There is a risk of injury if you work with a damaged blade.

Wear protective gloves!
- For safety reasons you should only ever have your blade sharpened and balanced by an authorised specialist workshop. For optimum results it is recommended that the blade should be inspected once a year.
- When changing the blade, only use original spare parts.

1. Hold the blade (12a) tightly with one hand.
2. Turn the blade screw (12) anticlockwise using a 13mm open-ended spanner (not included in the scope of delivery).
3. Remove the blade screw (12) and the washer.
4. Re-install the new blade (12a) in reverse order. Fasten the blade screw (12) properly. Ensure that the blade (12a) is correctly positioned in the fastening pins and lies flush.
5. The tightening torque of the blade screw (12) is 45Nm . Also replace the blade screw (12) when replacing the blade (12a).

11.2.2 Damaged blade (12a) (Fig. 16)

If the blade (16) has come into contact with an obstacle:

• Switch off the engine, wait for it to stop and remove the battery.
• Check the blade (12a) for damage.

Damaged or bent blades (12a) must be replaced.
- Never attempt to bend a bent blade (12a) back to straight again.
- Never mow the lawn with a bent or heavily worn blade (12a) as this will cause vibrations and can lead to further damage to the lawnmower.

12 Storage and transport

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5^ and 30^ .

Store the product in its original packaging.

Cover the product to protect it from dust or moisture. Store the operating manual with the product.

WARNING

Danger of injury!

Remove the battery from the power tool before carrying out any work on the power tool (e.g. maintenance, tool change, etc.) and when transporting and storing it. There is a risk of injury if the on/off switch is operated unintentionally.

12.1 Folding the upper push bar (2) together (Fig. 1, 7, 12)

WARNING

Risk of jamming!

Always hold the push bar with one hand at the highest point.

• Never place fingers between the upper push bar and the lower push bar.

For space-saving storage, the upper push bar (2) is foldable.

1. Remove the grass collection basket (5).
2. Open the quick clamp levers (2c) on the upper push bar (2).
3. Loosen the quick clamp lever (2c) a little by turning it anti-clockwise.
4. Move the upper push bar (2) down. The cable (9a) must not be pinched in the process.

12.2 Preparation for storage

1. Remove the battery.
2. Empty the product completely.
3. Clean and check the product for damage.

13 Repair and ordering spare parts

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

13.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Battery pack SBP2.0 - Article no.: 790920	1708
Battery pack SBP4.0 - Article no.: 790920	1709
Battery charger SBC2.4A - Article no.: 79	09201710
Battery charger SBC4.5A - Article no.: 79	09201711
Battery charger SDBC2.4A - Article no.: 7	909201712
Battery charger SDBC4.5A - Article no.: 7	909201713
StarterKit SBSK2.0 - Article no.: 7909201	720
StarterKit SBSK4.0 - Article no.: 7909201	721
Blade - Article no.: 7911200647
Blade screw - Article no.: 5911415001

14 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
  These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

• Do not dispose of batteries in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
  Defective or used batteries must be recycled in accordance with Regulation (EU) 2023/1542.

• Hand in the battery and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.

• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.

• Dispose of batteries in accordance with local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

15 Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
The product cannot be started.	The battery power is too weak. Charge the battery.
	The battery is not properly insert- ed.	Push the battery into the battery mount. The battery clicks into place audibly.
	On/off switch defective. Please contact our service department.
	Engine defective.
Product runs unsteadily and vibrates heavily.	Quick clamp lever loose. Check quick clamp lever.
	Blade fasteners are loose. Check blade fasteners.
	Blade is unbalanced. Replace blade.
Motor does not run. Safety	bar not pulled. Pull the safety bar.
	Engine defective. Contact authorised customer service.
The discharge of grass clippings is untidy	Cutting height is too low. Adjusting the cutting height.
	Blade is worn.	Replace blades.
	Grass collection basket clogged.	Empty the grass collection basket or remove the blockage.

16 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

GünzburgerstraBe 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand:

POWERTEC GARDEN

Art. designation:

Battery-powered lawnmower - PG-BPM430

Art.no.

3911408817

EU directives:

2014/30/EU, 2006/42/EG, 2000/14/EG_2005/88/EG, 2011/65/EU*,

• The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015/A11:2022;

ENIEC62841-4-3:2021/A11:2021;

EN IEC 55014-1:2021; EN IEC 55014-2:2021

Documentation authorised representative:

David Rümpelein

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sommaire

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

1 Uvod. 54
2 Popis vyrobku (obr. 1-16) 54
3 Rozsah dodavky (obr. 2) 54
4 Pouziti v souladu s urcenim 54
5 Bezpečnostni poukyny 55
6 Technické udaje 58
7 Rozbaleni 59
8 Montaz 59
9 Pred uvedenim do provozu 60
10 Obsluha 61
11 Cišěni a udžržba 62
12 Skladovani a preprava 63
13 Oprava a objednavka nahradnich dilu 64
14 Likvidace a recyclacle 64
15 Odstrańovani poruch 65
16 EU prohlasei o shode 66
17 Rozpadovy vykres 67

Division Manager Product Center

Andreas Pecher

Head of Project Management

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen
