USER MANUAL SP750-BF SCHEPPACH

Exterior view of a Schappach special earth pump with red and black casing (no text or symbols visible on the pump body)

scheppach SPECIAL EDITION

SP750-BF

D	TauchpumpeOriginalbetriebsanleitung	4-8
GB	Submersible PumpOriginal operating instructions	9-13
F	Pompe submersibleMode d'emploi d'origine	14-18
I	Pompa sommersaIstruzioni per l'uso originali	19-23

Fig.1

Technical diagram of a mechanical device with numbered parts labeled 1 to 5

Technical diagram of a mechanical device with labeled parts 6 and 7

Fig.2

h2 h1

Fig.3

G1½ Thread 1"Pipe G1" Thread 1¼ Pipe

Fig.4

Technical diagram of a vacuum cleaner with labeled components and internal structure

Günzburger Straße 69

D-89335 Ichenhausen

VEREHRTER KUNDE,

Explanation of symbols

Read operator manual. Before any use, refer to the corresponding section in this user manual.

Product corresponds to appropriate EU standards

These operating instructions provide places concerning your safety which are marked with this indication

Initiation

MANUFACTURER:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We wish you much pleasure and success with your new scheppach machine.

Note

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
  • non-compliance with the instructions for use,
  • repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

We recommend

that you read through the entire operating instructions before putting the machine into operation. These operating instructions are to assist you in getting to know your machine and utilize its proper applications. The operating instructions contain important notes on how you work with the machine safely, expertly, and economically, and how you can avoid hazards, save repair costs, reduce downtime and increase the reliability and service life of the machine. In addition to the safety requirements contained in these operating instructions, you must be careful to observe your country's applicable regulations. The operating instructions must always be near the machine. Put them in a plastic folder to protect them from dirt and humidity. They must be read by every operator before beginning work and observed conscientiously. Only persons who have been trained in the use of the machine and have been informed of the various dangers may work with the machine. The required minimum age must be observed. In addition to the safety requirements in these operating instructions and your country's applicable regulations, you should observe the generally recognized technical rules concerning the operation of woodworking machines.

GENERAL NOTES

• After unpacking, check all parts for possible damage caused by transportation. In the event of complaints, you must contact the distributor without delay. Claims at a later stage will not be accepted.
- Check that the delivery is complete.
- Before handling the device, make yourself familia with it by reading the operating instructions.
- For accessories, consumables and spare parts, only

ever use original parts. Spare parts are available from your stockist.

- Include our item number, the device model and year of manufacture in your order.

Technical data

Length x width x height mm	237 x 161 x 352
Mains connection 230V ~ 50Hz
Power rating 750 W
Pumping rate max 13500 l/h
Delivery head max. 8 m
Immersion depth max. 7 m
Water temperature max. 35°C
Hose connection	1" = 25,4 mmG1" = 33,3 mm11⁄4" = 31,75 mmG1 1⁄2" = 47,8 mm
Length of mains connec-tion cable	10 m
Protection rating IPX8
size of foreign bodie max.∅	35 mm

⚠️ Risk of damage to the machine!

The specified size of foreign objects does not apply to sand or stones but to soft, flexible objects such as fluff or similar which cannot jam the rotor inside the pump

Scope of delivery

Submersible Pump

Original operating instructions

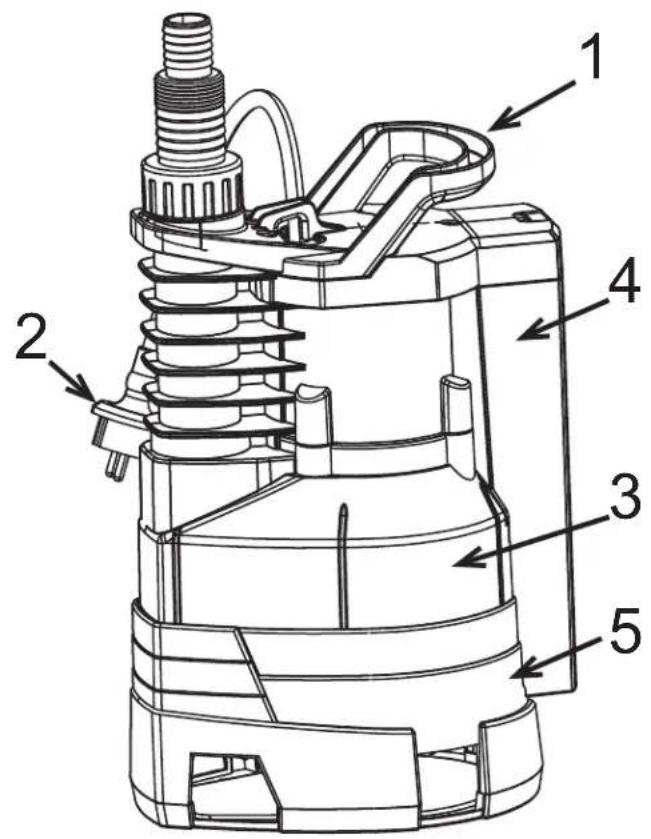

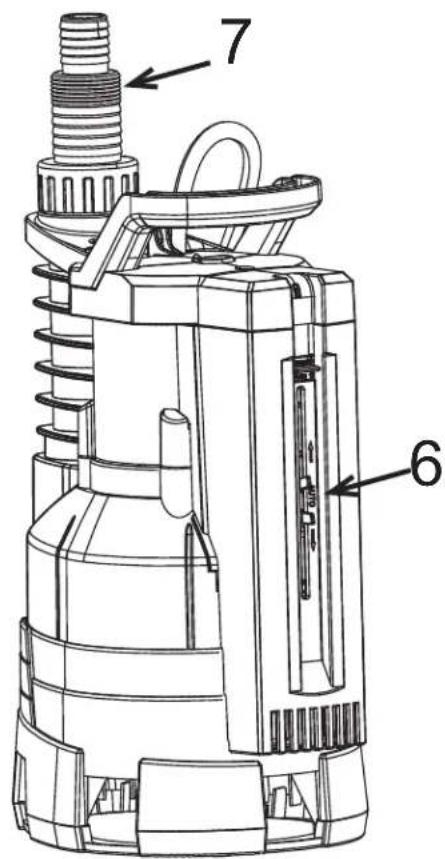

Device description (Fig. 1)

1. Handle
2. Cables and Plug
3. Pump casing
4. Cover
5. Base
6. Integrated adjustable float switch
7. Hose connection

Safety regulations

Caution!

In stagnant water bodies, garden ponds, swimming ponds and their surrounding areas the unit may only be used with an earth-leakage circuit breaker with an actuating rated current of up to 30 mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind

or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

Important!

• Before you put the equipment into operation, arrange for a specialist to check that the
• earthing
• protective multiple earthing
• residual-current operated circuit-breaker circuit-comply with the safety regulations of the power supply company and work correctly.
• The electrical plug-in connections must be protected from wet conditions.
• If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding
• Strictly avoid pumping aggressive liquids and abrasive substances.
• Protect the equipment from frost.
• Protect the equipment from dry running.
• Take suitable measures to keep the equipment out of the reach of children.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35 °C . This equipment must never be used for other liquids, especially engine fuels, cleaning agents and other chemically-based products! Installed in a shaft, the equipment provides protection from flooding.

However, it can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. The equipment must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly

shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Commissioning

Before commissioning the pump, attach a sufficiently strong rope to its handle.

Only ever use the rope or the handle to immerse the pump in the water.

△ Hinweis: Note: In case of long-term use of the pump, regularly check the condition of the rope because it can get damaged over time.

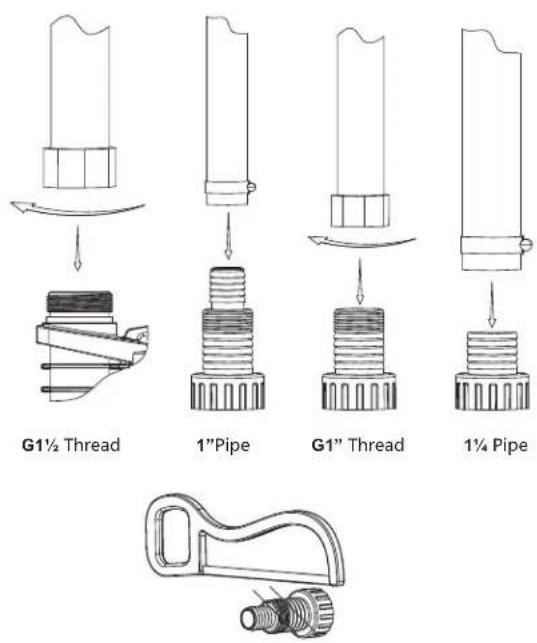

Attaching the pressure hose (Fig. 3)

• Connect a suitable pressure hose to the pump and secure it with hose brackets (not included).
• For threaded connections, always use threaded sealing tape (e.g. Teflon).

Warning! The maximum delivery rate can only be achieved with the largest possible pipe diameter. When smaller hoses or pipes are connected, the delivery rate will be reduced. When using the universal hose connection, it should be trimmed to suit the chosen connection so the delivery rate is not reduced unnecessarily.

Installation

During installation, make sure that the device never hangs unsupported from the pressure hose or the power cable. The machine must be suspended using the dedicated handle or be positioned on the sump floor. In order to guarantee smooth functioning of the machine, the sump must always be kept free from mud or other contamination.

When the water level is too low, any mud in the base of the pump can quickly dry and prevent the device from starting. That is why you have to check the machine regularly (try starting it).

Note:

The pump sump should have dimensions of at least 24 x 16,5 cm so the float switch can move freely.

Mains connection

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 230 V \~ 50 Hz. Make sure that the socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

Important!

To rule out danger, this work must be left strictly to a specialist electrician or Customer Service.

Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

• Make sure that the equipment is set up securely.
• Check that the discharge line is fitted correctly
  • Make sure that the electrical connection is 230 V
• \~ 50 Hz.
• Check that the electrical socket-outlet is in good working order.
  • Make sure that no moisture or water can ever
• reach the power connection.
• Make sure that the equipment does not run dry.

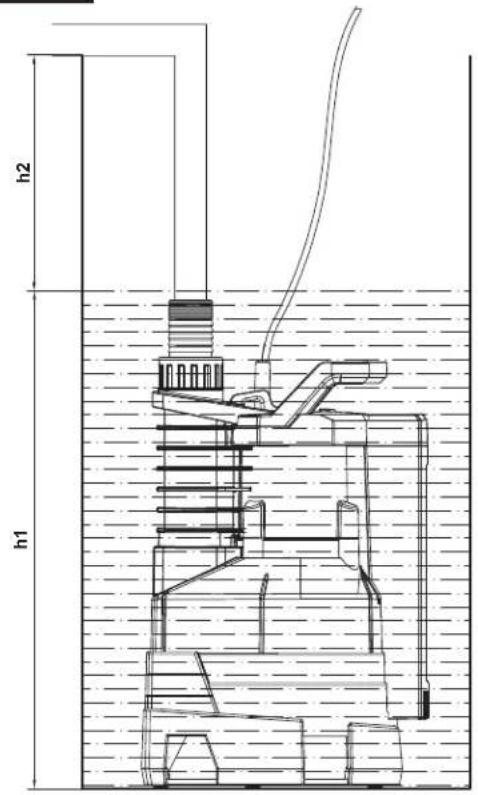

Setting up the device (Fig.2)

Ensure that the specified maximum water depth shown in Fig. 2 is not exceeded.

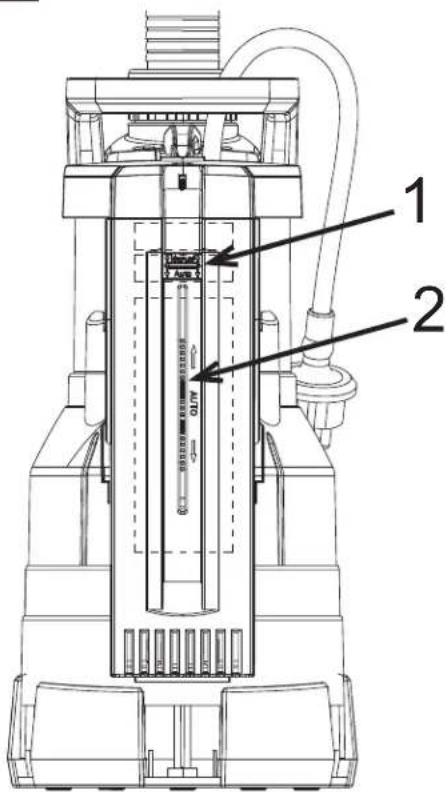

Setting the integrated float switch (Fig.4)

Switch position Manual:

• Turn the switch (1) to "Manual".
• The pump will start when the plug is connected to the mains.

Switch position Auto:

• Turn the switch (1) to "Auto".
• Using the level switch (2), adjust the deactivation height specifying at which water level the pump should stop.

Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its aftersales service or similarly trained personnel to avoid danger.

Cleaning, maintenance and ordering of spare parts

Important!

• Unplug the power plug prior to any maintenance
• work.
• For mobile applications, the equipment should be
• cleaned with clear water after every usage.
• For stationary installation, it is recommended that you check the floating switch for proper functioning every three months.
• Use a water jet to remove any lint or fibrous particles that may have become trapped in the housing.
• Remove sludge from the shaft bottom and clean the shaft walls every 3 months.
• Use clear water to remove deposits from the floating switch.

Cleaning the paddle wheel

If a lot of deposits collect in the housing, the bottom part of the equipment must be dismantled as follows:

1. Disconnect the intake cage from the housing.
2. Clean the paddle wheel with clear water.

Important! Do not put down or rest the equipment on the paddle wheel!

1. Assemble in reverse order.

Maintenance

There are no parts inside the equipment which require additional maintenance.

Storing

Store the device in a dry place beyond the reach of children. When the device is not being used, store it so it cannot be started by unauthorised persons.

WARNING!

Do not store the device without protection outside or in a damp environment.

Frost destroys the appliance and accessories, as these always contain water!

Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Troubleshooting
Problem Possible cause Solution
Pump does not start	Mains cable not connected Connect mains cable
	Circuit breaker is triggered Have the pump checked by an electrician
	Motor faulty Contact the service centre
Motor overheated	Water temperature is too high Let the water cool down
	Pump blocked by foreign objects Check pump for foreign objects
Device is running, but does not pump	Suction/pressure openings blocked Remove the blockage
	Pump suspended in the air Immerse the pump in water
	Pump blocked by foreign objects Check pump for foreign objects
Delivery rate too low	Delivery height too high Check the delivery height > Technical data
	Hose diameter too small Use hose with larger diameter
	Hose blocked Check hose for blockage
	Hose kinked	Check hose for kinks
	Hose is leaking	Check hose for damage
