Softcase BP60 - Rechargeable Battery Sebo - Free user manual and instructions

Product type	Rechargeable battery
Brand	Sebo
Model	Softcase BP60
Dimensions (L x W x H)	168.2 x 91 x 111.5 mm
Weight	2.4 kg
Nominal voltage	25.2 V
Battery type	Li-ion
Nominal capacity	12.3 Ah
Nominal energy	308 Wh
Max charging current	3.0 A
Operating temperature	5 - 40 °C
Charging temperature	5 - 40 °C
Storage temperature	5 - 40 °C
Approved charger	SEBO Power Charger ST 25/3
Display	Screen indicating operating status, charge and errors
Use	Slide into the receptacle of the SEBO instrument
Maintenance / Cleaning	Clean the terminals with a dry, clean cloth
Safety	Do not open, do not throw into fire, avoid short circuit
Storage	Indoors, dry place, temperature below 20 °C
Recycling	Do not dispose with household waste, take to a collection point

Frequently Asked Questions - Softcase BP60 Sebo

How to charge the Sebo Softcase BP60 battery?

Use only the approved charger SEBO Power Charger ST 25/3. Connect the battery to the charger via the socket located under the flap. The screen indicates the charging status. Before first use, fully charge the battery.

What to do if the screen shows an error?

If the error is reversible (flashing), disconnect the battery from the device or charger to reset it. If the error persists, contact authorized customer service. A permanent error (steady) indicates a defective battery that needs replacement.

What is the battery capacity?

The battery has a nominal capacity of 12.3 Ah and a nominal energy of 308 Wh. The nominal voltage is 25.2 V.

Can I use the battery with another device?

No, use Sebo batteries only with appropriate Sebo devices. Check compatibility before use.

How to store the battery long-term?

Store the battery indoors, in a dry place below 20 °C. The screen turns off in storage. Recharge it before use if it has not been used for a long time.

What does the display with two LEDs lit mean?

Two LEDs lit (figure F) indicate a charge level between 34% and 66%. During charging, the LEDs flash. When charge reaches 33%, discharge becomes possible again in normal operation.

How to clean the battery terminals?

If the terminals are dirty, clean them with a dry, clean cloth. Make sure the battery and connectors are completely dry before use.

Is the battery waterproof?

No, do not immerse the battery in water. Avoid humidity and wet environments. Protect it from rain and splashes.

How long does it take to fully charge the battery?

Charging time depends on the charger and battery condition. With the ST 25/3 charger (max current 3 A), a full charge takes several hours. The battery reaches full capacity after approximately 5 charge/discharge cycles.

How to know if the battery is defective?

If the screen shows a permanent error (figure D) or if the battery does not work after reset, it is likely defective. Contact authorized customer service to replace it.

USER MANUAL Softcase BP60 Sebo

Abstract wavy line pattern on a dark blue background (no text or symbols)

Sicherheitshinweise

• Check the battery pack for damage before each operation. Do not use damaged battery packs.
• Only charge the battery pack with the approved chargers.
• Charge the battery pack according to the instructions before use
• Do not charge the battery pack for a long time and remove it from the device when not in use
• Do not subject the battery pack to mechanical stress.
• Do not submerge the battery pack under water.
• Do not store, charge or operate the battery pack in a wet or damp environment.
• Do not use the battery pack when it is wet or dirty. If the connectors of battery packs are dirty, clean them with a dry, clean cloth. Allow the battery pack and connectors to dry completely before use.
• Do not charge or use the battery pack in an explosive environment.
• Protect the battery pack from heat, sharp edges, oil, solvents, cleaning agents and moving device parts.
• Do not store in direct sunlight.
• Do not allow any metal parts to come into contact with the contacts of the battery pack. Do not store together with metal objects.
  Do not short-circuit the contacts.

• Do not open the battery pack. Only allow repairs to be carried out by qualified personnel.

• Do not dispose of the battery pack in a fire or in the household waste.

• Avoid contact with liquid leaking from defective rechargeable from defective batteries. Immediately flush the liquid rinse the liquid immediately with water. In the event of contact with the eyes, consult a doctor immediately.
• Remove the battery pack from the device before any maintenance and maintenance work from the device
• Keep out of the reach of children

Safety Instructions for Transport

The lithium-ion battery pack is subject to the requirements of hazardous materials legislation. The battery pack can be transported by the user in public traffic areas without any further requirements. When shipping by third parties (transport companies), observe the special requirements for packaging and labeling. Only ship the battery pack if the housing is undamaged. Tape off any exposed contacts. Pack the battery pack tightly and securely. The battery pack should not be able to move inside the packaging. Observe the national regulations.

Intended Use

UTION Explosion Hazard!

aries and damage due to exploding battery pack possible!

Only charge undamaged battery packs. Modifications and changes modifications not authorized by the manufacturer are prohibited. Any other use is not permitted. The user is liable for hazards the user is liable for any hazards resulting from unauthorized use. Only charge the battery packs with the SEBO charger

SEBO POWER CHARGER ST 25/3.

Use the SEBO battery packs only with the suitable SEBO battery devices. Before use, always check that the technical data of the SEBO battery pack and charger or SEBO battery pack and device match.

The information on the type designation and connection values can be found on the type plates or in Technical Data chart on page 12.

Display

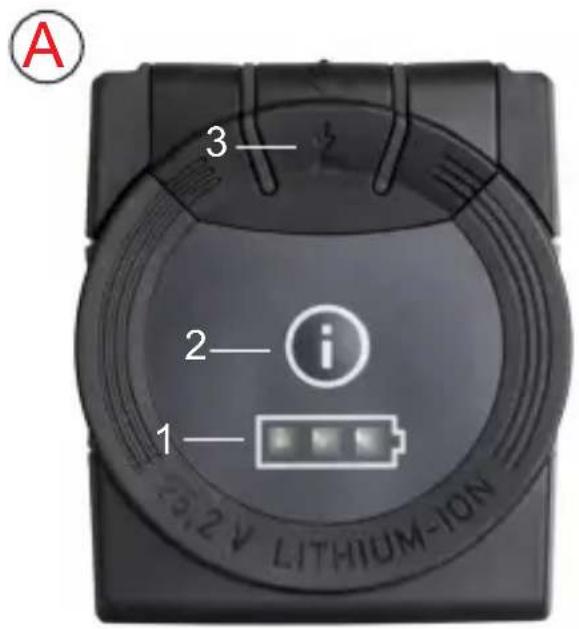

The battery pack is equipped with a lighted display (figure A, area 1) to indicate:

• Operating status
• State of charge
• Error messages

The display is active when the battery pack is switched on by the battery pack, the charger or by pressing the power-on key (Fig. A, area 2). The battery remains active for approx. 60 minutes after activation.

Display	Meaning Note
Image B	Battery is switched off	Sleep mode

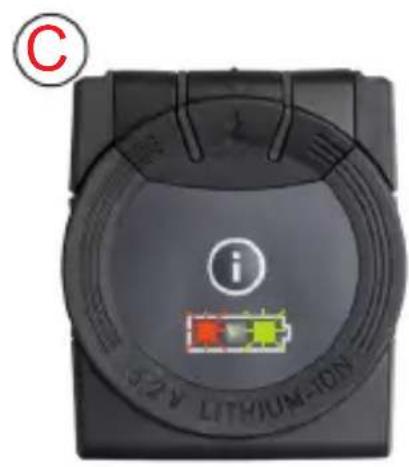

Image C	Reversible error	Display flashes in case of error, battery is restarted

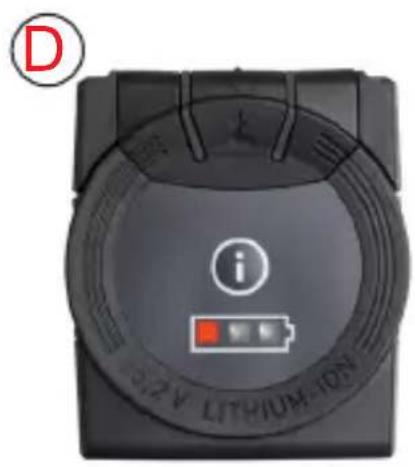

Image D	Permanent error	Battery is defective and is blocked

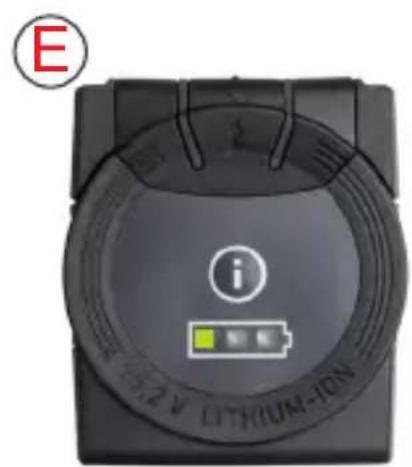

Image E	State of charge 0 - 33% Display Flashes during charging

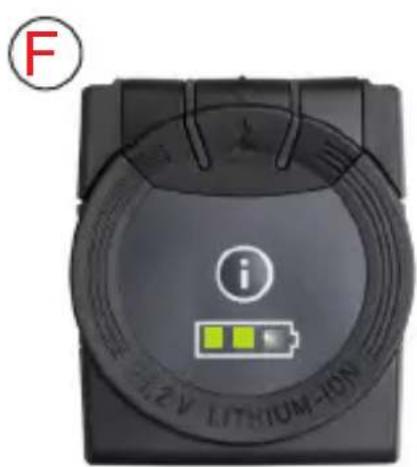

Image F	State of charge 34 - 66%	Display flashes during charging

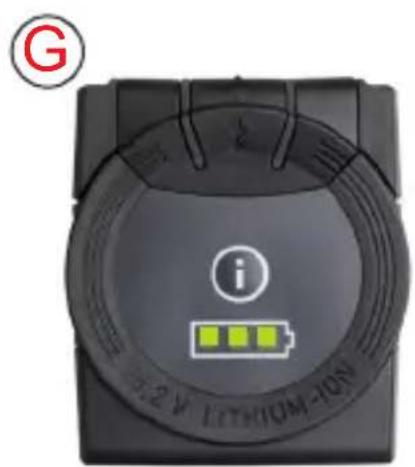

Image G	State of charge 67 - 100% Display flashes during charging

All illustrations mentioned above can be found on page 2.

CAUTION!

A completely discharged battery will be blocked against deep discharge. If the battery reaches a capacity of 33% during charging (two LEDs light up, Fig. F), discharging is possible again in normal operation.

Charging Process

The display is activated during the charging process. New battery packs reach full capacity after approx. 5 charging and discharging cycles. Recharge battery packs that have not been used for a long time before use. It is not possible to charge the battery pack outside the permissible temperature values. The battery pack charger will then display an error. If the display does not show anything during the charging process, refer to the Error table below.

Operation

1 Slide the battery pack into the holder of the unit.
2 Remove the battery pack from the unit after use.
3 Charge partially discharged battery packs after use.

Storage

Store battery packs indoors only with low humidity and below 20 °C (68°F).

The battery pack display switches off automatically during storage.

Note:

New battery packs must be fully charged before they are used for the first time. This cancels the transport mode of the battery pack.

Note:

The charging socket of the rechargeable battery pack is located under the flap (Fig. A, area 3).

CAUTION:

Loose Battery Pack

Loose battery packs may result in risk of injury and damage.

Ensure that the battery pack snaps into place.

CAUTION

Humidity and Heat

Humidity and heat can cause risk of damage and limited storage time, recharging may be necessary.

Help in case of malfunctions

Malfunctions often have simple causes, which you can remedy yourself with the help of the following overview.

Reversible Error Permanent Error
- Disconnect battery from vacuum or charger- Battery is automatically restarted- Is the error still present?		Battery is defective, contact the authorized customer service.
Yes	No
Contact the authorized customer service.	Check the vacuum or charger for errors.

If in doubt or in case of malfunctions not mentioned here, contact the authorized customer service.

Environmental Protection

Li-Ion batteries must not be disposed of with household waste and must be taken to appropriate collection points. Please observe the recommendations of the local authorities how to handle lithium-ion batteries.

pose of used and defective battery packs in accordance with the ally applicable regulations.

Technical Data
Electrical connection
Rated voltage battery pack	V	25,2
Battery pack type	-	Li-Ion
Rated capacity	Ah	12,3
Rated energy	Wh	308
Max. charging current	A	3,0
Dimensions and weights
Weight	kg	2,4
Operating temperature	°C / °F	5 - 40 / 41 - 104
Charging temperature	°C / °F	5 - 40 / 41 - 104
Storage temperature	°C / °F	5 - 40 / 41 - 104
Length x Width x Height	mm	168,2 x 91 x 111,5
	inches	6,62 x 3,58 x 4,39
Approved charger
SEBO Power Charger ST 25/3

Black rectangular electronic device labeled 'SIBO CHARGER' with a green indicator button, no visible text or symbols beyond the label.

See separate instructions for use for details.
