Automatic X4 - Vacuum Cleaner Sebo - Free user manual and instructions

Product Type	Upright Vacuum Cleaner
Brand	Sebo
Model	Automatic X4
Color	Black/Red
Weight	12 kg (26.5 lbs)
Dimensions (L x W x H)	30 x 12 x 12 inches
Suction Power	1200 Watts
Filtration System	S-Class HEPA Filter
Dust Capacity	5.5 Liters (disposable bag)
Cord Length	12 meters (39 ft)
Cleaning Path Width	12 inches (30 cm)
Brush Roll	Electric power brush with height adjustment
Attachments Included	Crevice tool, upholstery tool, dusting brush
Noise Level	72 dB
Power Cord Type	Automatic cord rewind
Control Type	Pedal-operated on/off and brush roll
Maintenance	Replace bag and filter regularly
Safety Features	Automatic shut-off when overheated
Warranty	5 years on motor, 1 year on parts

Frequently Asked Questions - Automatic X4 Sebo

How often should I replace the dust bag?

Replace the dust bag when the bag change indicator turns red, typically every 3-4 months for average use.

What type of filter does the Sebo X4 use?

It uses a S-Class HEPA filter that captures 99.97% of particles. Clean or replace it every 6 months.

How do I adjust the brush height for different carpet types?

Turn the brush height dial located on the foot to the appropriate setting: low for hard floors, high for thick carpets.

The vacuum won't turn on. What should I check?

First, check if the power cord is plugged in and the on/off pedal is pressed. If still off, check the thermal cut-out: let it cool for 30 minutes.

Can I use the Sebo X4 on hard floors?

Yes, it has a hard floor setting that lowers the brush roll or turns it off to avoid scattering debris.

How do I clean or replace the brush roll?

Unplug the vacuum, remove the bottom plate, slide out the brush roll. Cut away tangled hair with scissors and replace if worn.

What accessories come with the Automatic X4?

It includes a crevice tool, upholstery nozzle, and dusting brush, stored onboard.

How long is the power cord?

The cord is 12 meters (39 feet) long with an automatic rewind feature.

Where can I purchase replacement bags and filters?

They are available from SEBO dealers or online retailers. Look for genuine SEBO type G bags and S-Class filters.

Does the SEBO X4 have a warranty?

Yes, it comes with a 5-year warranty on the motor and a 1-year warranty on parts. Register online to activate.

USER MANUAL Automatic X4 Sebo

For Household Use Only

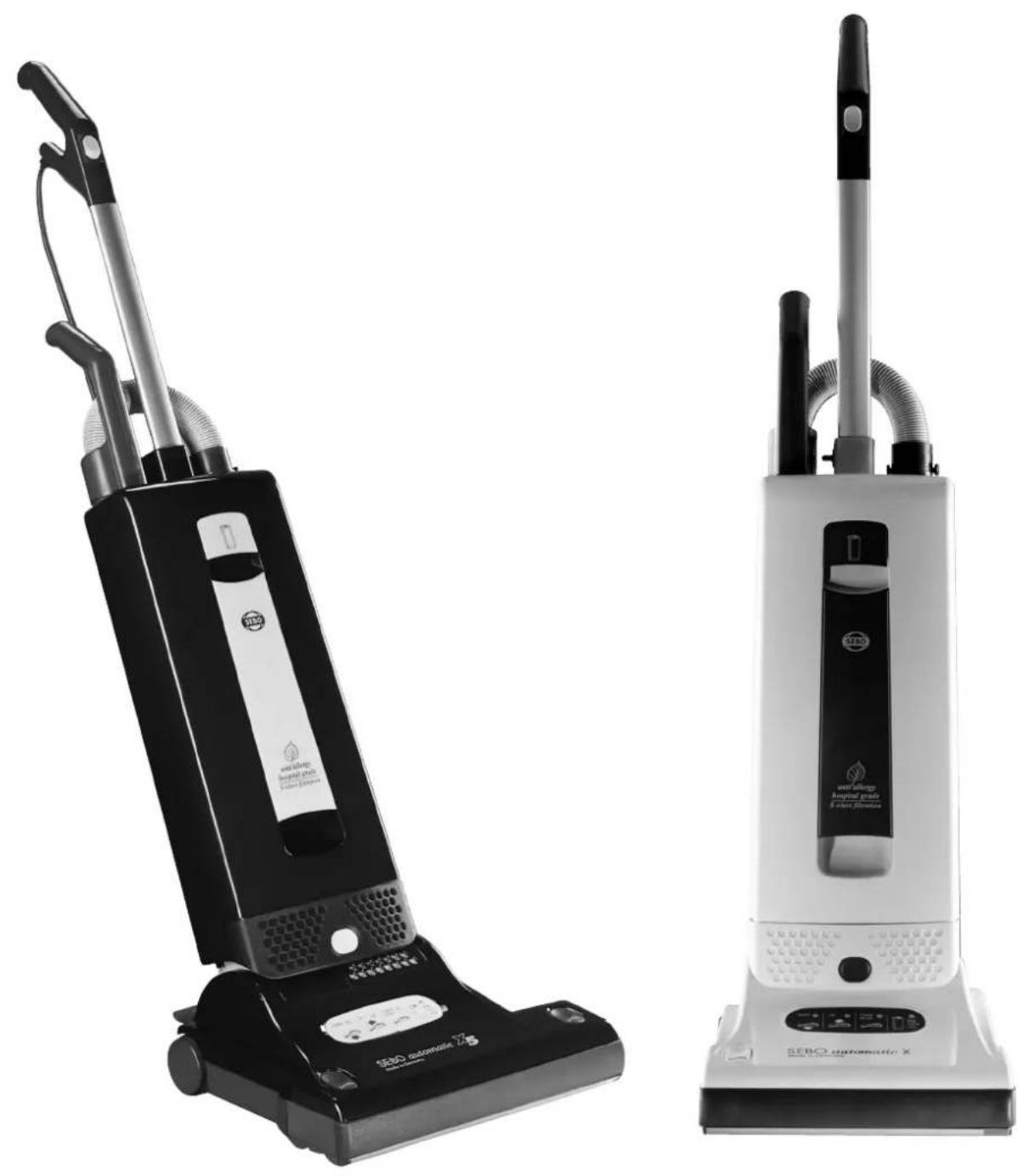

Two SEBO automatic vacuum hovels shown from different angles, no visible text or symbols on the main body.

Abstract wavy line pattern on dark background (no text or symbols)

TABLE OF CONTENTS

Technical Details.2......Wiring Diagram.2......How To Contact SEBO.2......Important Safety Instructions.3......SEBO Automatic X Product Features.4......Standard Features of all SEBO Vacuums.5......Optional Attachments, Accessories, Bags & Filters.6......Identification of Parts.7......Standard Attachments.7......Assembly......7Operating Instructions......8Starting the Machine......8Operating the Machine......8Using the Attachment Tube, Hose & Attachments......9The Display Panel......9The Adjustment Wheel......9Maintenance......10Changing the Dust Bag......10Changing the Micro-Hygiene Filter......10Changing the Exhaust Filter......10Changing the Brush Roller(s)......10Changing the Sealing Strip......10Clog Removal......11Clogs in the Airflow Pathway......11Clogs in the Attachment Hose......11Clogs in the Attachment Tube......11Clogs in Entrance to Dust Bag......11Clogs in the Swivel Neck......11Trouble-Shooting Guide......12AUTOMATIC X Filter Bag Housing and Handle Schematic and Part..Numbers......13X4 Base Schematic and Part Numbers......14X5 Base Schematic and Part Numbers......15

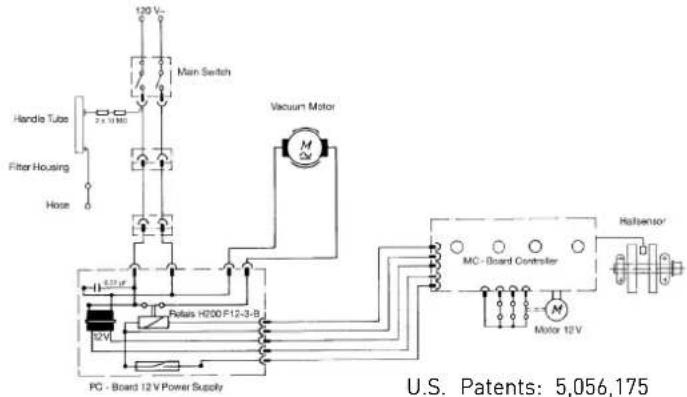

TECHNICAL DETAILS	WIRING DIAGRAM
Vacuum motor 1300 watts (10.8 amps)Water lift (at motor) 92 inchesAirflow (at motor) 103.8 CFMFilter bag capacity 1.4 gal.Sound level 69 dBABody weight X4-16.7 lbs / X5-16.9 lbsMotor protection electronic cut-outWorking width X4-12 inches / X5-15 inches	4,955,1065,028,245
HOW TO CONTACT SEBO
To contact SEBO in the United States of America: To contact SEBO in Canada:SEBO America, LLC Floor Care Equipment, Ltd.Telephone: [phone] Telephone: [phone]Fax: [phone] Fax: [phone]Website: www.sebo.us Website: www.sebocanada.ca2 For Warranty coverage information please refer to your Warranty Card included with your SEBO vacuum cleaner.

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE

When using an electrical appliance, basic precautions must always be foll

To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Connect only to the outlet type specified on the serial number plate underneath the machine.

SAVETHESEINSTRUCTIONS.

WARNING: To reduce the risk of fire, electric shock, or injury:

1. Do not leave vacuum while plugged in. Unplug from 17. Turn off all machine controls before unplugging outlet when not in use and before servicing.
   The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.
2. Do not use machine to vacuum up flammable or 3. Do not use near small children or pets. Do not allow combustible liquids such as gasoline or use in areas to be used as a toy. Use of this product by children where they may be present. should always be supervised by an adult.
3. Use only as described in this manual. Use only manufacturer-recommended attachments. flammable vapors or materials. Do not operate this vacuum near flammable fluids, dust or vapors.
4. Do not use with a damaged cord or plug. If vacuum 21. Maintenance and repairs must be done by qualified is not working as it should, has been dropped, personnel. damaged, left outdoors, or dropped into water, take it to a SEBO service center.
5. Use only original SEBO replacement parts.
6. Do not pull or carry by cord, use cord as a handle, ^23 . Do not use vacuum as a step.
   close a door on cord, or put cord around sharp edges or corners. Do not run vacuum over cord. Keep cord away from heated surfaces.
7. If vacuum is used on plush carpet or carpet with thick padding, do not leave machine standing in one place with machine turned on.
8. Do not unplug by pulling on cord. To unplug, grasp the plug - not the cord.
9. Do not use the operator's handle, which inserts into the top of the filter bag housing to carry the machine. The
10. Do not plug in if switch is in the "I" (ON) position.
11. Do not use outlets above counters to plug in vacuum - damage to items in the surrounding area could 26. Keep hair, loose clothing, fingers, and all parts of body occur. away from vacuum openings and moving parts. Do not
12. Always carry the vacuum over steps and sills.
13. Do not handle plug or vacuum handle with wet hands. Do not place the power head over rug or carpet edges.
14. Do not put any object into vacuum openings. Do n28. Use vacuum has a manual reset thermal protector. The machine with any openings blocked. Keep openings protector is reset by switching off the vacuum. The free of lint, hair, and anything that may reduce air flow thermal protector needs some time to cool down after
15. Do not re-use filter bags or wash the filters.
16. Do not remove any screws from vacuum.
17. Do not vacuum up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
18. Do not use vacuum without filter bag and/or filters in 30. Any other servicing should be performed by an authorized service representative. place.

Designed for All Floor Surfaces.

Automatic Height Adjustment for All

Floors - Based upon the resistance of the brush roller against the floor, the power head automatically adjusts up or down to the appropriate cleaning height, providing optimal cleaning of all floor surface. The height adjustment chosen by the machine ensures aggressive brush action, while providing optimal air flow. This prevents suffocation of air flow due to improper height section. Never again manually adjust the brush height or use different vacuums for various floor surfaces; the SEBO X cleans them all, automatically!

Brush Adjustment Indicator Lights - Two lights, one for "up" and one for "down," illuminate to indicate when the brush roller is in the process of adjusting to the proper cleaning height. Optimum cleaning occurs when both lights are off.

Bag Full or Clog Light & Auto Shut Off - A warning light will illuminate and the machine will automatically shut off, when it senses a full bag, a clog in the airflow pathway, or an excessively dirty micro filter. If the user ignores this warning for approximately 30 seconds, the machine will shut off and the "BAG FULL OR CLOG" light will flash. The user should turn the switch off, unplug the machine and immediately insert a new bag or remove the clog (to remove a clog, refer to the Clog Removal section on page 10). If the user restarts the machine without having solved the problem, the "BAG FULL OR CLOG" light will again illuminate and the machine will shut off in 30 seconds. feature prevents damage to the motor due to overheating.

Brush Deterioration Light - To ensure optimum cleaning at all times, a warning light will illuminate to indicate when the brush roller should be replaced due to excessive wear. The red "CHECK BRUSH" light will illuminate (after a 10 second delay) to notify the user that the brush roller is too worn and, therefore, should be replaced. The light will remain illuminated until the worn brush roller is replaced, but the machine will continue to operate.

Brush Obstruction Light & Auto Shut Off -

A warning light will quickly flash, the brush roller will immediately stop spinning and the vacuum will shut off, if an obstructi becomes jammed in the brush roller. Th prevents the belt from breaking and protects the motor from damage. The user should turn the switch off, unplug the machine and immediately remove the obstruction. If the user restarts the machine without removing the obstruction, the machine will again shut off in 3 seconds and the "CHECK BRUSH" light will flash.

Stationary Use Light – A warning light will slowly flash when the machine is standing in its upright locked position (which causes the power head to rise to its highest point from the floor) yet the brush remains in contact with the carpet fibers. This feature warns of potential carpet damage caused by excessive time in a stationary position, during which carpet fibers remain engaged with the brush, usually on medium to high pile carpet.

Easy Brush Roller Removal – Quick brush cleaning or replacement is easy, and no tools are required!

Vacuum Motor - The AUTOMATIC X has 1300 watt motor.

Instant-use Wand and Suction Hose - The integrated instant-use wand or suction hose is always ready. Just pull out eith tool, or both together, to clean hard-to-reach corners, edges and crevices. The suction hose is ideal for cleaning furniture. And an optional nine-foot extension hose is available, which creates a total hose length of 15-feet, perfect for cleaning stairs. Choose from a range of optical attachments that can be fitted to the wand or hose. The wand and hose together have an eight-foot reach for instant cleaning of hard-to-reach areas.

Black-and-white photo of a vacuum cleaner and a person walking on stairs (no visible text or symbols)

Black and white photo of a hand holding a vacuum cleaner next to a small electronic device on a workbench (no visible text or symbols)

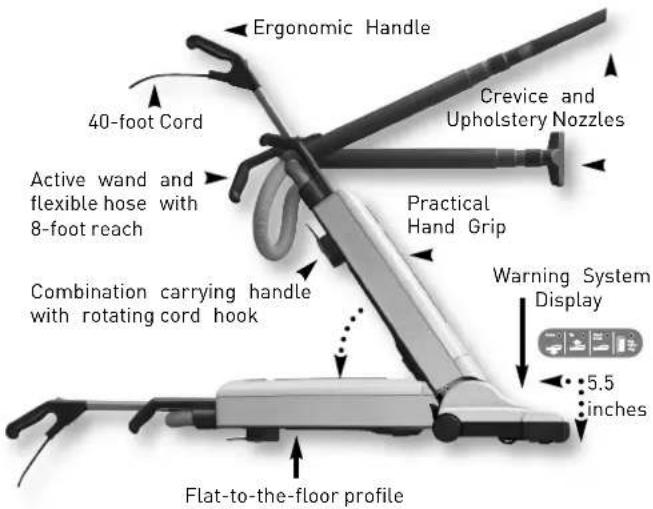

A Flat-to-the-floor, 5.5-inch Profile – Such a low profile makes cleaning under furniture and beds easy!

Forty-foot Cord - A 40-foot cord saves time because it minimizes the number of electrical outlets needed during use.

Lifetime Belt Warranty - No more changing belts...they should last the life of the machine!

Two Power Head Widths - The AUTOMATIC X4 power head is

12-inches wide, with a cleaning width of 10 ½ inches. The AUTOMATIC X5 power head is 15- inches wide, with a cleaning width of 14 ½ inches.

Two electronic devices labeled X4 and X5, showing different mounting points (no visible text or symbols on the devices themselves)

Three On-board, Full-size Tools and Large Filter Bag – The vacuum comes standard with a crevice nozzle, dusting brush and upholstery nozzle. Many optional accessories are also available. The filter bag is also SEBO's largest, with a dirt capacity of 1.4 gallons.

STANDARD FEATURES OF ALL SEBO VACUUMS

Bags are Better! - Top-fill, three and four-layer bags are an integral part of SEBO's filtration system because they hold virtually all dirt captured by the vacuum, which improves the effectiveness and useful life of the micro filters. They also ensure continuously strong suction because dirt enters from the top, deposits at the bottom, accumulates upward, and air exits through the sides, which allows unimpeded airflow as they fill to capacity. And they can be sealed when full, so no dust can escape into the air during bag removal and disposal.

In contrast, without bags to hold nearly all the captured dirt, the microfilters on bagless vacuums quickly clog from excessive dirt build-up and must be replaced often, or a loss of suction and cleaning effectiveness will occur. In addition, dust and other allergens become airborne when emptying bagless dirt containers. Lastly, bagless vacuum microfilters are expensive, usually costing more than a multi-year supply of SEBO filter bags.

S-class Pre-motor Microfilters - S-class Pre-motor Microfilters (S = "Schwebstoff" = airborne particles) are made from electrostatically charged micro-fiber material, which attracts and captures dust particles from the airflow of the vacuum before it passes over the motor to cool it. Cooling the motor with super-clean air increases motor life and reduces the possibility of maintenance, even after many years of use. This means that exhaust air is cleaned to the highest level. The class Standard requires filters to absorb greater than 99.9% particles down to 0.3 microns in diameter. For comparison, microns is the diameter of a human hair. Their advantages are relatively open texture that allows smoother airflow for be suction performance, a longer life expectancy, and they cost less than HEPA filters

Designed and Manufactured in Germany - Legendary quality, reliability and performance make SEBO vacuums the choice of cleaning professionals throughout the world.

Excellent for Users With Allergies or Asthma - The British Allergy Foundation recommends SEBO filters.

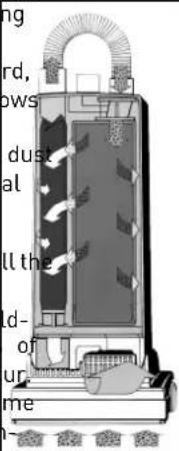

Tightly Sealed Vacuums Ensure Effective Filtration - Dirty air which flows through a vacuum, can only be filtered completely if it does not escape into the room through seams or seals in the machine. This is why all SEBO vacuums have tight seals throughout. Many vacuum companies with high-filtration claims are actually quoting specifications made by the manufacturer of the filter material, as measured in the laboratory, not the filtration effectiveness of the vacuum itself while operating. Whether or not dirty air can escape through leaks in the body of the machine is not considered. The filtration effectiveness of SEBO vacuums is tested while they operate.

Save Money! SEBO Vacuums Last for Years and Extend Carp Life! - If properly maintained, SEBO vacuums save ordinary residential users hundreds of dollars by providing excellent performance for ten to fifteen years or more, and their deep- cleaning power-brush technology extends the life of carpets. Typical vacuums perform poorly, even when new, and usually do not last beyond two years. So six or seven "disposable vacu- ums" must be purchased during the average life expectancy of just one SEBO machine.

Outstanding Warranty Coverage - SEBO is confident about the quality of all its vacuums. Therefore, all models include a five-year warranty on the motor and all non-wear parts. Please refer to the Warranty Card included with your SEBO vacuum cleaner for complete warranty coverage information.

SEBO Microfilters Ensure Continuously Strong Suction Performance - They are also long lasting, inexpensive and easy \$0 change in seconds.

of 100 Changing Bags is Easy and Clean - SEBO bags can be changed in just a few seconds, are cap keeps dust sealed inside during removal disposal.

Effective Pet Hair Removal - All SEBO vacu-

HEPA Pre-motor Microfilters (Optional) - HEPA Pre-motorums easily remove pet hair!

Microfilters ("High Efficiency Particulate Air") remove a minimum of 99.97% of all airborne particulate matter down to 0.3 microns in diameter. Because these filters use small grid-like structures to capture dust particles, dirt build-up clogs the airflow pathway sooner than what is expected from S-class microfilters. However, SEBO's HEPA microfilters are sold along with four-layer "Ultra-bags," which provide highly effective filtration before the airflow goes through the HEPA microfilter, greatly increasing life expectancy and reducing the potential of diminished air flow.

Exhaust Filters - Exhaust filters clean the air emitted by the vacuum motor.

OPTIONAL ATTACHMENTS, ACCESSORIES, BAGS & FILTERS

In addition to the standard on-board tools, a variety of options. Another popular attachment is the hand-held turbo brush for attachments are available. The nine-foot extension hose removing pet hair from upholstery. SEBO filter bags can be pur-(extends suction hoses) and the 20-inch extension tube (extended in boxes of ten (or sometimes eight) and filters are sold instant-use wands) are very popular because they create useful separately. Also, bags and filters can be purchased together in tools for cleaning stairs and out-of-reach areas. These two itemodel-specific kits called "Service Boxes." SEBO bags, filters are sold separately or as part of multiple item attachment kind accessories are reasonably priced and widely available.

To create a fresh scent while vacuuming, "SEBO FRESH" is available. To use, deposit a scented stick in the filter bag.

Three grayscale images of different types of hair connectors: a coiled tube, a straight pipe, and a Y-shaped tool (no text or symbols visible)

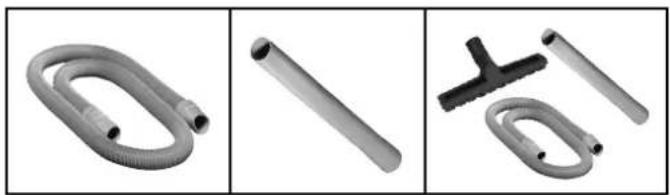

9-foot Extension Hose Part #1495AM
20-inch Extension Tube Part #1084HG

Three plastic pipe fittings and a handle, no text or symbols visible

3-piece Attachment Kit Part #1991AM

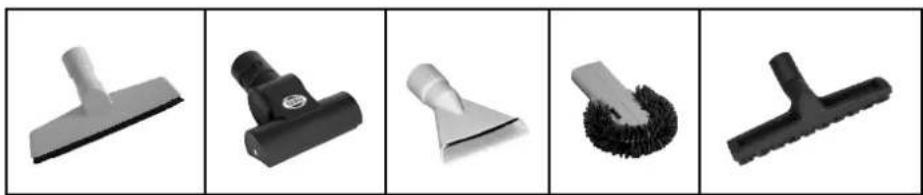

Five different cleaning tools or cleaning products shown in grayscale, including a Y-shaped tool, a brush, a brush tip, a brush head, and a Y-shaped tool (no text or symbols visible)

Wall & Floor Brush Part #1325HG
Hand-held Turbo Brush Part #6179DA
Flat Upholstery Nozzle Part #1090HG
Radiator Brush Part #1496DG
Parquet Brush Part #1359DG

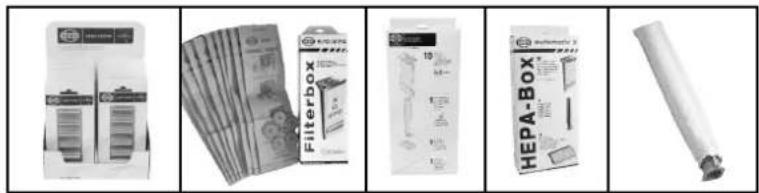

SEBO FRESH Part #0496AM
Filter Bags Part #5093AM
Service Box Part #5828ER
HEPA Service Charcoal Odor Filter Box Part #5425AM

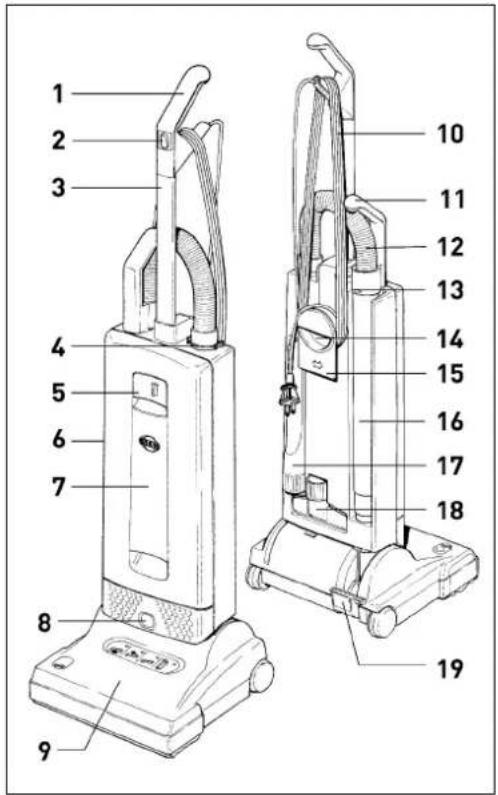

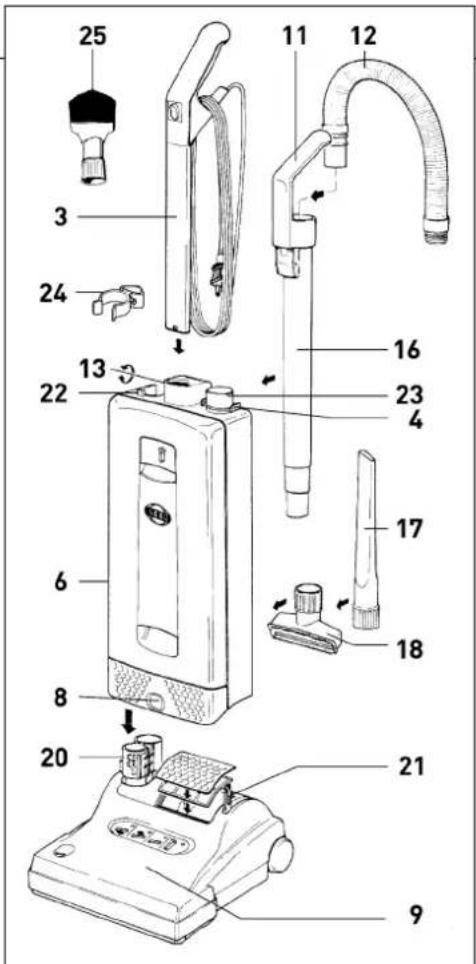

1. Handle grip
2. On/Off switch
3. Handle assembly
4. Retaining ring
5. Cover release flap
6. Dust bag housing
7. Front cover
8. Housing release button
9. Power head with brush
10. Cable (cord)

11. Attachment tube handle

12. Attachment hose

13. Handle catch
14. Carrying handle
15. Cable (cord) hook
16. Attachment tube (active wand)
17. Crevice nozzle
18. Upholstery nozzle
19. Foot pedal
20. Swivel neck
21. Support lever
22. Protruding tab
23. Connecting tube

Standard Attachments

1. Crevice nozzle
2. Upholstery nozzle
3. Dusting brush clamp
4. Dusting brush

ASSEMBLY

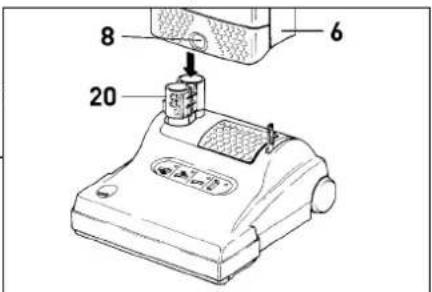

Place the power head (9) on the floor with the swivel neck (20) and the support lever (21) upright. Hold the dust bag housing (6) vertically and place it over the swivel neck and support lever. Push firmly and evenly down so that the housing release button (8) snaps outward to its "locked" position.

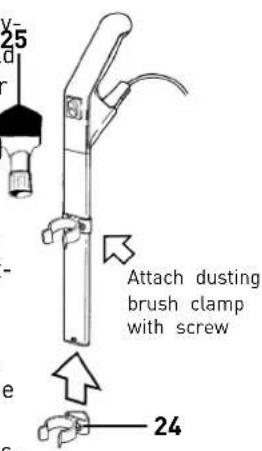

Slide the dusting brush clamp (24) onto the handle tube and tighten the screw. The handle of the dusting brush (25) will now snap into the clamp.

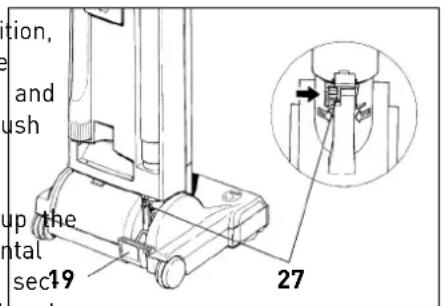

To lock the handle [3] to the dust bag housing [6], turn the handle catch [13] at the handle joint of the filter bag housing [6] forward to "open" position.

Then slide the handle assembly (3) in as far as possible and lock it in by turning the handle catch to the closed position.

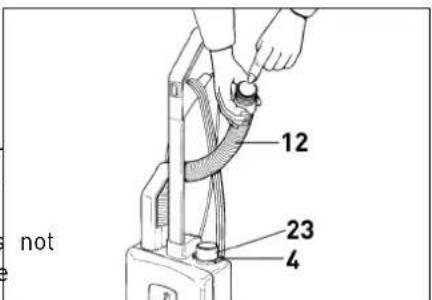

Push the black end of the attachment hose (12) into manual represent the connecting tube (23) so that it clicks into place. the X4 model except Insert the attachment tube (16) into the swivel neck where part numbers and push the handle (11) over the protruding tab (22) and instructions are Insert crevice nozzle [17] and upholstery nozzle [18] into the recesses in the back of the machine.

NOTE: All illustrations shown in this
^0 manual represent

the X4 model except where part numbers and instructions are different for each

model. In those instances, illustrations for both the X4 and X5 will be shown.

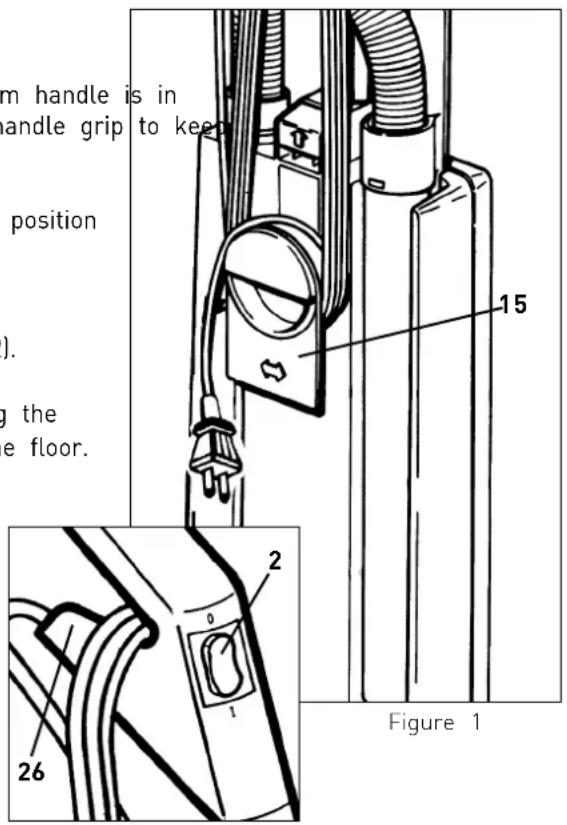

Starting The Machine Figures 1 & 2

Before turning on your vacuum cleaner, make sure that the vacuum handle its upright locked position and that you have a firm hold on the handle grip the machine from moving forward.

1. Turn the quick release cable hook (#15, figure 1) to the up position by moving it to the left or right.
2. Release the power cord plug from the power cord and lift the cord off of the upper cord hook (#26, figure 2).
3. With the switch (#2, figure 2) in the "O" (OFF) position, plug the polarized power cord into a 120 volt outlet located near the floor.

Switch Position

$$ 0 = 0 F F $$

$$ | = 0 N $$

Figure 2

Operating the Machine Figure 3

When the machine is switched on with the handle in the upright locked position, the power head and brush automatically rise from the carpet. To release the machine from the upright locked position, press down on the foot pedal (19) and lower the handle into the normal operating position. The power head and brush will automatically lower to the appropriate height.

The handle can be lowered to an intermediate stop position in order to lift up the brush head for maneuvering over rugs, etc. To lower the handle to a horizontal position useful for vacuuming under beds, the foot pedal must be pressed a sec19 and time. The intermediate stop position can be closed off by the orange-colored slider (27) on the back of the swivel neck (20), so that the handle will go from vertical to horizontal in one movement.

Figure 3

WARNING!

The quality, condition, coating, texture, age and manufacturing technique of all floor surfaces vary.

Therefore, upright vacuums with rotating brushes, including your SEBO, may damage some floor coverings or surfaces. types of high-gloss hardwood floors, cushion vinyl, berber carpets, long shag, and delicate or hand-woven carpets are particularly vulnerable to damage by rotating brushes. When possible, consult the materials supplied by your floor's manufacturer for information on proper upkeep and cleaning. To ensure that your new SEBO vacuum cleaner is compatible with your floor, please test the vacuum cleaner on each type of flooring surface in a small inconspicuous area to determine occurs. If damage occurs, stop using the vacuum cleaner immediately!

The standard brush roller on your SEBO vacuum is appropriate for most types of floor surfaces. However, a soft-bristle brush roller (X4 part # 5010GE or X5 part # 5290GE) that is designed for use on sensitive looped-pile carpets and/or hard floors is available for an additional charge. As with the standard brush roller, you should test the machine using the soft-bristle brush roller in an inconspicuous area prior to widespread use. The soft-bristle roller will wear more quickly than the standard brush roller, so it will need to be replaced more often. Also, because the bristles are softer, the height adjustment on the machine will be slightly lower than normal. Care must be taken to ensure that the bottom of the machine does not contact the floor. If this happens, damage to the floor could occur. If damage occurs, stop using the vacuum cleaner immediately!

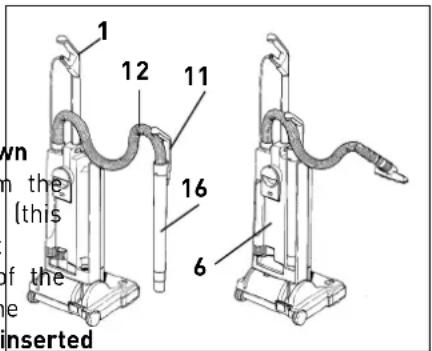

Using the Attachment Tube, Hose & Attachments - Figures 4, 5 & 6

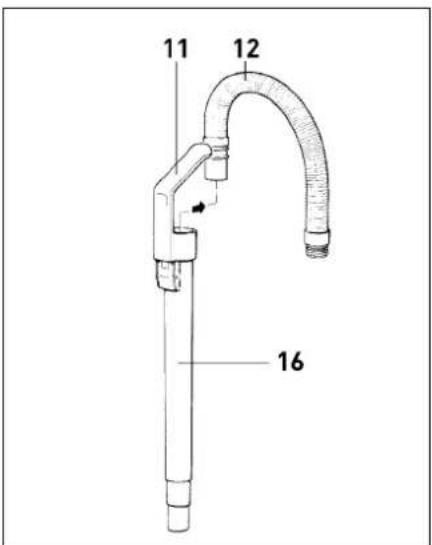

The attachment tube (16) is useful for vacuuming corners and hard-to-reach areas. The handle grip (1) should be in the upright, locked position (as shown in figure 4). Grip the attachment tube handle (11), pull it up and away from machine and stretch out the hose (12) until it locks to the back of the tube (locking action will prevent the hose from retracting back into the attachment tube while it is in use). Various attachments may be inserted onto the end of tube. After use, remove attachment and re-insert the attachment tube into the back of the machine. Be sure that the attachment tube handle (11) is in over the protruding tab (see #22, page 6). If the attachment tube handle properly seated over the protruding tab, the hose will automatically retract and you may resume vacuuming. There is no need to turn off the vacuum while switching from upright vacuuming to using the attachment tube or hose.

To use the hose without the attachment tube (as shown in figure 5), pull the hose out of the attachment tube while the tube is still attached to the machine and securely seated over the protruding tab [22]. Insert an attachment tool, if desi onto the end of the flexible hose. You may also release the hose while the attachment tube is disengaged from the machine by pressing the release button at the base of the handle [11].

While using attachment tools, if the power head brush roller is not able to disengage from the floor surface, the stationary-use warning light will flash. You may keep the brush roller off the carpet by placing the handle (1) in its upright locked position and lowering the handle with one hand to raise the brush roller off of the floor. Operate attachment accessories with the other hand. Or, with the handle in the upright locked position, the machine may be tipped backward so that it rests against furniture or the floor on the back side of the bag housing (6), and the power head is locked in a perpendicular position to the floor. Ensure that no children or pets can come into contact with the spinning brush roller.

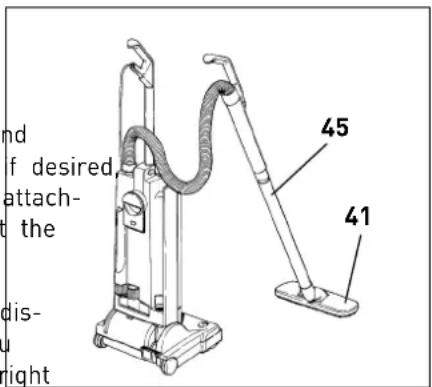

To vacuum walls, under beds, or higher-reach areas, etc., the SEBO AUTOMATIC X can be fitted with an additional straight tube (45) and the wall and floor brush (41). The machine will then perform as a canister vacuum (as shown in figure ^a 6).

Figure 5

Figure 6

Figure 7

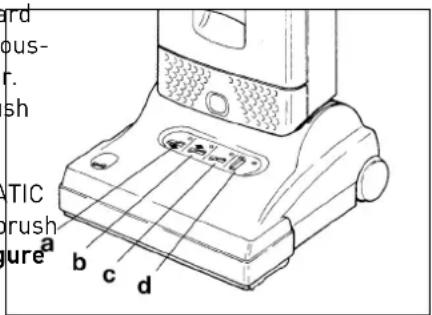

The Display Panel - Figure 7

Green light (a): Brush is lowering Green light (b): Brush is rising Red light (c): Flashing and motor off - brush jammed - clear jam Red light (c): Flashing and motor on (when machine is in upright, locked position) - Take care, brush in contact with carpet

Red light (c): Continuous - change brush roller
Red light (d): Continuous - change bag or clear clog
Red light (d): Flashing - motor switched off due to full bag or clog

For more information on the display panel, see pages 4 and 5.

Figure 8

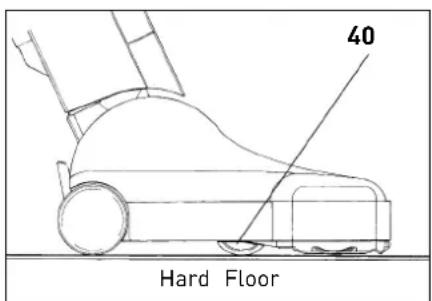

The Adjustment Wheel - Figures 8 & 9

On hard floors (figure 8), the adjustment wheel [40], moves upward into the machine so that the brush lowers and becomes flush with the floor.

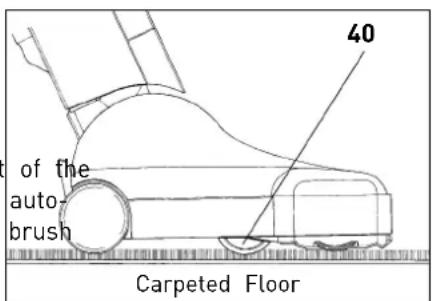

On carpeted floors (figure 9), the adjustment wheel (40) moves downward out machine so that the brush rises. The adjustment wheel moves up and down matically to adjust the brush to the correct setting. This provides aggressive action, while maintaining optimal air flow.

Figure 9

Always unplug vacuum from outlet before dismantling any part of machine!

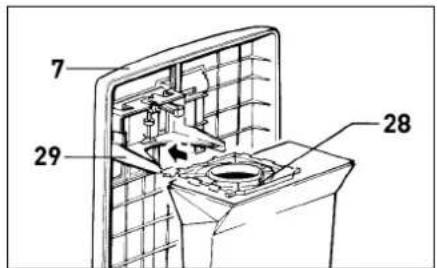

Changing the Dust Bag - Figure 10

To change the dust bag, pull the cover release flap forward (#5 on page 6) and lift the cover (7) from the dust bag housing. The cover release flap must remain in a forward "pulled-out" position to change dust bags and lock them Dust Bags Part #5093AM into place. Squeeze the clamps on both sides of the dust bag sealing plate, slide the plate [28] from the holder [29] and push the cap on to seal the bag. Slide the sealing plate [28] of a new bag into the holder and push it in firmly. Re-insert cover into dust bag housing, push it forward, then lock it in place by pushing down the cover release flap. You may find it convenient to store the bag cap inside the dust bag housing below the dust bag.

Micro-Hygiene Filter

Part #5036AM

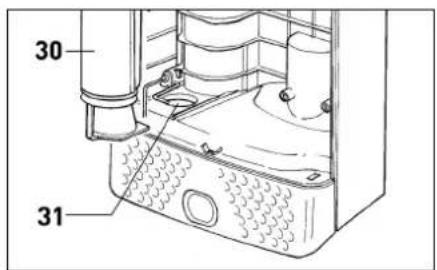

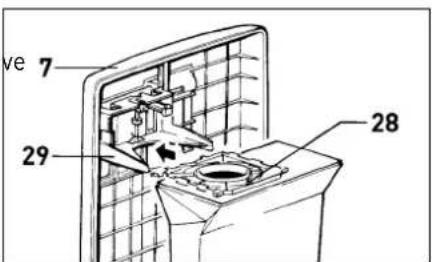

Changing the Micro-Hygiene Filter - Figure 11

The micro-hygiene filter [30] needs to be changed when it becomes extremely dirty or clogged with dust, or after approximately 20 dust bags have been used. To change the micro-hygiene filter, pull the cover release flap (#5 on page 6) forward and lift the cover from the dust bag housing. Then, slide the filter out at the bottom. To replace, life Exhaust Filter the safety lever [31] and slide the new filter in using the Part #5143 tracks as guides.

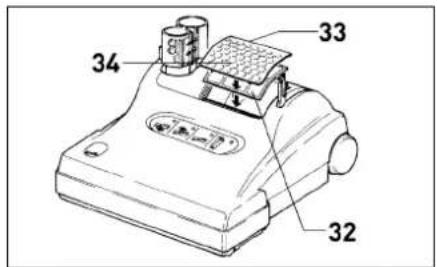

Changing the Exhaust Filter - Figure 12

After 20 bags have been used, change the exhaust filter [32]. To remove the exhaust filter, push the catch [33] backward and remove the filter cover (34) and exhaust filBrush Roller (X4) ter. Insert the new filter and replace the filter cover. Part #5010AM

filBrush Roller (X4) Part #5010AM

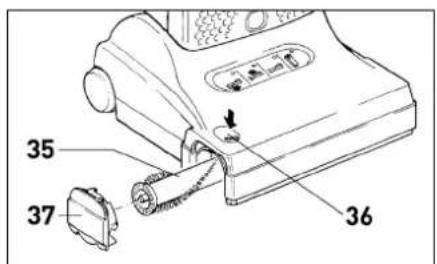

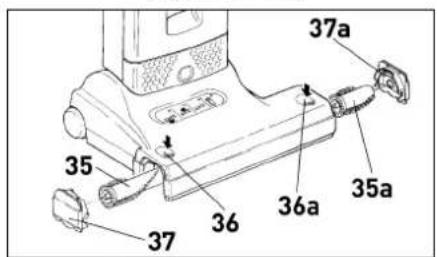

Changing the Brush Roller(s) - Figure 13 Figure 13a (X5)

To change the brush roller(s) (35 or 35a), push the button(s) (36 or 36a), remove the side plate(s) (37 or 37a), turn the brush(s) clockwise a quarter of a turn, and pull the old brush roller(s) out. Slide the new brush roller(s) into the brush housing and turn it until it locks into position. While slightly pushing the button(s) (36 or 36a), press the side plate(s) (37 or 37a) back into the locked position.

Brush & Edge Rollers (X5)

Part #5290AM

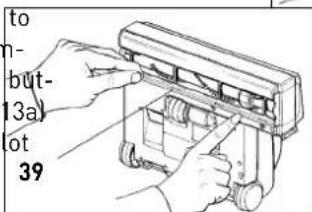

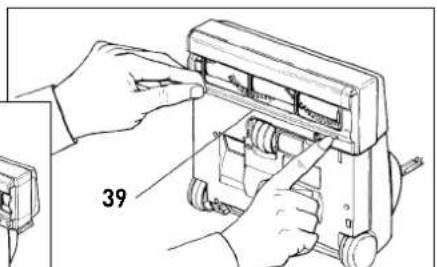

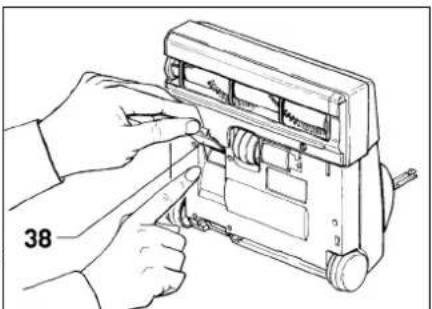

Changing the Sealing Strip - Figure 14 (X4), Figure 14a (X5)

The sealing strip (39) is located just behind the brush roller opening. The sealing strip seals the power head hard floors to prevent kick-back of debris while vacuuming. To replace a worn sealing strip, push the release ton, remove the side plate (36 and 37 in figure 13 & 1 and slide old strip out. Insert the new strip into the stand and slide into place.

Sealing Strip Part #5400-1 (X4) Part #5400-2 (X5)

Figure 14a (X5)

Figure 10

Figure 11

Figure 12

Figure 13 (X4)

Figure 13a (X5)

Line drawing of hands operating a mechanical device with a numbered label (39), no readable text or symbols present.

Figure 14 (X4)

Always unplug vacuum from outlet before removing any clogs!

Clogs in the Airflow Pathway - Figure 15

Most clogs can be removed by accessing the airflow pathway via the orange colored access door (38) located on the underside of the power head. However, other clogs may only be removed by accessing the airflow pathway by disassembling the machine in the opposite sequence of the machine's original assembly (see assembly, page 6).

Clogs in the Attachment Hose - Figure 16

Blockages in the hose can be cleared by removing the attachment hose [12] from the machine by squeezing the retaining ring [4] and inserting the opposite end of the hose in the connecting tube [23]. Hold the hose upright with one hand blocking the top end and switch on the machine. If necessary, quickly lift your hand on and off the end of the hose. If this procedure does clear the clog, a straight wire can be inserted into the hose to push out the clog. Take care not to puncture the hose with the wire.

Line drawing of a hand operating a mechanical device with a tool, no text or symbols present

Figure 15

Figure 16

Clogs in the Attachment Tube (Active Wand) - Figure 17

Remove attachment hose (12) from the attachment tube (16). Then, grip attachment tube handle (11) and remove tube from the machine. A straight wire can be inserted into the tube to push out the clog.

Figure 17

Clogs in Entrance to Dust Bag - Figure 18

Remove attachment hose (12) from vacuum cleaner (see figure 16) and remove front cover (7). Clean out connecting tube (23) and/or entrance to bag (28).

Figure 18

Clogs in the Swivel Neck - Figure 19

Clogs in the swivel neck (20) can be removed by first pressing the housing release button (8) and lifting off the dust bag housing (6). Lift upward firmly and evenly to properly remove the dust bag housing. Then, release the foot pedal (19), lower the swivel neck, check inside the swivel neck channel closest to the foot pedal (see arrow), and clean out pathway.

Figure 19

Always unplug vacuum from outlet before dismantling any part of the machine!

PROBLEM	REASON	SOLUTION
Does not turn on or machine shuts off intermittently	1. Handle not fully inserted into the housing, causing a faulty connection.	1. b. Release handle catch, push handle down, close handle catch. See pg. 6.
	2. Not plugged into good outlet.	2. Use another outlet.
	3. Cable worn.	3. Replace cable.
	4. Dust bag housing (6) not seated fully into proper "locked" position on top of power head.	4. Housing release button (8) should be snapped outward to its locked position.
Bag full or clog light or flashing & machine shuts off	1. Bag full.	1. Replace bag. See Bag Replacement on page 9. Also see page 4.
	2. Clog in airflow pathway, attachment hose, attachment tube, swivel neck or entrance to dust bag.	2. See Clog Removal on page 10. Also see page 4.
	3. Microfilter dirty.	3. Replace microfilter. See page 9
Brush light on	1. Brush worn.	1. Replace brush. See page 9. Also see page 4.
Brush light slowly flashing	1. Vacuum is stationary and in upright locked position.	1. See page 7. Also see page 5.
Brush light flashing & machine shuts off	1. Brush jammed.	1. Shut off the power switch, unplug the machine and pull the obstruction from the brush roller. Also see page 4.
Up & down lights flicker	1. Operating on uneven floor.	1. Ignore.
Does not pick up	1. Attachment tube not correctly inserted.	1. Reinsert attachment tube, making sure lower end of tube is in the lower hole and handle is properly seated over the protruding tab (22).
	2. Front cover not closed.	2. See below.
Front bag door won't fully close	1. Cover release flap not fully closed.	1. Reinsert bag. Lock the cover release flap down firmly.
	2. Bag not inserted properly	2. Reinsert bag with cover release flap (5) up, until firmly latched in bag holder (see pg. 9 figure 10).
	3. Microfilter not properly inserted.	3. Lift safety lever and insert filter with vertical plastic ridge on filter facing you (see pg. 9, figure 11).
Hose doesn't retract after attachment tube is inserted	1. Attachment tube not properly inserted.	1. Reinsert making sure top of handle is pointing back and tube is fully seated on the protruding tab (22) on top of the dust bag housing.

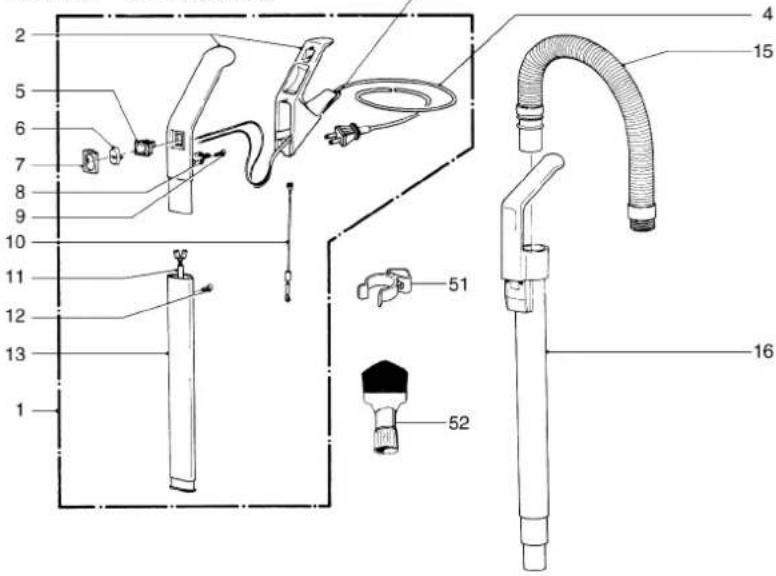

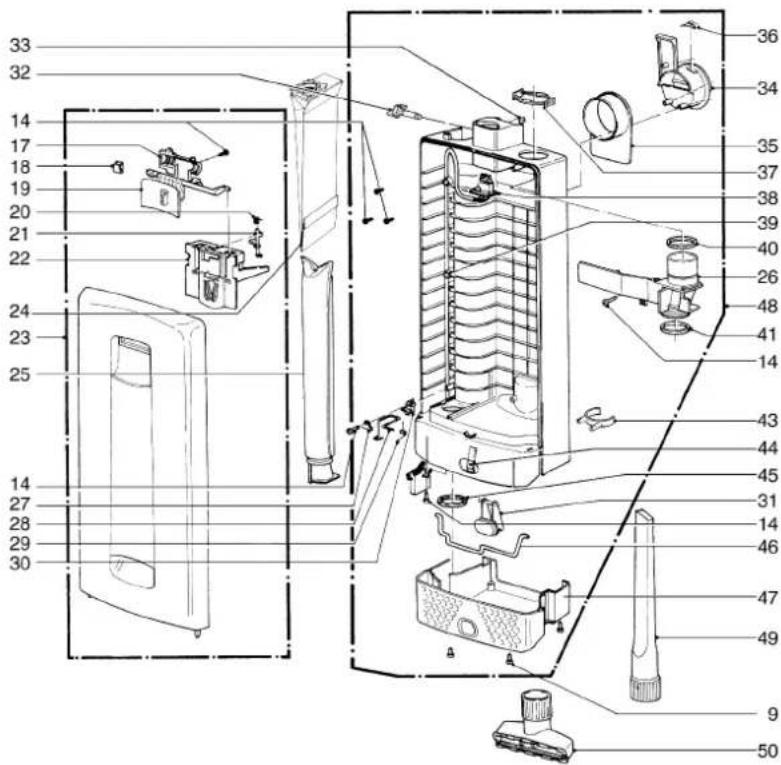

Filter Bag Housing and Handle

9570AM X4 and #9580AM X5 White/Gray Machine

Pos. Part # Description

1 5642AM Handle complete - gray black/white (incl. pos. 2 -13)

2 5297GSAM Handle grip (incl. pos. 3, 7 + 10)

3 5359GS Grommet

4 5450DG Power supply cord

5 05113 Switch w/screws

6 5160WE Switch cap - arctic white

7 5161GS Switch cap holder

8 5162 Cable clamp

9 0103 Screw C 3.9x16 DIN 7981

10 5253UL Wire-antistatic

11 5298ER Handle cable

12 0129 Screw M 4x12 DIN 966

13 5187 Handle tube

14 0102 Screw F 3.9x13 DIN 7981

15 5040SB Hose, cpl

16 5045GS Extension tube

17 5707WE Cover - white

18 5319 Bag holder Spring

19 5706GS Cover release - gray black

20 5091 Safety catch spring

21 5360 Safety catch

22 5324 Bag holder cpl. (incl. pos. 20 + 21)

23 50750SE Front cover complete [14 & 17-22] -

white/gray black

5454 Front cover seal

24 5093AM Dust bag pack

25 5036AM Micro hygiene filter

26 5380GS Internal cover cpl. (incl. pos. 40 + 41)

27 1073 Clamp

28 5208 Filter safety catch

29 5210 Return spring

30 5164 Cable clamp

31 5722GS Dust bag housing locking catch - gray black

32 1859GS Handle catch - gray black

33 0161 Clip 4, DIN 6799

34 5721WE Carrying handle - gray black

35 5703WE Cable hook - white

36 5146 Stop spring

37 5424GS Retaining ring

38 5299ER Internal cable

39 5266 Cable clamp

40 5842 Seal

41 5289 Seal

43 1823GS Attachment clip - gray black

44 5084 Spring for locking rod

45 5163 Seal

46 5083 Locking rod

47 5702WE Dust bag housing bumper base - white

48 5755WE Dust bag housing, cpl. - white/gray black

51 5460GS Mounting clip with screw

52 1387GS Dusting brush

9501AM X4 Onyx/Silver Machine Exceptions

1 5640AM Handle complete - black/silver

(incl. pos. 2-13)

2 5295AM Handle grip (incl. pos. 3, 7 + 10)

3 5359SW Grommet

6 5160SB Switch cap - silver

7 5161SW Switch cap holder -black

16 5045SW Extension tube - black

17 5707SW Cover - black

19 5706SB Cover release - silver

23 5774SE Front cover complete - black/silver

26 5380SW Internal cover (incl. pos. 40 + 41)

31 5722SB Dust bag housing locking catch - silver

32 1859SB Handle catch - silver

34 5721SW Carrying handle - black

35 5703SW Cable hook - black

37 5424SB Retaining ring

43 1823SW Attachment clip - black

47 5702SW Dust bag housing bumper base - black

48 5763SW Dust bag housing complete - black

(pos. 9, 14, + 26-47)

49 1092SW Crevice nozzle - black

50 1491SW Upholstery nozzle - black

9558AM X4 Red/Gray Machine Exceptions

1 5645AM Handle complete - red/gray black

6 5160DR Switch cap - red

17 5707DR Cover - red

23 50751SE Front cover complete - red/gray black

35 5768DR Cable hook [incl. pos. 34 carrying

handle] - red

47 5702GS Dust bag housing bumper - gray black

48 5755DR Dust bag housing complete - red/gray black

9501AM X4 Onyx/Silver #9580AM X5 White/Gray

9558AM X4 Red/Gray

9570AM X4 White/Gray

9574AM X4 Spring Green

9577AM X4 Blue/Yellow

9574AM X4 Spring Green Machine Exception#8577AM X4 and #9587AM X5

Pos. Part # Description

1 5637AM Handle complete - spring green (pos. 2-13)

6 5160FG Switch cap - spring green

17 5707FG Cover - spring green

23 5754SE Front cover complete

- spring green/dark gray

34 5721FG Carrying handle - spring

green

35 5703FG Cable hook - spring green

47 5702DG Dust bag housing bumper

base

48 5759FG Dust bag housing cpl.

(spring green)

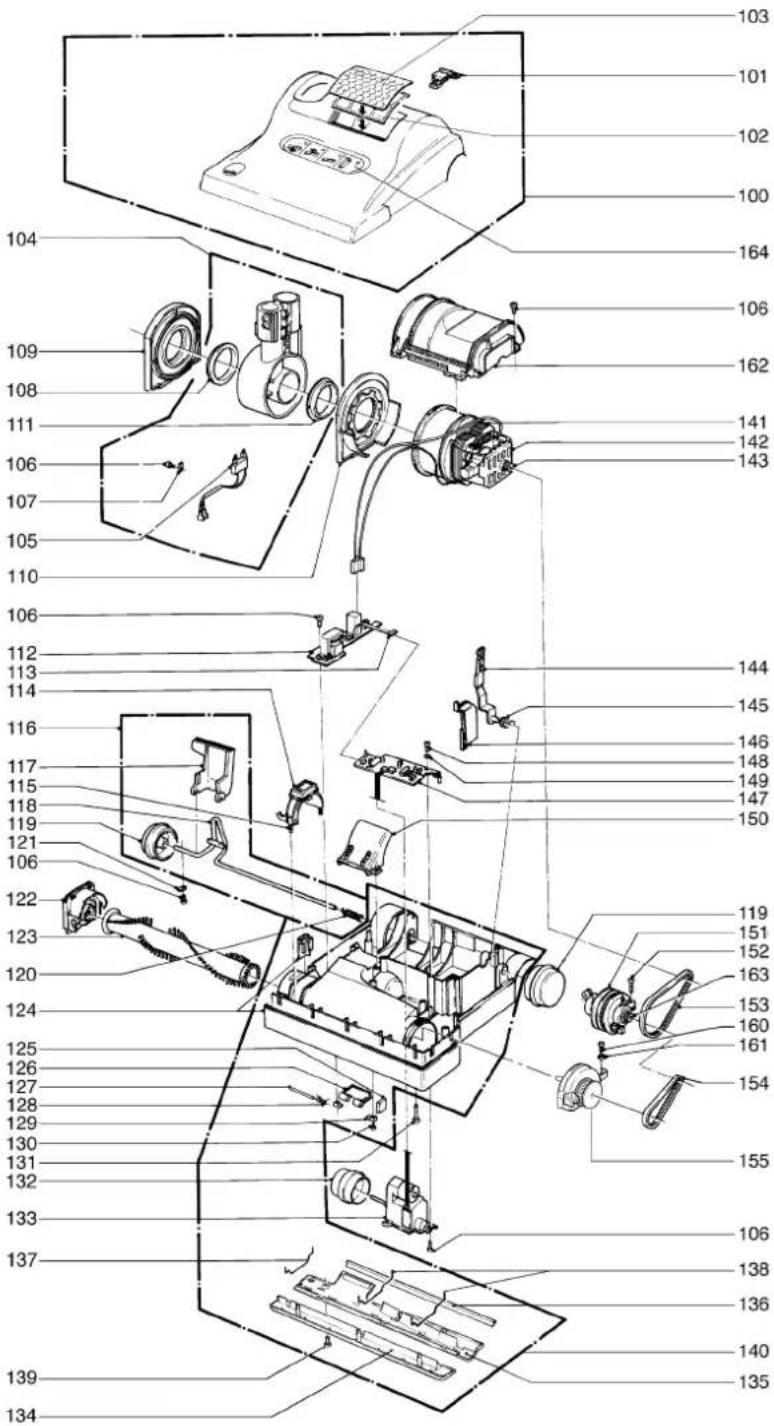

100 5781SE Power head cover, complete

(incl. pos. 101-103+164) - white/gray black

101 5712WE Exhaust filter catch - white

102 5143 Exhaust filter

103 5711WE Exhaust filter cover - white

104 5729UL Swivel neck assembly (105-108 & 111)

105 5176UL Male contact holder

106 0102 Screw F 3.9 x 13 DIN 7981

107 2494 Cable clamp

108 5101 Swivel neck bearing r. h.

109 5480 Swivel neck support r. h.

110 5479 Swivel neck support l. h.

111 5717 Swivel neck bearing l. h.

112 5203ER PCB power supply (113)

113 5205 Ribbon cable

114 5713WE Brush roller release - white

115 5103 Spring

116 5051GS Axle, assembly (117-120)

117 50590R Foot pedal - orange

118 5053 Axle

119 5819GS Wheel

120 2010 Axle spring

121 2014 Axle clamp

122 5031WE Bearing block right hand- white/gray black

123 5010AM Brush roller

124 5005GS Bumper set

125 5155GS Rubbing plate

126 51720R Access door [incl. pos. 127 + 128]

127 5303 Access door axle

132 5174GS Pile adjustment wheel

133 5060ER Servo motor with gear box

134 5411GS Front bottom plate, complete

135 5412GS Rear bottom plate, complete

05117S Carbon brush set for vac motor

142 5100 Rubber mounting

143 5462 Motor pulley

144 5129 Support lever

145 5107-1 Support spring

146 5112SW Motor pulley cover

147 5740ER Computer controller

148 0107 Screw C 2.9 x 13 DIN 7981

149 0143 Washer 3.2 DIN 125

150 51735W Cover for air channel

151 5464 Sensor w/screws and pulley

152 0104 Screw C 3.9 x 25 DIN 7981

153 5463 Belt 2MR-310-6

154 5110 Belt 219 3M HTDII-6

155 5766HG Bearing block L. h., complete

160 0103 Screw C 3.9 x 16 DIN 7981

161 0141 Locking washer

162 5018UL Motor cover

163 5117/1 Sensor pulley

164 5730GS Display - gray black

#9501AM X4 Onyx/Silver Machine Exceptions

100 50783SE Power head cover complete (incl. pos. 101-103+164) - onyx/silver

101 5712GS Exhaust filter catch - gray black

103 5711SW Exhaust filter cover - onyx

114 5713SW Brush roller release - onyx

122 5031SW2 Bearing block right hand

164 5730SB Display - silver

#9558AM X4 Red/Gray Machine Exceptions

100 50778SE Power head cover complete

103 5711DR Exhaust filter cover - red

114 5713GS Brush roller release

122 5031DR1 Bearing block right hand - red/gray black

9501AM X4 Onyx/Silver #9574AM X4 Spring Green

9558AM X4 Red/Gray #9577AM X4 Blue/Yellow

9570AM X4 White/Gray

9574AM X4 Spring Green Machine Exceptions #9577AM X4 Blue/Yellow Machine Exceptions

Pos. Part # Description Pos. Part # Description

100 5779SE Power head cover complete (incl. pos. 101-103+164) - spring green/dark gray

101 5712DG Exhaust filter catch

103 5711FG Exhaust filter cover -

spring green

114 5713DG Brush roller release

122 5031FG Bearing block right hand - spring green/dark gray

100 5786AM Power head cover complete

[incl.pos. 101-103+164]

- dark blue/yellow

101 5712DB Exhaust filter catch -

dark blue

103 5711DB Exhaust filter cover -

dark blue

114 5713DB Brush roller release - dark blue

122 5031DB1 Bearing block right hand - dark blue/gray black

164 5730SG Display - yellow

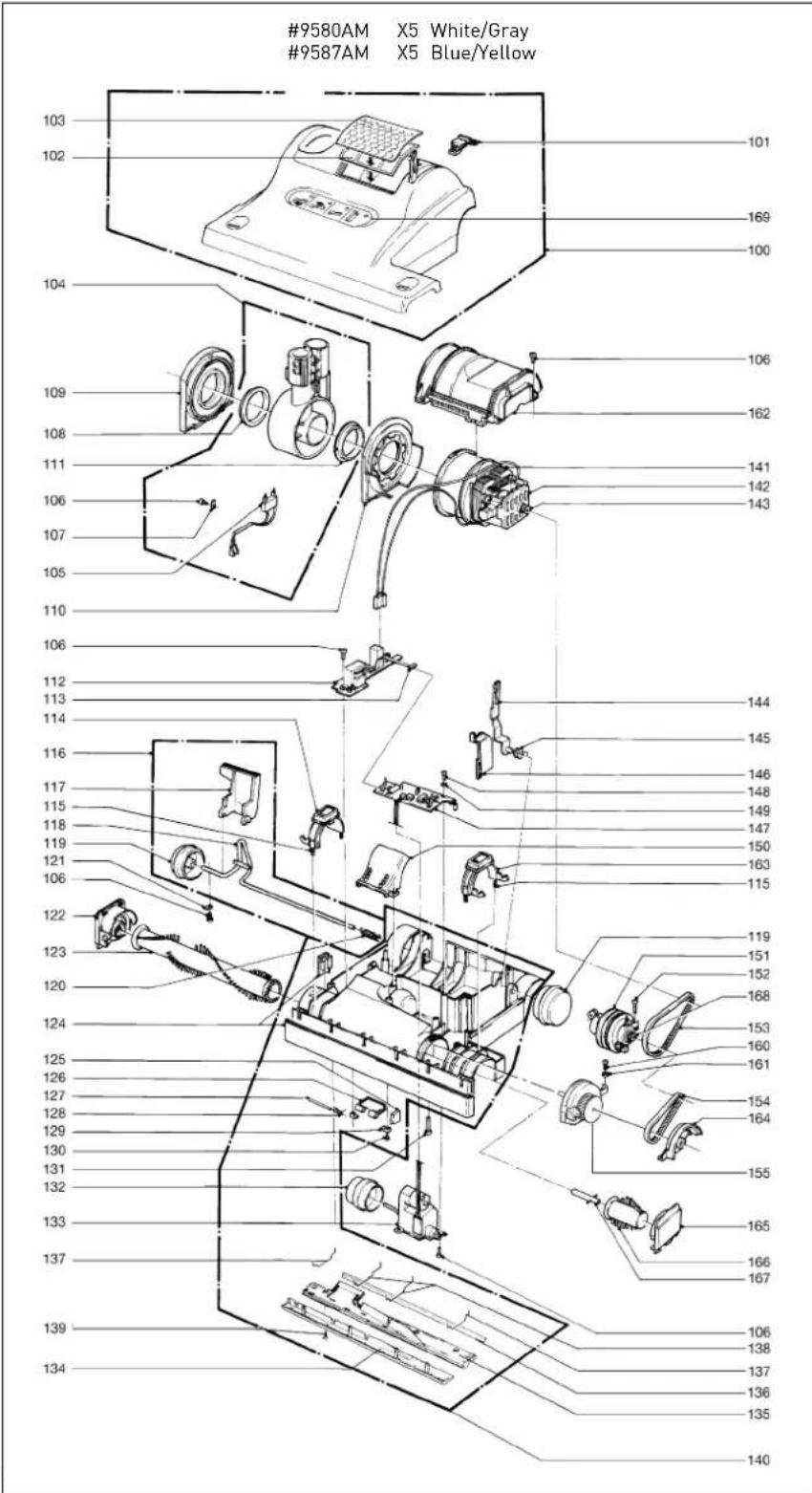

Power Head

#9580AM X5 White/Gray Machine

Pos. Part # Description

100 5791SE Power head cover, complete (incl. pos. 101-103+169) - white/gray black

101 5712WE Exhaust filter catch - white

102 5143 Exhaust filter

103 5711WE Exhaust filter cover - white

104 5729UL Swivel neck assembly (105-108 & 111)

105 5176UL Male contact holder

106 0102 Screw F 3.9 x 13 DIN 7981

107 2494 Cable clamp

108 5101 Swivel neck bearing r. h.

109 5178 Swivel neck support r. h.

110 5728 Swivel neck support l. h.

111 5717 Swivel neck bearing l. h.

112 5203ER PCB power supply (113)

113 5205 Ribbon cable

114 5713WE Brush roller release - white

115 5103 Spring

116 5051GS Axle, assembly (117-120)

117 50590R Foot pedal, orange

118 5053 Axle

119 5819GS Wheel

120 2010 Axle spring

121 2014 Axle clamp

122 5031WE Bearing block right hand - white/gray black

123 5290AM Brush roller set

124 5230GS Bumper set

125 5155GS Rubbing plate

126 51720R Access door [incl. pos. 127 + 128]

127 5303 Access door axle

132 5174GS Pile adjustment wheel

133 5060ER Servo motor with gear box

134 5413GS Front bottom plate, complete

135 5414GS Rear bottom plate, complete

05117S Carbon brush set-vac mtr.

142 5100 Rubber mounting

143 5462 Motor pulley

144 5129 Support lever

145 5107-1 Support spring

146 5112SW Motor pulley cover

147 5740ER Computer controller

148 0107 Screw C 2.9 x 13 DIN 7981

149 0143 Washer 3.2 DIN 125

150 5173SW Cover for air channel

151 5465 Sensor w/screws and pulley

152 0104 Screw C 3.9 x 25 DIN 7981

153 5463 Belt 2MR-310-6

154 5110 Belt 219 3M HTDII-6

155 5767HG Bearing block L. h., complete

160 0103 Screw C 3.9 x 16 DIN 7981

161 0141 Locking washer

162 5018UL Motor cover

163 5714WE Brush roller release - white

164 5244HG Seal bearing

165 5249WE Brush cover - white/gray black

166 5250 Edge brush

167 5246 Shaft extension, complete

168 5117/1 Sensor pulley

169 5730GS Display - gray black

#9587AM X5 Blue/Yellow Machine Exceptions

100 5796AM Power head cover complete -

(incl. pos. 101-103+169) dark blue/yellow

101 5712DB Exhaust filter catch - dark blue

103 5711DB Exhaust filter cover - dark blue

114 5713DB Brush roller release - dark blue

122 5031DB1 Bearing block right hand

dark blue/gray black

163 5714DB Brush roller release - dark blue

165 5249DB1 Brush cover - dark blue/gray black

169 5730SG Display - yellow
