Product Type	Engine-driven Water Pump
Brand and Model	Westinghouse WP160
Maximum Water Flow	158.5 gal/min (600 L/min)
Maximum Suction Height	7.6 m (25 feet)
Maximum Discharge Height	27.7 m (91 feet)
Passable Solid Size	15.8 mm (0.625 in)
Hose Connections / Diameter	50.8 mm (2 inches)
Weight	24 kg (52.91 lb)
Fuel Type	Unleaded gasoline (87-93 octane), up to 10% ethanol
Fuel Tank Capacity	3.5 L (0.95 gal)

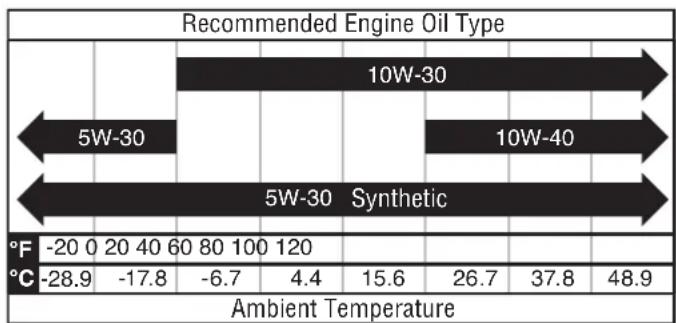

Recommended Engine Oil Type	10W-30 (4-stroke oil)
Power Source	4-stroke gasoline engine, recoil start
Main Functions	Clear water pumping, manual priming, choke, adjustable throttle
Regular Maintenance	Oil change, air filter cleaning, spark plug, drain water after use
Cleaning	Soft brush, damp cloth, low pressure compressed air (max 25 psi)
Safety	Outdoor exhaust mandatory, personal protective equipment (goggles, gloves, shoes)
Spare Parts Available	Air filter, spark plug, fuel filter, high altitude kit
Warranty	Manufacturer's warranty (registration required) - See manual

Frequently Asked Questions - WP160 WESTINGHOUSE

What fuel should I use for the Westinghouse WP160 pump?

Use clean, fresh unleaded gasoline (87-93 octane) with up to 10% ethanol. Do not use E15 or E85.

How do I prime the pump before use?

Remove the priming plug, fill the pump with clean water to the top, then close the plug. This prepares the engine for starting.

Why won't the engine start?

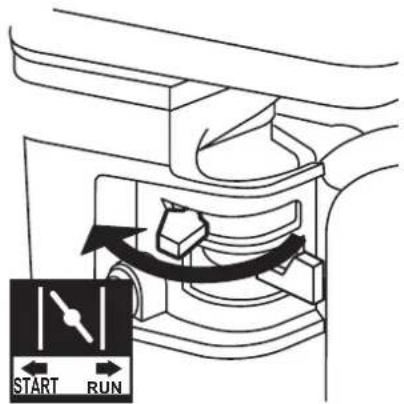

Check fuel level, open fuel valve, set choke to START for a cold engine. If problem persists, clean or replace spark plug and check air filter.

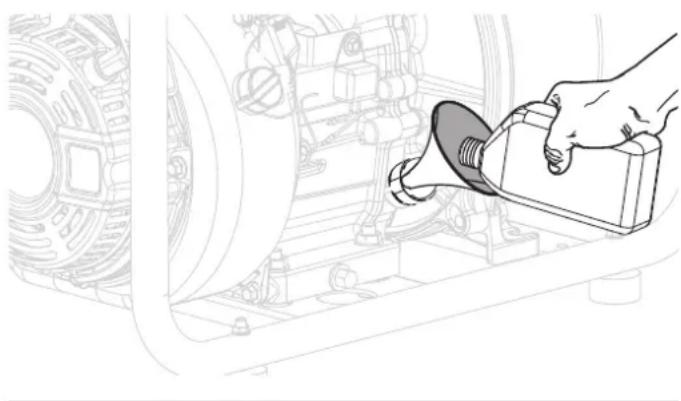

What type of engine oil and how much?

Use 4-stroke 10W-30 engine oil. Check level with dipstick: it should be in safe range. Oil capacity is approximately 0.6 L (check manual for exact value).

How often should I change the oil?

Change oil every 50 hours of operation or every 6 months, and after the first 25 hours. More often under heavy use.

Can I use the pump in rain or in water?

No, never use the pump in rain or damp locations. Moisture can cause electric shock or damage the engine. Use only outdoors in dry weather.

How to maintain the air filter?

Clean air filter every 50 hours: wash in soapy water, rinse, dry completely, then soak in clean engine oil and squeeze out excess. Replace if damaged.

What to do if the pump does not pump water?

Check that the pump is primed, the intake strainer is not clogged, there is no air leak at the intake connection, and the suction hose is not collapsed or too small in diameter.

How to store the pump for a long period?

Drain fuel and oil, clean exterior, apply anti-rust oil to metal parts, remove spark plug and pour a spoonful of oil into cylinder, then store in a dry, ventilated place.

Is it mandatory to register the product for warranty?

Yes, it is recommended to register your Westinghouse WP160 product online or by postcard to benefit from warranty coverage. Keep proof of purchase.

USER MANUAL WP160 WESTINGHOUSE

Blue circular icon with a white crown symbol (no text or numbers)

User Manual

WP160

2-in. Water Pump

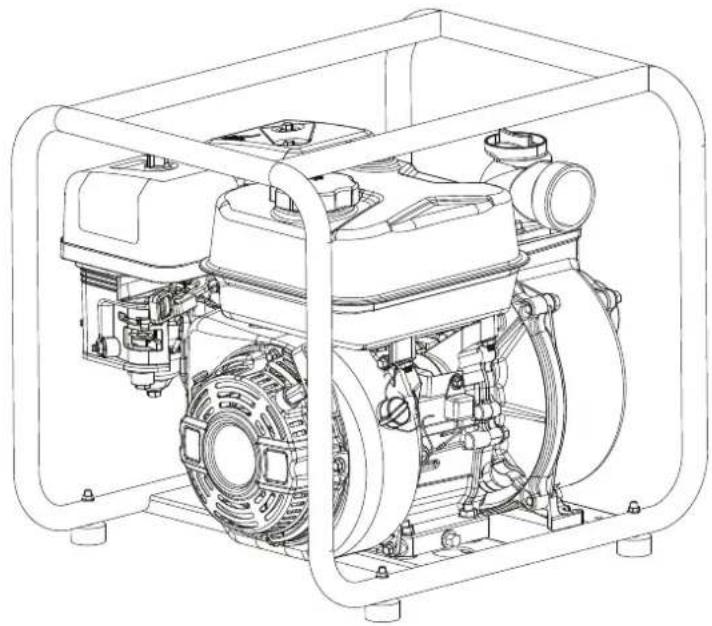

Technical line drawing of a portable pump or generator unit (no text or symbols visible)

Introduction 2-3
Safety 4-7

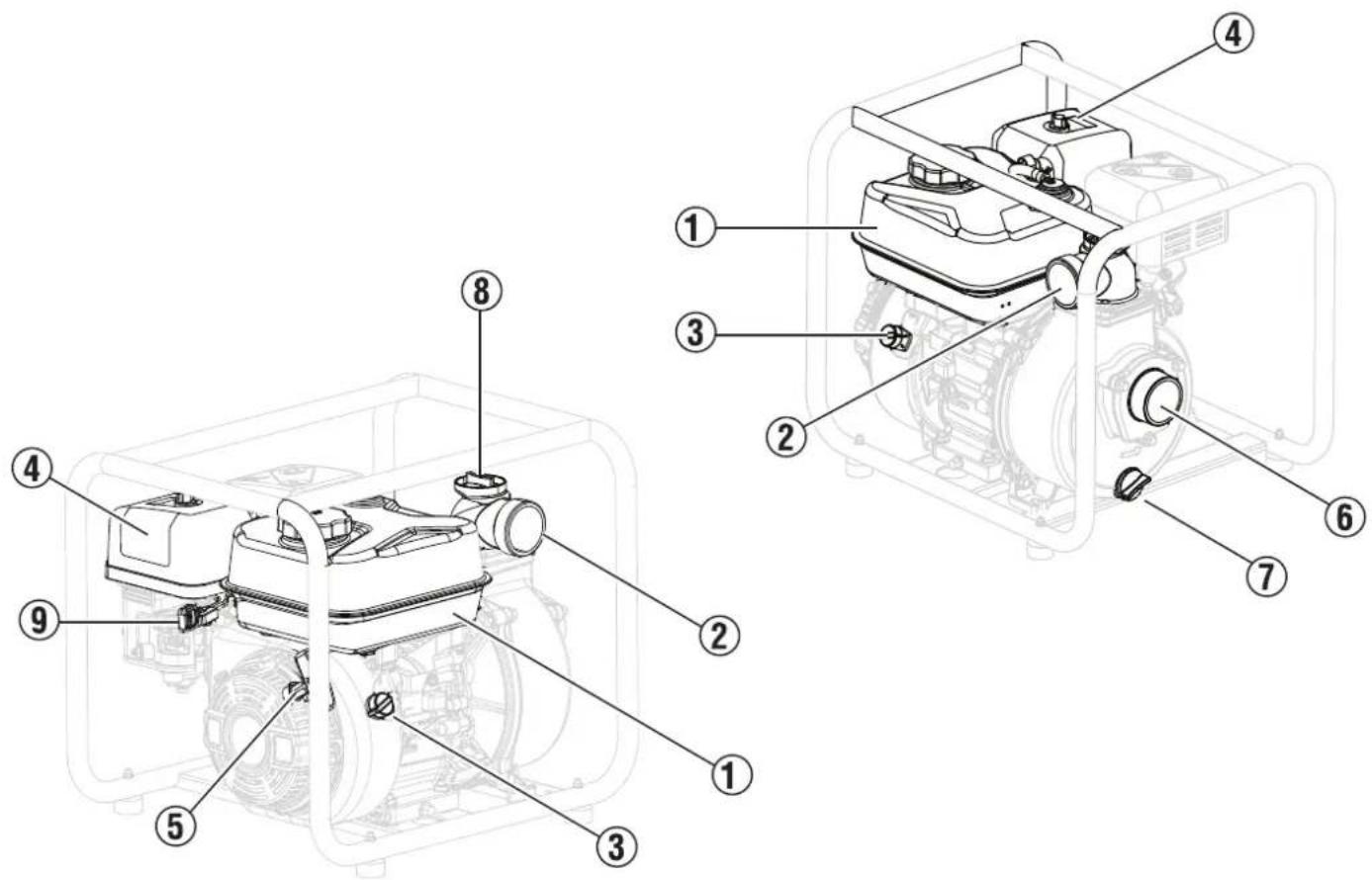

Components......8
Assembly 9
Operation 10-13
Maintenance....14-19
Troubleshooting....20-22
Service Hot Line/Company Address......Back Page

INTRODUCTION

WARNING

Operating, servicing, and maintaining this equipment may expose you to chemicals which are known to

the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the

instructions and safety precautions in this manual can result in serious injury or death.

UPDATES

The latest User Manual for Westinghouse products can be found under the support tab. wpowereq.com/pages/manuals

Or scan the following QR code with a smartphone camera to be directed to the link.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register the Westinghouse product.

Register by:

• Completing and mailing the product registration card included in the carton.
• Going online at: wpowereq.com/pages/warranty-registration
• Scanning the following QR code with a smartphone camera to be directed to the mobile registration link.

For Your Records

Date of Purchase: ____ Model Number: ____ Serial Number: ____ Place of Purchase: ____

QR code image containing encoded data, no visible human-readable text

- Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

IMPORTANT: Keep the purchase receipt for trouble-free warranty coverage.

SPECIFICATIONS

Engine 212 cc

Maximum water flow rate.... 158.5 US GPM (600 LPM)

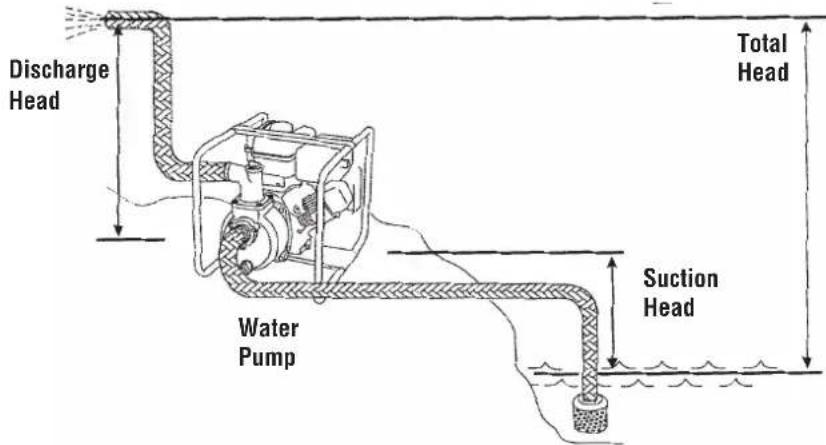

Maximum suction height....25 ft

Maximum head lift at 0 flow....91 ft

Passable solid size 0.625 in (15.8 mm)

Gas tank size....0.95 gal (3.5 L)

Hose connectors / diameter 2 in (50.8 mm)

Weight....52.91 lb (24 kg)

NOTICE This product is designed and rated for continuous operation at ambient temperatures above 23^ F ( -5^ C). If needed, this product can be operated in extremely cold temperatures for short periods. If the product is exposed to extreme temperatures during storage, it should be brought back within the optimal temperature range before operation.

NOTICE Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

HAVE QUESTIONS?

Email us at [e-mail]

or call 1-855-944-3571

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Be sure that the meanings of this safety information are known to all who operate, perform maintenance on, or are near the unit.

This safety alert symbol appears with most safety statements. It means attention, become alert, safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER

Indicates a hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation

which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause dam-

age to the unit, personal property, and/or the environment, or cause the equipment to operate improperly.

NOTE: Indicates a procedure, practice or condition that should be followed for the unit to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this user manual as well as the information on the product labeling.

SYMBOL	DESCRIPTION
	Safety Alert Symbol. Indicates a potential personal injury hazard.
	Read User Manual. To reduce the risk of injury, the user must read and understand user manual before using this product.
	Burn Hazard. Do not touch hot surfaces.
	Asphyxiation Hazard
	WARNING! Electrical shock hazard.
	Wet Conditions Alert. Do not operate in wet conditions.
	Wear safety gloves during use to protect hands. Wear safety footwear at all times.
	Keep bystanders and children a safe distance at least 10 m (11 yd) away from the work area.
	CAUTION! Beware of stones and other foreign objects that could be thrown from the product.
	Wear hearing and eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Carbon Monoxide

DANGER

Using a water pump indoors CAN KILL YOU IN MINUTES. Water pump exhaust contains carbon monoxide. This is a poison that cannot be seen or smelled.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

WARNING

READ AND UNDERSTAND ALL IN-

STRUCTIONS. Failure to follow all instructions listed below and on the machine may result in electric shock, fire, and/or serious personal injury.

- Read the user manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.

- Do not permit children to use this tool.

- Only use accessories that are recommended by the manufacturer for the model described in this manual. Use only as described in this manual.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Do not operate this tool in the presence of flammable liquids, gases, or dust.

- Keep bystanders, children, and visitors at least 10 m (11 yd) away while operating this tool.

- If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service.

- Do not use this product while tired, upset, or under the influence of drugs, alcohol, or medication. A moment of inattention while operating this product may result in serious personal injury.

- Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts.

- Inspect for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect operation. If damaged, call customer service.

- Keep this product and the handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean this tool. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.

- Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury.

- Always wear eye protection with side shields marked to comply with ANSI Z87.1 along with hearing protection when operating this equipment.

- Protect hearing – Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury.

- Do not expose this tool to rain. Water will increase the risk of electric shock.

- Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that could get caught in moving parts of the machine or its motor.

• Wear rubber boots when operating this tool. Protective footwear will protect feet and improve footing on slippery surfaces. Do not operate barefoot or while wearing sandals.
• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.
• Do not operate this tool in a direction that will cause debris or dust to be thrown towards people or pets.
• Store this tool indoors — When not in use, this tool should be stored indoors in a dry, locked up place — unplugged and out of the reach of children.
• When servicing this tool, use only identical replacement parts. Replace or repair damaged cords. Follow all instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.
• Never use this tool near fires, fireplaces, or hot ashes. Use near fires or ashes can spread fires and result in serious injury and/or property damage.
• Inspect the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the machine.
• Do not use this tool on ice. This can cause the operator to slip and fall, resulting in possible serious personal injury.
• Never use this tool on frozen lakes, rivers, or similar surfaces. Serious injury or death could occur if the ice breaks.
• Never use this tool on a rooftop or other unstable surface. This can result in death or serious personal injury.
• For household use only.
• Use the right appliance — Do not use this tool for any purpose other than the intended purpose.
• Follow all instructions for lubricating and changing accessories.
• Retain these instructions. Refer to them frequently and use them to instruct others who may use this tool.

SAFETY PRECAUTIONS FOR GASOLINE AND GASOLINE VAPOR

DANGER

Fire and explosion hazard. Gasoline

is highly explosive and flammable and can cause severe burns or death.

WARNING

Fire and Burn Hazard. NEVER loosen

or remove the fuel cap while the unit is running. Turn the unit off and allow it to cool for at least five minutes before adding gasoline. Loosen the fuel cap slowly.

WARNING

In case of a gasoline fire, do not at-

tempt to extinguish the flame unless the engine/fuel control switch is in the OFF position. Introducing an extinguisher to a unit with an open fuel switch could create an explosion hazard.

- Fire Hazard. Gasoline is highly flammable. Handle with care.

• Never use gasoline as a cleaning agent.
• Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.
• Do not store gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• Keep gasoline away from sparks, open flames, pilot lights, heat, and other sources of ignition.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or source of ignition.
• ALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deteriorate allowing gasoline or gasoline vapors to escape which can create a serious hazard.
• Gasoline has a distinctive odor, this will help detect potential leaks quickly.
  • Gas vapors can cause a fire if ignited.
• Do not smoke when handling fuel, adding fuel to the unit, or emptying the gas tank.
• Wear eye protection while refueling.
• Before adding fuel to the unit, turn the unit off and allow it to cool a minimum of five minutes. If necessary, move the unit to level ground.
• Do not remove the fuel tank cap when the unit is running.
• Loosen the fuel cap slowly to safely release pressure, keep gasoline from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors.
• NEVER fill the gasoline tank beyond the maximum fill ring on the fuel screen. Keeping gasoline levels at or below the fill ring will allow for fuel expansion. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. Wipe up spills immediately and allow area to dry before operating the unit. NEVER attempt to burn off spilled fuel.
• Securely tighten the fuel cap after adding gasoline.
• Do not cover the fuel cap while the unit is in operation. Covering the cap may cause the engine to fail or damage the product.
• Drain fuel before storing the unit. Store the unit and the fuel separately in well-ventilated areas away from sparks, open flames, pilot lights, heat, and other sources of ignition.
• Turn the unit off and allow it to cool a minimum of 30 minutes before draining fuel.

IMPORTANT SAFETY INSTRUCTIONS

DANGER

Exhaust contains high levels of carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas. If you smell exhaust fumes, you are breathing carbon monoxide. But, even if you do not smell exhaust fumes you may be inhaling CO.

ONLY operate the unit outside, in a well-ventilated area. NEVER operate the unit indoors, doing so CAN KILL YOU IN MINUTES.

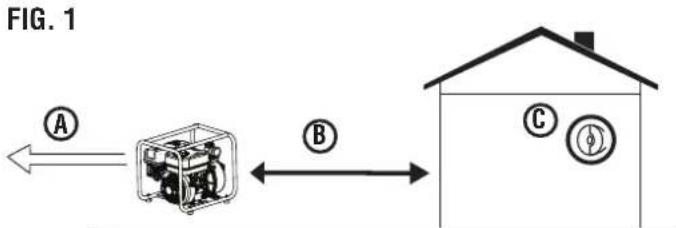

• Correct Use – Only use the unit outside and downwind, far away from windows, doors and vents. Always direct exhaust away from occupied spaces. Always install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas. See Figure 1.

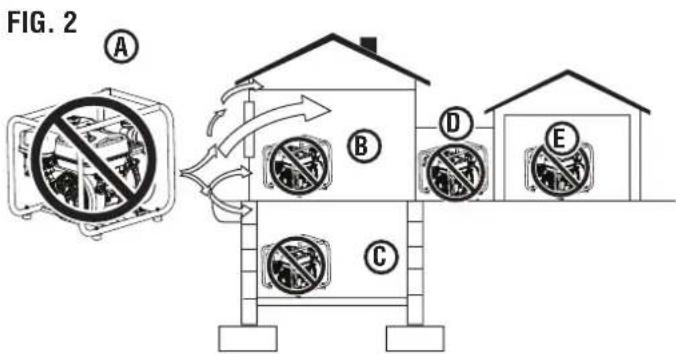

• Incorrect Use – NEVER use the unit in the home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. An open door or a running fan WILL NOT provide adequate ventilation. See Figure 2.

If feeling dizzy, weak, or sick while using the unit, move to fresh air immediately. Contact a doctor. This may be carbon monoxide poisoning.

DANGER

Electrocution hazard. NEVER use the unit in a location that is wet or damp. NEVER expose the unit to rain, snow, water spray, or standing water while in use. Protect the unit from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

WARNING

Become familiar with all the instructions, safety warnings, illustrations, and specifications provided with this product. Failure to follow the manufacturer's instructions may result in electric shock, fire, and/or carbon monoxide poisoning that can lead to death or serious injury.

NOTICE

Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

• This product should ONLY be used outdoors.
• NEVER use the unit in the home, garage, basement, attic, crawl space or any other fully or partially enclosed area. Areas such as these can allow dangerous levels of carbon monoxide to accumulate. Carbon monoxide (CO), an invisible, odorless, and extremely poisonous gas CAN KILL YOU IN MINUTES.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Specific homes and/or wind conditions may require additional distance.
• Maintain Safe Distance. While operating and storing, keep at least five feet of clearance on all sides of the unit, including overhead. Turn the unit off and allow it to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• Do not operate the unit in areas where combustible or hazardous materials are stored including gasoline and natural gas filling stations.
• Do not operate the unit while barefoot, with wet hands or feet, while standing in water or in wet conditions.

- Do not use this unit when tired or under the influence of drugs, alcohol, or medication.

- Burn Hazard. Do not touch hot surfaces.

- Do not contact the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.

- Keep hands, fingers, feet, and other body parts away from all moving parts of the unit.

- Do not operate the unit on an incline. The unit should always be placed on a flat stable surface.

- Inspect the physical condition of the product prior to each use. Look for loose bolts, fluid leaks, and other signs of wear. Replace all damaged items. For replacement parts or assistance, contact our customer service team.

- For optimal performance, use the unit in temperatures between 23^ (-5^) and 104^ (40^) with a maximum relative humidity of 90% .

- Before starting the unit, check all fluids (oil and gasoline).

- Do not remove the oil dipstick or fuel cap when the unit is running.

- Securely tighten the oil dipstick after adding oil and the fuel cap after adding gasoline.

- Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water. Prolonged skin contact with gasoline or engine oil may cause severe skin irritation and other adverse reactions.

- Before transporting the unit, disconnect the spark plug boot, drain the fuel tank and properly restrain the unit.

- Fuel or oil may leak from the unit during transport. Place a towel, plastic sheet, or absorbent pad beneath the unit to protect the transportation vehicle.

- To prolong the life of this product, follow the instructions in the Maintenance section of this manual.

- Replace damaged or worn items with recommended or equivalent replacement parts. Using an incorrect or incompatible part might create a hazard that could result in serious personal injury.

• Always remove any tools or other service equipment used during maintenance away from the unit before operating.

A - Exhaust (CO)
B - Only use OUTSIDE and FAR AWAY from windows, doors, and vents
C - CO detectors in living areas

A - Exhaust (CO)
B - Living area
C - Basement crawlspace
D - Entryway/Porch/Mudroom
E - Garage

FIG. 3

Technical diagram of a portable pump system with numbered components for identification

UNDERSTANDING THE UNIT

See Figure 3.

To reduce the risk of personal injury and product failure, read and understand the information in this user manual and the information on the product labeling.

Component Table
Index Number	Component Description
1 Fuel tank The fuel tank has a capacity of 0.95 gal (3.5 L).
2	Discharge fitting	Use the discharge fitting to attach the discharge hose for expelling water from the unit.
3 Engine ON / OFF	switch Use the Engine ON / OFF	F switch to start or end operation.
4 Air filter The air	filter captures debris and restricts materials from being drawn into the engine.
5 Recoil handle Use the recoil handle to start the unit.
6 Intake fitting Use the intake fitting to attach the intake hose for drawing water into the unit.
7 Drain port Use the drain port after every use to remove any remaining water from the unit.
8 Priming cap Use the priming cap before every use of the unit to prepare to start the engine.
9 Throttle handle Use the throttle handle to adjust the engine speed as needed.

REMOVING CARTON CONTENTS

WARNING

This product does not require assembly. Do not attempt to operate this product if it is not completely improperly assembled product can be hazardous and could result in serious personal injury.

• Open the carton.
• Remove and inspect the carton contents. Confirm that all the items in the INCLUDED LIST are present and undamaged.
  • Recycle or dispose of the packaging materials.

INCLUDED LIST
ITEM QUANTITY
Water pump 1
Diffuser 2
Hose coupling lock ring 2
Hose clamp 3
Outlet fitting 2
Strainer 1
Spark plug wrench 1

If any parts are missing, contact customer service at [e-mail] or call 1-855-944-3571.

WARNING

Do not alter or modify this product unless instructed otherwise in this manual or by the manufacturer. Do accessories that are not recommended for use with this product. Making unauthorized modifications and essories can damage the unit and may void the warranty.

CONNECTING THE HOSES

NOTE: The intake and discharge hoses are not included.

NOTICE

The intake hose (not included) must be reinforced with non-collapsible construction. The hose diameter must be diameters. Do not reduce the hose diameter size.

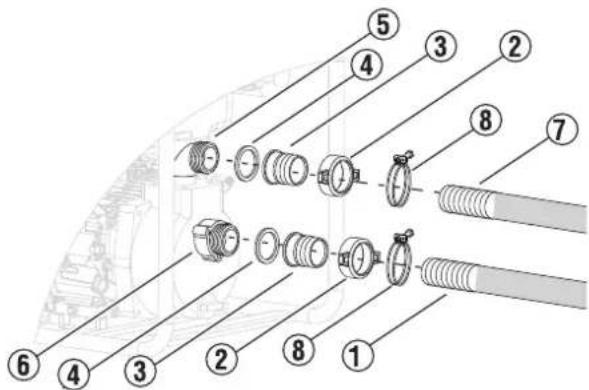

1. See Figure 4. Put the hose clamp (8) and hose coupling lock ring (2) on the intake hose (1).
   NOTE: If the intake hose connection to the water pump is loose, it will negatively affect performance. Be sure that the intake hose connection is secure.
2. Attach the outlet fitting (3) and the diffuser (4) to the intake hose.
3. Attach the intake hose to the intake fitting (6) and secure the hose in place with the hose coupling lock ring.
4. Put the hose clamp (8) and hose coupling lock ring (2) on the discharge hose (7).

NOTE: Be sure that the discharge hose connection is secure.
5. Attach the outlet fitting (3) and the diffuser (4) to the discharge hose.
6. Attach the discharge hose to the discharge fitting (5) and secure the hose in place with the hose coupling lock ring.

FIG. 4

Exploded view diagram of a mechanical assembly with numbered parts for identification

Locate the water pump on a flat, level, sturdy surface capable of supporting the weight of the unit.

1. For the best performance, place the unit near the water level and use hoses that are no longer than necessary. See the diagram below.

Discharge Head Water Pump Suction Head Total Head

As the head (pumping height) increases, pump output decreases. A non-collapsible suction hose must be used. The length, type, and size of the suction and discharge hoses can significantly affect output.

The discharge head capability is always greater than suction head capability. This means the pumping height for the intake hose (suction head) should be shorter than the pumping height for the Discharge Hose.

Minimizing the suction head (placing the unit closer to the water level) will also help make it easier to prime the pump (fill it with water).

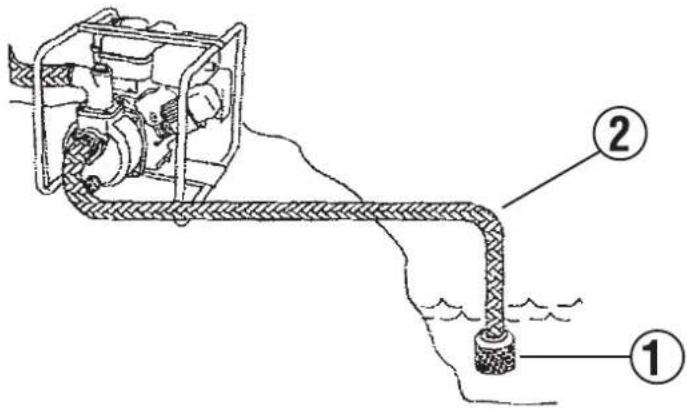

1. See Figure 5. Route the intake hose (2) with the strainer (1) fully immersed in the water supply source.

2. Place the strainer into water to be pumped.

NOTE: Failure to use or appropriately attach the strainer may void the warranty.

FIG. 5

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal components and fluid flow path.

NOTE: Immerse the strainer fully in water. Do not operate the pump without the strainer connected to end of suction hose. Keep the strainer out of sand or silt by placing the strainer in a bucket or on stones.

NOTE: Air leaks must not appear in the suction line. If there is an air leak in the suction line, you will not be able to prime the pump. Use a thread sealant to seal air leaks.

1. Secure the intake hose in place to keep it from moving once the Pump is turned on. The Intake Hose should be as short as possible for more efficient operation.

2. Route the discharge hose to the desired discharge location. If necessary, connect additional discharge hoses to direct the discharge to the desired location. Make sure to secure the discharge hose in place to keep it from moving once the unit is turned on. The discharge hose should be kept as short as possible for more efficient operation.

ADDING OIL/CHECKING OIL LEVEL

NOTICE

Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage that is not covered under warranty.

NOTICE

Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

The recommended oil type for typical use is 10W-30 engine oil. If operating the unit in extreme temperatures, refer to the following chart.

NOTE: Check the engine oil level before each use or every 8 hours of operation.

1. Turn the unit off and allow the engine to cool for at least five minutes.
2. Place the unit on a level surface in a well-ventilated area.
3. Clean the area around the oil dipstick.

For initial oil fill:

• Slowly unscrew and remove the oil dipstick.
- See Figure 6. Using the funnel, slowly pour the supplied engine oil into the oil fill hole. Check the level frequently to be sure not to overfill.

NOTE: The unit was functionally tested in the factory and may contain minimum residual oil. Additional oil is required to operate the unit. Do not overfill.

• Place and tighten the oil dipstick.

To check oil level:

• Slowly unscrew and remove the oil dipstick.
- Clean the dipstick and re-seat it inside the oil fill hole. Do not thread the dipstick.
- Remove the dipstick and confirm that the oil level is within safe operating range.
- See Figure 7. If the oil level is low, add recommended engine oil incrementally and recheck until the level is within the safe operating range (1).
- Secure the oil dipstick and hand-tighten.

FIG. 6

Line drawing of a hand using a tool to clean or inspect mechanical components (no text or symbols visible)

FIG. 7

Technical diagram of a mechanical component with labeled part 1

GASOLINE REQUIREMENTS

NOTICE

Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of

unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

• ALWAYS use CLEAN, FRESH, unleaded gasoline (87–93 octane) in this unit. NEVER use OLD, STALE, or CONTAMINATED gasoline.
- Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
- DO NOT use E85 or E15.
- DO NOT use a gas oil mix.
- DO NOT modify the engine to run on alternate fuels.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the unit. Run the unit for five minutes to allow the stabilizer to treat the entire fuel system.

ADDING GASOLINE

DANGER

Fire and explosion hazard. Never remove the fuel cap or refuel the unit while the engine is running. Do not smoke or create sparks while fueling. Always turn the engine off and allow the unit to cool for at least five minutes before refueling.

DANGER

Fire and explosion hazard. Do not overfill fuel tank. Fill only to the red maximum fill ring on the fuel screen. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

WARNING

Never use a gasoline container, gasoline tank, or any other fuel item that is broken, cut, torn or damaged.

NOTICE

Only fill the tank from an approved gasoline container. Be sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

1. Turn the unit off and allow the engine to cool for at least five minutes.
2. Place the unit on a level surface in a well-ventilated area. DO NOT fuel indoors.

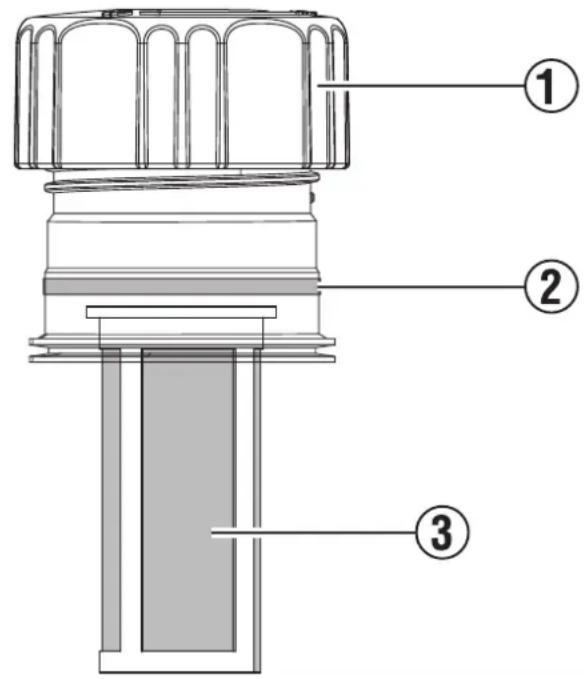

3. See Figure 8. Clean area around fuel cap (1) and remove the cap slowly.
4. Slowly add the recommended fuel. Do not overfill.

NOTE: The gasoline level should NOT be higher than the red maximum fill ring (2) on the fuel screen.

1. Install the fuel cap. Tighten securely.

2. Clean up any spilled fuel.

3. Move at least 30 ft. away from refueling area before restarting the engine.

FIG. 8

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

NOTICE

Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.

NOTICE

Clean the fuel screen filter (3) of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

BREAK-IN PERIOD

For proper break-in, do not apply a heavy load or operate the engine at maximum speed during the first three hours of operation.

Use supplied oil until first recommend oil change. Do not use full synthetic oil during break in period. Full synthetic oil may prevent proper breaking and seating of the piston rings.

Engine power is reduced the higher the unit is operated above sea level. Output will be reduced approximately 3.5% for every 1,000 feet of increased altitude from sea level.

High altitude adjustment is required for operation at altitudes over 8,000 ft.. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

High Altitude Kit P/N 518059-01

NOTICE

DO NOT operate the unit at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage

may occur.

STARTING THE ENGINE

DANGER

Fire and explosion hazard. DO NOT

move or tip the unit during operation.

WARNING

Confirm that the area around the unit

is clear before starting the unit.

1. Fill the pump with water by removing the priming cap and filling the unit with clean water. Secure the priming cap after filling.
2. Confirm that fuel is in the gas tank.
3. Engage the wheel locks on both wheels.
4. See Figure 9. To start a cold engine, move the choke lever to the CHOKE position. To restart a warm engine, keep the choke lever in the RUN position.

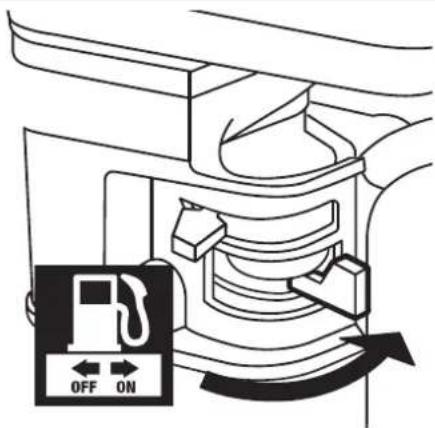

5. See Figure 10. Turn the fuel tank valve to the ON position.

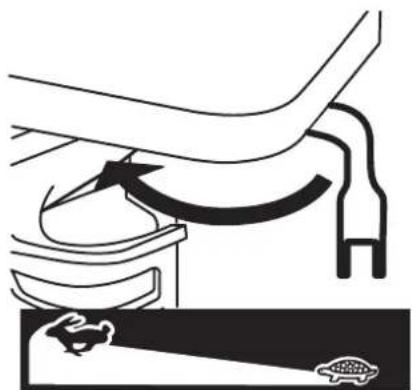

6. See Figure 11. Move the throttle handle away from the SLOW position.
7. Turn the Engine ON / OFF switch to ON.
8. Firmly grasp and pull the recoil handle slowly until there is increased resistance, then pull rapidly.
9. Allow the engine to run for several seconds. Then, if the choke lever is in the CHOKE position, move the choke lever very slowly to its RUN position.

NOTE: When the throttle handle is positioned to the maximum speed, the water pump output is maximized. When the throttle handle is positioned slower, the water pump output is decreased.

NOTE: Moving the choke lever too quickly could stall the engine.

NOTE: Allow the engine to run at no load for five minutes after every start-up to allow the engine to stabilize.

STOPPING THE ENGINE

1. Slide the throttle handle to the SLOW position.
2. Turn the Engine ON / OFF switch to OFF.
3. Close the fuel valve.

To stop the unit quickly in an emergency:

- Turn the Engine ON / OFF switch to OFF.

FIG. 9

START RUN

FIG. 10

Diagram showing a fuel pump mechanism with ON/OFF states and directional arrows indicating flow or movement.

FIG. 11

Diagram showing a mechanical component with an arrow indicating motion, and a small inset image of a dog (no text or symbols)

WARNING

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could thrown into your eyes resulting in possible serious injury.

WARNING

Use only authorized replacement parts. Use of any other parts can create a hazard or cause product dam-

WARNING

To prevent serious injury from accidental starting, turn the Engine ON / OFF switch to OFF, wait for the end disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures.

WARNING

To prevent serious injury from equipment failure, do not use the unit if it is damaged. If there is an abnor-excess smoking from the unit, contact customer service.

NOTICE

Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, and fasteners and caps. Do not operate this product until all missing or damaged parts are replaced. Please contact the for assistance.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the unit. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

	Before Each Use	After First 25 Hours or First Month	After 50 Hours or Every Six Months	After 100 Hours or Every Six Months	After 300 Hours or Every Year
Check Engine Oil	X
Change Engine Oil ^1		X	X
Clean Air Filter ^2			X

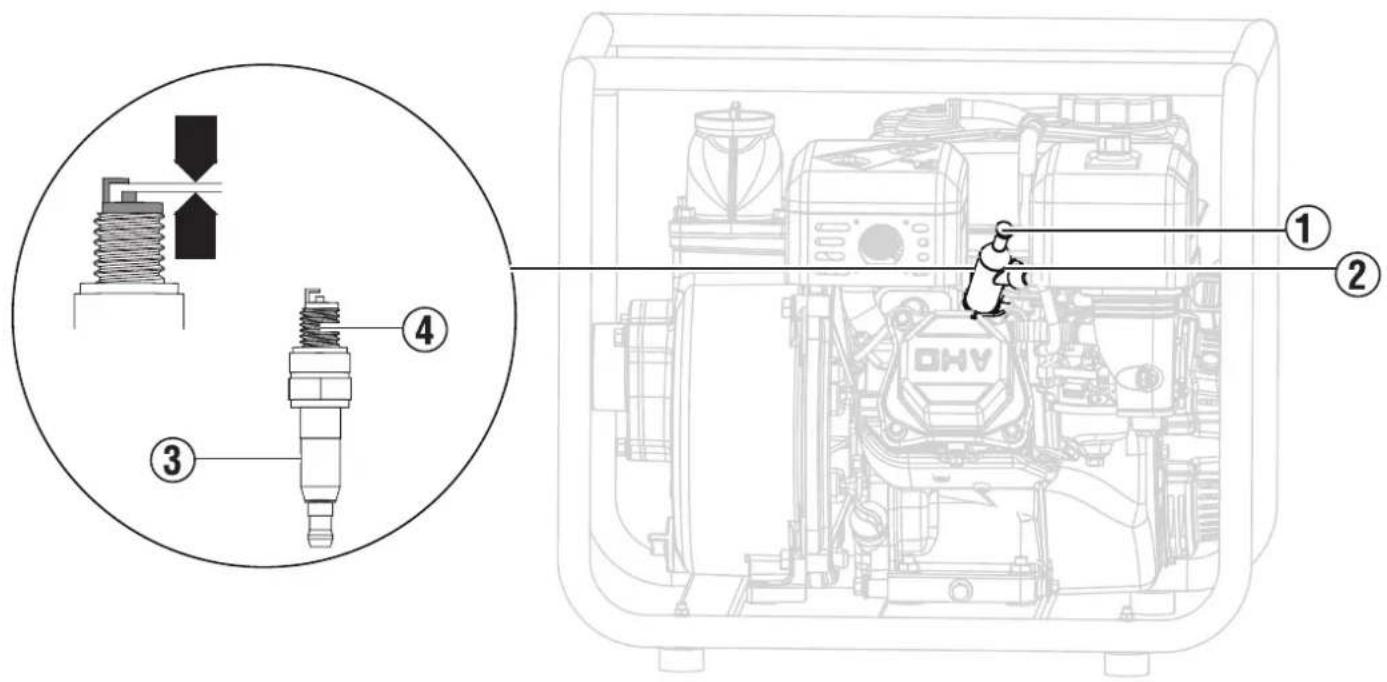

Inspect/Clean Spark Plug				X
Replace Spark Plug					X
Replace Air Filter					X
Check/Adjust Idle Speed ^3					X

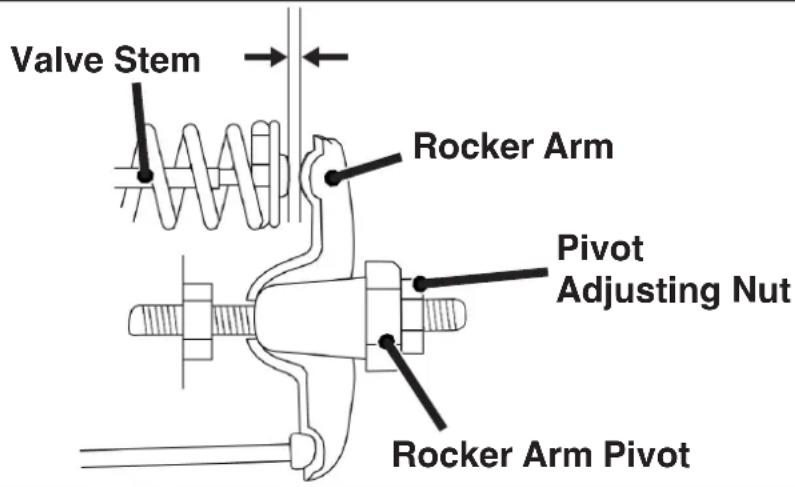

Check/Adjust Valve Clearance ^3					X

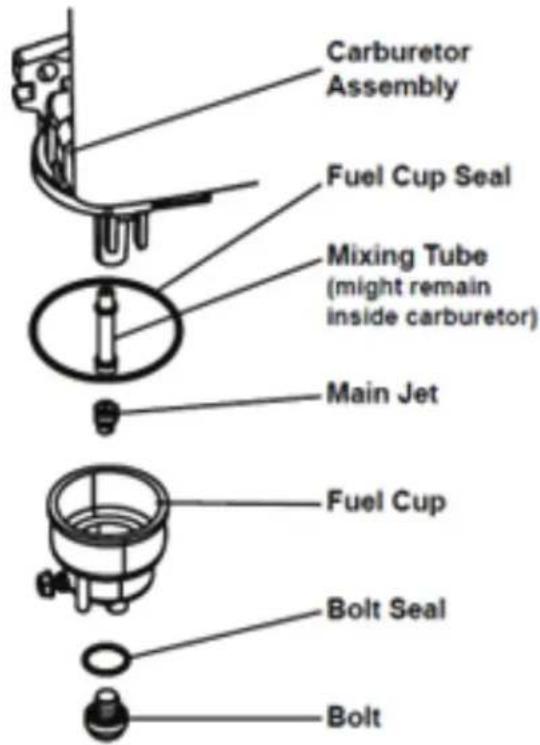

Clean Fuel Tank, Strainer, and Carburetor ^3					X
Clean Carbon Build-up from Combustion Chamber ^3					X
Replace Fuel Line, if necessary ^3					X
^1 Change oil every month when operating under heavy load or in high temperatures. ^2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned. ^3 Recommend service to be performed by authorized Westinghouse service dealer.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, and grease.

WARNING

Do not let brake fluids, gasoline, petroleum-based products, or penetrating oils contact plastic parts, weaken, or destroy plastic which can result in serious personal injury.

CAUTION

Always clean the tool after each use. Failure to clean the tool can result in damage or result in poor per-

CAUTION

Never use a water hose to clean the tool.

CLEANING THE UNIT

Do not store or operate the unit in dirty, dusty, or corrosive environments. Do not allow foreign materials and debris to clog the vents on the unit.

NEVER clean the unit with a garden hose. Water can damage the fuel system. If the unit needs to be cleaned, use a soft brush and damp cloth to clean the exterior and use low pressure air (no greater than 25 psi) to clean the vents.

Never use gasoline as a cleaning agent.

CLEANING/REPLACING THE AIR FILTER

Keep the air filter clean. A dirty air filter can cause poor performance and decrease the service life of the product. NEVER operate the unit without an air filter in place.

• Turn the unit off and allow the engine to cool for 30 minutes.
• Remove the air filter from the air cleaner housing and place it in a suitable cleaning container. Replace the air filter if damaged.
• Wash the air filter by submerging the filter in a solution of household detergent soap and warm water. Slowly squeeze the filter to thoroughly clean.

NOTICE

DO NOT twist or tear the air filter during cleaning or drying. Only apply slow but firm squeezing action.

- Rinse the air filter by submerging it in fresh water and applying a slow squeezing action. Allow the filter to dry thoroughly.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous cult local authorities or reclamation facility.

• Dip the air filter in clean engine oil then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the filter.

• Install the air filter in the air cleaner housing and install the air filter cover.

CHANGING THE ENGINE OIL

For optimal performance, change the engine oil according to the figures specified in the maintenance schedule or the engine manual (if applicable). When using the unit under extreme, dirty, dusty conditions or in extremely hot weather, change the oil more frequently.

NOTE: Change the oil while the engine is warm but not hot. Warm engine oil drains more quickly and thoroughly than cool oil. Contact with hot oil will cause serious burns.

• Turn the unit off and allow the engine to cool for 30 minutes.
• Place the unit on a level surface in a well-ventilated area.
• Close the fuel valve.
• Clean the area around the oil dipstick and drain bolt.
• Slowly unscrew and remove the oil dipstick.
• Place an oil pan (or suitable container) under the unit.
• Remove the drain bolt.
  • After the oil has drained completely, secure the drain bolt.

- Refill the oil.

- Clean the oil dipstick.

- Secure the oil dipstick and hand-tighten.

- Clean any spilled oil.

CLEANING/REPLACING THE SPARK PLUG

NOTICE ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

Be sure the spark is clean and properly gapped. To clean or replace the spark plug:

1. Turn the unit off and allow the engine to cool for 30 minutes.
2. Place the unit on a level surface in a well-ventilated area.
3. See Figure 12. Remove the spark plug boot (1) by firmly pulling the spark boot directly away from the engine.
4. Clean the area around the spark plug (2).
5. Remove the spark plug with the included spark plug socket wrench.

NOTICE Never apply any side load or move the spark plug laterally when removing the spark plug.

1. Inspect the spark plug. Replace if electrodes (4) are pitted, burned, or the insulator (3) is cracked. Only use a recommended replacement plug.
2. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.028 - 0.032 in. (0.70 - 0.80 mm)

1. Carefully install the spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.

2. Install the spark plug boot.

FIG. 12

Technical diagram showing a mechanical assembly with labeled parts and a close-up of the internal components.

DRAINING THE FUEL TANK AND CARBURETOR FLOAT BOWL

WARNING

ALWAYS store gasoline in a container approved for gasoline. Unapproved containers can break or deterior gasoline vapors to escape which can create a serious hazard.

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the unit for two to six months, drain the float bowl to prevent gum and varnish buildup in the carburetor. If storing the unit for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

• Turn the unit off and allow the engine to cool for 30 minutes.
• Place the unit on a level surface in a well-ventilated area.

To drain the float bowl:

• Locate the drain hose extending from the bottom of the carburetor float bowl.
• Place the bottom end of the hose outside the unit into an approved gasoline container to catch the drained fuel.
• Loosen the float bowl drain screw and allow the fuel to drain. Tighten the float bowl drain screw.
• Route the drain hose.

To run the float bowl dry:

• Start the unit.
• Allow the unit to run until the fuel in the carburetor is depleted and the engine stops.
• Turn the engine switch to the OFF position.

To drain the fuel tank:

NOTICE

To prevent damage to the unit, drain the engine oil before emptying the fuel tank. See Changing the engine oil

• Turn the fuel shut-off valve to the off position.
• Clean area around fuel cap and remove the cap slowly.
• Remove the fuel screen filter by slightly compressing it while removing it from the tank.
• Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

REPLACING THE CARBURETOR

1. Turn off the unit.
2. Close the fuel valve.
3. Place an appropriate container under the fuel cap to catch any spilled fuel.
4. See Figure 13. Remove the bolt holding the fuel cup.
5. Remove the bolt, bolt seal, fuel cup, fuel cup seal, and main jet from the body of the carburetor assembly.

NOTE: A carburetor screwdriver (not included) is needed to remove and install the main jet.

NOTE: The mixing tube is held in place by the main jet and might fall out when it is removed. If the mixing tube falls out, install the mixing tube in the same orientation that it was originally in.
6. Replace the main jet with the replacement main jet necessary for the appropriate altitude range.
NOTE: The fuel cup seal and the bolt seal may be damaged during removal and should be replaced during installation.
7. Install the fuel cup seal, fuel cup, bolt seal, and bolt. Be sure the items are secure.
NOTE: Do not cross-thread the bolt when tightening. Finger-tighten the bolt and then use a wrench to be sure that the bolt is properly threaded.
8. Clean any spilled fuel and allow excess fuel to evaporate before starting the engine.

FIG. 13

Carburetor Assembly Fuel Cup Seal Mixing Tube (might remain inside carburetor) Main Jet Fuel Cup Bolt Seal Bolt

REPLACING THE FUEL FILTER

Overtime, the fuel filter may become dirty or clogged. To reduce the risk of engine failure, replace the fuel filter according to the figures specified in the maintenance schedule or the engine manual (if applicable).

1. Turn the unit off and allow the engine to cool for 30 minutes.
2. Drain the fuel tank.
3. Locate the fuel filter and note the orientation.
4. Using pliers, squeeze the fuel line clips and slide the fuel lines away from the filter.
5. Install the fuel lines onto the new filter. Be sure the fuel filter is oriented correctly.

CHECKING/ADJUSTING THE VALVE CLEARANCE

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

1. Turn the unit off and allow the engine to cool for 30 minutes.
2. Place the unit on a level surface in a well-ventilated area.
3. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
4. Remove the spark plug so the engine can be rotated more easily.
5. Pull the recoil handle to rotate the engine to top dead center (TDC). Looking through the spark plug hole; the piston should be at the top (both valves are closed).
6. See Figure 14. Both rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360^ .
7. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

FIG. 14

Valve Stem Rocker Arm Pivot Adjusting Nut Rocker Arm Pivot

	Intake Valve Exhaust Valve
Valve Clearance	0.0031–0.0047 in (0.08–0.12 mm)	0.0051–0.0067 in (0.13–0.17 mm)
Torque	8–12 Nm 8–12 Nm

1. If an adjustment is necessary, loosen the jam nut.
2. Slide the appropriate feeler gauge between the rocker arm and the valve stem.
3. Tighten the adjustment screw onto the push rod to obtain the specified clearance.
   NOTE: You should be able to feel the rocker arm touch the feeler gauge.
4. Hold the adjustment screw in place and tighten the nut.

Torque: 106 inch-pound (12 Nm)

1. Recheck valve clearance.

2. If no further adjustments are needed, perform this procedure on the other valve.

3. When finished, install the gasket, rocker arm cover, and spark plug.

DRAINING THE UNIT OF WATER

1. Remove the drain plug from the front of the pump.
2. Slowly tilt the pump forward to drain all remaining water from inside the unit.

NOTE: Complete these steps after every use of the unit.

LONG TERM STORAGE

When the equipment is to remain idle for longer than 20 days, prepare the engine for storage as follows:

- Wait for the engine to cool, then clean the engine with a dry cloth.

NOTE: Do not clean using water. The water will gradually enter the engine and cause rust damage.

- Apply a thin coat of rust preventive oil to all metal parts.

To protect the fuel tank during storage, fill the fuel tank with gasoline that has been treated with a fuel stabilizer additive. Follow the fuel stabilizer manufacturer's recommendations for use.

WARNING

TO PREVENT SERIOUS INJURY FROM FIRE: Fill the fuel tank in a well-ventilated area away from ignition is hot from use, shut the engine off and wait for it to cool before adding fuel. Do not smoke.

• Change the engine oil.
• Clean the area around the spark plug. Remove the spark plug and pour one tablespoon of engine oil into cylinder through spark plug hole.
• Replace the spark plug, but leave the spark plug cap disconnected.
• Pull the recoil handle to distribute oil in cylinder. Stop after one or two revolutions when you feel the piston start the compression stroke (when you start to feel resistance).
• Disconnect the battery cables (if equipped). Recharge the batteries monthly while in storage.
• Cover and store in a dry, level, well-ventilated area out of reach of children. The storage area should also be away from ignition sources.

NOTE: For every 3 months of an extended storage period, the pump must be connected to a water supply, primed, started, and allowed to run for 15 – 20 minutes or the warranty will be void.

- Before starting the engine after storage, keep in mind that untreated gasoline will deteriorate quickly. Drain the fuel tank and change to fresh fuel if untreated gasoline has been sitting for a month, if treated gasoline has been sitting beyond the fuel stabilizer's recommended time period, or if the engine does not start properly.

TRANSPORTATION

WARNING

Engines and exhaust systems in high-temperature conditions can cause burns and ignite flammable sub-

• Before transporting the unit, be sure that the engine is cool.
• Be sure that the unit is level during transportation to prevent fuel from leaking from the unit. Turn the fuel switch to the OFF position. Turn the engine ON / OFF switch to the OFF position.

PROBLEM POSSIBLE CAUSE CORRECTION
The engine will not start	No fuel in the fuel tank or the fuel valve is closed Fill the fuel tank with gasoline and open the fuel valve.
	The choke is not in the START position, cold engine Move the choke to the START position.
	Gasoline with more than 10% ethanol was used Flush gasoline from the fuel system and use recommended gasoline.
	Low quality or deteriorated, old gasoline Drain the fuel tank and use fresh gasoline.
	Carburetor was not primed Pull the recoil handle to prime the unit.
	The fuel lines are clogged Use fuel additive to clean out the fuel lines.
	The carburetor needle is stuck Gently tap the side of the carburetor float bowl with a screwdriver handle.
	Too much fuel in the float bowl Move the choke to the RUN position. Remove the spark plug and pull the recoil handle several times to air out the float bowl. Install the spark plug and set the choke to the START position.
	The fuel filter is clogged Replace the fuel filter.
	The spark plug boot is not connected securely Connect the spark plug boot properly.
	The spark plug electrode is wet or dirty Clean the spark plug.
	The spark plug gap is incorrect Correct the spark plug gap.
	The spark plug boot is broken Replace the spark plug boot.
	Incorrect spark timing or faulty ignition system Contact a qualified technician.
	Cylinder not lubricated Pour a tablespoon of oil into the spark plug hole. Crank the engine multiple times and try starting the engine again.
	Loose or broken spark plug	Tighten the spark plug. If the issue persists, replace the spark plug. If the issue persists, inspect the head gasket.
	Loose cylinder head or damaged head gasket	Tighten the cylinder head. If the problem persists, replace the head gasket.
	Engine valves or tappets are mis-adjusted or stuck	Contact a qualified technician to adjust or repair the valves and tappets.
	The oil level is low	Fill the engine oil level to the appropriate level.
	The unit is on an incline	Move the unit to a level surface.
The engine misfires	The spark plug boot is loose Inspect the spark plug boot and wire connections.
	The spark plug gap is incorrect or the spark plug is damaged	Inspect the spark plug gap or replace the spark plug.
	The spark plug boot is defective Replace the spark plug boot.
	Low quality or deteriorated, old gasoline Drain the fuel tank and use fresh gasoline.
The engine stops suddenly	The fuel tank is empty or is operating with improper gasoline	Fill the fuel tank with the appropriate gasoline.
	Low oil shutdown Fill the engine oil to the appropriate level.
	Defective fuel cap Test or replace the fuel cap.
	Disconnected or improperly connected spark plug boot	Secure the spark plug boot.
The engine stops when under a heavy load	The air filter is dirty Clean the air filter.
	The engine was operating cold Allow the engine time to warm up before inserting items.
The engine knocks	Low quality or deteriorated, old gasoline Drain the fuel tank and use fresh gasoline.
	The engine overloaded Do not exceed the load rating of the unit.
	Incorrect spark timing, deposit buildup, worn engine, or other mechanical issue	Contact customer service.
The engine backfires	Low quality or deteriorated, old gasoline Drain the fuel tank and use fresh gasoline.
	The engine is too cold Use cold weather fuel and oil additives to prevent backfiring.
	The intake valve is stuck or the engine overheated Contact customer service.
	Incorrect timing The shaft key or another shear pin has been broken.Contact a qualified technician to check the engine timing and replace any broken shear pins or the shaft key.
The pump overheats	Improper lubrication Lubricate components with the recommended oil and grease accordingly.
	Worn parts Contact a qualified technician to inspect internal components and replace parts as necessary.
The unit stalls	Low engine speed	Contact a qualified technician to adjust the no-load engine speed appropriately.
	Clogged air filter	Clean the air filter.
	Improper lubrication Inspect the engine oil level
The water pump is not pumping water	The pump is not primed Prime the pump.
	The intake strainer is clogged Clean the intake strainer. Replace the intake strainer if it is damaged.
	Air is leaking at the intake connection Replace the gasket or tighten the clamp.
	The discharge hose leaks Replace the discharge hose.
	The intake hose has a collapsing wall Use an appropriate hose with a non-collapsible wall.
	The diameter of the hose is too small Use a hose with a 2 in. diameter.
	The water pump is too high above the water surface Locate the water pump to a lower level.
Low water pump output	The intake hose has collapsed, is damaged, too long, or the diameter is too small	Replace or adjust the intake hose as needed.
	Air is leaking at the intake connection Replace the gasket or tighten the clamp.
	The intake strainer is clogged Clean the intake strainer. Replace the intake strainer if it is damaged.
	The discharge hose is damaged, too long, or the diameter is too small	Replace or adjust the discharge hose as needed.

QR code image containing encoded data, no visible human-readable text

Para sus registros

Fecha de compra:

Número de modelo:

Número de serie:

Lugar de compra:

PRESUPUESTO

Motor 212 cc

Using a water pump indoors CAN KILL YOU IN MINUTES. Water pump exhaust contains carbon monoxide. This is a poison that cannot be seen or smelled.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

ADVERTENCIA

LEA Y ENTIENDA TODAS LAS IN-

Technical diagram of a portable gas pump system with numbered components for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Discharge Head Water Pump Suction Head Total Head

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal components and fluid flow path.

Line drawing of a hand using a tool to clean or inspect mechanical components (no text or symbols visible)

Figura 7

Technical line drawing of a mechanical component with threaded end and connector detail (no text or symbols)

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Diagram showing a car fuel pump mechanism with ON/OFF control buttons and directional arrow indicating rotation

Figura 11

Diagram showing a mechanical component with an arrow indicating motion, and a small inset image of a dog (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and a close-up of the internal components.

DRENAJE DEL TANQUE DE COMBUSTIBLE Y DEL RECIPIENTE DEL FLOTADOR DEL CARBURADOR

ADVERTENCIA

Carburetor Assembly Fuel Cup Seal Mixing Tube (might remain inside carburetor) Main Jet Fuel Cup Bolt Seal Bolt

REEMPLAZO DEL FILTRO DE COMBUSTIBLE

QR code image containing encoded data, no visible human-readable text

CARACTÉRISTIQUES

Moteur 212 cc

AVEZ-VOUS DES QUESTIONS?

Using a water pump indoors CAN KILL YOU IN MINUTES. Water pump exhaust contains carbon monoxide. This is a poison that cannot be seen or smelled.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

! AVERTISSEMENT LISEZ ET COMPRENEZ

Technical diagram of a portable pump system with numbered components for identification

COMPRENDRE L'UNITÉ

Voir la figure 3.

Exploded view diagram of a mechanical assembly with numbered parts for identification

LOCALISATION DE LA POMPE À EAU

Discharge Head Water Pump Suction Head Total Head

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal components and fluid flow path.

Line drawing of a hand using a tool to clean or inspect mechanical components (no text or symbols)

FIG. 7

Technical line drawing of a mechanical component with threaded end and internal zigzag feature (no text or symbols)

EXIGENCES EN MATIÈRE D'ESSENCE

AVIS

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Diagram showing fuel pump control mechanism with ON/OFF states and directional arrow

FIG. 11

Diagram showing a car interior with a curved ramp and a turtle on the floor (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and a close-up of the internal structure.

REPLACEMENT DU CARBURATEUR

Carburetor Assembly Fuel Cup Seal Mixing Tube (might remain inside carburetor) Main Jet Fuel Cup Bolt Seal Bolt

Blue circular icon with a white crown symbol (no text or numbers)

www.WestinghouseOutdoorPower.com

Service Hotline [phone]

777 Manor Park Drive, Columbus, OH 43228

and Westinghouse are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Outdoor Power Equipment.

© 2025 MWE Investments, LLC All Rights Reserved.
