USER MANUAL Pioneer Mosquito Magnet

Exterior view of a Countler brand air purifier with adjustable arm and base (no text or symbols visible)

PIONEER

For Outdoor Use Only

1440-093 Rev 10/21

Operation Manual

CE

CAUTION / WARNUNG / MERK / HUOMIO / VAR FÖRSIKTIG! / ATTENZIONE

CAUTION - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction - children being supervised not to play with the appliance.

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Congratulations on your purchase of Mosquito Magnet®. Now you can begin to enjoy your outdoor living space again.

Mosquito Magnet ^® is the #1 mosquito trap in North America. Backed by 18 years of research and independent testing, Mosquito Magnet ^® is scientifically proven to effectively reduce mosquitoes & other biting insects from your yard.

Mosquito Magnet® is easy to use. In this manual, you’ll learn everything you need to know about how it works, optimal trap placement, maintenance, storage and warranty information. The keys to success are trap placement, utilization of the correct co-formulant for your area and routine maintenance. For optimal catch rate, you’ll need to change the propane tank and co-formulant every 21 days.

Visit us online at www.mosquitomagnet.com for additional information regarding Mosquito Magnet® tips, testimonials, and additional product offerings.

Woodstream™ Corporation

69 North Locust Street

Lititz, PA 17543

1-800-953-5737

www.mosquitomagnet.com

The Mosquito Magnet® traps are covered by one or more of the following patents:

US & Canada

US Patents: Nos. 5,813,166; 6,655,080; 6,662,489; 6,817,140; 6,840,005;

6,848,466; 6,892,492; 7,074,830; 7,181,885; 7,281,351; 7,293,387;

7,536,824; 7,614,180; 7,910,091; 7,987,631; 8,006,432; 8,067,469;

8,141,291; 8,347,549; 8,470,881; 8,753,110; 8,973,299; 9,949,471

Canada Patents: Nos. 2322038; 2460876; 2558775; 2569737; 266346

All Other Countries

Australia: 735984; 2002356537; 2005226680; 2005251813; 2007258277;

2008246208; 2012202864 Brazil: 9908104-0; PI0213059-9; PI0508967-0

China: ZL0281957.X; ZL20058000881.0; ZL200580025316.5;

ZL200580046646.2; ZL200780029874.8; ZL200910254151.9

Denmark: 1432304

Europe: 1049373; 1432304; 1537780; 1827093; EP1725094B; EP1765068B

Finland: 1432304; 1827093; EP1725094B

France: 1049373; 1432304; 1537780; 1765068; 1827093; EP1725094B

Germany: 1049373; 1725094; 60211538.8

Hong Kong: HK1107743; HK1112810; HK1148207 Italy: 1049373; 1432304;

1537780; 1725094; 1765068; 1827093

Japan: 4317748; 4741578; 5444525

Mexico: 314022

New Zealand: 506403; 542745

Portugal: 1765068

Sweden: 1432304; 1537780; 1765068; 1827093; EP1725094B

United Kingdom: 1049373; 1432304; 1537780; 1725094; 1765068; 1827093

Made in China

FOR YOUR SAFETY

If you smell gas:

1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your gas supplier or your fire department.

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Contents

Safety Instructions E6-7

Principal Parts E8

Assembly Instructions E9

Set-Up

E10-11

Trap Placement

Burying the Cord

Propane Tank Installation

Instructions

E12

Starting Instructions

Shut Down Instructions

When Not In Use

End of Season Storage

For Best Results

Maintenance

E13

Maintenance

Propane Tank Changing Tips

Maintenance Schedule

Troubleshooting

E14

Woodstream™ Corporation

69 North Locust Street

Lititz, PA 17543

www.mosquitomagnet.com

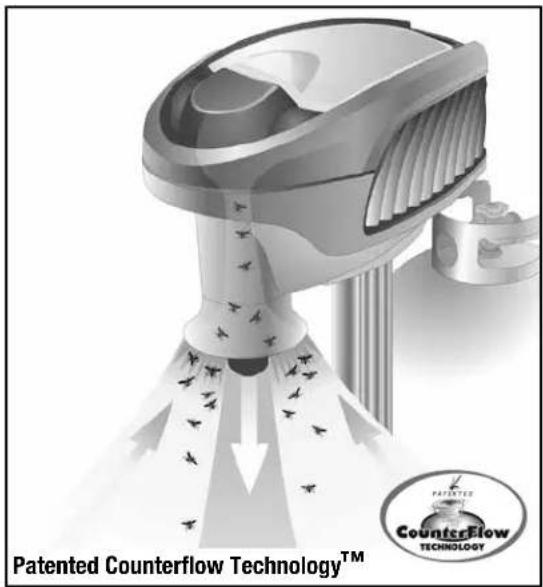

Patented Counterflow Technology™ CounterFlow TECHNOLOGY

How the Mosquito Magnet® Works

Mosquitoes and other biting insects use the attractant carbon dioxide (CO₂) to locate people. The Mosquito Magnet® mimics a human by converting propane to CO₂, with its patented catalytic conversion technology.

Attracted by the CO₂ mosquitoes and other biting insects are drawn to the Mosquito Magnet®. When they reach the trap, the insects are vacuumed into a bug bag by our patented Counterflow Technology™, where they dehydrate and die within 24 hours.

The Mosquito Magnet® is silent, odorless and runs 24/7. When properly placed in your yard, the trap begins working immediately. Noticeable results can be achieved in 7 to 10 days, to greatly reduce your biting insect population, allow 4 weeks. To increase the effectiveness of CO₂ a co-formulant can be added such as R-Octenol or Mosquito Magnet® Pod. Leave the Mosquito Magnet® out all summer long, to control the mosquito population in your yard.

Only biting insects are targeted including mosquitoes, no-see-ums, black flies and midges. Beneficial insects such as butterflies, bees or moths are not targeted.

Model No.:

Serial No.:

Type of Gas:

Manifold Pressure:

Minimum Gas Supply Pressure:

Input Rating:

Minimum Clearances:

Pioneer

Propane

100 - 110 psi

11.0 in. WC

650 Btu/Hr.

50-60cm

MOSQUITO MAGNET®

Safety Instructions

Please read and follow all safety instructions and warnings.

Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the area of the heater. Keep out of reach of children.

Clothing or other flammable materials should not be hung from the heater, or placed on or near the heater.

Note: Some or all of the following required safety instructions for propane powered devices may apply to your trap. Allow trap to cool for 5 minutes before re-starting.

Warning: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing the trap.
Caution: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of 11.0 in. Water Column. The minimum inlet gas supply pressure is 11.0 in. Water Column from regulator.

• This unit is not intended to be installed in or on recreational vehicles and/or boats.
• The gas supply must be turned off at the LP-Gas supply cylinder when this appliance is not in use.
• The installation must conform with local codes.
• To test for a gas leak, place soapy water around the connector, regulator, and gas hose assembly. If bubbles appear, there is a gas leak.
• Inspect the hose before each use of the unit. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the unit being put into operation. The replacement hose shall be that specified by the manufacturer.
• The trap is equipped with an internal spark ignition device. Failure to follow starting procedure will result in the trap not starting.
• Installation and repair should be done by a qualified service person (find service centers on www.mosquitomagnet.com). The heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and circulating air passageways of the heater be kept clean.

Safety Instructions

• Maintain adequate clearances of 50-60cm around air openings into the combustion chamber, clearances from combustible material, provisions for accessibility and for combustion and ventilating air supply. Keep the trap area clear and free from combustible materials, gasoline, and other flammable vapors and liquids. The appliance is not to be used in locations where flammable vapor or explosive dust is likely to exist.
• Do not obstruct the flow of combustion and ventilation air.
• Keep the ventilating openings of the cylinder enclosure free and clear from debris.
• Clean the trap with a water damp cloth, if necessary.
• A maximum of a 20 lb. LP-Gas cylinder shall be used.
• The LP-Gas cylinder supply system must be arranged for vapor withdrawal and the cylinder must include a collar to protect the cylinder valve.
• The trap shall be used outdoors only in a well ventilated space and shall not be used in a building, garage, or any other enclosed area.
• The LP-Gas cylinder must be disconnected and removed from the appliance, if the appliance is stored indoors.
• LP-Gas cylinders must be stored outdoors in a well-ventilated area out of reach of children.

• Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage, or any other enclosed area.

• The pressure regulator and hose assembly supplied with this appliance must be used for connection to the LP-Gas cylinder. Replacement pressure regulators and hose assemblies must be specified by the manufacturer.

• Avoid improper use of extension cords. Keep connections away from moisture and avoid damage to the cord.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.
• Do not store near heat or fire or where temperature may exceed 60°C.
• PPG Regulator and Hose Assembly Class A
• Rated Working Pressure: 2.74 kPa Outlet Pressures: 2.50 kPa to 3.5 kPa Velocity: 165 ft/min to 275 ft/min

visit www.mosquitomagnet.com

Warning: SHOCK! An electric shock hazard may exist if water from a garden hose is directed at the Mosquito Magnet ^® . Route the power cord in the safest possible manner to avoid personal injury.

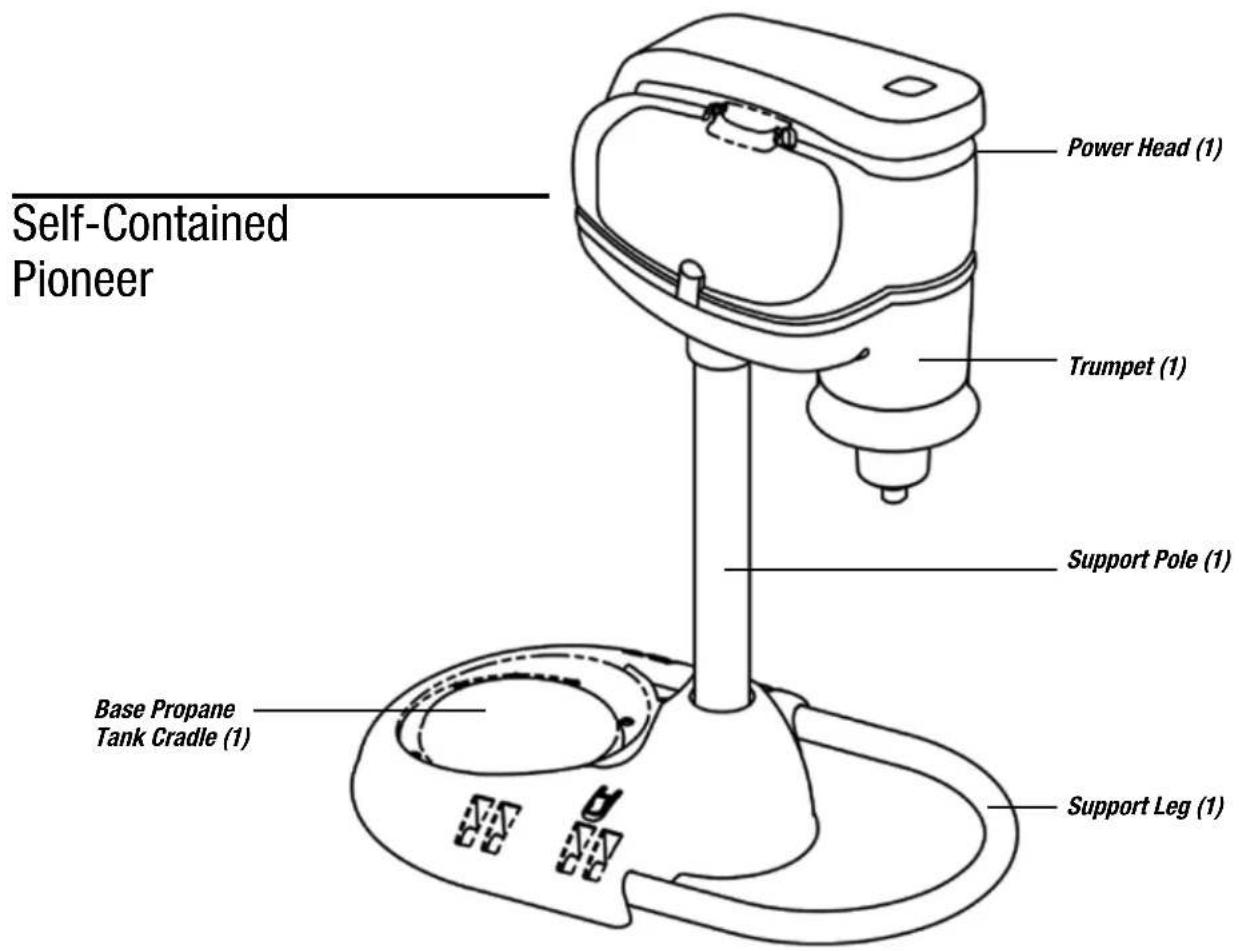

Principle Parts

Self-Contained Pioneer Power Head (1) Trumpet (1) Support Pole (1) Base Propane Tank Cradle (1) Support Leg (1)

Parts Included

Bug Bag Already Installed

Line drawing of a rectangular container with lid and side panel (no text or symbols)

10 Metal Power Cord Burying Clips

Power Cord

Simple line drawing of a coiled electrical component with a power plug and terminal block (no text or symbols)

Assembly Instructions

Step 1

Line drawing of a mechanical device with blades and shaft (no text or symbols)

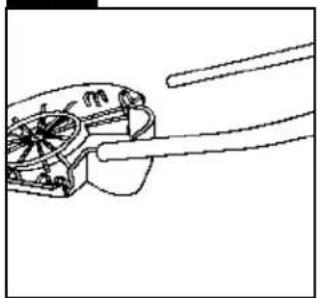

Place base upside down on a flat surface, slide U-shaped support legs into slots on base until they lock in place.

Step 2

Technical line drawing of a mechanical component with no visible text or symbols

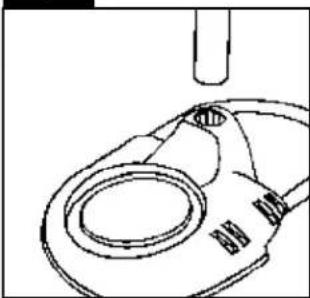

Turn base and leg assembly right-side-up and place support pole into cavity on base.

Step 3

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Place trap power head onto pole. Press down firmly with two hands to secure.

Step 4

Line drawing of a mechanical device with a cylindrical shaft and base mount (no text or symbols)

Completed assembly should have the front of power head in the same direction as base U-shaped legs.

Step 5

Line drawing of a hand holding a cylindrical object with three dots, resembling a stylized helmet or device (no text or symbols)

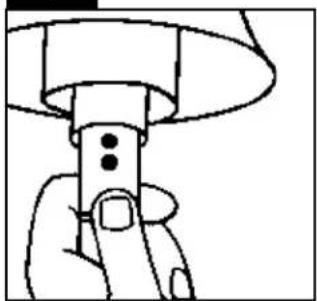

Insert co-formulant cartridge as directed in packaging.

Step 6

Line drawing of a hand operating a handheld electric drill press (no text or symbols)

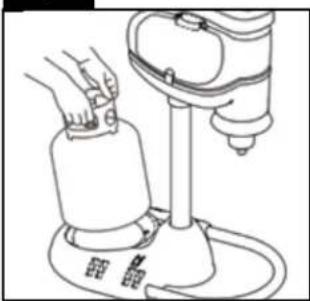

Place the base of the propane tank into the molded cradle supplied.

Step 7

Line drawing of a hand using a tool to adjust a circular component (no text or symbols)

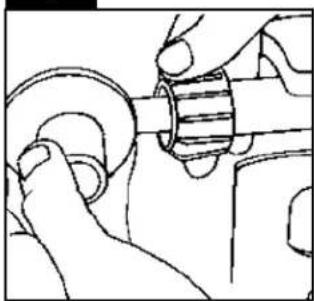

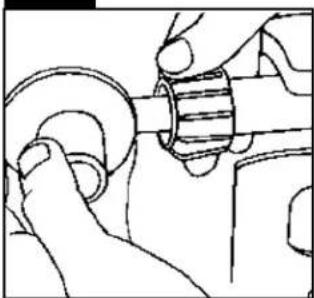

Making sure propane tank is fully closed, attach propane regulator hose to propane tank. Secure tightly by hand. Do not use tools.

Step 8

Line drawing of a hand adjusting a small component with a clip (no text or symbols)

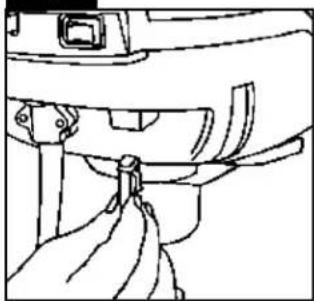

Plug power connector into the trap power slot located on the back of the power head.

Step 9

Hand inserting a socket into an electrical outlet (no text or symbols visible)

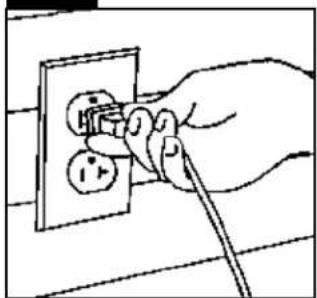

Plug Adapter into properly grounded electrical outlet.

Step 10

Line drawing of a hand adjusting a mechanical component (no text or symbols)

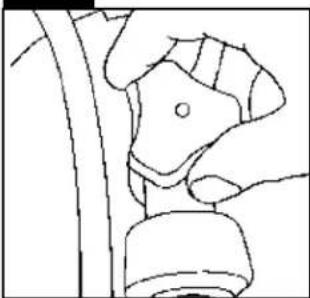

Turn propane valve on slowly. See page 11 for propane tank installation.

CAUTION

Technical line drawing of a mechanical connector assembly (no text or symbols)

DO NOT BUMP HOSE ATTACHMENT WITH PROPANE TANK. DO NOT TAMPER WITH HOSE ATTACHMENT CONNECTED TO TRAP.

MOSQUITO MAGNET®

Set-Up

Trap Placement

1. Determine the direction of the prevailing wind. Check local weather patterns if you are unsure.
2. Stand in the center of the area you are trying to protect and look toward the prevailing wind.
3. Proper placement of the trap will be approximately 10m in front of you, within 1.5 to 2m of ground cover (i.e. bushes, flowerbeds, tree line, marshbed). Ensure that trap is not directly against any blockades such as buildings, fences, etc.
4. It is recommended that the trap be placed in the shade.
5. Do not place trap directly above a water source (sprinklers, hose, etc.).
6. Trap must be placed on level ground to avoid tipping or uneven propane distribution.

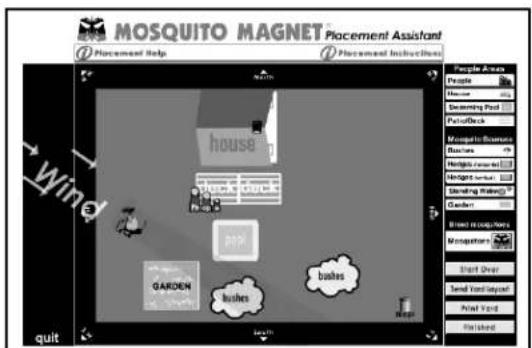

7. For optimal trap placement in your yard, refer to the instructional video at www.mosquitomagnet.com/videos to build your own yard diagram for correct trap placement.

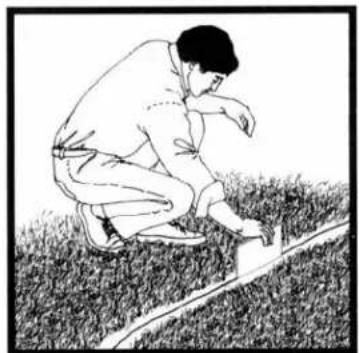

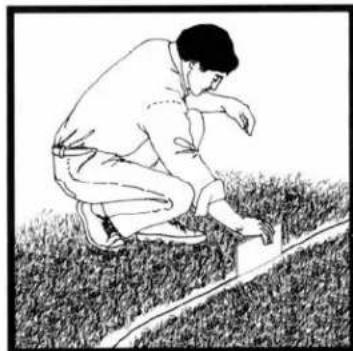

Burying the Power Cord

Make sure unit is unplugged and in proper position. Use the Cord Burying Clips supplied. Place clips approximately 1m apart, press into ground by hand making sure not to damage power cord. For alternate placement, follow steps illustrated below.

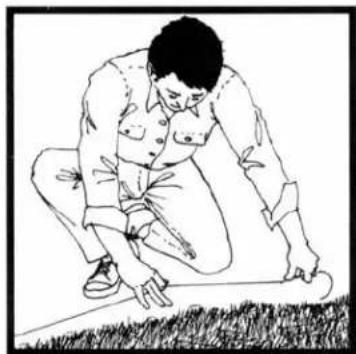

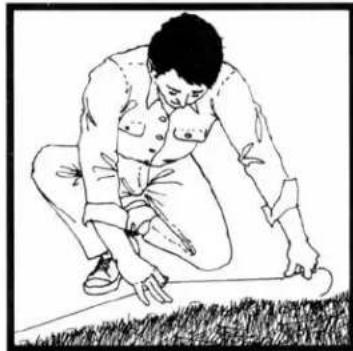

1. Use straightedge shovel or garden spade and dig a trench about 8-10cm deep from power source to trap.
2. Place cord into trench carefully stretching as you go to remove any twists in cord.
3. Use cedar shingle or folded cardboard to place cord into bottom of trench. Recover the trench with removed soil.

MOSQUITO MAGNET Placement Assistant Placement Help Placement Instructional People Area People House Screening Pool Portfolio Mogging Business Business Hedge environment Mogging Service Standing Release Garden Built in operations Mogging System Start Over Send Yard Layout Print Yard Finished house bushes bushes GARDEN quit

Black-and-white sketch of a person digging with a shovel, no text or symbols present

Line drawing of a person crouching and measuring a cylindrical object on grass (no text or symbols)

Black-and-white sketch of a person crouching on grass next to a small object, no text or symbols present

Set-Up

Propane Tank Installation

1. After trap is placed in its ideal location, place propane tank onto the molded cradle.
2. Make sure propane tank is fully closed. Attach propane regulator hose to propane tank. Secure tightly by hand. Do not use tools.
3. Turn propane on by slowly turning valve counter-clockwise. Take care not to turn too quickly to avoid engagement of safety valve.

DO NOT MOVE TRAP WITH TANK ATTACHED!

TANK MUST BE DISCONNECTED FROM REGULATOR BEFORE TRAP IS RELOCATED TO AVOID DAMAGE TO REGULATOR AND/OR TRAP. BE ADVISED, DAMAGE CAUSED FROM FAILURE TO COMPLY WITH THIS INSTRUCTION IS NOT COVERED UNDER WARRANTY.

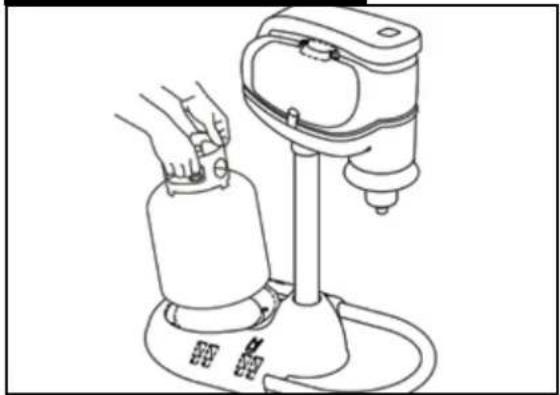

Step 1 - Propane Tank Placement

Line drawing of a hand operating a handheld electric shaver on a stand (no text or symbols)

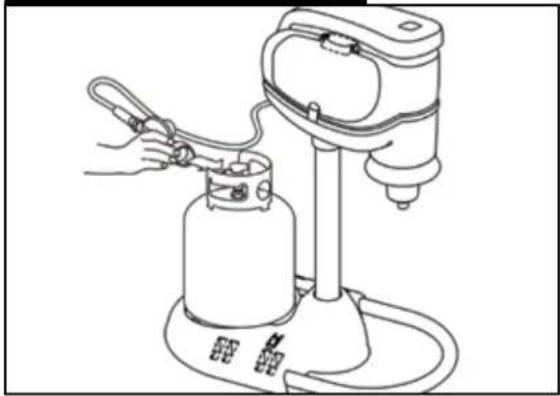

Step 2 - Attach Regulator

Line drawing of a handheld industrial device with a cylindrical tank and connecting tubing (no text or symbols)

CAUTION

Technical line drawing of a mechanical connector assembly (no text or symbols)

DO NOT BUMP HOSE ATTACHMENT WITH PROPANE TANK. DO NOT TAMPER WITH HOSE ATTACHMENT CONNECTED TO TRAP.

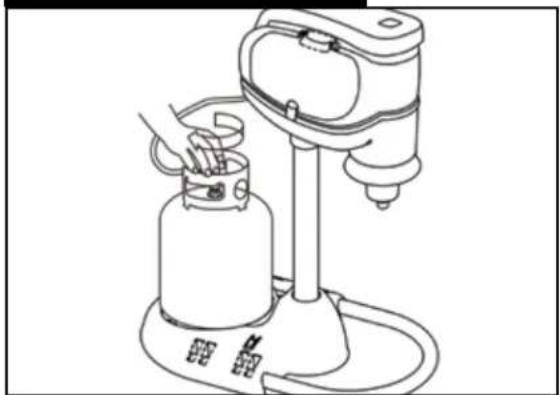

Step 3 - Slowly Open Valve

Line drawing of a portable electric stove with a gas cylinder and base mount (no text or symbols)

Instructions

\*\*READ MANUAL BEFORE STARTING\*\*

Starting Instructions

It is recommended that you read the entire manual before starting the Mosquito Magnet® trap.

1. Insert co-formulant cartridge as instructed on pack.
2. Connect regulator to propane tank (see page 11).
3. Plug power connector into the trap.
4. Plug AC adapter into electrical socket. (To avoid the risk of electrical shock, connect only to properly grounded outlets.) Adapter unit is not intended to be mounted.
5. Slowly turn propane tank valve on.
6. Turn rocker switch to "on" position.
7. The red light on the switch will flash for up to 20 minutes (warm up phase).
8. Once the light stops flashing and is solid, the Mosquito Magnet ^® is fully operational.

NOTE: Should you experience an interruption of power, be sure to restart trap.

Shut Down Instructions

To shut down the Mosquito Magnet® simply close the valve on the propane tank and switch to the "off" position.

When Not In Use

If the unit is not in use, the gas must be turned off at the supply cylinder. Storage of this unit indoors is permissible only if the cylinder is disconnected and removed. Cylinders must be stored outdoors, out of reach of children and must not be stored in a building, garage or any other enclosed area.

End of Season Storage

Push ON/OFF switch to OFF position to shut down the trap. The LED light will go out and the fan will continue running until trap is cool. Close the propane tank valve and disconnect regulator.

Any open Mosquito Magnet ^® cartridge should be removed and discarded. See co-formulant label for disposal instructions. The bug bag should also be discarded prior to storing the trap.

STORAGE: The trap should be stored indoors in a garage or shed in the off-season. Cover trumpet to prohibit insects from nesting. Cover unit with a tarp and secure tightly at the bottom to keep out dust, spider webs and other debris.

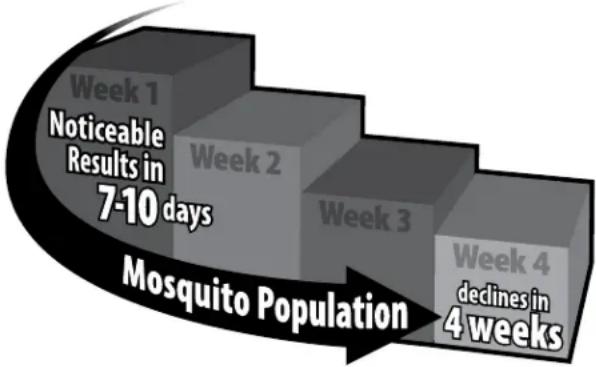

For Best Results (unit must run for 24 hours/day)

- Your trap will begin capturing immediately with significant reduction in the mosquito population in 7-10 days. Allow 4 weeks to significantly reduce the mosquito population in your yard.

• Allow trap to cool for 5 minutes before re-start.
• Never spray insecticide in or around trap.
• Trap can be left running in the rain.
• If using lime or fertilizer compounds, be sure to shut down the trap first to prevent dust or fine mist from being drawn into trap and clogging bug bag.

Warning: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

Caution: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure 11.0 in. water column.

The gas supply must be turned off at the LP-Gas supply cylinder when this appliance is not in use.

Maintenance

Maintenance

• 21 Day Maintenance Cycle
- Refill propane. (Propane lasts approximately 21 days with 24-hour/7-days operation.)
- Replace co-formulant cartridge.
See Mosquito Magnet ^® co-formulant label for instructions.
- Empty or replace bug bag.
- Periodically wipe down the outside of the trap with a clean, water damp cloth.

Propane Tank Changing Time

When attaching the regulator knob to a tank after a tank change, be sure to fully tighten the regulator knob onto the tank. No need to use tools, but do turn the knob as far as possible by hand. When this is done, loosen the knob 1/4 turn, then re-tighten to maximize seal.

The purpose for this is to fully engage the regulator onto the tank. If the regulator is not fully engaged, the flow of gas may be restricted to the point where the trap will show a gas empty code. If this occurs, press the off button, close the tank valve, and remove the regulator from the tank. Re-attach the regulator and try again.

Troubleshooting

Problem	Possible Cause Solutions
Your Mosquito Magnet® won't startAfter you start the trap, if you notice a fast blinking light on the switch, this indicates that there was a problem during start up.	Is the propane tank empty?If propane tank is new, it may have air blockage, has it been purged?If tank has been opened too quickly, security check valve may have triggered.Is the power cord plugged in?Is there a loose connection?	Weigh tank and check against “empty” weight written on tank.Bring tank to filling location. Air may be in fuel line. Ask for tank to be purged.Hint: If you have another propane powered device operating on a standard, 20 lb propane tank, try hooking that tank up to the trap to verify that the issue is with your tank.Disconnect the regulator from the tank and reconnect. Then open the regulator valve slowly.Verify all electrical connections. Make sure you are using the correct power requirements for your unit.Make sure regulator is fully engaged, and propane tank valve is fully open.
Your Mosquito Magnet® won't stay running	The tank regulator isn't fully engaged.Propane tank may be empty or need to be purged.	Make sure the regulator is fully engaged, and propane tank valve is fully open.Go through above steps 1, 2 and 3.
Low or no catch	Insects may not be out yet.Trap improperly placed.Biting insects reproductive cycles have not yet been broken.	Verify temperature is consistently above 50°F (10°C).Follow steps in the “Trap Placement” section of your owner's manual or go to www.mosquitomagnet.com “Placement” section.Keep trap in constant operation 24 hours/day, 7 days/week for 4 weeks to interrupt the breeding cycle.

If the trouble shooting tips do not resolve the problem please contact your Local Service Provider or call Customer Care on +001-800-953-5737 (USA) or [phone] (UK).

69 North Locust Street

Lititz, PA 17543

www.mosquitomagnet.com

US Patents: Nos. 5,813,166; 6,655,080; 6,662,489; 6,817,140; 6,840,005;

6,848,466; 6,892,492; 7,074,830; 7,181,885; 7,281,351; 7,293,387;

7,536,824; 7,614,180; 7,910,091; 7,987,631; 8,006,432; 8,067,469;

8,141,291; 8,347,549; 8,470,881; 8,753,110; 8,973,299; 9,949,471

Canada Patents: Nos. 2322038; 2460876; 2558775; 2569737; 266346

All Other Countries

Australia: 735984; 2002356537; 2005226680; 2005251813; 2007258277;

2008246208; 2012202864 Brazil: 9908104-0; PI0213059-9; PI0508967-0

China: ZL0281957.X; ZL20058000881.0; ZL200580025316.5;

ZL200580046646.2; ZL200780029874.8; ZL200910254151.9

Denmark: 1432304

Europe: 1049373; 1432304; 1537780; 1827093; EP1725094B; EP1765068B

Finland: 1432304; 1827093; EP1725094B

France: 1049373; 1432304; 1537780; 1765068; 1827093; EP1725094B

Germany: 1049373; 1725094; 60211538.8

Hong Kong: HK1107743; HK1112810; HK1148207 Italy: 1049373; 1432304;

1537780; 1725094; 1765068; 1827093

Japan: 4317748; 4741578; 5444525

Mexico: 314022

New Zealand: 506403; 542745

Portugal: 1765068

Sweden: 1432304; 1537780; 1765068; 1827093; EP1725094B

United Kingdom: 1049373; 1432304; 1537780; 1725094; 1765068; 1827093

Fabricado en China

PARA SU SEGURIDAD:

69 North Locust Street

Lititz, PA 17543

Estados Unidos

http://www.mosquitomagnet.com/store_locator/International/

Visite www.mosquitomagnet.com

Line drawing of a rectangular container with lid and side panel (no text or symbols)

Simple line drawing of a U-shaped cable (no text or symbols)

Cable eléctrico

Line drawing of a small electrical component with coiled wires and a power plug (no text or symbols)

Pure mechanical diagram showing a component with gears and shafts, no text or symbols present

Line drawing of a mechanical device with a cylindrical component and a shaft (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Line drawing of a mechanical device with a cylindrical shaft and base mount (no text or symbols)

Line drawing of a hand holding a cylindrical object with three dots, resembling a stylus or mechanical component (no text or symbols)

Line drawing of a hand operating a handheld electric drill press on a base (no text or symbols)

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols present)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Hand inserting a socket into an electrical outlet (no text or symbols visible)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

MOSQUITO MAGNET Placement Assistant Placement Help Placement Instructions People Area People House Screening Pool Portside Magnetic Business Business Hedge screen Hedge screen Garden Sheet spring/week Monogations Start Over Send Yard Layout! Print Yard Finished house garden bushes bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes Bushes

Black-and-white sketch of a person digging with a shovel, no text or symbols present

Line drawing of a person kneeling and measuring a cylindrical object on grass (no text or symbols)

Black-and-white sketch of a person crouching on grass next to a small structure (no text or symbols)

Instalación

Line drawing of a hand operating a handheld electric drill press on a stand (no text or symbols)

Line drawing of a handheld electric shaver with attached circuit board (no text or symbols)

Line drawing of a handheld electric shaver with attached circuit board (no text or symbols)

Instrucciones

** LEA EL MANUAL ANTES DE ENC ENDER EL APARATO **

69 North Locust Street

Lititz, PA 17543

E.U.A

www.mosquitomagnet.com

US Patents: Nos. 5,813,166; 6,655,080; 6,662,489; 6,817,140; 6,840,005;

6,848,466; 6,892,492; 7,074,830; 7,181,885; 7,281,351; 7,293,387;

7,536,824; 7,614,180; 7,910,091; 7,987,631; 8,006,432; 8,067,469;

8,141,291; 8,347,549; 8,470,881; 8,753,110; 8,973,299; 9,949,471

Canada Patents: Nos. 2322038; 2460876; 2558775; 2569737; 266346

All Other Countries

Australia: 735984; 2002356537; 2005226680; 2005251813; 2007258277;

2008246208; 2012202864 Brazil: 9908104-0; PI0213059-9; PI0508967-0

China: ZL0281957.X; ZL20058000881.0; ZL200580025316.5;

ZL200580046646.2; ZL200780029874.8; ZL200910254151.9

Denmark: 1432304

Europe: 1049373; 1432304; 1537780; 1827093; EP1725094B; EP1765068B

Finland: 1432304; 1827093; EP1725094B

France: 1049373; 1432304; 1537780; 1765068; 1827093; EP1725094B

Germany: 1049373; 1725094; 60211538.8

Hong Kong: HK1107743; HK1112810; HK1148207 Italy: 1049373; 1432304;

1537780; 1725094; 1765068; 1827093

Japan: 4317748; 4741578; 5444525

Mexico: 314022

New Zealand: 506403; 542745

Portugal: 1765068

Sweden: 1432304; 1537780; 1765068; 1827093; EP1725094B

United Kingdom: 1049373; 1432304; 1537780; 1725094; 1765068; 1827093

Fabricado na China

PARA A SUA SEGURANÇA

69 North Locust Street

Lititz, PA 17543

E.U.A

http://www.mosquitomagnet.com/store_locator/International/

Visite o site www.mosquitomagnet.com

Line drawing of a rectangular container with lid and side panel (no text or symbols)

Simple line drawing of a U-shaped object with two parallel ends (no text or symbols)

Cabo de alimentação

Illustration of a coiled electrical component with a power plug and terminal block (no text or symbols)

MOSQUITO MAGNET®

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Line drawing of a mechanical device with a cylindrical shaft and base, no text or symbols present

Line drawing of a hand holding a cylindrical object with three dots, resembling a stylus or mechanical component (no text or symbols)

Line drawing of a hand operating a drill press on a base (no text or symbols)

Coloque a base da botija de gás no suporte moldado fornecido.

Passo 7

Line drawing of a hand holding a mechanical component with a ring and shaft (no text or symbols)

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

MOSQUITO MAGNET Placement Assistant Placement Help Placement Instructional People Area People House Desmencing Pool PlaceBlock Mosquito Scenicities Babies Hedge screenset Hedge iconset Standing Window Garden Blind to coupbers Mosquitoes Smart Over Send Yard Layout Print Yard Finished house bushes bushes GARDEN bushes quit

Illustration of a person digging with a shovel, no text or symbols present

Line drawing of a person crouching and measuring a cylindrical object on grass (no text or symbols)

Black-and-white sketch of a person crouching on grass next to a small object, no text or symbols present

Instalação

Diagram of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

6. 6.1 6.2 6.3

69 North Locust Street

Lititz, PA 17543

États-Unis

www.mosquitomagnet.com

US Patents: Nos. 5,813,166; 6,655,080; 6,662,489; 6,817,140; 6,840,005;

6,848,466; 6,892,492; 7,074,830; 7,181,885; 7,281,351; 7,293,387;

7,536,824; 7,614,180; 7,910,091; 7,987,631; 8,006,432; 8,067,469;

8,141,291; 8,347,549; 8,470,881; 8,753,110; 8,973,299; 9,949,471

Canada Patents: Nos. 2322038; 2460876; 2558775; 2569737; 266346

All Other Countries

Australia: 735984; 2002356537; 2005226680; 2005251813; 2007258277;

2008246208; 2012202864 Brazil: 9908104-0; PI0213059-9; PI0508967-0

China: ZL0281957.X; ZL20058000881.0; ZL200580025316.5;

ZL200580046646.2; ZL200780029874.8; ZL200910254151.9

Denmark: 1432304

Europe: 1049373; 1432304; 1537780; 1827093; EP1725094B; EP1765068B

Finland: 1432304; 1827093; EP1725094B

France: 1049373; 1432304; 1537780; 1765068; 1827093; EP1725094B

Germany: 1049373; 1725094; 60211538.8

Hong Kong: HK1107743; HK1112810; HK1148207 Italy: 1049373; 1432304;

1537780; 1725094; 1765068; 1827093

Japan: 4317748; 4741578; 5444525

Mexico: 314022

New Zealand: 506403; 542745

Portugal: 1765068

Sweden: 1432304; 1537780; 1765068; 1827093; EP1725094B

United Kingdom: 1049373; 1432304; 1537780; 1725094; 1765068; 1827093

Fabriqué en Chine

POUR VOTRE SÉCURITÉ

69 North Locust Street

Lititz, PA 17543

États-Unis

http://www.mosquitomagnet.com/store_locator/International/

Line drawing of a rectangular container with lid and side panel (no text or symbols)

Simple line drawing of a U-shaped object with two parallel ends (no text or symbols)

Cordon électrique

Simple line drawing of an electrical component with coiled wires and a power plug (no text or symbols)

MOSQUITO MAGNET®

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Line drawing of a mechanical device with a cylindrical base and mounting bracket (no text or symbols)

Line drawing of a hand holding a mechanical component with no visible text or symbols

Line drawing of a hand operating a handheld industrial machine with control panel (no text or symbols)

Line drawing of a hand holding a mechanical component with a ring and shaft (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Line drawing of a hand holding a small mechanical component (no text or symbols)

Technical line drawing of a mechanical connector assembly (no text or symbols)

NE PAS CHOQUER LA FIXATION DU TUYAU AVEC LE RÉSERVOIR DE PROPANE. NE PAS TRAVAILLER AVEC L'ACCESSOIRE DE TUYAU CONNECTÉ AU SIPHON.

MOSQUITO MAGNET®

Installation

Pose du piège

MOSQUITO MAGNET Placement Help Placement Instructions People Area People House Building Pool Placehouse Mounting Roomers Bottles Hedges roomers Mounting Roomers Building Roomers Garden Sheet arrangement Mosquitoes Draft Over Send Yard Layout! Print Back Finished house bushes winds GARDEN bushes quit

Black-and-white sketch of a person digging with a shovel, no text or symbols present

Line drawing of a person kneeling and measuring a cylindrical object on grass (no text or symbols)

Illustration of a person crouching on grass next to a small structure (no text or symbols)

Installation

Technical line drawing of a mechanical connector assembly (no text or symbols)

Line drawing of a hand operating a spray gun on a stand (no text or symbols)

Line drawing of a handheld industrial device with a cylindrical tank and connecting rod (no text or symbols)

Line drawing of a hand operating a small electric shaver on a stand (no text or symbols)

\*\*LIRE LE MANUEL AVANT DE COMMENCER\*\*
