USER MANUAL PowerDetect IP1251EUT SHARK

PowerDetect Cordless Vacuum

IP1000 Series

OWNER'S GUIDE

Trådløs-støvsuger BRUGERVEJLEDNING

Cordless Vacuum OWNER'S GUIDE

Exterior view of a Shark PowerDetect vacuum cleaner (no text or symbols on body)

TAK

T∅MNING (IP1000-SERIEN)

Diagram showing a circular device with a plus button and an arrow pointing to its side, alongside a rounded rectangular object with a handle (no text or symbols)

Technical line drawing of a handgun component with an inset showing a close-up view of the handle (no text or symbols present)

FJERNELSE AF BATTERIET

Diagram of a mechanical component being inserted into a rectangular housing, with no visible text or symbols.

OPLADNINGSENHED

Technical diagram showing a mechanical component with an arrow indicating a specific feature or detail.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

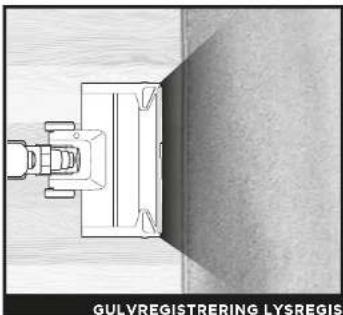

Støvsugerens mundstykke registrerer kanter og hjørner og maksimerer sugning og kraft for at fjerne genstridigt snavs.

Technical line drawing of a mechanical assembly with a bracket and mounting bracket, no visible text or symbols

Technical line drawing of a mechanical component with a circular arrow indicating a specific feature (no text or symbols present)

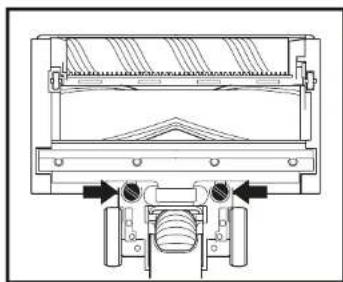

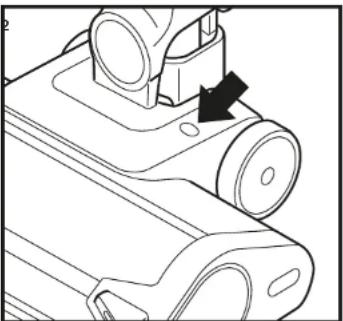

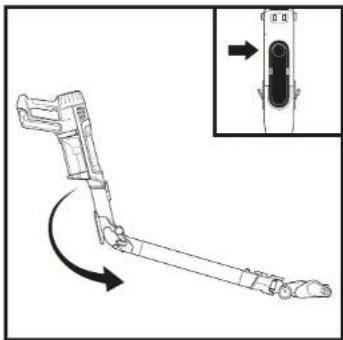

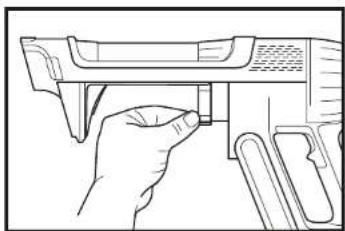

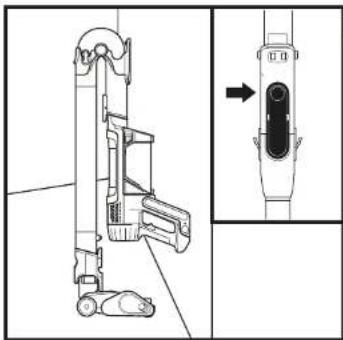

FLEXOLOGY OPBEVARING

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols)

OVER GULV MED HÅNDST∅VSUGER

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

OVER GULV MED SKAFT

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

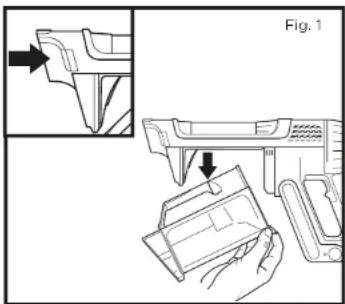

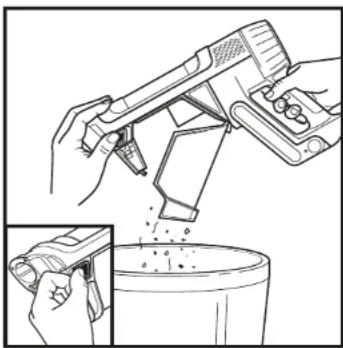

1. Tryk på udløserknappen til støvbeholderen og fjern støvopsamleren for at få adgang til filteret.

Line drawing of a hand holding a device with a handle, no text or symbols present

Technical line drawing of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

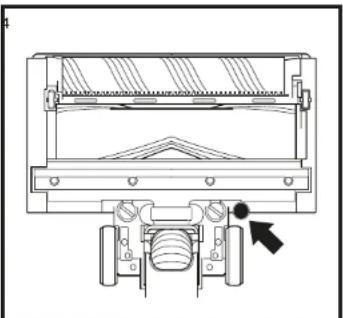

FJERNELSE AF DEN BL∅DE RULLE FJERNE

Technical line drawing of a mechanical assembly with no visible text or symbols

AF SKRABER

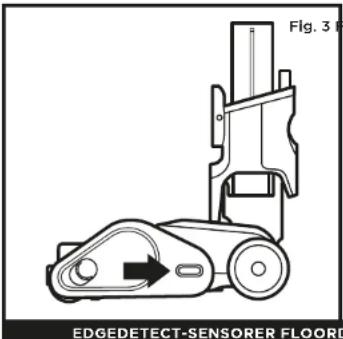

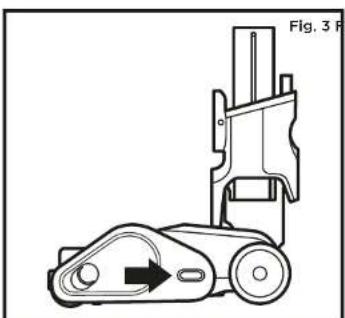

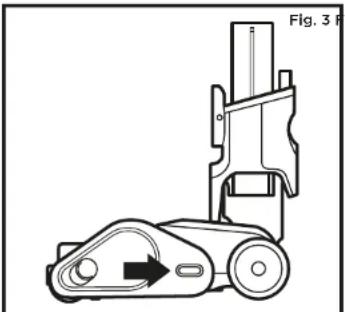

Fig. 3 EDGDETECT-SENSOR FLOOR

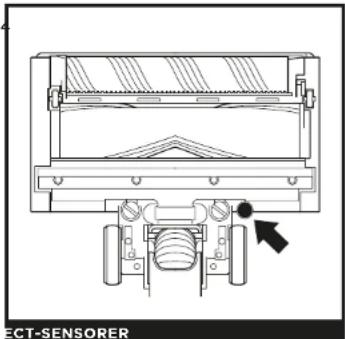

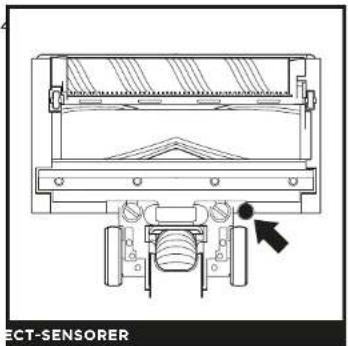

ECT-SENSORER

VEDLIGEHOLDELSE AF ST∅VSUGEREN

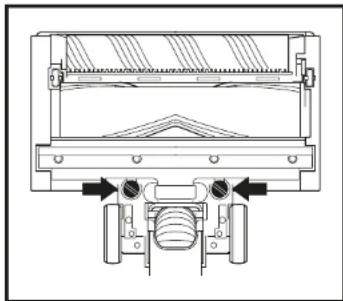

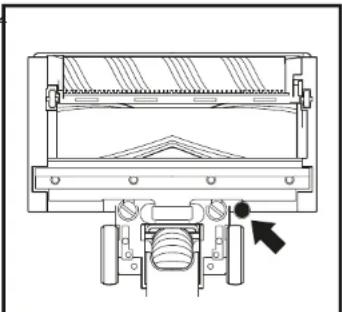

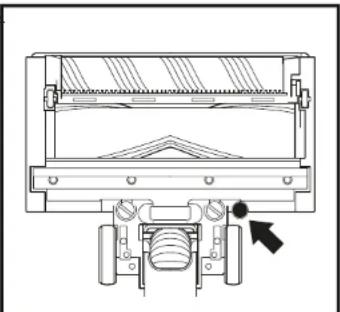

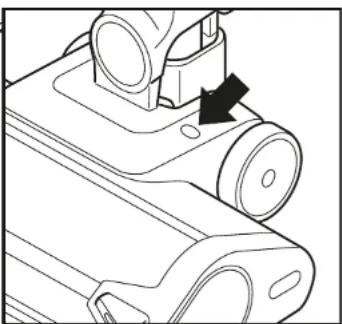

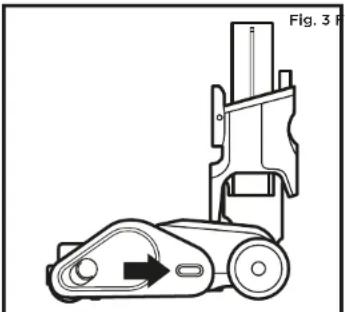

KONTROL AF BLOKERINGER I ST∅VSUGEREN

Line drawing of a mechanical device with a lever and lever assembly (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Kontrollér for blokeringer i skaftet:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a circular device with control knob and directional arrow, alongside a rounded rectangular device with a handle (no text or symbols)

Technical line drawing of a handgun mechanism with an inset showing a close-up of the handle (no text or symbols present)

AKKUENTNAHME

Technical diagram showing a mechanical component being inserted into a rectangular housing (no text or symbols present)

LADEHÜLSE

Circular device control panel with icons and an arrow pointing to the button (no text or symbols)

POWER MODUSAUSWAH

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction or force.

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Diagram of a floor detector with light detection, showing components and wiring (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

ÜBERFLUR MIT HANDSTAUBSAUGER

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

ÜBERFLUR MIT SAUGROHR

Illustration of a hand using a spray gun to spray particles into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

Technical diagram of a mechanical assembly with no visible text or symbols

HME DES ABSTREIFGUMMIS

Abb. 3 A EDGDETECT-SENSOR FLOOR

4 ECT-SENSORER

Line drawing of a mechanical device with a suspended arm and lever (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly or clamp device (no text or symbols visible)

for purchasing the Shark Power Detect Cordless Vacuum.

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

TIP: You can locate the date code on one of the prongs of the power cord plug.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.eu

Scan QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
- Access troubleshooting and product care instructions
- Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number: ____

Date Code: ____

Date of Purchase (Keep Receipt): ____

Store of Purchase: ____

TECHNICAL SPECIFICATIONS

Voltage: 21.6V

Body Motor Watts: 380W

Nozzle Watts: 120W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Power Detect Cordless Vacuum.

If you have any questions, please contact customer service at sharkclean.eu

CONTENTS

Product Registration....2

Important Safety Instructions....4

Assembling your Shark Power Detect Vacuum Cleaner 6

Charging Your LI-ION Battery 7

Using Your Vacuum 9

Controls And Cleaning Modes 9

Detect Technology Explained....10

Flexology and Storage 11

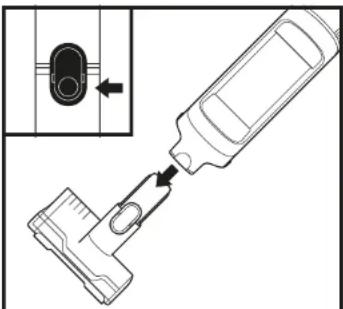

Above-Floor Cleaning....11

Maintaining your Vacuum Cleaner 12

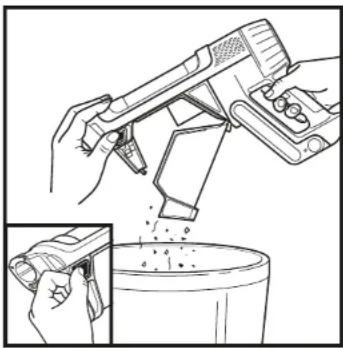

Emptying the Handheld Vacuum Dust Cup 12

Cleaning Dust Cup....12

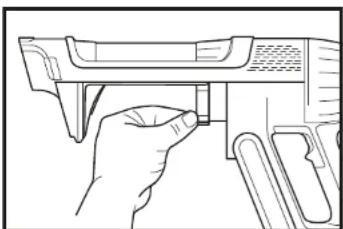

Filter Cleaning 13

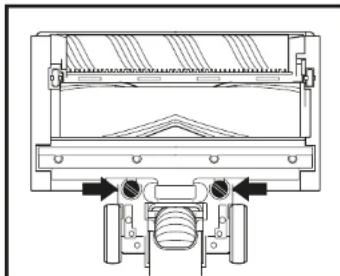

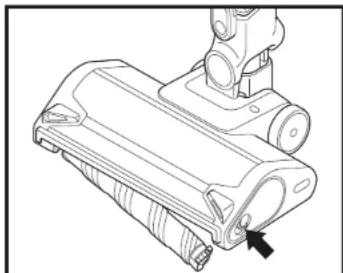

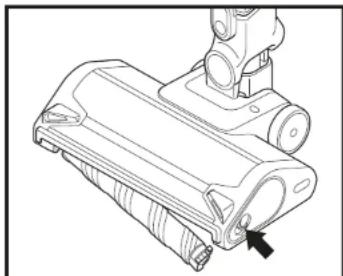

Nozzle Maintenance 14

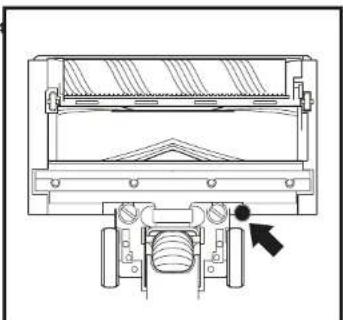

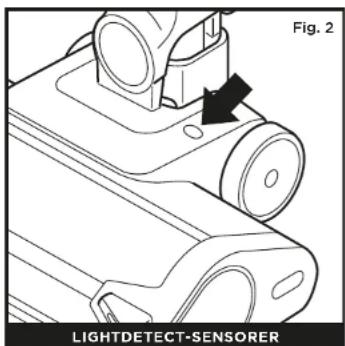

Cleaning The Sensors....15

Checking For Blockages In The Vacuum 16

Troubleshooting 17

Additional Accessories Available 18

Manufacturer's Guarantee 19

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

1. This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3. Use only identical replacement parts.
4. This vacuum contains no serviceable parts.
5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
6. With the exception of the filters and dust cup, DO NOT expose any parts of the vacuum to water or other liquids
   7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be done by children.
9 Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.
10 DO NOT handle plug or vacuum with wet hands.
11 DO NOT use without dust cup, filters, and crush-roll in place.
12 Only use Shark branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the guarantee.

13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, Int, hair, and anything that may reduce airflow.
14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.
15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
17 Use extra care when cleaning on stairs.
18 DO NOT leave the vacuum unattended while powered on,
19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.
20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spanning brush-rolls do not damage or unpick carpet fibres.
21 DO NOT use to pick up:
a) Liquids
b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (including drywall, f replace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid petrol or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

22 DO NOT use in the following areas:

a) Wet or damp surfaces
b) Outdoor areas
c) Soaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

23 Turn off the vacuum before plugging in or unplugging the charger.
24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.
25 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.
26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.
DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
28 Turn off all controls before unplugging.
29 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool.
30 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

BATTERY PACK

1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
2. To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum, DO NOT carry the appliance with your finger on the power switch.
3. For IP1000 use only with DK30A-263100H-V or YLJX21-F263100 charger.
4. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery termina s increases the risk of fire or burns.
5. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
6. Battery should not be stored at temperatures below 3°C (37.4°F) or above 40°C (104°F) to maintain long-term battery life.

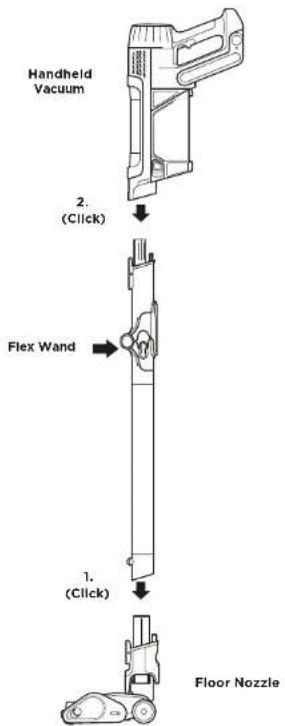

ASSEMBLY (IP1000 SERIES)

1. Slide the Wand onto the neck of the Floor Nozzle until it clicks into place.
2. Align the Hand Vacuum nozzle opening with the top of the wand and slide it on until it clicks into place.

For proper operation, ensure all components are completely connected and clicked into place.

CHARGING YOUR LI-ION BATTERY

Prior to first use, charge the battery completely. A full charge takes approximately 6 hours.

RUNTIMES PER FULLY CHARGED BATTERY

With a full charge, the unit will have up to a 70-minute runtime. Visit sharkclean.eu online for more information.

LED BATTERY POWER AND CHARGING INDICATORS

Diagram showing a device with a circular button and an arrow pointing to it, alongside a simplified view of a device with a handle (no text or symbols present)

NOTE: Battery consumption will vary depending on the mode being used:

ECO - Maximum Runtime, saves battery power

AUTO - Optimises suction and power for maximum cleaning

BOOST - Maximises suction. Uses the most better power

Charging

LED on the battery pack will pulse yellow when reaching 0-75% charge.

LED on the battery pack will pulse green from 75% - 100% charge.

White LED the battery pack is fully charged.

NOTE: Full charge takes approximately 6 hours.

Additional Notes

1. LEDs turn off once the battery is fully charged.
2. Unit will not power on when charger is connected.

In Use

Full Charge

Mid Charge

Low Charge

No Charge

RECYCLING THE LI-ION BATTERY

When the Shark Li-ion battery needs to be replaced, dispose of it or recycle it in accordance with local ordinances or regulations. In some areas, it is illegal to place spent lithium-ion batteries in the standard rubbish bin. Return spent batteries to an authorised recycling centre or to the retailer for recycling. Contact your local recycling centre for information on where to drop off the spent battery.

NOTE: The Shark battery, like all lithium-ion batteries, will naturally decrease in capacity over time from the 100% capacity of a new battery.

CHARGING YOUR LI-ION BATTERY

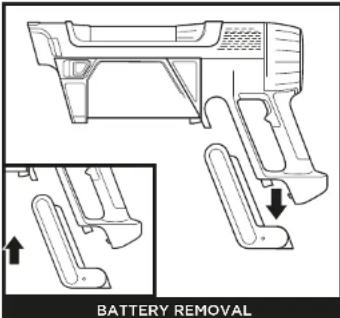

BATTERY REMOVAL

To remove the battery from the vacuum, press the release button on the battery and slide out of the handle compartment. To reinstall, slide the Battery back into the compartment until it clicks into place.

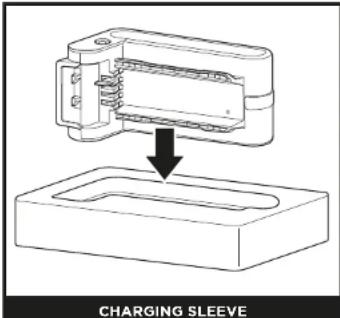

CHARGING SLEEVE

To charge the battery, remove it from the vacuum and insert into the charging sleeve. Once the battery is showing as fully charged reinsert into the handle compartment on the vacuum (see charging indicators on previous page)

USING YOUR VACUUM
CONTROLS AND CLEANING MODES

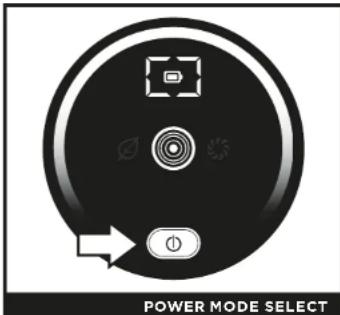

POWER MODE SELECT

Press the ⏻ button on the UI Screen to turn on power. To turn off power, press the button again.

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

To toggle between ECO, DETECT, and BOOST modes, press the mode selection trigger on the handle (shown above). In DETECT mode, Detect Technology automatically adjusts vacuum and nozzle power to maximise cleaning performance and optimise runtime.

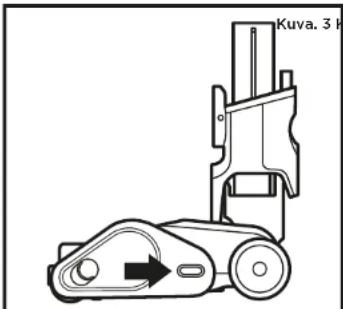

UPRIGHT LOCK

To begin cleaning with the floor nozzle, disengage the lock by stepping on the nozzle and tilting the hand vac down.

NOTE: The main unit comes with a partial charge. For maximum runtime, charge fully before first use (approximately 6 hours). Leaving the unit plugged in will not damage battery life.

NOTE: For - Best Cleaning on ASTM and IEC Cleaning Tests, Use Boost Mode.

USING YOUR VACUUM

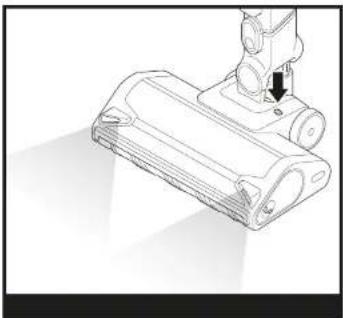

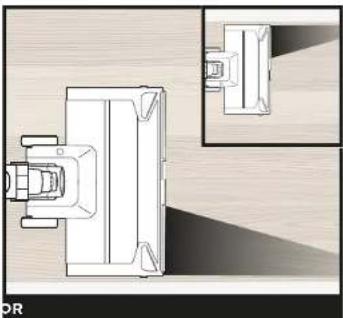

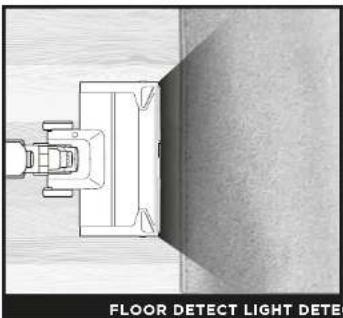

DETECT TECHNOLOGY EXPLAINED

NOTE: Detect Technology is ONLY operational in Detect Mode and is activated automatically when the unit is in use.

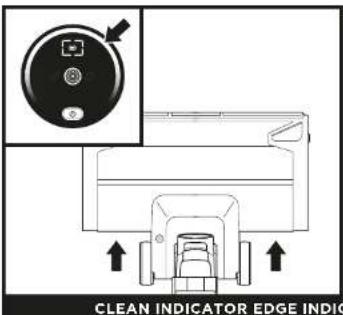

CLEAN INDICATOR EDGE INDIC

Vacuum identifies dirtier areas and automatically boosts suction power to pull in hidden dirt.

White LED = No heavy debris detected, low suction Pink LED = Debris is being cleaned, medium suction

Purple LED = Heavy debris detected, high suction

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Vacuum floor nozzle detects edges and corners and maximises suction and power to remove stubborn dirt.

Top-down view of a floor detector with light detection, showing no text or symbols on the device itself.

Brushroll and vacuum responds to surface changes and automatically adjusts to optimise your clean.

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Senses low-light situations and automatically illuminates dark areas to help you spot debris.

USING YOUR VACUUM

FLEXOLOGY STORAGE

Mechanical linkage diagram showing a lever mechanism with rotation arrows and an inset view of a cylindrical component (no text or symbols)

Flexology allows you to flex the wand to reach under furniture and clean debris in hard-to-reach areas.

To engage the Flexology feature, press the unlock button on the back of your Flex Wand.

For straight wand cleaning, return the wand to its original angle. You will hear a click when it is securely back in place.

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

To put the vacuum into storage mode, press the Flexology wand unlock button while folding the handheld vacuum forward until it is resting against the wand.

To release vacuum from storage mode, unfold the vacuum until the wand straightens and clicks securely back in place.

USING YOUR VACUUM

ABOVE-FLOOR CLEANING

Technical line drawing of a mechanical component with an inset showing a close-up of a cylindrical component (no text or symbols)

ABOVE-FLOOR WITH HAND VACUUM

Detach the hand vacuum to clean above-floor areas. Press the front latch release button on the hand vac where it meets the wand, then lift off the hand vacuum. To attach an accessory to the hand vacuum, slide it into the opening in the nozzle. To remove, press the front latch release button on the hand vac where it meets the wand, and slide out the accessory.

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

ABOVE-FLOOR WITH WAND

To detach the floor nozzle from the wand, step on the nozzle while pressing the nozzle release button at the bottom of the wand. Lift the wand to remove it. To reattach the wand, align it over the neck of the floor nozzle, then slide it on until it clicks into place.

MAINTAINING YOUR VACUUM

EMPTYING THE HANDHELD VACUUM DUST CUP (IP1000 SERIES)

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

To empty the handheld vacuum dust cup, turn off the power and hold the vacuum directly over the rubbish bin. Press the release button and the dust cup lid will drop open, releasing debris.

CLEANING THE VACUUM DUST CUP

Fig. 1

1. To access the dust cup on your IP1000 or IP3000 hand vacuum, engage the dust cup removal button and pull downward disengage from the hand vacuum (Fig. 1).

MAINTAINING YOUR VACUUM

CLEANING THE VACUUM ANTI-ALLERGEN FILTER

NOTE: For best results, clean your filters at least once a month and replace the filters regularly. To clean filters, clear loose debris and rinse with cold water ONLY to prevent damage from cleaning chemicals. Allow all filters to dry fully before reinstalling to prevent liquid from being drawn into electrical parts.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. To access filter, press the dust cup release button and remove the dust cup.

Line drawing of a hand holding a firearm component (no text or symbols)

1. Pull the release tab to remove the filter for the vacuum.
2. After cleaning, slide the filter back into the vacuum.

MAINTAINING YOUR VACUUM

NOZZLE MAINTENANCE

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

REMOVING SOFT ROLLER REMOVING

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

EEGUEE

1. Turn off the vacuum.

2. Press the nozzle release button to detach the nozzle from the wand.

3. Press the soft roller release button and slide the soft roller out of the nozzle.

4. Clear any blockages and remove any debris from the soft roller and floor nozzle.

5. Tap off loose debris and wipe the soft roller clean with a dry towel. Hand wash the soft roller if needed, using only water, and then let it air dry completely before reinstalling.

6. When the soft roller is completely dry, reinstall it into the nozzle by inserting it into the nozzle until it clicks.

7. Turn off the vacuum.

8. Press the nozzle release button to detach the nozzle from the wand.

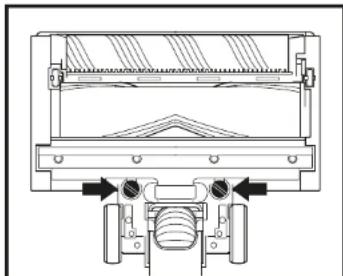

9. Remove rear squeegee by turning screws.

10. Clear our any blockages and debris from behind the squeegee.

11. Reinstall squeegee and turn screws until they lock into place.

MAINTAINING YOUR VACUUM

CLEANING THE SENSORS

Make sure to clean the Detect sensors regularly, as hair and other debris may build up and obstruct them. If the sensors are partially obstructed, Clean Sense Detect mode will not function as expected.

To clean the sensors:

1. Turn off power and remove the floor nozzle.

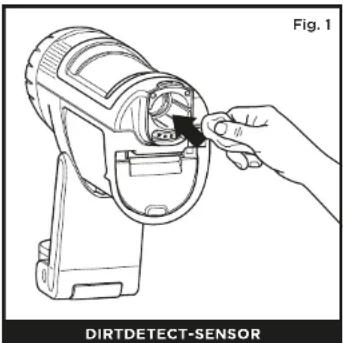

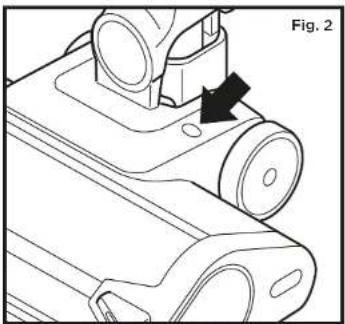

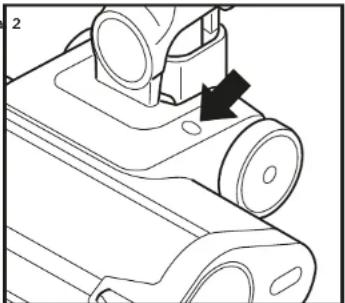

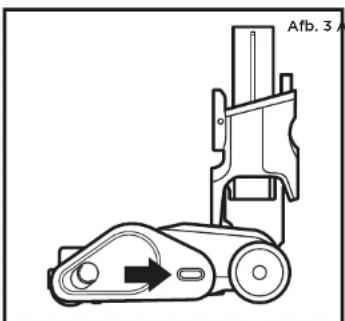

2. Locate the Dirt Detect Sensor (Fig. 1), the Light Detect Sensor on (Fig. 2), the Edge Detect sensor (Fig. 3) and the Floor Detect Sensor (Fig. 4).
3. Gently wipe the sensors with a microfibre cloth and remove all hair and debris.
4. Reattach the floor nozzle to the rest of the unit and turn on power. Verify that the unit is functioning normally.

Fig. 1 DIRTDETECT-SENSOR

Fig. 2 LIGHTDETECT-SENSORER

Fig. 3 EDGDETECT-SENSOR FLOOR

ECT-SENSORER

MAINTAINING YOUR VACUUM

CHECKING FOR BLOCKAGES IN THE VACUUM

If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brushroll.

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Checking for Blockages in the Hand Vacuum:

1. Turn off the vacuum.
2. Remove the handi vacuum from the wand.
3. Check all intake openings to the dust cup and remove any debris or blockages.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Checking for Blockages In the Wand:

1. Turn off the vacuum.
2. Detach the hand vacuum and floor nozzle from the wand.
3. Check both ends of the wand for blockages and debris.
4. Clear away any debris or blockages.

Technical line drawing of a mechanical assembly with no visible text or symbols

Checking for Blockages in the Floor Nozzle:

1. Turn off the vacuum.
2. Detachthewand from the floor nozzle.
3. Press the soft roller release button and slide the brushroll out of the nozzle.
4. Clear any blockages and release any debris from the brushroll and floor nozzle.
5. Slide the soft roller back into the nozzle, ensuring everything is lined up and in place.

MAINTAINING YOUR VACUUM

TROUBLESHOOTING

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the battery before servicing.

Vacuum is not picking up debris. No suction or light suction. Third indicator light on hand vacuum is solid yellow.

(Refer to Checking for Blockages section for more information.)

1. Dust cup may be full; empty dust cup.
2. Check floor nozzle for blockages; clear blockages if required.
3. Remove any string, carpet fibers, or hair that may be wrapped around the brushroll.
4. Check connection between hand vacuum and wand for blockages; clear blockages if required.
5. Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinstalling them.

Vacuum lifts area rugs.

1. Make sure you are not engaging Boost mode. Take care when vacuuming area rugs or rugs with delicately sewn edges.
2. Turn off the unit to disengage from the carpet, then restart.

The brushroll in the floor nozzle doesn't spin.

1. Immediately turn off the vacuum. Remove any blockages before turning the vacuum back on. Make sure the hand vacuum is tilted back far enough for the brushroll to engage while in use.
2. If the floor nozzle has headlights and they are not illuminated, there is a connection issue between the hand vacuum, wand, and nozzle. Try detaching the parts, then reconnecting them.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps: 1. Turn on the vacuum and check the battery indicator lights on the hand vacuum. If recharging is needed, make sure vacuum power is off placing it on the charging dock.

1. Empty dust cup and clean filters (See the Cleaning the Dust Cup and Filter section).
2. Check wand, accessories, and inlet openings and remove any blockages.
3. Allow unit and battery to cool for at least 45 minutes, until they return to room temperature.
4. Press the On/Off switch to restart the vacuum.

Malfunction Component Error Icons phase 1 Error icons phase 2 LED Icons

Nozzle Ceg or Stating Nozzle	LED Ring Is -ring Purple	No LEDs		LED Ring
Motor Failure during start ju	-Hand Vacuum	Eco, Reset LEDs on	↔	Eco, Detect LEDs on
Over Temperature Protection	-Hand Vacuum	Eco, Detect, Boost LEDs on	↔	Boost, Detect LEDs on
Over Current protection	-Hand Vacuum	Eco, Detect, Boost LEDs on	↔	No LEDs
Short Protection	-Hand Vacuum	Eco, Detect, LEDs on	↔	No LEDs
OverSpeed Protection	-Hand Vacuum	Detect LEDs on	↔	Eco, Boost LEDs on
Communication failure	-Hand Vacuum	Eco, Detect LEDs on	↔	Detect, Boost LEDs on
Over Temperature Protection	Nozzle	Eco, Reset LEDs	↔	No LEDs
Short Protection	Nozzle	Detect, Boost LEDs on	↔	No LEDs
Debris Detection Failure	-Hand Vacuum	FO LEDs & LLD Ring on	↔	No LEDs
Edge Detect Error	Nozzle	FO LED on, LED Ring on & Headlight LEDs	↔	No LEDs

NOTE: If vacuum still does not operate properly, contact Customer Service

ADDITIONAL ACCESSORIES AVAILABLE

A Crevice Tool
B Duster Crevice Tool
© Flexible Crevice Tool
© Anti-Allergen Brush
E Multi-Surface Tool
Motorised Hand Tool
© Wide Upholstery Tool
H Car Detail Kit
① Replacement Battery
J Hand Vacuum Pre-Motor Filter
K Hand Vacuum Post-Motor Anti-Allergen Filter
Battery Charging Sleeve

G

H

A

1

B

J

C

K

D

E

L

F

NOTE: Not all accessories come with all units. Please see the Quick Start Guide on the packaging box for your unit's configuration. To order additional accessories, visit sharkclean.eu.

Shark NINJA

FIVE (5) YEAR LIMITED WARRANTY

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark* we are so confident about the quality of our products that we give the original product owner an additional manufacturer's guarantee of up to five years (2 year standard plus 3 on registration). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee below)

Shark ^® Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark® machine comes with a free parts and labour guarantee. You'll find online support at

www.sharkclean.eu

How do I register my extended Shark® guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

To register online, please visit www.sharkclean.eu/register-guarantee. Products purchased directly from Shark ^® are automatically registered.

IMPORTANT

- Both the 2 years and the extended 3 years guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark® vacuum and hear the latest news about new Shark® technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark ^1 vacuum cleaner is guaranteed for a total of up to five years (2 years plus 3 years on registration).

What is covered by the free Shark ^® guarantee?

Repair or replacement (at Shark's discretion) of your Shark ^ machine, including all parts and labour. A Shark ^ guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark ^® guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the instructions.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark* instructions supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark® Genuine Components.

7. Faulty installation (except where installed by Shark ^4 ).

8. Repairs or alterations carried out by parties other than Shark ^® or its agents.

9. The Lithium ION power pack battery. Please see below for battery guarantee.

What happens when my guarantee runs out?

Shark ^® does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line.

Where can I buy genuine Shark ^® spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark ^ spares is not covered under your guarantee.

Shark NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark* we are so confident about the quality of our products that we give you an additional manufacturer's guarantee of two years for the battery. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark ^4 machine comes with a free parts and labour guarantee. You'll find online support at www.sharkclean.eu/register-guarantee

IMPORTANT

- The manufacturer's guarantee covers your battery for 2 years starting on the date of delivery.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark ^1 batteries guaranteed for?

Our confidence in our design and quality control means that your new Shark® vacuum cleaner battery is guaranteed for a total of two years.

What is covered by the free Shark guarantee?

Repair or replacement of your Shark ^® machine (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark ^® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark ^® guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper

functioning of your unit.

1. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of

the vacuum cleaner which is not in accordance with the Shark® Instructions supplied with your machine.

1. Use of the battery for anything other than normal domestic household purposes.

2. Use of parts not assembled or installed in accordance with the instructions.

3. Use of parts and accessories which are not Shark® spares.

4. Faulty installation (except where installed by Shark ^4 ).

Where can I buy genuine Shark® spares and accessories?

Shark ^® spares and accessories are developed by the same engineers who developed your Shark ^® vacuum. You'll find a full range of Shark ^® spares, replacement parts and accessories for all Shark ^® machinos at www.Sharkclean.eu. Please remember that damage caused by use of non-Shark ^® spares is not covered under guarantee.

NOTESNOTES

GRACIAS

Diagram showing a circular device with control buttons and an arrow pointing to a battery-like device (no text or symbols present)

Circular device icon with camera symbol, leaf and gear icons, and control button (no text or labels)

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

Technical diagram of a mechanical component with cross-sectional view, labeled 'INDICADOR DE BORDES' (no other text or symbols)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Technical line drawing of a mechanical component or bracket (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with a right-angle arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a suspended component (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a circular device with control buttons and an arrow pointing to a battery-like device (no text or symbols present)

Technical line drawing of a handgun mechanism with an inset showing a close-up of the handle (no text or symbols present)

RETRAIT DE LA BATTERIE

Technical diagram showing a mechanical component being inserted into a rectangular housing (no text or symbols present)

BOÎTIER DE RECHARGE

Technical line drawing of a mechanical component with a highlighted section and arrow (no text or symbols)

Technical illustration of a mechanical bracket assembly with mounting holes and a close-up view (no text or symbols)

Technical line drawing of a light detector component with an arrow indicating light direction (no text or symbols on the diagram itself)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

NETTOYAGE EN HAUTEUR AVEC L'ASPIRATEUR À MAIN

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

NETTOYAGE EN HAUTEUR AVEC LE MANCHE

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a firearm component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

RETIRER LA BROSSE DOUCE RETIRER

Technical line drawing of a mechanical assembly with no visible text or symbols

ACLETTE

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram showing a circular device with control buttons and an arrow pointing to a device outline (no text or symbols present)

Technical line drawing of a handgun mechanism with an inset showing a close-up of the handle (no text or symbols present)

Technical diagram of a mechanical component with a downward arrow indicating assembly or insertion (no text or symbols present)

MANICOTTO DI RICARICA

Circular device icon with camera symbol, leaf and gear icons, and control button (no text or labels)

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

ITA

Line drawing of a hand holding a mechanical device with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component labeled 'SPIA PER BORDI' (no other text or symbols)

Diagram of a floor detector with labeled components and a shadowed side (no text or symbols on the diagram itself)

Technical line drawing of a light detector component with an arrow indicating light direction (no text or symbols on the device itself)

FLEXOLOGY STOCCAGGIO

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

SUPERFICI RIALZATE CON ASPIRAPOLVERE PORTATILE

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

PULIZIA DI SUPERFICI RIALZATE CON IL BASTONE

Illustration of a hand using a spray gun to lift powder into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

DEL TERGIPAVIMENTO

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Wat is onze Detect Technology? 10

Flexology en opbergen 11

Diagram showing a circular device with control buttons and an arrow pointing to a battery-like device (no text or symbols present)

Technical line drawing of a handgun mechanism with an inset showing a close-up of the handle (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a rectangular housing (no text or symbols present)

OPLAADHOES

Circular device control panel with icons and an arrow pointing to the button (no text or symbols)

VERMOGEN MODUS SELEC

Technical line drawing of a mechanical component with no visible text or symbols

EN

Diagram of a hand operating a OmHoOGSLOT device with a black arrow indicating motion (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component labeled 'RANDLAMPJE' (no other text or symbols)

Top-down view of a mechanical component with a VLOERDETECTIE label, no other text or symbols visible.

Technical line drawing of a light fixture with a downward arrow indicating a component (no text or symbols on the object itself)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of the lever (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

STAND VOOR WANDEN EN PLAFONDS MET HANDSTOFZUIGER

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

STAND VOOR WANDEN EN PLAFONDS MET BUIS

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a firearm component (no text or symbols)

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

ZACHTE ROL VERWIJDEREN WISSER V

Technical line drawing of a mechanical assembly with no visible text or symbols

IJDEREN

Line drawing of a hand inserting a component into a device (no text or symbols)

DIRECTDETECT-SENSOR

Technical line drawing of a mechanical component with no visible text or symbols

LIGHTDETECT-SENSOR

Technical line drawing of a mechanical device with a lever and base, no text or symbols present

EDGEDETECT-SENSOR FLOORDI

Technical line drawing of a mechanical assembly with no visible text or symbols

CT-SENSOR

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a circular device with control knob and an arrow pointing to its side, alongside a rounded rectangular device (no text or symbols)

Technical line drawing of a handgun component with an inset showing a close-up view of the handle (no text or symbols present)

FJERNE BATTERIET

Technical line drawing of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

LADEHYLSE

Circular device icon with camera symbol and control buttons, no readable text or symbols beyond the label

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

CLEAN-INDIKATOR

Technical line drawing of a mechanical component with two orthographic views (no text or symbols)

Diagram of a floor detector with labeled component (no text or symbols on diagram)

Diagram of a light detector device with an arrow indicating the component (no text or symbols on the device itself)

Mechanical linkage diagram showing a lever mechanism with rotation arrows and an inset view of the lever (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

OVER GULV MED HÅNDHOLDT ST∅VSUGER

Technical line drawing of a mechanical component with an inset showing a close-up of a cylindrical component (no text or symbols present)

OVER GULV MED SKAFT

VEDLIKEHOLDE ST∅VSUGEREN

T∅MME ST∅VKOPPEN TIL DEN HÅNDHOLDTE ST∅VSUGEREN (IP1000-SERIEN)

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE ST∅VSUGERENS ANTIALLERGENFILTER

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a firearm component (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

VEDLIKEHOLDE MUNNSTYKKET

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

FJERNE MYK RULL FJERNE NAL

Technical line drawing of a mechanical assembly with no visible text or symbols

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE SENSORENE

Line drawing of a hand inserting a component into a device (no text or symbols)

DIRTDETECT-SENSOR

Technical line drawing of a mechanical component with no visible text or symbols

LIGHTDETECT-SENSOR

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

EDGEDETECT-SENSOR FLOORD

Technical line drawing of a mechanical assembly with no visible text or symbols

CT-SENSOR

VEDLIKEHOLDE ST∅VSUGEREN

SJEKKE ETTER BLOKKERINGER I ST∅VSUGEREN

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly or mounting bracket with no visible text or symbols

VEDLIKEHOLDE ST∅VSUGEREN

FEILS∅KING

Diagram showing a circular device with control buttons and an arrow pointing to a rounded rectangular object (no text or symbols present)

Technical line drawing of a handgun mechanism with an inset showing a close-up of the handle (no text or symbols present)

REMOÇÃO DA BATERIA

Technical diagram showing a mechanical component being inserted into a rectangular housing (no text or symbols present)

Circular device icon with camera symbol, refresh button, and arrow (no text or labels)

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

do

Technical illustration of a mechanical component with cross-sectional view (no text or symbols)

Top-down view of a floor detector mounted on a wooden surface, showing structural components and a vertical projection (no text or symbols)

Technical line drawing of a light detector device with an arrow indicating light detection (no text or symbols on the device itself)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of the lever (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the component (no text or symbols present)

Technical diagram showing a mechanical component being inserted into a housing, with an inset view of a cylindrical component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a firearm component (no text or symbols)

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

REMOVER O ROLO MACIO REMOVER

Technical diagram of a mechanical assembly with no visible text or symbols

do

Line drawing of a hand inserting a component into a device (no text or symbols)

SENSORES DIRTDETECT

Technical line drawing of a mechanical component with no visible text or symbols

SENSOR LIGHTDETECT

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

SENSOR EDGEDETECT SENSOR

Technical line drawing of a mechanical assembly with no visible text or symbols

ORDETECT

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Diagram showing a circular device with control knob and an arrow pointing to its side, alongside a stylized battery-like device (no text or symbols)

Technical line drawing of a handgun component with an inset showing a close-up view of the handle (no text or symbols present)

AKUN IRROTUS

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

LATAUSHOLKKI

Circular device icon with icons and a button, no text or symbols present

VIRTA TILAN VALITSIN

Technical diagram showing a mechanical component with labeled parts and an arrow indicating a specific feature.

Technical line drawing of a mechanical component labeled 'REUNAN TUNNISTUS' (no other text or symbols)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the internal component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

PUHDISTAMINEN LATTIATASON
YLÄPUOLELLA VARSI-IMURILLA

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

LATTIATASON YLÄPUOLELLA VARRELLA

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a firearm component (no text or symbols)

Technical line drawing of a mechanical component with a black arrow pointing to a detail (no text or symbols present)

SOFT ROLLER -RULLAN IRROTTAMINEN VED

Technical line drawing of a mechanical assembly with no visible text or symbols

URISTUSTELAN IRROTTAMINEN

Line drawing of a hand inserting a component into a device (no text or symbols)

DIRTDETECT-LIANTUNNISTUSANTURIT

Technical line drawing of a mechanical device with no visible text or symbols

LIGHTDETECT- VALOISUUDENTUNNISTUSANTURI

Kuvra. 3 h

EDGEDETECT-REUNANTUNNISTUSANTURI

Technical line drawing of a mechanical assembly with no visible text or symbols

FLOORDETECT- LATTIANTUNNISTUSANTURIT

IMURIN HUOLTO

IMURIN TUKOSTEN TARKISTAMINEN

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Varsl-Imurln tukosten tarkistaminen:

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Varren tukosten tarkistaminen:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a circular device with a plus button and an arrow pointing to its side, alongside a rounded rectangular device with an arrow (no text or symbols present)

Technical diagram showing a mechanical component with labeled parts and an arrow indicating a specific feature.

Technical line drawing of a mechanical component labeled 'KANTINDIKATOR' (no other text or symbols)

Technical diagram of a mechanical assembly with a labeled section (GOLVDETEKTERING), showing no readable text or symbols.

Technical line drawing of a mechanical component with a downward arrow indicating a feature, labeled 'BELYSNINGSDETEKTERING' at the bottom (no other text or symbols)

Mechanical linkage diagram showing a lever with rotational motion and an inset view of a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of the component (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

OVAN GOLV MED HANDHÅLLEN DAMMSUGARE

Illustration of a spray gun pouring liquid into a bucket, with an inset showing the same tool (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a device with a handle, no text or symbols present

Technical line drawing of a mechanical component with a black arrow pointing to a specific part (no text or symbols present)

AVLÄGSNA MJUK BORSTVALS

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

DIRTDETECT-SENSORER

Technical line drawing of a mechanical component with no visible text or symbols

LIGHTDETECT-SENSOR

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

EDGEDETECT-SENSOR FLOORDI

Technical diagram of a mechanical assembly with no visible text or symbols

CT-SENSOR

UNDERHÅLLA DAMMSUGAREN

KONTROLLERA EFTER BLOCKERINGAR I DAMMSUGAREN

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

SharkNinja Europe Limited,

3150 Century Way,

Thorpe Park,

Leeds

LS15 8ZB, UK

SharkNinja Germany GmbH,

Rotfeder-Ring 9,

60327 Frankfurt am Main,

Germany
