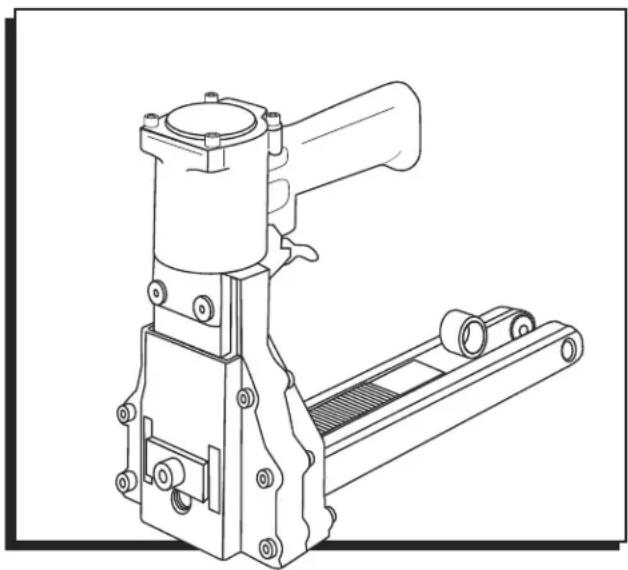

Technical line drawing of a mechanical device with lever and base mount (no text or symbols)

STAPLER SPECIFICATIONS

Dimensions: L x W x H 13.5 x 4.53 x 8.66"

Weight (Without Fasteners) 5 lb.

Compressed Air:

Maximum psi: 110 psi

Recommended

Operating Pressure: 80–100 psi

Air Consumption: 2.4 CFM

Staple Specification: S-22482 A58 Stick

Staple Specification: S-22481 C34 Stick

Staple Specification: S-22480 C58 Stick

Staple Capacity: 100 Staples

Noise Levels: 89 dBA

WARNING

Before operating this stapler familiarize yourself with the safety warnings and instructions in this manual. Keep these instructions with the stapler for future reference. If you have any questions, contact Uline at 1-800-295-5510.

SAFETY INSTRUCTIONS

GENERAL SAFETY

1. Read the manual and understand all safety instructions before operating the stapler. If you have questions, contact Uline at 1-800-295-5510.
2. Never use flammable gases as a power source for the stapler. Only use filtered, compressed air.
3. Never use gasoline or other flammable liquids to clean the stapler. Vapors left on the stapler could ignite and cause the stapler to explode.
4. Do not exceed 110 psi of air pressure when operating the stapler.
5. Disconnect the stapler from the air supply before making adjustments, cleaning or clearing jams and when not in use.
6. Do not pull the trigger when carrying or holding the stapler.
7. Never carry the stapler by the hose or pull on the hose to move the stapler.
8. Always wear protective equipment; i.e., safety glasses, hearing protection and head protection.
9. Do not use a check valve or any other fitting which allows air to remain in the stapler.
10. Do not place your hand or any other body part in the staple clinching area or adjustment window when connecting or disconnecting the air supply.
11. Never point the stapler at yourself or anyone else

1. Lubricate the stapler prior to initial operation.
2. Disconnect the stapler from the air supply prior to servicing.
3. Turn the stapler so that the inlet is facing up and put one drop of high-speed spindle oil, UNOCOL RX22, or 3-in-1 oil, into air inlet. Never use detergent oil or additives.
4. Operate the stapler briefly after adding oil.
5. Wipe off excessive oil at the exhaust. Excessive oil will damage the O-rings. If inline oiler is used, manual lubrication through the air inlet is not required on a daily basis.

AIR SUPPLY AND CONNECTIONS

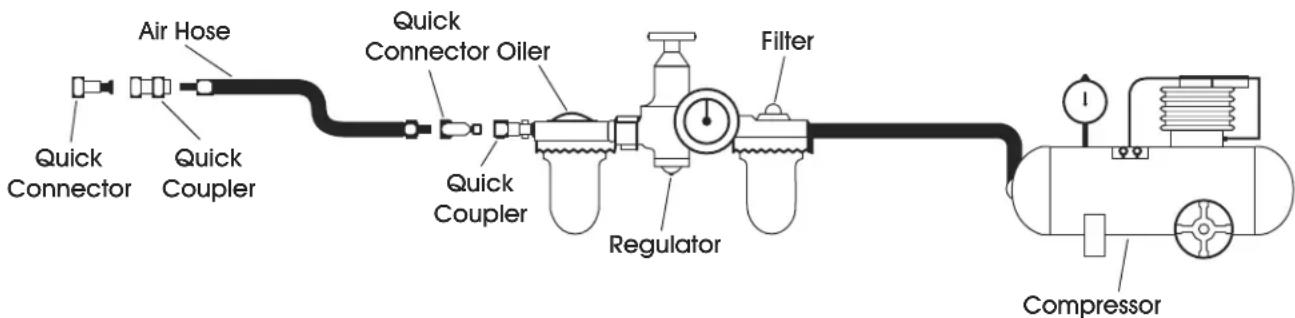

NOTE: The following illustration shows the correct mode of connection to the air supply system which will increase the efficiency and life of the stapler.

1. Many air stapler users find it convenient to use an inline oiler to provide oil circulation through their stapler. Check oil level in the oiler daily.
2. A filter is recommended on your air compressor. Check the filter and drain on a daily basis.

SAFETY INSTRUCTIONS CONTINUED

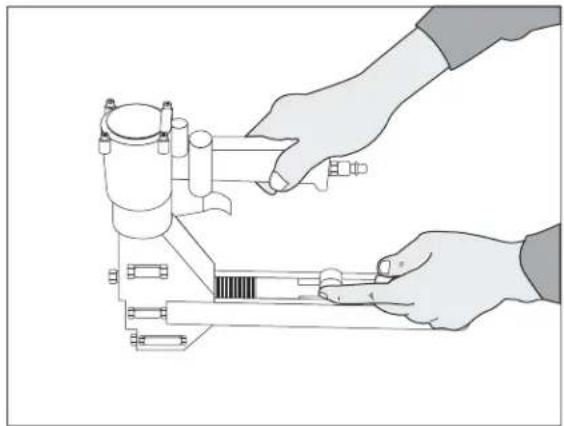

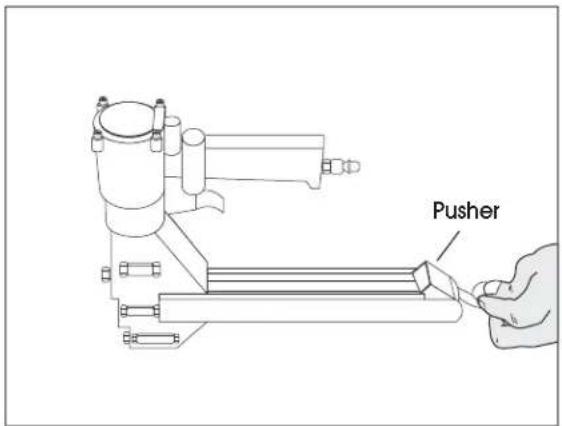

LOADING THE STAPLER

1. Disconnect the air supply.

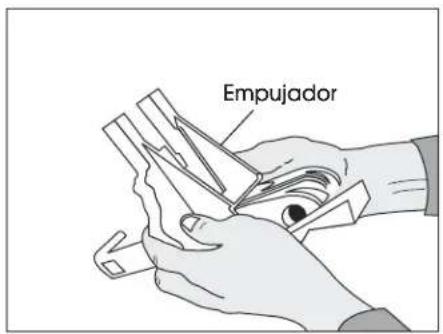

2. Pull the pusher back until it stops on pusher pivots. Rotate pusher to position. (See Figure 1)

3. Insert 2 sticks of appropriate staples into the magazine. Let the sticks slide forward to the front of the magazine. (See Figure 2)

4. Pull the pusher back to an upright position and gently let the pusher slide forward against the staples. Do not let the pusher slide forward and strike the staples at high speed as this may deform the staples and damage the stapler.

Pusher

Figure 1

Illustration of hands operating a mechanical device with a caliper (no text or symbols visible)

Figure 2

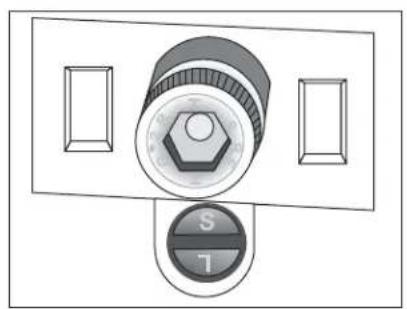

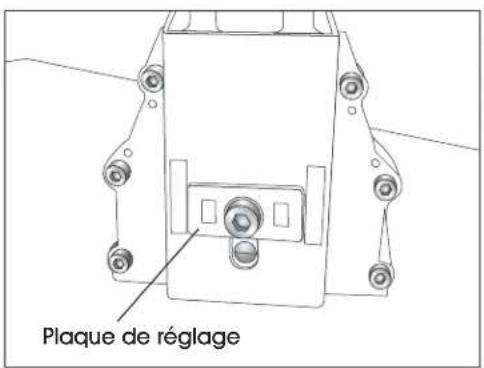

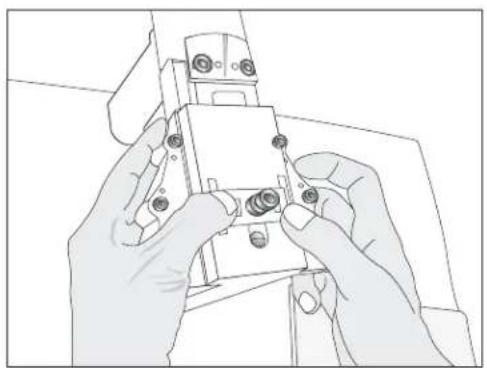

STAPLE LEG LENGTH

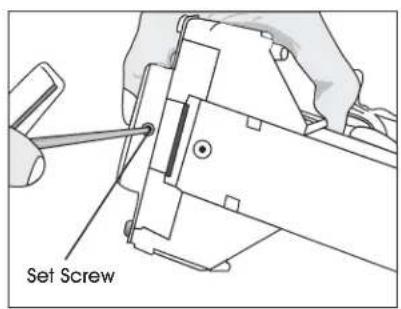

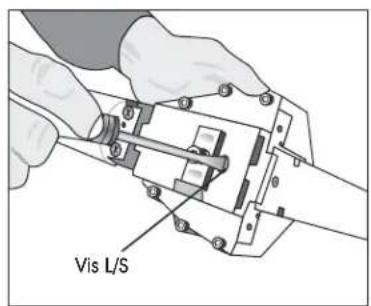

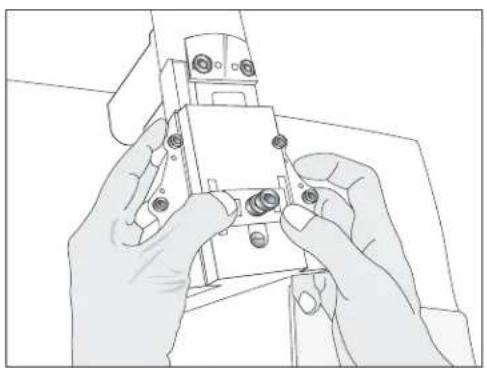

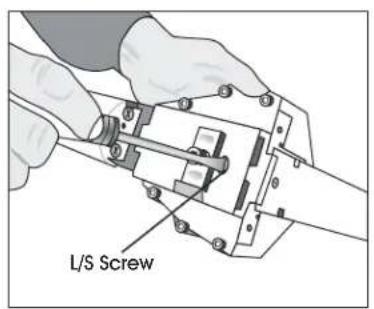

1. Loosen the set screw on the bottom with a 3 mm Allen wrench. (See Figure 3)

2. Adjust L/S screw with a screwdriver to the desired setting. (See Figure 4)
   a. If you are using 3/4" staples set L up.
   b. If you are using 5/8" staples set S up. (See Figure 5)

3. Tighten the set screw on the bottom.

Set Screw

Figure 3 Figure 4 Figure 5

L/S Screw

Diagram of a mechanical control panel with a rotary knob and two rectangular buttons (no text or symbols)

SAFETY INSTRUCTIONS CONTINUED

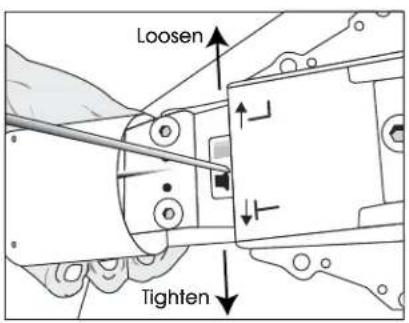

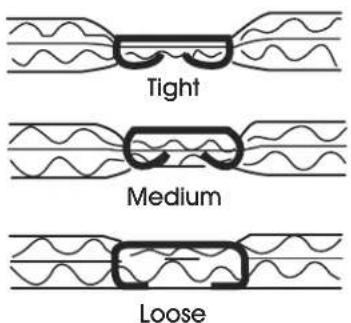

CLINCH ADJUSTMENT

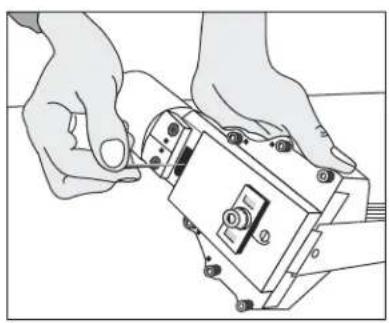

Use 2.5 mm Allen wrench and turn collar through window clockwise to tighten clinch. (See Figure 6)

Tight Medium Loose

Figure 6

Illustration of hands operating a mechanical device with no visible text or symbols

Loosen Tighten

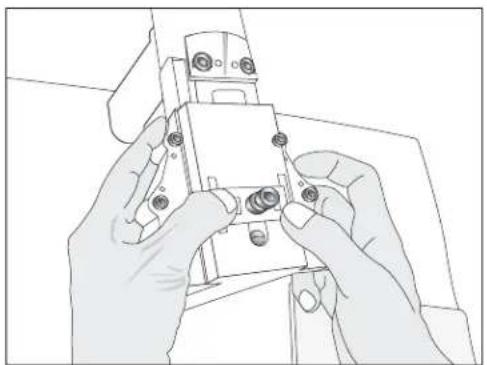

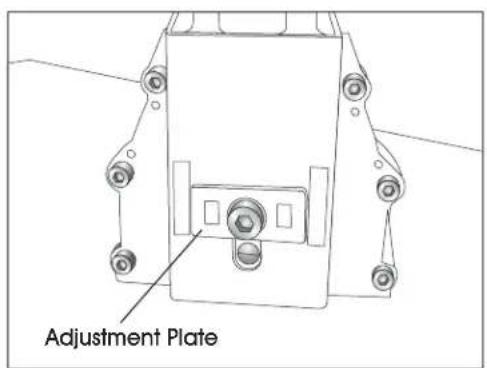

DEPTH ADJUSTMENT

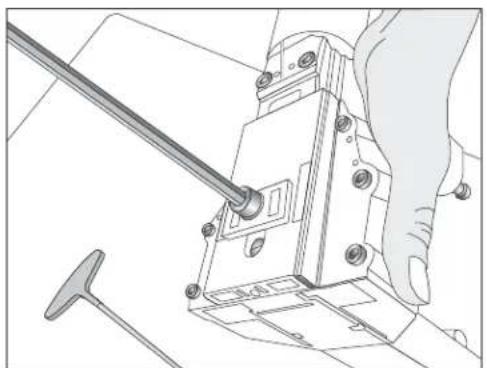

1. Loosen front screw with a 6 mm Allen wrench. (See Figure 7)

2. Push the body up and adjust to the desired depth. (See Figure 8)

3. When the top edge of the adjustment plate is at its highest setting the teeth are at their shallowest penetration. (See Figure 9)

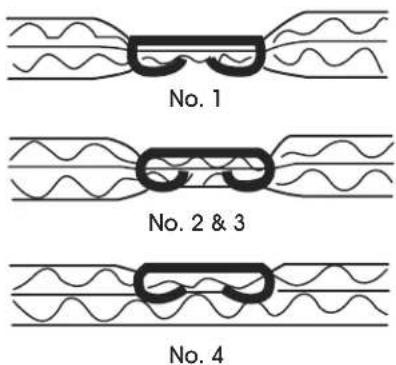

4. If set at No. 1 the teeth are at their deepest penetration. (See Figure 10)

Technical line drawing of a mechanical assembly with a hand operating a tool (no text or symbols present)

Figure 7

Line drawing of hands assembling a small electronic component (no text or symbols visible)

Figure 8

Adjustment Plate

Figure 9

No. 1 No. 2 & 3 No. 4

Figure 10

OPERATING INSTRUCTIONS

WARNING

1. Protect your eyes and ears.

a. Wear safety glasses with side shields
b. Wear hearing protection.
c. Ensure that anyone in the vicinity wears safety protection.

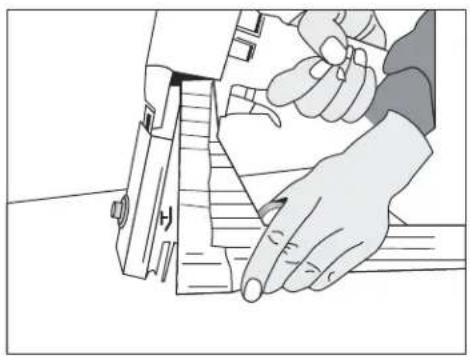

1. To prevent accidental injuries, never place a hand or any other body part in the staple clinching area or adjustment window.

2. Never point the stapler towards you or anyone else.

3. Always handle the stapler with care. Never pull the trigger unless stapler is ready for operation.

4. Check and replace any damaged or worn components on the stapler.

5. Add a few drops of oil into the air inlet.

6. Install a quick connect fitting to the stapler.
7. Regulate the air pressure to attain 80–100psi.

8. Insert the staples into the stapler following the loading instructions.

9. Reconnect the air hose to the stapler.

10. Grasp the handle with one hand on box in line with the desired staple location. There is a small projection on either side of the magazine seat as an aid in locating the position of the staple.
11. The strongest closure requires staples close to the ends of the box.

WARNING

Never use gasoline or other flammable liquids to clean the stapler. Vapors in the stapler could be ignited by a spark and cause the stapler to explode.

CLEANING THE STAPLER

1. Disconnect the air supply from the stapler
2. Remove tar buildup with non-corrosive cleaner.

CAUTION! Do not allow solvent to get into the cylinder or damage may occur.

1. Dry the stapler completely before use.

OPERATING INSTRUCTIONS CONTINUED

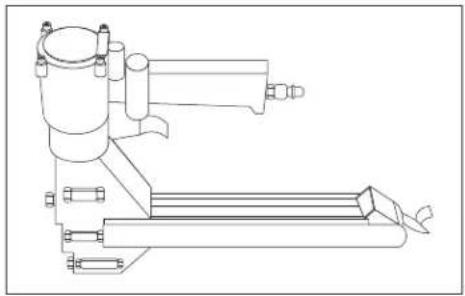

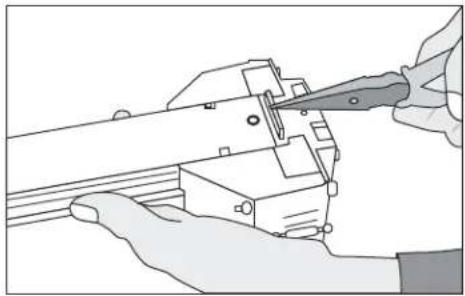

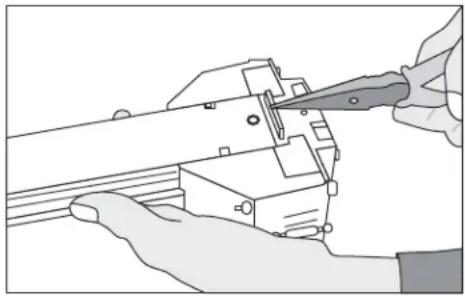

CLEARING A JAM

1. Disconnect air supply.
2. Pull pusher back and rotate to a locked position. (See Figure 11)

Technical line drawing of a mechanical assembly (no text or symbols)

Figure 11

1. Insert needle nose pliers or screwdriver to clear jam. (See Figure 12)
2. Slowly release pusher back to position.

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

Figure 12

WARNING

Stop using the stapler immediately if any of the following problems occur. Serious personal injury could occur. Any repairs or replacements must be done by a qualified person or authorized service center only.

TROUBLESHOOTING

PROBLEM CAUSE REMEDY
Air leak from trigger O-ring on valve or on tube is damaged. Replace O-ring.
Air leak from exhaust port O-ring on valve or on tube is damaged.O-ring on piston is damaged.		Replace O-ring.
Air leak from cylinder Piston rod port O-ring is damaged. Replace O-ring
Slow and short travel cycling	Check for loose screw or wear of parts.	1. Position eccentric pin and tighten screw.2. Recheck for maximum efficiency.a. Adjust pin slightly upward if due to short travel.b. Adjust pin slightly downward if due to slow cycling.
Excessive jams	1. Slow and short travel cycle.2. Teeth screws are loose.3. Wrong staple size.4. Insufficient lubrication.	1. Adjust as noted above.2. Tighten screws.3. Check staples.4. Clean and lubricate.
Uneven clinch	Wrong staple size.	Check for proper leg length adjustment and clincher size.
Unclinched staple	1. Teeth are loose or broken.2. Slow and short travel cycle.	1. Check and replace teeth as needed.2. Adjust as noted above.

OPERATING INSTRUCTIONS CONTINUED

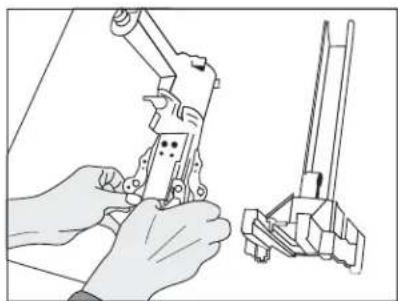

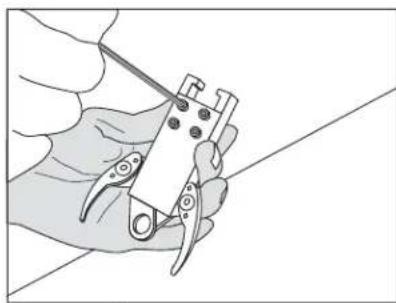

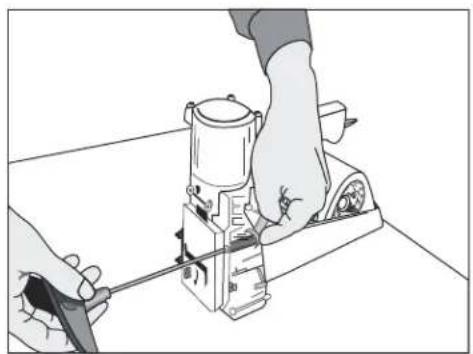

TEETH REPLACEMENT

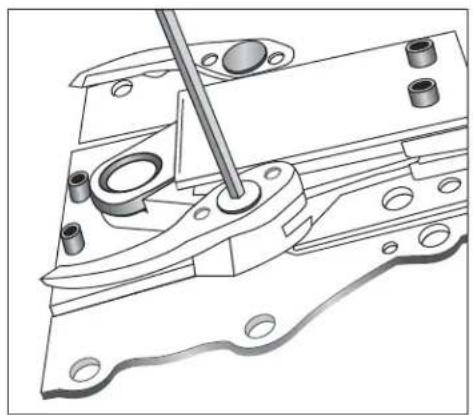

1. Loosen screws and nut with an 8 mm wrench and 4 mm Allen wrench. (See Figure 13)

2. Remove the magazine assembly. (See Figure 14)

3. Loosen screws with 3 mm Allen wrench. (See Figure 15)

4. Change teeth one at a time to prevent reverse teeth.

Illustration of hands operating a mechanical device with a tool, no text or symbols present

Figure 13 Figure 14

Illustration of a hand using a tool to cut or mark a piece of paper (no text or symbols visible)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Figure 15

OPERATING INSTRUCTIONS CONTINUED

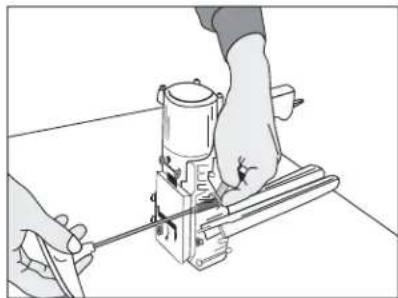

DRIVER REPLACEMENT

1. Disconnect the air supply.
2. Loosen screw and nut with a 8 mm spanner wrench and a 4 mm Allen wrench. (See Figure 16)

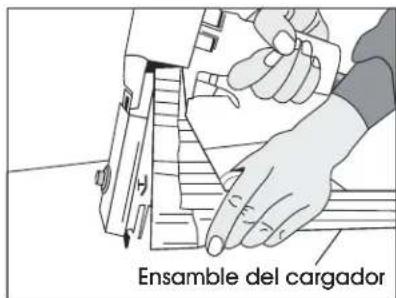

3. Remove the magazine assembly. (See Figure 17)

4. Loosen the set screw with a 3 mm Allen wrench to unlock the adjusting rod.

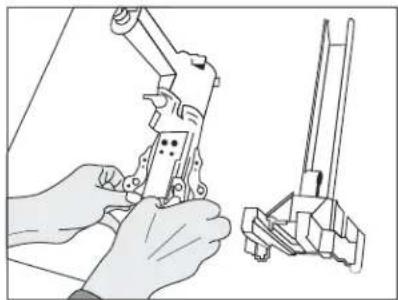

5. Slide the linkage mechanism and adjusting rod simultaneously from the collar. (See Figure 18)

6. Loosen the screws with a 3 mm Allen wrench. (See Figure 19)
7. Take off the spring pin with a hammer and 6 mm straight rod. (See Figure 20)

Line drawing of hands operating a mechanical device with a cylindrical component (no text or symbols)

Figure 16

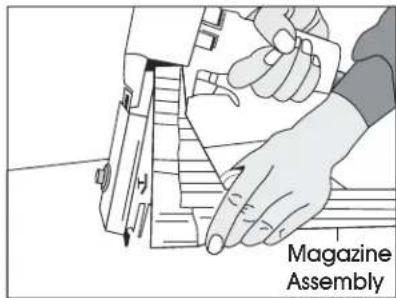

Magazine Assembly

Figure 17

Illustration of hands operating a mechanical device with a separate tool (no text or symbols visible)

Figure 18

Illustration of a hand using a power tool to cut or adjust a small component (no text or symbols visible)

Figure 19

Spring Pin

Figure 20

OPERATING INSTRUCTIONS CONTINUED

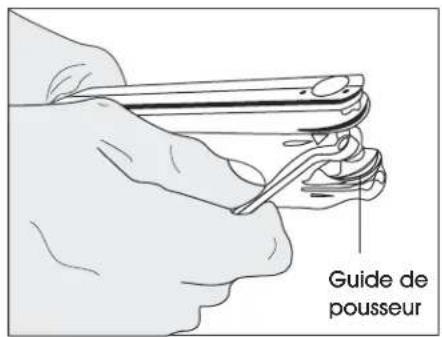

PUSHER SPRING REPLACEMENT

1. Loosen the screws and nut with a 8 mm spanner wrench and a 4 mm Allen wrench. (See Figure 21)

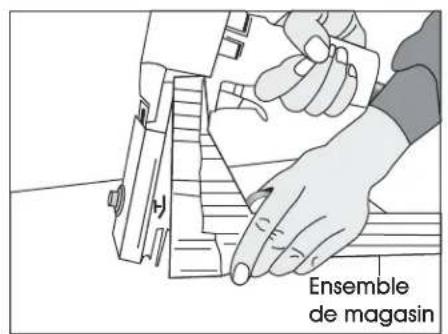

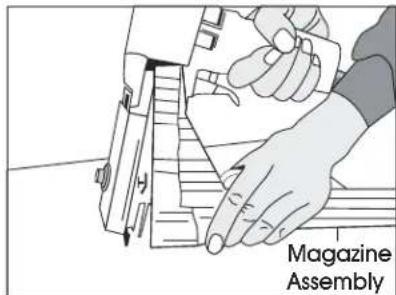

2. Remove the magazine assembly. (See Figure 22)

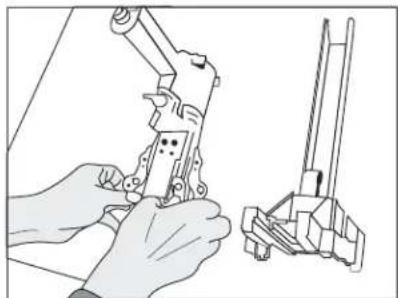

3. Pull the pusher back until it stops on the rod, then rotate the pusher to position. (See Figure 23)

4. Push the magazine seat back and remove it from the magazine.

5. Loosen the screw and nut with a 2.5 mm Allen wrench and 7 mm socket wrench. (See Figure 24)

6. Loosen the rod with a 6 mm offset wrench and remove the pusher guides. Remove the pusher. (See Figure 25)

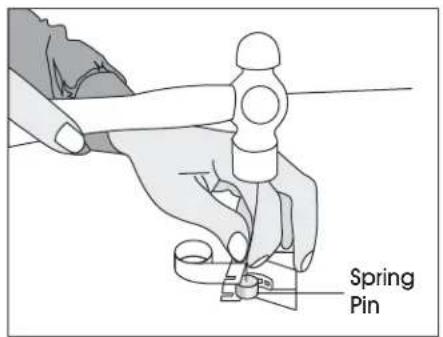

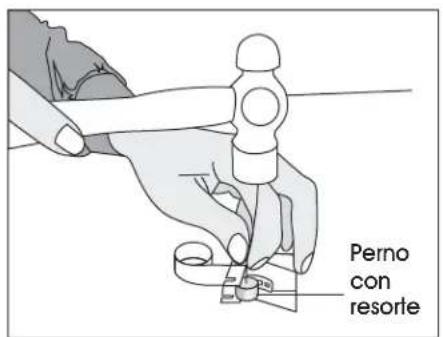

7. Remove the spring pin with a hammer and 4 mm straight rod. (See Figure 26)

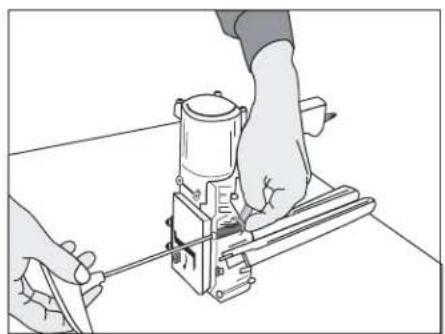

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure 21

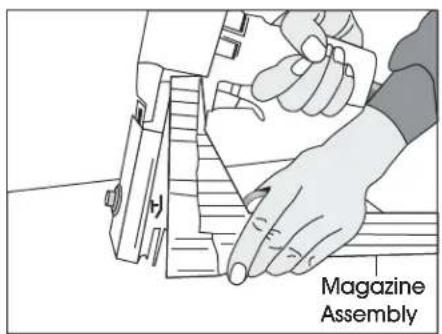

Magazine Assembly

Figure 22

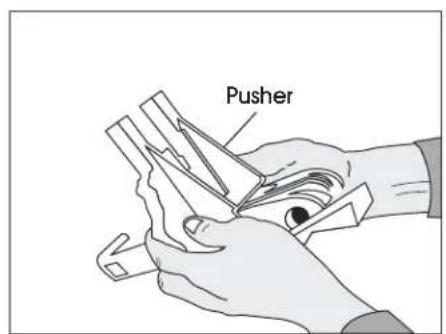

Pusher

Figure 23

Line drawing of a hand holding a tool with a vertical rod, connected to a vertical support (no text or symbols)

Figure 24

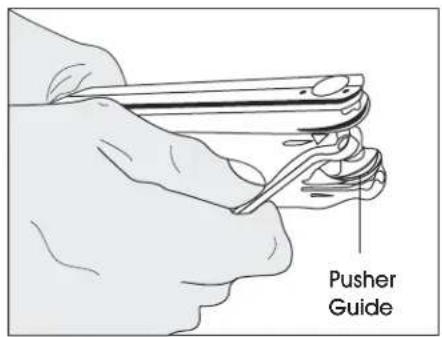

Pusher Guide

Figure 25

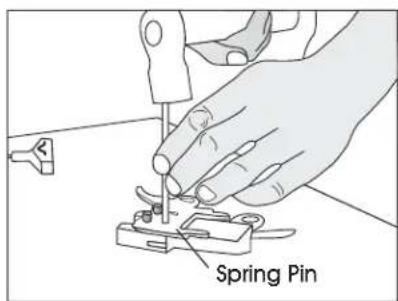

Spring Pin

Figure 26

OPERATING INSTRUCTIONS CONTINUED

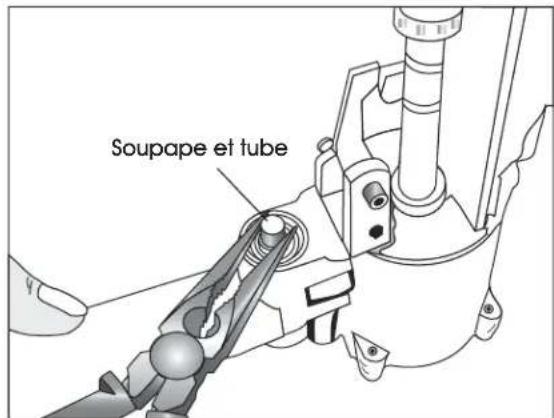

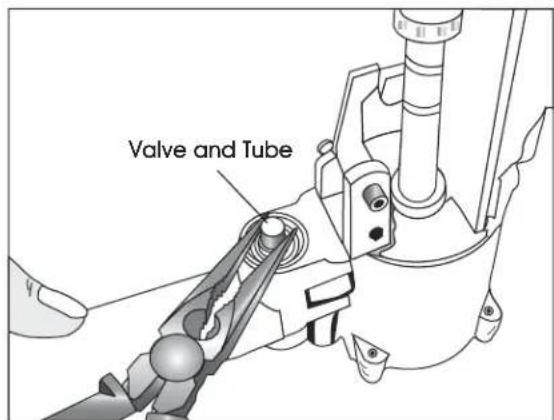

VALVE AND TUBE O-RING REPLACEMENT

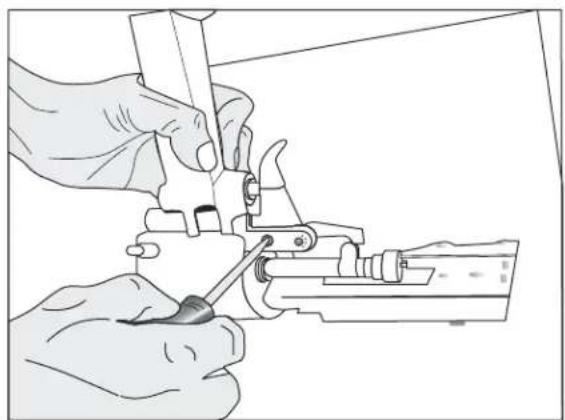

1. Loosen screws with a flat screwdriver. (See Figure 27)

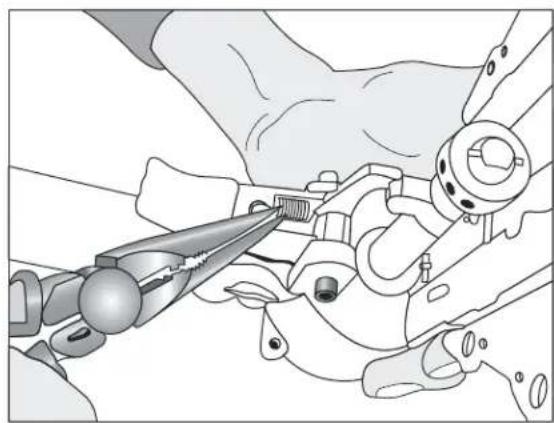

2. Remove spring with needle nose pliers. (See Figure 28)

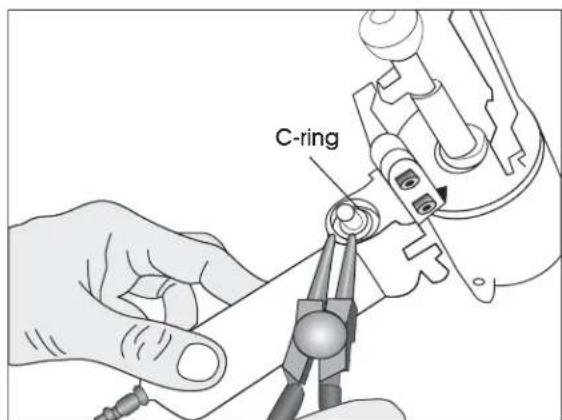

3. Remove C-ring with C-ring pliers. (See Figure 29)

4. Remove valve and tube with needle nose pliers. (See Figure 30)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure 27

Illustration of a hand using pliers to adjust mechanical components (no text or symbols visible)

Figure 28

C-ring

Figure 29

Valve and Tube

Figure 30

OPERATING INSTRUCTIONS CONTINUED

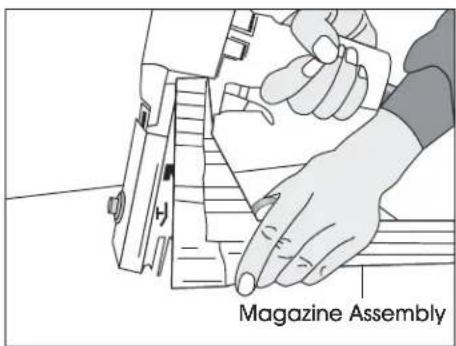

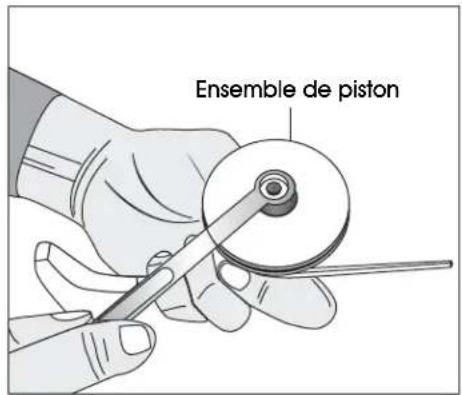

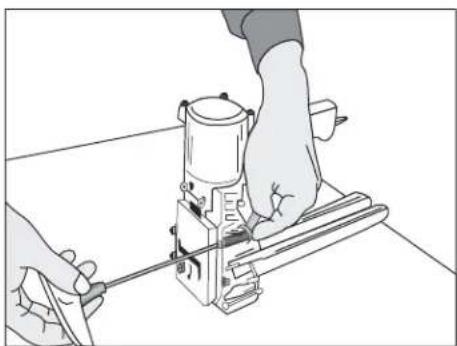

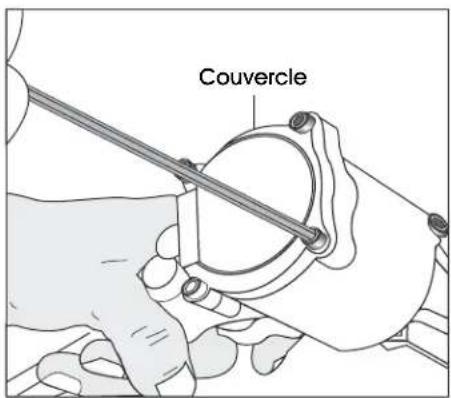

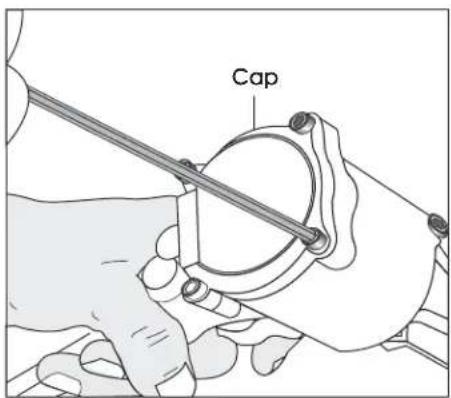

PISTON REPLACEMENT

1. Remove screws and nut with 8 mm spanner wrench and 4 mm Allen wrench. (See Figure 31)

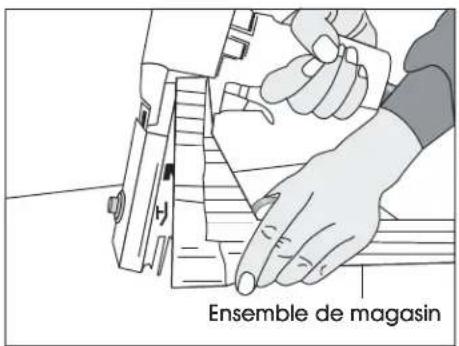

2. Remove magazine assembly. (See Figure 32)
3. Loosen set screw with a 3 mm Allen wrench to unlock the adjusting rod.
4. Slide linkage mechanism and adjusting rod simultaneously from collar.

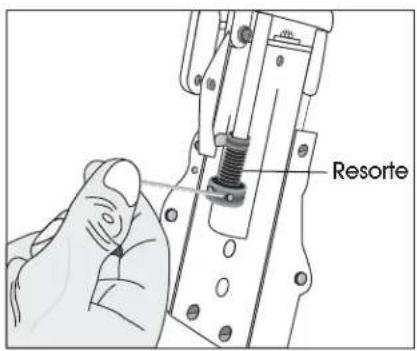

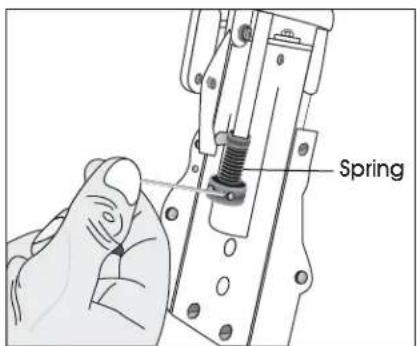

5. Loosen collar with a 3 mm Allen wrench to remove the spring. (See Figure 33)

6. Loosen screw with a 3 mm Allen wrench and remove the block through the window.

7. Loosen screws with a 3 mm Allen wrench and remove the cap. (See Figure 34)

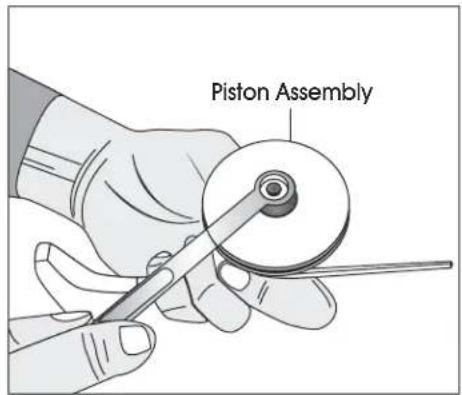

8. Remove the piston assembly with a 10 mm spanner wrench. (See Figure 35)
9. Remove piston and replace.

Line drawing of two hands operating a mechanical device on a workbench (no text or symbols)

Figure 31

Magazine Assembly

Figure 32

Spring

Figure 33

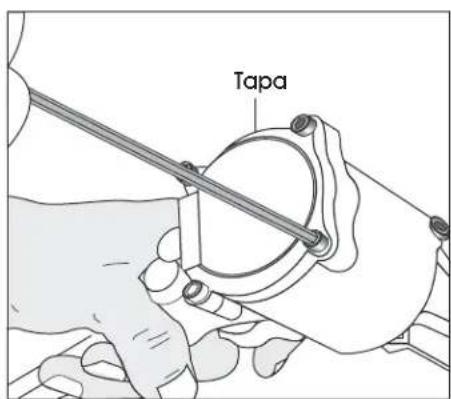

Cap

Figure 34

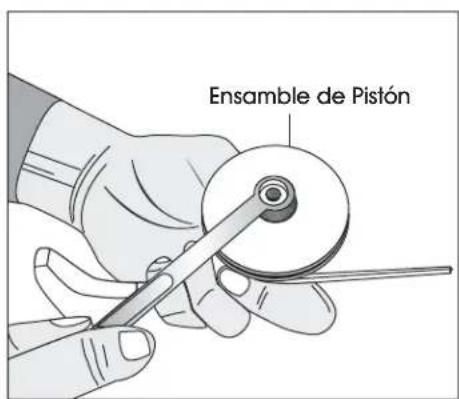

Piston Assembly

Figure 35

Technical line drawing of a mechanical device with lever and base mount (no text or symbols)

(13.5 × 4.53 × 8.66")

Peso (sin cinchos) 2.3 kg (5 lbs.)

Aire comprimido:

PSI Máximo: 110 PSI

Presión operativa

Recomendada: 80–100 PSI

Consumo de aire: 0.07 m³/min (2.4 pie³/min)

Illustration of hands operating a mechanical device with a tool handle (no text or symbols visible)

Diagrama 2

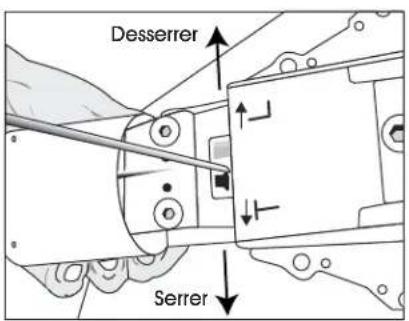

LARGO DE PATA DE LA GRAPA

Diagram of a rotary switch with labeled buttons (S and T) and two side panels, no text or symbols present.

Illustration of hands operating a mechanical device with no visible text or symbols

Aflojar Apretar

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Diagrama 7

Line drawing of hands assembling a small electronic component (no text or symbols visible)

Diagrama 8

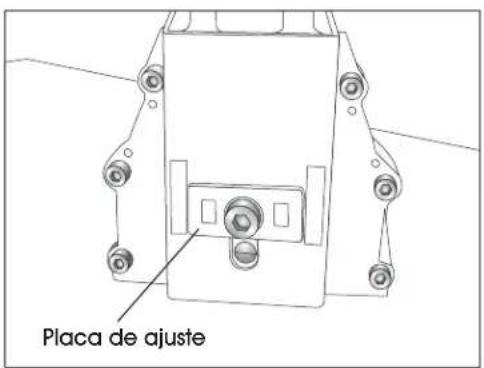

Placa de ajuste

Diagrama 9

No. 1

No. 2 & 3

No. 4
Diagrama 10

Technical line drawing of a mechanical assembly (no text or symbols)

Diagrama 11

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagrama 12

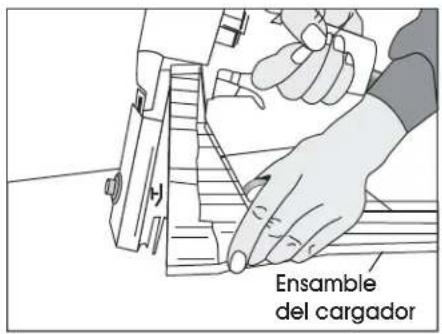

ADVERTENCIA

Illustration of hands using a tool on a mechanical device (no text or symbols visible)

Illustration of a hand using a tool to cut or mark a piece of paper (no text or symbols visible)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Diagrama 15

Line drawing of hands operating a mechanical presser or clamp device (no text or symbols present)

Diagrama 16

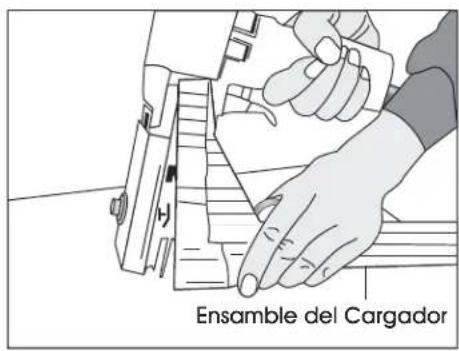

Ensamble del cargador

Diagrama 17

Illustration of hands operating a mechanical device with a separate view showing a tool (no text or symbols present)

Diagrama 18

Illustration of a hand using a power tool to cut a component (no text or symbols visible)

Diagrama 19

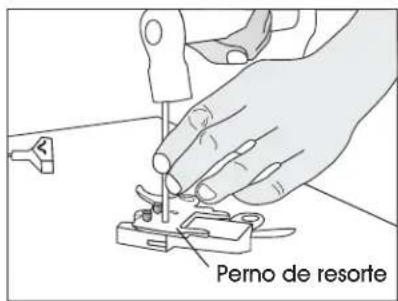

Perno de resorte

Diagrama 20

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagrama 21

Ensamble del cargador

Diagrama 22

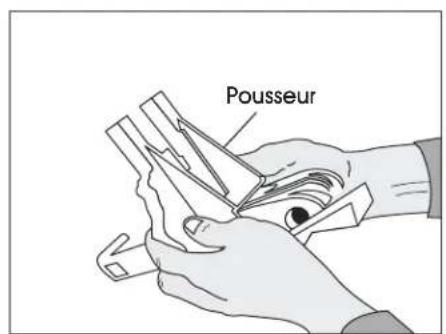

Empujador

Diagrama 23

Line drawing of a hand holding a tool with a spring, connected to a vertical rod and a handle (no text or symbols)

Diagrama 24

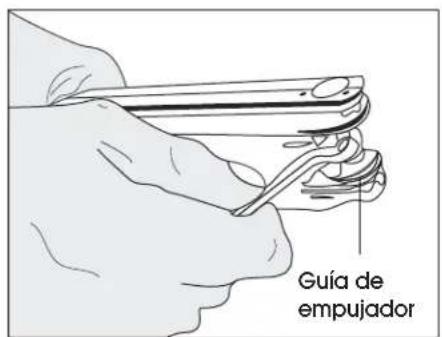

Guía de empujador

Diagrama 25

Perno con resorte

Diagrama 26

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagrama 27

Illustration of a hand using a pliers to adjust mechanical components (no text or symbols visible)

Diagrama 28

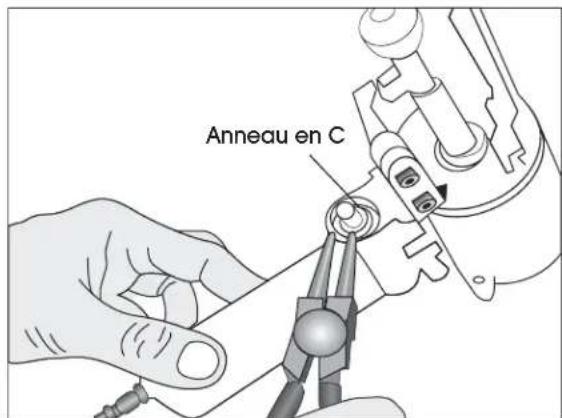

Anillo-C

Diagrama 29

Line drawing of hands operating a mechanical device with a tool (no text or symbols)

Diagrama 31

Ensamble del Cargador

Diagrama 32

Resorte

Diagrama 33

Tapa

Diagrama 34

Ensamble de Pistón

Diagrama 35

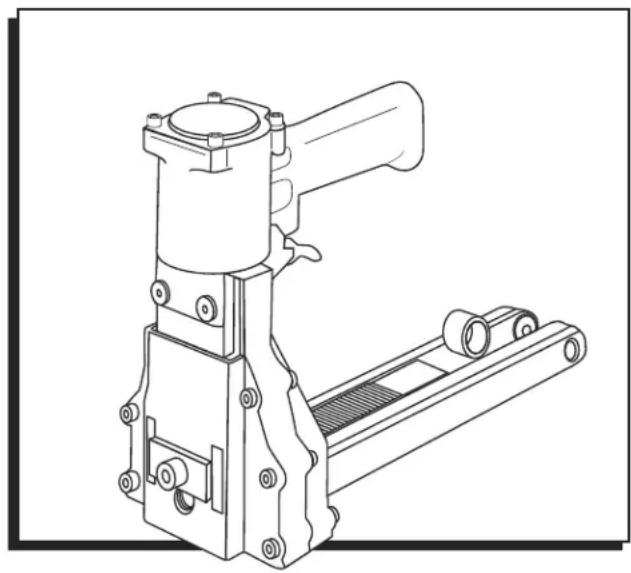

Technical line drawing of a mechanical device with lever and base mount (no text or symbols)

SPÉCIFICATIONS DE L'AGRAFEUSE

Dimensions : long. x larg. x haut. 34 x 11,5 x 22 cm

(13,5 x 4,53 x 8,66 po)

Poids (sans agrafes) 2,3 kg (5 lb)

Air comprimé :

Pression maximum : 6,9 bars (110 lb/po ^2 )

Pression

Illustration of hands operating a mechanical device with a caliper (no text or symbols visible)

Figure 2

LONGUEUR DE PATTE D'AGRAFE

Figure 3 Figure 4 Figure 5

Vis L/S

Diagram of a rotary switch with labeled buttons (S, T) and two side panels (no text or symbols beyond labels)

Illustration of hands operating a mechanical device with bolts and adjustment knobs (no text or symbols)

Desserrer Serrer

Technical line drawing of a hand operating a mechanical device with a tool (no text or symbols visible)

Figure 7

Line drawing of hands assembling a small electronic component (no text or symbols visible)

Figure 8

Technical line drawing of a mechanical assembly (no text or symbols)

Figure 11 Figure 12

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

AVERTISSEMENT

Illustration of hands operating a mechanical device with a tool, no text or symbols present

Figure 13 Figure 14

Illustration of a hand using a tool to cut or mark a piece of paper (no text or symbols visible)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

Figure 15

INSTRUCTIONS D'UTILISATION SUITE

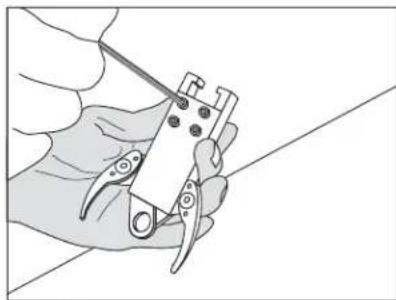

REEMPLACEMENT DE LA PLAQUE DE POUSSÉE

Line drawing of hands operating a mechanical device with a tool (no text or symbols visible)

Figure 16

Magazine Assembly

Figure 17

Illustration of hands operating a mechanical device with a separate view of a mechanical component (no text or symbols present)

Figure 18

Illustration of a hand using a power tool to cut or adjust a small electronic component (no text or symbols visible)

Figure 19

Spring Pin

Figure 20

INSTRUCTIONS D'UTILISATION SUITE

REPLACEMENT DU RESSORT DE POUSSEUR

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure 21

Ensemble de magasin

Figure 22

Pousseur

Figure 23

Line drawing of a hand holding a tool with a vertical rod, connected to a horizontal line (no text or symbols)

Figure 24

Cheville ressort

Figure 26

INSTRUCTIONS D'UTILISATION SUITE

REMPLACEMENT DU JOINT TORIQUE DE SOUPAPE ET TUBE

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure 27

Illustration of hands using pliers to adjust mechanical components (no text or symbols visible)

Figure 28

Anneau en C

Figure 29

Soupape et tube

Figure 30

INSTRUCTIONS D'UTILISATION SUITE

REPLACEMENT DU PISTON

Line drawing of hands operating a mechanical device on a workbench (no text or symbols)

Figure 31

Ensemble de magasin

Figure 32

Ressort

Figure 33

Couvercle

Figure 34

Ensemble de piston

Figure 35
