USER MANUAL Baby Home BH7400 TEFAL

Exterior view of a Tefat brand blender with three baby bottles (no text or symbols visible on the device itself)

www.tefal.com

RUS UA PL F GB CZ SK H BG RO HR عربي IR

Labeled diagram of a coffee maker with numbered parts for identification

Use - Utilisation

Line drawing of a hand inserting a small component into a cylindrical device (no text or symbols)

Diagram of a glass teapot with a lid and handle, showing internal components and a red arrow indicating direction (no text or symbols)

Diagram of a mechanical component with directional arrows and labeled parts (no readable text or symbols)

Illustration of a hand using a portable food oven to press or install a small item, with a red arrow indicating the process (no text or symbols present)

Illustration of a hand holding a coffee maker with a red arrow indicating rotation (no text or symbols)

Line drawing of a food blender with water being poured into it, no text or symbols present

fig. 7

Line drawing of a portable coffee maker with a handle and control panel (no text or symbols)

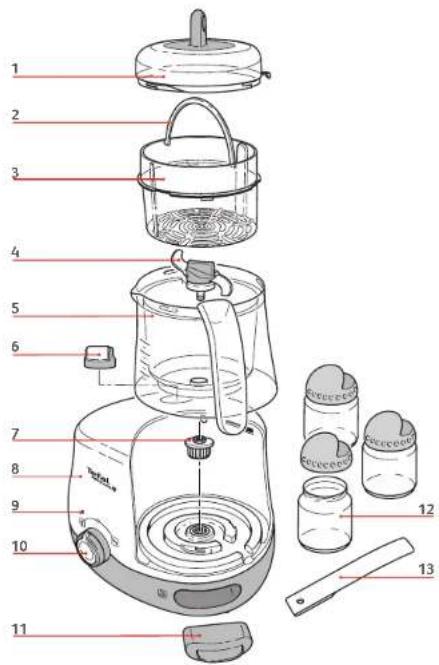

Описание

1. Lid
2. Steaming basket handle
3. Steaming basket
4. Stainless steel blade
5. Cool-touch graduated bowl
6. Tank fill-up plug

7. Blade tightening knob

8. Body of the appliance

9. «On» indicator light
10. Steaming/blending button
11. 25 ml water measure
12. Three 25 ml glass jars
13. Spatula

Operating precautions

When removing the blade, handle it with great care as it is extremely sharp.

Read these instructions carefully before use and keep them in a safe place. Any use which does not comply with these instructions will absolve TEFAL of all liability.

• Keep the appliance out of children's reach.
• Use the appliance on a flat, stable, heat-resistant surface.
• Check that the voltage of your appliance matches that of your electrical system. Fully unroll the power cord. Do not use an extension lead. If the power cord is damaged, have it replaced by the manufacturer or its approved service centre. Any connection error will render the guarantee null and void.

- Your appliance is designed solely for domestic use.

- Before each use, make sure that the parts of the appliance are correctly positioned. Check the position of the blade and bowl.

- To keep the blade in good condition, do not process hard foods such as squares of chocolate, sugar lumps, parmesan, walnuts, ice cubes, etc.

- Unplug the appliance as soon as you stop using it, to clean it and whenever you need to handle the blade. Do not unplug it by pulling the cord.

- Do not put the appliance on a hot surface, near a flame or splashing water.

- Do not start up the steaming function without any water in the tank.

- Do not start up the blender function if the appliance is empty, or for more than 10 seconds at a time.

- Do not remove the plug from the tank during operation and wait approximately 10 minutes after the end of the cooking before opening it.

- Never stick a fork, knife or metal object in the appliance.

- Never use your appliance if it is not operating properly or if it has been damaged. In such cases, always contact TEFAL or an approved TEFAL service centre.

Before you use your appliance for the first time

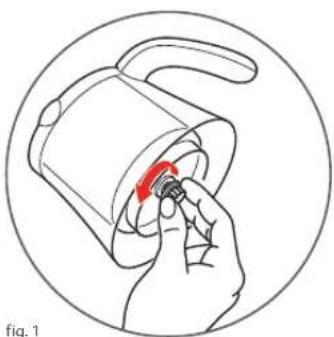

Before you use your appliance for the first time, we advise you to carry out a steaming cycle measures of water. Then wash the bowl, basket, lid, blade and accessories in dishwater. Clean the body of the appliance with a soft cloth. To remove the blade, turn the knob - fig. 1 until the upper and lower parts of the blade are free.

Use

Positioning the lid

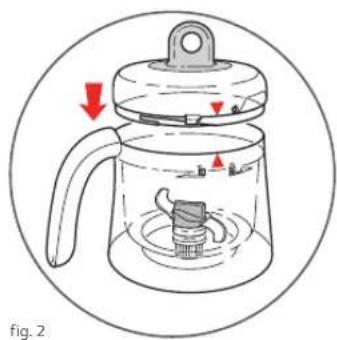

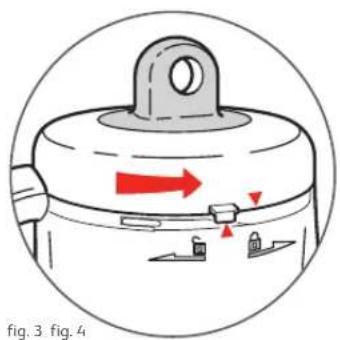

To lock the lid, position it on the bowl with the X marks lined up then turn it anticlockwise - fig. 2/3.

Note: the lid cannot be removed once the bowl is locked onto the body of the appliance.

Positioning the bowl

Note: the appliance will not work if the bowl is not properly locked in position.

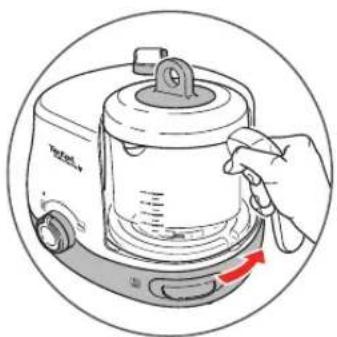

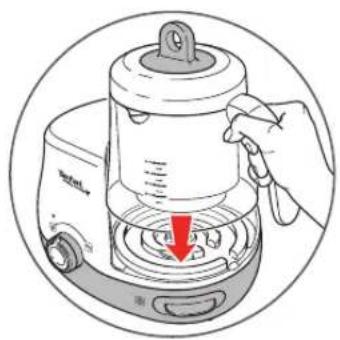

Once the lid is locked on, place the bowl on the body of the appliance and turn it until it locks into position - fig. 4/5.

Using the steaming function

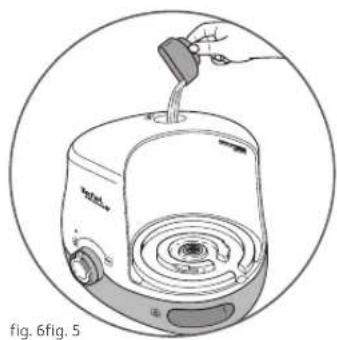

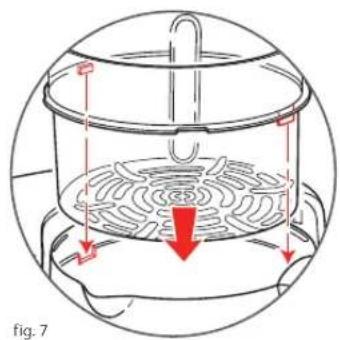

Open the plug on the water tank and pour in the amount of water indicated for cooking the food using the water measure fig. 6. Put the plug back in. Place the food in the steaming basket then place the basket in the bowl, in the notch designed for this purpose - fig. 7 Close the lid, making sure it is locked in position - fig. 2/3. Then place the bowl on the body of the appliance - fig. 4/5 and turn the button to the steaming position

The indicator light comes on and the button returns to the 0 position. The appliance starts to heat up and stops automatically when the water tank is empty.

Caution: on first use, the steam function may already be selected. Thus, the tank must always be filled before you plug in the appliance.

Steaming

Note: if the food is not cooked enough, wait 10 minutes before opening the plug on the tank. Fill it up again and do another cycle, adjusting the amount of water.

Cooking time varies according to the temperature of the food and evaporation of the water poured into the tank before start-up. The cooking times in the guide opposite are given as an indication only for approximately 100 g of food, either fresh or frozen, cut up into small cubes or pieces.

Reheating and defrosting

You can also use the steaming function to reheat food or jars of food and even defrost food in jars. The jars supplied are freezer resistant. Use 3 measures of water for reheating and 6 measures for defrosting.

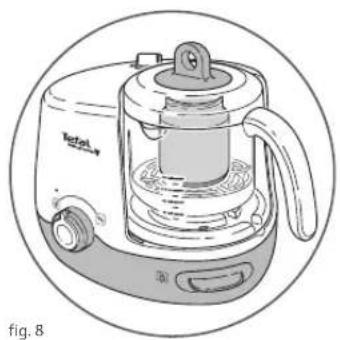

Caution: when reheating or defrosting food in jars, always remove the lid from the jar before placing the opened jar in the steaming basket - fig. 8.

Using the blender function

Caution: never blend for more than 10 seconds at a time.

Remove the steaming basket and put the food in the blender bowl.

Close the lid making sure it is locked in position.

Then place the bowl on the body of the appliance and turn the button

to the blending position

Proceed through successive presses until you obtain the desired consistency. If the blended food remains stuck on the sides of the bowl, scrape it with the spatula and resume blending once you have locked the lid back in position.

Cooking guide

	3 measures	4 measures 6	measures
Dishes (fresh or frozen approx. 100 g)
VegetablesFrench beans, peas, carrots, courgettes, leeks, potatoes.
MeatChicken, beef, rabbit.
FishTrout, cod.
FruitApples, pears.
Time	Approx. 7 min.	Approx. 10 min.	Approx. 15 min.

At the end of the cooking process, there is still liquid remaining in the bowl. Keep it to add to the cooked food if necessary.

Recipes

Vegetable soup

• Wash, peel and cut up the vegetables before placing them in the steaming basket.
• Put the lid on the bowl.
• Pour6 measures of water in the tank. Set to the leave to cook.
• Pour the contents of the basket in the blender bowl. Blend through successive presses until you obtain the desired consistency.
• Serve.

100 g carrots 80 g potatoes 20 g leeks

Beef with carrots and potatoes

40 g of beef fillet or minced beef

100 g carrots

50 g potatoes

5 g butter

- Cut the meat into pieces. Wash, peel and cut up the vegetables before placing them in the steaming basket.

- Put the lid on the bowl.

- Pour6 measures of water in the tank. Set to the leave to cook.

position and

- Pour the contents of the basket in the blender bowl. Blend through successive presses until you obtain the desired consistency.

- Add the butter and mix in with the spatula.

- Serve.

Stewed apples and bananas

- Wash, peel and cut up the fruit before placing it in the steaming basket.

- Put the lid on the bowl.

- Pour ^4 measures of water in the tank. Set to the leaflet position and leave to cook.

- Pour the contents of the basket in the blender bowl. Blend through successive presses until you obtain the desired consistency.

- Leave to cool before serving.

80 g apples

40 g bananas

Care

After use, unplug the appliance and let it cool if necessary before cleaning it.

Never put it in a dish-washer. Never use chlorinated or abrasive products.

Never submerge the body of the appliance in water. Just wipe it with a soft, slightly damp cloth.

- Descaling:

Pour 100 ml white vinegar + 100 ml water in the tank.

Leave to soak until all of the scale has dissolved. Pour away the descaling solution.

Rinse out thoroughly. Repeat the process if necessary.

After a long period of use, the blades may become dull. Don't hesitate to have them replaced. For spare parts, always contact an approved service centre.

For your safety, this appliance complies with applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Materials in Contact with Foodstuffs, Environment, etc.).

Caution: It is important that scale is removed periodically.

Let's protect the environment!

• Your appliance contains valuable materials which can be recovered or recycled.
• Leave it at a local civic waste collection point.
