USER MANUAL TD4210 TEFAL

2 IN 1 BOTTLE WARMER/STERILISER

© Disney Winnie the Peah Disney Fhat

Exploded view diagram of a smart appliance with numbered parts for identification

Bottle/jar warmer function Fonction chauffe-biberon/petit pot Función calienta biberones/papillas

= 20 ml0,66fl.oz	x 1
	120 ml 4fl.oz	240 ml 8fl.oz	330 ml 11fl.oz

Baby bottle/Biberon/Biberón

Close-up of a mechanical device with a red arrow indicating rotation or movement (no text or symbols visible)

fig. 1

Illustration of a kitchen sink with a bowl of water, enclosed in a circular frame (no text or symbols)

fig. 2

Illustration of a spoon lifting a cup with a red arrow indicating motion (no text or symbols)

fig. 3

Illustration of a hand pressing down on a bottle with a red arrow indicating downward motion (no text or symbols)

fig. 4

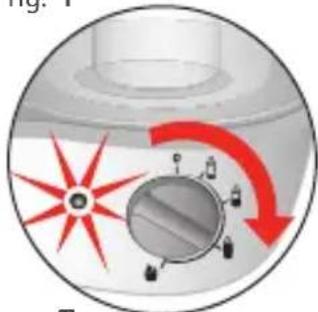

Circular diagram showing a mechanical component with red arrows indicating motion or rotation, no text or symbols present.

fig. 5

Illustration of a medical or laboratory device with a red smokestack emitting vapor, emitting heat (no text or symbols)

fig. 6

ing ding OK

fig. 7

1 2 2

fig. 8

Jar/Petit pot/Frascos

Close-up of a computer monitor with a red arrow pointing to the screen area (no text or symbols visible)

fig. 9

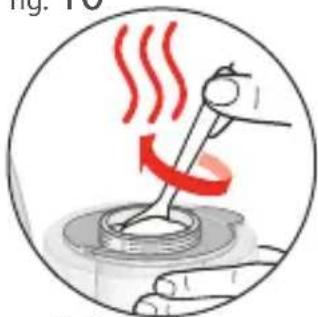

Illustration of a spoon pouring liquid into a container with a red arrow indicating flow direction (no text or symbols)

fig. 10

Illustration of a hand holding a small object with a red arrow indicating rotation (no text or symbols)

fig. 11

Close-up of a hand holding a cylindrical mechanical component with a red arrow indicating rotation (no text or symbols)

fig. 12

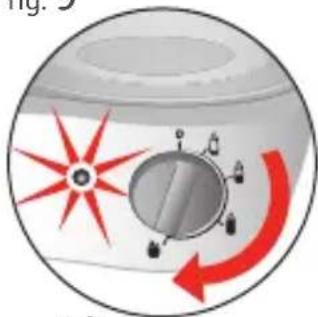

Circular diagram showing a fan or dial with red starburst and curved arrow, no text or symbols present

fig. 13

Illustration of a hand using a tool to press or rotate a component, with red motion arrows indicating motion (no text or symbols)

fig. 14

ing ding OK

fig. 15

1 2

fig. 16

Mechanical component diagram showing a red arrow pointing to a small bowl, enclosed in a circular frame (no text or symbols)

fig. 17

Illustration of a kitchen sink with a showerhead and bowl, enclosed in a circular frame (no text or symbols)

fig. 18

x 5

fig. 19

Close-up of a mechanical device with red arrows indicating downward motion or force, no visible text or symbols.

fig. 20

Close-up of a kitchen appliance with a cylindrical lid and a bell jar (no visible text or symbols)

fig. 21

Close-up of a white mechanical component with red arrows indicating downward motion (no text or symbols)

fig. 22

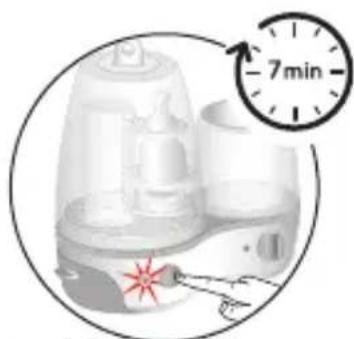

7min

fig. 23

4 min

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

fig. 25 fig. 26

Illustration of a hand using a tool to press down a bell into a container, with no visible text or symbols.

广力云智慧零售收银系统

1 2

fig. 27

The feeding time needs to be a special moment of calm and pleasure for baby, but above all providing serenity for the parents. T-FAL brings to you a wide range of baby care products, including this combined bottle warmer/sterilizer.

This compact appliance is ideal for combining two functions.

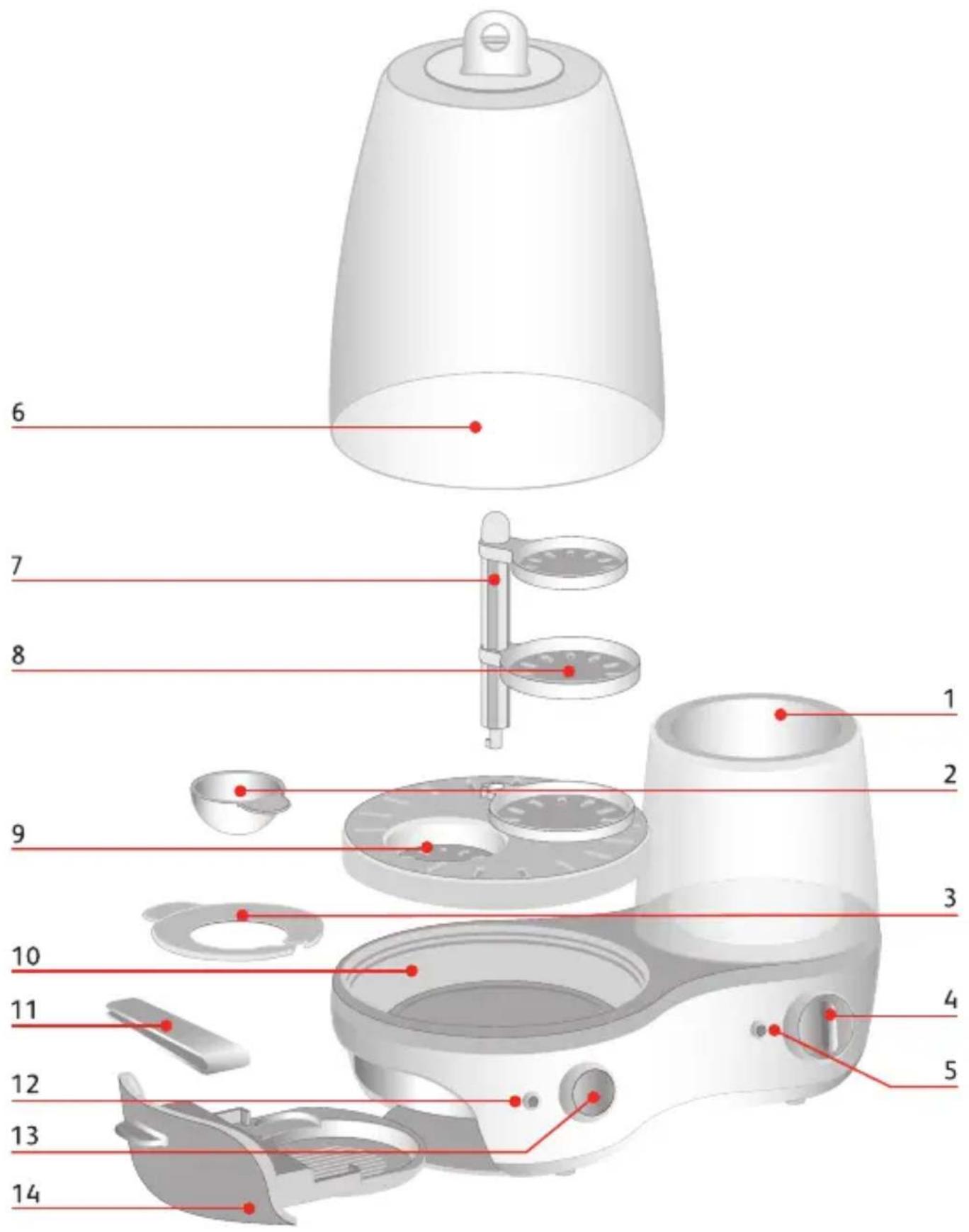

Description

Bottle warmer

1 • Tank
2 • Water measuring cup
3 • Small jar collar/tongs
4 • Heating control knob
5 • On indicator

Sterilizer

6 • Lid
7 • Removable rod for accessory supports
8 • Accessory supports
9 • Grid
10 • Tank
11 • Tongs
12 • On indicator
13 • On/Off button
14 • Removable drawer to store accessories

Important advice on use

Safety instructions

Please read the instructions for use carefully before using for the first time.

For your safety, this appliance complies with applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).

Your appliance is designed for domestic use only.

It is not designed to be used in the following cases, which are not covered by the guarantee:

– In staff kitchenettes in shops, offices and other professional environments,
- In farms,
- By customers in hotels, motels and other residential environments,
– In environments such as bed and breakfast.

Do not use your appliance if it is not operating correctly or if it has been damaged. In this case, contact an approved T-FAL service centre.

Prevention of domestic accidents

This appliance is not a toy. Children should not be allowed to play with the appliance. Never use the appliance without adult supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The accessible surfaces may become hot when the appliance is in use. Do not touch the hot parts of the appliance.

The appliance should be unplugged when not in use and when you are handling it or the accessories. Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.).

Plugging in your appliance

Use only the power cord and plug supplied with the appliance.

Unwind the power cord fully and always plug the appliance into a ground outlet. Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

If the power cord is damaged, it must be replaced by the manufacturer, its aftersales service or any person with similar qualifications, in order to avoid any danger.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

After using your appliance

Never immerse the appliance and the power cord in water or place them in the dishwasher.

Do not immerse this appliance in water.

T-FAL accepts no responsibility, and the guarantee will not apply, for any inappropriate use.

Precautions on use

The various drawings are intended only to illustrate the features of your appliance, and are not to be taken as strictly true to life.

The heating times are given only as an indication and can vary depending on the temperature of the liquid or food to be warmed.

– Before feeding your child:

Check the temperature of the liquid by pouring a few drops onto the back of your hand, or check the temperature of the food by tasting it.

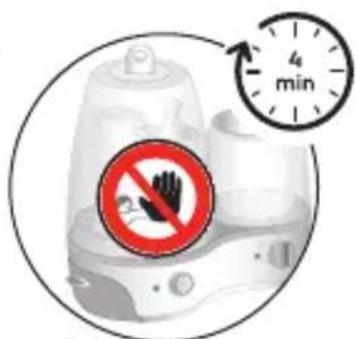

– Please allow at least 4 minutes after the end of the sterilisation cycle before opening the lid, so as to avoid any risk of burning yourself and to ensure complete sterilisation.

- Wait 15 minutes between 2 sterilizations in order for appliance to cool between cycles.

Do not heat the food for too long.

Never plug in the appliance without water.

Never open the lid of the sterilising part when the appliance is in operation as you may burn yourself.

Caution: bottles, teats and caps will be hot after sterilisation.

When it is in operation, the baby bottle warmer contains boiling water which can cause burns.

Do not allow children near to the baby bottle warmer when it is in operation.

Using your appliance

Steriliser: Using for the 1st time

– Unpack the appliance and its accessories. Clean them. Put the removable rod and the supports in place (see drawings).

- Carry out a first sterilization, without any bottles or accessories inside, by pouring 5 measuring cups of water (3,33 fl.oz / 100 ml) into the sterilizer tank.

- Wait at least 4 minutes after the end of the sterilization cycle before opening the lid. Unplug and empty the water left over.

Caution: when the appliance is plugged in for the first time, it starts automatically to run a complete cycle.

Therefore, make sure to install the accessories before plugging in the appliance. On first use, a slight amount of smoke may be given off. This is normally and will quickly disappear.

- Wait for 15 mins before sterilising for the 1st time.

Sterilization function

- Clean teats, accessories and bottles perfectly before placing them in the steam steriliser. Other utensils can be sterilized, such as spoons, pacifiers, etc. provided they can withstand a temperature of 203^ / 95^ for 15 minutes.

– Sterilise as indicated on p.4.

- If the sterilising process is interrupted, you must start the cycle again: remove any remaining water, wait for 15 minutes then follow the instructions in the paragraph on how to use

Baby bottle warmer/little jar function

– Proceed as indicated on.3

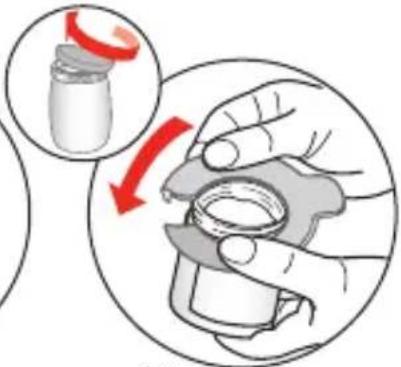

Always remember to take off the lids of the little jars before reheating them

Servicing and descaling

Bottle warmer

• Unplug and let it cool down for 10 minutes.
• Empty the container.
• Pour 2 doses of white vinegar + 2 doses of water into the tank.

Do not heat.

• Wait for 30 mins max. then rinse.
• Repeat the operation if necessary

Sterilizer

• Unplug the appliance and leave it to cool for 10 minutes.
  – Clean the tank and the lid with a damp cloth. Do not use abrasive products for cleaning or utensils likely to scratch the tank.
  – Wash the grid, the rod and the supports with soapy water.
• Using a bottle, pour 4,16fl.oz / 125 ml of water and 4,16fl.oz / 125 ml of white vinegar into the tank.

Do not heat.

• Wait for 30 mins max. then rinse.
  – Wipe with a damp rag.
• Repeat the operation if necessary.

De-scale your appliance regular (to avoid any risk of incomplete sterilisation).

Caution: Do not immerse the appliance in water.

The attachments are not dishwasher friendly.

For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Materials in contact with foodstuffs, Environmental, etc,...directives.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

Description

Partie chauffe-biberon

Consumer Service and Accessories ordering 1-800.418.33.25 www.t-falbaby.ca
