USER MANUAL 307730 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Exploded view diagram of a coffee maker with numbered parts for identification

4. Benutzung

⚠️ Usage and safety instructions

• Read the user manual completely before using this product! Keep it for future reference.
• Before using the appliance, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Disconnect the plug from the power source if the appliance is not being used! Do not leave the product unattended!
• This appliance is intended for personal use only!

• Never immerse it in water for cleaning. Wipe the body with a dry cloth.

• Use the product only on a flat surface.

• Disconnect the appliance from the mains when it is not being used or during cleaning.
• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• Never move the appliance during operation.
• The product should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or the packaging material!

- In the interest of child safety, do not leave any packaging components (plastic bags, cardboard, polystyrene, etc.) lying around.

• This product is not a toy!

- Close supervision is required if the product is used by or near children or frail persons.

- Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

- Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry to avoid electric shock.

- This product should not be used near water, such as a bathtub, washbasin,

swimming pool, etc., where there is a risk of immersion or splashing.

• Never connect the appliance to an extension cable or power strip!
• Do not use the citrus fruit squeezer outdoors!
• Use the product as described in this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical injury and void the guarantee.
• Never operate the appliance unsupervised. Always switch off the appliance if you leave the room. Disconnect the plug from the mains socket.
• Only use original spare accessories.
• Warning! Please do not allow small children to play with the foil. Danger of suffocation!

- Operating period: Turn on the appliance for 15s, then turn it off for 15s as one cycle of operation. After operating the product for 10 cycles, you should stop the operation and turn off the appliance for 30min to cool it down.

- This appliance can be used by children aged 8 years and older if they are supervised or instructed in the safe use of the appliance and have understood the resulting dangers. Cleaning and maintenance by the user must not be performed by children unless they are 8 years of age or older and are supervised. The device and its connecting cable must be kept away from children younger than 8 years of age.

• Devices may be used by persons with

reduced physical, sensory or mental abilities or lack of experience and knowledge if they are given adequate supervision or detailed instructions for using the device in a safe manner and if they understand the dangers involved.

• Children must not play with the device.
• Always disconnect the device from the mains supply when it is not under supervision and before assembling, dismantling or cleaning.
• If the power cord is damaged, it must be replaced by the factory or its service department or a similarly qualified person to avoid any risk.
• This appliance is only suitable for squeezing citrus fruit.

Thank you for purchasing a product from Arendo. Please read the following operating instructions carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• Juicer
• Operating instructions

2. Technical data

Power supply 220-240 V ~50/60Hz

Power consumption 800 W

Protection class II

Power capacity 400 ml

Noise level ≤ 85dB (A)

Cable length ~ 1,1m

Ambient temperature + 0-3°C to 35-40°C

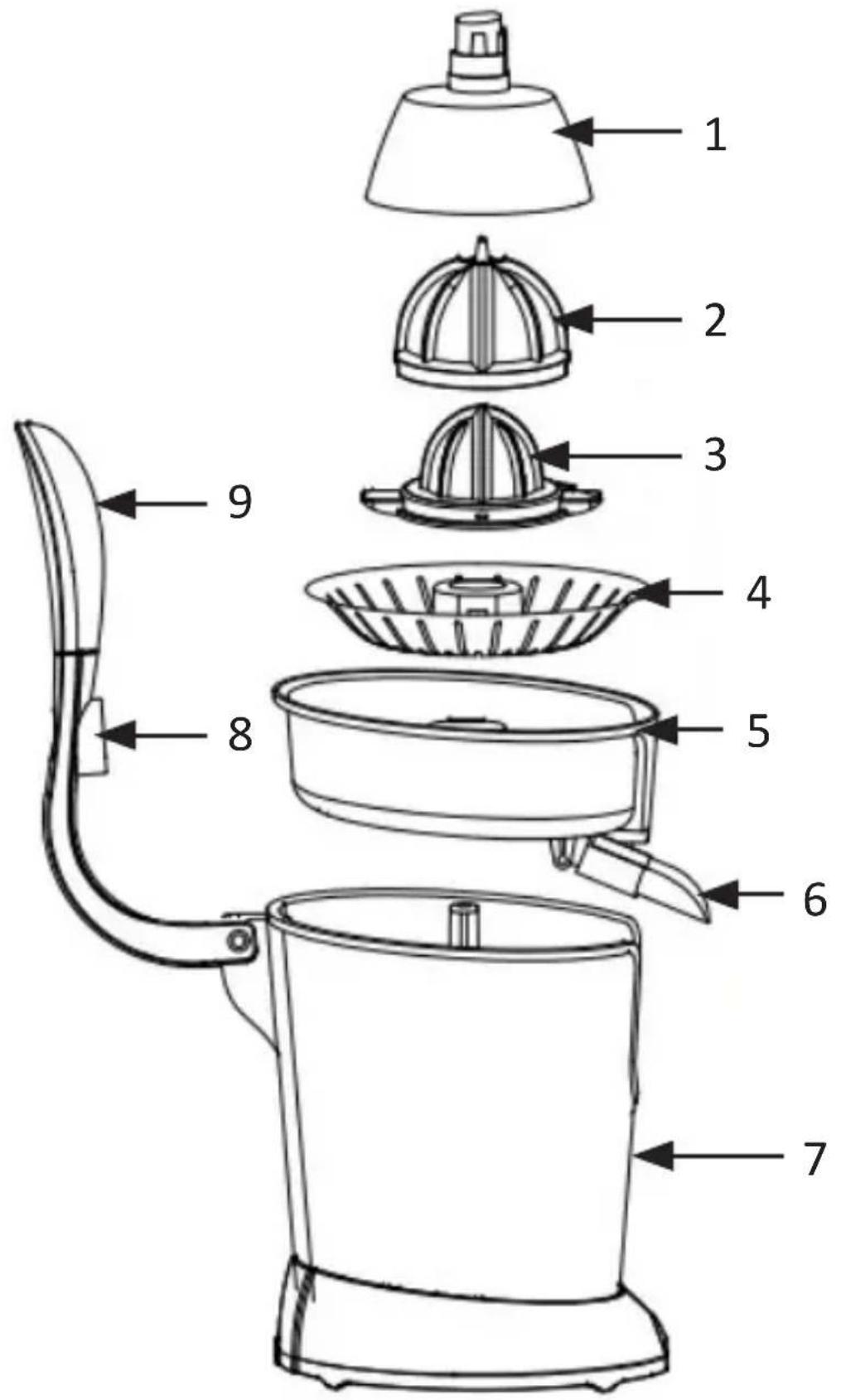

3. Product details

Number Description

1 Cone cover

2 Large pressing cone

3 Small press cone

4 Filter

5 Juice container

6 Spout opening

7 Base unit (motor unit)

8 Attachment for cone cover

9 Lever arm

Labeled diagram of a coffee maker with numbered parts for identification

4. Utilisation

Remove the appliance from the packaging and remove all packaging material. Place it on a flat, firm surface.

• Clean the appliance thoroughly before using it for the first time.
• Place the juice container on the base unit.
• Place the filter and the pressing cone on the shaft of the motor unit.

Note: The large pressing cone can only be used in conjunction with the small pressing cone.

• Insert the plug into a properly connected socket.
• Place a glass or container under the anti-drip opening.
• Press the anti-drip opening upwards so that it is closed and no juice can escape.
• Cut the relevant citrus fruit in half before squeezing it.
• Place a halved citrus fruit on the press cone.
• Press down the lever arm to start the appliance. As soon as the lever arm presses the press cone down, the appliance starts working automatically.
• As soon as you have finished juicing, lift the lever arm. The motor switches off automatically.
• As soon as you have finished or the juice container is full, open the anti-drip opening and remove the juice.

Note: The pressing cone starts to rotate on its own. Do not press too hard on the pressing cone, as the appliance will stop if too much pressure is applied.

Caution! Make sure that no body parts, hair, clothing or similar get into the pressing cone!

Disconnect the mains plug from the socket after use and clean the appliance.

Note: Make sure that you store the finished juices in a cool place. Please note that the juices should not be stored for longer than one day. Do not store the juices in metal containers, as the acidity of the juice can attack the surface and impair the flavour.

5. Cleaning and care

Before cleaning, disconnect the mains plug from the socket and never immerse the base station with the motor in water!

Furthermore, never use abrasive or aggressive cleaning agents to clean the appliance. We recommend cleaning the appliance after every use.

• Clean the base station (motor unit) with a slightly damp cloth.
• The other components of the appliance can be cleaned with water and a mild detergent.
• The juice container, the filter, the cone cover and the press cone are dishwasher-safe. Make sure that the detergent is not too strong.
• Allow all parts to dry sufficiently before reassembling the appliance.

Store the device in its original packaging to protect the components from dust if you do not intend to use it for a long period of time.

6. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use.

The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee.

The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

7. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly.

As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. our environment.

WEEE Directive 2012/19/EU WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306940 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
