USER MANUAL 257170 BARTSCHER

HOODS - INSTRUCTION MANUAL

DE

3D rendering of a black metal ventilation duct with slatted ventilation slots (no text or symbols)

ISTRUZIONI ORIGINALI/ORIGINAL INSTRUCTIONS/ORIGINALBETRIEBSANLEITUNG /INSTRUCTIONS ORIGINAUX

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns hoods.

For further informaon refer to paragraph "Technical data" (2).

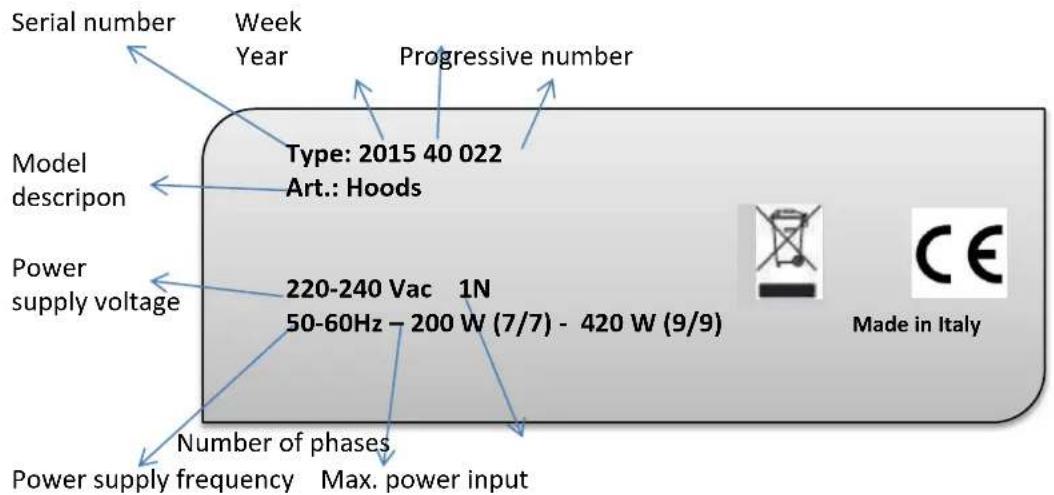

DATA PLATE

Serial number Week Year Progressive number Model descripon Type: 2015 40 022 Art.: Hoods Power supply voltage 220-240 Vac 1N 50-60Hz - 200 W (7/7) - 420 W (9/9) Made in Italy Number of phases Power supply frequency Max. power input

The data plate shows the idencaon and technical data of the product.

The data plate is outside the appliance on the lower part of the right side.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.

Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)

The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultaon by the operator. Its content could be modified without noce. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prinng or translaon mistakes.

The company cannot assume liability for damage and faulty operaon due to:

• Failure to obey the instrucons of this handbook;
• Modicaon or appliance alteraon;
• Maintenance by unspecialized technicians;
• Insucient maintenance;

• Improper use of the appliance;
  • Exceponal and unforeseeable events;
  • Unrespect to domestic legislaon on health, hygiene and safety at the workplace;
  • The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevention.

2.

TECHNICAL DATA

HOODS

Supply voltage	V	220-240
Frequency	Hz	50-60
Max. power input	W (7/7) (9/9)	200/420
Max. current requirement	A (7/7) (9/9)	2/3,15
Max. supply Voltage variaon		+/- 10%
Max. Frequency variaon	connuous	+/-1%
Max. Frequency variaon	Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislaon on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3.

INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protective Im taking care not to scratch the surface;
Do not push or pull the appliance to avoid its overturning;
Appliances must be moved using a fork li trolley. Insert forks under the pallet and move the appliance taking care that the load is properly balanced;
Place the appliance in order to grant its stability. If necessary carry out masonry reinforcement work, take into consideraon that the height between the oor and the hood lower part is 1900/2000 mm and that the perimeter of the hood must protrude by at least 200 mm with respect to the area of cooking appliances;
The hood can be installed using the plugs and the chains supplied. If the ceiling is made by hollow brick, resin plugs (not supplied) must be used.

WARNING!

Plugs and chains are supplied to support only the weight of the hood.

Mark the ceiling or the wall for plugs' ng and drill;
Fit the plugs and adjust chains' length;
Fix eyebolts directly to the hood through the holes which have been already prepared;
Connect eyebolts trough the chains and "S" hooks;
The hood must be connected to an ecient ue directly to the outside having an adequate size based on the hood extracon capacity;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
➢ Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct conncon to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconncon according to overvoltage III rate and accordingly to installaon rules;

The speed regulator, supplied as an accessory, must be placed in an easily accessed place, protected against impacts and away from heat sources. For connecon, comply with the diagram given inside the regulator;
Lamps, supplied separately, have to be connected to the cable (220 V single phase);
Have the system tested by a qualified electrician, if operaon of the equipotenal earth conncon or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal conncon:

The Manufacturer declines all responsibilities in case of connecan made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulations.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is to draw smoke during cooking. Any other use is not permitted (e.g. heang food).

WARNING!

Use always suitable safety equipment while handling objects
To ensure ecient operaon, install the hood in an adequately venlated placed.

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable cauon.

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

5. USE OF THE APPLIANCE

Press the main switch on the supply panel that powers the appliance.

Check the eciency of the system according to the various required specifications (electrical input, air ow, efiency of wash system, light operaon check, etc.)

Switch o nally the main power supply line ahead of the appliance.

Clean the stainless steel surfaces inside and outside with warm water and a neutral soap, rinse thoroughly and dry carefully.

In case of long period of inactivity, store the appliance in a dry place.

6. DISPOSAL AND RECYCLING

Dispose of the appliance responsibly and respect the environment at the end of its useful life. Proceed with its disposal in accordance with domesc regulaon.

Exploded view diagram of a mechanical assembly with numbered components for identification

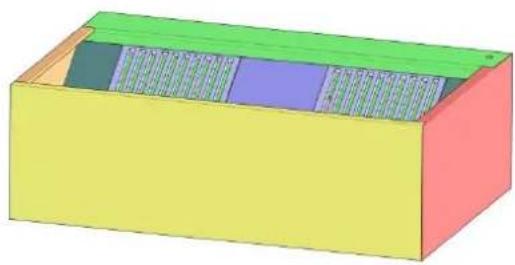

3D illustration of a rectangular box with colored sections (green, yellow, red) and internal patterned panels, no text or symbols present.

3D diagram of a rectangular block with internal components, no text or symbols present

POS./POS. CODICE/ITEM NO. DESCRIZIONE/DESCRIPTION/BESCHREIBUNG/DESCRIPTION POS./POS. ART.NR./REFERENCE

1 PANNELLO SUPERIORE/CEILING PANEL/DECKUNGSBLECH/PANNEAU SUPERIEUR
2 NS4VIT044054 VITE AUTOPERFORANTE TBIC 4.8x38/SCREW/SCHRAUBE/VIS
3 PANNELLO MOTORE/FAN PANEL/MOTORBLECH/PANNEAU MOTEUR
4 NS4VIT080082 VITE TE M8x20/SCREW/SCHRAUBE/VIS
5 VENTILATORE/FAN/MOTOR/MOTEUR
6 PANNELLO LATERALE COMPENSAZIONE FILTRI/SIDE PANEL /SEITENBLECH/PANNEAU LATERAL
7 FILTRO/FILTER/FILTER/FILTRE
8 PANNELLO CENTRALE COMPENSAZIONE FILTRI/MIDDLE PANEL /ZENTRALBLECH/PANNEAU
CENTRALE
