258100 - Range hood BARTSCHER - Free user manual and instructions

Product Type	Heated base unit for dishes
Brand	Bartscher
Model	258100
Power supply	220-240 V ~ 50/60 Hz
Power consumption	2000 W
Current consumption	10 A
Power cable	H05RN-F 3x1,5 mm²
Temperature range	30 to 90 °C
Thermostat adjustment	Rotation (left = increase)
Ventilation	Fan for uniform hot air distribution
Door	Sliding
Adjustable feet	Yes, for leveling
Materials	Coated steel
Capacity	Stacked plates with 80 mm gap for air circulation
Cleaning	Hot water and neutral detergent, no water jets
Safety	Circuit breaker, mandatory grounding
Protection rating	Overvoltage category III
Intended use	Warming and keeping dishes warm
Installation	By qualified electrician
Compliance country	Local safety and fire standards
Listed spare parts	Yes (door, wheel support, shelf, heating element, panel, etc.)

Frequently Asked Questions - 258100 BARTSCHER

How to install the device correctly?

Installation must be carried out by a qualified electrician. Before plugging in, check that the voltage matches and that the installation is grounded. Use a suitable circuit breaker.

What is the temperature range of the device?

The temperature is adjustable from 30 to 90 °C. Turn the thermostat knob clockwise to decrease the temperature and counterclockwise to increase it.

How to clean the device?

First unplug the device. Clean the inside and outside with hot water and a neutral detergent using a soft sponge. Never use water jets or abrasive products.

Can I use this device to heat food?

No, this device is designed only for warming and keeping dishes warm. Any other use is considered improper and dangerous.

What to do if the device does not heat?

Check that the switch is in the 'I' position and the thermostat is set to a sufficient temperature. If the problem persists, contact a qualified technician.

How to adjust the temperature?

Turn the thermostat knob: to the left (counterclockwise) to increase the temperature, to the right (clockwise) to decrease it. The scale goes from about 30 to 90 °C.

Is it normal for the door to slide with difficulty?

Make sure the device is level using the adjustable feet. Also check that the rails are not obstructed. Regular maintenance may be necessary.

What are the important safety instructions?

Never clean with a direct water jet. Always unplug before cleaning. The device heats up: use protection when handling dishes. The electrical installation must comply with current standards.

How to arrange the dishes inside?

Stack the plates leaving a gap of about 80 mm between stacks to allow hot air circulation. Do not block the ventilation slots.

What to do in case of breakdown or malfunction?

Consult the manual for basic actions. If the problem persists, call a specialized technician. Any unauthorized modification voids the manufacturer's liability.

USER MANUAL 258100 BARTSCHER

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright.

It concerns heated cupboards.

For further informaon refer to paragraph "Technical data" (2).

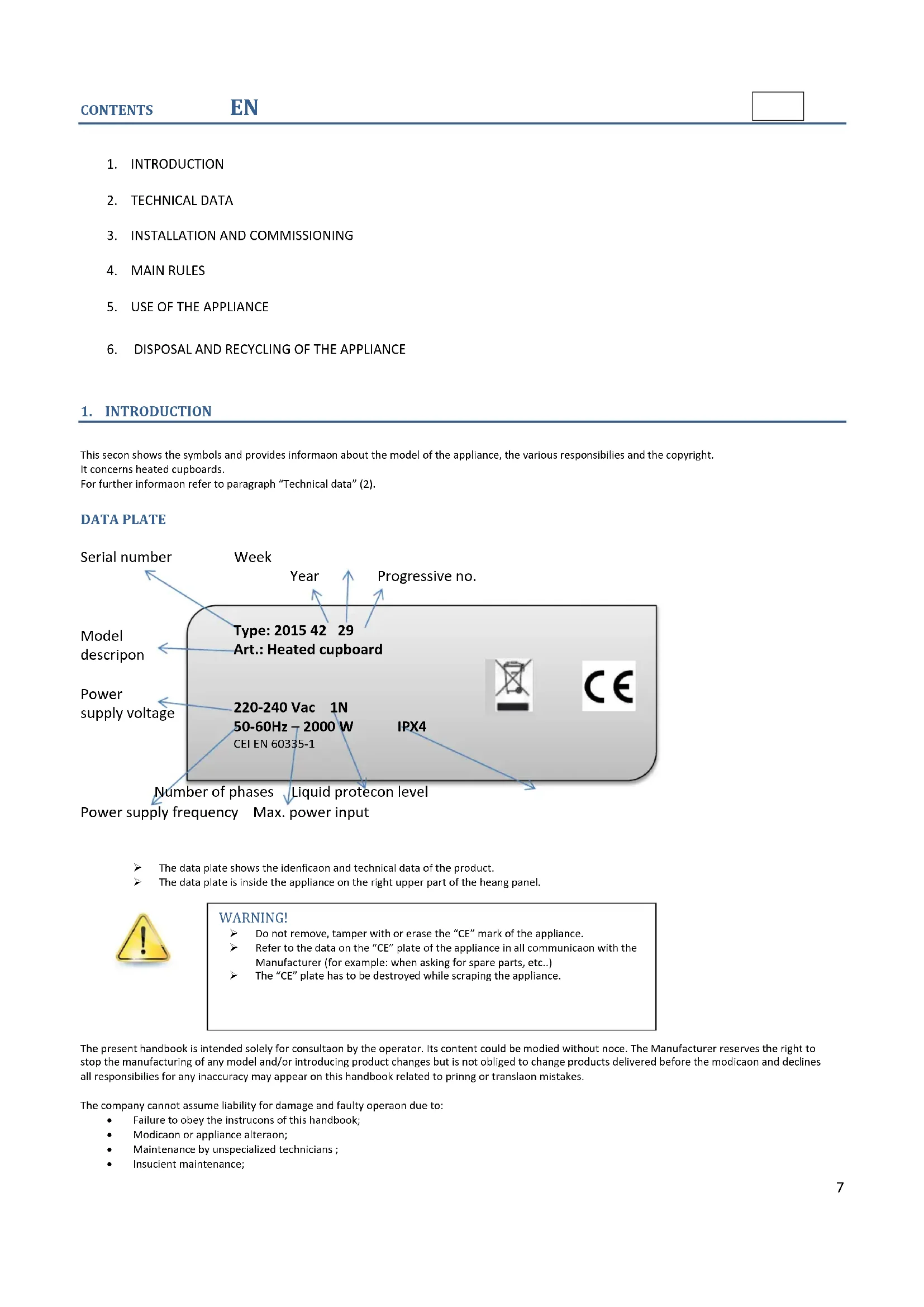

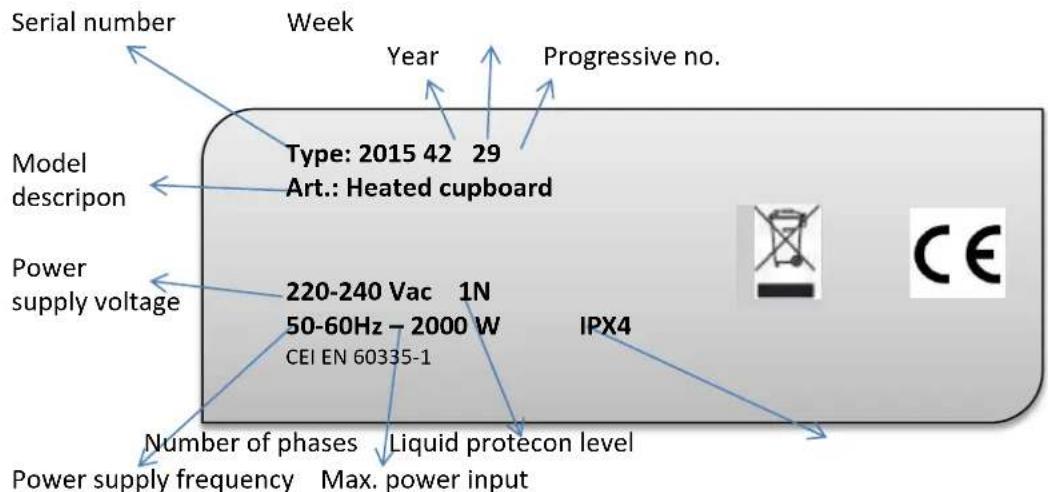

DATA PLATE

The data plate shows the identificaon and technical data of the product.
The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.
Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)
The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultaon by the operator. Its content could be modied without noce. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prinng or translaon mistakes.

The company cannot assume liability for damage and faulty operon due to:

• Failure to obey the instrucons of this handbook;
  Modicaon or appliance alteraon;

• Maintenance by unspecialized technicians;
  Insucient maintenance;

• Improper use of the appliance;

• Exceponal and unforeseeable events;
  Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARD

Supply voltage

Frequency

Max. power input

Max. current requirement

Power cord

Max. supply Voltage variaon

Max. Frequency variaon

Max. Frequency variaon

V	220-240
Hz	50-60
W	2000
A	10
Mmq-H05RN-F	3x1,5
	+/- 10%
connnuous	+/-1%
Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislao on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3.

INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protece Im taking care not to scratch the surface;
Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct connec to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconnec on according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth connecn or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal connecn:

The Manufacturer declines all responsibilities in case of connecn made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and ciency. The sole use of this appliance is to store and heat tableware. Any other use is not permied (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable caun.

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30 / 90^) . Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispos of the apianr sboiy and rce the enmert at the end of its useful life. Proced wth its disposal in accordance with domsc reglaon.
