USER MANUAL Hi-Anna Haepi

Hello, thank you for your confidence in our product. Please be aware that it has been carefully designed by our teams and we hope that it meets your expectations. As a small company, it would help us greatly if you could add a product review on your dealer's website. If you have any problems, please do not hesitate to contact us. Our team will be delighted to be of service and to help you. Website where you placed your order or website of the shop where you purchased our product.

UNPACKING THE DEVICE 1. Open the battery compartment on the back of the device. 2. Remove the insulating tab from under the batteries (if installed) or insert the batteries, observing the polarities (+ and -) indicated inside the battery compartment. 3. Close the battery compartment. 4. Select the weight calculation mode (kg, st or lb) using the "unit" button on the back of the device. (If there is a button) 5. Place the scale on a flat, stable surface.

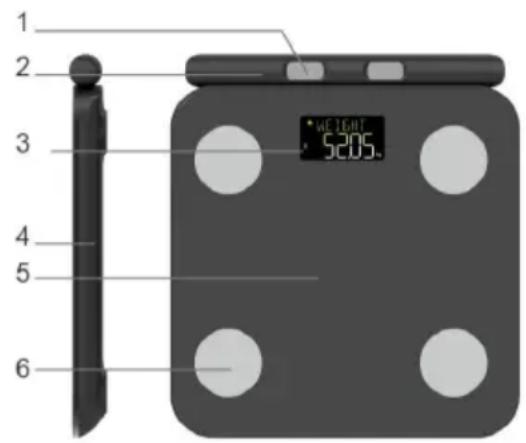

Product structure

1. Thumb electrode on the handlebar
2. Wrist
3. Color LCD screen
4. Lower plastic base
5. Tempered glass coating
6. Stainless steel electrode
7. Four-finger handlebar electrode
8. Scale feet
9. Battery compartment cover

HOW TO USE THE Hi-Anna PERSONAL SCALE

1. Install the Fitdays app
2. Search for "Fittdays" in the Apple Store or Google Play or scan the QR Code below.
3. Download and install the app on your device.
4. The app icon will appear on your phone or tablet once installation is complete.

1. Create your account by signing up with an email address or social media account.
2. Enter your required personal details, then click Confirm.

Note: It is essential to enter accurate information, such as gender, age, height and other relevant details. Incorrect information may result in inaccurate measurements.

1. Pair the scale via Bluetooth.

2. Place the scale on a hard, flat surface.

3. Activate Bluetooth on your smartphone or tablet.
4. Open the application click on [Account] click on [Device] [+ Add a device]
   ->[Body Fat Scale] -> [Bluetooth connection]*press lightly on the scale to light up the screen.
5. The Bluetooth ID of the scale is: Hi-Anna.
6. Click on the "Connect" button to connect. After connecting, click on "Go to measurement" on the device details page to take a measurement in real time.

Note: Once the connection is successful, a Bluetooth icon will appear on the scale. In addition, on the home page of the application, the word "Connected" will appear in the circle, confirming that the connection has been established.

1. Activate the display of the scale by tapping it lightly with your foot. Wait until the screen displays "0.0" kg. Stay on the home page of the FitDays application.

Notes:

• To ensure the synchronization of data, do not leave the home page of the application.

• If you are wearing socks, the scales will only measure your weight and BMI. For a complete analysis of your body parameters, it is essential to step on the scales barefoot.

• Start with weighing.

• Step on the scale barefoot, without shoes or socks. Make sure that the soles of your feet cover the two upper electrodes and that your heels cover the two lower electrodes.

• Take the handle in your hand, respecting the distinction between left (L) and right (R) and making sure to cover the four electrodes - two at the front and two at the back - with your fingers.
• Keep your arms straight and at a 30^ - 45^ angle to your body.

• Stand straight on the scale and maintain the measuring position for about 30 seconds.

• View your detailed analysis report, including your weight, BMI, body fat rating (BFR), muscle mass, bone mass, and much more. Scroll down the screen to see all the details.

• In the Trends section, follow the evolution of your measurements with a graph.

Add and change users:

Press icon, or go to Me User Management, then add personal data. The smart scale recognizes the user who steps on it and reminds them to switch to the right profile if necessary.

Note:

• To ensure successful data synchronization, please avoid leaving the application home page on your phone. Leaving the home page may prevent data synchronization with your phone.
• When using for the first time, it is necessary to connect the scale to the application to access all features and measurements. Without connection to the application, the scale will only measure weight.
• It is crucial to avoid mixing online and offline mode during measurement. To avoid any loss of data, it is recommended to perform the entire measurement in offline mode or in online mode, without alternating between the two.
• When using the scale with multiple users, it is important to select the correct user profile in the app. If a significant difference is detected from the last measurement recorded on the current profile, the scale may only show weight and BMI. To ensure accurate and personalized measurements, be sure to select the right profile before using the scale.

Special feature 1: Offline use

This model is equipped with a color LCD screen and offers offline functionality. During first use, it is essential to set up the scale and connect it to the app to analyze body fat and other body parameters. However, after this initial setup, you will be able to easily measure your body fat, BMI and body type without having to connect to the app every time. The LCD screen of the scale allows you to display these measurements. It is important to note that offline measurement will not be activated if a weight difference of more than 2kg is detected compared to the last measurement. In offline mode, all successful measurements will be automatically synchronized with your application the next time the scale connects to the application. This ensures a smooth update of your data, accessible for further analysis and follow-up.

Special feature 2: Voice assistant

During the measurement process, the scale incorporates a voice guide that provides step-by-step instructions. This handy feature helps users throughout the measurement procedure. If you don't need it, the voice function can be easily disabled via the settings of the associated application.

Frequently asked questions:

1. Bluetooth connection failure
2. Make sure that the scale and Bluetooth on your phone are enabled.
3. Check that the iOS version of your smartphone is 8.0 or higher / Android 6.0 or higher.
4. Once the connection is successful, a Bluetooth icon will appear on the scale, and the app will display "Connected" on the home page.
5. No body fat data after weighing
6. The user must step on the scale barefoot.
7. Make sure your feet and the surface of the scale are dry.
8. To ensure accurate results, do not step off the scale until the measurement is complete. It is important to remain still for about 30 seconds or until the displayed numbers stop flashing.
9. Check if Bluetooth is connected to another device.

3. Incorrect weight data

• For accurate measurements, place the scale on a hard, flat surface.
• Before use, check that the sensors under the scale are clean and unobstructed.
• Reset the scale by pressing the reset button on the back.

4. Incorrect fat-to-muscle ratio on the app

• Check that the information entered (gender, height, age) is correct. Incorrect data can distort the results.

5. The scale does not turn on

• Check the battery status and replace them if necessary.
• How do I change the unit of measurement?
• In the application, select "Me" -> "Settings" -> "Change unit" to change the unit of measurement on your phone.

FCC Declaration

Operation of this device is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

If this device causes interference with radio or television reception, try the following solutions :

• Reorient or move the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Plug the device into a socket on a different circuit from the receiver.
• Consult a dealer or an experienced radio/TV technician.

Advice regarding batteries

• Keep the scale out of the reach of children to ensure their safety and avoid any accidents.
• Keep batteries and other small parts out of the reach of children to prevent any risk of accidental ingestion, which could be fatal.
• Do not expose batteries to heat or fire, as this could cause an explosion.
• If you suspect a battery leak, stop using the scale immediately.
• Do not dispose of used batteries with household waste. Take them to a suitable collection point for recycling. Recycling and disposal
• The packaging is recyclable. Please dispose of it in an environmentally friendly way or take it to a recycling center.
• Please dispose of the device in an environmentally friendly way or take it to a recycling center for electrical and electronic equipment. For more information, contact the local authorities.
• To protect the environment, the battery should not be disposed of with household waste. Please separate it from the device before disposal or take it to an appropriate collection point.

USAGE AND MAINTENANCE TIPS · BATTERY WARNING: KEEP OUT OF REACH OF CHILDREN

Always weigh yourself on the same scales and on the same floor covering. Do not compare weight measurements from one set of scales to another as there are certain discrepancies due to manufacturing tolerances. • Placing your scales on a flat, hard surface ensures the best possible measurement and accuracy. • Weigh yourself at the same time every day, before meals and without

shoes. Ideally, you should weigh yourself as soon as you get up. • Your bathroom scale will round up or down to the nearest value. If you weigh yourself twice and get two different readings, your weight will be between the two. • Clean the device with a damp cloth. Do not use chemical detergents. • Avoid putting the device in contact with water; this could damage the electronic components. • Take care of the device - it is a precision instrument. Do not drop it or jump on it. • Warning: the platform can become slippery if wet IN CASE OF PROBLEMS If you encounter difficulties in using your device: • Check that the battery is correctly inserted. • Check that you have selected the appropriate stones/ pounds, kilograms or pounds calculation. • Check that the device is placed on a flat surface and not touching a wall. • Repeat the 'Start-up' procedure each time the device is moved. • INDICATOR LIGHT 'ERR or oL' The weight exceeds the maximum capacity. INDICATOR LIGHT 'LO' Replace the battery, INDICATOR LIGHT 'C', start weighing again.

CAUTION: This product is not a medical device and must not be used for medical purposes. People with electronic medical implants, such as pacemakers, must not use the body composition analyzer, as it emits a low-intensity electric current that travels through the body and may interfere with their operation. Pregnant women should only use the weight measurement function. The other functions are not designed for use by pregnant women. The interpretation of the measurements (for example, their evaluation and the implementation of training programs based on the results) must be carried out by a professional. Implementing a diet or training program based on self-analysis can be dangerous for your health. Always follow the advice of a qualified professional.

DISPOSAL AND RECYCLING: All packaging and the instruction manual are recyclable. Please dispose of them in an environmentally friendly manner.

This device and its battery are recyclable. Please take them to a store or recycling center.

EXPLANATION WEEE: The symbol indicates that the product must not be disposed of with other household waste throughout the European Union. The uncontrolled disposal of waste can be harmful to the environment or human health, please recycle it responsibly. In this way,

you will promote the sustainable reuse of material resources. To return your used device, please use the return and collection system or contact the dealer where the product was purchased. They can dispose of this product for recycling in an environmentally friendly way.

DIRECTIVE CONCERNING BATTERIES AND ACCUMULATORS : This symbol indicates that batteries and accumulators should not be disposed of with household waste because they in substances that can be harmful to human health and the environment. Please use the option points provided to dispose of used batteries and accumulators. Warning: Always insert ties correctly with regard to the polarities (+ and -) marked on the battery and the equipment. Do not allow children to replace batteries without adult supervision. Keep batteries out of the reach of children. If a component or battery is swallowed, the person concerned should seek prompt medical advice. Do not throw batteries into a fire. Do not charge batteries. Do not short-circuit batteries.

Dead batteries should be removed from the equipment immediately and disposed of properly. Do not deform batteries. Keep this information with the instructions. Do not mix old and new batteries or batteries of different types or brands. Remove the batteries from the equipment if it is not to be used for a long period of time, except in case of an emergency. Do not heat the batteries. Do not force the batteries to discharge.

Battery safety instructions:

Insert the batteries correctly, respecting the polarity (+ and -).

Use batteries of the same type and brand in one device.

Remove batteries from a device if you will not be using it for a long period of time.

Do not mix new and used batteries.

Never try to recharge non-rechargeable batteries.

Do not expose batteries to heat, fire or extreme temperatures.

Do not dismantle, pierce or crush a battery.

Avoid all contact between the terminals (+ and -) and metal objects (risk of short circuit).

15-YEAR WARRANTY: Distec International S.A. guarantees this product to be free from defects in materials and workmanship for a period of 15 years from the date of purchase; except in the cases indicated below. This Distec International S.A. warranty does not cover damage caused by misuse or abuse, accident, unauthorized accessories, modifications to the product, or any other circumstances not attributable to Distec International S.A. This warranty is valid only if the product is purchased and used in the UK/EU. A product that requires modifications or adjustments to enable it to operate in a country other than the one for which it was designed, manufactured, approved and/or authorized, or any repairs to products damaged by these modifications, are not covered by this warranty. Distec International S.A. cannot be held liable for any type of accidental, consequential or special damage. To benefit from the warranty service on your product, please return the product by postage-paid parcel to the After-Sales Service, accompanied by your dated invoice (proof of purchase). Upon receipt, Distec International S.A. will repair or, if necessary, replace your product and send it back to you, without additional shipping costs. Only Haepi After-Sales Service is authorized to process a warranty claim. Any service provided for this product by anyone other than Haepi After-Sales Service will void the warranty. This warranty does not affect your statutory rights.

SIMPLIFIED EU DECLARATION OF CONFORMITY: The undersigned, Distec International S.A, declares that the radio equipment of the connected bathroom scale type complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on request by email from the Distec International consumer service: [e-mail]

WOULD YOU LIKE TO CONTACT US? : In case of a problem or if you have any questions, please contact us: Distec International S.A, Rue Maurice Faure 1, 1400 Nivelles, Belgium. Email: [e-mail]

Durante el proceso de medicación, la báscula incorpora una guía de voz que proporción instrucciones bajo el caso. Para la purpose of the procedure, the patient is asked to describe his or her problem and the solution. During this procedure, the patient is given a list of possible solutions that are based on the information provided by the patient. The patient is then asked to choose one that is best for him/her.

GB ELECTROMAGNETIC COMPATIBILITY : This product is intended for domestic use.

ADVICE TO THE USER : This product is a sensitive electronic instrument and as such may temporarily be affected by Radio Transmitting Devices being used in close proximity to it (such as Mobile Phones, Walkie Talkies, CB Radios, Radio Model Controllers, and some Microwave Ovens, etc.) Additionally, extreme levels of Electrostatic Interference may cause this product to temporarily malfunction. In such case it may be necessary to remove and re-install the battery to re-establish normal working. If the problem persists then contact your local agent.

Radio Frequency Information:

a) The frequency bands used by the radio equipment: 2402-2480 MHz.
b) The maximum radio frequency power transmitted on the frequency bands used by the radio equipment is: -1.14 dBm.
