USER MANUAL H-10216 Uline

Line drawing of a simple office desk with adjustable legs and wheels (no text or symbols)

TOOLS NEEDED

Phillips Screwdriver

4 Allen Wrench

6 Allen Wrench

(included)

Open-End Wrench (included)

Two Person Assembly Recommended

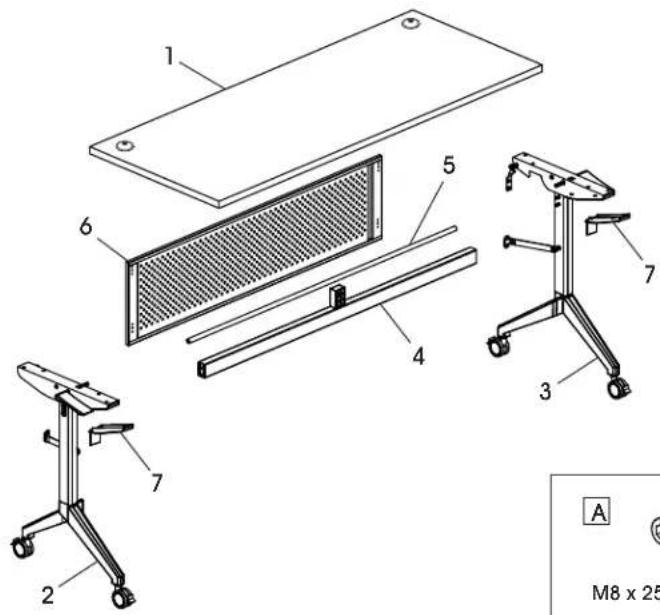

PARTS

1 6 5 4 7 3 2 A M8 x 25

PARTS

# DESCRIPTION QTY.
1 Tabletop 1
2 Left Frame Leg 1
3 Right Frame Leg 1
4 Support Bar 1
5 Hexagonal Drive Rod 1
6 Modesty Panel	1
7 Plastic Cover	2

Hardware Kit

CAUTION! Some parts may have sharp edges. Care must be taken when handling various pieces to avoid injury. For your safety, wear a pair of work gloves when assembling.

M8 x 25 mm Bolt x 4

Lower Modesty Panel Connector x 2

Upper Modesty Panel Connector x 2

M6 x 8 mm Bolt x 8

M6 x 30 mm Hexagon Bolt x 2

M6 x 28 mm Hexagon Bolt x 2

Hole Cover x 2

Top Support Block x 1

M6 x 16 mm Bolt x 4

M6 x 15 mm Bolt x 8

Ganging Bracket x 4

ST3.5 x 35 mm Wood Screw x 16

Black Grommet x 2

Silver Grommet x 2

ASSEMBLY

NOTE: Count and inspect all pieces before disposing of any carton or packing materials.

NOTE: Assemble on a smooth, non-marring surface to avoid scratching.

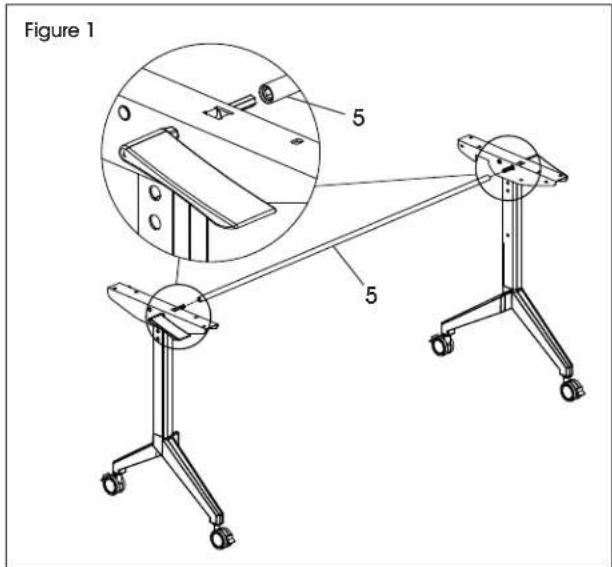

1. With a second person, attach hexagonal drive rod (5) to the top bracket between left and right legs. (See Figure 1)

Figure 1 5 5

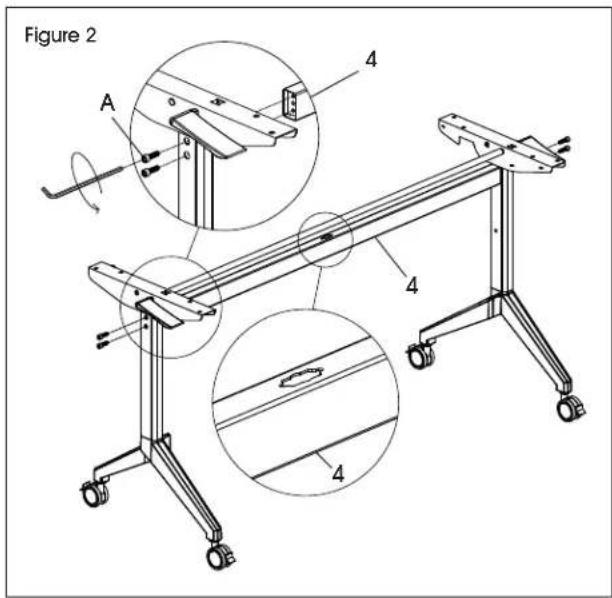

1. Install support bar (4) between left and right legs using four M8 x 25 mm bolts (A). Tighten using #6 Allen wrench. (See Figure 2)

NOTE: Ensure opening in middle of support bar is facing up.

Figure 2 A 4 4 4

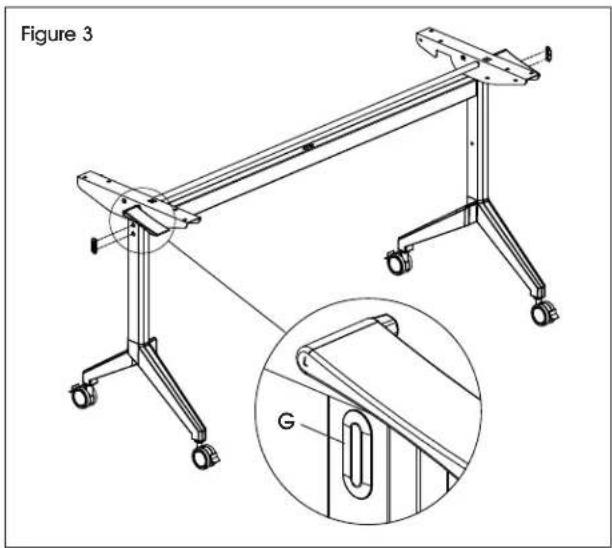

1. Install hole covers (G) into side of each leg. (See Figure 3)

Technical line drawing of a mechanical frame assembly with an inset showing a magnified detail (no text or symbols)

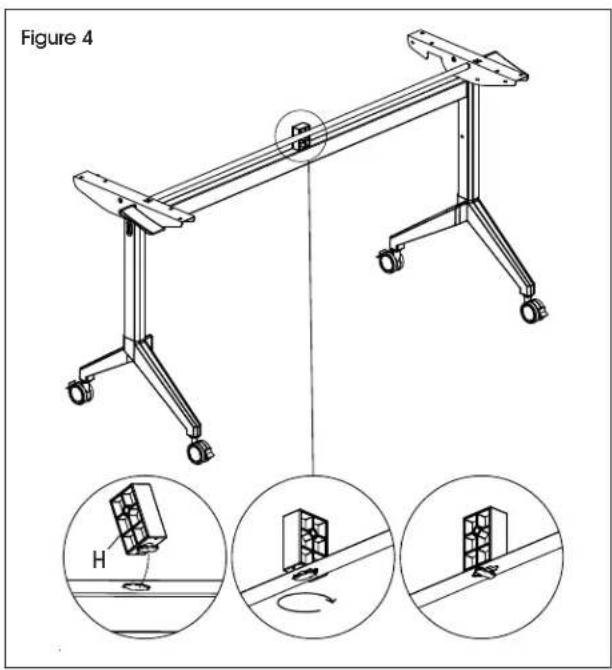

1. Insert top support block (H) into opening in support bar (4). Rotate to lock in place. (See Figure 4)

Figure 4 H

ASSEMBLY CONTINUED

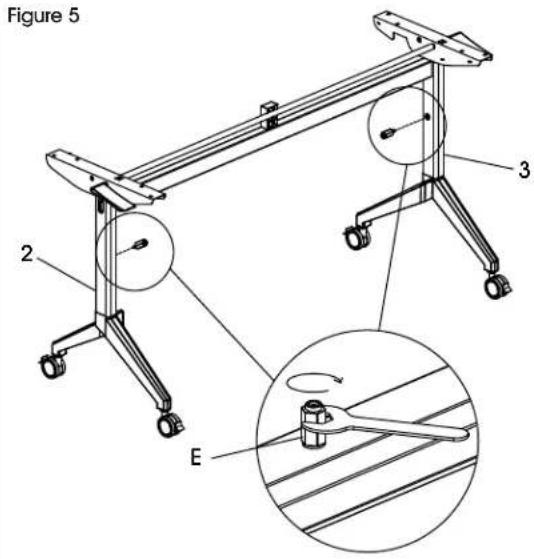

1. Install one M6 x 30 mm hexagon bolt (E) into the middle section of each leg frame. Tighten using open-end wrench. (See Figure 5)

Figure 5 2 3 E

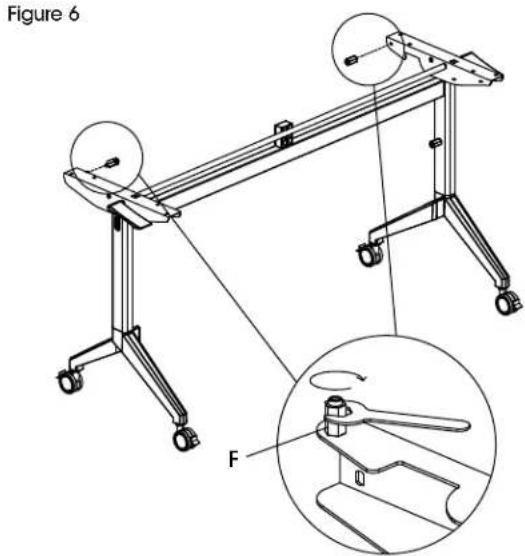

1. Install one M6 x 28 mm hexagon bolt (F) into the top of each leg. Tighten using open-end wrench. (See Figure 6)

Figure 6 F

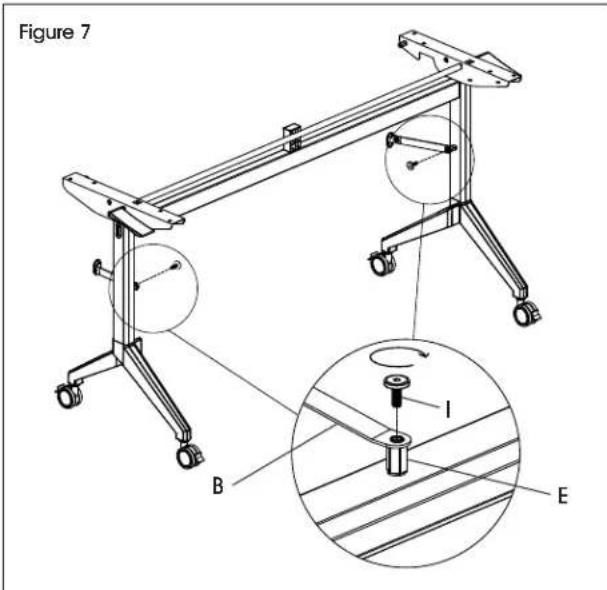

1. Align the narrow end of one lower modesty panel connector (B) with the M6 x 30 mm hexagon bolt (E) attached to the frame leg. Attach using one M6 x 16 mm bolt (I) and tighten using #4 Allen wrench. Repeat on opposite leg. (See Figure 7)

Figure 7 B I E

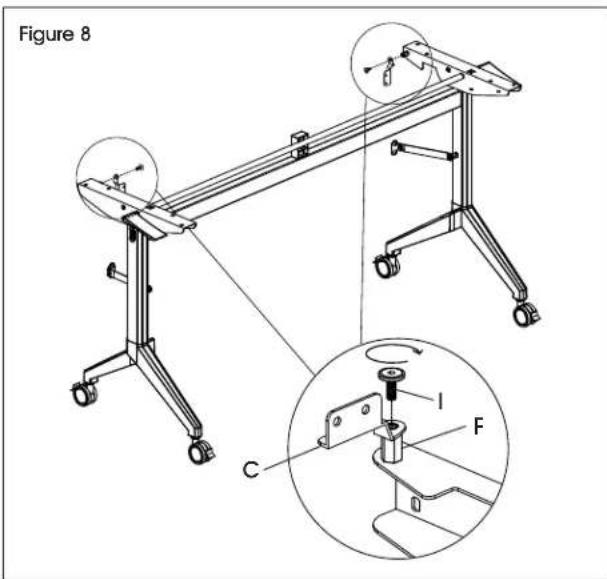

1. Align the narrow end of one upper modesty panel connector (C) with the M6 x 28 mm hexagon bolt (F) attached to the top of the leg frame. Attach using one M6 x 16 mm bolt (I) and tighten using #4 Allen wrench. Repeat on opposite leg frame. (See Figure 8)

Figure 8 C I F

ASSEMBLY CONTINUED

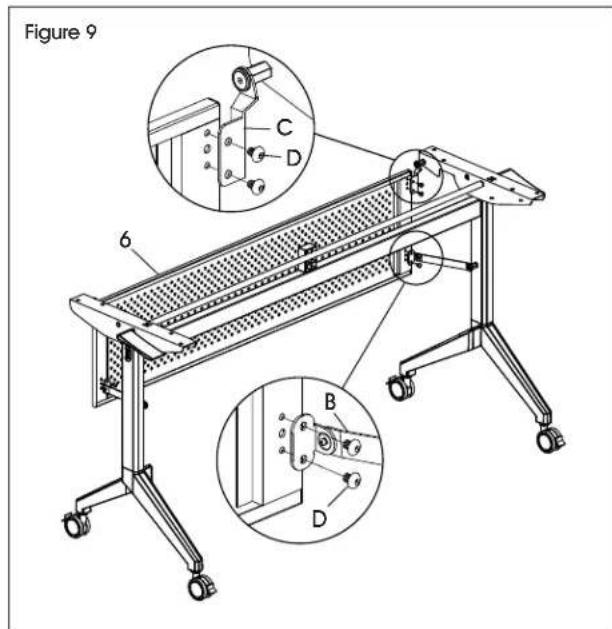

1. Attach modesty panel (6) to lower and upper modesty panel connectors (B, C) using eight M6 x 8 mm bolts (D). Tighten using #4 Allen wrench. (See Figure 9)

Figure 9 6 C D B D

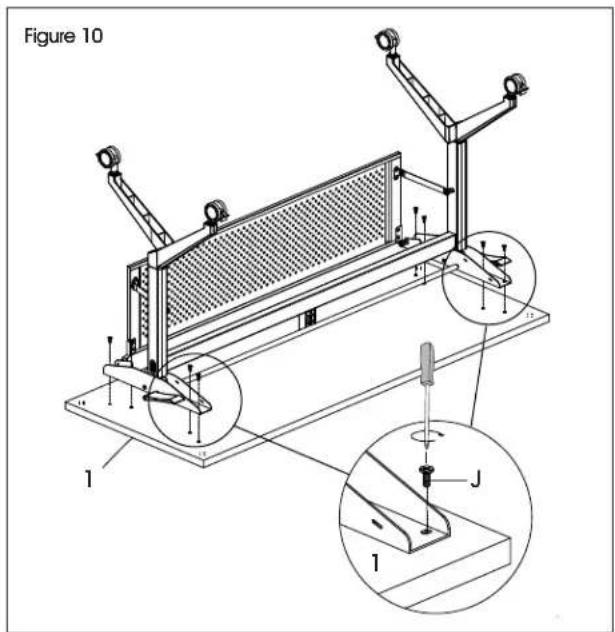

1. With a second person, place tabletop (1) upside down with holes facing up. Carefully flip and align assembled frame with pre-drilled holes in tabletop. Install using eight M6 x 15 mm bolts (J) and Phillips screwdriver. (See Figure 10)

Figure 10 1 J 1

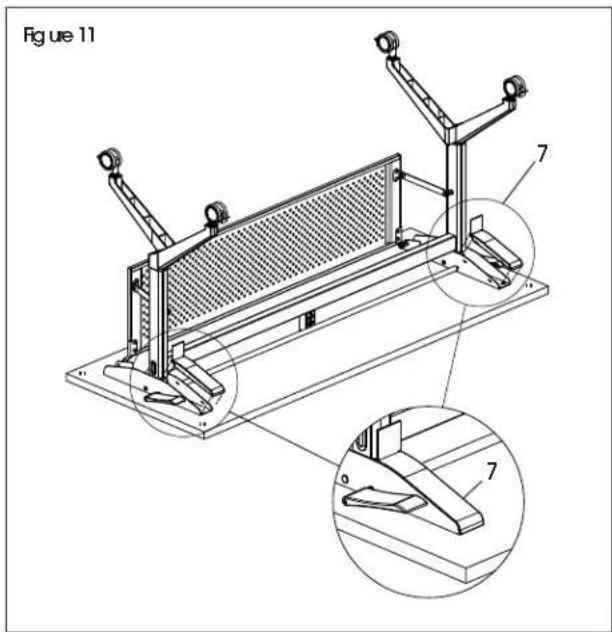

1. Insert one plastic cover (7) into each bracket. With second person, carefully flip assembled table upright. (See Figure 11) Insert black or silver grommets depending on preference.

Figure 11 7 7

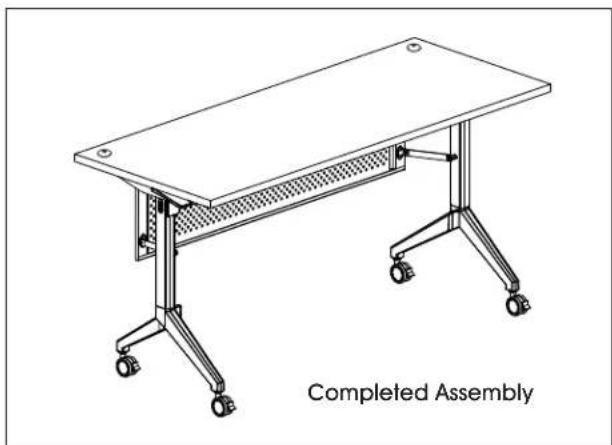

Line drawing of a completed assembly table with wheels and a handle (no text or symbols on the table itself)

JOINING TABLES WITH GANGING BRACKETS

NOTE: Each training table includes two sets of ganging brackets (K). Each ganging bracket set consists of two hooks.

1. With a second person, place assembled table upside down with holes facing up.

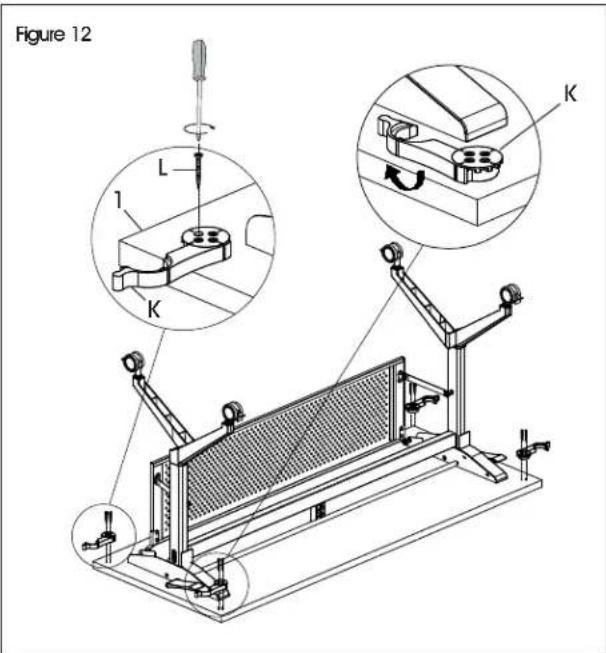

2. On one side of the tabletop, install two hooks in the pre-drilled holes located on each corner using eight ST3.5 x 35 mm wood screws (L). Tighten using Phillips screwdriver. Repeat on opposite side. (See Figure 12)
3. Repeat steps 1-2 on remaining table(s). (See Figure 12)

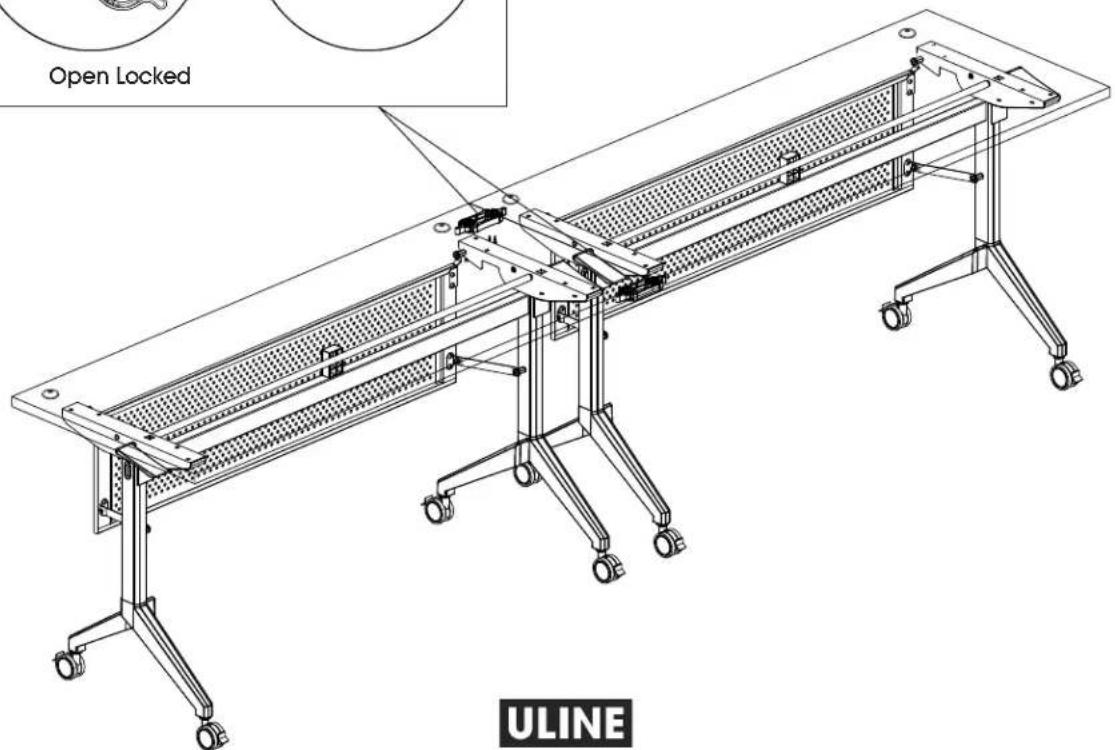

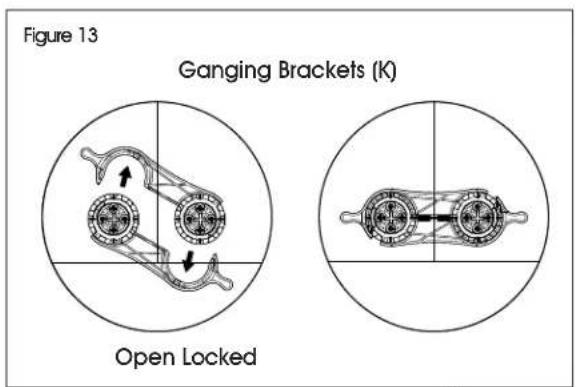

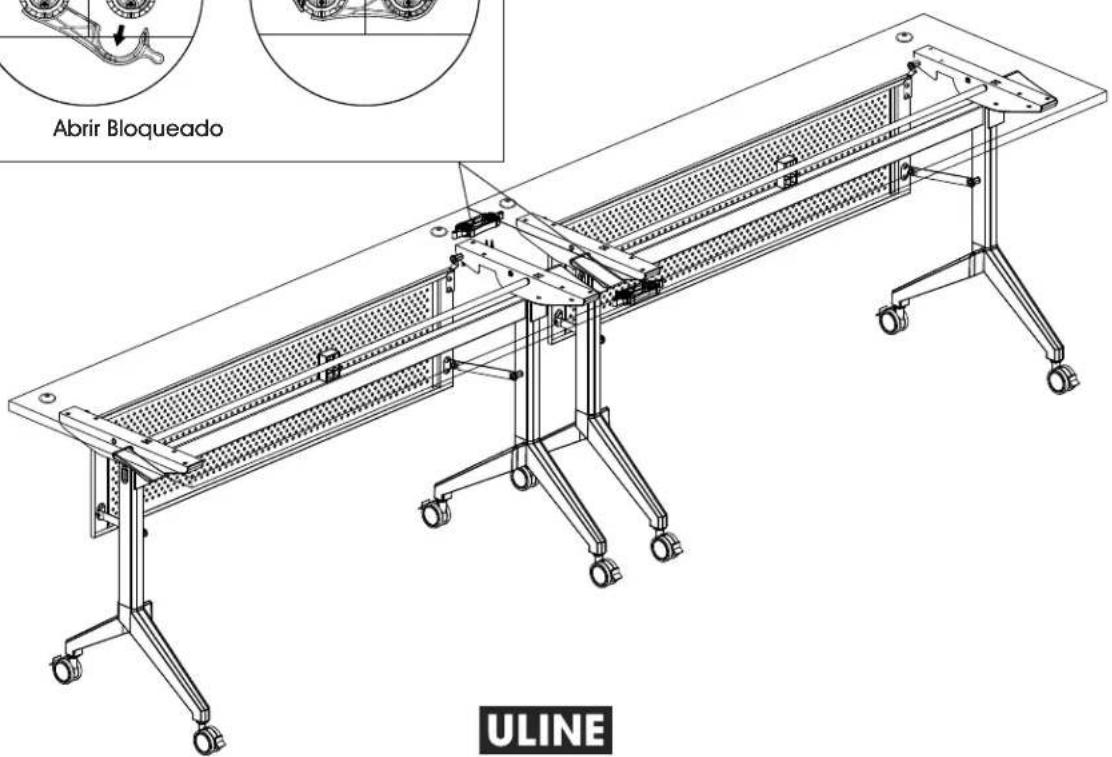

4. Move tables together and connect using ganging brackets. (See Figure 13)

Figure 12 L 1 K K

Figure 13 Ganging Brackets (K) Open Locked

Open Locked ULINE

ULINE H-10216, H-10217

COLECCIÓN URBANA

Line drawing of a simple office desk with four legs and a front panel, no text or symbols present

Mechanical linkage diagram showing two connected components with directional arrows (no text or labels)

Pure mechanical diagram showing two circular components with internal shafts and housing (no text or symbols)

Line drawing of a simple office desk with a flat top and four chairs, no text or symbols present.

OUTILS REQUIS

Tournevis cruciforme

Technical diagram of a folding table with labeled components, including panel, grating, and support structures.

Figure 1 5 5

Technical line drawing of a mechanical frame assembly with an inset magnified detail showing a component labeled 'G' (no text or symbols present)

Figure 5 2 3 E

Figure 6 F

Figure 7 B I E

Figure 8 C I F

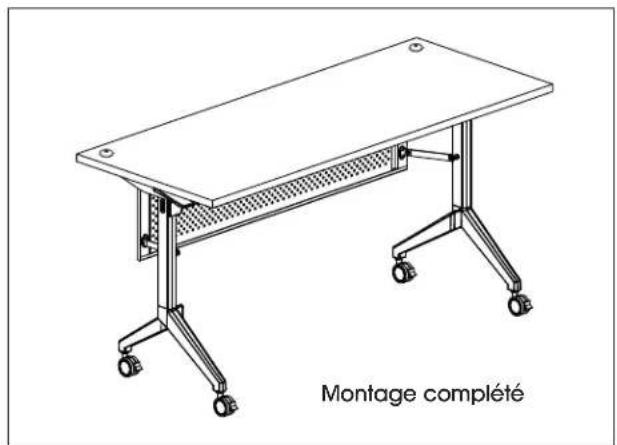

MONTAGE SUITE

Figure 8 1 J 1

Figure 11 7 7

Figure 12 L 1 K K

Mechanical linkage diagram showing two interlocking gears with directional arrows (no text or labels)

Pure mechanical diagram showing two rotating components within a circle (no text or symbols)

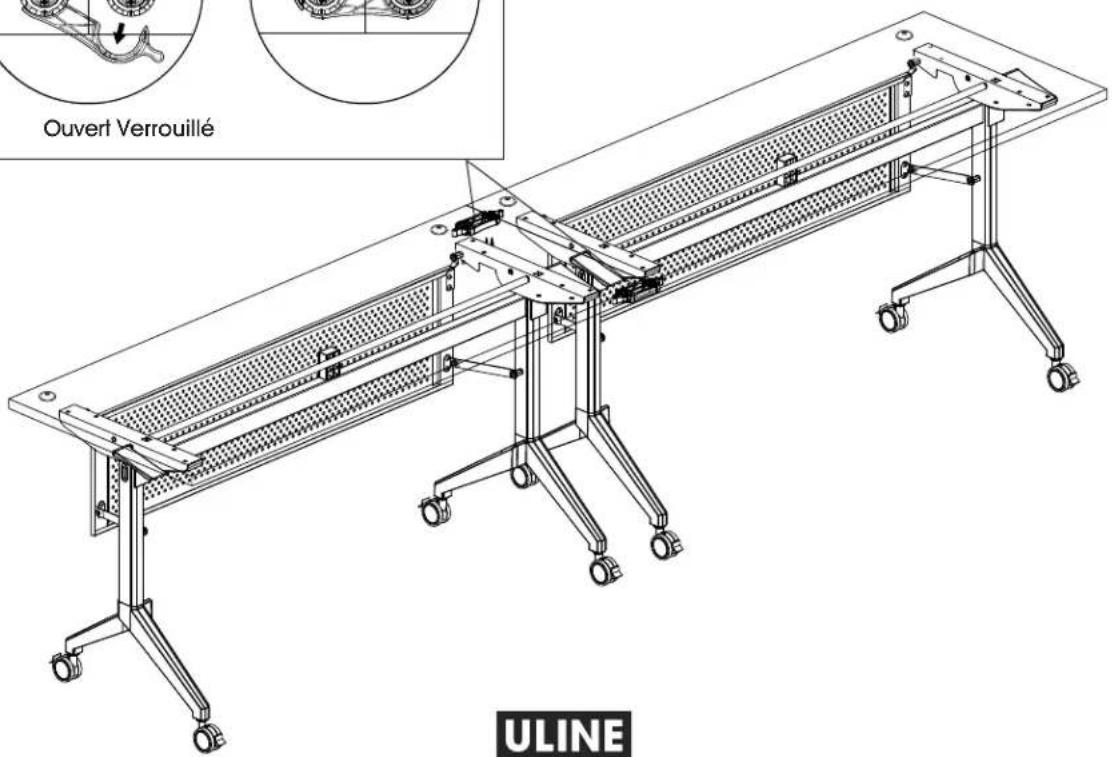

Ouvert Verrouillé ULINE
