USER MANUAL 800MBX Cloer

White and black electronic device with a black cover, labeled 'clean' (no additional text or symbols visible)

SPRACHEN - LANGUAGES

DE Bedienungsanleitung S.3
EN Operating Instructions....S. 6
FR Notice d'utilisation....S. 9
NL Gebruiksaanwijzing....S. 12
IT Istruzioni sull'uso....S. 15
ES Instrucciones de uso S. 18
SE Brugsanvisning S. 21
PL Instrukcja obsługi S. 24

Exterior view of a rectangular plastic tray or container (no text or symbols visible)

White rectangular electronic device with a black tab and 'Ester' logo on top (no visible text or symbols beyond branding)

White rectangular plastic container with a black lid and circular opening (no text or symbols visible)

White plastic tray or container with rounded edges and cutouts (no text or symbols visible)

Transparent plastic tray with circular indentations (no text or symbols visible)

Exterior view of a rectangular electronic device with black and white casing (no visible text or symbols)

Basic Safety Instructions

• This appliance is made for household use or similar use only as for example:
• in kitchens for staff members in stores and offices
• in agricultural estates
• for customers of hotels, motels, bed and breakfast or similar lodging facilities

• A commercial use is not allowed !

• Repairing of Cloer appliances should be only done by the Cloer After Sales Service. Repairs done by unauthorized parties can cause substantial danger for the user. Moreover in this case all claims for warranty will expire.
• Please use the appliance with standard plug socket only. Before use please check if the stated voltage on the rating plate is accordance with your power supply system.

- The appliance has to be connected with a plug socket with protective conductor.

- If the power cord is damaged it has to be replaced by the Cloer After Sales Service to prevent from danger.

- In case of any interference pull the plug out of the plug socket.

- Only pull the plug, never pull the power cord. Never strain the power cord too tight, otherwise there is the risk that the appliance is overturning.

- Do not place the powercord on sharp edges. Do not use the power cord for carrying the appliance and please prevent the appliance and the power cord from heat (stove/cooktop/open fire)

- This appliance can be used from persons with reduced physical, sensoric or mental skills or lack of experience and/or knowledge if these persons are supervised or have been instructed to use the appliance in a safe way and if these persons understand the consequential danger of the appliance.

- The appliance is not allowed to be used by children. Children are not allowed to play with the appliance. Please keep the appliance and the power cord away from children.

- Do not use the appliance outdoor.

- Protect the appliance from humidity (splash water/rain).

- Never dunk the appliance into water.

• After using, the appliance and especially the heater are still releasing residual heat.

- Let the appliance cool down completely before cleaning or storing it.

- Please clean the lunchbox included in the scope of delivery with common dish liquid and warm water. You may also use the dishwasher for it.

• Further information regarding cleaning you can find on the following pages.

- Always open the lid in direction showing away from the body to minimize the risk of being burned by hot steam.

- Only use the appliance for heating up food. During operation always keep the lid close. Wrong handling can cause severe injury

- Attention! During heating up the appliance get hot. Hot steam is passing off from the openings in the lid. Very hot! Can cause burns!

Tecnical data

Art Volt Hz Watt
800MBX 220-240 50-60	550

Overview of plastic parts

① Tablet
② Lid
③ Lunchbox C8
④ Carrier Ring for the C8 box; correct position: the holes need to be in backward -facing position
⑤ Dish carrier; correct position: the hooks need to be in forward -facing position
⑥ Basic appliance with integrated heating basin, thermostat and control element
⑦ Measuring cup

Exploded view diagram of a food processor with numbered compartments and labeled parts

Before first use

• Carefully read this instruction.
• Remove all packing materials including potential stickers, put not the rating sticker and not the serial number.
• Before first use clean the box with a humid, soft fabric.

CE-mark

This appliance fulfills the requirements of the EU.

This appliance is for indoor use only.

Carefully read this instruction manual.

EN

Initial operation

For heating up a dish do the following:
- Fill the required amount of water into the heating basin and put the plastic parts (dish carrier and carrier ring) in the correct position.
• Fill the food in the lunch box.
- In case of heating up different food at the same time you may use the separator and subdivide the box.
- Do NOT place lid on lunch box.
- Place the lunch box into the carrier ring and close the lid of the appliance.
- Put the plug into the power supply and start the appliance with the left button (I).
- During the entire heating process the white control lamp lights up.
- The heating time is controlled by the volume of water. Less water is shortening the time oft he heating process, more water is extending the time of heating. After water is gone the appliance will switch off. The white control lamp will turn off and an acoustic sound will give ready signal.
• To interrupt the heating process press the OFF button (O).
- Open the lid in direction showing away from the body and hook it. By this condensed water can run back into the appliance.
- Wait a moment until most steam is gone and take out your dish by holding the carrier ring and place it on the tablet.

Amounts of water

The amounts of water, as well as the associated warm-up times are not a must. You can increase or decrease the amount of water as you like. Half a measuring cup changes the warm-up time by about 6-7 minutes.

Attention: Do not fill more than 3.5 measuring cups

Menu for 1 person, approx. 400g:

- If the food to be heated has room temperature, 1 measuring cup of water is usually sufficient to heat the dish. The warm-up time is about 12-14 minutes.

• For dishes from the fridge, meat and fish you should use 1.5 measuring cups of water. The warm-up time is about 19-21 minutes.
• If your dish is frozen, use 2.5 measuring cups of water. The warm-up time is about 31-33 minutes.
• Menu for 2 persons, approx. 800g:
• For the double amount, change the information as follows:
• At room temperature: 2 measuring cups of water, warm-up time approx. 26-28 minutes.
• At refrigerator temperature, meat or fish: 2.5 measuring cups of water, warm-up time approx. 31-33 minutes.
• For deep-frozen dishes: 3.5 measuring cups of water, warm-up time approx. 45-47 minutes.

EN

Cleaning

• Clean dish carrier, carrier ring and tablet with humid fabrics
• The Lunchbox C8 with lid and separator can be cleaned in the dishwasher.
• The basic appliance includes electronics and must not be dunked into water.

Decalcification

• For decalcification use standart liquid decalcifier and follow its user manual
• We recommend the use of DURGOL universal quick-decalcifier
• Before first use please study user manual of Durgol is used without cooking contrary to other common decalcifier.

For decalcifing please note the following:

• For decalcifing please remove all parts and fill the de-calcifier into the basin until last is covered completely
• Heat up the decalcifier for a short time
• Please note that some decalcifier foam a lot. If this is the case please shorten the time of heating up.
• After residence time depending on the used decalcifier is over, pour it away and clean the appliance with a humid fabric.
• Attention: Do not let the decalcifier boil away
• No warranty claims accepted because of calcification!

Environmentally friendly disposal

We use environmentally friendly packaging for the-transport of our appliances. Please recycle cardboard/paper and plastic packaging appropriately.

ATTENTION!

Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Consult the local authorities for information on recycling appliances.

Warranty

Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulations. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer. Registered clients have at their disposal our technical customer service.

Manufacturer warranty

Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditions of warranty in the moment of the registration are valid. You will find conditions of warranty and product registration here:

Product registration & Manufacturer warranty

https://service.cloer.eu/register/

Type voltage hz watt

800MBX 220-240 50-60 550

Blank rectangular plastic tray with a circular label containing the number 1 (no text or symbols on the tray itself)

White rectangular electronic device with a black tab and 'Clean' label, marked with number 2 (no text or symbols on body)

White and black plastic food container with a lid, no visible text or symbols

White plastic tray or plastic housing with a circular label containing the number 4 (no text or symbols on the object itself)

Close-up of a transparent plastic tray with circular indentations, no visible text or symbols

Black and white rectangular device with a circular button labeled '6' (no visible text or symbols on the device itself)

Two 3D geometric shapes: a circle with number 7 and a rectangular block (no text or symbols)

Two transparent glass containers, one labeled with number 8 and the other with a small object inside (no text or symbols on the containers themselves)

Transparent rectangular plastic tray with a flat lid (no text or symbols visible)

2

White rectangular electronic device with a black tab and 'Clear' logo on top (no visible text or symbols beyond branding)

3

White rectangular plastic container with a black lid and circular opening (no text or symbols visible)

4

White plastic rectangular container with four slots (no text or symbols visible)

5

Transparent plastic tray with circular indentations (no text or symbols visible)

6

Exterior view of a rectangular electronic device with black and white casing (no visible text or symbols)

7

8

Exterior view of a rectangular plastic tray or container (no text or symbols visible)

White rectangular electronic device with a black tab and 'Clean' logo on top (no visible text or symbols beyond branding)

White rectangular plastic container with a black lid and circular opening (no text or symbols visible)

White plastic tray or container with rounded corners and a flat top (no text or symbols visible)

Transparent plastic tray with circular indentations (no text or symbols visible)

Exterior view of a rectangular electronic device with black and white casing (no visible text or symbols)

1
2
3
4
5
6
7
8

Blank rectangular plastic tray with a circular label containing the number 1 (no text or symbols on the tray itself)

White electronic device with black tab and circular label (no visible text or symbols)

White and black plastic food container with lid, no visible text or symbols

White plastic tray or casing with rounded corners and a circular label containing the number 4 (no text or symbols on the object itself)

Transparent plastic tray with circular indentations, no visible text or symbols

Black and white electronic device casing with a button labeled '6' (no visible text or symbols on the device itself)

3D geometric shapes: a black L-shaped block and a gray rectangular prism, with a circled number 7 nearby (no text or symbols on the shapes themselves)

Two transparent glasses, one labeled with number 8 and the other with a small human figure inside (no text or symbols on the glass itself)

Exterior view of a rectangular plastic tray or container (no text or symbols visible)

2

White rectangular electronic device with a black tab and 'Clean' logo on top (no visible text or symbols beyond branding)

3

White rectangular plastic container with a black lid and circular opening (no text or symbols visible)

4

White plastic rectangular container with rounded edges and a flat top (no text or symbols)

5

Transparent plastic tray with circular indentations (no text or symbols visible)

6

Black and white rectangular device with a circular recess, no visible text or symbols

7

8

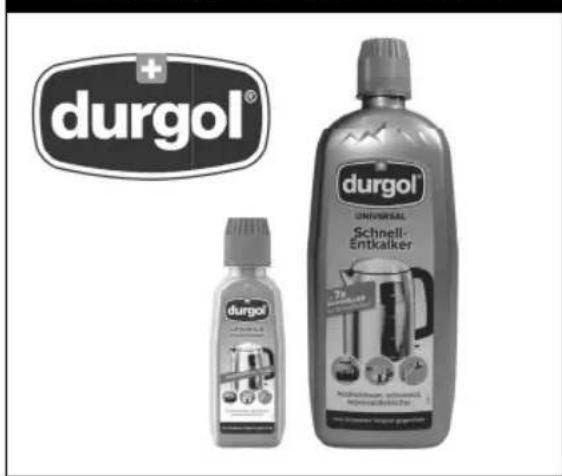

When using a descaler, we recommend:

durgol® durgol UNIVERSAL Schnell- Entkaitker 7x 100ml 200ml 300ml 400ml 500ml 600ml 700ml 800ml 900ml 1000ml 1100ml 1200ml 1300ml 1400ml 1500ml 1600ml 1700ml 1800ml 1900ml 2000ml 2100ml 2200ml 2300ml 2400ml 2500ml 2600ml 2700ml 2800ml 2900ml 3000ml 3100ml 3200ml 3300ml 3400ml 3500ml 3600ml 3700ml 3800ml 3900ml 4000ml 4100ml 4200ml 4300ml 4400ml 4500ml 4600ml 4700ml 4800ml 4900ml 5000ml 5100ml 5200ml 5300ml 5400ml 5500ml 5600ml 5700ml 5800ml 5900ml 6000ml 6100ml 6200ml 6300ml 6400ml 6500ml 6600ml 6700ml 6800ml 6900ml 7000ml

Exterior view of a rectangular plastic tray or container (no text or symbols visible)

2

White rectangular electronic device with a black tab and 'Clear' logo on top (no visible text or symbols beyond branding)

3

White and black rectangular plastic container with a circular vent on top (no text or symbols visible)

4

White plastic tray or container with rounded corners and a flat top (no text or symbols visible)

5

Transparent plastic tray with circular indentations (no text or symbols visible)

6

Black and white rectangular device with a circular recess, no visible text or symbols

7

8

© 2024 by Cloer Germany GmbH&CoKG
