GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

LEVERING EN UITPAKKEN :

BRANCHEMENT DU FLEXIBLE D'EVACUATION D'AIR

Diagram of a device with labeled parts including a grid, air vent, and cable connections

3

Illustration of three mechanical components: a hexagonal nut, a ring with internal features, and a threaded bolt (no text or symbols)

LCD-ANZEIGE

When you take out the unit from the box, please check carefully if there isn't any damage caused by transport. If this is the case, please contact your dealer immediately. Every appliance has been thoroughly check when it left the factory.

IMPORTANT: After unpacking, you need to leaf the appliance upright and not in use. When you don't follow this procedure, you risk of damaging the unit.

When you don't want the hot air to enter the room, you need to guide the hose outside.

SAFETY REGULATIONS :

This appliance has been designed for a use with 220V-240V. Don't use a extension cord of any kind. Always turn off the appliance and remove the plug from the socket before doing any maintenance.

Don't every place the appliance horizontally. This can damage the compressor. Only use the appliance upright on a flat surfacePlaats het toestel nooit horizontaal. Dit kan de compressor beschadigen.

When you turn off the appliance, leaf it off for 3 to 4 minutes before you turn it on again.

Always let your appliance be repaired by an autorised dealer.

The compressor has a delay time of 3 minutes after you turn off the appliance.

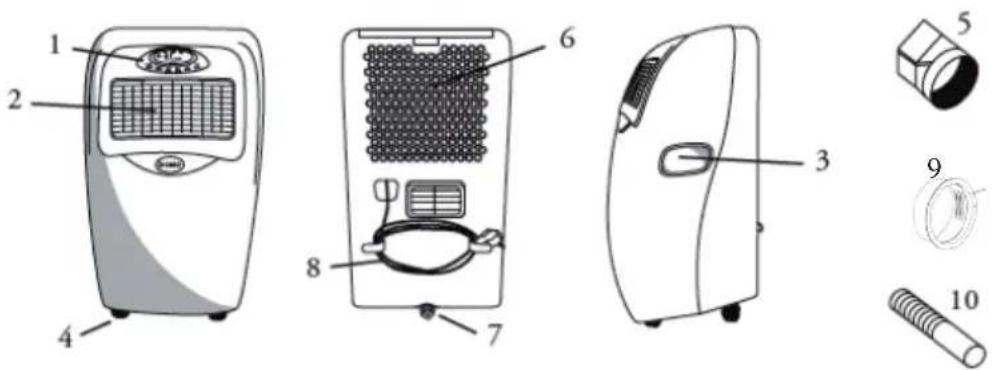

DESCRIPTION OF THE APPLIANCE :

1. Control panel
2. Upper airoutlet
3. Handle
4. Weels
5. Plastic connector
6. Air inlet
7. Drainage
8. Power cord

9. Air exhaust duct

10. air exhaust duct outlet connector

Technical diagram of a portable air conditioner with labeled parts including fan, socket, and bulb components

LCD-DISPLAY

1. Temperature setting.
2. Auto mode
3. Cool mode
4. Ventilation mode
5. Ventilation speed
6. Deshumidification mode
7. Timer
8. Error code

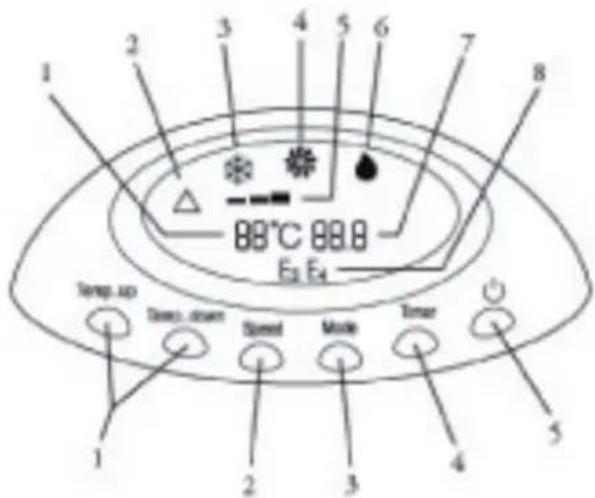

CONTROL PANEL :

1. Temperature switches
2. Ventilation speed button
3. Mode button
4. Timer knob
5. On/off switch

1 2 3 4 5 6 7 8 BB°C 88.8 Ea Ea Temp-up Deep-down Speed Mode Timer 1 2 3 4 5

For turning on and off of the unit.

Mode button :

There are 4 different modes from which you can choose : Auto - Cooling - dehumidify - Ventilation

Ventilation speed button :

You can choose three different speeds: slow, medium or high.

Temperature button :

As soon as you turn on the airco a temperature will be displayed (this is mostly different from the room temperature). Use the arrows on the temperature button to lower or raise the temperature. The temperature can vary from 15^ C upto 31^ C. For best use of your airco, first determine the temperature and afterwards select the mode. This prevents unnecessary strain on different parts of the airco.

Timer button :

Press the timer button. Use the arrows on the timer button to programm the airconditioner. When the appliance is on, you can programm it to turn it off. When the appliance is off, you can programm it to turn on. (remember to put the on/off button in the on position when you programm the airco to turn on.)

The maximum programmable time is 12 hours.

FUNCTIONS

Cooling function :

Make sure the exhaust hose is properly instaled. When you want to cool you always have to guide the hose through a window to the outside, to remove the hot air from the room.

Press the mode button a few time until the cool function is activated. Press the temperature button a few times to select the desired temperature.

Press the ventilation speed button to select the desired ventilation speed. There are three speeds: slow, medium or fast.

To make the cooling optimal, take note of the following :

When the room is in direct contact with the sun, close the curtains.

Never place the appliance near a heating source.

Dehumidification function :

Keep doors and windows closed to enlarge the effect of dehumidification.

Make sure the drip tank is well in place.

Press the mode button a few times to select the dehumidification function. The speed of dehumidification can not be changed.

When you only use the appliance to dehumidify you don't need to use the exhaust hose.

Ventilation function :

Press the mode button a few times to start the ventilation function. On the display is shown a fan symbol. Press the ventilation speed button to determine the ventilation speed.

CONNECTING THE EXHAUST HOSE

Place the rectangular piece of the exhaust hose on the air outlet of the appliance.

Place the other end through a nearby window. Attention: the length of the hose must be between 0.5 m and 1.5 m.

When you place the exhaust hose on the appliance, try to keep the hose horizontally.

The hight of the opening through which you guide the exhause hose can vary from 40 cm upto 130 cm.

WATER DRAINAGE

When the airconditioner is working in the cool mode or dehumidification mode the condensation water will be drained into the internal drip tank. When the tank is full this will be indicated on the display en a buzzing sound will be heard. On the display is shown the code “E4”. After three minutes the appliance will turn off.

Place the water plate underneath the drainage hole. Remove the plug and knop from the drainage.

PERMANENT WATER DRAINAGE

Remove the knob and plug from the drainage hole. Connect the drain tube to the hole.

OCLEANING AND MAINTENANCE

Remove the plug from the socket before starting the maintenance.

Don't use any cleaning products. Use a soft dry cloth.

Air filters :

When the filters are covered in dust, the appliance won't function correctly anymore.

Clean the filters every 14 days. Never use the appliance without filters.

To remove dust, use a vacuum cleaner.

When the filters are very durty, clean them in lukewarm water. The water cannot be warmer than 40^ C. Let the filters dry.
