DO7113S - Iron DOMO - Free user manual and instructions

Brand	DOMO
Model	DO7113S
Product type	Steam iron with steam station
Water tank capacity	1.2 liters
Power	2400 W (estimation)
Supply voltage	220-240 V ~ 50/60 Hz
Soleplate type	Stainless steel (estimation)
Ironing functions	Dry and steam ironing
Temperature setting	By rotary selector (positions: synthetic, wool, cotton, linen)
Temperature indicator light	Yes
Continuous steam jet	Yes
Anti-scale system	Descaling recommended with vinegar
Warranty	2 years (wear parts: 6 months)
Thermal insulation pads	Included for placing the hot iron
Cord length	Approximately 2 meters (estimation)
Net weight	Approximately 1.5 kg (estimation)

Frequently Asked Questions - DO7113S DOMO

How to use the steam function?

Fill the water tank to the max level (1.2 L). Plug in the appliance, set the temperature according to the fabric. Wait for the indicator light to go out, then press the steam button for a continuous jet. Do not direct steam at people.

What water to use in the iron?

Use only tap water, or a 50/50 mixture of tap water and demineralized water if the water is very hard. Do not use softened or scented water, as this may cause brown spots.

How to clean the soleplate?

Unplug and let the appliance cool down. Wipe the soleplate with a damp cloth or a non-abrasive liquid detergent. Do not use chemical or abrasive products.

What to do if the iron does not heat up?

Check that the plug is properly inserted and that the temperature selector is not set to 'MIN'. Make sure the water tank is correctly engaged (click). If the problem persists, contact customer service.

How to descale the steam station?

Fill half the tank with a mixture of 1/3 vinegar + 2/3 water. Plug in, set to 'dry ironing' and heat. Hold the iron over a sink, press and hold the steam button for 1 minute to produce steam. Then rinse 2 to 3 times with clean water.

What temperature settings for which fabric?

Use the selector: ● for synthetic/silk (70-120°C), ●● for wool (100-160°C), ●●● for cotton (140-210°C), MAX for linen (170-225°C). Always start with low-temperature fabrics.

The iron leaks or leaves water drops, what to do?

Make sure the tank is not overfilled and the cap is tightly closed. Check that the temperature is suitable; too low a temperature for steam may cause drops. Let it heat up until the indicator light goes out.

Can I use the iron without water?

Yes, you can dry iron. Simply set the desired temperature without filling the tank. Do not use the steam function without water.

How to store the iron after use?

Turn off by setting the selector to 'MIN', unplug, and let it cool completely. Empty the water tank, clean the soleplate if necessary, and wrap the cord around the intended storage. Place the iron on the thermal insulation pads.

What to do in case of malfunction?

Contact DOMO customer service at [phone] (Mon-Thu 8:30am-5pm, Fri 8:30am-4:30pm) or by email [e-mail]. The 2-year warranty covers material and manufacturing defects upon presentation of the receipt.

USER MANUAL DO7113S DOMO

Blue and white steam iron with a visible brand name 'DOMO' on the cover (no additional text or symbols)

DO7113S

Handleiding Strijkijzer met stoomgenerator

Mode d'emploi Fer à repasser avec centrale vapeur

Gebrauchsanleitung Bügeleisen mit dampfgenerator

Instruction booklet Iron with steam generator

Manual de instrucciones Plancha con Generador de vapor

Istruzioni per l'uso Ferro da stiro con caldaia a vapore

Návod k použití Žehlička s parním generátorem

Návod na použitie Žehlička s parným generátorom

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Technical diagram of a series of household appliances with numbered parts labeled 1 through 7.

Cu 1000 Mn 1000 Cotton Liner

STRIJKTABEL

Oil Oil 100 1000 Cotton Gas Lemon

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of an electric iron with numbered parts labeled 1 through 7

AVANT LA PREMIÈRE UTILISATION

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a series of household appliances with numbered parts labeled 1 through 7.

BÜGELTABELLE

U1N U1S 0.01AN NO 100 000 Cotton Max L1nren

ENTSORGEN

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• The iron must not be left unattended while it is connected to the supply mains.

• The filling aperture must not be opened during use. Follow the instructions of this booklet for safe refilling.
  The iron must be used and rested on a flat, stable surface and resistant to heat and hot steam.

• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Do not use or store this appliance outdoors.
• Do not move the iron while in use or when still hot. Allow to cool before moving the iron or before maintenance.
• Do not use this appliance for other than intended use.
• Do not fill the water reservoir with any other liquid than water.
• Do not use the steam function of the iron without water in the reservoir. This might cause damage to the iron.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

· Do not operate the appliance with wet hands.
- Unwrap the cord completely to prevent overheating of the cord.
- Do not let the power supply cord touch hot surfaces.
- Only fill the water reservoir with no other liquid than water.
- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
- Make sure the appliance has cooled down before opening the boiler for cleaning. Make sure the bolt of the boiler is correctly and well fixed onto the appliance after maintenance.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

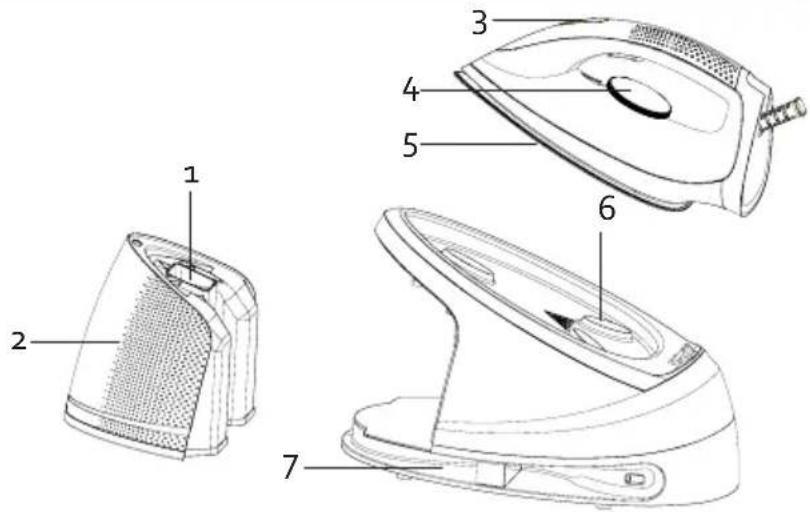

PARTS

1. Filling opening
2. Water tank
3. Temperature indication light
4. Temperature dial
5. Soleplate
6. Thermal insulation pads
7. Cable storage

Technical diagram of an electric iron with numbered parts labeled 1 through 7

BEFORE THE FIRST USE

• Remove any stickers or protective foil from the soleplate.
• Heat up the iron until the maximum temperature and iron on a damp cloth during a couple of minutes to remove any possible residues from the soleplate.

CAUTION:

• Appliances are tested following production. It is thus perfectly normal if droplets of condensation have formed in the water tank.
• During the first use it is normal that a specific odeur escapes from the appliance. This odeur will disappear after a while.
• Some particles may come out of the soleplate during the first use. This is normal. The particles are harmless and will disappear after a while.
• When turning on the appliance, the steam generator may produce a pumping sound. This is normal. This sound indicates that water is pumped into the steam generator.
• While the soleplate is heating up, some steam will be released automatically. This is also normal and will last for about 3 seconds.

USE

This steam generator offers 2 options: dry ironing or steam ironing. Follow the instructions below. Also carefully read the ironing tips at the end of this section before using the appliance.

DRY IRONING

1. Place the iron on the thermal insulation pads of the steam generator.
2. Put the plug into the outlet. Select the desired temperature with the temperature dial, according to the kind of fabric that needs to be ironed. The iron will start to heat up. The temperature indicator light will light up.

Oil 100 CO2 000 Cotton Gas Lemon

1. When the temperature indicator light goes out again, the selected temperature has been reached. You can now start ironing.

2. After ironing, place the iron on the thermal insulation pads. Turn the temperature dial back to "MIN" to turn off the appliance. The temperature indicator light will now go out. Pull the plug out of the socket. Allow the appliance to cool down completely.

Caution: Never touch the hot soleplate!

STEAM IRONING

Caution: do not plug in the appliance yet at this point.

1. Fill the water tank with water. Make sure that you do not exceed the maximum level (1,2 L). Use only mains water or 50 % mains water and 50 % de-mineralised water if you have hard water.
2. Replace the water reservoir in the appliance. You will hear a click when the reservoir is correctly positioned in the appliance. If the reservoir is not correctly positioned in the appliance, it will not work.

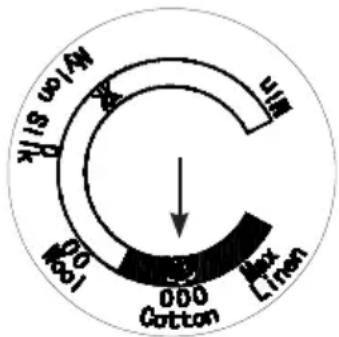

3. Place the iron on the thermal insulation cushions. Put the plug into the outlet. Set the temperature dial to the desired temperature, according to the kind of fabric. The temperature indicator light will light up.
4. When the temperature indicator light goes out again, the appliance has reached the correct temperature.
5. A continuous steam output will be emitted from the bottom.

Please note:

· Do not touch the hot sole of the iron!
· Never aim steam at people!

1. After ironing, place the iron on the thermal insulation pads. Turn the temperature dial back to "MIN" to turn off the appliance. The temperature indicator light will now go out.. Pull the plug out of the socket. Allow the appliance to cool down completely.

IRONING TABLE

Use the dial to select the correct temperature for the correct material.

Symbol Fabric Temperature dial
	synthetic fabric/silk	70 < T < 120^ ●
	wool	100 < T < 160^ ● ●
	cotton linnen	140 < T < 210^ ● ● ● 170 < T < 225^ MAX
	This symbol means that the article can not be ironed!

IRONING TIPS

• Always check first if there is a label on the garment with instructions for ironing. If this is the case, then always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron the garments that require the lowest temperature first, like synthetic fabrics.
• If a fabric contains several types of fibres, always choose the lowest temperature to iron the combination of these fibres.
• Silk and other shiny fabrics should be ironed inside-out.
• Velvet and other fabrics that easily become shiny should be ironing with slight pressure, in one direction. Always keep the iron moving.
• Never iron over zippers or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

Caution: if you iron woollen fabrics, the fabric may become shiny. That is why you should turn the garment inside-out for ironing.

CLEANING AND MAINTENANCE

• Unplug the appliance and let it cool down before cleaning it.
• Wipe residues from the soleplate with a damp cloth or with a non-abrasive (liquid) cleaner.
  Caution: Do not use any chemical, steel, wooden or abrasive cleaners to scrape the soleplate.
• Clean the upper part of the iron with a soft, damp cloth.
• Wipe the water drops on the steam generator and the thermal insulation pads with a dry cloth.
• When not using the steam generator for a long time, pour out the water from the water tank and place the iron on the thermal insulation pads to store the appliance.

CAUTION: Only use tap water (or 50% tap water and 50% demineralized water in case of hard water) in your steam generator. Careful: De-scaled or de-mineralised water must never be used on its own, but must be combined with tap water. In case of use of a "softener" and/or perfumed water, brown stains could emerge, which would cause damage to the steam chamber.

DESCALING

Descale the steam generator regularly in order to extend the life of the appliance and to ensure it continues to work properly. In order to do this, follow the instructions below:

1. Fill half of the water reservoir with a mixture of 1/3 vinegar and 2/3 water.

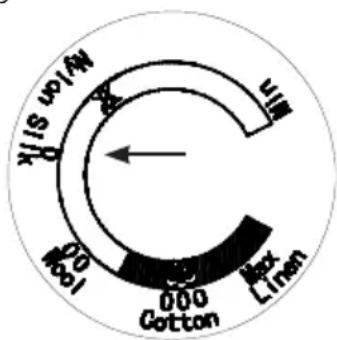

2. Put the plug in the wall socket and turn the temperature dial to "dry ironing".

3. The temperature indicator light will light up to show that the appliance is heating up. Wait until the appliance has heated up and hold the iron over a sink or sink.

4. Now keep the steam button pressed for one minute to produce continuous steam. The appliance will clean itself in this way. ATTENTION: do not come into contact with the hot steam otherwise you run the risk of severe burning!

5. Next, fill the water reservoir with water alone. Turn the temperature dial to maximum, and wait until the appliance is up to temperature. Repeat this cycle of steam spraying with just water 2 to 3 times until the vinegar smell has disappeared.

Oil Volat LW 100 000 Cotton Max Linen

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical diagram of an electric iron with numbered parts labeled 1 through 7

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of an electric iron with numbered parts labeled 1 through 7

PRIMA DELL'USO

Volan Oil Oil Carbon Line

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of a hair dryer with numbered parts labeled 1 through 7

PŘED PRVNÍM POUŽITÍM

ŽEHLENÍ PÁROU

Cu Mn L N Cu Mn L Cu Mn 100 000 Cotton

SYMBOLY ŽEHLENÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical diagram of an electric iron with numbered parts labeled 1 through 7

PRED PRVÝM POUŽITÍM

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
