Product type	Stand mixer
Brand	DOMO
Model	DO1182KR
Voltage	220-240 V ~ 50/60 Hz
Power	1200 W
Standby consumption	0.3 W
Mixing bowl capacity	Up to 4 kg
Blender capacity	1.4 liters
Mixing bowl material	Stainless steel
Included accessories	Beater, balloon whisk, dough hook, blender, pusher, vegetable cutter with 3 discs (blade, fine grater, coarse grater)
Functions	Kneading, mixing, whisking, blending, cutting, grating
Speeds	8 speeds + Pulse function
Protection	Overheat protection
Cleaning	Removable parts dishwasher safe (except blade unit and metal parts of vegetable cutter)
Warranty	2 years
Customer service	[phone] / [e-mail]
Cord storage	Integrated compartment

Frequently Asked Questions - DO1182KR DOMO

How to use the beater?

Fix the beater onto the multifunction head by sliding it upward around the drive shaft, then rotate it a quarter turn counterclockwise until it clicks. Place the bowl, add ingredients, lower the head, and select the desired speed (1-8).

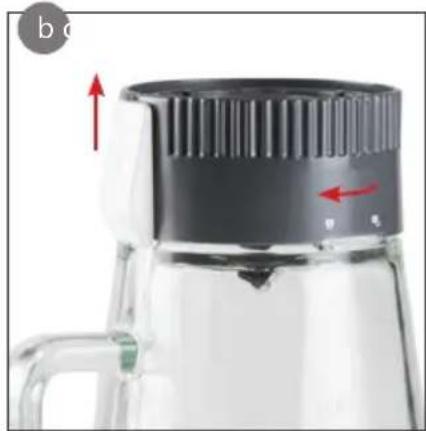

How to clean the blender?

Rinse the bowl under hot running water. For deep cleaning, disassemble the blade unit by pushing the unlock button and unscrewing the bottom. Wash all parts with hot water and mild detergent. Dry thoroughly. The bowl and lid are dishwasher safe, but not the blade unit with its seal.

What to do if the appliance does not start?

Check that the plug is connected, the multifunction head is properly locked in the down position, and the accessory is correctly installed. If the overheat protection has activated, let the appliance cool for 30 minutes before retrying. Ensure the bowl or blender is not overloaded or blocked.

Can I wash the accessories in the dishwasher?

Yes, except for the blade unit with its rubber seal and the metal parts of the vegetable cutter. All other accessories (bowl, lids, beater, whisk, hook, pusher, vegetable cutter discs) are dishwasher safe. Make sure they are completely dry before storing.

How to replace the blender blades?

Place the blender upside down on a flat surface. Push the blade unit unlock button upward and unscrew the bottom clockwise. Remove the support and blade unit. To reassemble, replace the rubber seal, insert the blade unit, place the support, and screw counterclockwise until it clicks.

What is the maximum capacity of the mixing bowl?

The mixing bowl can hold up to 4 kg of dough depending on the ingredients. Do not exceed this capacity to avoid overloading the motor.

How to use the Pulse function?

Set the speed selector to the P (Pulse) position and hold it pressed for a few seconds. Release to stop. This function allows quick and gentle mixing by pulses. Repeat until desired consistency.

What to do in case of overheating?

The appliance is equipped with overheat protection. If it stops suddenly, unplug it and let it cool for at least 30 minutes. Ensure it is not overloaded and the ventilation openings are not blocked before using again.

How to attach the vegetable cutter?

Open the cover at the end of the multifunction head. Place the vegetable cutter at a 45° angle into the opening, then rotate it a quarter turn counterclockwise until it clicks. Insert the desired accessory (blade, fine grater, or coarse grater) and use the pusher to safely push vegetables.

Where to find spare parts?

You can order genuine DOMO accessories and parts through our webshop. Visit the DOMO website or contact our customer service at [phone] or by email at [e-mail].

USER MANUAL DO1182KR DOMO

Exterior view of a modern white Domo kitchen stand mixer with control panel (no visible text or symbols)

EN Instruction booklet Kitchen machine

www.domo-elektro.be

Read all instructions carefully. Save this instruction manual for future reference.

NL Nederlands 3

FR Français 13

DE Deutsch 23

EN English 34

GARANTIE

Beste klant,

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Pure mechanical component diagram without any text, numbers, or symbols

9 10 11 12

Clear plastic blender with black handle and side knob (no text or symbols visible)

Close-up of a black plastic pipe fitting with a flanged top and side port (no text or symbols visible)

Black cylindrical mechanical component with a flanged end, labeled '13' (no other text or symbols)

Close-up of a kitchen mixer with a red tool inserted, no visible text or symbols

Close-up of a kitchen mixer blending into a mixing bowl (no visible text or symbols)

Close-up of a kitchen mixer with whisk inside a bowl (no visible text or symbols)

Close-up of a mechanical component with a wire mesh structure, no visible text or symbols

Product photo of a white Domo kitchen appliance with a red upward arrow indicating motion (no text or symbols on the device itself)

Close-up of a kitchen blender with red annotations highlighting the interior and base components (no text or symbols visible)

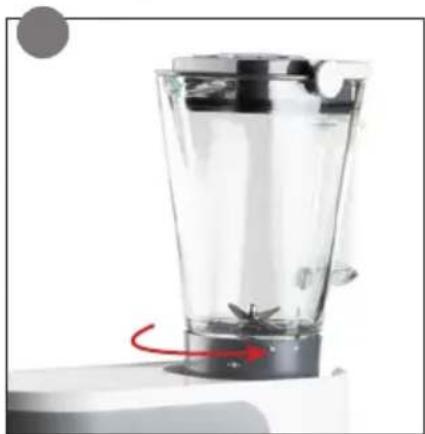

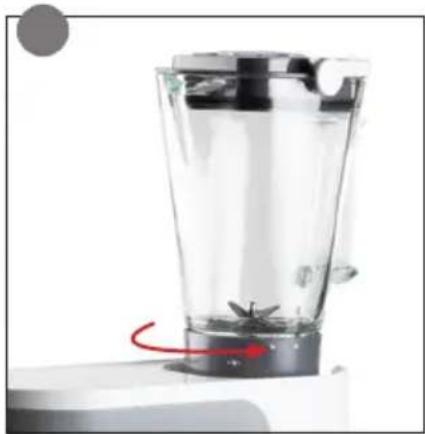

Close-up of a transparent blender with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a glass coffee maker with black lid and red directional arrows indicating motion (no text or symbols)

Exploded view of a mechanical device showing internal components (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a cylindrical part (no visible text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical device with a red arrow indicating rotation or force, no visible text or symbols

Close-up of a mechanical component with a red circular annotation highlighting a specific feature (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Product catalog image showing various kitchen utensils and kitchenware including a blender, stirrer, and filter (no text or labels visible)

AVANT LA PREMIÈRE UTILISATION

Close-up of a kitchen mixer with a red needle inserted, no visible text or symbols

Close-up of a kitchen mixer blending into a mixing bowl (no visible text or symbols)

Close-up of a kitchen mixer blending into a bowl with a whisk (no visible text or symbols)

Close-up of a mechanical component with a wire mesh structure, no visible text or symbols

Close-up of a white appliance with a red upward arrow and 'DOMO' label, no readable text or symbols beyond the label.

Close-up of a kitchen blender with red annotations highlighting the interior and base (no text or symbols visible)

Close-up of a transparent blender with a red arrow indicating rotation (no text or symbols visible)

Close-up of a glass mug with black lid and red directional arrows indicating motion (no text or symbols)

Exploded view of a mechanical assembly showing a cylindrical component and a small jar (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a gear-like structure (no visible text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a component (no visible text or symbols)

Close-up of a kitchen brush and blender with red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a red arrow indicating rotation, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pure mechanical component diagram without any text, numbers, or symbols

9 10 11 12

Clear plastic blender with black handle and black base (no text or symbols visible)

Close-up of a black plastic pipe fitting with a flanged neck and side port (no text or symbols visible)

Close-up of a black cylindrical mechanical component with a flanged end (no visible text or symbols)

Close-up of a kitchen mixer with a red needle inserted, no visible text or symbols

Close-up of a kitchen mixer blending liquid into a bowl with a whisk (no visible text or symbols)

Close-up of a kitchen mixer with whisk inside a bowl (no visible text or symbols)

Close-up of a mechanical component with a wire mesh structure, no visible text or symbols

Close-up of a white appliance with a lid and indicator lights, showing a red upward arrow and partial view (no text or symbols on the device itself)

Close-up of a kitchen blender with red annotations highlighting the interior and base (no text or symbols visible)

Close-up of a transparent blender with a red arrow indicating rotation (no text or symbols visible)

Close-up of a glass coffee maker with black lid and red directional arrows indicating motion (no text or symbols)

Exploded view of a mechanical component showing internal parts and a small jar (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a shaft (no visible text or symbols)

Close-up of a kitchen appliance with a red arrow pointing to a component (no visible text or symbols)

Close-up of a kitchen brush and blender with red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical pipe fitting with a red circular annotation highlighting a specific component (no text or symbols present)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase.

Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service.

Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use the appliance if there is still water inside or if the parts are still wet after cleaning.
• Never use the appliance without ingredients.
• Exercise extreme caution when handling accessories such as blades. Only touch the accessories once they have come to a complete stop in the appliance.
• Always attach and use only one accessory at a time.
• Keep hands and fingers away from moving parts and do not insert them into the filling opening when the appliance is in operation.
• Be careful when adding hot liquids to the blender: sudden steam formation may cause hot air and liquid droplets to escape.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

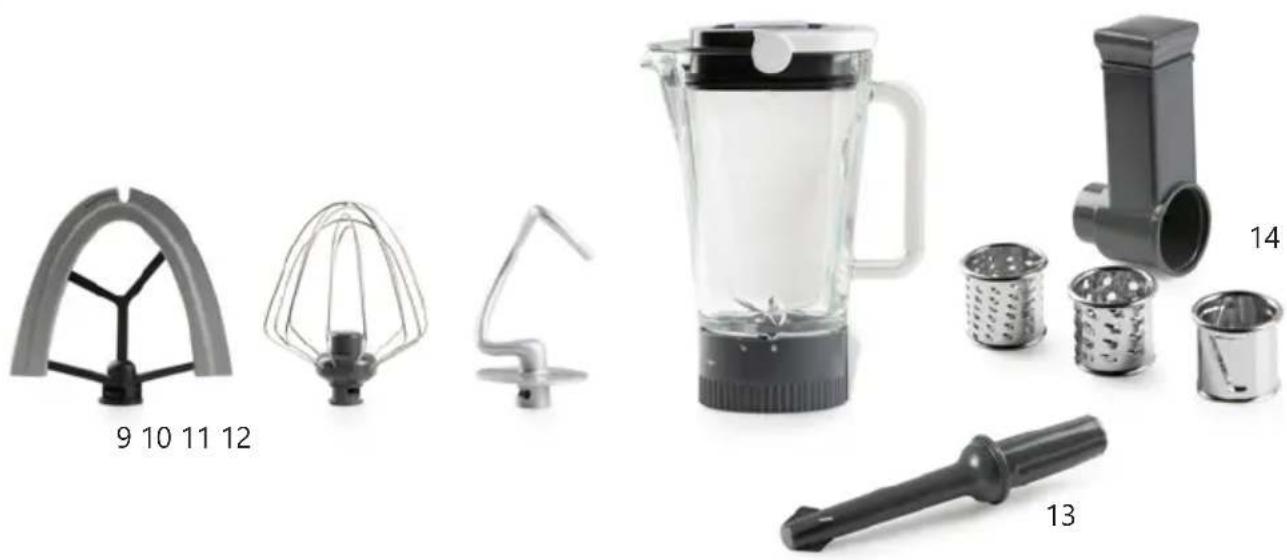

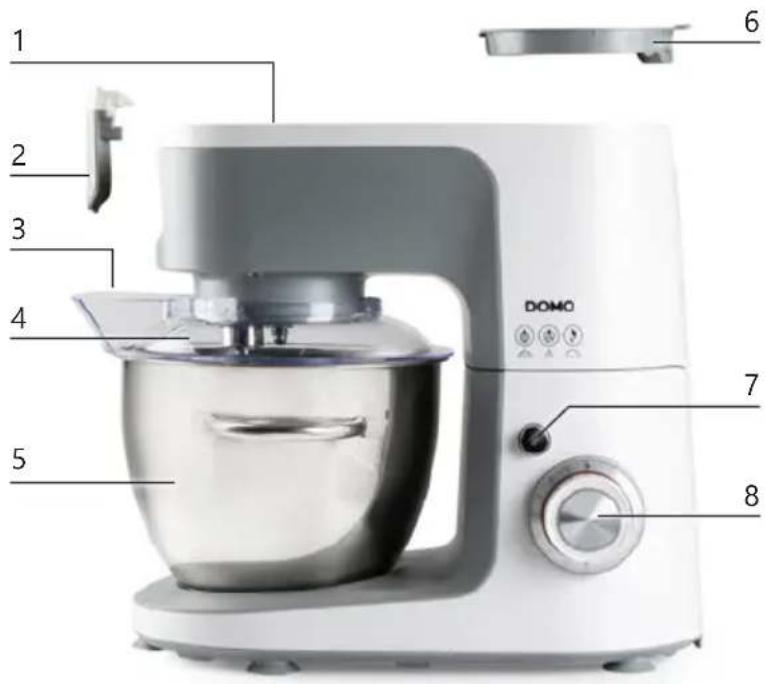

PARTS

1. Multifunctional head
2. Lid connection point for vegetable slicer
3. Filling opening
4. Lid for mixing bowl
5. Stainless steel mixing bowl
6. Lid connection point for blender
7. Unlock button for multifunctional head
8. Speed control button
9. Beater
10. Balloon whisk
11. Dough hook
12. Blender
13. Pusher
14. Vegetable slicer with 3 attachments

1 2 3 4 5 DOMO 6 7 8

Product catalog image showing various kitchen utensils and kitchenware including a blender, mixer, and filter (no text or labels visible)

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Wash all removable parts in warm soapy water and dry thoroughly.
  Do not immerse the motor unit, cord, or plug in water or other liquid.

USE

KNEADING/BEATING/WHISKING

Depending on the nature of the ingredients, the mixing bowl with lid can handle up to 4 kg of dough/batter.

1. Place the appliance on a flat, clean and dry surface.
2. Make sure that the plug is removed from the socket and that the speed control is set to '0'.

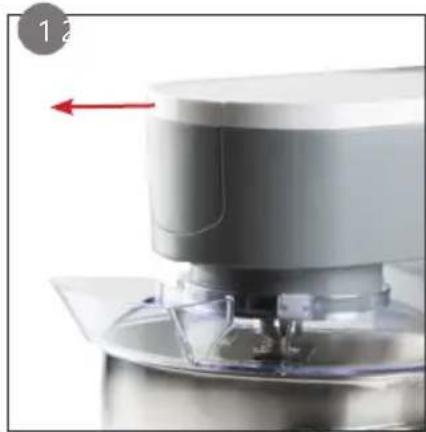

3. Press the release button, push the multifunctional head all the way up until it clicks into place.

4. Put the mixing bowl in the base and turn it clockwise so it locks. Put the ingredients into the bowl.

5. Place the lid on the multifunctional head via the opening provided.

6. Choose the accessory you want to use: beater, dough hook, balloon whisk.

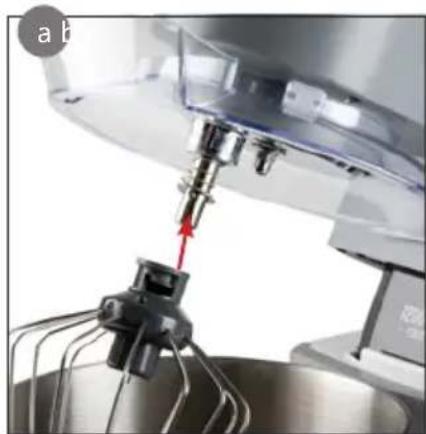

a. Attach the accessory to the head by sliding it around the axis.

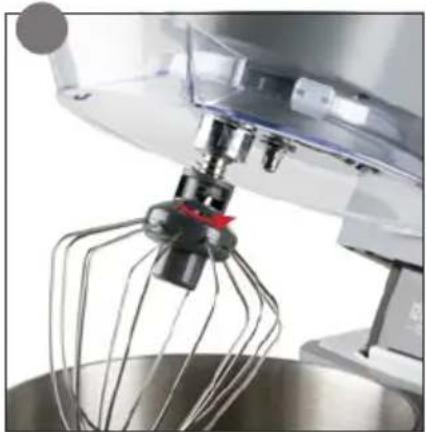

b. Turn the accessory a quarter turn counterclockwise.
c. Release the accessory so that it falls into the lock position.

Close-up of a kitchen mixer with a red tool inserted, no visible text or symbols

Close-up of a kitchen mixer blending into a mixing bowl (no visible text or symbols)

Close-up of a kitchen mixer with whisk inside a bowl (no visible text or symbols)

1. Press the release button back in to push the multifunctional head back down and secure it.
2. Put the plug into the socket and select the desired speed by turning the speed control knob.
3. During the preparation you can add ingredients through the fill opening in the lid.
4. To stop the appliance, turn the speed control knob to the '0' position.

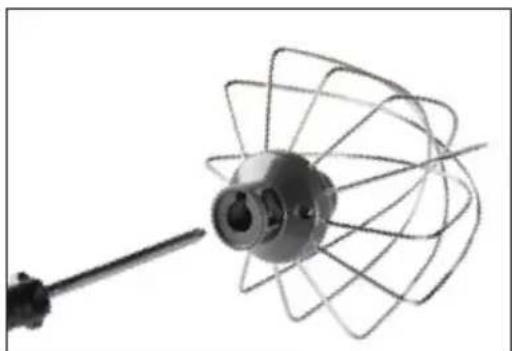

You can adjust the height of the balloon whisk by loosening the central screw with a crosshead screwdriver and shifting the whisk.

Close-up of a mechanical component with a wire mesh structure, no visible text or symbols

For quick and delicate mixing, turn the speed control to the pulse function (P) and hold for a few seconds. When you release the button, it will automatically return to the 0 position. You can repeat this several times until the desired consistency is achieved.

Dismantling after use

1. Remove the plug from the socket.
2. Press the release button to secure the multifunctional head fully at the top.
3. Push the accessory out of the locked position and turn it clockwise a quarter turn. Then slide the accessory off of the drive shaft and remove the accessory.
4. Remove the lid from the multifunctional head.
5. Turn the mixing bowl counterclockwise to release it from the locked position and remove the mixing bowl.
6. Press the unlock button to push the multifunctional head back down and secure it again.

BLENDER

Depending on the nature of the ingredients, the blender is capable of mixing 1.4 litres.

1. Place the multifunctional head in a horizontal position and remove the lid from the top of the head by pulling on it.
2. Place the ingredients into the jug and close the jug with the lid, including the sealing cap in the filling opening. To do this, lift the lid handle and push the handle down while placing the lid on the jug to secure it.

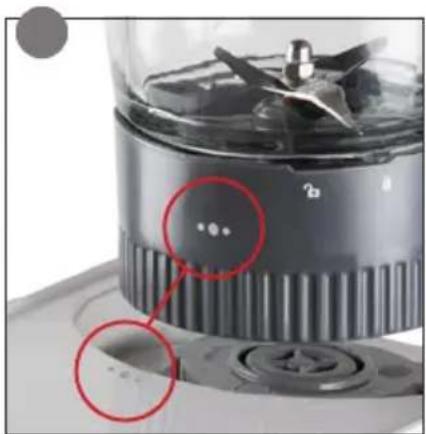

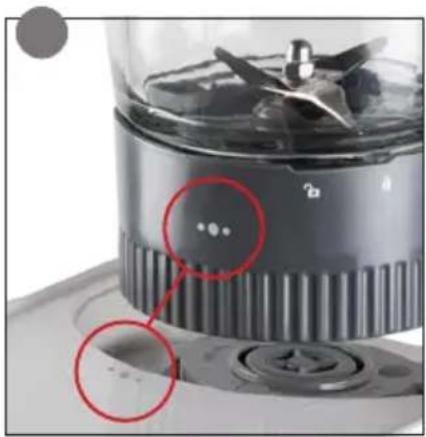

3. Attach the blender to the connection point: the three dots on the jug must align with those on the appliance.
4. Lock the blender by turning it counterclockwise. The jug handle should now be level with the notch at the back of the appliance.
5. Use the speed control to blend. You can also use the pulse function for quick and delicate mixing.
6. During blending, you can remove the sealing cap from the lid and add ingredients through the filling opening. Always seal the opening again with the sealing cap afterwards. During blending, you can also use the included pusher to push ingredients that may stick at the top down.

Product photo of a white DOMO kitchen appliance with a red upward arrow indicating motion (no text or symbols on the device itself)

Close-up of a kitchen blender with a red annotation highlighting the blade and base (no text or symbols visible)

Close-up of a transparent blender with a red arrow indicating rotation (no text or symbols visible)

Dismantling after use

1. Turn the blender clockwise, remove it from the appliance, and place the lid back over the connection point.
2. Lift the lid handle and pull to remove the lid from the jug, then pour out the blended contents.
3. Rinse the jug under running warm water.

You can also add warm water with a few drops of detergent to the blender. Place the lid on the blender and mount the jug on the appliance. Turn the speed control to pulse briefly. Repeat if necessary. Rinse the blender under running water and leave it to dry upside down.

1. For a thorough cleaning, remove the blade assembly:

a. Remove the lid from the jug and place the blender upside down on a flat surface.

b. Press the unlock button on the blade assembly upwards and turn the bottom clockwise to loosen it. The marking on the jug should align with the open slot icon.

c. Remove the holder and the blade assembly. Take out the rubber sealing ring from the blade assembly.

Close-up of a glass coffee maker with black lid and red directional arrows indicating motion (no text or symbols)

Exploded view of a mechanical device showing internal components (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a shaft (no visible text or symbols)

1. Wash all parts of the jug and blade assembly in warm water with a mild detergent. Dry thoroughly before reassembling.

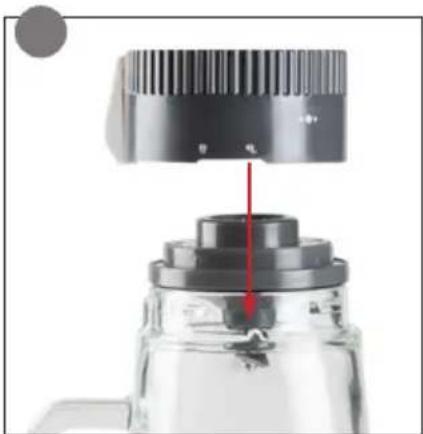

2. To reassemble the blade assembly, first place the rubber ring back into position and place the blade assembly on the upside-down jug. Place the holder over it, ensuring the open slot icon aligns with the marking on the glass jug. Turn the holder counterclockwise until the unlock button clicks back into place.
3. Place the lid and sealing cap back onto the jug.

VEGETABLE SLICER

1. Open the lid at the tip of the multifunctional head of the food processor: tilt the lid slightly upwards and remove the lid. The connection point for accessories is revealed.
2. Place the vegetable slicer on the connection point at an angle of 45^ and turn it counterclockwise a quarter turn. You will hear a click when it is attached. The vegetable slicer is now perfectly vertical.
3. Push the desired attachment fully into the opening of the vegetable slicer. You have the choice of a slicer and a fine and coarse grater.
4. Operate the vegetable slicer with the food processor's speed regulator.
5. Vegetables can be pushed into the vegetable slicer safely by using the pusher.

Close-up of a kitchen appliance with a red arrow pointing to a component (no visible text or symbols)

Close-up of a kitchen brush and blender with red directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a red arrow indicating rotation, showing a circular feature (no text or symbols)

Dismantling after use

1. Press the unlock button and turn the vegetable slicer a quarter turn clockwise.
2. Remove the vegetable slicer and place the lid back over the connection point.

RECOMMENDED SPEEDS PER ACCESSORY

ACCESSORY MAX USAGE TIME SPEED
Balloon whisk 3-5 min. 5-8
Dough hook 2 min. 1-2
Beater 5 min. 1-8
Blender 3 min. P/1-8
Vegetable slicer 5 min. 4-8

CLEANING AND MAINTENANCE

1. Make sure the speed control is set to '0'. Remove the plug from the socket before cleaning the appliance.
2. Clean the motor block with a soft, damp cloth.
3. Disassemble all accessories according to the instructions in the 'Dismantling after use' sections.
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash all accessories in warm water with a mild detergent, rinse, and dry thoroughly.
6. Allow everything to dry completely before storing.

This appliance has a convenient cord storage. Push the cord all the way into the appliance up to the plug.
All parts, except for the blade assembly with rubber ring and the metal attachments of the vegetable slicer, are dishwasher safe. Ensure all parts are completely dry before reassembling or storing.
⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not work. • Check	if the plug is inserted into a working socket.• Check if the multifunctional head is fully locked in place.• Check if the selected accessory is correctly installed.• The overheating protection may have been activated.Allow the appliance to cool for 30 minutes and try again.• Ensure the mixing bowl, blender, or vegetable slicer are not overloaded or blocked.
The appliance makes a strange noise.	• Always place the appliance on a flat, stable surface.• Make sure all parts are correctly installed.

SPECIFICATIONS

Model DO1182KR
Voltage 220-240 V~ 50/60 Hz
Power 1200 W
Energy consumption in off-mode after 0 minutes 0.3 W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

WEBSHOP

NL

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with ports and mounting brackets (no visible text or symbols)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
