USER MANUAL DO7256S DOMO

Exterior view of a silver vacuum cleaner with black handle and blue accents (no visible text or symbols)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, such as brushes and batteries, which are subject to wear, are excluded from the warranty.

Type nr. Apparaa

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service of the shop where you purchased the product.

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a metallic housing and internal cavity, labeled with number 8 (no text or symbols on the object itself)

MONTAGE

Close-up of a mechanical component with a highlighted section and number 8, showing internal structure (no text or symbols)

MONTAGE

To prevent the risk of fire, electrocution and injury

1. Never leave the vacuum cleaner unattended when the appliance is plugged in.
   Remove the plug from the socket when not in use or when you are going to clean the appliance.
2. To prevent the risk of electrocution never use the vacuum cleaner outdoors or on a wet surface.
3. This vacuum cleaner is not a toy. Strict supervision is necessary when the vacuum cleaner is used near or by children.
4. Only use the vacuum cleaner as described in the booklet. Only use accessories recommended by the manufacturer
5. Don't use the appliance when the plug or the cord has been damaged. When the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been put outside or has fallen into water, you must take it to a service centre for a check up
6. Don't pull the cord. Don't use the cord as a handle. Don't jam the cord between a door or pull it around corners or sharp edges. Don't pull the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
7. Don't remove the plug from the socket by pulling the cord. Grasp the plug to remove it from the socket.
8. Don't touch the plug or the vacuum cleaner when you've wet hands.
9. Don't insert any object in the openings of the vacuum cleaner. Don't use the vacuum cleaner when one of the openings is blocked.
10. Keep hair, loose clothing, fingers and other body parts away from openings in the vacuum cleaner or any moving parts.
11. Be very careful when you vacuum the stairs.

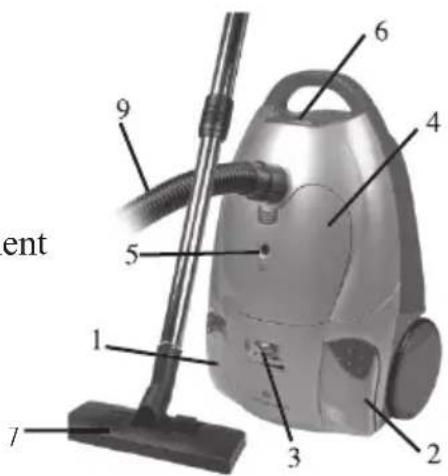

DESCRIPTION OF THE PARTS

1. On/off switch
2. Cable rewinder
3. Suction power regulation
4. Lid of the accessories
5. Indication for bag change
6. Clip opening dust bag compartment
7. Floor brush
8. accessories
9. Flexible hose

ent 1 2 3 4 5 6 7 9

Close-up of a mechanical component with an open lid and internal structure, labeled with number 8 (no text or symbols on the object itself)

ASSEMBLY

Attach the hose to the hose connection of the vacuum cleaner.

Attach the metal tube to the hose.

Connect the floor brush to the metal tube

INSTRUCTIONS FOR USE

1. Button to rewind the cable :

Pull the cord out of the appliance as far as necessary. Make sure you don't exceed the red marking on the wire. Keep hold of the plug during the rewinding of the cord. You can press the button with your foot to rewind the cable.

1. Suction power regulation :

Use the sliding knob to adjust the suction power of your vacuum cleaner.

1. When the red marking that indicates the change of the dust bag becomes visible, you should check the following :

- Is the dust bag full ? If so change it.

- Is the dust bag blocked? If so remove the blockage immediately.

CHANGING THE DUST BAG

The vacuum cleaner cannot be used without the dust bag. When the dust bag is full or damaged you need to replace it immediately.

1. Pull the knob of the lid of the dust bag to open it.

2. Remove the dust bag and place a new one in the correct position.

MAINTENANCE

1. Motor fi lte

The motor fi lter is situated in the dust bag compartment. You need to change or clean the motor fi lter when it is visible dirty. This can improve the effi ciency of you vacuum cleaner and prolong the life. It is recommended to at least clean the motor fi lter twice a year

1. Remove the filte

2. Clean it thoroughly

3. Let it dry by exposior to air

4. Replace it into the vacuum cleaner

2. Micro fi lter

when the micro filter, which is situated at the back, becomes dirty you need to clear it or replace it. When the filter becomes dirty the airflow will be obstructed, with the possibility of over heating your vacuum cleaner. This can lead to a malfunction of your vacuum cleaner.

1. remove the lid of the micro filter
2. Clean the filter thoroughly by beating it out or replace it. Don't wash
3. Replace the fi lter
4. Place the lid back on the vacuum cleaner.
