USER MANUAL DO7279S DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxembourg, France and Germany.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

C

C

cleaner over the cord. Keep the cord away from hot surfaces.

1. Do not touch the plug or the vacuum cleaner when you have wet hands.
2. Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.
3. Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.
4. Be extra careful when cleaning stairs.

PARTS

1. Floor brush
2. Chrome telescopic tubes
3. Flexible hose
4. Handle dust container
5. On/off button
6. Cord rewinding button
7. Transparent dust container
8. Air outlet filter

PRECAUTIONS

• When the floor brush or tubes are blocked, turn off the vacuum cleaner immediately. Remove the blockage before turning on the unit again.
• Do not use the vacuum cleaner close to heating appliances or radiators.
• When putting the plug in the socket, make sure your hands are dry.
• Before vacuuming you need to remove all large and sharp objects from the floor, to prevent damage on the filter.
• When removing the plug from the socket, take hold of the plug and do not pull the cord.

ASSEMBLY

Always remove the plug from the socket before adding or removing accessories.

1. Flexible hose: Attach the flexible hose to the air intake opening at the front of the vacuum cleaner. Push the hose until it clicks into position.
2. Metal tubes: Attach the metal tubes to the handle. Attach the floor brush to the metal tubes.
3. Accessories: Crevice/dust brush and small floor brush.

INSTRUCTIONS FOR USE

Before using the appliance unwind the power cord. Put the plug into the socket. A yellow marking on the cord indicates the ideal length for unwinding the cord. On the power cord is also a red marking, never unwind the power cord further than this marking.

1. Press the on/off button to turn on the unit.
2. To wind the cord, remove the plug from the socket en hold it while pressing the rewind button with the other hand. You need to hold the plug while rewinding to prevent damage during rewinding.
3. On the handle that is attached to the tubes, there is a small slide button for extra suction control.

CLEANING DUST CONTAINER AND FILTERS

Before cleaning your vacuum cleaner or accessories, always turn off the appliance and remove the plug from the socket.

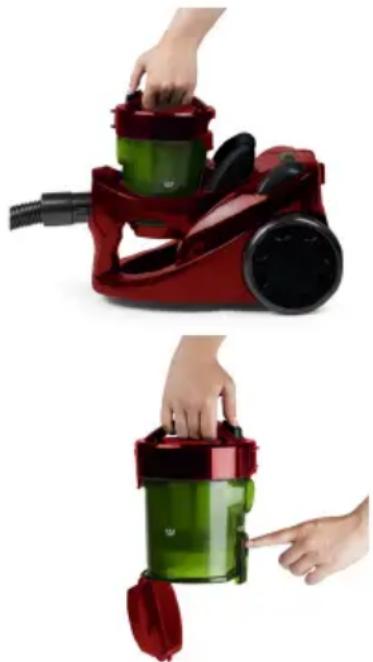

Dust container

1. Take hold of the handle, press the silver coloured button on top of the dust container and gently pull the dust container upwards. The dust container slides out of the appliance.
2. On the side of the dust container there is a knob.
3. Keep the container above the dust bin. Press the button on the side of the dust container. The bottom will open and the dust will fall out.

HEPA filter

You can now clean the HEPA filter inside the dust container. Round the HEPA filter is a protection screen, to prevent the dust concentrating inside the HEPA filter. If you want to clean the HEPA filter, remove the top lid of the dust container, take out the HEPA filter and clean it under running water. Let the filter dry in open air before replacing it in the vacuum cleaner.

Air outlet filter

This filter will clean the air before leaving your vacuum cleaner. The air outlet filter is situated at the back of the vacuum cleaner. Remove the grill and take out the filter.

Clean under running water, let it dry thoroughly before replacing it into the vacuum cleaner.

During a normal cleaning it will do to just beat out the filters. You should rinse the filters 3 to 4 times a year. Dry them completely or if necessary you can also replace them. After cleaning and drying the filters, place them back in the vacuum cleaner.

CAUTION:

• Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor.
• Remove the plug from the socket before cleaning the filters.
• Do not place the filters in the dishwasher.
• Do not use a hair dryer to dry the filters.
