USER MANUAL DO1012S DOMO

Black and blue compact vacuum cleaner with flexible hose, no visible text or symbols

DO1012S

Handleiding Stofzakloze	stofzuiger
Mode d'emploi Aspirateur	sans sac
Gebrauchsanleitung Beutelloser Staubsauger
Instruction booklet Bagless	vacuum cleaner

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 10
DE Deutsch 17
EN English 24

GARANTIE

Geachte klant,

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

Close-up of a blue and black compact vacuum cleaner with attached cable (no visible text or symbols)

TELESCOPISCHE BUIS

Close-up of a blue Domo-branded vacuum cleaner being handled, with a hand adjusting its handle (no visible text or symbols)

Hand holding a blue and white portable vacuum cleaner with a tassel, no visible text or symbols

Green portable water dispenser device with control panel and directional arrow (no text or symbols visible)

Green and white plastic bag with a handle, no visible text or symbols

Green circular icon with a black arrow and circular design, no text or symbols present.

③ A B

DE FILTER ACHTER HET STOFRESERVOIR REINIGEN OF VERVANGEN

Close-up of a black plastic mechanical component with an arrow indicating a feature (no text or symbols visible)

HEPA FILTER REINIGEN OF VERVANGEN VOOR DE LUCHTUITLAAT

Close-up of a black electric vehicle air purifier with green handle and white vent, no visible text or symbols

Close-up of a black and green electronic device with a perforated base (no visible text or symbols)

OPGELET

Close-up of a blue and black vacuum cleaner (no visible text or symbols)

VEELGESTELDE VRAGEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a blue and black DoroVO vacuum cleaner with attached cable (no visible text or symbols)

TUBE TÉLESCOPIQUE

Close-up of a hand holding a blue Domo VR headset with a black body, no visible text or symbols on the device itself.

Hand holding a blue and black cleaning brush with a tassel, no visible text or symbols

Black plastic mechanical component with cutouts, no visible text or symbols

NETTOYER OU REMPLACER LE FILTRE HEPA DEVANT L'ÉVACUATION D'AIR

Close-up of a black and green electronic device casing with a white vent and ventilation slots (no visible text or symbols)

Close-up of a black and green electronic device with a perforated base and control panel (no visible text or symbols)

ATTENTION

Close-up of a blue and black vacuum cleaner with a black handle (no visible text or symbols)

QUESTIONS FRÉQUENTES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a blue and black DOKO vacuum cleaner with attached cable (no visible text or symbols)

TELESKOPROHR

Close-up of a hand holding a blue Domo-branded device next to a black camera (no visible text or symbols)

Person holding a blue and white cleaning brush with a tassel, no visible text or symbols

Green portable water dispenser device with control panel and directional arrow (no text or symbols visible)

Green plastic spray caner with a white filter, no text or symbols visible

Green circular icon with a black arrow and circular design, no text or symbols present.

③ A B

DEN FILTER HINTER DEM STAUBBEHÄLTER REINIGEN ODER ERSETZEN

Close-up of a black plastic mechanical component with a cutout arrow (no text or symbols visible)

HEPA-FILTER VOR DEM LUFTAUSLASS REINIGEN ODER ERSETZEN

Close-up of a black electronic device with green ventilation slots and a white vent, no visible text or symbols

Close-up of a black and green electronic device with a perforated base (no visible text or symbols)

ACHTUNG

Close-up of a blue and black vacuum cleaner with a black handle (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
  · Always connect the appliance to an earthed socket.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · All repairs should be carried out by the manufacturer or its aftersales service.
  · Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
  · To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.
• Only use the vacuum cleaner as described in this instruction booklet.
• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
  · Do not touch the plug or the vacuum cleaner when you have wet hands.
• Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

- Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.

- Be extra careful when cleaning stairs.

- Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

- Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.

- Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

• Unplug the appliance before connecting the hose.
  · Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.

SAVE THESE INSTRUCTIONS

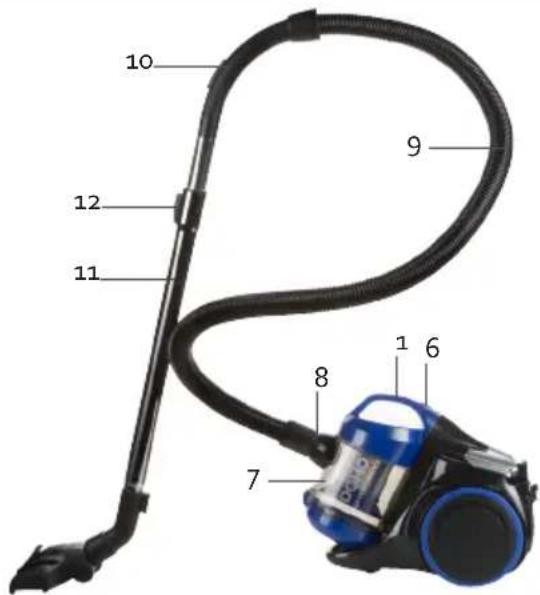

PARTS

1. Handle
2. On/off button
3. Button for cord roll-up system
4. Air outlet with HEPA filter
5. Storage position
6. Button to remove the dust reservoir
7. Dust reservoir
8. Connector for the hose
9. Flexible hose
10. Handle for hose with valve
11. Telescopic tube
12. Sliding button for tube length
13. Floor nozzle
14. Button to extend/retract brushes
15. Crevice vacuum cleaner/Duster
16. Button to empty the dust reservoir
17. Filter dust reservoir

10 12 11 9 8 7 1 6

2 3 5 4

13 14 15

17 16

ASSEMBLY

Always unplug the appliance from the socket before removing or connecting parts. Make sure that the dust reservoir is always in the correct position.

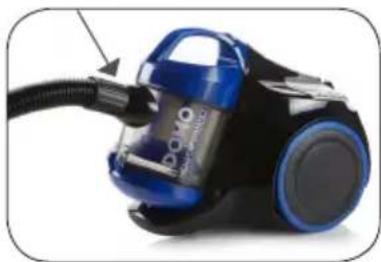

FLEXIBLE HOSE

• Assembly: Insert the flexible hose coupler into the connection opening at the front of the vacuum cleaner and tighten.
• Disassembly: To unlock, unscrew the flexible hose from the connection opening at the front of the vacuum cleaner.

Close-up of a blue and black DØO vacuum cleaner with attached cable (no visible text or symbols)

TELESCOPIC TUBE

1. Put the handle of the hose into the telescopic tube.
2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.
3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.

3. The suction can be controlled using the valve on the handle of the hose. The appliance has a strong suction force. This could cause the end of the floor nozzle to attach to the floor. If you want to reduce the suction force, you can slide open the valve on the handle of the hose.

· Carpets: ensure that the switch on the floor nozzle is set to

- Hard floors: ensure that the switch on the floor nozzle is set to .

1. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

2-IN-1 CREVICE ATTACHMENT

You can use the 2-in-1 crevice cleaner for hard-to-reach places such as radiators, crevices, corners, between cushions, etc. Click the brush up for furniture, shelves, etc.

CLEANING AND MAINTENANCE

EMPTYING AND CLEANING THE DUST RESERVOIR

Empty the dust reservoir regularly. Make sure that the dust in the dust reservoir does not exceed the maximum level.

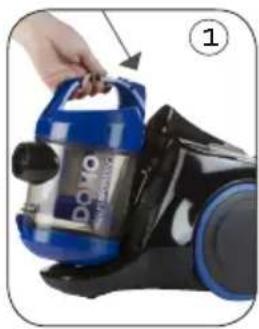

1. Take the handle of the vacuum cleaner and press the button. Carefully remove the dust reservoir from the vacuum cleaner.
2. Hold the dust reservoir above the dustbin. Press the button to empty the dust reservoir. The bottom will click open and the dust will fall out.
3. If necessary, wipe the dust reservoir clean with a soft, damp cloth.
4. Once the dust is removed, close the bottom until you hear it click.

Close-up of a hand holding a blue Domo Watercolor water dispenser, next to a black camera module (no visible text or symbols)

Hand holding a blue and black cleaning device with tassel, no visible text or symbols

To prevent losing suction after emptying the dust reservoir, it is essential that the long interior filter is checked for blockages.

1. To do this, completely remove the dust reservoir by unscrewing the handle counter-clockwise. Keep an eye on the slots of the dust reservoir.

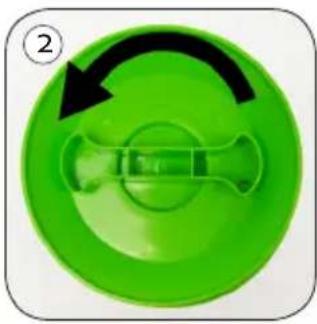

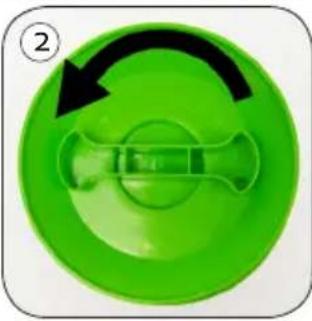

2. Unscrew the filter from the handle.
3. Remove the outer filter (A) from the HEPA filter (B) by pulling it up.
4. All parts may be cleaned under running water. Make sure all parts are completely dry before reassembling and using the vacuum cleaner again.

Green portable water dispenser device with black handle and white top, shown in side profile (no text or symbols visible)

Green mechanical component with a pointed tip and cylindrical body, no visible text or symbols

Green circular object with a black arrow and number 2, resembling a mechanical or electronic component (no text or symbols)

③ A B

CLEANING OR REPLACING THE FILTER BEHIND THE DUST CONTAINER

1. Remove the dust container from the vacuum cleaner. There is a filter in front of the engine.
2. Remove this filter from the opening and clean it under running water or replace it if necessary.
3. Make sure the filter is completely dry before replacing and using the vacuum cleaner again.

Close-up of a black plastic mechanical component with an arrow indicating a cut or feature (no text or symbols visible)

CLEANING OR REPLACING THE HEPA FILTER IN FRONT OF THE AIR OUTLET

1. At the back of the unit there is a grille for the HEPA filter. You can easily remove it by pushing the grille cover to the left and removing the grille from the device.
2. To remove the HEPA filter from the unit, push the cover down.
3. Clean the filter under running water or replace it if necessary. Make sure the filter is completely dry before putting it back into the vacuum cleaner and using the unit again.

Close-up of a black electronic device with green connectors and a white arrow pointing to a perforated interior (no text or symbols visible)

Close-up of a green and black robotic device with a perforated base (no visible text or symbols)

PLEASE NOTE:

The appliance has 3 filters. In a normal cleaning session, it is sufficient to tap out the filters. It is recommended that you thoroughly clean the filters under tepid running water 3 to 4 times per year. Make sure that it is completely dry before putting it back in the appliance. You can also replace them if necessary. Avoid direct sunlight or intense overheating. Never put the filters in the washing appliance to prevent deformation. Do not use abrasive or cleaning products and wash from the bottom of the filter.
· Make sure that all components are correctly assembled before using the vacuum cleaner again.
- Always use the vacuum cleaner with the filters intact. If you do not do this, you may lose suction force or damage the motor.
· Unplug the plug before cleaning the filters.
· Do not use a hairdryer to dry the filters.

STORAGE

You can easily store the vacuum cleaner by sliding the telescopic tube with floor nozzle into the storage position. This keeps the tube upright.

Close-up of a blue and black vacuum cleaner (no visible text or symbols)

FREQUENTLY ASKED QUESTIONS

Problem Cause Solution
The appliance does not start.	The appliance is not plugged in.	Put the plug in the socket.
	The appliance is not turned on. Press the on/off switch.
The appliance stops working.	The appliance has overheated, so the safety was tripped. This can be caused by dirty filters or a blockage.	Allow the appliance to cool completely. When the appliance has cooled down, it will function again. Clean the filters and check that the hose is not clogged.
The suction is too weak.	The appliance is not correctly assembled, so the suction is being lost.	Check that everything is assembled correctly. Remove all of the accessories and then replace them step by step in their place.
	The dust reservoir is full. Empty the dust reservoir and make sure that it does not exceed the maximum level.
	The hose is clogged. Insert the hose in the reverse manner (with the handle) in the suction opening of the appliance. The clog will be suctioned to the other side, which will free the hose.
	The filters are dirty. Carefully clean the filters as described in this manual. It is very important that you already thoroughly clean the filters.
	The valve on the handle of the hose is open.	Close the valve.
	The filters are congested. Over time, the pores in the filters will become congested. Replace the filters.
There is a burning smell from the appliance.	The appliance is overheated. Immediately switch off the appliance and let the appliance cool down. Clean the dust reservoir and the filters.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

DOM@Webshop

BESTEL

de originele Domo-accessoires en -onderdelen online via:

COMMANDEZ

QR code image containing encoded data, no visible human-readable text
