USER MANUAL DO1104SV DOMO

Exterior view of a modern office building (no signage)

DO1104SV

Handleiding Steelstofzuiger

Mode d'emploi Aspirateur-balai

Gebrauchsanleitung Handstaubsauger

Instruction booklet Stick vacuum cleaner

Manual de instrucciones Aspirador escoba

Istruzioni per l'uso Scopa elettrica

Návod k použití Tyčový vysavač 2v1

Návod na použitie Tyčový vysávač 2v1

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked books (no text or symbols)

Product diagram of a black handheld device with numbered parts (11–14), no visible text or symbols beyond labels

Close-up of a hand holding a small black tool near a device component (no visible text or symbols)

MUURBEVESTIGING

Product diagram showing a device with a blue screen and a black connector, no visible text or symbols

GEBRUIK

Close-up of a black vacuum cleaner component with labeled parts 1 and 2 (no text or symbols on the device itself)

Black and white photo of a DODD vacuum cleaner with blue handle and control panel (no visible text or symbols)

Product photo of a black and white Domo-branded washing machine (no visible text or symbols)

REINIGING EN ONDERHOUD

HET TOESTEL PROPER MAKEN

Exploded view of a kitchen appliance showing internal components like blender, blender, and cup (no text or labels visible)

Close-up of a car wheel rim with a circular highlight on the rim (no text or symbols visible)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

PROBLEEM EN OPLOSSING

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing waste sorting or restriction (no text present)

Product diagram of a vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

AVANT LA PREMIÈRE UTILISATION

Close-up of a hand holding a black and blue OMOO vacuum cleaner with a teal handheld device (no visible text or symbols)

Close-up of a hand using a blue vacuum cleaner to handle a black and white brush (no text or symbols visible)

Exploded view of a kitchen appliance showing internal components like blender, blender, and water dispenser (no text or labels visible)

CHARGE

Close-up of a hand holding a small black object with a blue square marker, next to a black device (no visible text or symbols)

SUPPORT MURAL

Product assembly diagram showing a device with a blue screen and a black connector, no visible text or symbols

UTILISATION

Close-up of a black mechanical component with two blue-green adjustment knobs, labeled 1 and 2 (no text or symbols on the component itself)

Black and white photo of a DODG vacuum cleaner with handle and control panel (no visible text or symbols)

Product photo of a black and white Doho-branded digital brush (no visible text or symbols)

NETTOYAGE ET ENTRETIEN

NETTOYER L'APPAREIL

Exploded view of a kitchen appliance showing internal components like blender, blender, and cup (no text or labels visible)

Close-up of a camera lens with a circular highlight on the rim (no text or symbols visible)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal flow lines and a white arrow indicating direction (no text or symbols)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

BATTERIE NON AMOVIBLE

Product diagram of a handheld device with labeled parts (no text or symbols beyond numbered labels)

Close-up of a hand inserting a small black tool into a black device (no visible text or symbols)

WANDBEFESTIGUNG

Close-up of a black and teal device with a blue lens, showing a mechanical assembly (no visible text or symbols)

GEBRAUCH

Close-up of a black plastic component with two labeled parts (1 and 2), no visible text or symbols.

Black and white photo of a DORMO vacuum cleaner (no visible text or symbols)

Product photo of a black and white handheld device with a blue label (no visible text or symbols on the device itself)

Exploded view of a kitchen appliance showing internal components like blender, blender, and cup (no text or labels visible)

Close-up of a car wheel rim with a circular highlight on the rim (no text or symbols visible)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue and white highlights (no visible text or symbols)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

NICHT HERAUSNEHMBARE BATTERIE

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
- farm houses;
· by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · Attention: This appliance cannot be used with an external timer or a separate remote control.
• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.

- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

- Make sure that the air intake or the floor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

· This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

- Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

- Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.

- Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

· Never use the appliance without a filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

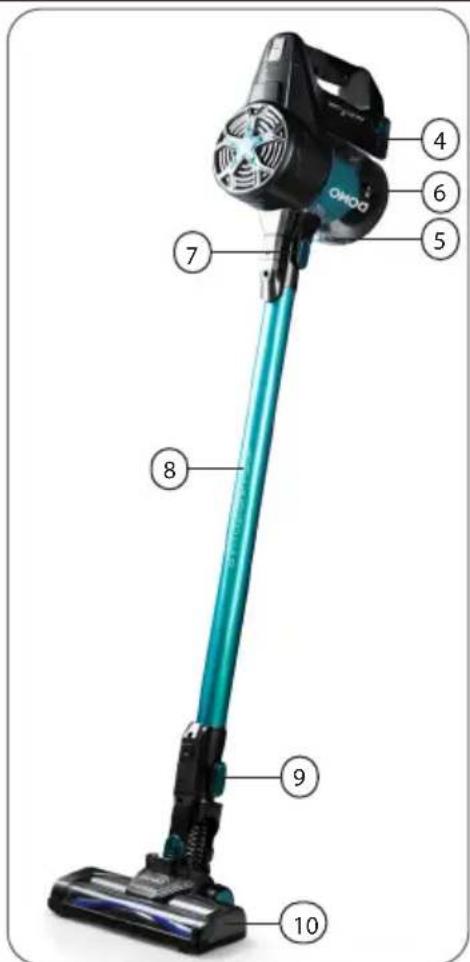

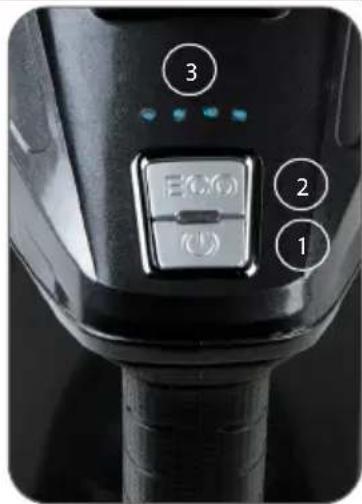

PARTS

1. On-off button
2. ECO mode indicator
3. Battery level indicator
4. Battery
5. Unlock button for dust reservoir
6. Dust reservoir
7. Handle release button
8. Tube
9. Release button floor nozzle
10. Floor nozzle with rotating floor brush

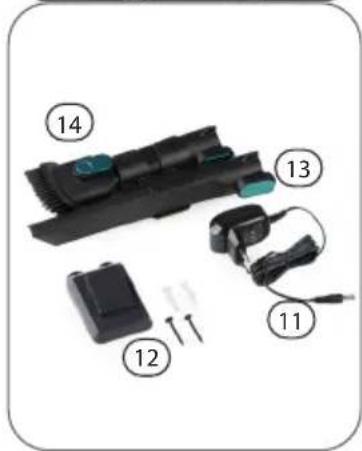

11. Adapter
12. Wall fixing (screws and plugs included)
13. Crevice vacuum cleaner
14. Dust brush

OMDO ④ ⑥ ⑤ ⑦ ⑧ ⑨ ⑩

3 E(X) 2 1

Product diagram of a black vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

BEFORE THE FIRST USE

To set up the machine properly, please follow the steps below:

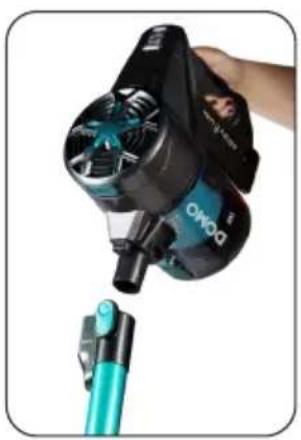

1. Place the motor compartment on the shaft via the opening provided.

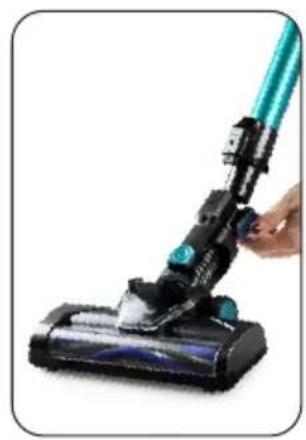

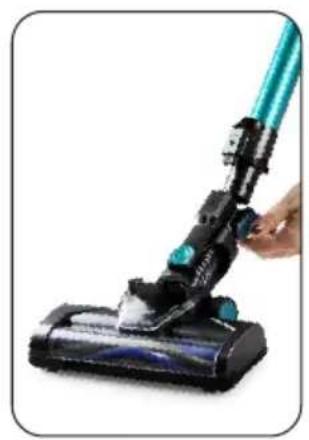

2. Make sure the floor nozzle is clicked into the stick vacuum cleaner.
3. Click the dust reservoir into the stick vacuum cleaner. You will find further information on the correct installation of the dirt receptacle under 'Cleaning and maintenance'.

Close-up of a black and blue DVOO hair dryer with a hand holding the device (no visible text or symbols)

Close-up of a hand using a blue and black vacuum cleaner to clean or install a white surface (no text or symbols visible)

Exploded view of a kitchen appliance showing internal components like blender, sink, and blender (no text or labels visible)

CHARGING

- Connect the adaptor to the upright vacuum cleaner via the connection provided on the appliance handle in order to charge the vacuum cleaner.

- The battery charge indicator indicates when the appliance has been fully charged. The lights will blink and will illuminate in turn when the battery is charging. When all the lights are on, the battery is fully charged.

· The machine cannot be started during charging.

- Prior to first use, charge the machine for 8 hours in order to be able to utilize the full capacity of the battery.

Close-up of a hand inserting a small black tool into a black device component (no visible text or symbols)

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount.

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount.

Close-up of a black and teal device with a blue control panel, showing a close-up of its internal components (no text or symbols visible)

USE

- Press the on/off button to turn the appliance on. The battery indicator light is blue and indicates the battery level. If the battery is almost empty, the indicator light will flash on and off.

- Pressing the ECO button will decrease the suction power and extend the autonomy. This way, you will be able to vacuum longer at a lower suction power. Press the ECO button again to let the appliance vacuum at full power.

- The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.

· While vacuuming, warm air will come out of the motor compartment. This is normal.

- When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

- The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button once more.

For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.

ACCESSORIES

You can use the following accessories on the hand-held vacuum cleaner (by removing the shaft) or secure them on the shaft:

1. Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.

2. Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

Close-up of a black mechanical component with two blue-green adjustment knobs, labeled 1 and 2 (no text or symbols on the main subject)

Black and teal DOMO vacuum cleaner with handle, no visible text or symbols on body

Product photo of a black and white Domo-branded hairdryer with a handle (no visible text or symbols)

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

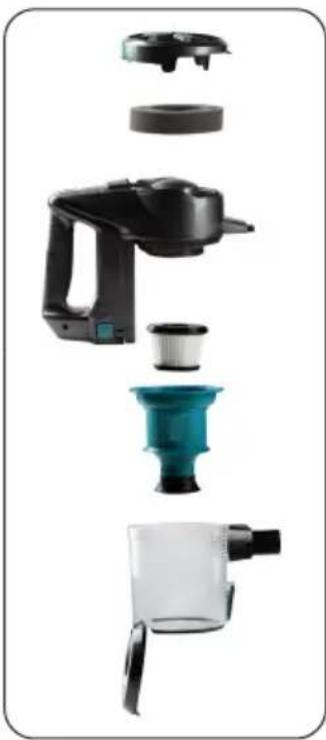

CLEANING THE DUST RESERVOIR

1. Never exceed the maximum indicator on the dust container. Empty the dust container by pressing the release button. The dust container falls open and you can then remove the coarse dirt.
2. Remove the wand. Then take the handle in your right hand. Grasp the dirt receptacle with your left hand and turn it clockwise. The dirt receptacle will come loose from the motor section. You can now clean all the parts separately. We recommend you do this with compressed air. If you do not have compressed air, you can wash out the filters. Make sure they are completely dry before using them again.

- Black round filter: this is located at the exit of the motor and filters the air even more after it comes out of the appliance.

- HEPA filter: this round dust filter captures the small dust particles.

- Plastic coarse debris filter: this ensures that the large dust particles remain in the dirt receptacle.

- Dirt receptacle: this is where all large dirt particles are collected.

1. Pull the filters out of the dirt receptacle. Remove the HEPA filter from the coarse debris filter by pulling it up. Blow the filters clean with compressed air. You can also clean the filters under running water. Make sure they are completely dry before using the appliance again.

2. Replace the HEPA filter in the coarse debris filter.

3. Put the filters back in the dirt receptacle. Make sure that the notch in the filter lines up with the protrusion in the receptacle.

4. Put the dirt receptacle back on the motor section by turning it counter-clockwise. Make sure that the dash on the motor unit lines up with the lock symbol.

Exploded view of a kitchen appliance showing internal components like blender, blender, and cup (no text or labels visible)

Close-up of a mechanical component with a circular highlight (no visible text or symbols)

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

2. Slide the cover on the right side of the floor brush to the right.

3. Remove the rotating floor brush from the floor nozzle.

4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.

6. Place the floor brush back into the floor nozzle when it is clean.

7. Slide the cover closed again to secure the floor brush.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal flow indicators (no text or symbols visible)

Close-up of a black mechanical component with blue internal structure and mounting holes (no visible text or symbols)

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

PROBLEM AND SOLUTION

Problem Solution
The battery charge indicator will flash on and off.	· The battery is empty. Charge the machine.
The machine does not start up. · The battery is empty. Charge the machine.
The machine does not vacuum. · The filters are dirty/the dust reservoir is full.· The floor nozzle is clogged/the floor brush is blocked.· Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	· The filters are dirty/the dust reservoir is full.· The machine is not sufficiently charged. Charge the machine fully and try again.· The battery is broken or old. Contact the after sales service.· Stuck hairs. Remove the hairs stuck on the brushes.

SPECIFICATIONS ADAPTOR

Published information Value and precision Unit
Linea 2000 BV – Dompel 9 – 2200 Herentals – Belgium	-	-
Model number DO1104SV -
Supply voltage 100-240 V
Power frequency 50/60 Hz
Output voltage 27 V
Output current 0,5 A
Output power 13,5 W
Average active efficiency	87,49	%
Efficiency at low load	81,40	%
Non-loaded energy consumption	0,042	W

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

NON-REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

GARANTIA

Product diagram of a black vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

Close-up of a black and blue OKO-branded hairdryer with a teal handheld device (no visible text or symbols)

Close-up of a hand using a blue and black vacuum cleaner to clean or install a white surface (no text or symbols visible)

Exploded view diagram of a kitchen appliance showing internal components like blender, sink, and fan (no text or labels)

CARGA

Close-up of a hand inserting a small black tool into a black device component (no visible text or symbols)

SOPORTE MURAL

Close-up of a black and blue electronic device with a sensor or lens, showing a close-up view of its internal components (no text or symbols visible)

USO

Close-up of a black mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Black and white photo of a DODO vacuum cleaner with handle and control panel (no visible text or symbols)

Black and white photo of a Domo-branded vacuum cleaner with a handle (no visible text or symbols)

LIMPIEZAY MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Close-up of a camera lens with a circular annotation highlighting the lens area (no text or symbols present)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal structure and arrow indicator (no visible text or symbols)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

BATERÍA NO EXTRAÍBLE

Product diagram of a vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

PRIMA DELL'USO

Close-up of a hand holding a black and cyan ONOO-branded hairdryer with a green brush tip (no visible text or symbols)

Close-up of a hand holding a blue and black vacuum cleaner (no text or symbols visible)

Exploded view of a kitchen appliance showing internal components like blender, sink, and water dispenser (no text or labels visible)

CARICARE

Close-up of a hand inserting a small black plug into a device component (no visible text or symbols)

SOSTEGNO A PARETE

Close-up of a black and teal device with a blue control panel, showing a transformation from a left-side view to a right-side view (no text or symbols visible)

UTILIZZO

Close-up of a black mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Black and white photo of a DODM vacuum cleaner with handle and control panel (no visible text or symbols)

Product photo of a black and white Domio washing machine (no visible text or symbols)

Exploded view of a kitchen appliance showing internal components like blender, blender, and cup (no text or labels visible)

Close-up of a car wheel rim with a circular highlight on the rim (no text or symbols visible)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal flow lines (no text or symbols visible)

Close-up of a black mechanical component with blue internal structure (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, enclosed in a square frame (no text or numbers present)

BATTERIA NON RIMOVIBILE

Product diagram of a handheld vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

PŘED PRVNÍM POUŽITÍM

Close-up of a person using a black and blue BOMO vacuum cleaner to lift a small green tool (no visible text or symbols)

Close-up of a hand holding a blue and black vacuum cleaner (no text or symbols visible)

Exploded view of a kitchen appliance showing internal components like blender, blender, and water dispenser (no text or labels visible)

NABÍJENÍ

Close-up of a hand inserting a small black plug into a device component (no visible text or symbols)

DRŽÁK NA STĚNU

Diagram showing a device with a blue lens and a black plastic component, no visible text or symbols

POUŽITÍ

Close-up of a black mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Black and white photo of a DNOO vacuum cleaner with handle and control panel (no visible text or symbols)

Product photo of a black and white Domo-branded vacuum cleaner (no visible text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Exploded view of a kitchen appliance showing internal components like blender, blender, and blender (no text or labels visible)

Close-up of a mechanical component with a circular highlight (no visible text or symbols)

Hand holding a blue and black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with blue internal flow arrows, no visible text or symbols

Close-up of a black mechanical component with blue internal structure and mounting holes (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

PEVNĚ ZABUDOVANÉ BATERIE

Product diagram of a black vacuum cleaner with labeled parts (no text or symbols beyond numbered labels)

PRED PRVÝM POUŽITÍM

Close-up of a hand holding a black and teal ONOO vacuum cleaner with a blue handle, next to a small green tool (no visible text or symbols)

Close-up of a hand holding a black vacuum cleaner with a teal handle (no text or symbols visible)

Exploded view of a kitchen appliance showing internal components like blender, cup, and blender (no text or labels visible)

NABÍJANIE

· Vysávač nabijete tak, že z boku rukoväte pripojíte nabíjací konektor.
- Svetelná kontrolka bude signalizovat' plné nabitie. Počas nabíjania budú blikat' a postupne sa rozsvecovat' kontrolky batérie (to značí, že sa nabíja). Pripravujeme svietit' všetky kontrolky batérie, tak je vysávač plne nabitý.
- Pri priebehu nabíjania nie je možné vysávač zapnút.
- Pri prvom dobíjanie dbajte na to, aby sa batéria nabíjala celých 8 hodín. Jedine takto sa správne "sformátuje".

Close-up of a hand holding a small black object, possibly a device or tool, with no visible text or symbols.

DRŽIAK NA STENU

Close-up of a black and teal object with a blue control panel, possibly a device or device component (no visible text or symbols)

POUŽITIE

· Vysávač zapnite stlačením hlavného vypínača / spínača ON / OFF.
Modro podsvietený stupeň na kontrolke batérie značí, do akej miery je batéria nabitá.
Akonáhle bude skoro vybitá, tak sa kontrolka rozbliká a potom zhasne.
- Stlačením tlačidla ECO prepnete a znížite sací výkon, tým predlžite aktívny čas používania. Opätovným stlačením tlačidla ECO prípadne ECO režim vypnete a vrátite sa do nastavenia na plný výkon.

- Efektivita a výdrž prístroja pri upratovaní závisí od typu podlahy. Pri vysávaní koberca bude výdrž batérie podstatne menší než na hladké tvrdé ploche.

Close-up of a black vacuum cleaner component with labeled parts 1 and 2 (no text or symbols on the device itself)

Black and teal DODA vacuum cleaner with handle and control panel (no visible text or symbols)

Product photo of a black and white Domio washing machine (no visible text or symbols)

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Close-up of a mechanical component with a circular highlight (no visible text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

PEVNE ZABUDOVANÉ BATÉRIE

QR code image containing encoded data, no visible human-readable text
