USER MANUAL DO1137S DOMO

Black DOMO vacuum cleaner with attached hose and control panel (no visible text or symbols)

DO1137S

PRODUCT OF LINEA 2000 CE FR PAPIER + PLASTIQUE

DO7285S

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no visible text or labels

INFORMATION DE RECYCLAGE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Recycling symbol with three arrows forming a triangle, no text or labels present

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Labeled diagram of a vacuum cleaner with numbered parts for identification

MONTAGE

Close-up of a black vacuum cleaner with coiled cable and ventilation slots (no visible text or symbols)

Telescopische buis

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands holding a measuring tape with an arrow indicating motion (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a bulb and syringe (no text or symbols)

Accessoires

Close-up of a black vacuum cleaner with coiled tubing and ventilation slots (no visible text or symbols)

Close-up of a mechanical component with a wooden block and arrow, no visible text or symbols

Close-up of a car interior showing a plastic housing and mounting bracket, with an arrow indicating a specific component (no text or symbols visible)

Close-up of a metallic mechanical component with ribbed texture and a circular button (no visible text or symbols)

Close-up of a smartwatch with a grid display and handle (no visible text or symbols)

OPGELET:

Close-up of a hand holding a black tool next to a black device component (no visible text or symbols)

DO1137S

PRÉCAUTIONS

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

DO1137S

Tube télescopique

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands measuring a cylindrical object with a pointer (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Accessoires

OVOO ③ ② ①

UTILISATION

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

DO1137S

Close-up of a mechanical component with a wooden block and arrow indicator (no visible text or symbols)

Close-up of a car interior showing a plastic container with an upward arrow indicating a component (no text or symbols visible)

Close-up of a metallic mechanical component with ribbed texture and a circular button (no visible text or symbols)

Close-up of a black robotic device with a grid-patterned display (no visible text or symbols)

ATTENTION:

Close-up of a hand holding a black tool next to a device component, with an arrow pointing to the handle (no visible text or symbols)

DO1137S

Close-up of a black vacuum cleaner with coiled tubing and ventilation slots (no visible text or symbols)

DO1137S

Teleskoprohr

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands using a measuring tool to measure a cylindrical object, with an arrow indicating direction (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a syringe and tool, no text or symbols present.

Zubehör

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

BENUTZUNG

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

Close-up of a mechanical component with a wooden block and arrow, no visible text or symbols

DO1137S

Close-up of a car interior showing a plastic container with an upward arrow indicating a component (no text or symbols visible)

Close-up of a metallic mechanical component with ribbed texture and a circular button (no visible text or symbols)

Close-up of a black electronic device with a grid-patterned top panel (no visible text or symbols)

ACHTUNG:

Close-up of a hand holding a black tool next to a device component, with an arrow pointing to the handle (no visible text or symbols)

DO1137S

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or

other similar professional surroundings

• Farms
  • Hotel or motel rooms and other surroundings with a residential character
  • Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

DO1137S

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

- Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord

or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

• Only use the vacuum cleaner as described in this instruction booklet. Only use accessories recommended by the manufacturer.
• Do not use the appliance when the plug or cord is damaged, when the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left outside or has been dropped in water. In that case, take your vacuum cleaner to a service center for a check-up and/or repair.
• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
• Do not touch the plug or the vacuum cleaner when you have wet hands.
• Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.
• Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.
• Be extra careful when cleaning stairs.
• Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.
• Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
• Unplug the appliance before connecting the hose.
• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.
• Always connect the appliance to an earthed socket.

SAVE THESE INSTRUCTIONS

DO1137S

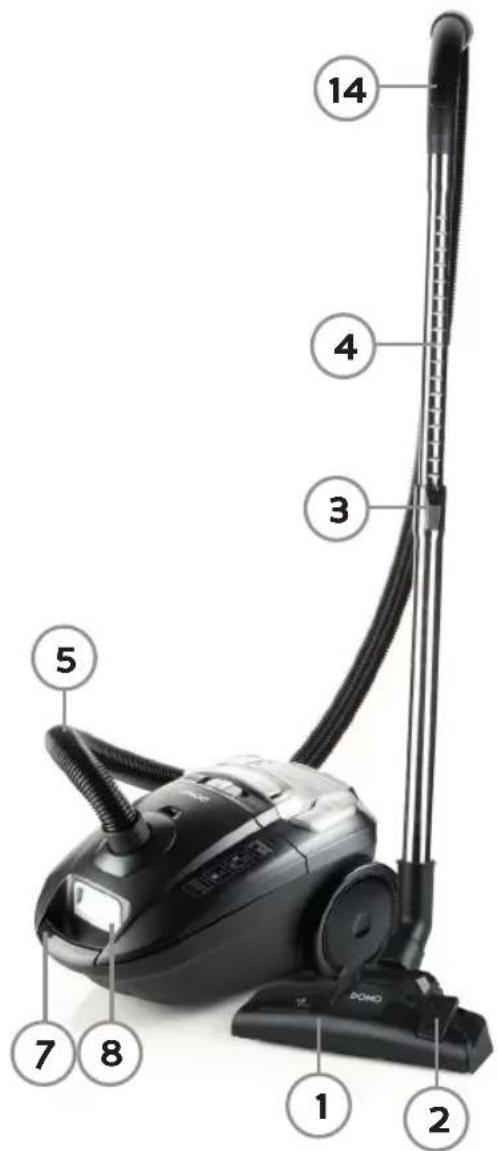

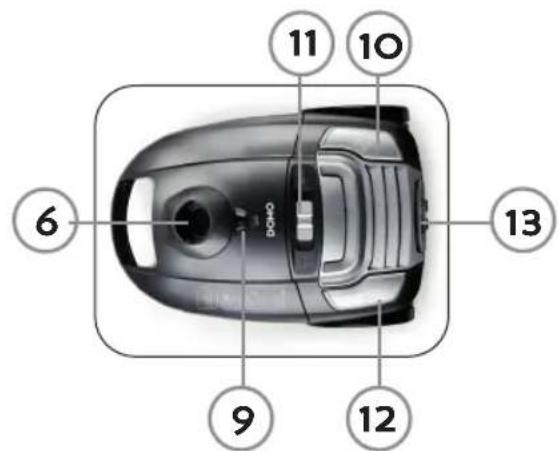

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Slide button to set length of tube
4. Telescopic tube
5. Hose
6. Connection for hose
7. Handle
8. Handle lid dust bag compartment
9. Full dust bag indicator
10. Button for automatic cord rewinding
11. Button to set the suction power
12. On/off button
13. HEPA filter under the grid
14. Additional suction power control

11 10 6 13 9 12

1 2 3 4 5 6 7 8 14

ASSEMBLY

Always unplug the vacuum cleaner before (dis)assembling any parts.

Hose

Assembly: Put the connection ring at the end of the hose into the hose connection in the vacuum cleaner and turn to the right so that it is locked into place.

Disassembly: Unplug the vacuum cleaner. Turn the connection ring at the end of the hose to the left and remove from the hose connection.

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

Telescopic tube

1. Put the handle of the hose into the telescopic tube.
2. Set the telescopic tube to the desired length. To do this, push the slide button

forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.

1. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

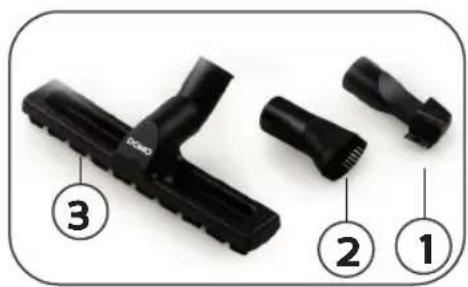

Accessories

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

3. Parquet brush: for parquet floors and other delicate floors

DCMO ③ ② ①

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.

3. To set the suction power, slide the suction power button to the left or right in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.

4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down. (A)

5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted. (B)

6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the 🔒 symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

A B

DO1137S

MAINTENANCE

Check the hose, dust bag and filters regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filters when they are dirty. When the dust bag is full, the indicator on top of the appliance will turn red.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag

frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

Replacing the dust bag and cleaning the motor filter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or

cleaning the filter. Never vacuum without the dust bag or filters in place.

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

1. Turn off and unplug the vacuum cleaner.

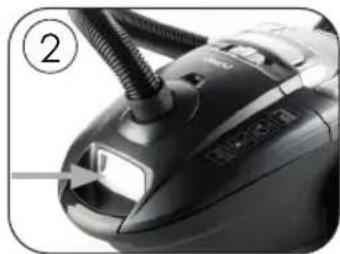

2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.

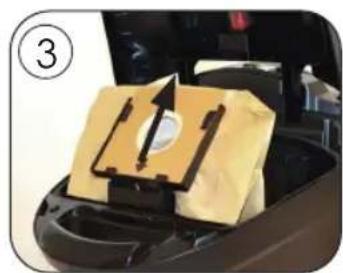

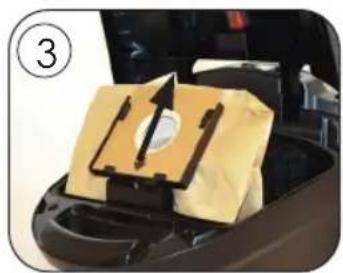

3. Slide the dust bag out of the frame and remove the dust bag from the dust bag compartment.

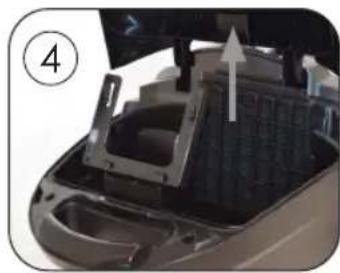

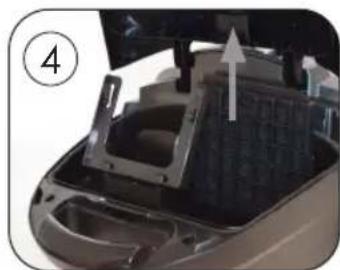

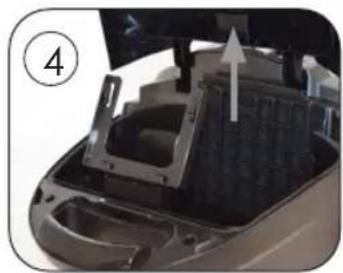

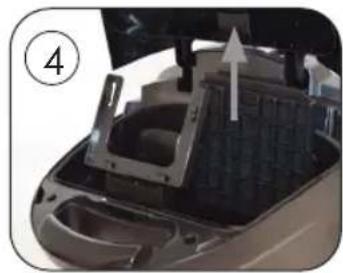

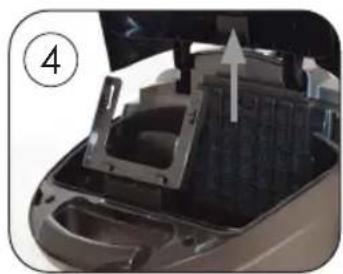

4. If at this point you want to clean the motor filter, take out the filter by sliding it upwards. Clean the filter by rinsing it under warm water. Let the filter air dry completely before reinstalling it. Reinstall the filter before placing the dust bag into the dust bag compartment.
5. Slide a new dust bag (3 l) in the dust bag frame.
6. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Close-up of a car interior showing a wooden box with a black arrow and circular hole, no visible text or symbols

Close-up of a mechanical component with an arrow indicating a process or assembly (no visible text or symbols)

Cleaning the air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

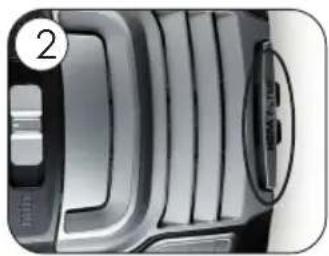

2. Open the grid that covers the filter by pushing the clip up. The filter is visible when the grid is removed.

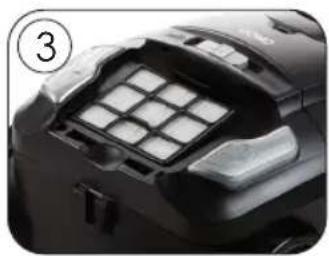

3. Take out the filter.
4. Rinse the filter under cold water and let it air dry completely.
5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.
6. Seal with the grid. Make sure that the grid clicks into place.

Close-up of a metallic mechanical component with ribbed texture and a circular button (no visible text or symbols)

Close-up of a black robotic device with a grid-patterned head (no visible text or symbols)

CAUTION:

• Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor.
- Remove the plug from the socket before cleaning the filters.
- Do not place the filters in the dishwasher.
- Do not use a hair dryer to dry the filters.

STORAGE

The vacuum cleaner can be easily stored:

• Rewind the cord by pressing the foot pedal with the symbol.
• Push the telescopic tube together. Push the slide button forward and push the top part of the tube down to make it shorter. Release the slide button and let the tube snap into place.
• Place the appliance upright, at the bottom there is an attachment in which you can slide the floor nozzle.

Close-up of a hand adjusting a black plastic device with a handle (no visible text or symbols)

DO1137S

PRECAUCIONES IMPORTANTES

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

DO1137S

Tubo telescópico

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Accesorios

DODG ③ ② ①

Uso

Close-up of a black vacuum cleaner with coiled cable and ventilation slots (no visible text or symbols)

Close-up of a car trunk with a wooden box and black plastic cover, no visible text or symbols

Close-up of a car interior showing a mechanical component with an arrow indicating upward motion (no text or symbols visible)

DO1137S

Close-up of a metallic mechanical component with ribbed texture and a circular button (no visible text or symbols)

Close-up of a black electronic device with a grid-patterned top (no visible text or symbols)

ATENCIÓN:

Close-up of a black electronic device with a hand adjusting its cable (no visible text or symbols)

DŮLEŽITÉ

Close-up of a black vacuum cleaner with coiled cable and illuminated outlet (no visible text or symbols)

DO1137S

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a ruler with an arrow indicating measurement direction (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a bulb and tool (no text or symbols)

Příslušenství

DNO ③ ② ①

POUŽITÍ

Close-up of a black vacuum cleaner with coiled hose and ventilation slots (no visible text or symbols)

Close-up of a mechanical component with a wooden block and black mounting bracket, no visible text or symbols

Close-up of a car interior showing a plastic component being inserted, with an arrow indicating the process (no text or symbols visible)

Close-up of a metallic mechanical component with a circular button and label (no readable text or symbols)

Close-up of a black robotic device with a grid-patterned display (no visible text or symbols)

UPOZORNĚNÍ:

Close-up of a black robotic vacuum cleaner's side panel with a hand adjusting its grip (no visible text or symbols)

DÔLEŽITÉ

Close-up of a black vacuum cleaner with coiled cable (no visible text or symbols)

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands measuring a ruler with an arrow indicating measurement direction (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Príslušenstvo

Close-up of a black vacuum cleaner with attached hose and vent, no visible text or symbols

Close-up of a mechanical component with a yellow square component inserted into a black housing, no visible text or symbols.

Close-up of a car interior showing a plastic tray with a highlighted component and an arrow indicating upward motion (no text or symbols visible)

Close-up of a metallic mechanical component with a circular button and handle (no visible text or symbols)

DO1137S

Close-up of a black robotic device with a grid-patterned top panel (no visible text or symbols)

UPOZORNENIE:

• Vysávač používajte iba s filtrami. Pri použítí bez filtrov hrozí porucha motora.
- Pred čistením filtrov vždy odpojte vysávač z elektrickej siete.
- Filtre nevkladajte do umývačky riadu.
- Na vysúšanie filtrov nepoužívajte vlasovej fény.

USKLADNENIE

Close-up of a hand using a tool to adjust or install a device component (no visible text or symbols)

www.domo-elektro.be

DO1137S

DOMQWebshop

BESTEL

de originele Domo-accessoires en -onderdelen online via:

COMMANDEZ

Two cylindrical white liquid droplets on a plain white surface, no text or symbols visible

Two stacks of beige paper cards with circular patterns, arranged on a white surface (no text or symbols visible)

Clear glass coffee maker with black handle and lid, isolated on white background (no text or symbols)

White rectangular container with black interior, no visible text or symbols

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text

LINEA 2000 BV - Dompel 9 - 2200 Herentals - Belgium - Tel: [phone] - Fax: [phone]
