USER MANUAL BCFFANBAT2601 Be Cool

Line drawing of a desktop fan with visible blades and base (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Line drawings of a three-tiered electric fan with labeled components (no text or symbols present)

BE COOL

Line drawing of a standard electric fan with a vertical arrow indicating the down direction (no text or symbols present)

Technical line drawing of a mechanical device with a circular housing and a vertical fan-like structure (no text or symbols)

Optimale Akkupflege

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Line drawing of a desktop electric fan with a stand and base (no text or symbols)

FÉLICITATIONS !

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU LA MAINTENANCE. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN SUIVANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES ET/OU DES DOMMAGES MATÉRIELS ET/OU LA PERTE DE LA GARANTIE !

INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ, L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

BE COOL

AVERTISSEMENT / ATTENTION : LES TERMES « AVERTISSEMENT » (DANGERS GRAVES) ET « ATTENTION » (SITUATIONS POTENTIELLEMENT DANGEREUSES) SONT UTILISÉS DANS LE PRÉSENT MANUEL D'UTILISATION ; RESPECTEZ IMPÉRATIVEMENT LES CONSIGNES.

Line drawings of a three-tiered electric fan with labeled components (no text or symbols present)

BE COOL

Line drawing of a standard electric fan with a vertical arrow indicating upward motion, mounted on a base (no text or symbols)

Technical line drawing of a mechanical device with two circular components and a vertical stand (no text or symbols)

BE COOL

Line drawing of a circular heating fan with internal blades and a lid (no text or symbols)

Line drawing of a desktop electric fan with visible blades and base (no text or symbols)

COMPLIMENTI!

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI POTREBBE CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O INVALIDARE LA GARANZIA!

Line drawing of a multi-tiered industrial fan or sensor device with no visible text or symbols

Diagram of a mechanical device with a rotating knob and base, showing no text or symbols.

Line drawing of a desktop fan with visible blades and base (no text or symbols)

BE COOL

Line drawing of a standard electric fan with a vertical arrow indicating upward motion, mounted on a base (no text or symbols)

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Line drawing of a desktop electric fan with visible blades and base (no text or symbols)

FELICITĂRI!

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACESTE INSTRUCTȚIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTJAȚI-VĂ PE VOI ȘI PE CEILALȚI URMÂND INSTRUCTȚIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTȚIUNILOR POATE DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU ANULAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONEXIUNEA ELECTRICĂ.

BE COOL

AVERTISMENT / ATENTIE: ACEST MANUAL DE UTILIZARE UTILIZEAZĂ CUVINTELE „AVERTISMENT” (PERICOL GRAV) ŞI „ATENTIE” (SITUATII POTENTIAL PERICULOASE); ESTE ESENTIAL SĂ RESPECTAȚI INSTRUCTIUNILE.

Technical line drawing of a circular industrial fan or vent with ventilation grilles (no text or symbols)

Diagram of a mechanical device with a rotating knob and base mount (no text or symbols)

Line drawing of a desktop fan with visible blades and base (no text or symbols)

BE COOL

Line drawing of a standard electric fan with a vertical arrow indicating upward motion, mounted on a base (no text or symbols)

Technical line drawing of a vacuum fan with two mounting brackets and a mounted stand (no text or symbols)

BE COOL

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Line drawing of a desktop electric fan with a stand and base (no text or symbols)

ČESTITKE!

QR code image containing encoded data, no visible human-readable text

PREDEN ZAČNETE Z NAMESTITVIJO, UPORABO ALI VZDRŽEVANJEM, POZORNO PREBERITE TA NAVODILA. ZUPRAVITE SE IN DRUGE Z UPORABO VARNOSTNIH NAVODIL. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI POŠKODBE OSEB IN/ALI PREMOŽENJA IN/ALI RAZVELJAVI GARANCIJO!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNI PRIKLJUČITVI.

BE COOL

OPOZORILO / PREVIDNOST: V TEM UPORABNIŠKEM PRIROČNIKU SO UPORABLJENE OPOZORILNE BESEDE „OPOZORILO“ (RESNA NEVARNOST) IN „PREVIDNOST“ (MOŽNE NEVARNE SITUACIJE); NUJNO JE, DA UPOSTEVAŠ NAVODILA.

Predvidena uporaba

Line drawing of a circular industrial fan or sensor device with no visible text or symbols

Technical line drawing of a mechanical component with a circular top and base (no text or symbols)

Line drawing of a desktop fan with visible blades and base (no text or symbols)

BE COOL

Line drawing of a desktop fan with a vertical arrow indicating upward motion (no text or symbols)

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Tehnične informacije
Nazivna napetost	5 VDC / 1 A
Nazivna moč	5 vatov
Raven hrupa	40 dB(A)
Baterija	2 x 1200 mAh / 18650 Li lon
Napetost baterije	3,7
Dimenzije	Zložena: 210 x 210 x 102 mmNizka: 210 x 208 x 365 mmVisoko: 210 x 208 x 800 mm
Teža	1,1 kg
Kontaktni naslovi za dodatne informacije in servisna linija:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 DunajTel: [phone] – 0www.becool.atFB št.: 236974 t / FB sodišče: Dunaj

BE COOL

GARANCIJA

S tem kakovostnim izdelkom BE COOL ste se odločili za inovativnost, trajnost in zanesljivost.

Line drawing of a desktop electric fan with visible blades and base (no text or symbols)

ČESTITAMO!

Hvala vam što ste odabrali proizvod BE COOL.

BE COOL

Current operating instructions and other languages

Preuzmite najnovije upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS DA PAŽLJIVO PROČITATE OVE UPUTE PRIJE POČETKA UGRADNJE, RADOVA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIMANJE UPUTA MOŽE REZULTIRATI OZLJEDAMA I/ILI OŠTEĆENJEM MATERIJALA I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM PRIKLJUČKU.

BE COOL

UPOZORENJE / OPREZ: OVAJ KORISNIČKI PRIRUČNIK KORISTI SIGNALNE RIJEČI "UPOZORENJE" (OZBILJNA OPASNOST) I "OPREZ" (POTENCIJALNO OPASNE SITUACIJE); VAŽNO JE DA SLIJEDITE UPUTE.

Namjena

Ventilator je namijenjen isključivo za ventilaciju suhih prostorija. Namijenjen je samo za privatnu upotrebu i nije prikladan za komercijalnu upotrebu. Ventilator koristite samo kako je opisano u ovom priručniku za uporabu.

Line drawing of a circular industrial fan or sensor device with no visible text or symbols

Technical line drawing of a mechanical device with a circular component and base (no text or symbols)

Line drawing of a desktop fan with a stand and base (no text or symbols)

BE COOL

Podešavanje visine ventilatora

Postavite ventilator na ravnu površinu .

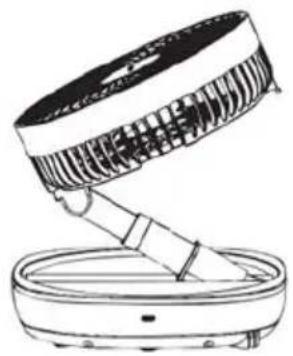

Rasklopite ventilator kao što je prikazano na slici.

Line drawing of a standard electric fan with a vertical arrow indicating airflow direction (no text or symbols)

zaciju na donjoj

BE COOL

Čišćenje ventilatora

- Uklonite ulazne i izlazne rešetke te očistite lopatice ventilatora i rešetke mekom, čistom krpom.

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Tehničke informacije
Nazivni napon	5VDC / 1A
Nazivna snaga	5 vata
Razina zvuka	40 dB(A)
Baterija	2 x 1200 mAh / 18650 Li-ion
Napon baterije	3.7
Dimenzije	Sklopljeno: 210 x 210 x 102 mmDonja: 210 x 208 x 365 mmVisina: 210 x 208 x 800 mm
Težina	1,1 kg
Kontaktne adrese za dodatne informacije i servisnu liniju:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 BečTel: [phone] – 0www.becool.atFB broj: 236974 t / FB sud: Beč

BE COOL

JAMSTVO

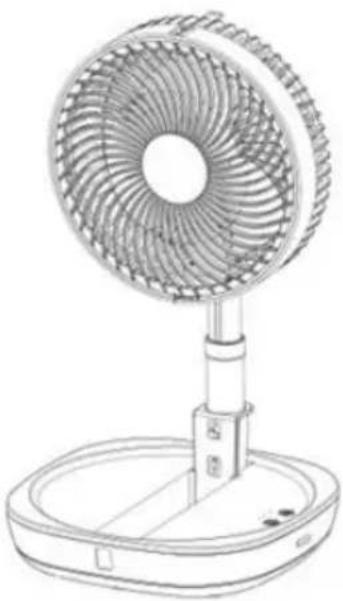

USER MANUAL Folding Fan BCFFANBAT2601

Line drawing of a desktop electric fan with a stand and base (no text or symbols)

CONGRATULATIONS!

Thank you very much for choosing a BE COOL product.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION, OPERATION, OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR VOID THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION, AND ELECTRICAL CONNECTION.

BE COOL

WARNING / CAUTION: THIS USER MANUAL USES THE SIGNAL WORDS "WARNING" (SERIOUS DANGER) AND "CAUTION" (POTENTIALLY DANGEROUS SITUATIONS); IT IS ESSENTIAL THAT YOU FOLLOW THE INSTRUCTIONS.

Intended use

The fan is designed exclusively for ventilating dry rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in this operating manual.

1. Use this device only in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock, or personal injury.
2. Remove the packaging and ensure that the device is not damaged. If in doubt, do not use the device and contact the service center or your dealer.
3. Keep children away from packaging materials. If swallowed, there is a risk of suffocation!
4. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center to avoid any possible risks.

BE COOL

1. Before connecting to the mains, you must check that the type of current and mains voltage match the information on the device type label.

2. Only use a 5V 1A 5W charger and the appropriate cable for charging. Improper chargers can cause overheating or a fire hazard.

3. The electrical outlet you use to connect the device must not be defective or loose and must be suitable for the required current load and, above all, reliably grounded.

4. Avoid using an extension cord. If unavoidable, only use tested, grounded extension cords with sufficient cross-section. The cord must be completely unrolled to prevent overheating and fire.

5. It is prohibited to alter or modify the characteristics of this device. Only use replacement parts and accessories recommended by the manufacturer. Failure to comply will void the warranty and guarantee.

6. If the device is defective, switch it off immediately and contact your dealer or customer service hotline.

7. For any repairs to the device, the power plug, or the cable, always and exclusively contact customer service centers authorized by the manufacturer. The contact details can be found at www.becool.at.

8. Children under 8 years of age and persons with limited physical, mental, sensory, or intellectual abilities may only

BE COOL

use this device under appropriate supervision and after receiving detailed instructions on its safe use.

1. ⚠️ Do not operate the device unattended. Always switch off the device if you leave the room.

2. ⚠️ Children must not play with the device.

3. Do not twist or kink the power cord. Make sure that it is completely unrolled and not coiled up.

4. Do not use the device with wet hands. Do not touch the plug with wet hands.

5. Do not use the device outdoors. Also, never place the device near heat sources such as radiators, ovens, or open flames.

6. ⚠️ Never expose the battery or the device to direct sunlight, extreme temperatures, or open flames. Risk of explosion and fire!

7. Never operate the device in rooms where gas, oil, or sulfur are present.

8. The device, and in particular the battery, must never come into contact with water or be immersed in liquids.

9. Do not use the device if the battery is visibly damaged, swollen, or leaking. Take it out of service immediately and dispose of it safely.

10. The device can be operated during charging, but the speed is limited. Never cover the device while charging and make sure it is placed on a hard, flat surface.

BE COOL

1. Never open the battery or housing, and do not attempt to replace the battery. Risk of electric shock, explosion, or fire.

2. Do not use the device near water or in high humidity, e.g., in damp basements, next to swimming pools, bathtubs, or showers. Make sure that no water gets into the device.

3. Do not place any objects on the device and do not use it to dry clothes or textiles.

4. Place the device on a stable and level surface and keep a distance of at least 1 meter around it so that air circulation is not impeded.

5. Never cover the device.

6. Never insert fingers, pens, or other objects into the device and ensure that the air inlet and outlet are never blocked. Also, keep hair and loose clothing away to avoid injury.

7. Always switch off the device before unplugging the power cord.

8. Never pull on the power cord to disconnect the device from the mains. Always pull on the plug.

9. Do not touch the plug with wet hands to avoid electric shock.

10. Unplug the device when not in use, before cleaning, servicing, or moving it to another location.

11. Clean the device only with a soft, slightly damp cloth and mild detergent. Do not use aggressive cleaning agents and never immerse the device in water.

BE COOL

1. Do not store or operate the device in enclosed spaces such as cabinets or narrow niches, as there is a risk of fire.

2. Store the device in a safe, dry place out of the reach of children when not in use.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended that they be disposed of in sorted waste.
	DISPOSALThe symbol "crossed-out wheelie bin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of it in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. In this way, you contribute to the protection of resources and the environment. For further information, please contact your dealer or local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of November 20, 2008, implementing Directive 2006/66/EC on batteries, accumulators, and related waste, the symbol of a crossed-out wheelie bin on the battery indicates that it is prohibited to dispose of used batteries in household waste. Batteries and accumulators contain substances that are highly harmful to the environment. Users are required to dispose of used batteries at municipal collection points or in the appropriate containers. This service is free of charge. This ensures compliance with legal requirements and protects the environment.You will find these symbols on batteries:Li = Battery contains lithiumAl = Battery contains alkaliMn = Battery contains manganeseCR 2032 (Li); AA (Al, Mn); AAA (Al, Mn), 18650 (Li Ion)
	DECLARATION OF CONFORMITYWe hereby confirm that this item complies with the basic requirements, regulations, and directives of the EU. You can view the detailed declaration of conformity at any time at the following link:https://www.schuss-home.at/downloads

Errors and technical changes excepted.

BE COOL

Scope of delivery

• 1x fan
  • 1x USB-C charging cable
• 1x user manual

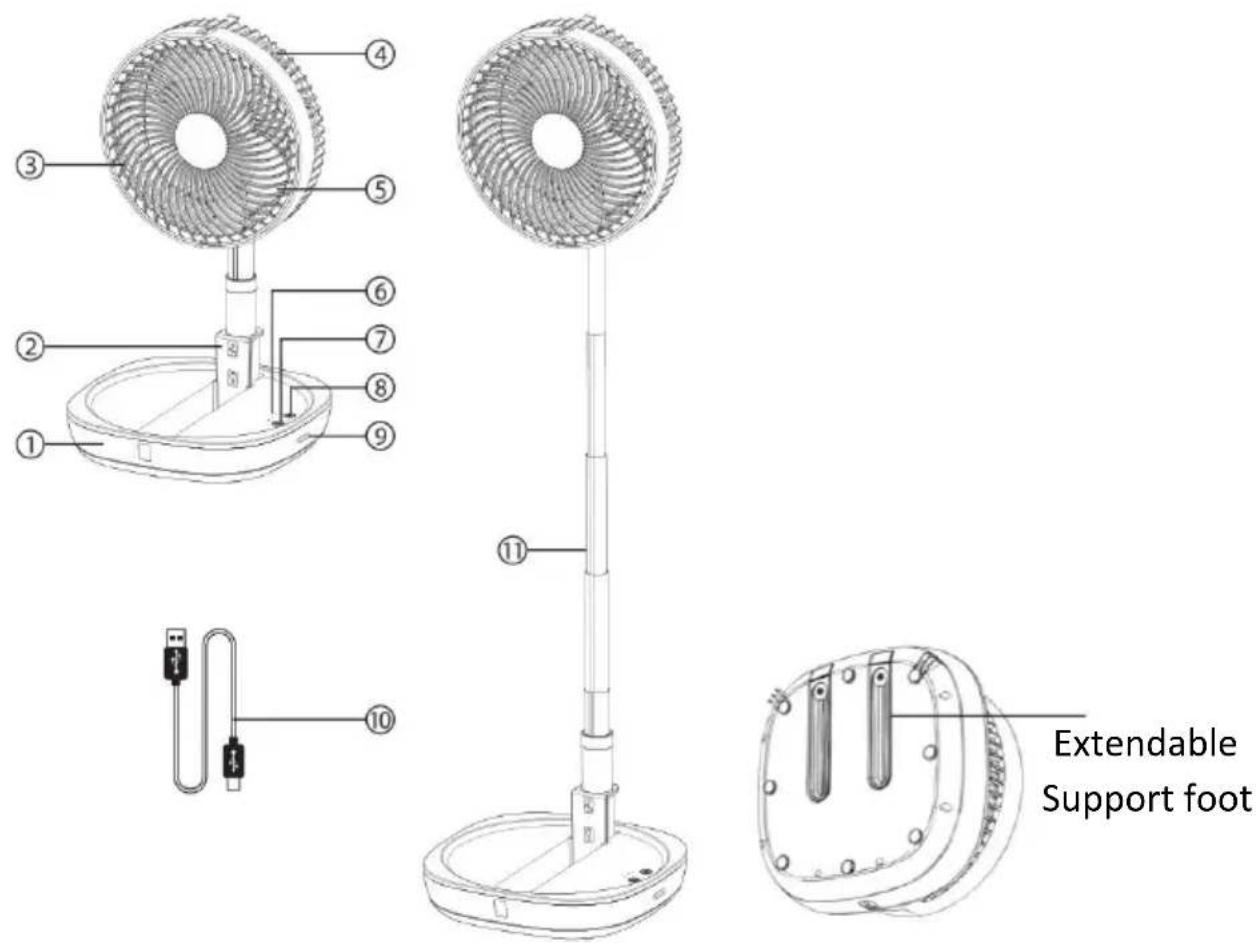

Description of the device

1. Base
2. Locking mechanism
3. Outlet grille
4. Air intake grille
5. Aerodynamic fan blades

6. LED charging indicator

7. On/off switch

8. Mode switch
9. USB-C charging port
10. USB-C charging cable
11. Telescopic pole

BE COOL

Function description

POWER button

To switch the fan on and off.

MODE button

Press this button after switching on to select the desired fan speed.

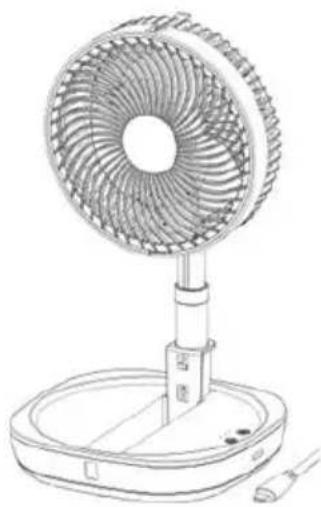

Start-up

For optimal performance, charge: Charge the fan for at least 2 hours before using it for the first time.

Upright position: Always place the fan in an upright position.

Sufficient space: Ensure that there is sufficient space behind the fan so that air can be drawn in unobstructed.

Place the fan on a level surface.

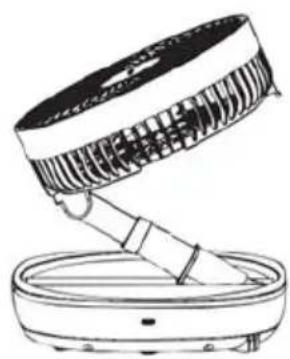

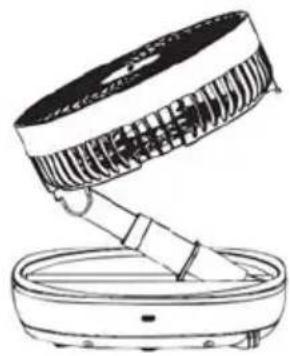

Unfold the fan as shown in the illustration.

To prevent the fan head from tipping over, press down on the locking mechanism.

Press the power button to turn on the fan.

The 3 speed settings can be adjusted using the mode button.

Line drawing of a circular industrial fan or sensor device with no visible text or symbols

Technical line drawing of a mechanical device with a circular component and base (no text or symbols)

Line drawing of a desktop fan with a stand and base (no text or symbols)

BE COOL

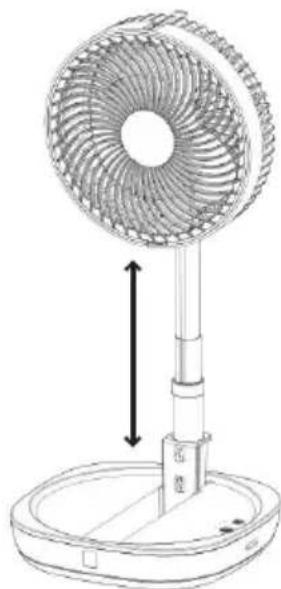

Height adjustment of the fan

Place the fan on a flat surface.

Unfold the fan as shown in the illustration.

To prevent the fan head from tipping over, press the locking mechanism down.

Then carefully pull the telescopic rod upwards until the desired height is reached.

Secure the position using the locking mechanism.

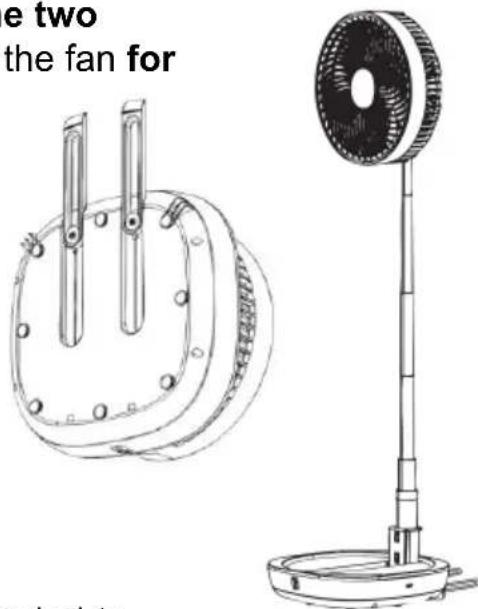

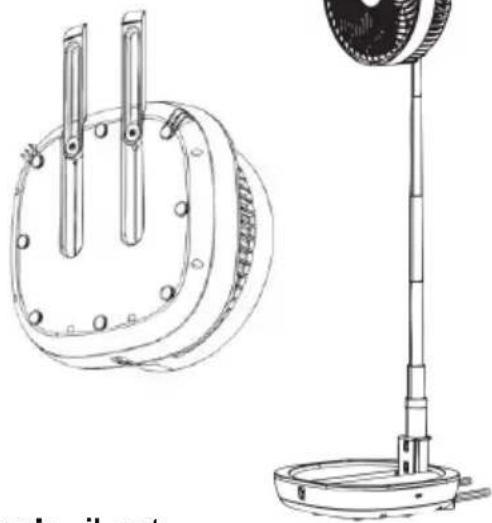

Stability with the telescopic rod extended

If you extend the telescopic rod completely, use the two extendable supports located on the underside of the fan for stabilization.

Pull these supports out and fold them out – this will keep the fan secure and stable even at maximum height.

Optimal battery care

• To maintain the battery life, it is recommended to charge the fan regularly for about 2 hours during daily use.
- The device features pass-through charging technology: the fan can be operated while charging.
- To ensure fast charging, the fan speed is limited to the lowest setting during charging.

Line drawing of a desktop fan with a vertical arrow indicating upward motion (no text or symbols)

e two the fan for

BE COOL

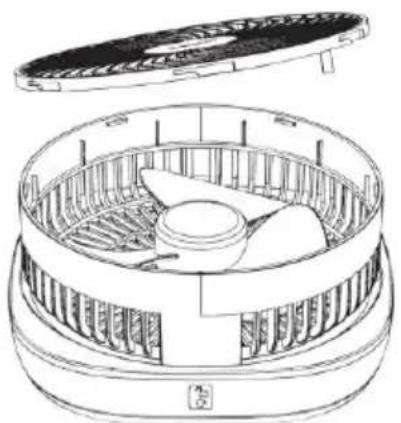

Cleaning the fan

- Remove the inlet and outlet grilles and clean the fan blades and grilles with a soft, clean cloth.

- Never immerse the motor and fan in water. Do not open or disassemble the motor.

- If you clean the grilles with water, allow them to dry completely before reattaching them to the fan.

- Do not use solvents such as alcohol or aggressive or abrasive cleaning agents.

- Do not expose the device to high humidity (e.g., in the bathroom or on a terrace).

Technical line drawing of a circular fan or vent with internal blades and a lid (no text or symbols)

Technical information
Nominal voltage	5VDC / 1A
Nominal power	5 watts
Sound level	40 dB(A)
Battery	2 x 1200 mAh / 18650 Li Ion
Battery voltage	3.7

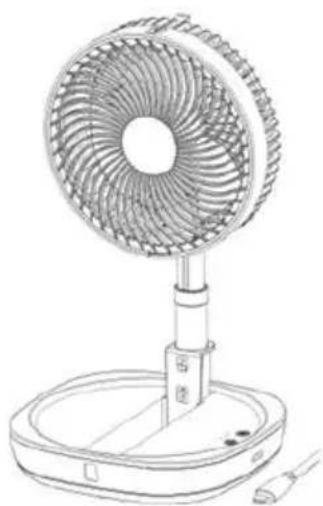

Dimensions	Folded: 210 x 210 x 102 mmLow: 210 x 208 x 365 mmHigh: 210 x 208 x 800 mm
Weight	1.1 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atFB No.: 236974 t / FB Court: Vienna

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a choice for innovation, durability, and reliability.

We provide a 2-year warranty for this BE COOL device, valid in Austria from the date of purchase! If, contrary to expectations, your device requires servicing during this period, we hereby guarantee free repair (spare parts and labor) or (at the discretion of Schuss) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline (see sticker on the device or cover page of the instruction manual) as a first step. For fans, please contact your dealer or us directly. Please note that repair work not carried out by an authorized repair shop in Austria will immediately void this warranty. This warranty does not cover:

• We do not accept liability for consequential damage resulting from improper use.
• Repair or replacement of parts due to normal wear and tear.
• Damage due to failure to follow the operating instructions.
• Devices that are used commercially, even if only partially.
• Devices that have been mechanically damaged by external influences (falls, impacts, breakage, improper use, etc.) as well as signs of wear and tear of an aesthetic nature.
• Devices that have been handled improperly
• Devices that have not been opened by our authorized service workshop.
- Damage caused by improperly closed condensation drain valves on air conditioning units or incorrectly installed water containers.
• Unmet consumer expectations.
• Damage caused by force majeure, water, lightning, or power surges.
• Devices on which the type designation and/or serial number has been changed, deleted, made illegible, or removed.
• Services outside our authorized repair shops, transport costs to an authorized repair shop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a flat fee of €60 (indexed based on CPI 2010, June 2015) will be charged in the event of operating errors or if no fault is found.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer and the complete device description) and the corresponding warranty certificate, on which the device type and serial number (visible on the box and on the back or bottom of the device) must be noted! Without presentation of the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this warranty and remain in full force and effect.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in cases of gross negligence or intent. In any case, liability for lost profits, expected but unrealized savings, consequential damages, and damages arising from third-party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your purchase. We hope you enjoy your BE COOL device!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over to the authorized service center together with the device.
