VT-89019 - Pendant lamp V-TAC - Free user manual and instructions

Product Type	Pendant Light
Brand	V-TAC
Model	VT-89019
Usage	Indoor only
Light Source	Integrated non-replaceable LED
Power Supply	220-240 V, 50/60 Hz
Material	Aluminum and glass
Dimensions	Approximately 30 cm diameter, 120 cm adjustable height
Weight	Approximately 1.5 kg
Warranty	3 years
Installation	By a certified electrician
Connection	Phase (L), Neutral (N), Ground
Features	Decorative pendant lighting
Maintenance and Cleaning	Clean with a soft dry cloth
Safety	Disconnect power before installation, mandatory grounding
Spare Parts and Repairability	Non-replaceable light source, luminaire to be replaced at end of life
General Information	Daily use 10-12 hours, 24h use voids warranty

Frequently Asked Questions - VT-89019 V-TAC

How to install the VT-89019 pendant light?

Installation must be carried out by a certified electrician. Turn off the power, fix the mounting bar to the junction box, then connect the wires (phase L, neutral N, ground) with connectors. Finally, fix the canopy and restore power.

Is the light source replaceable?

No, the light source of this luminaire is integrated and not replaceable. When it reaches the end of its life, the entire luminaire must be replaced.

What is the power of the lamp?

The power is not specified, but the lamp operates on a 220-240 V, 50/60 Hz power supply. The consumption is typically low for an LED.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only. Do not install it in damp areas or exposed to weather.

What is the lifespan of the LED?

The lifespan is not specified, but V-TAC LEDs are generally designed for a long lifespan, often exceeding 25,000 hours. The recommended daily use is 10 to 12 hours.

How to clean the pendant light?

Use a soft dry cloth to dust the lamp. Avoid liquid or abrasive cleaners that could damage the surface.

What to do if the lamp does not turn on after installation?

First check that the power is restored and that the connections are correct (phase, neutral, ground). If the problem persists, contact a certified electrician or V-TAC customer service.

Does the warranty cover installation?

The 3-year warranty covers manufacturing defects. It does not apply to damage caused by incorrect installation or abnormal wear.

Can I use a dimmer with this lamp?

The specifications do not mention compatibility with a dimmer. It is recommended not to use a dimmer unless otherwise indicated in the instructions.

Where can I find the full manual?

The full manual in PDF format is available for download on the notice-facile.com website for the V-TAC VT-89019 model.

USER MANUAL VT-89019 V-TAC

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
4. Proper grounding should be ensured throughout the installation.
5. For Indoor Use only

Caution, risk of electric shock.

This marking indicates that this product should not be disposed of with other household wastes.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

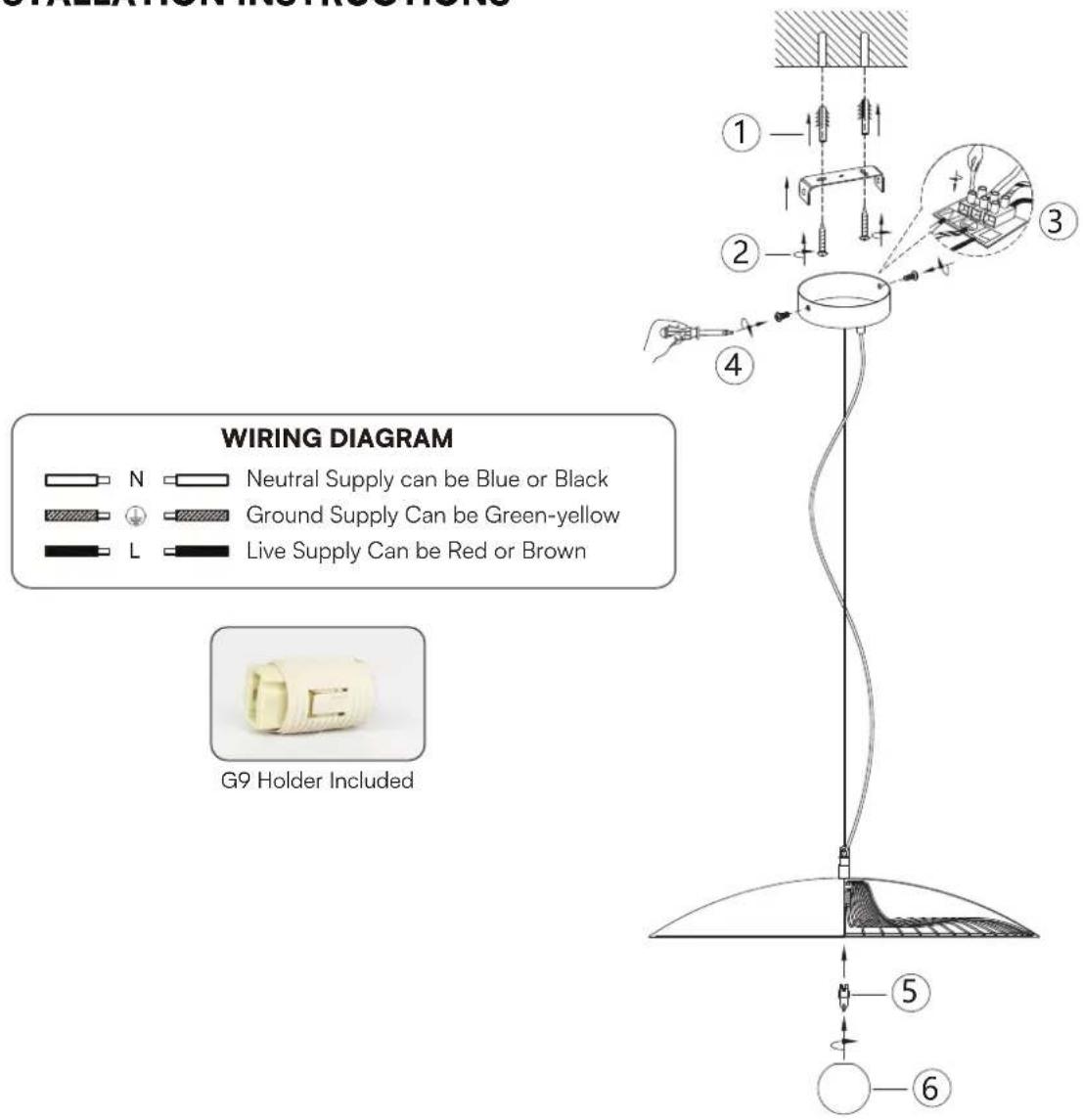

INSTALLATION INSTRUCTIONS

1. Switch off the power before starting the installation.
2. Use screws to fix mounting bar to the junction box.

3. Make the wire connections with connectors.

4. Connect the live wire (L) from fitting to the live wire from main power supply.

5. Connect the neutral wire (N) from fitting to the neutral wire from main power supply.
6. Connect the earth wire from fitting to the earth wire from main power supply.

7. Please pay close attention and make sure the wires are not exposed outside when wiring connections.

8. Use screws to fix canopy to mounting bar.

9. Check if the installation is completed and turn on the power.

V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593

V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT [e-mail] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 OAX
