VT-89025 - Pendant lamp V-TAC - Free user manual and instructions

Product type	Pendant light
Brand	V-TAC
Model	VT-89025
Use	Indoor only
Power supply	Mains 220-240 V~50/60 Hz
Power	20 W
Luminous flux	2000 lm
Color temperature	3000 K (warm white)
Light source	Integrated non-replaceable LED
Lifespan	25,000 hours
Warranty	3 years
Installation	By a certified electrician
Grounding	Required
Recommended operation	10-12 hours per day
Maintenance	Clean with a dry cloth
Safety	Cut off power before installation
Repairability	Not repairable, non-replaceable light source
Material	Aluminum

Frequently Asked Questions - VT-89025 V-TAC

How to install the VT-89025 pendant light?

Installation must be done by a certified electrician. First, cut off the power supply. Attach the mounting bar to the junction box with screws. Connect the wires: live wire (L) to live wire, neutral wire (N) to neutral wire, and ground conductor to ground. Make sure the wires are not exposed. Attach the canopy to the mounting bar, then turn on the power to test.

Can I replace the bulb?

No, the light source is an integrated non-replaceable LED. When the LED reaches the end of its life, the entire fixture must be replaced.

What is the lifespan of the LED?

The estimated lifespan is 25,000 hours under normal use (10-12 hours per day).

Is the light suitable for outdoor use?

No, this light is designed for indoor use only. Do not expose it to moisture or weather.

What types of screws to use for mounting?

Use screws suitable for your junction box (not included). Ensure they are strong enough to support the weight of the light.

How to clean the light?

Clean the light with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure the power is off before cleaning.

What to do if the light does not turn on?

First, check that the power supply is turned on. Check the electrical connections. If the problem persists, contact a certified electrician or V-TAC after-sales service.

Does the warranty cover incorrect installation?

No, the warranty does not cover damage caused by incorrect installation or abnormal wear. Only manufacturing defects are covered for 3 years.

Can I use the light 24 hours a day?

No, recommended usage is 10 to 12 hours per day. 24-hour use voids the warranty and can reduce the product's lifespan.

Do I need to call an electrician?

Yes, installation must be done by a certified electrician to ensure safety and compliance with electrical standards.

USER MANUAL VT-89025 V-TAC

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
4. Proper grounding should be ensured throughout the installation.
5. For Indoor Use only

Caution, risk of electric shock.

This marking indicates that this product should not be disposed of with other household wastes.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

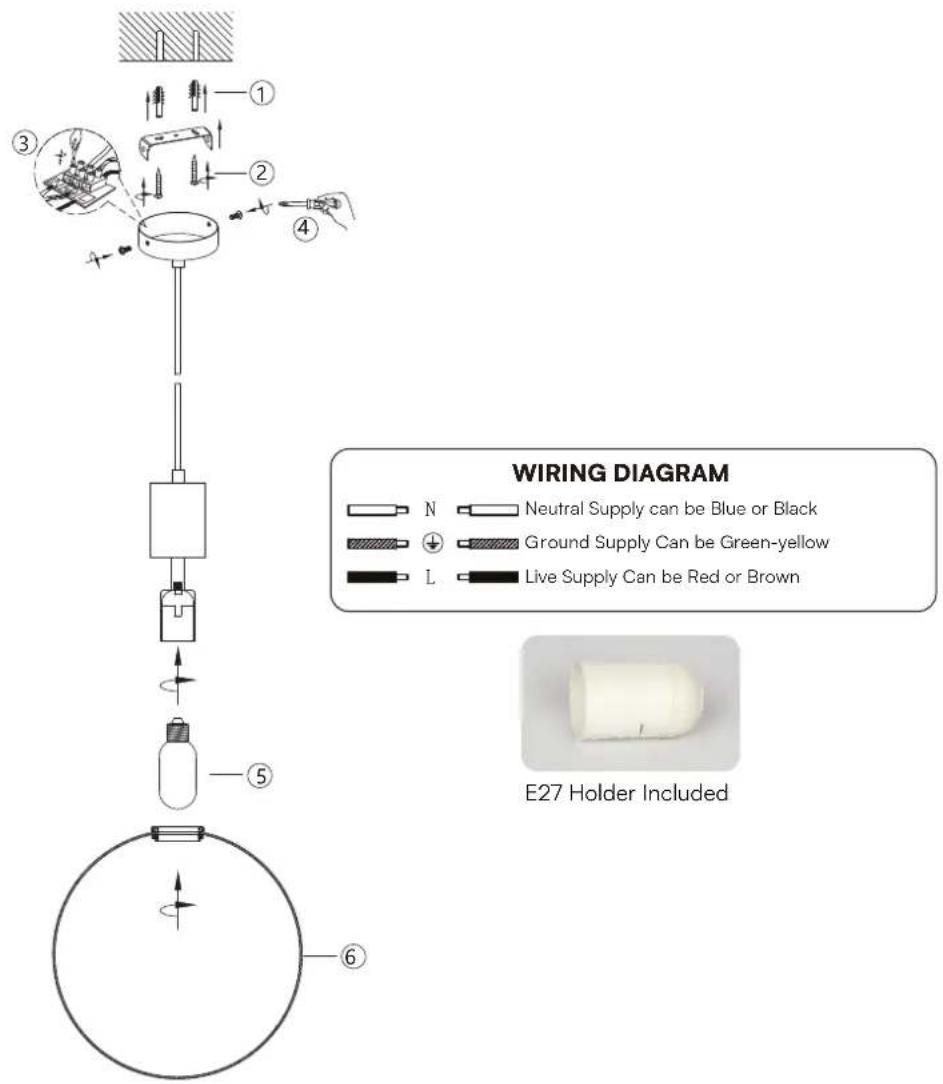

INSTALLATION INSTRUCTIONS

1. Switch off the power before starting the installation.
2. Use screws to fix mounting bar to the junction box.

3. Make the wire connections with connectors.

4. Connect the live wire (L) from fitting to the live wire from main power supply.

5. Connect the neutral wire (N) from fitting to the neutral wire from main power supply.
6. Connect the earth wire from fitting to the earth wire from main power supply.

7. Please pay close attention and make sure the wires are not exposed outside when wiring connections.

8. Use screws to fix canopy to mounting bar.

9. Check if the installation is completed and turn on the power.

V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593

V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT [e-mail] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
