USER MANUAL VT-89020 V-TAC
WEEE Number: 80133970
INSTRUCTION MANUAL
DESIGNER PENDANT LAMP
TECHNICAL DATA
| MODEL | VT-89020 |
| SKU | 24126, 24127 |
| MAX WATTS | 60W |
| HOLDER | E27 (Bulb not included) |
| INPUT POWER | AC 220-240V, 50Hz |
| DIMENSION | 280 × 218 mm |
| BODY TYPE | Ceramic+Metal |
| UNIT COLOR | Black, White |
| IP RATING | IP20 |
| ADJUSTABLE HEIGHT | 1.5M (Max) |
02 YEAR
WARRANTY*
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Please make sure to turn off the power before starting the installation.
- Installation must be performed by a qualified electrician.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
- Proper grounding should be ensured throughout the installation.
- For Indoor Use only
Caution, risk of electric shock.
This marking indicates that this product should not be disposed of with other household wastes.
Please scan the QR code to access the manual in multiple languages.

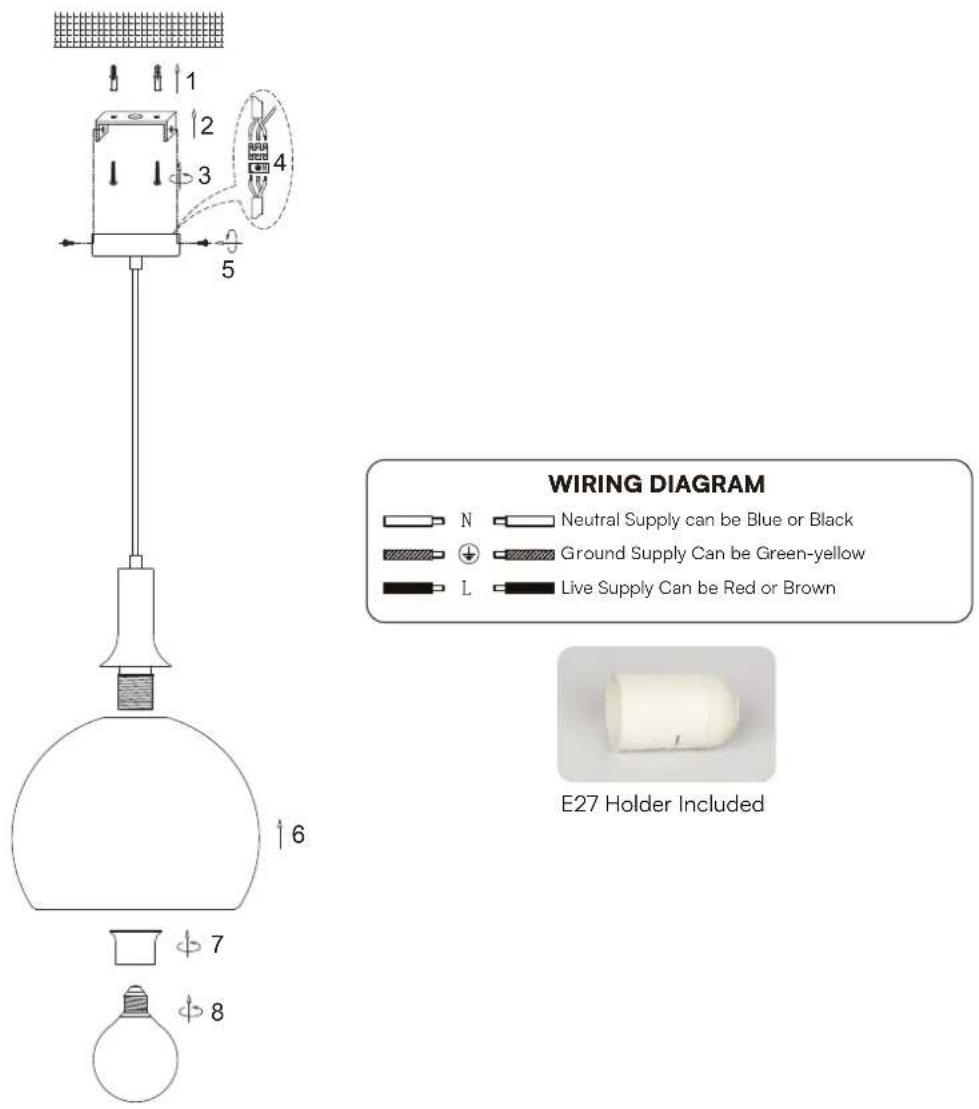

INSTALLATION INSTRUCTIONS
- Use screws to fix mounting bar to the junction box.
-
Make the wire connections with connectors.
-
Connect the live wire (L) from fitting to the live wire from main power supply.
- Connect the neutral wire (N) from fitting to the neutral wire from main power supply.
- Connect the earth wire from fitting to the earth wire from main power supply.
-
Please pay close attention and make sure the wires are not exposed outside when wiring connections.
-
Use screws to fix canopy to mounting bar.
-
Check if the installation is completed and turn on the power.
V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT SUPPORT@VTACEXPORTS.COM V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 0AX
