Product Type	Pendant Lamp
Brand	V-TAC
Model	VT-89014
Usage	Indoor Only
Light Source	Non-replaceable, replace the entire luminaire at end of life
Installation	By certified electrician, cut power before, mandatory grounding
Power Supply	Connection to standard electrical network (L, N, Ground)
Warranty	3 years from date of purchase, valid for manufacturing defects only
Recommended Usage Conditions	10-12 hours per day; 24/7 use voids warranty
Maintenance and Cleaning	Clean with a soft dry cloth; do not use abrasive products
Safety	Power off before installation; installation by certified professional
Repairability	Integrated non-replaceable light source; spare parts not available separately
Dimensions	Not specified in the manual, estimate approximately 30-50 cm diameter
Weight	Not specified, estimate between 1 and 3 kg
Color	Not specified (check on packaging)

Frequently Asked Questions - VT-89014 V-TAC

Can I install the lamp myself?

No, installation must be carried out by a certified electrician to ensure safety.

What to do if a lamp does not turn on?

First, ensure the power is off, then check the wire connections (L, N, Ground). If the problem persists, contact a professional.

Is the light source replaceable?

No, the light source is integrated and not replaceable. At end of life, the entire luminaire must be replaced.

What is the lifespan of the lamp?

The manual does not specify exact lifespan, but the product is designed for 10-12 hours per day use.

Can I use this lamp outdoors?

No, this lamp is intended for indoor use only.

How to clean the lamp?

Use a soft dry cloth. Do not use chemical or abrasive products.

Does the warranty cover incorrect installation?

No, the warranty does not cover damage caused by incorrect installation or abnormal wear.

What to do if the lamp flickers?

Cut the power and check connections. If flickering persists, the luminaire may be defective and must be replaced.

Can I use the lamp 24/7?

No, 24/7 use voids the warranty. The product is designed for 10-12 hours per day operation.

Where can I find the full manual?

The manual is available for free download in PDF format at notice-facile.com.

USER MANUAL VT-89014 V-TAC

WEEE Number: 80133970

INSTRUCTION MANUAL

DESIGNER PENDANT LAMP

TECHNICAL DATA

MODEL	VT-89014
SKU	24118
MAX WATTS	5W
HOLDER	GU10 (Bulb not included)
INPUT POWER	AC 220-240V, 50Hz
DIMENSION	400x480mm
BODY TYPE	Metal+Aluminium
UNIT COLOR	Matte Black
IP RATING	IP20
ADJUSTABLE HEIGHT	1.5M (Max)

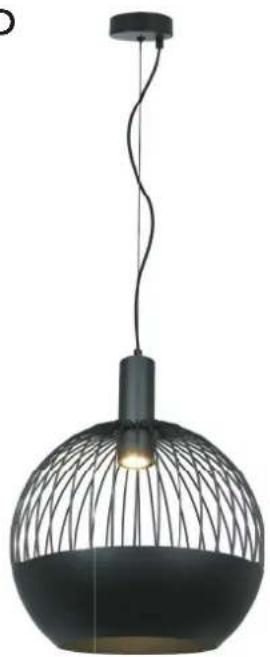

Modern black pendant light with wireframe spherical design and curved neck (no text or symbols)

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
4. Proper grounding should be ensured throughout the installation.
5. For Indoor Use only

Caution, risk of electric shock.

This marking indicates that this product should not be disposed of with other household wastes.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

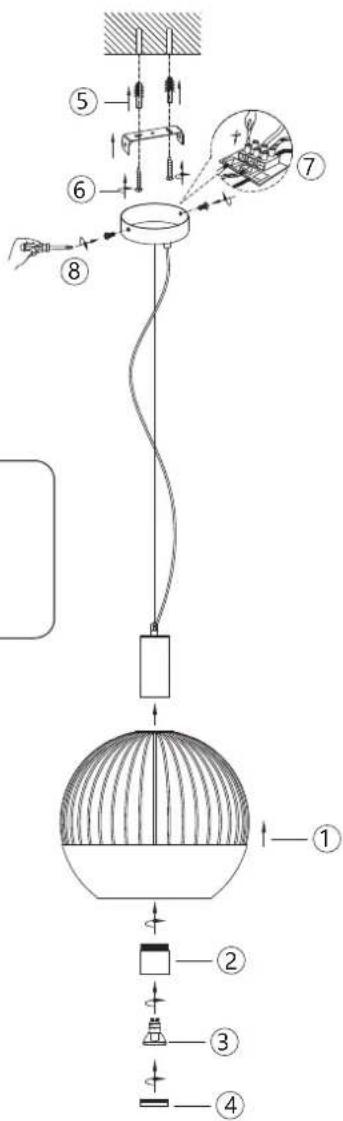

INSTALLATION INSTRUCTIONS

WIRING DIAGRAM

Neutral Supply can be Blue or Black

Ground Supply Can be Green-yellow

Live Supply Can be Red or Brown

GU10 Holder Included

1. Switch off the power before starting the installation.
2. Use screws to fix mounting bar to the junction box.

3. Make the wire connections with connectors.

4. Connect the live wire (L) from fitting to the live wire from main power supply.

5. Connect the neutral wire (N) from fitting to the neutral wire from main power supply.
6. Connect the earth wire from fitting to the earth wire from main power supply.

7. Please pay close attention and make sure the wires are not exposed outside when wiring connections.

8. Use screws to fix canopy to mounting bar.

9. Check if the installation is completed and turn on the power.

RoHS

V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE. INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593

V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT

[e-mail] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 OAX
