Product type	Pendant lamp
Brand	V-TAC
Model	VT-89018
Light source	Integrated non-replaceable LED
Supply voltage	220-240 V, 50/60 Hz
Rated power	Not specified (estimated 10-20 W)
Installation	On ceiling junction box, with included mounting bar
Use	Indoor only
Warranty	3 years from date of purchase (manufacturing defects)
Daily usage duration	10-12 hours per day (warranty void if used 24/7)
Connection	Phase (L), neutral (N), ground (⏚)
Maintenance	Clean with a soft dry cloth; do not use abrasive products or water
Safety	Installation by a certified electrician; cut power before any intervention
End of life	The entire luminaire must be replaced (non-replaceable light source)
Recycling	Collection points at www.quefairedemesdechets.fr; prioritize repair or donation
Certification	CE marking

Frequently Asked Questions - VT-89018 V-TAC

How to install the V-TAC VT-89018 pendant lamp?

First, cut the power supply. Attach the mounting bar to the junction box using screws. Connect the wires: phase (L), neutral (N) and ground using connectors. Ensure that the wires are not exposed. Attach the canopy to the mounting bar, then restore power and test.

Can I replace the bulb of this lamp?

No, the light source of this luminaire is integrated and non-replaceable. When it reaches its end of life, the entire luminaire must be replaced.

What type of power supply is needed?

The lamp operates on a standard 220-240 V, 50/60 Hz supply. Ensure that the circuit is properly grounded.

Does the warranty cover installation-related damage?

The 3-year warranty only covers manufacturing defects. Damage caused by incorrect installation or abnormal wear is not covered.

How many hours per day can I use the lamp?

The product is designed for daily use of 10 to 12 hours. Using it 24/7 voids the warranty.

What to do if the lamp does not turn on after installation?

Ensure that the power is off then inspect the connections: phase, neutral and ground must be properly connected. If the problem persists, contact a certified electrician or after-sales service.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only. Using it outdoors may cause damage and void the warranty.

How to clean the pendant lamp?

Use a soft dry cloth to dust. Do not use water, abrasive products or solvents. Always clean when power is off.

What to do at the end of the lamp's life?

Do not throw the lamp in household waste. Take it to an appropriate collection point (see www.quefairedemesdechets.fr) or prioritize repair or donation.

Can I install the lamp myself?

Installation must be carried out by a certified electrician to ensure safety and compliance. Do not attempt to install it yourself if you are not qualified.

USER MANUAL VT-89018 V-TAC

WEEE Number: 80133970

INSTRUCTION MANUAL

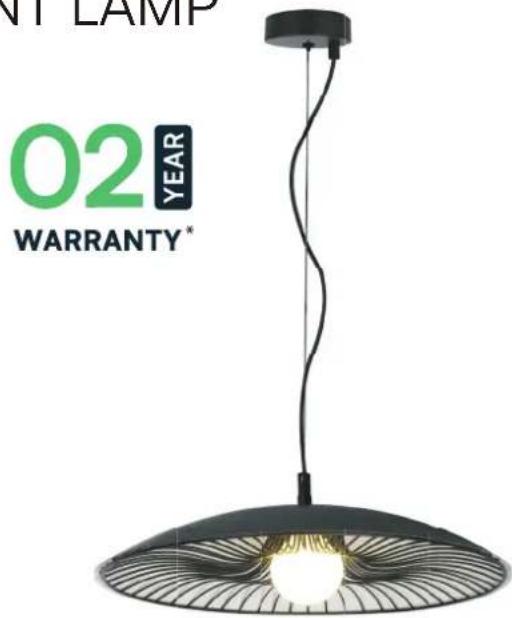

DESIGNER PENDANT LAMP

TECHNICAL DATA

MODEL	VT-89018
SKU	24124
MAX WATTS	20W
HOLDER	G9 (Bulb not included)
INPUT POWER	AC 220-240V, 50Hz
DIMENSION	450x134mm
BODY TYPE	Metal+Glass
UNIT COLOR	Black+White
IP RATING	IP20
ADJUSTABLE HEIGHT	1.5M (Max)

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
4. Proper grounding should be ensured throughout the installation.
5. For Indoor Use only

Caution, risk of electric shock.

This marking indicates that this product should not be disposed of with other household wastes.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

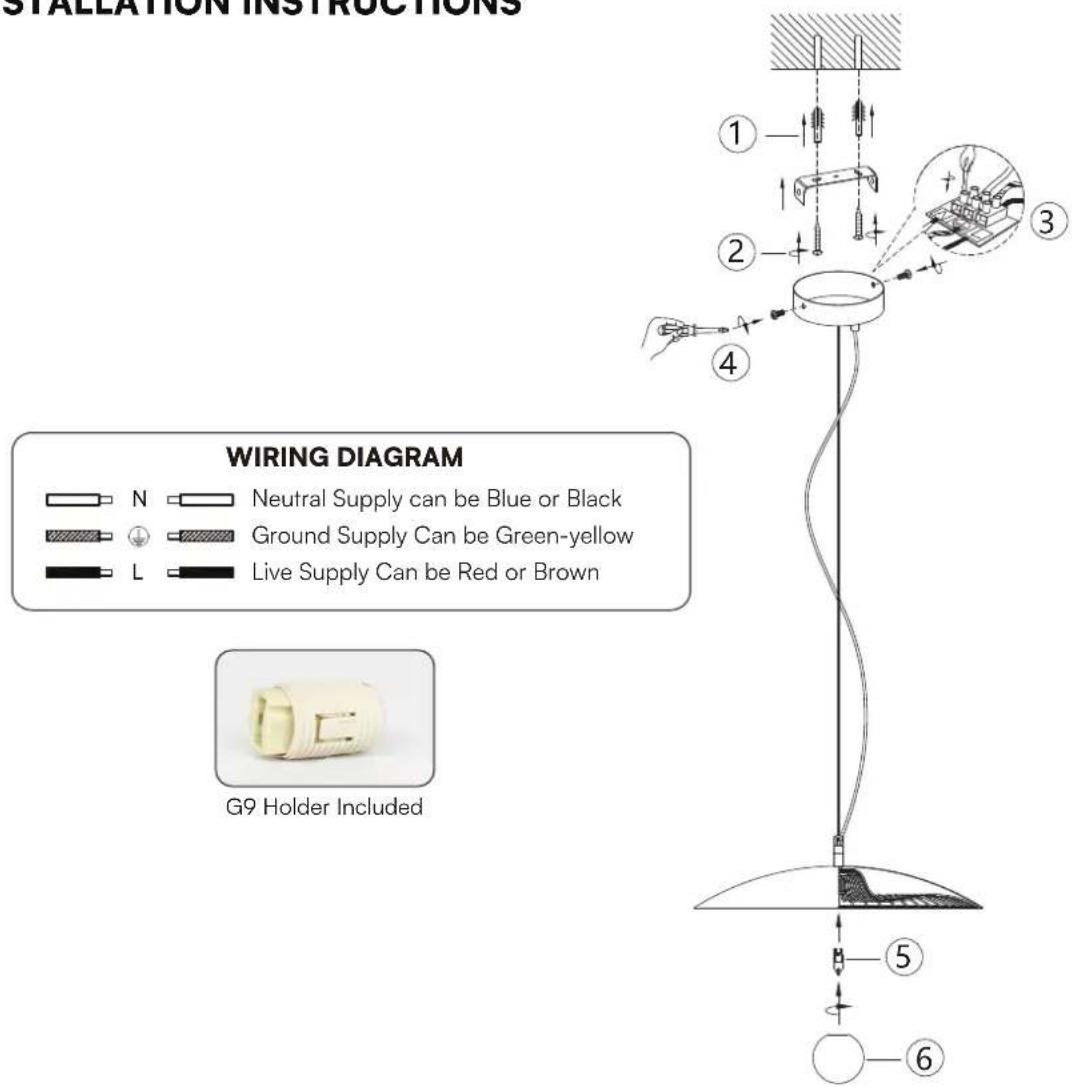

INSTALLATION INSTRUCTIONS

1. Switch off the power before starting the installation.
2. Use screws to fix mounting bar to the junction box.

3. Make the wire connections with connectors.

4. Connect the live wire (L) from fitting to the live wire from main power supply.

5. Connect the neutral wire (N) from fitting to the neutral wire from main power supply.
6. Connect the earth wire from fitting to the earth wire from main power supply.

7. Please pay close attention and make sure the wires are not exposed outside when wiring connections.

8. Use screws to fix canopy to mounting bar.

9. Check if the installation is completed and turn on the power.

V-TAC WEST EUROPE LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail] FOR MORE PRODUCTS RANGE. INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.

V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593

V-TAC UK LTD. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT [e-mail] V-TAC, 5A TUNGSTEN PARK, DOWNS ROAD, WITNEY, OXFORDSHIRE, OX29 OAX
