USER MANUAL 5019 Cloer

White Closch coffee maker with clear glass and black lid (no visible text or symbols)

Cloer-5011

Black and white photo of a modern coffee maker with clear glass and side handle (no visible text or symbols)

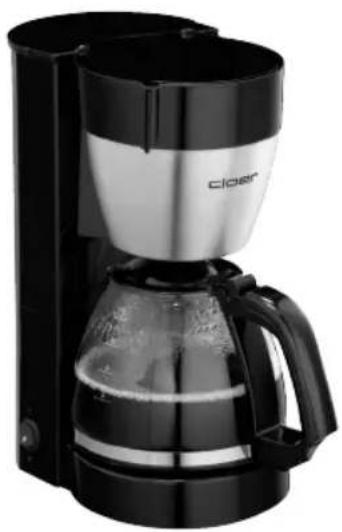

Cloer-5019

Exterior view of a Ciosca coffee maker with clear glass and black casing (no text or symbols visible)

Cloer-5009

Black and white photo of a teacup filled with dark coffee, enclosed in a circular frame (no text or symbols)

SPRACHEN - LANGUAGES

EN Operating Instructions....S.7

Exterior view of a modern black and silver coffee maker (no text or symbols visible)

Black and white photo of a glass coffee maker with handle and lid (no visible text or symbols)

Basic Safety Instructions

- The appliance is intended to be used in household only and similar environments like:

- staff kitchen areas in shops, offices and other working environments,

- in farm houses,

- Repairs of Cloer electronic appliances should be carried out only by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Moreover, it will void your warranty claims.

- Operate the appliance only with household-usual power sockets. Check if the mains voltage stated on the type plate is the same that your power supply network.

- The device must be connected to a power outlet with protective ground.

- If the supply cord is damaged, it must be replaced by Cloer in order to avoid any hazards.

- Pull power plug of the power socket

- in case of a defect,

- if the appliance is not used for a longer time,

- before any cleaning.

- Only pull out at the plug, never at the feed cable.

- Do not stretch the feed cable over sharp edges and do not tighten the feed cable too tight as otherwise the appliance is likely to tip over. Do not use the feed cable for carrying and protect it from heat (hotplate/ open flame).

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Cleaning and maintenance must not be carried out by children unless they are 8 years of age or older and are supervised.

- Keep the appliance and its cord out of reach of children less than 8 years old to avoid they play with it.

- Never leave the device unattended during operation.

- Do not use the appliance outdoors.

- Protect your appliance from humidity (splash water/ rain).

- Do not immerse the appliance in water.

- Only use the coffee machine to make coffee. Do not fill this machine with any other liquids or foodstuff. Avoid injuries caused by misuse of the appliance.

- Only fill the water tank with cold water. ATTENTION: Do not overfill the tank with water beyond the MAX mark on the jug. There is a potential risk of scalding due to bubbling!

- Never operate the appliance without water.

- Let the appliance cool off before cleaning or stowing away. More information about cleaning on the following pages.

- ATTENTION: After use, the heating plate of the appliance still emits residual heat, risk of burns!

Technical Data

Type Volt Hz Watt

500 / 501x 220-240 50-60 800

Before the first use

• Read these operating instructions carefully before using the appliance for the first time.
• Remove all packaging elements and stickers, but not the rating plate.
• Place the filter coffee machine on a dry, slip-resistant and level surface.
• Before making coffee for the first time, run the filter coffee machine 1-2 times with 8 cups of water. Proceed as described in the “Coffee Preparation” section, but without adding any coffee or filter. Pour the water out afterwards.

CE Label / Safety information

The appliance meets the requirements of the applicable CE directives.

The appliance is designed for indoor domestic use only.

ATTENTION!

Always unplug the appliance when not in use and before cleaning.

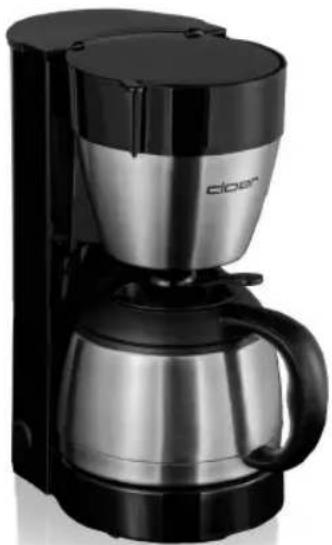

Glass jug or insulated jug Cloer-5009

Exterior view of a modern stainless steel coffee pot with black lid (no text or symbols visible)

Black and white photo of a glass coffee maker with handle and lid (no visible text or symbols)

• Your Art-5009 coffee machine comes equipped with a standard insulated jug. You can however also use our ART-0734 glass jug.
• The jugs can be interchanged as desired, but you should switch the warming mode on for the glass jug and switch it off when using the insulated jug.
• Replacement jugs can be purchased at your local dealer or simply from our Online Shop.

Start-up

• First plug the power plug into the socket.
• Fill the water tank with the desired amount of fresh, cold water.

CAUTION: Risk of scalding due to bubbling! Never fill the water tank with more than 8 cups of water when using the insulated jug. When using a glass jug, you can fill it with up to 10 cups.

• Place the jug on the hot plate under the swivelling filter and swivel the filter forward.
• Insert a size 1x4 paper filter.
• Fill with your selected quantity of coffee and close the swivel filter.
• Press the On/Off button.
  • This turns on the indicator light.
• The coffee is ready when the water has completely passed through.
• Always switch the ON/OFF button to the OFF position when the „Keep Warm“ time is over (Cloer-5011 / Cloer-5019).
• The 40-minute heating period starts when the machine is used with a glass jug. You can choose to stop this manually by pressing the on/off button.

Note tablecloth

Since the heating element is located below the insulated jug, the underside of the jug is still hot after the coffee has been made. Please use a coaster and avoid injury from burns.

Select between insulated jug and glass jug modes Cloer-5009:

- Press and hold the on/off button for 3 seconds to toggle between the two modes. The red indicator light in the button will then show the mode selected:

• 3 short blinks: Insulating can mode, without heating
  • 3 prolonged blinks: Glass jug mode, with a 40-minute heating period

- Press the button for 3 seconds if you cannot remember which mode you last set. The speed of blinking will indicate the current mode.

Maximum capacity 8 and 10 cups

- The glass jug is designed to hold a maximum of 10 cups and the insulated jug can hold 8 cups. Filling the water tank with 10 cups while using the insulated jug will cause the jug to overflow. This is why you will find the following information on the water tank:

• „MAX Thermo carafe“ to designate the maximum insulated jug capacity (Cloer-5009).
• „MAX Glass carafe“ to designate the maximum glass jug capacity.

- If you use the glass or insulated jug for filling, you do not have to follow any of these instructions given on the water tank. This prevents overfilling.

Cleaning and care

• Always unplug the appliance and allow it to cool before cleaning.
- Never immerse the device in water or other liquids!
- Clean the filter basket and jug in warm soapy water, rinse both thoroughly and allow to dry.
- Wipe the device with a moist cloth.
- The swivel filter can be removed for cleaning. To do this, open it and lift the swivel filter up. Pull the swivel filter out from the bottom axis of the unit. After cleaning, the swivel filter must be refitted following the reverse procedure. First insert it in the axis at the top, inline with the pin, and then press it in at the bottom.
- If the filter is clogged with ground coffee, clean it with a soft brush.
- Do not use metal scouring pads, strong detergents or scouring agents.
- Under no circumstances should you attempt to clean the filter coffee machine or any if its accessories in the dishwasher!

Decalcification

If the water used is calcium-rich, the coffee machine should be descaled at regular intervals (approx. every 3-4 weeks, depending on the hardness of the water). A regular decalcification will assure constant quality, low electrical consumption and a longer life of the appliance. Use for this a normal liquid descaler and read the security safety.

When descaling with vinegar, please note:

• Add approx. 6 cups of water and approx. 150 ml vinegar to the coffee machine and switch the machine on.
  • After descaling, run the machine 2x with 6 cups of fresh water to rinse it.

Note

The lime quantity in every region is different. You can ask your water company to know the hardness of water in your region.

Descaling should be carried out more often when using hard water and less frequently with softer water.

- Our warranty does not cover incorrect operation due to the decalcification!

Environmentally friendly disposal

We use environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/ paper and plastic packaging appropriately.

ATTENTION!
Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Consult the local authorities for information on recycling appliances.

Warranty

Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulations. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer. Registered clients have at their disposal our technical customer service.

Manufacturer warranty

Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditions of warranty in the moment of the registration are valid. You will find conditions of warranty and product registration here:

Manufacturer warranty
https://cloer.eu/guarantee

Type voltage hz watt

500 / 501x 220-240 50-60 800
