Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

Safety....GB-2

Specifications ....GB-8

Before Using the Cooker Hood....GB-9

Preparation for Installation......GB-10

Installation......GB-12

Operation......GB-24

Cleaning and Maintenance......GB-25

Technical information......GB-28

Troubleshooting......GB-30

Environmental Protection......GB-31

Customer service....GB-32

Safety

■ Use this unit only in the manner intended

by the manufacturer.If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

■ Before servicing or cleaning unit, unplug or disconnect the cooker hood from the power supply.

■ Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

■ When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.

■ Ducted fans must always be vented to

the outdoors.

■ Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
■ This unit must be grounded.
■ When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.
■ Clean cooker hood frequently. Grease should not be allowed to accumulate on fans, filters or in exhaust ducts.
■ This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Do not flambé under the range hood. CAUTION: Accessible parts may become hot when used with cooking appliances.

■ Regulations concerning the discharge of air have to be fulfilled.
■ Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

■ Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

■ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

■ Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.
■ Cleaning and Maintenance the hood regularly at 1time per week;
■ Use type lamp (or use in alternative type lamp) DBS-2-H-120 (ILCOS D code in according to standard IEC 61231).

	Max power	voltage	picture	ILCOS D code
LED Module	2 W	220-240V~	Diameter : 120*33mm	DBS-2-H-120

■ The minimum distance between the stove and the lowest part of the range hood: 65 centimeters for electric stoves and 75 centimeters for gas stoves.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

CAUTION

■ For indoor use only.
■ For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
■ To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off cooker hood.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
- Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
■ To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
■ When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
■ Please read specification label on product for further information and requirements.

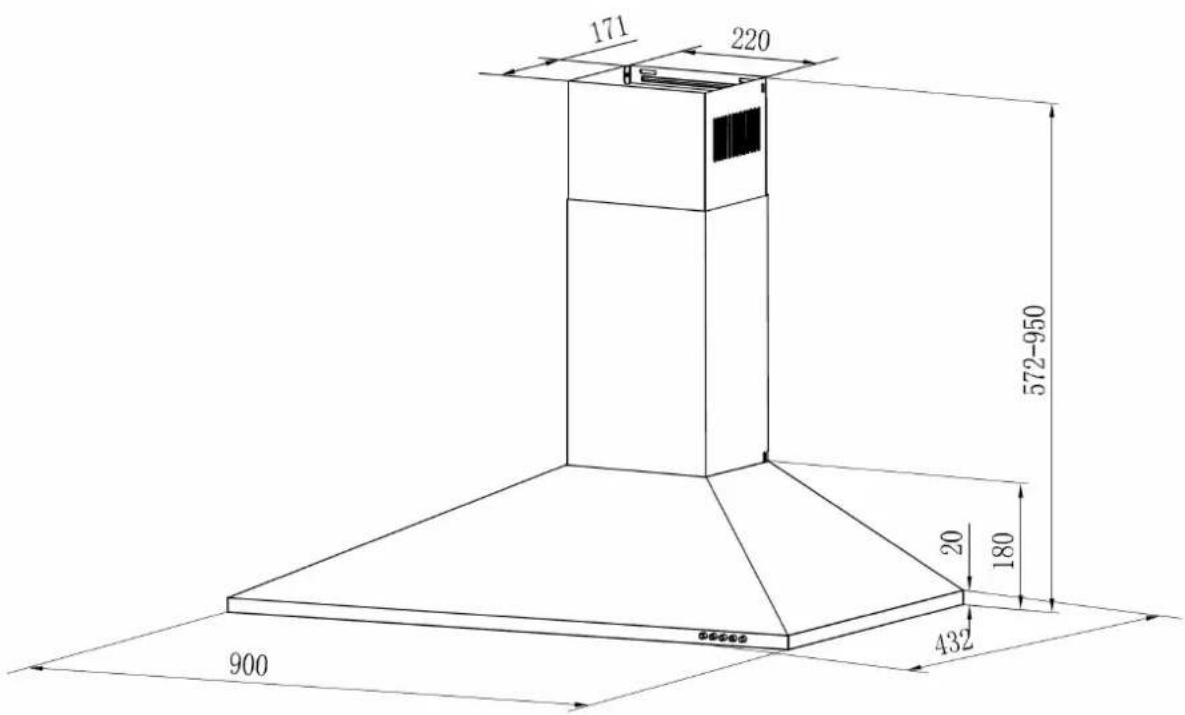

Specifications

171 220 572-950 20 180 432 900

Voltage	220V-240V~ 50Hz
Power of Motor	1 x 70W
Power of lamps	1 x 2W
Appliance Dimension	900*432*572~950mm (W x D x H)
Note: The manufacturer reserves the right to change any tech improvement or modification without prior notice.

BeforeUsingtheCooker Hood

CAUTION: Before proceeding to the installation, check if items are missing or damaged, contact the manufacturer. Observe all governing codes and ordinances. Have a qualified technician install the cooker hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The manufacturer declines all responsibility for improper installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect installation.

COMPONENTS:

Part 1 : Wall Plug X 9

Part 2 : 4*30mm Screws X

Part 3 : 4*8mm Screws X 6

Part 4 : Aluminum Exhaust Pipe

Part 5 : Cable Ties X 1

Part 6 : Installation Manual X

Part 7 : Lower Chimney Bracket

Part & Upper Chimney Bracket X 1

Part 9 : Wall Bracket X 1

Part 10 : Lower Chimney X 1

Part 11 : Upper Chimney X 1

Part 12 : Aluminum tape X 1

Part 13:Carbon filter set X1

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1. Protective Gloves

2.Spirit Level Rules

3.Measuring Tape

1. Double Sided Tape or Tape

5.Cross-Head Screwdriver Set

1. Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

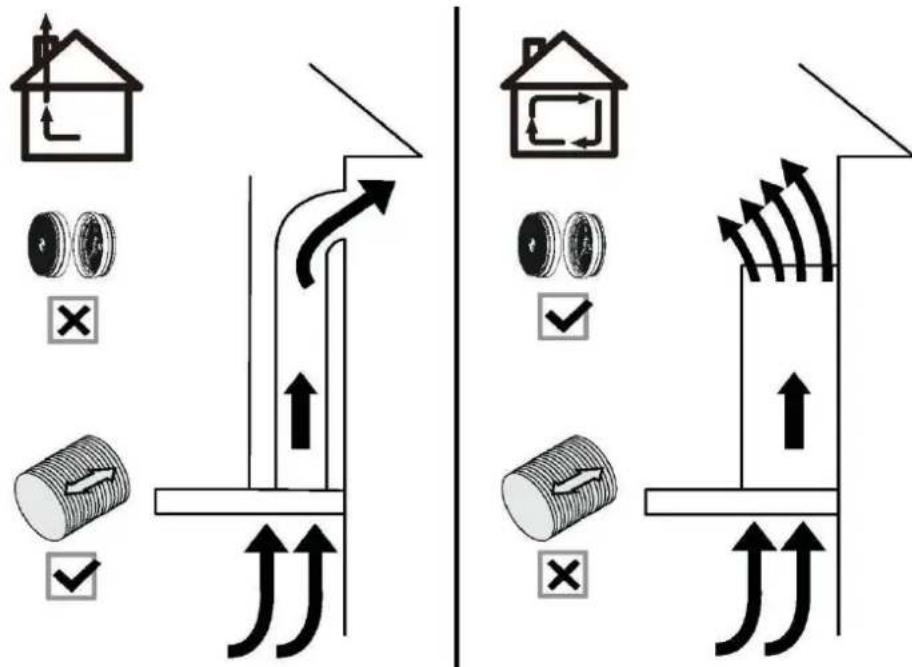

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required.

Extraction Mode: You can install the 1.5m long and 150mm diameter aluminum exhaust pipe for extracting, which is included in the installation kit.


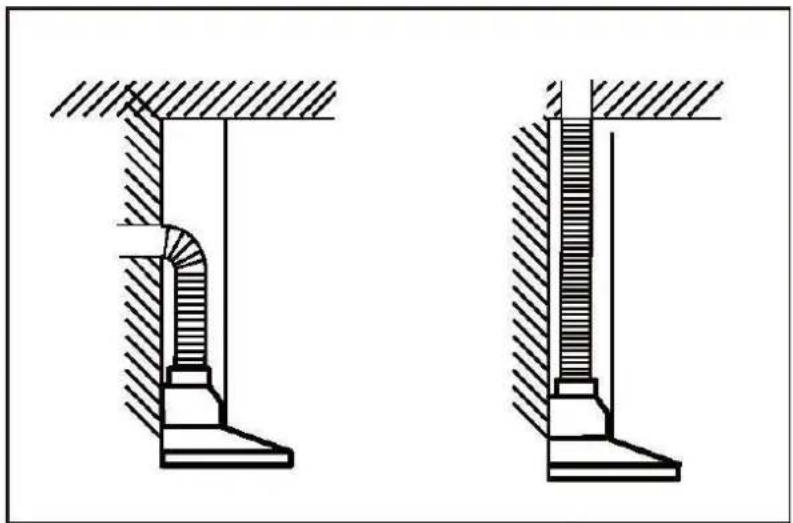

b) When possible, use at least 60cm straight runs before any turns. Larger duct work may be required for best performance with longer duct runs.

Technical diagram showing two mechanical assembly views with hatched sections (no text or labels)

c) Before installation, don't connect the power.

Installation

Install the Hood Extraction):

1) Remove all protective poly film from the hood and/or parts.
2)Recommend installation height: 65\~75cm above the cooktop for best extraction.

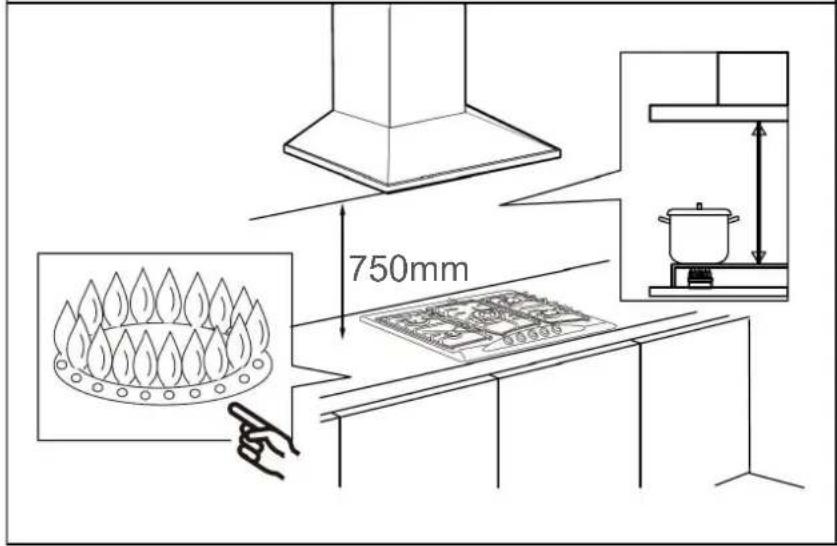

◆Required height over gas hob: 750mm;

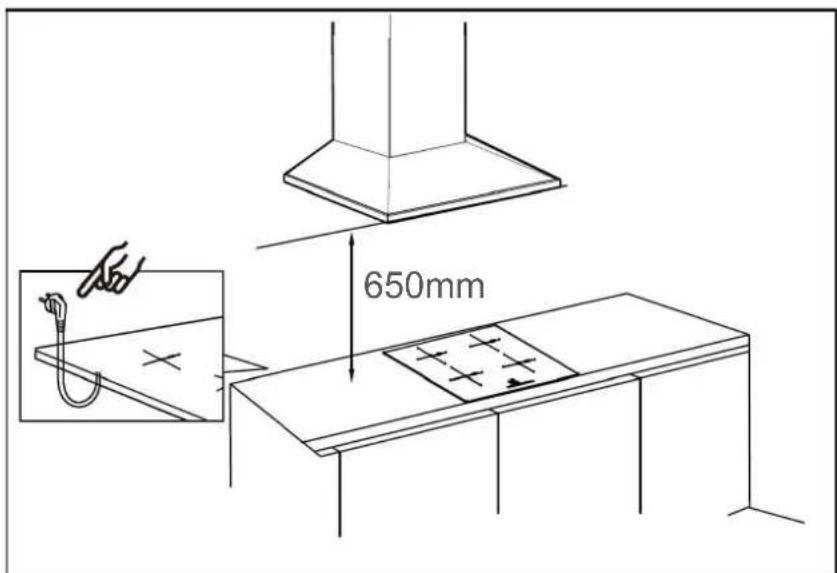

◆Required height over electric hob: 650mm.

650mm

750mm

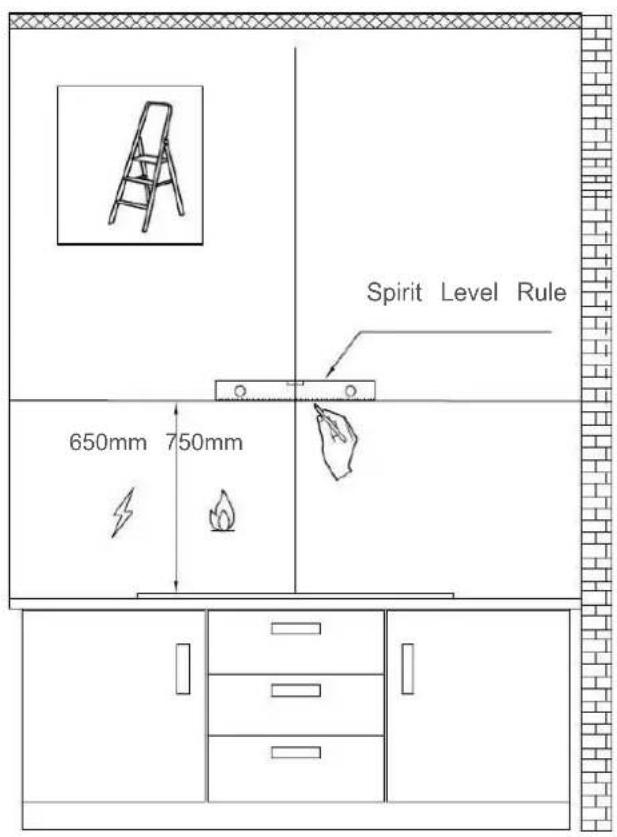

3) First use a pencil to mark the installation position on the wall, then use a Measuring Tape to measure the height from the stove surface to the hood (the center point of aluminum grease filter) and use a Spirit Level Ruler to maintain the level, then use a pencil to draw a horizontal line along the level.

Spirit Level Rule 650mm 750mm

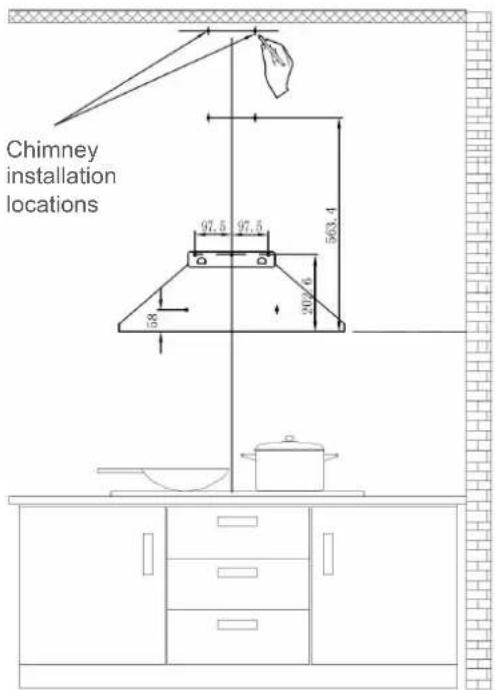

4) Determine the maximum chimney installation height according to the actual scenario and mark the chimney installation locations along the center line of the Installation Diagram.

Chimney installation locations 97.5 97.5 563.4 202.6 58

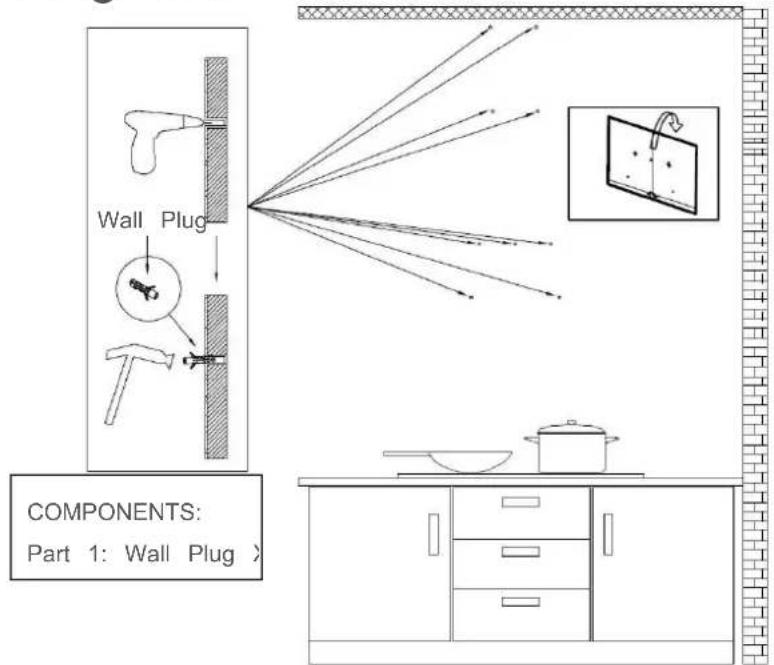

5) Remove the Installation Diagram, drill the holes that have been marked on the wall with an Electric Drill (8mm drill), and hammer the Wall Plug into the wall.

Wall Plug COMPONENTS: Part 1: Wall Plug >

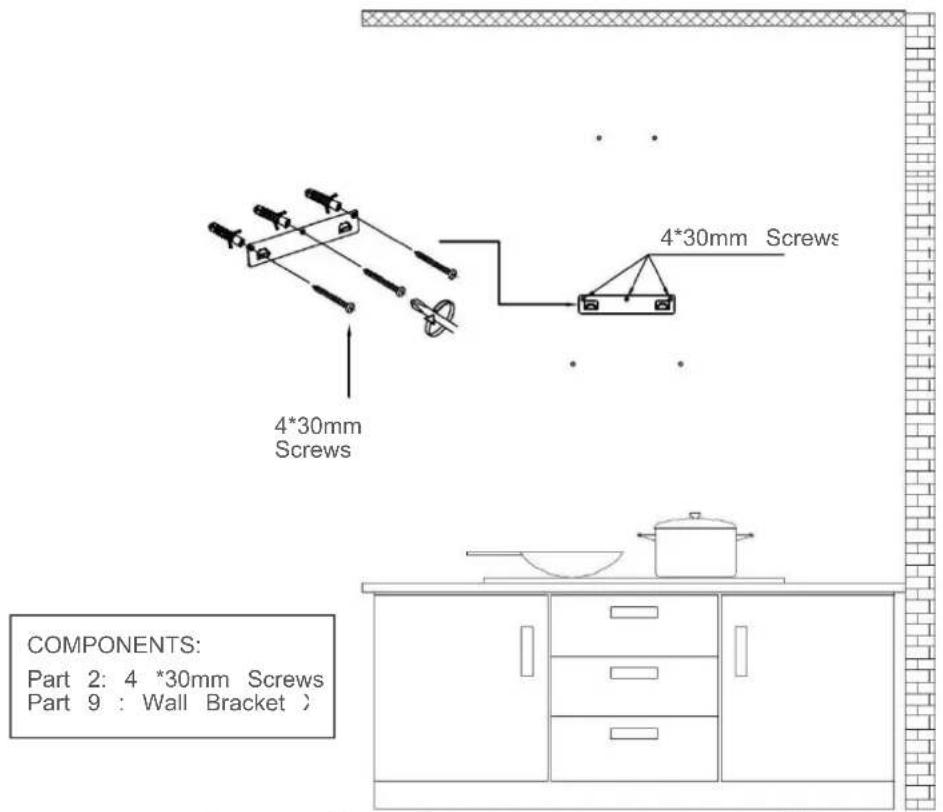

6) Use three 4*30mm Screws to fasten the Wall Bracket on the wall.

4*30mm Screws 4*30mm Screws COMPONENTS: Part 2: 4 *30mm Screws Part 9 : Wall Bracket )

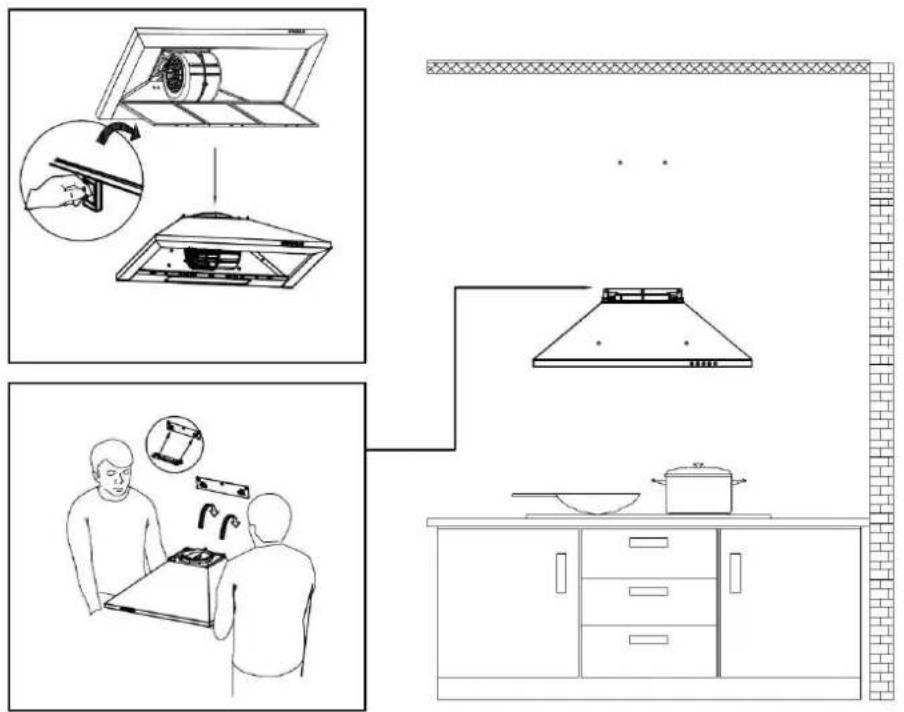

7) Remove the aluminum grease filter and hang the hood on the corresponding hook of the Wall Bracket.

Diagram illustrating kitchen appliance installation steps with labeled components and a person using a device.

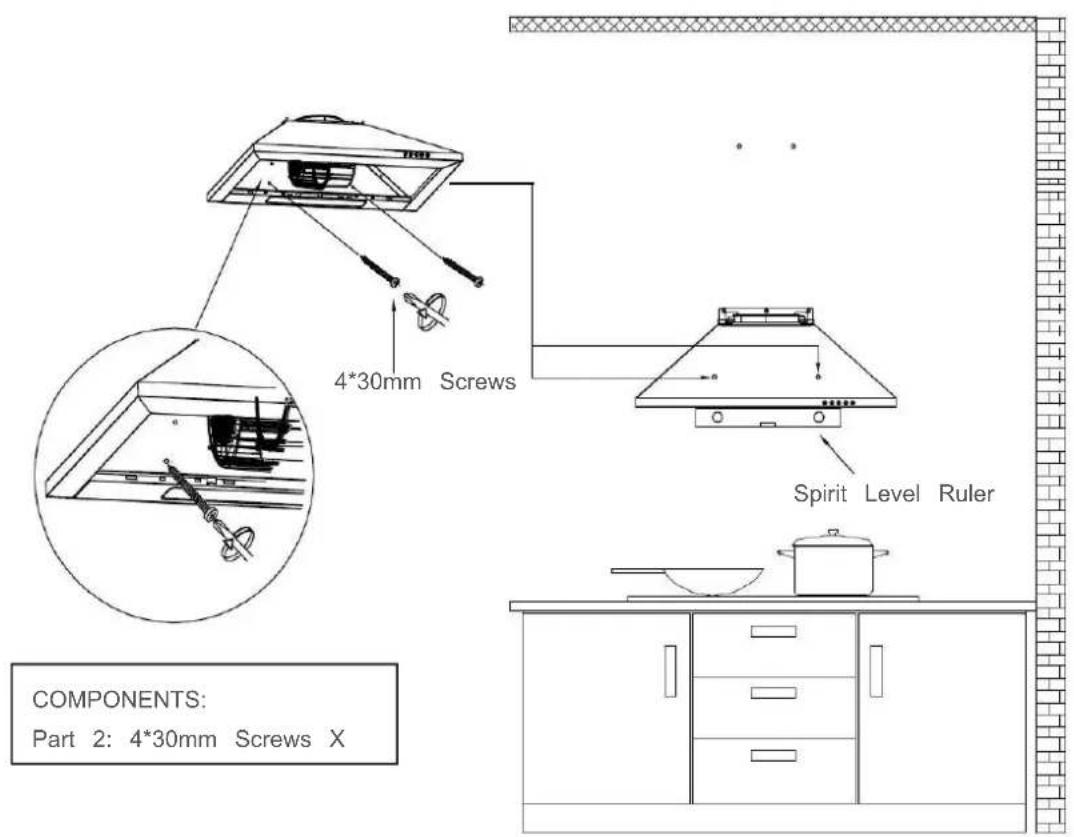

9) Use a Spirit Level Ruler to measure whether the hood is in a horizontal level, and use two 4*30mm Screws to lock into the safety hole position of the hood (not mandatory, according to user's wishes to choose whether to lock).

4*30mm Screws Spirit Level Ruler COMPONENTS: Part 2: 4*30mm Screws X

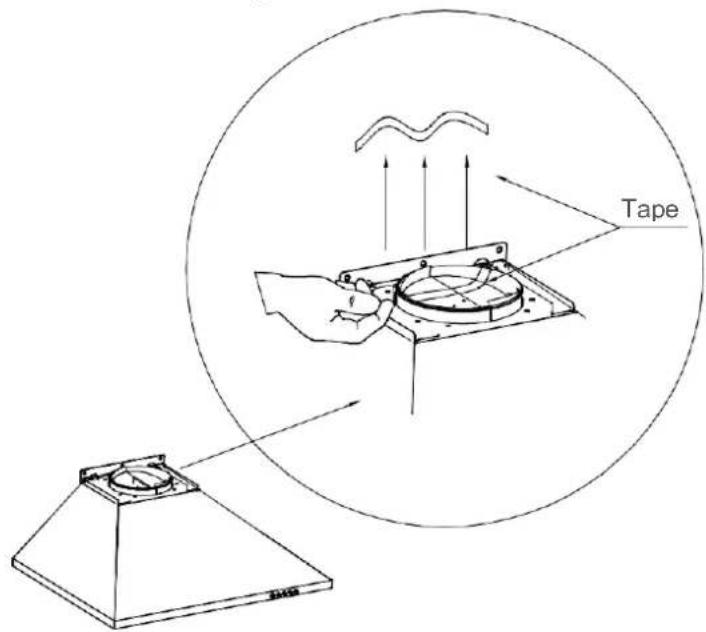

10) Tear off the tape from the air outlet.

Tape

NOTE:

Make sure you remove the tape on the damper and check if the damper opens and closes freely, otherwise it make noises, and the cooker hood will be shaking.

ENGLISH

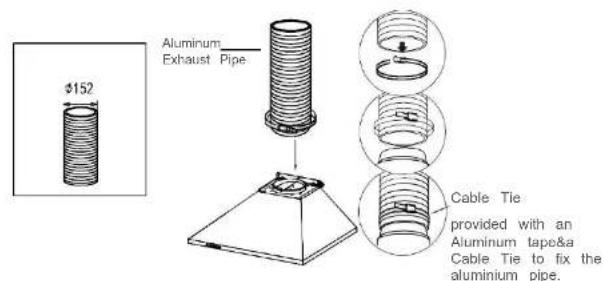

11) Install the Aluminum Exhaust Pipe into the air outlet and lock it with a Cable Tie; the other end of the Aluminum Exhaust Pipe will be pulled upward to outdoor and lock it with a Cable Tie (Note: This step can be ignored if use as recirculation mode with carbon filter).

Aluminum Exhaust Pipe φ152 Cable Tie provided with an Aluminum tape&a Cable Tie to fix the aluminium pipe.

COMPONENTS: Part 4: Aluminum Exhaust Pipe X 1 Part 5: Cable Tie X 1 Part 12: Aluminum tape X 1

Technical line drawing of two mechanical components with no visible text or symbols

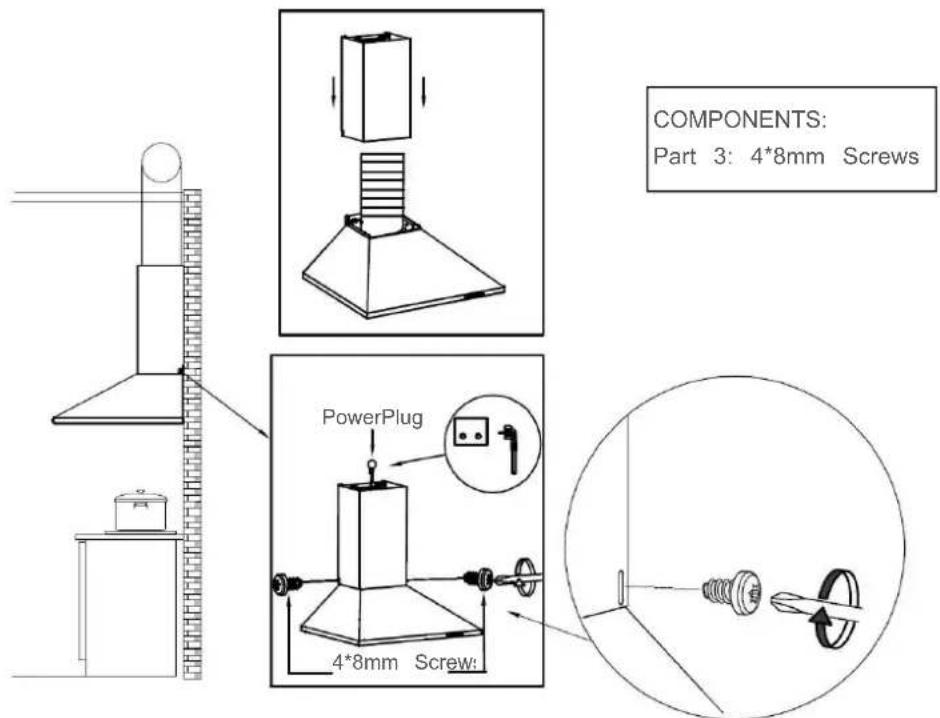

13) Insert the Lower Chimney into the hood and fix it to the corresponding positioning hole with two 4*8mm Screws. (Note: That the power cord needs to go through the chimney and connect the power).

COMPONENTS: Part 3: 4*8mm Screws PowerPlug 4*8mm Screw:

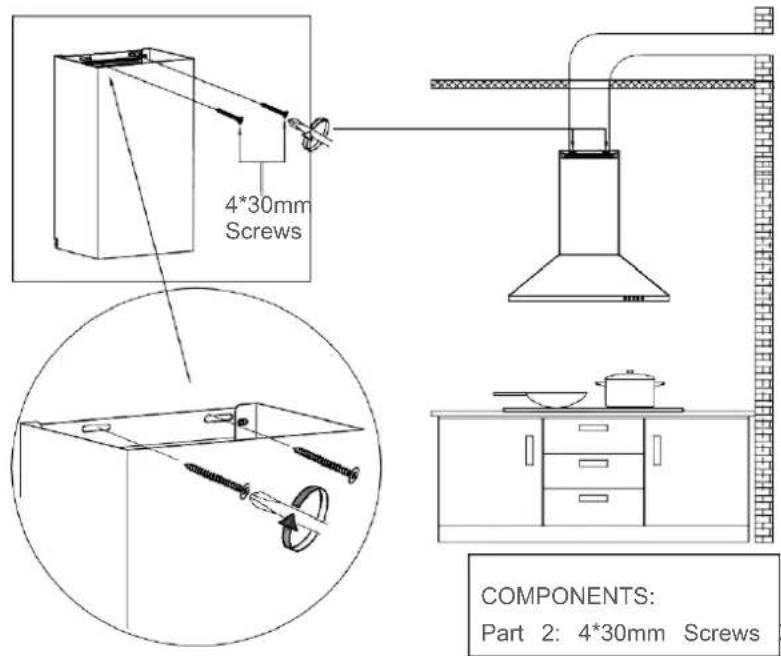

14) Use two 4*30mm Screws to lock the Lower Chimney Bracket into the corresponding positioning holes on the wall.

4*30mm Screws COMPONENTS: Part 2: 4*30mm Screws

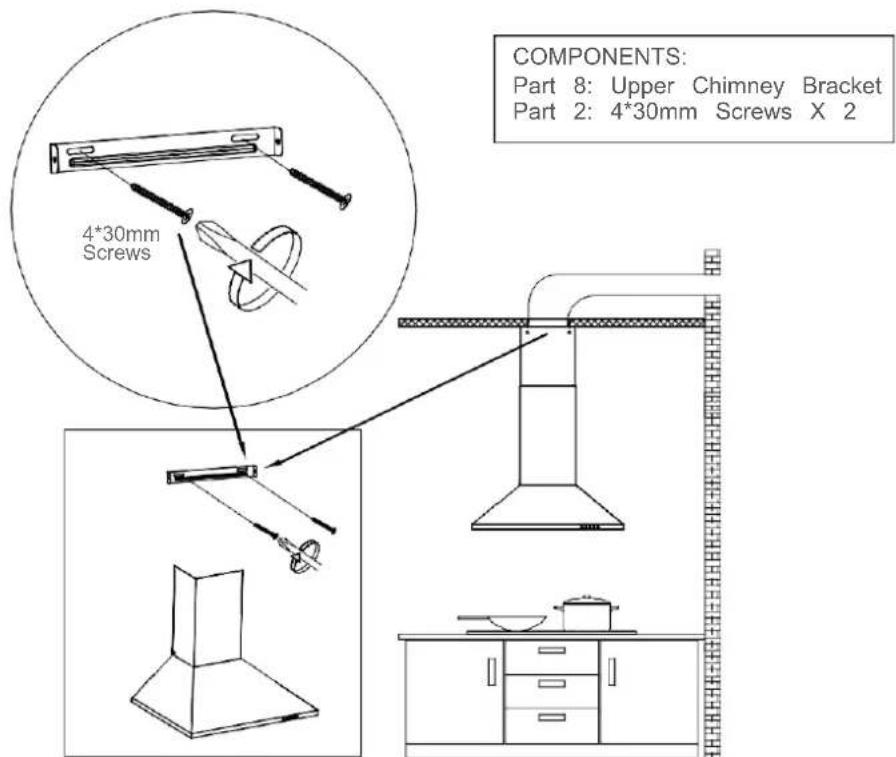

15) Use two 4*30mm Screws to lock the Upper Chimney Bracket to the corresponding positioning holes on the wall.

COMPONENTS: Part 8: Upper Chimney Bracket Part 2: 4*30mm Screws X 2 4*30mm Screws

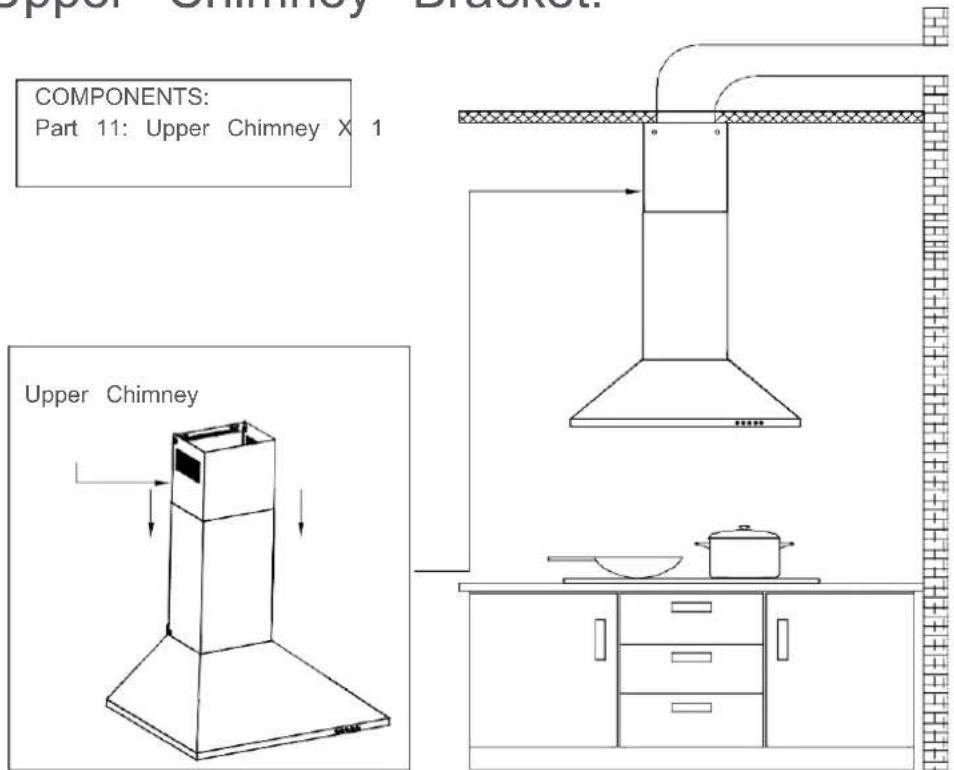

16) Put the Upper Chimney into the Lower Chimney, and then pulled to the height of the Upper Chimney Bracket.

Upper Chimney Bracket COMPONENTS: Part 11: Upper Chimney X 1 Upper Chimney

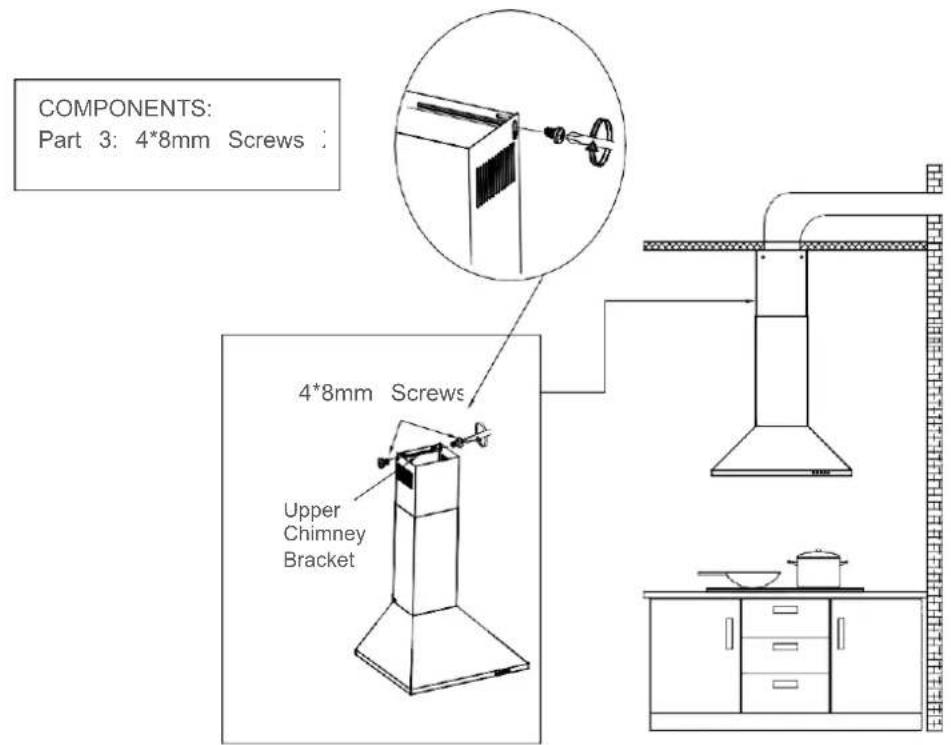

17) Use two 4*8mm Screws to assemble the Upper Chimney on the Upper Chimney Bracket.

COMPONENTS: Part 3: 4*8mm Screws : 4*8mm Screws Upper Chimney Bracket

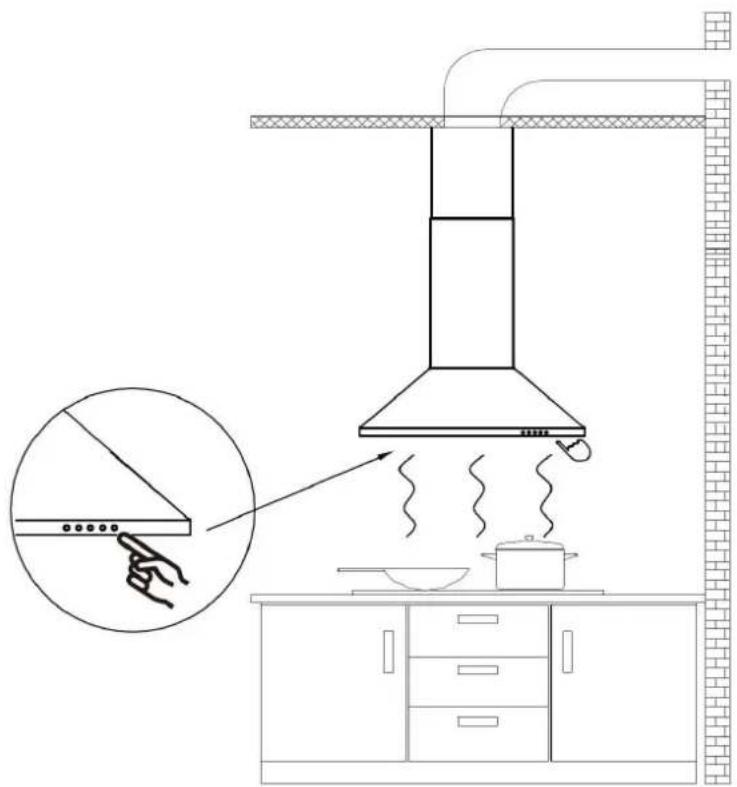

18)Turn the LED lights on/off, and test whether the functions are working properly.

Diagram of a kitchen ventilation system with an inset showing hand positioning and heating mechanism

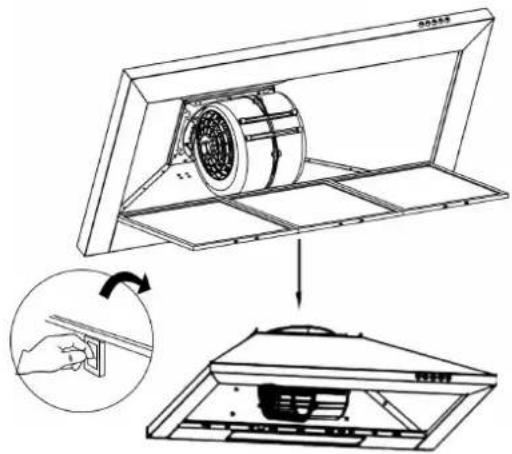

Carbon Filter Installation (Recirculation):

1. Carbon filter can be used to trap odors. In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down.

Technical diagram showing installation of a fan or air conditioner unit with a hand operating the component, including a magnified view of the device's internal structure.

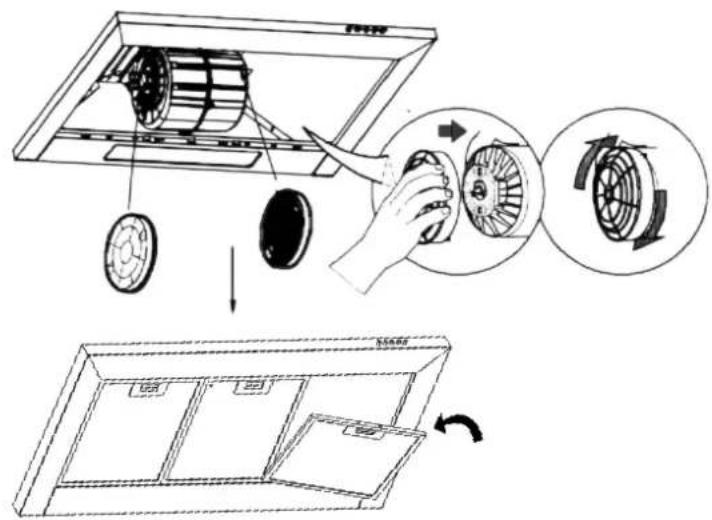

1. Place the carbon filter into the unit and turn it in the clockwise direction to lock it in place.

Technical diagram illustrating the assembly of a fan blade assembly with labeled components and directional arrows.

Part 13: Carbon filter set X1

1. If the carbon filter needs to be replaced, please turn it in the anti-clockwise direction.

NOTE:

Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood will be reduced.
The carbon filter should be changed every 2-4 months depending on the conditions of use.

Operation

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh.

Mechanical Push

button Operate the hood as follows:

Five black propeller icons arranged horizontally: three with wings, two with blades, one with a sun-like symbol (no text or labels)

0 Off button

It's used to turn off the fan

Low Speed button

For air ventilation with barely no noise; or simmering with very little smoke and steam.

Medium Speed button

For your everyday cooking purpose.

High Speed button

High-Speed for stir-fry or cooking with lots of smoke and grease produced.

Light button

When lights are OFF, press this button once to turn ON the lights. Press this button again to turn OFF the lights.

Cleaning and Maintenance

Proper maintenance of the Cooker Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the cooker hood from the power supply.

GREASE FILTERS

The grease filters should be cleaned frequently and can be cleaned in a dishwasher at high temperatures without using any detergent.

CARBON FILTER

The carbon filter should be changed every 2-4 months depending on the conditions of use. Replace more often if your cooking style generates lots of greases, such as stir frying. These filters are not washable and cannot be reused. Refer to installation instructions included with a carbon filter.

STAINLESS STEEL CLEANING

Do:

• Regularly clean it with a cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• You may also use a specialized household stainless steel cleaner.

Don't:

Do not use any steel or stainless-steel wool or any other scrapers to remove stubborn dirt.

Do not use any harsh or abrasive cleansers.

Do not let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the cooker hood to make sure no dust sticks to the stainless-steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner.)

Cleaning and Maintenance

LED REPLACEMENT

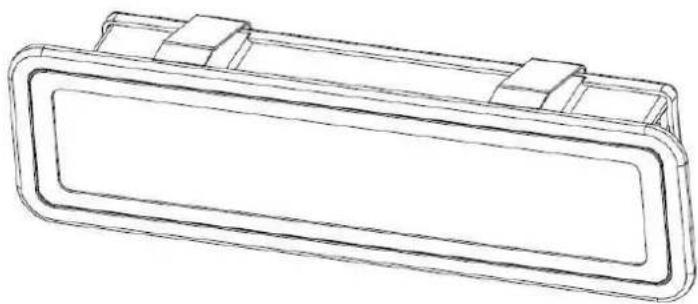

- Rectangle LED lamp:

Line drawing of a rectangular mechanical component with two side tabs (no text or symbols)

- Self-ballasted fluorescent reflector lamp - Integral induction type ballast

- Max wattage: 2W

- Voltage range: 220-240 V AC

- Dimensions: 120mm

This product contains a light source of energy efficiency class .

CAUTION:

Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety!

Technical information

	Symbole	Valeur	Unité
Model identification	-	HD300X90/23A	-
Annual Energy Consumption	AEC_hood	23,3	kWh/a
Time increase factor	f	1,2	-
Fluid Dynamic Efficiency	FDE_hood	22,6	-
Energy Efficiency Index	EEI_hood	53,3	-
Measured air flow at best efficiency po	Q_BEP	198,2	m3/h
Measured air pressu at best efficiency po	P_BEP	204	Pa
Maximum air flow	Q_max	335	m3/h
Measured electric power input at best efficiency point	W_BEP	49,6	W
Nominal power of th lighting system	W_L	2,1	W
Average illumination the lighting system the cooking surface	E_middle	60	lux
Measured power consumption in standby mode	P_S	-	W
Measured power consumption off mod	P_o	0,00	W
Sound power level	L_WA	Highest setting:65 Lowest setting:51	dB

The above table indicates the information for the cooker hood. The test result is done as per the relevant requirement of EU No 65/2014 and EU No 66 / 2014.

Troubleshooting

Fault	Cause	Solution
Light is on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Light bulb burned o	Replace the bulb with correct rating.
	Power cord loose.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch off the unit and repair by qualified service personnel only.
	The fan motor is n fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hun properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit an the cooking surface.	Readjust the distance to between 65 and 75 cm.

Environmental Protection

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Purchase product at Conforama store:

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

http://sav-client.conforama.fr/

or call :

09 69 32 05 05

from Monday to Saturday, 08:30 to 19:00 price of a local call.

Purchase product at BUT store:

This instruction book is also available on our website: www.but.fr

To contact our After-Sales Service, before going to your BUT store, call

09 78 97 97 97

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).

CONFORAMA FRANCE
