USER MANUAL HC20W G FAR

3D rendering of a white kitchen air conditioner unit with ventilation grilles and control knobs (no text or symbols visible)

MANUEL D'UTILISATION

Technical line drawing of two mechanical assembly components with hatched areas indicating material (no text or symbols)

650mm 750mm

Diagram showing kitchen appliance installation and inspection steps, including cutting, drying, and finishing with a kitchen tower.

Technical diagram showing installation of a device with labeled components and airflow direction arrows

Architectural diagram showing kitchen furniture layout with labeled components and a hand holding a tool.

Diagram of a kitchen interior layout with labeled appliances and fixtures, including a lamp, oven, and air conditioner.

REMARQUE:

Technical diagram showing a hand using a switch to adjust the circuit, then to install a device with a circular component inside.

Technical line drawing of two mechanical components with internal parts and a hand pointing to a component (no text or symbols present)

Illustration of a hand using a switch to adjust a wall-mounted component, enclosed in a circle with an arrow indicating rotation (no text or symbols)

Line drawing of a kitchen appliance with front panel and side compartments (no text or symbols)

Diagram of a device with labeled components and directional arrows indicating flow or movement

REMARQUES:

Four black icons: a propeller, a four-blade fan, a five-blade sun, and a small heart symbol (no text or labels)

Bouton d'arrêt

Line drawing of a rectangular mechanical component with mounting brackets (no text or symbols)

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

Safety....GB-2

Specifications ....GB-8

Before Using the Cooker Hood......GB-9

Preparation for Installation......GB-10

Installation......GB-12

Operation......GB-18

Cleaning and Maintenance......GB-19

Technical information......GB-22

Troubleshooting......GB-24

Environmental Protection....GB-25

Customer service....GB-26

Safety

■ Use this unit only in the manner intended

by the manufacturer.If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

■ Before servicing or cleaning unit, unplug or disconnect the cooker hood from the power supply.

■ Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

■ When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.

■ Ducted fans must always be vented to

the outdoors.

■ Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
■ This unit must be grounded.
■ When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.
■ Clean cooker hood frequently. Grease should not be allowed to accumulate on fans, filters or in exhaust ducts.
■ This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Do not flambé under the range hood. CAUTION: Accessible parts may become hot when used with cooking appliances.

■ Regulations concerning the discharge of air have to be fulfilled.
■ Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

■ Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

■ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

■ Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.
■ Cleaning and Maintenance the hood regularly at 1time per week;
■ Use type lamp (or use in alternative type lamp) DBS-2-H-120 (ILCOS D code in according to standard IEC 61231).

	Max power	voltage	picture	ILCOS D code
LED Module	2 W	220-240V~	Diameter : 120*33mm	DBS-2-H-120

■ The minimum distance between the stove and the lowest part of the range hood: 65 centimeters for electric stoves and 75 centimeters for gas stoves.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

CAUTION

■ For indoor use only.
■ For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
■ To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off cooker hood.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
- Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
■ To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
■ When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
■ Please read specification label on product for further information and requirements.

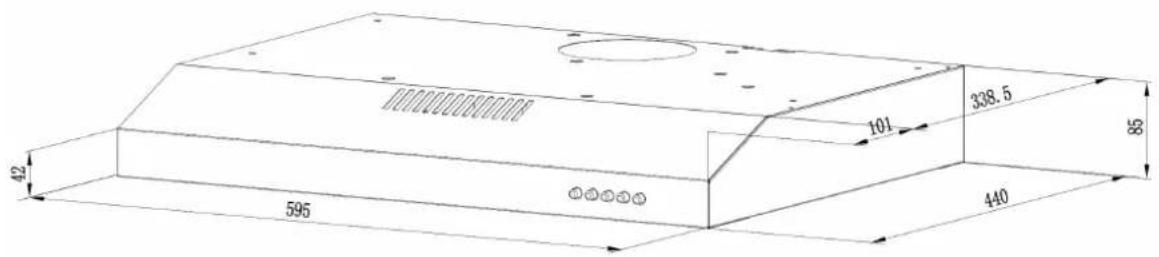

Specifications

100000000000 101 338.5 85 42 595 440

Voltage	220V-240V~ 50Hz
Power of Motor	1 x 75W
Power of lamps	1 x 2W
Appliance Dimension	595*440*85mm (W x D x H)
Note: The manufacturer reserves the right to change any tech improvement or modification without prior notice.

BeforeUsingtheCooker Hood

CAUTION: Before proceeding to the installation, check if items are missing or damaged, contact the manufacturer. Observe all governing codes and ordinances. Have a qualified technician install the cooker hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The manufacturer declines all responsibility for improper installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect installation.

COMPONENTS:

Part 1: 4*20mm Screws6

Part 4: air outlet assembly X 1

Part 2: Installation Manual X

Part 5: Round wind deflector X 1

Part 3 : Carbon Filter X 1

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1. Protective Gloves

1. Double Sided Tape or Tape

2.Spirit Level Rule

5.Cross-Head Screwdriver Set

1. Measuring Tape

1. Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

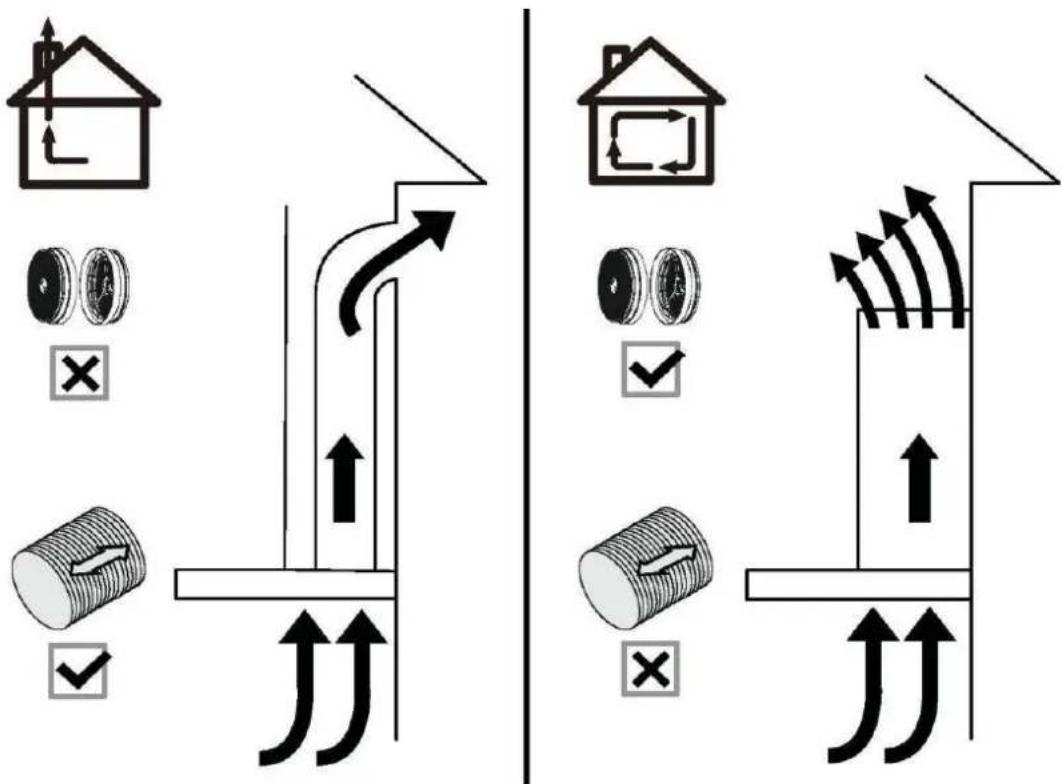

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required.

Extraction Mode: You can install the 1.5m long and 120mm diameter aluminum exhaust pipe for extracting.


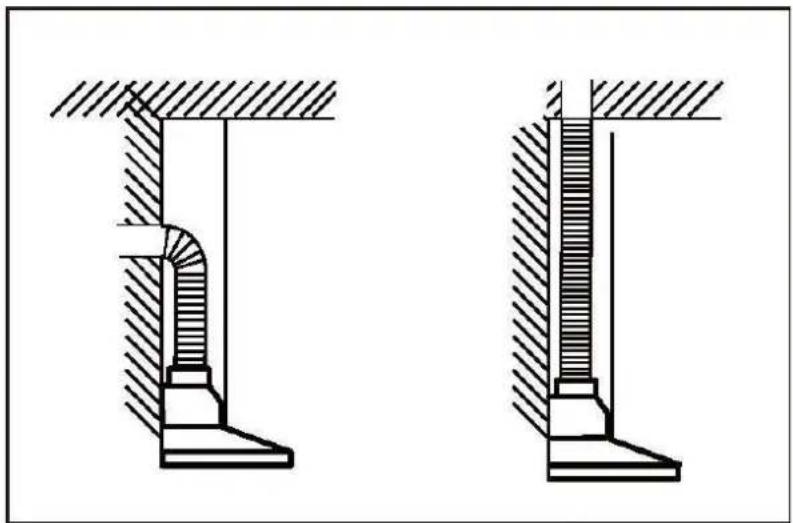

b) When possible, use at least 60cm straight runs before any turns. Larger duct work may be required for best performance with longer duct runs.

Technical diagram showing two mechanical assembly views with hatched sections (no text or labels)

c) Before installation, don't connect the power.

Installation

Install the Hood(Extraction):

1) Remove all protective poly film from the hood and/or parts.

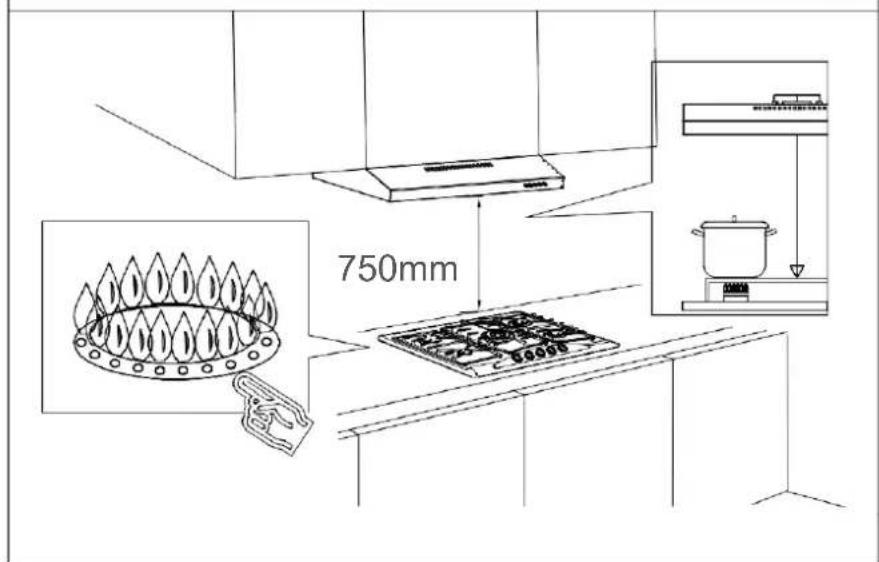

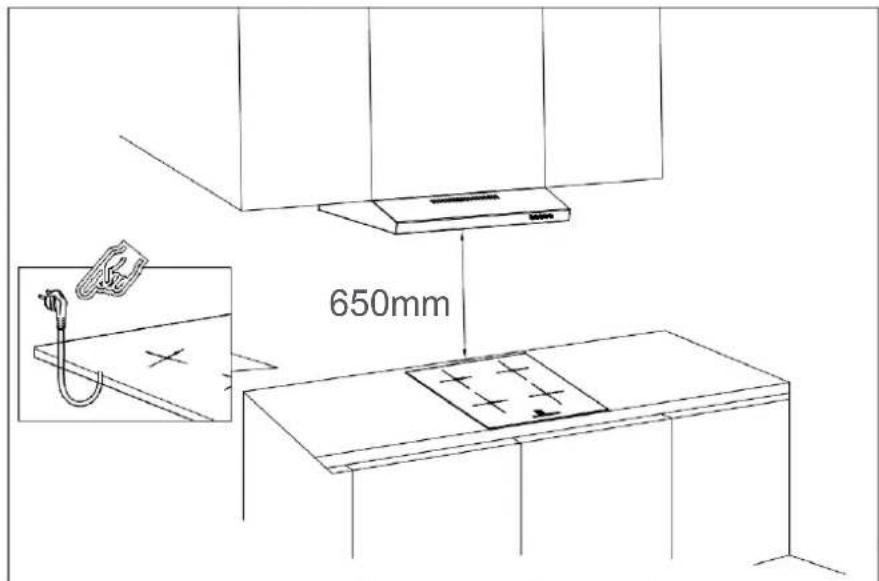

2)Recommend installation height: 65\~75cm above the cooktop for best extraction.

◆Required height over gas hob: 750mm;
◆Required height over electric hob: 650mm.

650mm

750mm

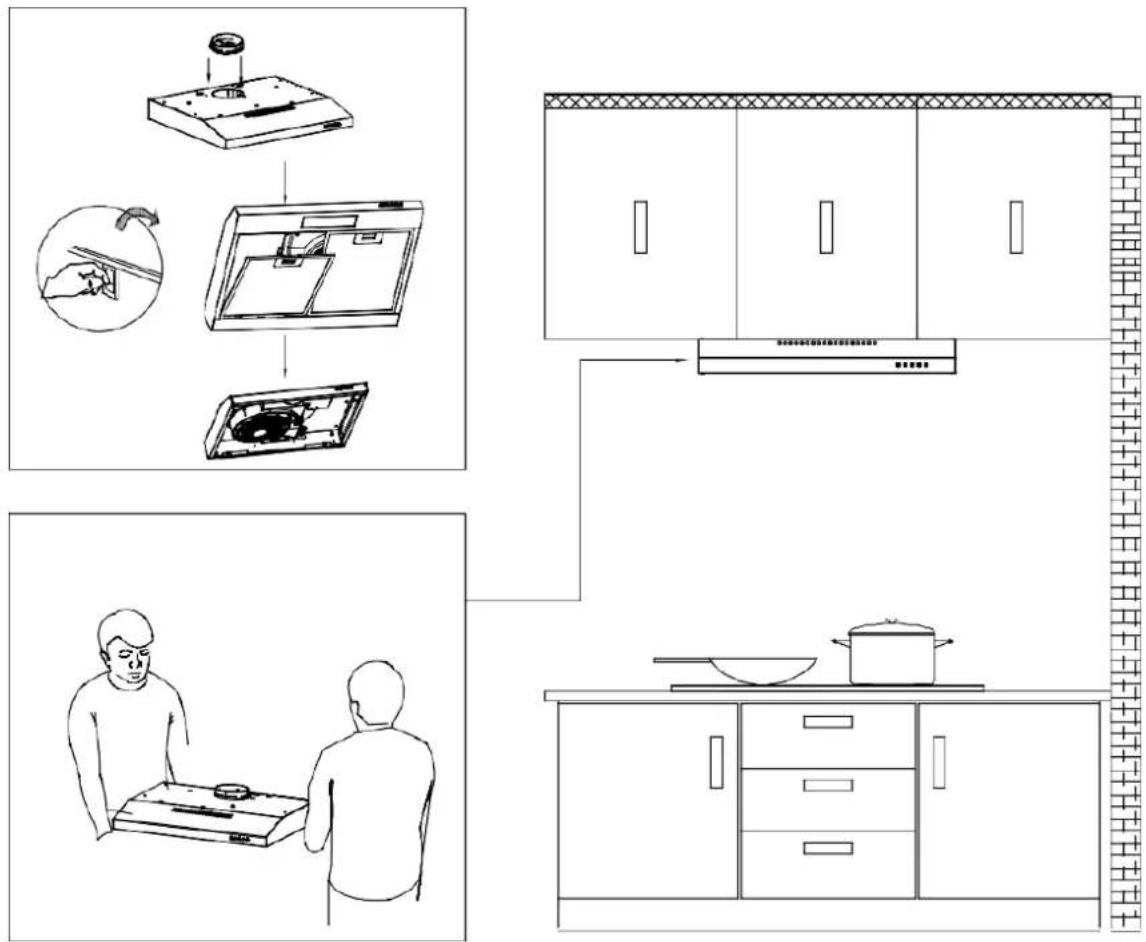

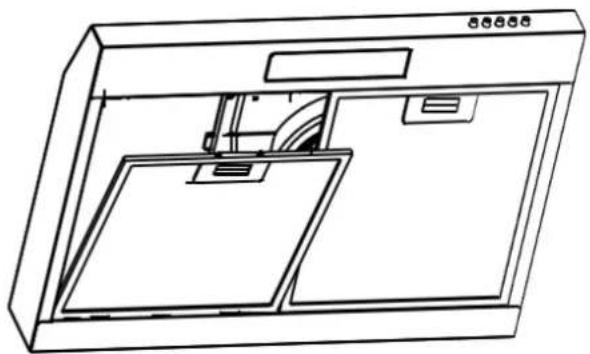

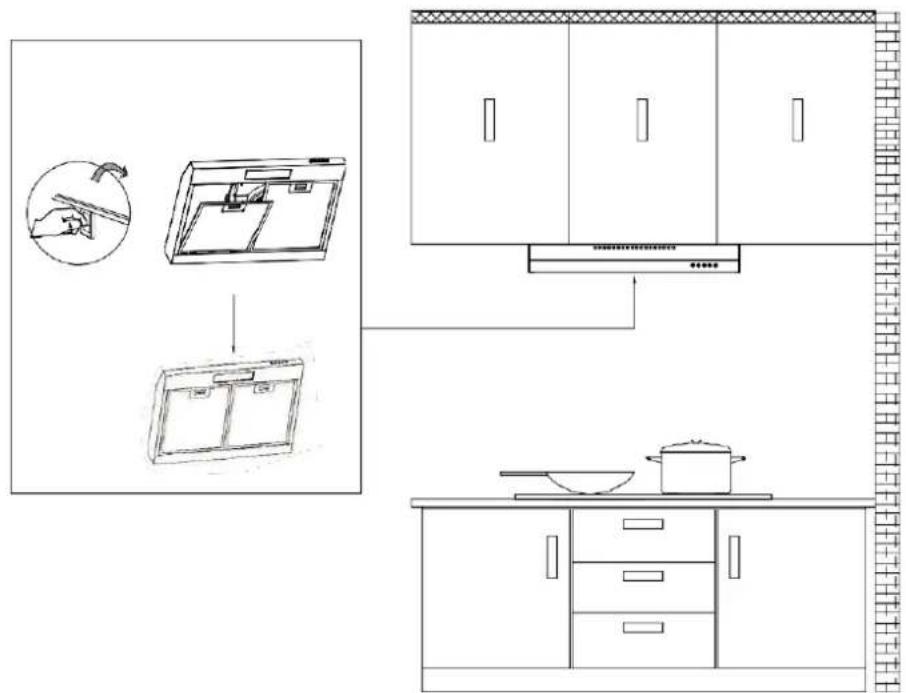

3) Put the outlet onto the cooker hood. Remove the aluminum grease filter, then put the cooker hood under the cabinet.

Diagram illustrating kitchen appliance installation and cleaning steps, including oven, kitchen cabinet, oven with lid, and kitchen setup.

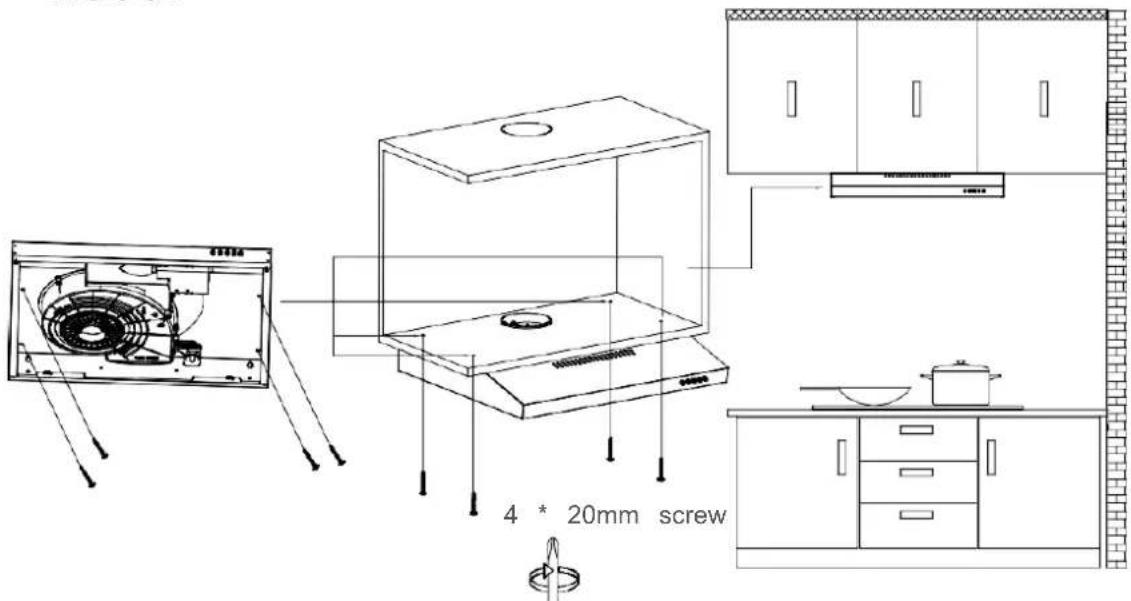

4) Align the air ventilation port of the cook hood with the cabinet ventilation hole at the bottom, pass the power cord through the power hole, and then use four 4 * 20mm screws to lock into the corresponding position to fix the cook hood.

4 * 20mm screw

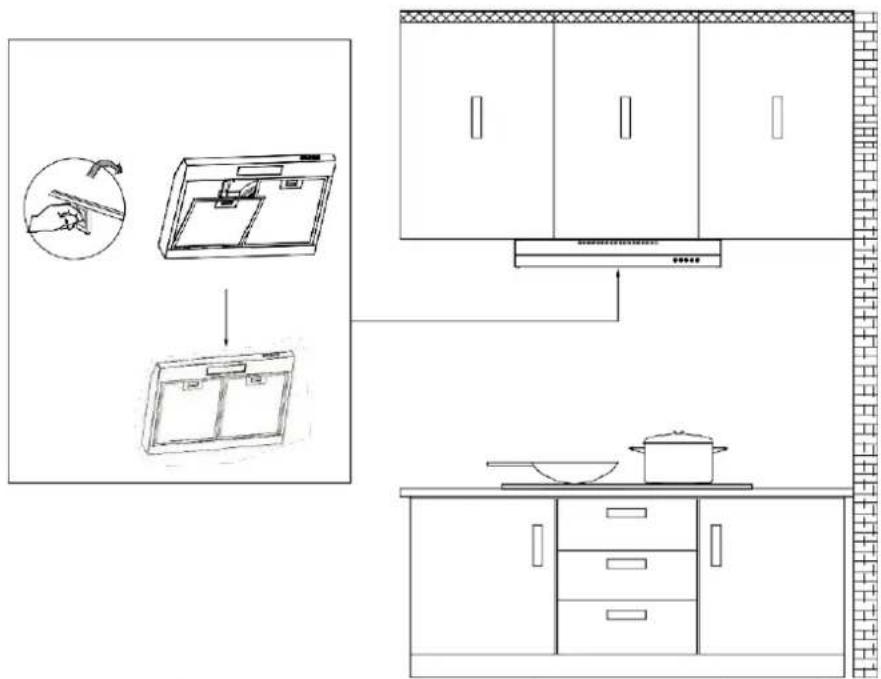

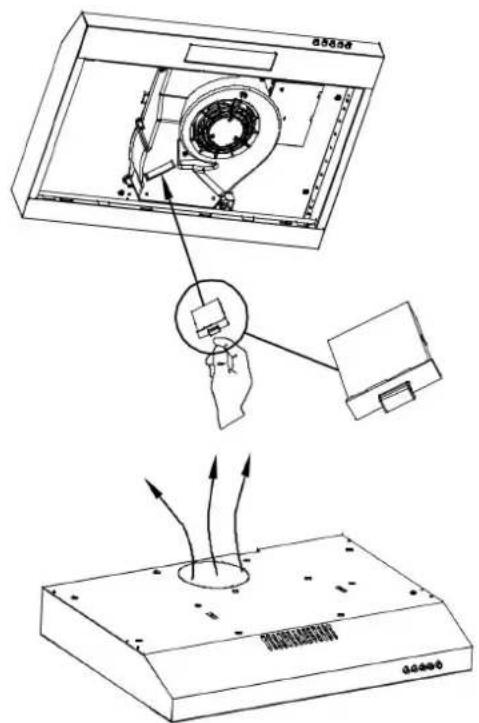

5) Install the air baffle and put the grease filter back on the cooker hood.

Technical diagram showing a device with internal components and airflow direction, including a magnified view of the component.

Diagram showing kitchen appliance layout with labeled components including a refrigerator, cabinet, oven, and kitchenware.

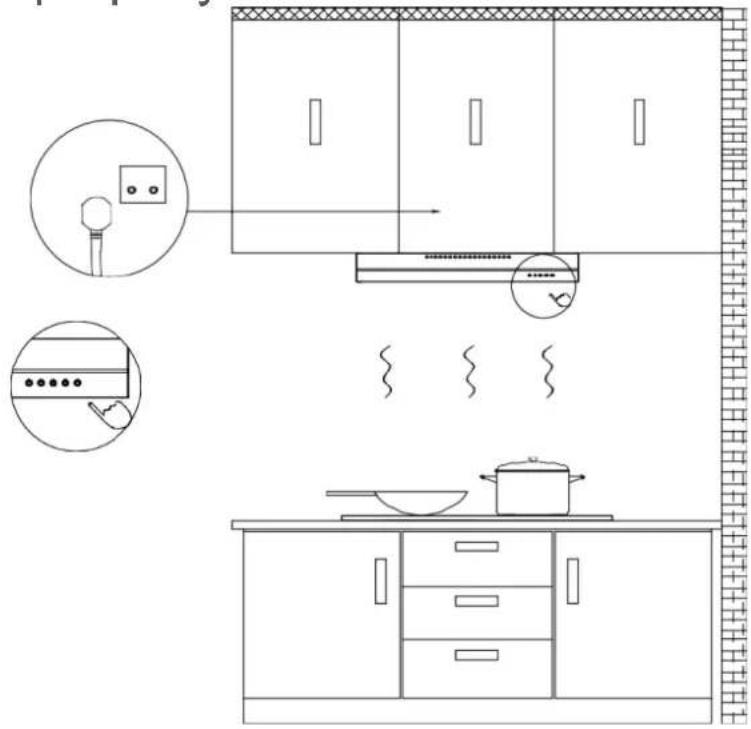

6) Connect the power and turn the LED lights on/off in order to test whether the functions are working properly.

Diagram of a kitchen interior with labeled appliances and heating system, including air conditioner and oven setup.

NOTE:

Make sure you remove the tape on the damper and check if the damper opens and closes freely, otherwise it make noises, and the cooker hood will be shaking.

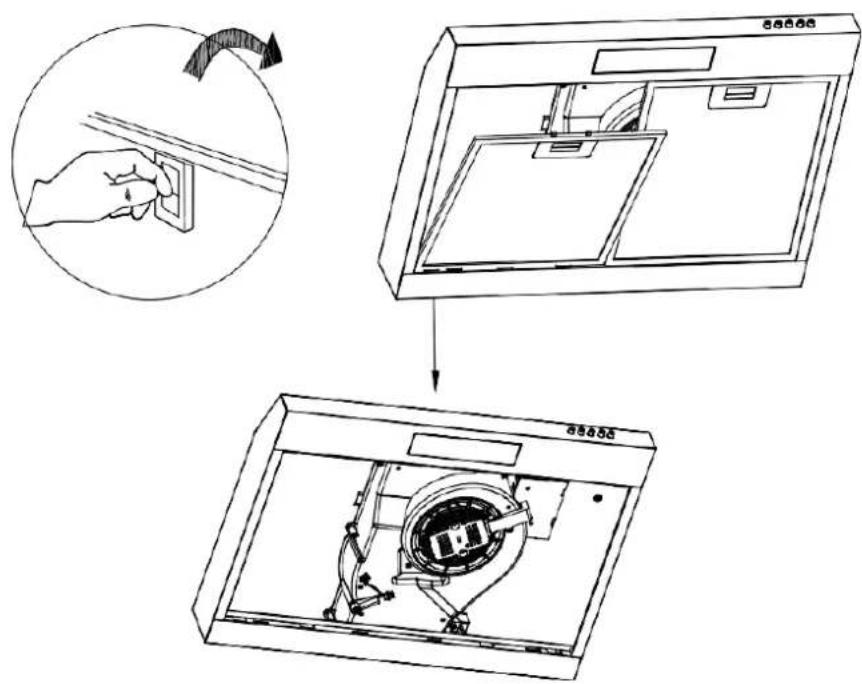

Carbon Filter Installation (Recirculation):

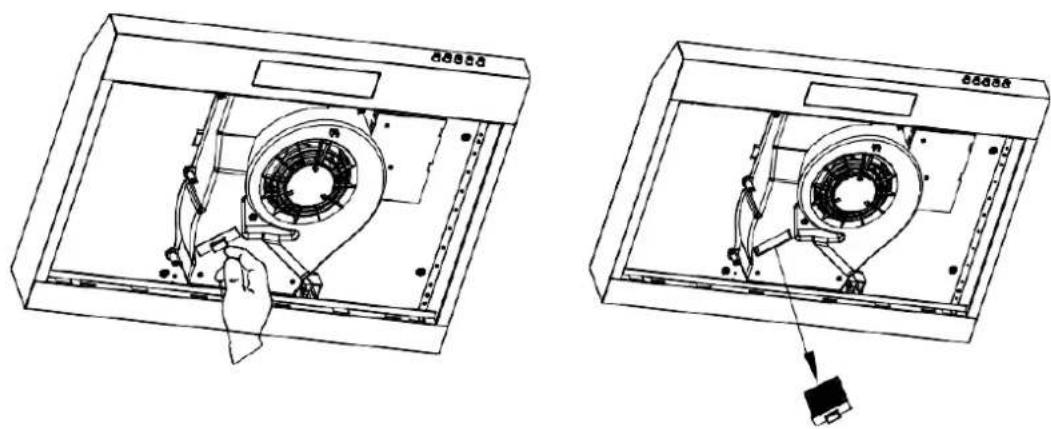

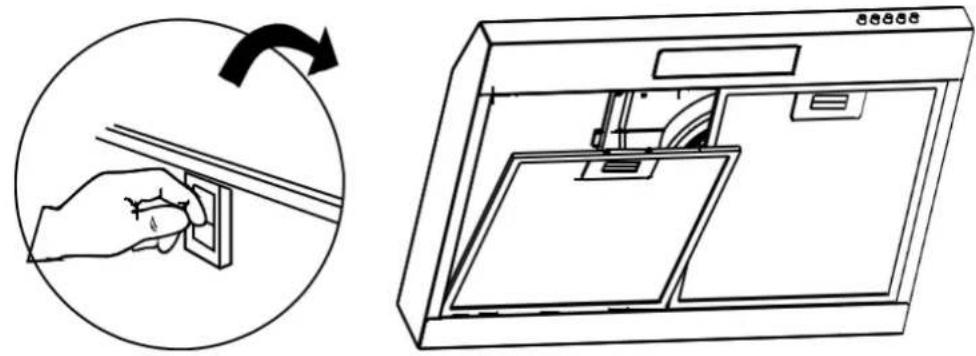

1. Carbon filter can be used to trap odors. In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down.

Technical diagram showing a hand using a switch to adjust the circuit, with an inset illustrating the process.

1. Insert the activated carbon insert into the position indicated in the figure.

Technical line drawing of two mechanical components with a hand operating the center (no text or symbols present)

1. Put the grease filter back on, you are good to go.

Diagram showing a hand inserting a component into a kitchen appliance via a cable, with no text or symbols present.

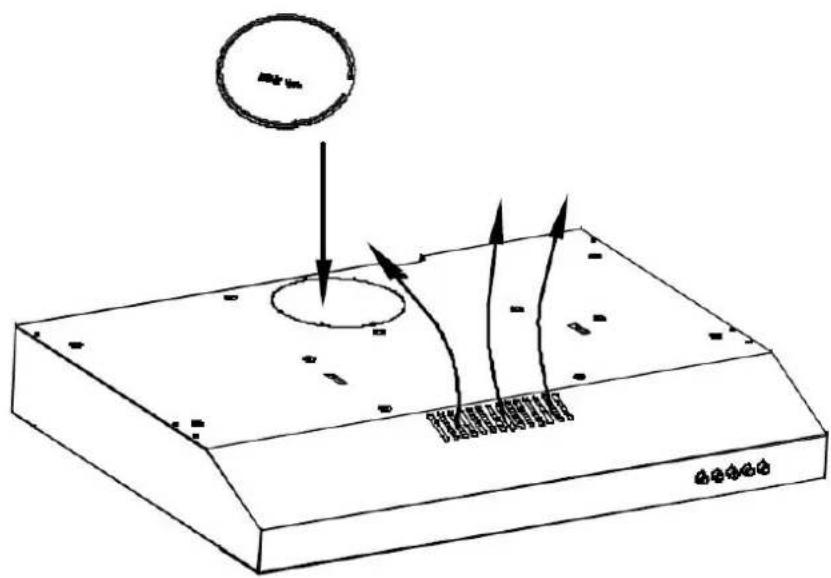

1. Install the round wind deflector on the top air outlet.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a circular component above a base.

NOTE:

Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood will be reduced.
The carbon filter should be changed every 2-4 months depending on the conditions of use.

Operation

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh.

Mechanical Push

button Operate the hood as follows:

Five black propeller icons arranged horizontally: three with wings, two with blades, one with a sun-like symbol (no text or labels)

0 Off button

It's used to turn off the fan

Low Speed button

For air ventilation with barely no noise; or simmering with very little smoke and steam.

Medium Speed button

For your everyday cooking purpose.

High Speed button

High-Speed for stir-fry or cooking with lots of smoke and grease produced.

Light button

When lights are OFF, press this button once to turn ON the lights. Press this button again to turn OFF the lights.

Cleaning and Maintenance

Proper maintenance of the Cooker Hood will assure proper performance of the unit.

Before cleaning unit, unplug or disconnect the cooker hood from the power supply.

GREASE FILTERS

The grease filters should be cleaned frequently and can be cleaned in a dishwasher at high temperatures without using any detergent.

CARBON FILTER

The carbon filter should be changed every 2-4 months depending on the conditions of use.

Replace more often if your cooking style generates lots of greases, such as stir frying.

These filters are not washable and cannot be reused. Refer to installation instructions included with a carbon filter.

STAINLESS STEEL CLEANING

Do:

- Regularly clean it with a cloth or rag soaked with warm water and mild soap or liquid dish detergent.

- You may also use a specialized household stainless steel cleaner.

Don't:

Do not use any steel or stainless-steel wool or any other scrapers to remove stubborn dirt.

Do not use any harsh or abrasive cleansers.

Do not let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the cooker hood to make sure no dust sticks to the stainless-steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner.)

Cleaning and Maintenance

LED REPLACEMENT

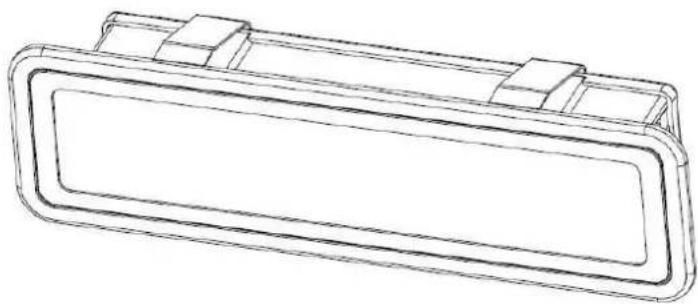

- Rectangle LED lamp:

Line drawing of a rectangular mechanical component with two side tabs (no text or symbols)

- Self-ballasted fluorescent reflector lamp - Integral induction type ballast

- Max wattage: 2W

- Voltage range: 220-240 V AC

- Dimensions: 120mm

This product contains a light source of energy efficiency class .

CAUTION:

Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety!

Technical information

	Symbole	Valeur	Unité
Model identification	-	HC20W G	-
Annual Energy Consumption	AEC_hood	36	kWh/a
Time increase factor	f	1,4	-
Fluid Dynamic Efficiency	FDE_hood	16,2	-
Energy Efficiency Index	EEI_hood	67,1	-
Measured air flow at best efficiency po	Q_BEP	134	m3/h
Measured air pressu at best efficiency po	P_BEP	291	Pa
Maximum air flow	Q_max	185	m3/h
Measured electric power input at best efficiency point	W_BEP	66,8	W
Nominal power of th lighting system	W_L	2,1	W
Average illumination the lighting system of the cooking surface	E_middle	80	lux
Measured power consumption in standby mode	P_S	-	W
Measured power consumption off mod	P_o	0,00	W
Sound power level	L_WA	Highest setting:64 Lowest setting:54	dB

The above table indicates the information for the cooker hood. The test result is done as per the relevant requirement of EU No 65/2014 and EU No 66 / 2014.

Troubleshooting

Fault	Cause	Solution
Light is on but fan do not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damag
Both light and fan do not work	Light bulb burned ou	Replace the bulb with correct rating.
	Power cord loose.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch off the unit and repair by qualified service personnel only.
	The fan motor is no fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the brac	Take down the unit and check whether the bracke is in proper location.
Suction performance not good	Too long distance between the unit and the cooking surface.	Readjust the distance to between 65 and 75 cm.

Environmental Protection

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Purchase product at Conforama store:

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

http://sav-client.conforama.fr/

or call :

09 69 32 05 05

from Monday to Saturday, 08:30 to 19:00 price of a local call.

Purchase product at BUT store:

This instruction book is also available on our website: www.but.fr

To contact our After-Sales Service, before going to your BUT store, call

09 78 97 97 97

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).

CONFORAMA FRANCE
