USER MANUAL YT-82206 Yato

SK EXCENTRICKÁ BRÚSKA

HU EXCENTER CSISZOLÓ

RO POLIZOR CU EXCENTRIC

ES PULIDOR EXCENTRICO

FR PONCEUSE ORBITALE

IT SMERIGLIATRICE ECCENTRICA

NL EXCENTRISCHE SCHUURMACHINE

GR 'EKKENTPO TPIBE'10

BG ЕКСЦЕНТЪРШЛАЙФ

YT-82206

CE

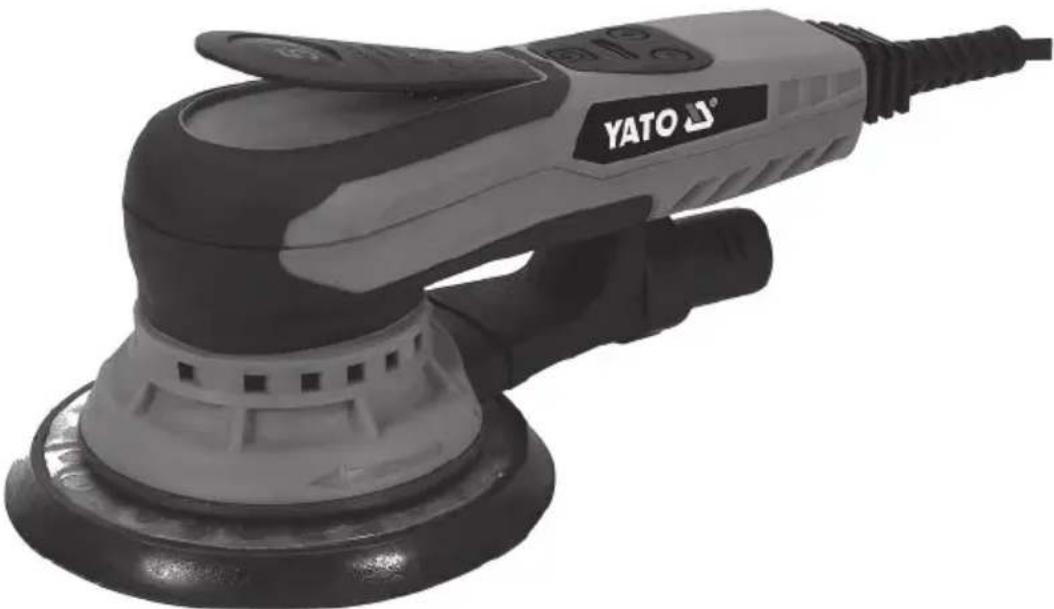

Black and white photo of a YATO-branded power tool with meshing base (no visible text or symbols on body)

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG

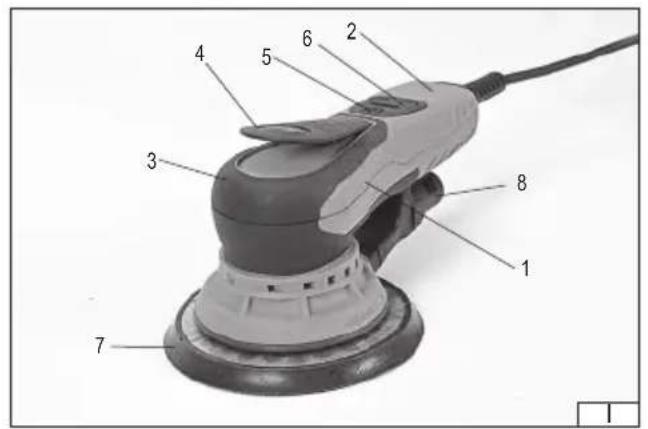

Labeled diagram of a power tool with numbered parts for identification

Close-up of hands cleaning a textured fabric with a circular patterned object on the right (no text or symbols visible)

Close-up of a smart electric vehicle's control panel with three buttons and a display (no visible text or symbols)

Close-up of hands using a power tool on a machine, no visible text or symbols

Close-up of a hand using a tool to clean a circular component, while the close-up shows internal gear mechanism (no text or symbols visible)

1. housing
2. handle
3. front handle
4. rotation switch
5. electric power switch
6. rotational speed control
7. pad
8. dust extraction connection

DE

Read the operating instruction

Wear protective goggles

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

The eccentric sander is a regular tool, class II insulation, designed for processing metal, wood, car filler, smoothing and also for removing rust, paints. Grinding is done using sandpaper or abrasive mesh attached to the disc. The disc performs an oscillating movement, which increases work efficiency. Correct, reliable and safe operation of the power tool depends on proper use, therefore:

Read the entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.

EQUIPMENT

The factory packaging should contain: a sander, a key for the pad assembly and disassembly and a sheet of sandpaper.

TECHNICAL PARAMETERS

Parameter Unit Value
Catalogue No. YT-82206
Rated voltage [V~] 220 – 240
Rated frequency [Hz] 50/60
Rated power [W] 350
Rated rpm [min]	^-1 4,000 – 10,000
Pad diameter [mm]	150
Weight	[kg]	1.37
Noise level
- sound pressure L_mA ± K	[dB(A)]	80.0 ± 3.0
- power L_mA ± K	[dB(A)]	91.0 ± 3.0
Vibration level	[m/s2]	3.07 ± 1.5
Insulation class		II
Protection rating		IP20

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Caution! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

EN

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

ADDITIONAL SAFETY INSTRUCTIONS

Warnings related to sanding

Hold the tool by the insulated handles, as the sanding surfaces may come into contact with the power cord. Cutting the “live” cable may cause the metal parts of the tool to become “live” and electrocute the tool operator.

Toxic dust may form during the sanding of some surfaces e.g., surfaces coated with lacquer with the addition of lead. Inhalation of toxic dust may pose a risk to the tool operator or bystanders. In this case, use appropriate personal protective equipment such as dust masks, work in well-ventilated rooms and use external dust extraction systems.

PREPARING FOR WORK

Warning! Install and adjust the equipment only when the supply voltage is disconnected. Pull the tool power cord plug out of the mains socket!

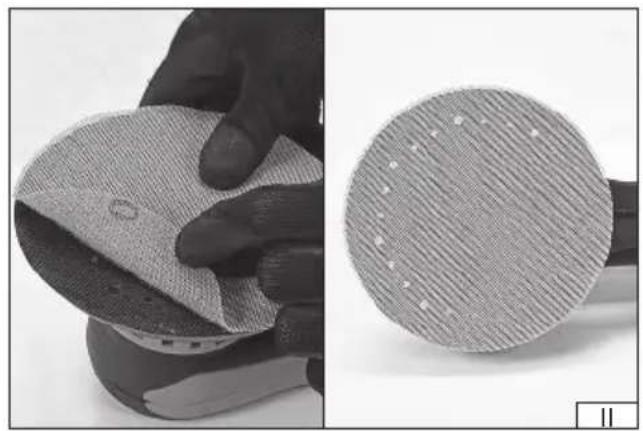

Attaching the sandpaper sheet (II)

The sander allows for the attachment of sandpaper, sanding cloth or sanding mesh only using the Velcro on the tool's foot. The sandpaper sheet should have one side adapted to be fastened using Velcro. In this case, the dimensions of the sheet should correspond to the tool foot size given in the table.

Secure the sheet so that it does not protrude beyond the foot and the holes, if present in the sheet, match the holes in the tool foot. This will allow for the effective extraction of dust generated during operation.

Dust extraction

The tool is equipped with a dust extraction system. The use of a dust extraction system improves efficiency and safety at work. Connect a flexible hose connected to a dust extraction system such as an industrial vacuum cleaner to the dust extraction outlet. Do not use household vacuum cleaners as dust extraction systems. Household vacuum cleaners are not suitable for extracting dust generated during operation with a tool and such use can lead to damage to the vacuum cleaner.

The adapter for connecting the hose to the dust extraction outlet must be purchased separately. The connection must be made in such a manner that the flexible hose does not interfere with manoeuvring the tool during operation.

USING THE TOOL

Warning! Before starting work, make sure that the housing and the connecting cable with a plug are not damaged. In case of damage, do not proceed any further! The damaged cord or plug cannot be repaired and must be replaced with a new one at an authorised service centre.

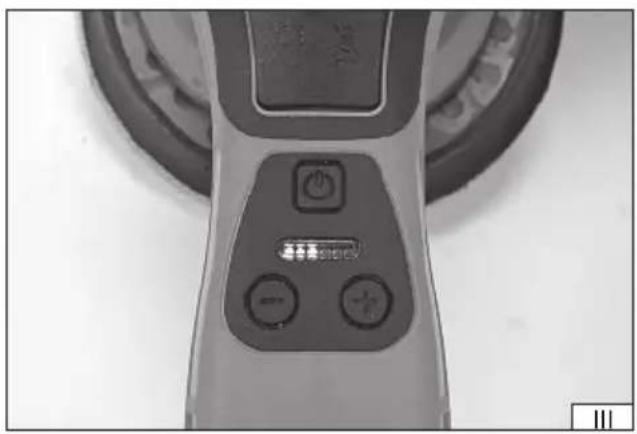

Starting and stopping the tool

Connect the tool to the power supply. Start the tool with the power switch; the rotation indicator status light will light up. Adjust the rotational speed by pressing the buttons marked “+” and “-” (III). The button marked “+” increases the rotational speed while the button marked “-” decreases it. Each illuminated status light indicates a subsequent thousand revolutions within the range specified in the technical data table.

Grasp the sander with both hands gripping its handle and front handle. Make sure that the pad does not come into contact with any object and press the rotation switch. The pad will start to rotate in the direction indicated by the arrow on the tool housing. Wait for the pad to achieve its set rotational speed and hold the sander in this position for approx. 30 seconds. If there are no signs of malfunction, such as increased vibration, excessive noise or suspicious smell coming out of the tool, it means that you can start working.

To stop the tool, release the pressure on the rotation switch, wait for the pad to stop completely, and then press the power switch. If the rotation indicator status lights will go off, it will mean that the tool has been turned off. Then unplug the power cord plug of the tool from the mains socket and proceed to maintenance.

Caution! The pad may still rotate for some time after releasing the pressure on the rotation switch. Wait until the pad has stopped rotating completely before putting the tool down. It is forbidden to force the pad to stop by applying it to the workpiece or other object.

Tips for working with a sander

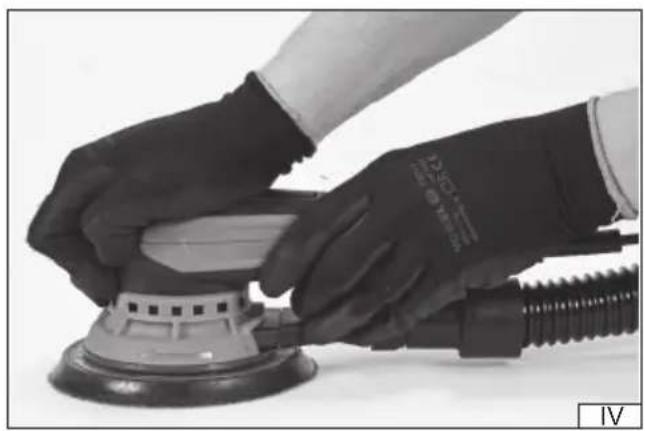

It is forbidden to hold the sander in any other way but by the handles (IV). Improper grip does not ensure safe operation and may lead to covering of ventilation openings. This can lead to overheating of the tool.

The sandpaper sheet must be selected according to the type of sanded surface. It is recommended to consult the dealer or the manufacturer of the sandpaper sheets for advice on their intended use.

Do not reuse the used sandpaper sheet. Do not use damaged sandpaper sheets. Sheets with cracks, tears, cavities, or other damages may disintegrate during operation and cause injuries. Select the sandpaper grit size according to the type of work. Use coarser sheets for sanding and peeling. Use a smoother sheet for finishing works.

It is recommended to start with a coarse-grit sandpaper sheet and finish with a finer-grit sandpaper sheet. Sanding in this manner will be faster and lead to a better end result.

Do not use the sandpaper sheet used once to sand metal for wood sanding. Do not use the sandpaper sheet used once to sand the coating for wood sanding.

Move the sander towards and away from you, and gradually to a side. Wood should be sanded along the grain. Sanding should be started with coarse-grit sandpaper, then use increasingly finer-grit sandpapers until the desired effect is achieved. Avoid checking the condition of the processed wood surface with your bare hand. This can cause injury from splinters and burrs generated during work. Do not stop the sander in one place; this will cause uneven work results. Do not apply excessive pressure on the sanded

EN

surface during sanding. The pressure should be uniform throughout the entire working time. The sander should be guided in such a way that the sandpaper sheet adheres to the sanded object with the entire surface. Do not press the sander against the surface too hard. Excessive pressure can cause the sander to overheat and damage the processed surface and in particular even tearing of the sandpaper sheet or damage the tool foot.

The sandpaper grit size must be selected according to the processed surface. Too high grit size of the sandpaper will produce scratches on the material surface.

Take regular breaks during operation to check the condition of the sandpaper sheet. If a sandpaper sheet is found to have been clogged with dust generated during work, or that the abrasive grain has worn, replace the sheet with a new one.

The sander has an adjustable motor rotational speed, which translates into the number of foot oscillations. Higher rotational speed results in faster and more accurate surface preparation, however, it can lead to overheating or even burning of the processed surface, especially when using too much pressure.

MAINTENANCE AND INSPECTIONS

CAUTION! Before carrying out any adjustment, servicing or maintenance work, unplug the tool from the mains outlet. Having finished working, inspect the power tool for damage by visually checking the exterior and the body and the handles. Check the power cord with plug and its rubber gland, the action of the electric power switch, the ventilation openings for clogging, the motor brushes for sparking, the noise of the bearings and the drive transmission, and how the power tool starts and runs. During the warranty period, the user is not allowed to install any power tools or replace any components or parts, as this will void the warranty rights. Any irregularities found during the inspection or the operation signal the need for repair to be done at the service centre. After finishing work, the housing, ventilation openings, switches, auxiliary handle and covers should be cleaned e.g. with an air jet (with a pressure not exceeding 0.3 MPa), paintbrush or dry cloth without the use of chemicals and cleaning agents. Clean the tools and the handles with a clean dry cloth.

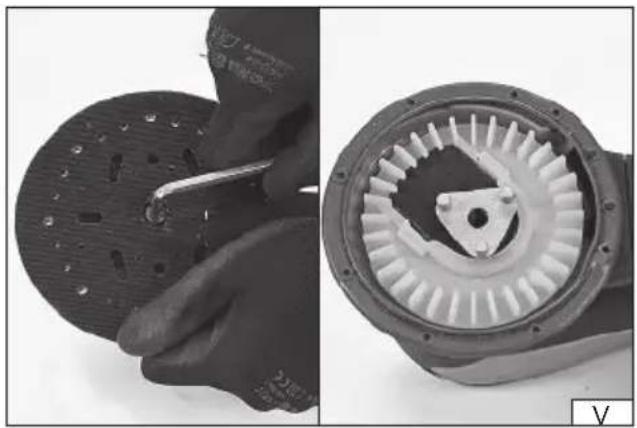

After each use, remove the pad and clean the inside of the dust extraction chamber. A dusty chamber reduces the dust extraction efficiency, which impairs the conditions and safety in the workplace. Hold the pad with your hand and use a key to unscrew the mounting bolt (V). Clean the interior of the dust extraction chamber with a paintbrush or a brush with a soft bristle and a jet of compressed air at a pressure of not more than 0.3 MPa. After cleaning the inside of the chamber, install the pad and screw in the mounting bolt.

GERÄTEBESCHREIBUNG

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

1124/YT-82206EC/2024

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Standards / Technical Specifications:

and fulfil requirements of the following European Directives:

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:
