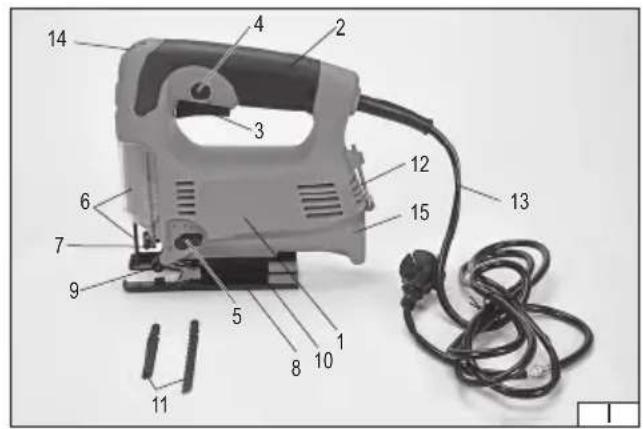

1. body

2. handle

3. electric switch

4. switch lock

5. adjustment of the blade oscillation

6. blade cover

7. blade holder

8. adjustment of the cutting angle

9. blade roll

10. basis

11. blade

12. wrench

13. power cord with plug

14. revs control knob

15. connection of the dust extraction

DE

Read the operating instruction

Wear hearing protectors

Wear protective goggles

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

Jigsaw is a power tool designed for cutting wood surfaces and surfaces made of wood-based materials, plates made of polyethylene or polypropylene and soft metals, by using the appropriately selected blades to the type of material. The tool allows for easy cutting of the workpiece surfaces with possibility to adjust the cutting angle. Correct, reliable, and safe operation of the device is dependent on its proper use, therefore:

Prior to working with the tool, you should read all the instruction and keep it around.

For any injury and damage, which are resulting from failure to comply with its designation, lack of compliance with the safety regulations and instructions of this manual, the supplier is not responsible. The tool misuse causes also the loss of user's rights to the guarantee, as well as warranty.

EQUIPMENT

There should be in the factory packaging:

• jigsaw
• blade cover
• blade
• wrench

TECHNICAL PARAMETERS

Parameter Unit Value
Catalog number YT-82274
Mains voltage [V~] 220 - 240
Frequency [Hz] 50
Rated power [W] 450
Rotations	[min ^1 ] 500 - 3100
Insulation class II
Cutting thickness max.
- wood [mm] 65
- polyethylene / polypropylene [mm]	6
- soft metals	[mm]	6
Weight	[kg]	2
Noise level:
- pressure (iddle run)	[dB(A)]	86,0 ± 3,0
- power (iddle run)	[dB(A)]	97,0 ± 3,0
Vibrations (wood / metal cutting)	[m/s ^2 ]	8,27 ± 1,5 / 10,65 ± 1,5
Degree of protection		IP20

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

EN

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SAFETY WARNINGS FOR RECIPROCATING SAWS

Hold the power tool by its insulated grip surfaces while performing operations where the cutting part may come into contact with concealed wiring or its own cable. If the cutting part comes into contact with live cable, it may cause the exposed metal parts of the power tool to become live and electrocute the operator.

Use clamps or other practical means to securely fasten and support the workpiece on a stable platform. Holding the workpiece with your hand or pressed against your body makes it unstable and can lead to loss of control.

EN

ASSEMBLY OF EQUIPMENT ELEMENTS

ATTENTION! The installation of the equipment may be done only with disconnected power supply. Remove the plug from the mains outlet.

The jig saw machine is supplied complete. After opening the factory packaging you should check whether all items were packed.

PREPARING FOR OPERATION

Attention! All activities associated with the installation and replacement of saw blades, their adjustment and the maintenance of a power tool should be carried out when the operating voltage of the tool is switched off, therefore, before the further proceedings, you should carry out the following steps: Remove the plug from the mains outlet!

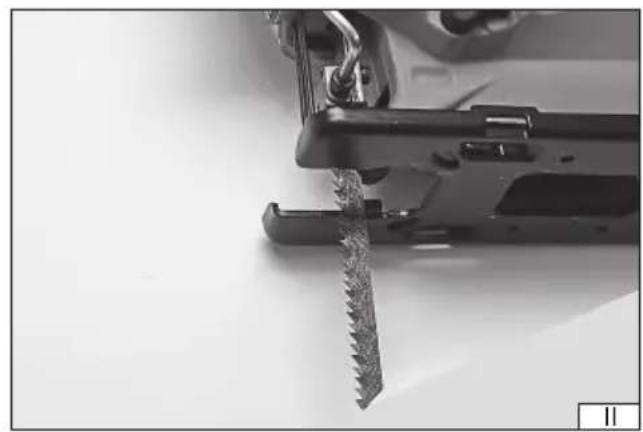

Mounting and replacing the saw blade

You should check whether the blade is not damaged, cracked, whether the cutting teeth are not broken, etc. In the case of damage, replace the saw blade for a new one.

Two saw blades are supplied with the jigsaw. Saw blades for wood and wood-based materials have widely spaced teeth and saw blades for metal and plastic have finer teeth. You should select a saw blade suitable for the planned work. Mount the saw blade with its teeth facing forward.

The blade should be put in the spindle gap, so it will rest by its back on the notch in the roll.

Attention! Mounting the saw blade should be carried out in the protective gloves. This will reduce the risk of injury.

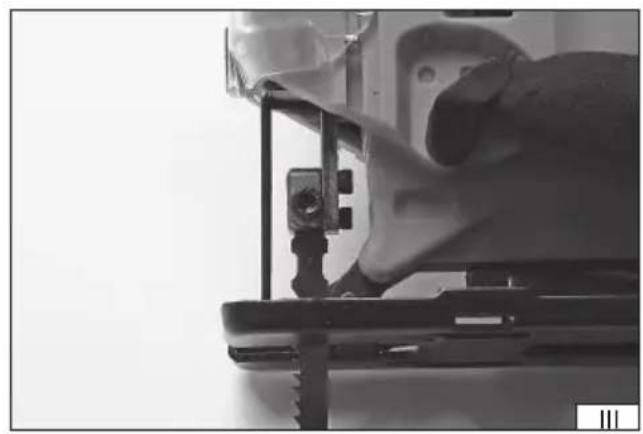

By using a wrench, loosen the screws fixing the blade, do not remove the bolts completely. Insert the blade holder into the resulting gap. (II). Tighten the fixing screws, so the blade is properly fixed: the blade can not be pulled out of the spindle.

The saw blade removal should be carried out in reverse order.

Setting the saw blade oscillation (III)

Electric jig saw is equipped with an adjustable gradual oscillation adjustment. Adjusting is possible by using the lever. The lower the number of setting, the smaller the oscillations of the saw blade. With the setting labeled by "0" the saw blade oscillations are disabled.

Saw blade oscillations allow for easy cutting, and their grade should be selected by an experiment, for example, by cutting the waste material. However, you should follow the instructions, which are presented below:

• in order to obtain the most smooth edge of the cut you should set the lowest possible grade of oscillations or even turn them off,
• when cutting thin materials (e.g., sheet of metal), you should switch of the oscillations,
• when cutting hard materials (e.g. steel), set the low rate of oscillation,
• when cutting soft materials, you should set the maximum degree of oscillation.

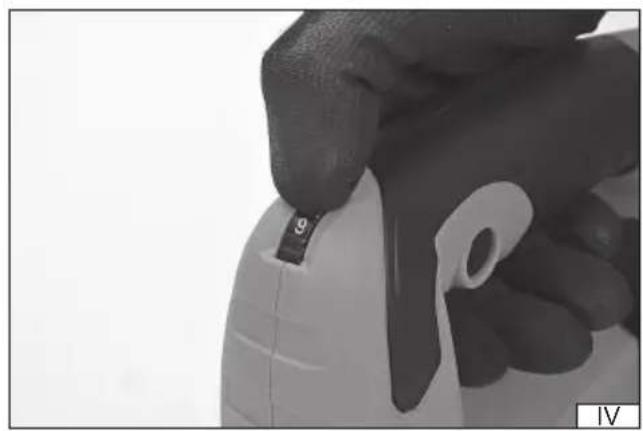

Setting the blade speed (IV)

The jigsaw is equipped with a potentiometer, which allows to set the movement speed of the blade. By rotating the potentiometer ring, you can select the right blade speed for your work. The lower the numerical setting, the lower is speed of the blade.

Speed should be selected experimentally, for example, by cutting the waste material. Lower speeds should be used when cutting plastics or aluminum. Speed should also be reduced, when the blade is jammed during cutting.

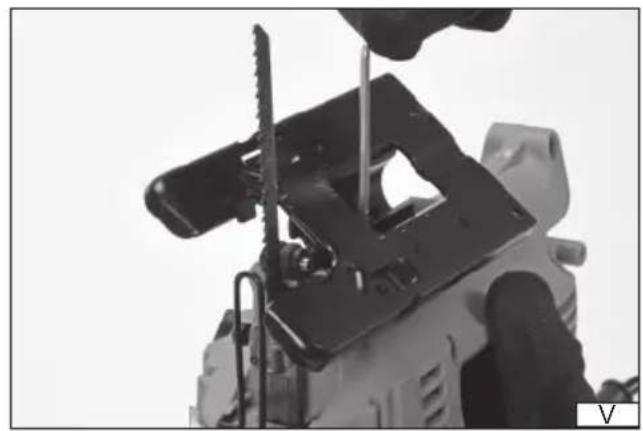

Setting the cutting angle (V)

The jig saw allows for adjustment of the angle of traverse cutting in the range from 0 to 45 degrees, tilting is possible in to the left and right as well. If it is necessary, before adjusting, you should remove the dust extraction connection. You should loosen the screws that secure the basis of the jigsaw, but do not unscrew them completely. Then move the basis back or forward and tilt it by setting the desired cutting angle. The base can have hooks or a scale to facilitate setting the most common cutting angles. After adjustment you should tighten the base screws and make sure that the base itself does not change the set angle.

Before every operation, you should check, that the blade cover is mounted correctly and that it is lowered. Wear eye protection, hearing protectors and working gloves. Mount the workpiece to the workstation, for example by using carpentry clamps, vice, etc. Never hold the cut material only by hands or other parts of the body. In the case of cutting you must support the material at its ends and near the cut line. Supports must be placed on both sides of the cut line so during cutting, the blade would not jammed in the cut kerf. During cutting the foot must be supported by its whole surface on the cut material. To the outlet of the dust extraction connection your should connect the dust extraction installation.

Switching on and off the jig saw

You should make sure that at the work place the surface is even, stable and free of pollution.

EN

Adopt a stable stand.

Grab the tool by the handle. You should not rest any parts of the working tools on any subject or object.

Press the switch with your finger and hold it. Check whether the saw blade is moving freely, and the tool does not suspiciously or excessively vibrate, it is not emitting smoke or a strange smell. If you notice any deviations from the correct operation, you should turn off the tool, remove the plug from the mains and take the tool to an authorized repair point.

The switch is equipped with a lock, which can be used during long-lasting cutting. When the switch is pressed down, you should move the lock button to the left or right. Releasing the lock occurs when the switch is pressed.

The tool is stopped after possible unlocking and releasing the pressure on the switch. After switching off, the saw blade can move for some time.

Cutting in a straight line

Before you start cutting it is recommended that you mark the cut line, for example by using a pencil. You should also make sure that the cut material does not contain items of different hardness. For example, cut the wood should not contain nails, staples and other metal items. You should also avoid the electrical wires, that may be hidden in the cut material.

Rest the tool base front on the cut material so the saw blade is not touching it.

Turn on the tool and let the saw blade achieve full adjusted speed.

Start cutting by leading the jigsaw with your both hands. During cutting you should press the saw to the surface and, at the same time, by a smooth motion lead it along the cutting line. Use the minimum pressure which allows for the correct operation. Avoid tilting the jigsaw, hitting by the blade in the crossing material and changes in direction of the cut. Failure to follow these instructions may lead to jamming of the saw blade in the cut material, damage or destruction (cracks) blade or cut material, as well as to damage of the jigsaw itself.

During cutting a hard metal, for example a steel, your should use frequent breaks to cool the saw blade.

Cutting the curved line

You should comply with all the recommendations as in the case of cutting in a straight line, but you should use the saw blades which are designed to cut arcs. They have a narrower blade than the saw blades designed for straight cutting and they make it easier to cut arcs.

In the case of cutting holes, you should mark the shape of the cut hole, and then, at its edge, drill a hole with a diameter larger than the width of the cutting blade. Drilled hole wall should be touching the line of the marked hole, which will be cut. In the hole you should insert the saw blade of the jig saw and start cutting.

Additional notes

Do not allow to overload the tool, its external surface temperature should never exceed 60^ C.

At the end of work you should turn off the tool, remove the plug from the mains socket, and make maintenance and inspection.

The declared, total value of vibrations was measured by using a standard test methods and can be used for comparison of one tool with the other. The declared, Declared total value of vibration can was used in a preliminary assessment of exposure.

Attention! The vibration emissions when working with the tool can differ from the declared value, depending on how you use the tool. Attention! You should specify the security measures to protect the operator, which are based on an assessment of exposure in the actual conditions of operation (including in it all parts of the work cycle, such as, for example, the time when the tool is turned off or it is idling, and its activation time).

MAINTENANCE AND OVERHAUL

ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.

DE

CHARAKTERISTIK DES WERKZEUGES

DECLARATION OF CONFORMITY

0425/YT-82274/EC/2025

We declare and guarantee with full responsibility that the following products:

Electric jig saw 220 - 240 V\~; 50 Hz; 450 W; 500 - 3100 min ^-1 ; 65 mm; item no. YT-82274

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-2-11:2016 + A1:2020 + A11:2024

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019 + A2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
